SS3 SAE/DOT Ram Horizontal Fog Light Kit

$408.00 USD

Diode Dynamics | SKU / Part Number: DD7076 | Barcode: 00691025934250

Choose Your Power Level

Sport (14.5 watts) Pro (36 watts) Max (38.5 watts)

Choose Your Optic and Color

White SAE Fog Yellow SAE Fog

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

These foglamps are a direct swap for a number of vehicles - see list of known fitments below.
Ram 1500 2009-2012
Ram 2500 2010-2018
Ram 3500 2010-2018
Ram 4500 2013-2018
Ram 5500 2013-2018
Application: Fog Light

Description

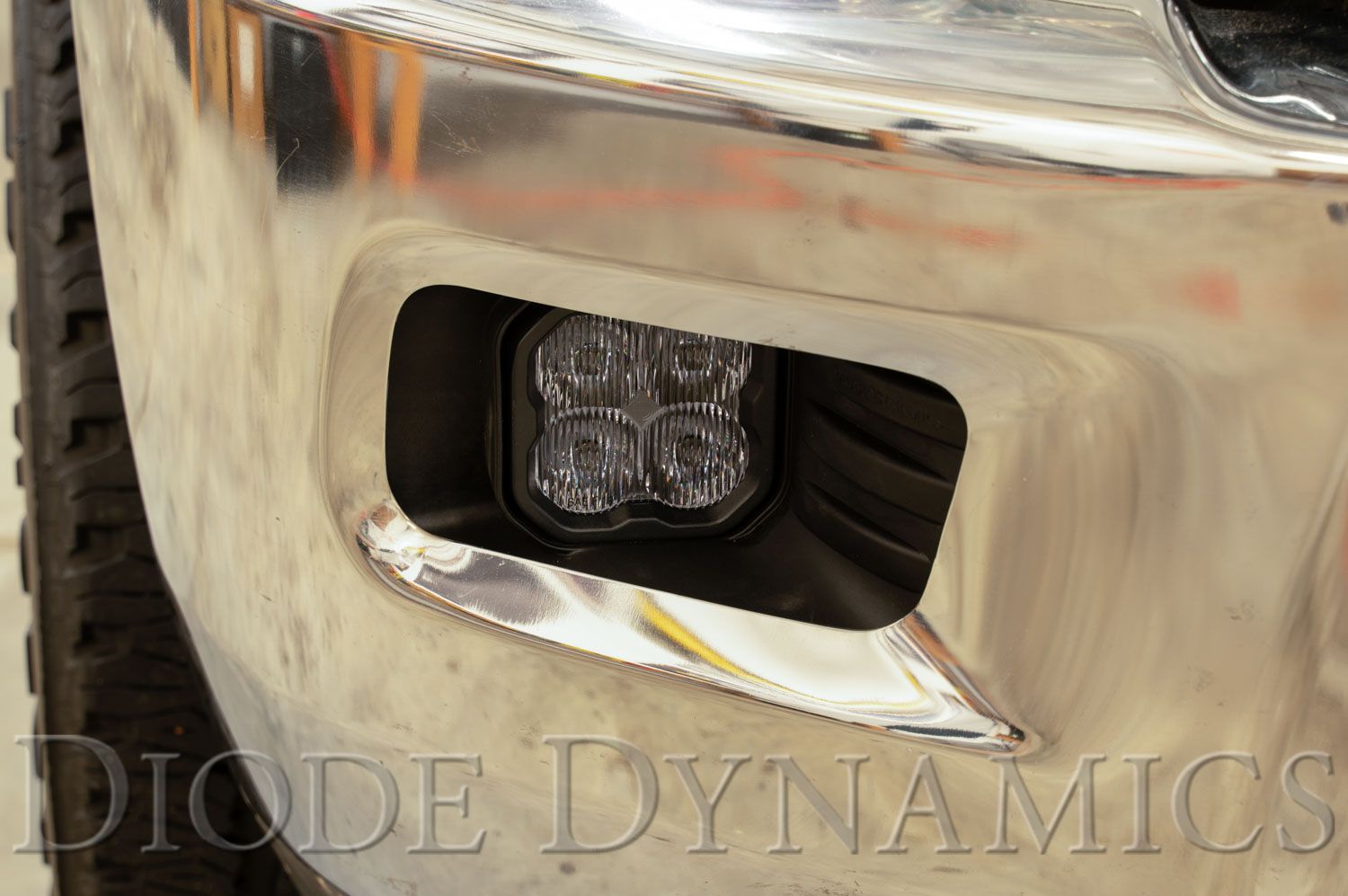

The Diode Dynamics SS3 Sport Type Ram Horiz Kit ABL White SAE Fog offers a performance-driven upgrade for your vehicle's lighting. Upgrade your fog lights with our SS3 Ram Horizontal Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality. Designed with attention to detail, it provides: Advanced TIR optics provide high efficiency and focus; High-intensity automotive-type LEDs; Pin-fin heatsink design; Integrated Deutsch-style connector; Durable powdercoated aluminum construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SS3 Sport Type Ram Horiz Kit ABL White SAE Fog, DD7076
SS3 Sport Type Ram Horiz Kit ABL Yellow SAE Fog, DD7077
SS3 Pro Type Ram Horiz Kit ABL White SAE Fog, DD7079
SS3 Pro Type Ram Horiz Kit ABL Yellow SAE Fog, DD7080
SS3 Max Type Ram Horiz Kit ABL White SAE Fog, DD7081
SS3 Max Type Ram Horiz Kit ABL Yellow SAE Fog, DD7082
Features and Benefits

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Whats Included

Included in the box:
- Two (2) SS3 3” Standard LED Pods

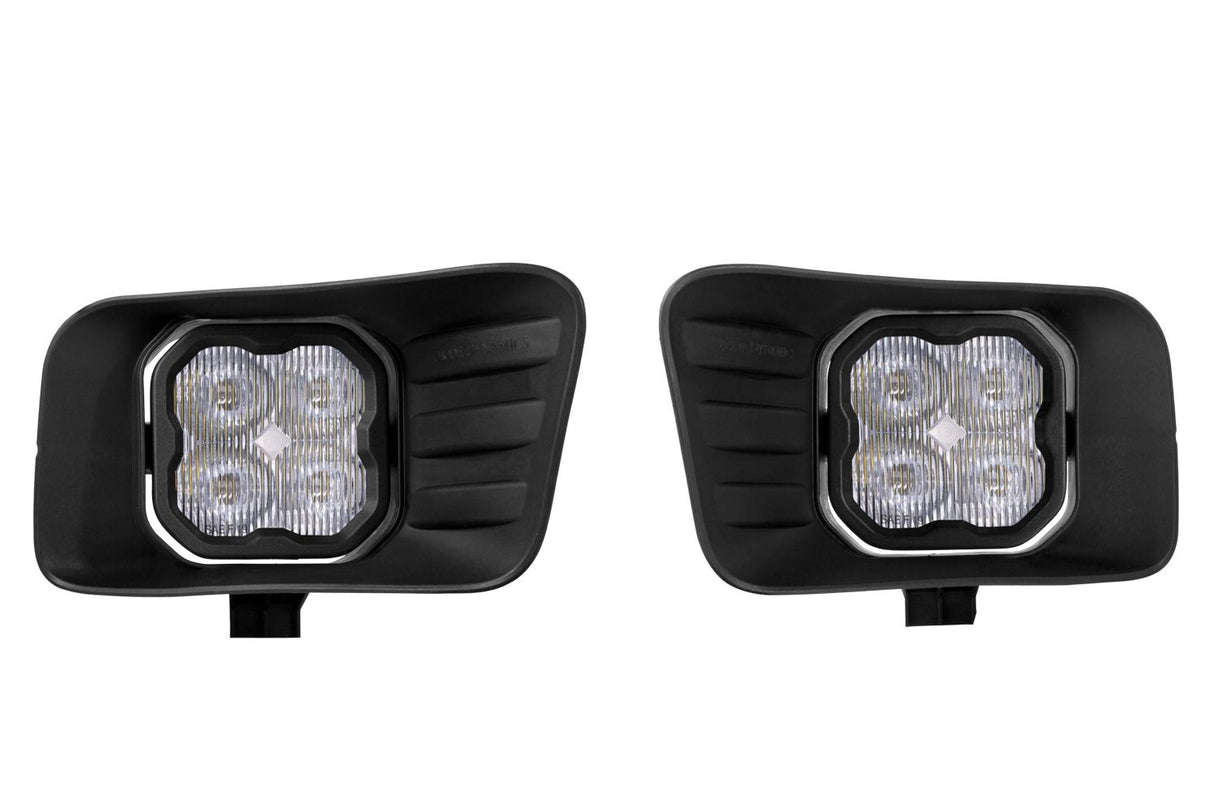

- Two (2) Ram Horizontal brackets
- Two (2) 9006 DT 4-Pin backlight tap wires
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” Standard LED Pods
- Two (2) Ram Horizontal brackets
- Two (2) 9006 DT 4-Pin backlight tap wires
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” Standard LED Pods
- Two (2) Ram Horizontal brackets
- Two (2) 9006 DT 4-Pin backlight tap wires
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” Standard LED Pods
- Two (2) Ram Horizontal brackets
- Two (2) 9006 DT 4-Pin backlight tap wires
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” Standard LED Pods
- Two (2) Ram Horizontal brackets
- Two (2) 9006 DT 4-Pin backlight tap wires
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” Standard LED Pods
- Two (2) Ram Horizontal brackets
- Two (2) 9006 DT 4-Pin backlight tap wires
- Mounting hardware
- Mounting guide
Tech Specs

Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum

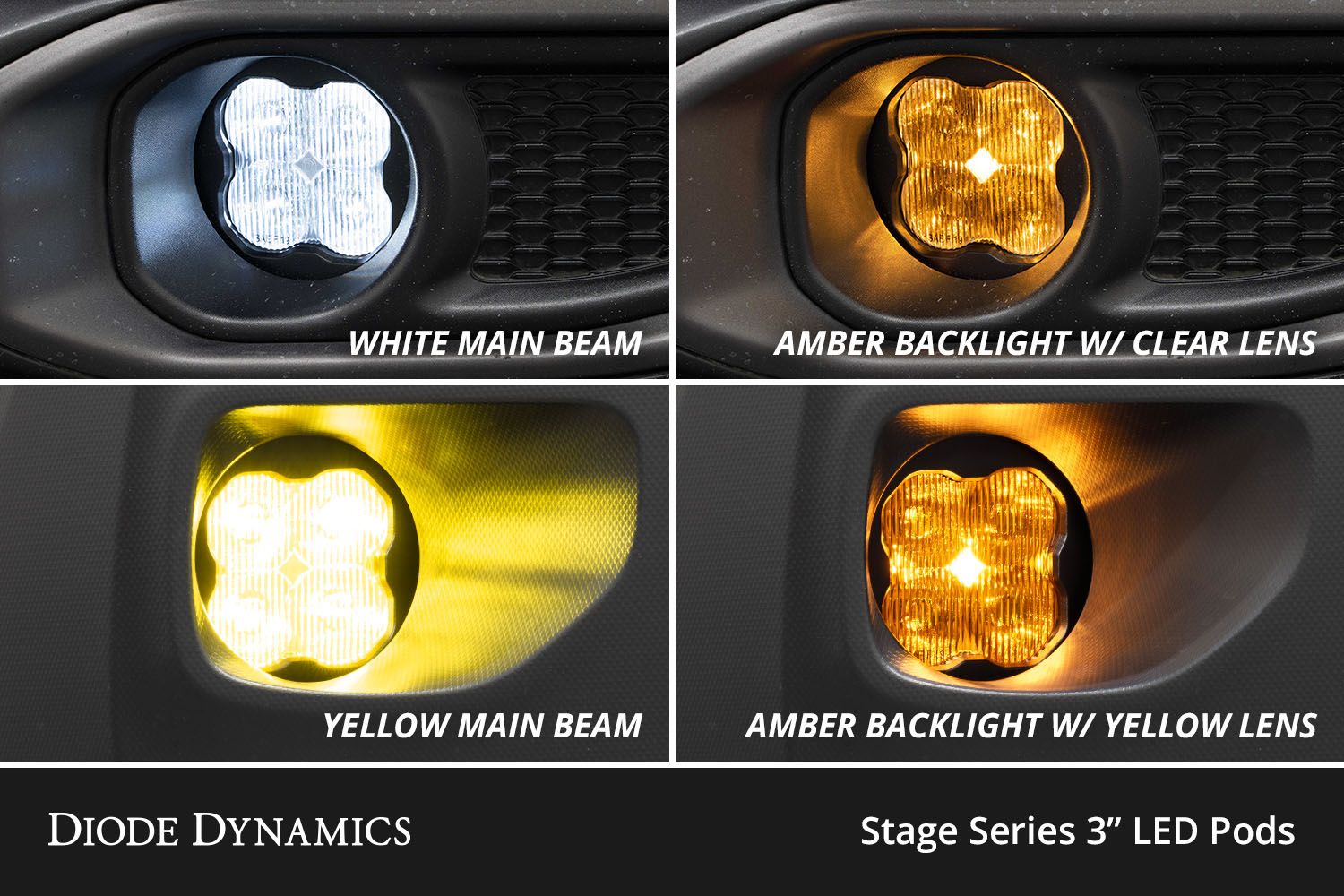

Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 10 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Wattage: 14.5
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 9 050 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 300 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Wattage: 14.5
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 36 Backlight: 0.4
Intensity (lux): 11 900 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 000 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 36 Backlight: 0.4
Intensity (lux): 10 900 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 2 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Beam Angle: Driving 20°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 38.5 Backlight: 0.4
Intensity (lux): 18 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 500 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 38.5 Backlight: 0.4
Intensity (lux): 12 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 500 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
