Offroad: 2 Pod Power Harness

$77.00 USD $86.00
Morimoto  |  SKU / Part Number: BAF000H  |  Barcode: 840203396964

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

WHAT'S INCLUDED

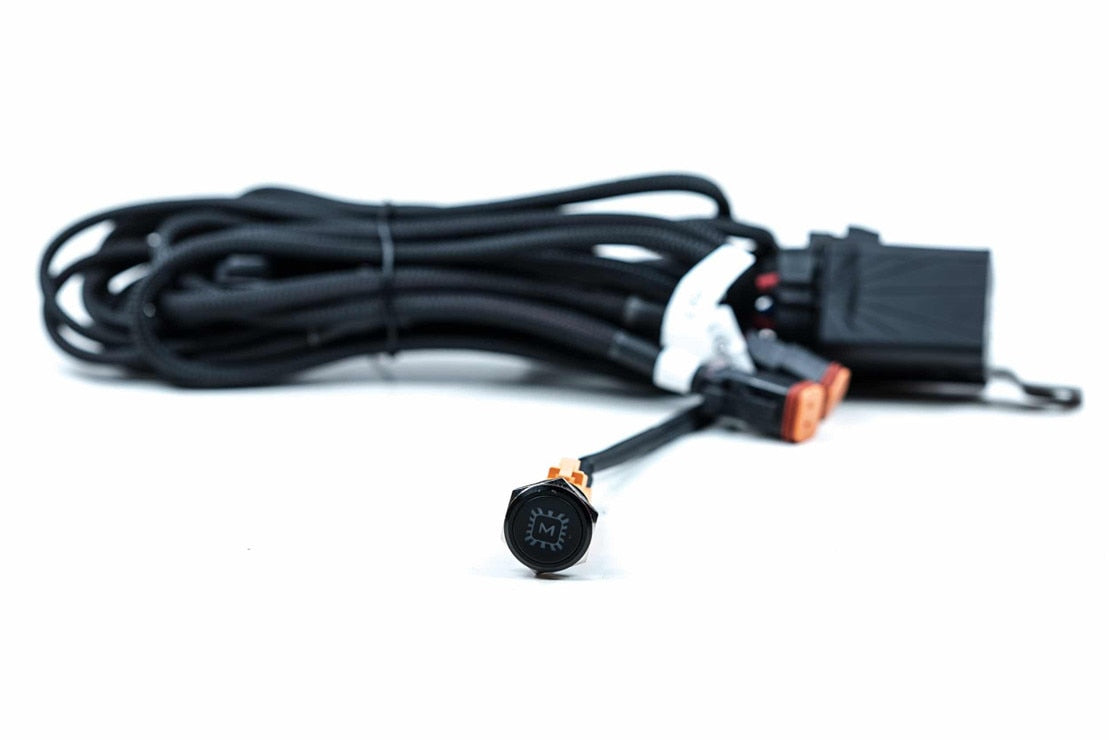

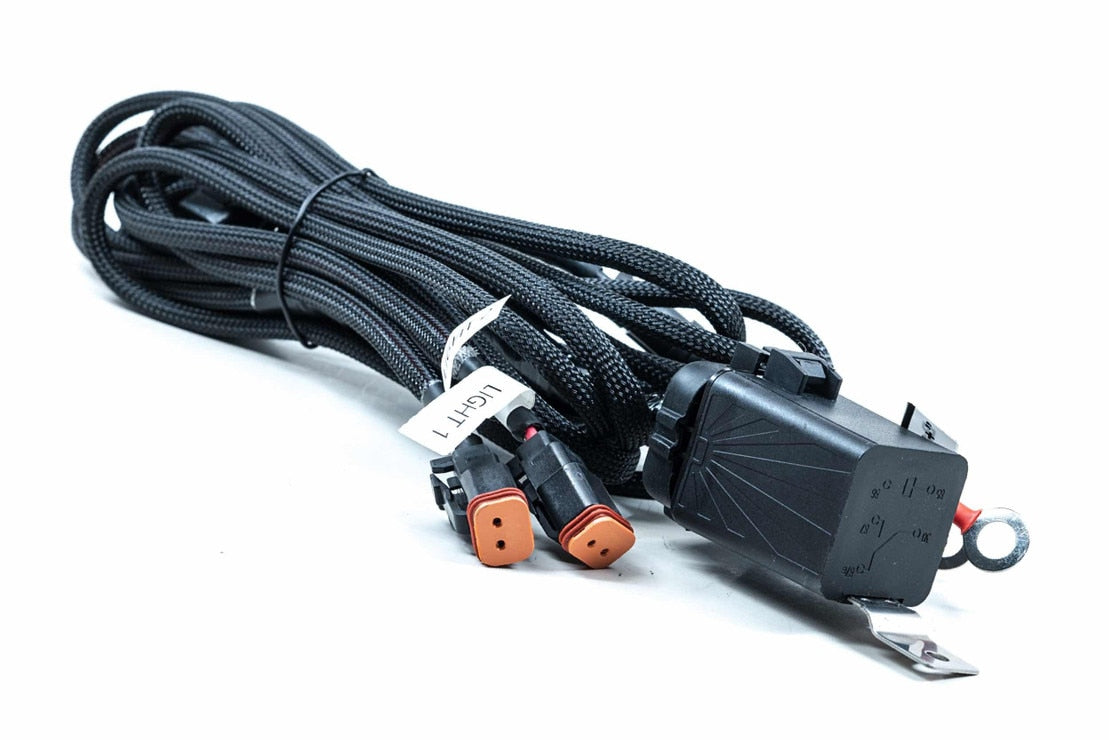

Harness: 1x Morimoto Two Pod Power Harness

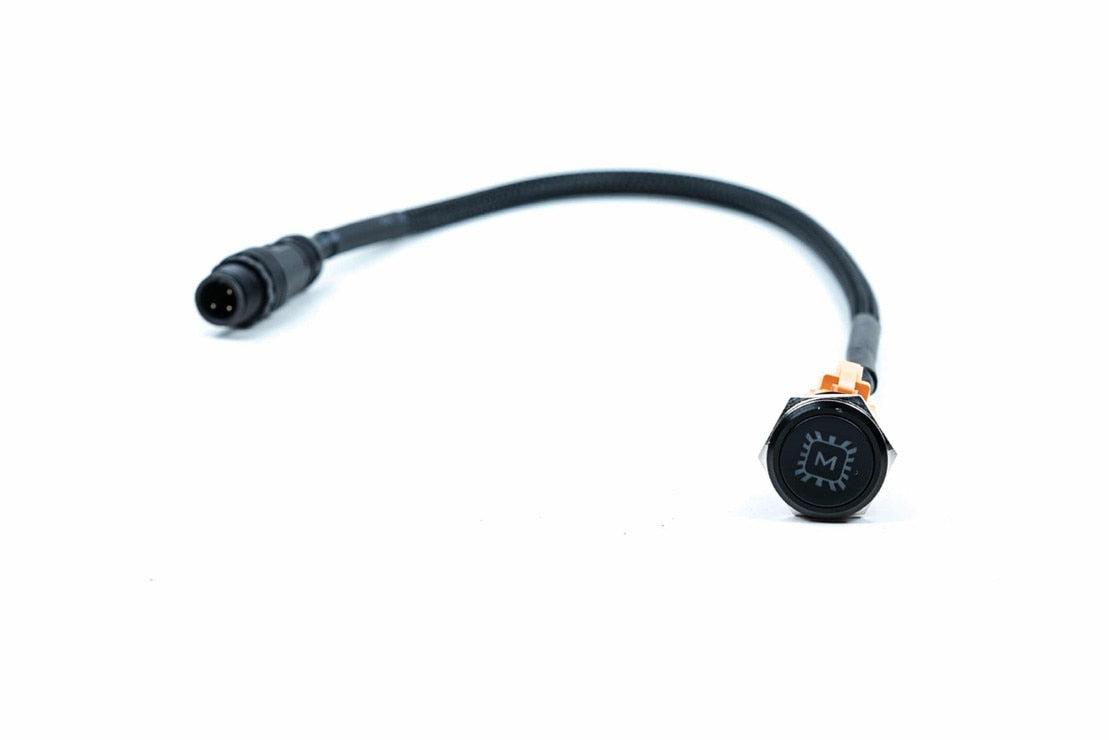

Switch Subharness 1: 1x M-Spec Push Button Switch
Switch Subharness 2: Upfitter Switch Input (35cm 20AWG)

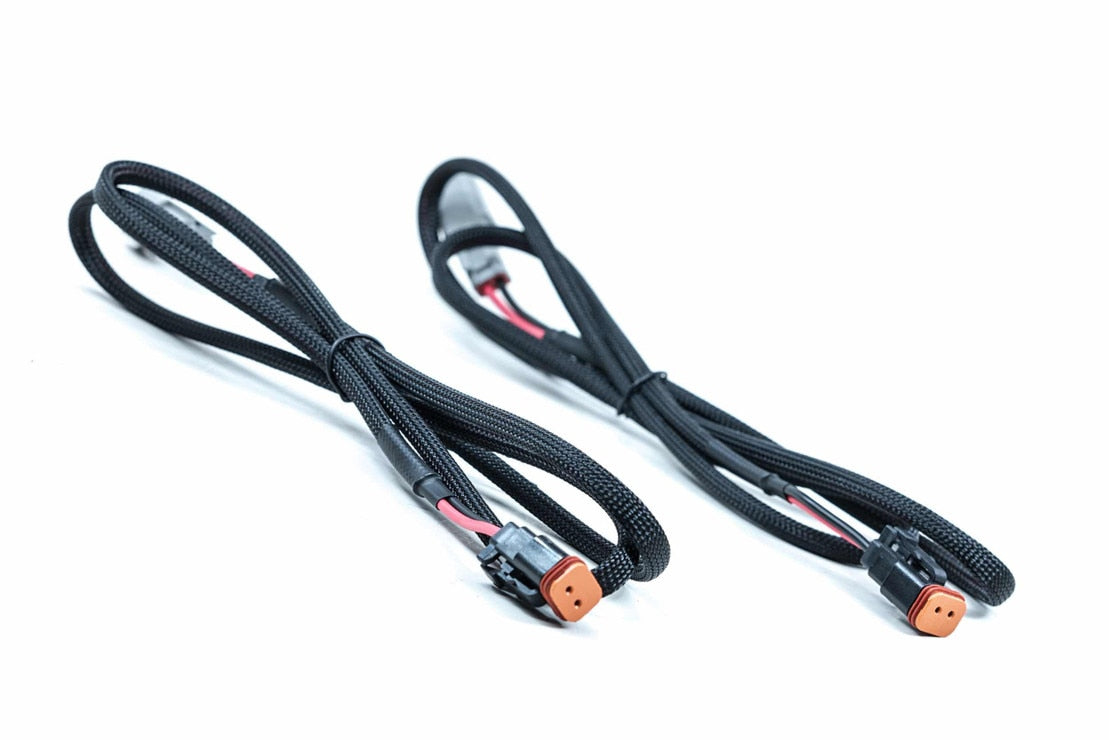

Output Extension: 1x 1.25m/49.2in Extension

5 Year Warranty

COMPATIBILITY

Morimoto Pods: 1Banger, 2Banger, and 4Banger
Other Pods: With Deutsch DT 2-Pin inputs
BangerBar System: Yes
Pod Quantity: 2

TECH SPECS

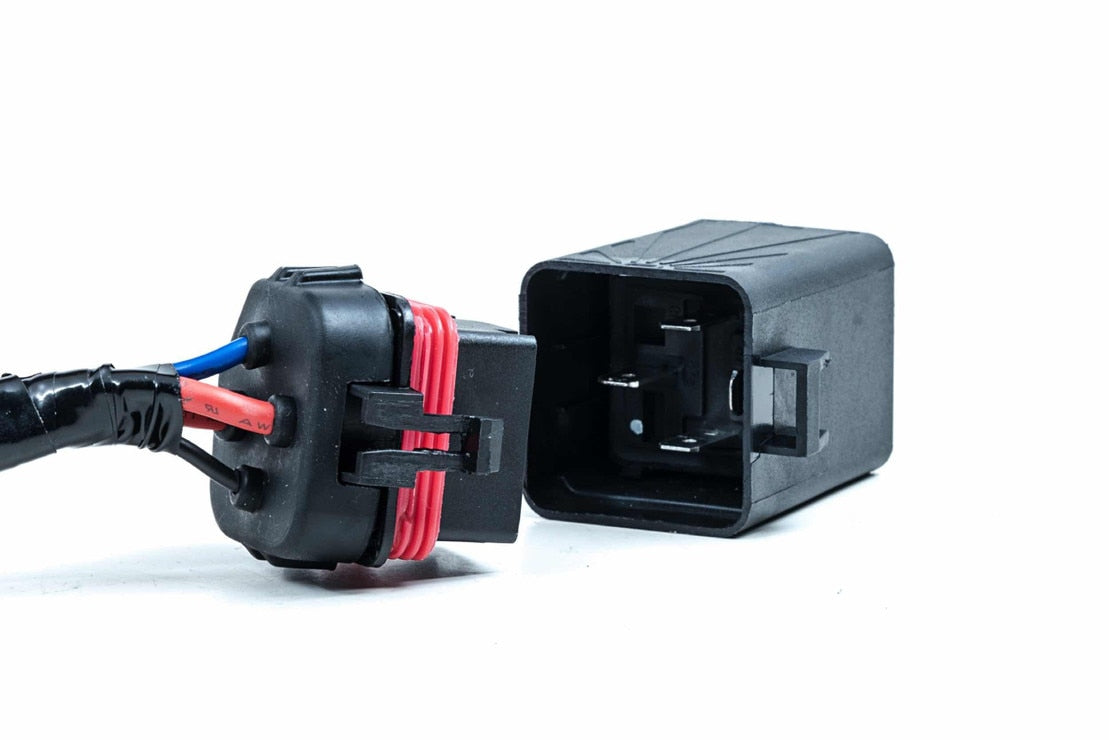

Relays: 2x Triple-Sealed 40A M-Spec

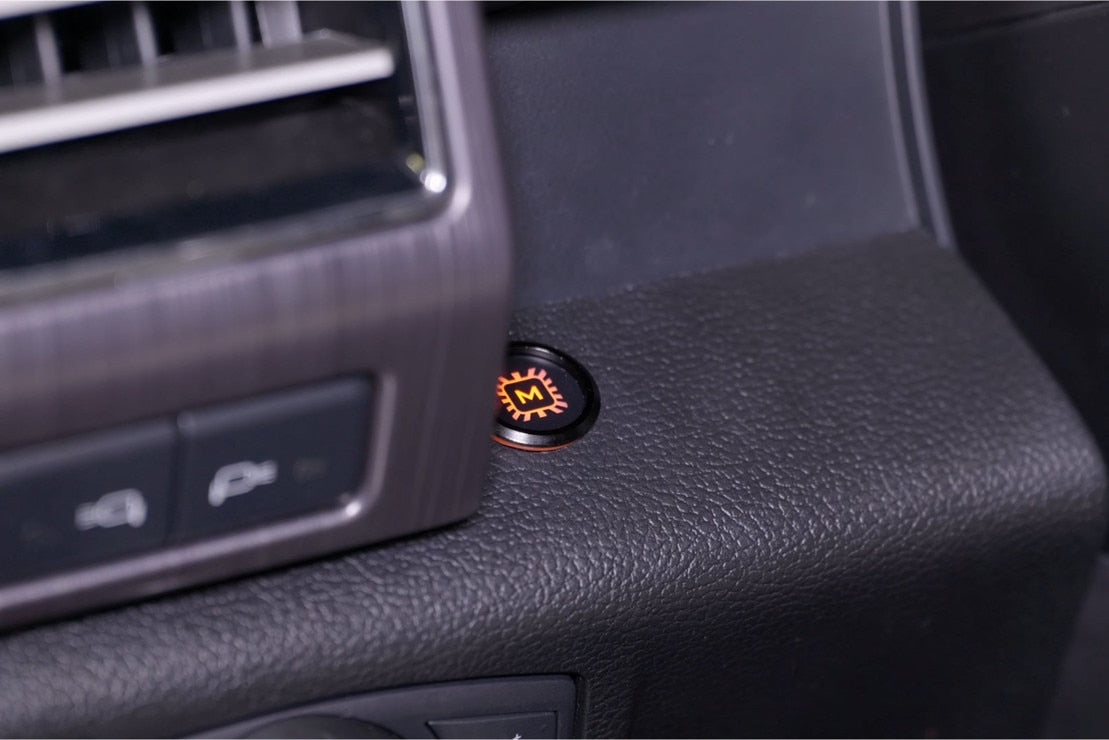

Switch: Normally-Off M-Spec w/ Amber backlight
Outputs: 2x Deutsch DT 2-Pin Female
Main Input: 12V+/- Battery Ring Terminals (8.5mm ID / 15mm OD)
Wiring: 16AWG-20AWG Copper Stranded
Insulation: Black Tech Flex Braided Mesh

Installing Yourself?

Click here for the PDF install guide

Description

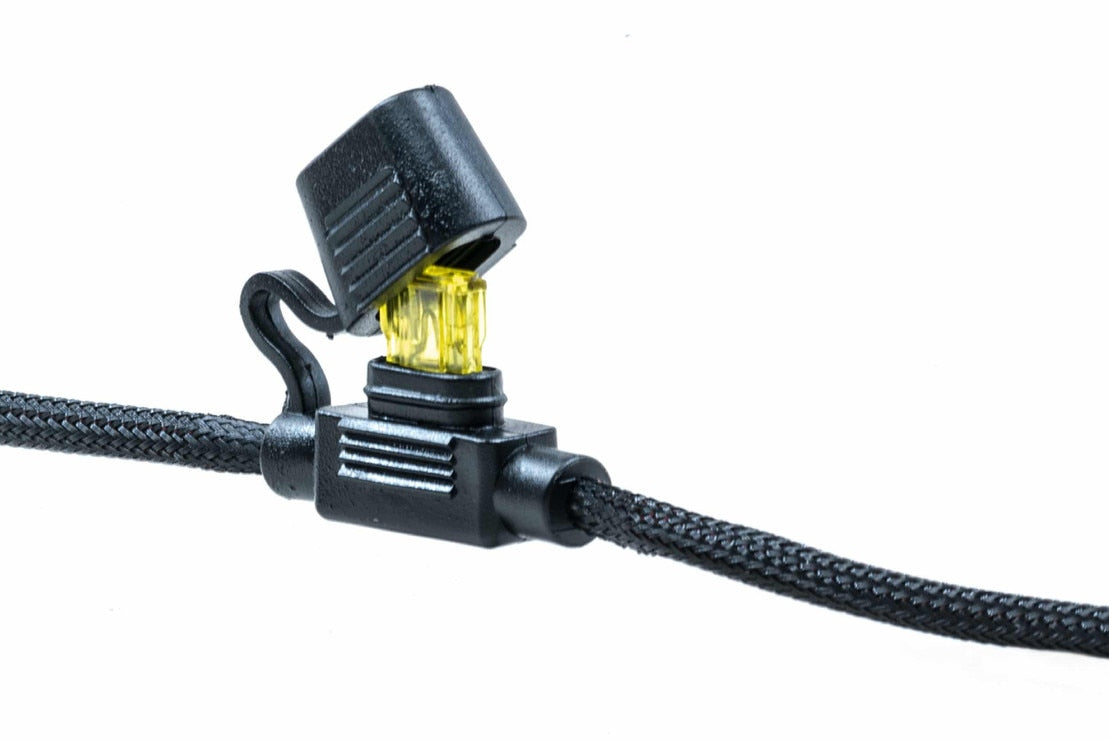

Introducing the Morimoto 4Banger LED Pod Wiring Harness, your ticket to top-tier off-road lighting performance! Designed to set a new industry standard, this harness guarantees reliability and quality that's second to none. Every component has been meticulously crafted for durability and ease of use, from the triple-sealed proprietary 4-pin relay to the over-molded inline fuse holder with a 20A mini fuse. With its 16 AWG copper wiring encased in black mesh insulation and heavy-duty heat shrink protection, this harness ensures flicker-free, dependable power delivery. Installing it is a breeze thanks to its logical layout and the in-line barrel connector for the in-cabin push-button switch, eliminating the need to struggle with firewall access. Not only is it a perfect match for Morimoto 4Banger LED pods, but it's also compatible with other off-road lighting setups using a DT-style two-pin input. Don't compromise on quality; choose the Morimoto 4Banger LED Pod Wiring Harness for unmatched performance and reliability.
