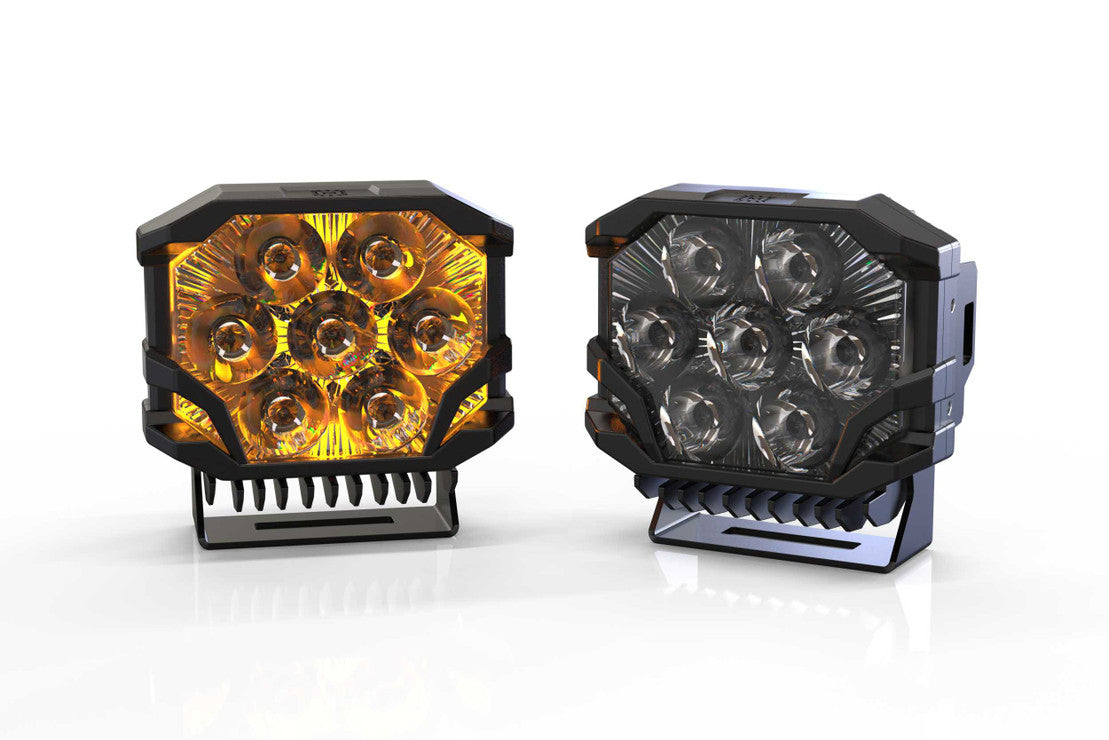

Morimoto BigBanger LED Pod SINGLE (Universal)

$359.00 USD
Morimoto  |  SKU / Part Number: BAF120
Power Level
Optic Type
Add optional relay harness

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

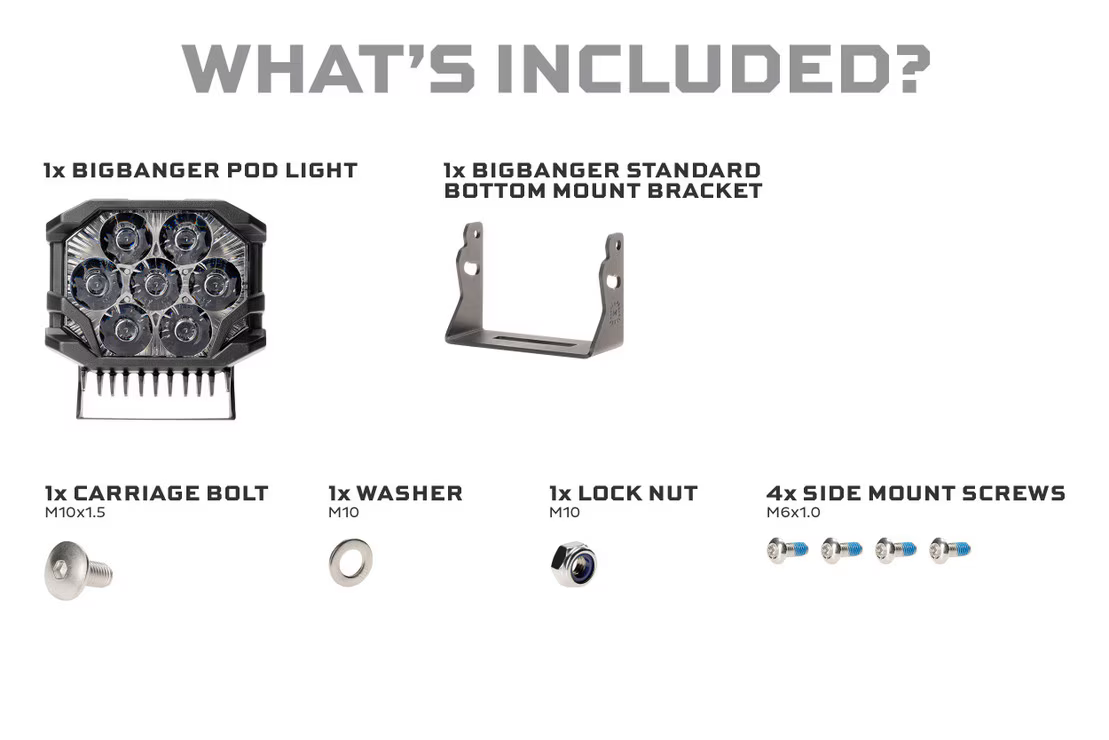

WHAT'S INCLUDED

LED Pod: 1x Morimoto BigBanger (Sold Individually)
Bracket: 1x Universal U-Shape Mount
Hardware: Complete pack (Stainless Steel)
Optional Wiring: 1x Morimoto Switched Relay Harness

5 Year Warranty

COMPATIBILITY

Universal: With Included U Brackets

TECH SPECS

NCS:
Intensity (White): 115,000 Cd (1,150 lux @ 10m)
Intensity (Yellow): 82,500 Cd (825 lux @ 10m)
Input Voltage: 9-18V DC
Current: 2.7A @ 13.5V DC
Peak Luminosity (raw): 3,150lm
Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
Light Source: 7x Nichia NCSY131F or Nichia NCSW131F, 12x CREE XP-E2 PC Amber (Backlight)
Input: Integrated Deutsch DT 4-Pin w/ Pigtail
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
HXB:
Intensity (White): 210,000 Cd (2,100 lux @ 10m)
Intensity (Yellow): 158,000 Cd (1,580 lux @ 10m)
Input Voltage: 9-18V DC
Current: 4.75A @ 13.5V DC
Peak Luminosity (raw): 7,000lm
Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
Light Source: 7x Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)
Input: Integrated Deutsch DT 4-Pin w/ Pigtail
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Installing Yourself?

Click here for the PDF install guide

Description

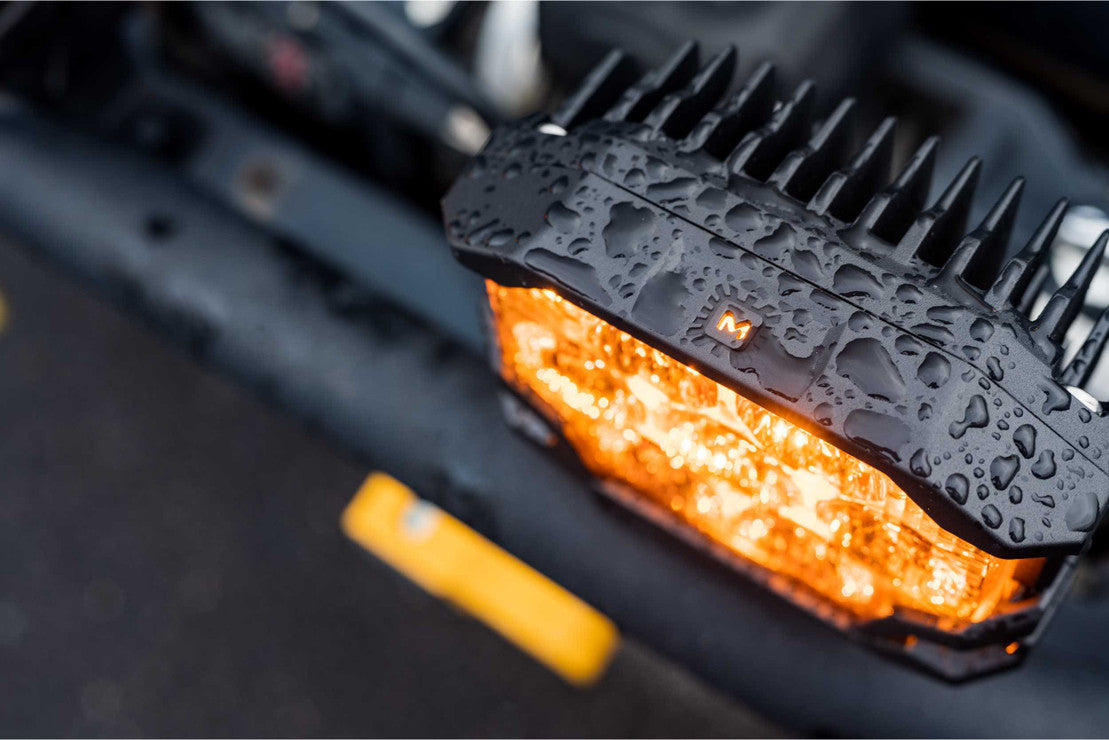

Light up the darkness with Morimoto's BigBanger LED Pods. Maximize your off-road experience with powerful, Osram LEDs for brightness and IP69K protection for rugged weatherproofing. Choose from HXB or NCS LEDs with customizable beam patterns, colors and linkable pods to make your light bar exactly the way you want it. Feel safe and secure with the bright and alert BigBanger LED Pods.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Morimoto

Morimoto BigBanger LED Pod SINGLE (Universal)

From $359.00 USD

Light up the darkness with Morimoto's BigBanger LED Pods. Maximize your off-road experience with powerful, Osram LEDs for brightness and IP69K protection for rugged weatherproofing. Choose from HXB or NCS LEDs with customizable beam patterns, colors and linkable pods to make your light bar exactly the way you want it. Feel safe and secure with the bright and alert BigBanger LED Pods.

Power Level

  • NCS White
  • NCS Yellow

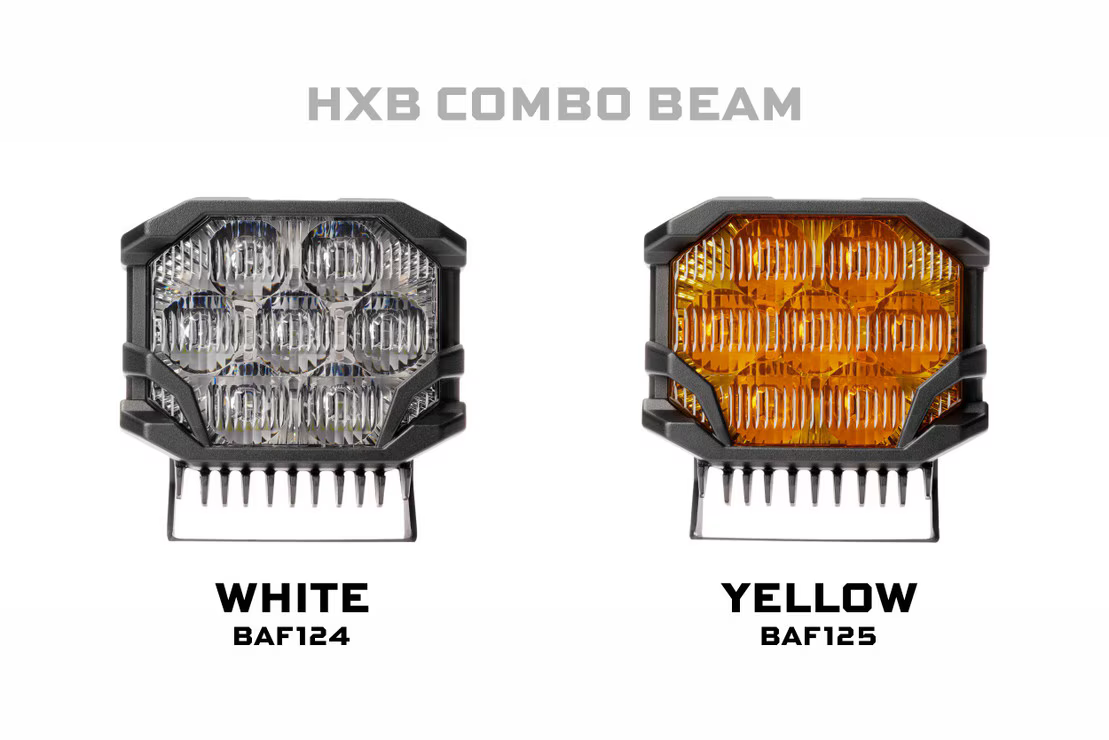

  • HXB White
  • HXB Yellow

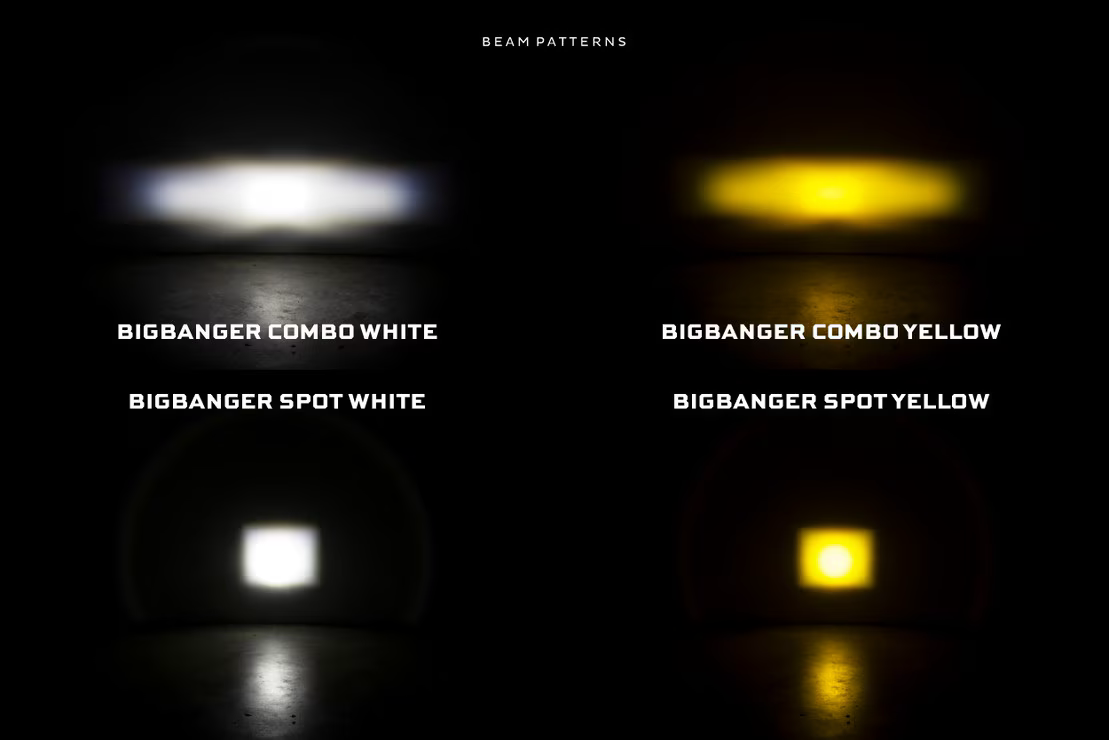

Optic Type
