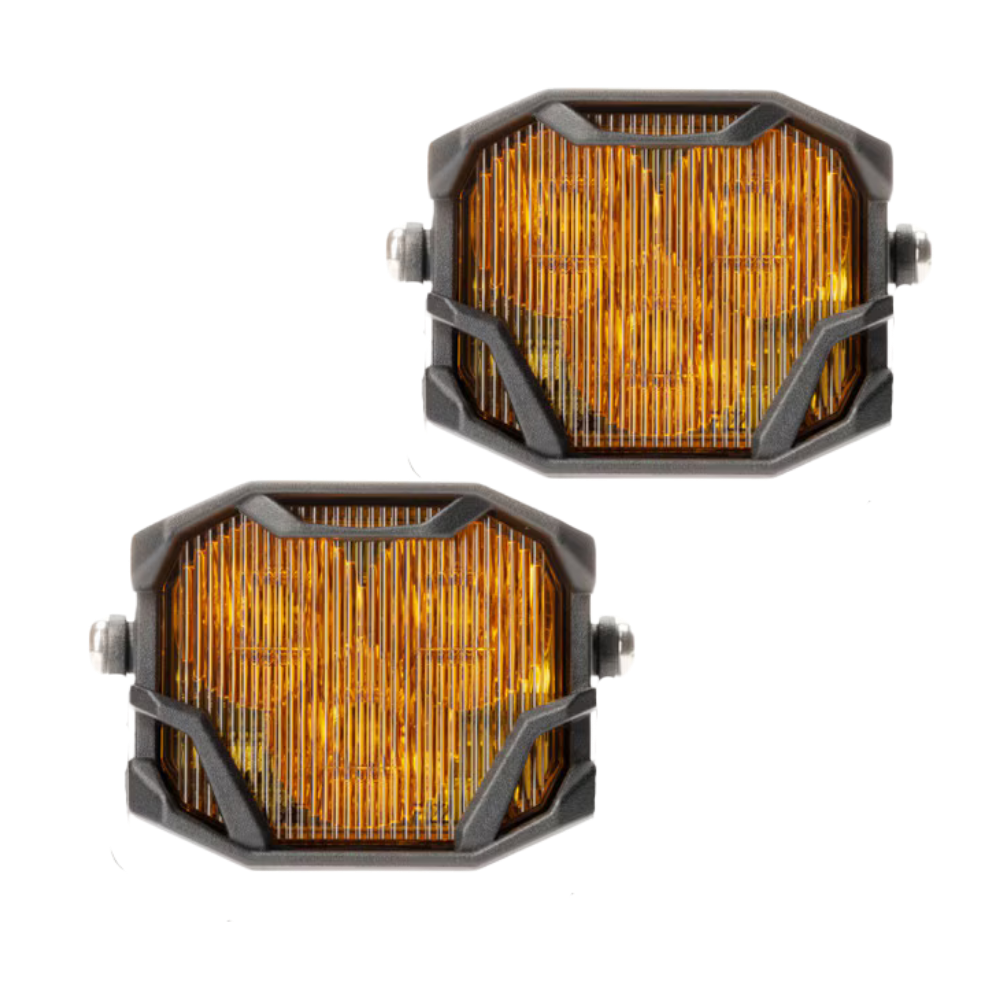

Morimoto 4Banger LED Pods PAIR (Universal)

$365.00 USD

Morimoto | SKU / Part Number: BAF005.2 | Barcode: 840203378441

Power Level

NCS White NCS Yellow HXB White HXB Yellow

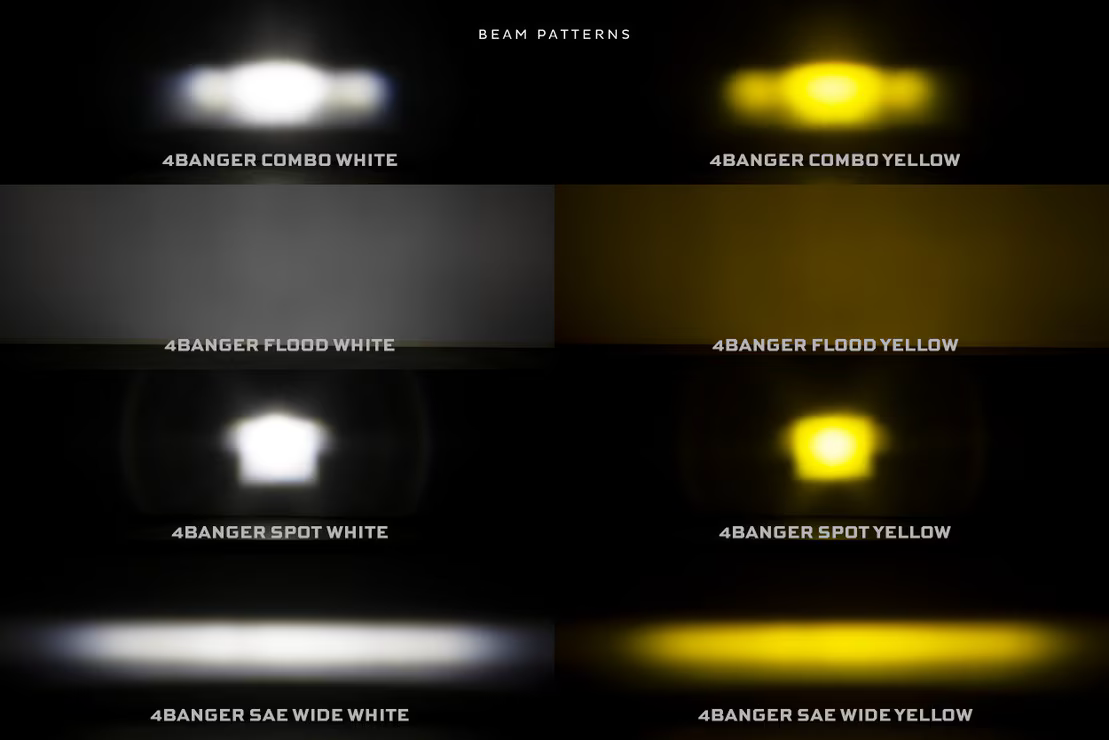

Optic Type

Wide Spot Combo Flood

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

Introducing the Morimoto 4Banger HXB Wide - the ultimate off-road LED lights designed to revolutionize your driving experience! Since 2008, Morimoto has been the go-to choice for lighting upgrades in the automotive aftermarket, consistently delivering unrivaled performance, reliability, and style. Our HXB Wide Beam lights are not just powerful; they're SAE-Compliant, boasting an 80% brightness advantage over the competition. With cutting-edge Osram HX Boost LEDs and precision optics, these lights offer superior width, intensity, and control, making them the ultimate off-road LED fog lights. But it's not just about performance; it's about fitment too. The 4Banger HXB is 30% smaller than alternatives, ensuring an OEM+ fitment with Morimoto's mounting kits, available for popular trucks. For a street-legal fog light, our HXB Wide beam models are SAE J583 compliant. Don't settle for less; upgrade to the Morimoto 4Banger HXB Wide and experience off-road lighting like never before!

Install Guide

Specifications

Product Currently Selected

Morimoto 4Banger 2.0 NCS LED Pod:s (SAE Wide / White / Set)

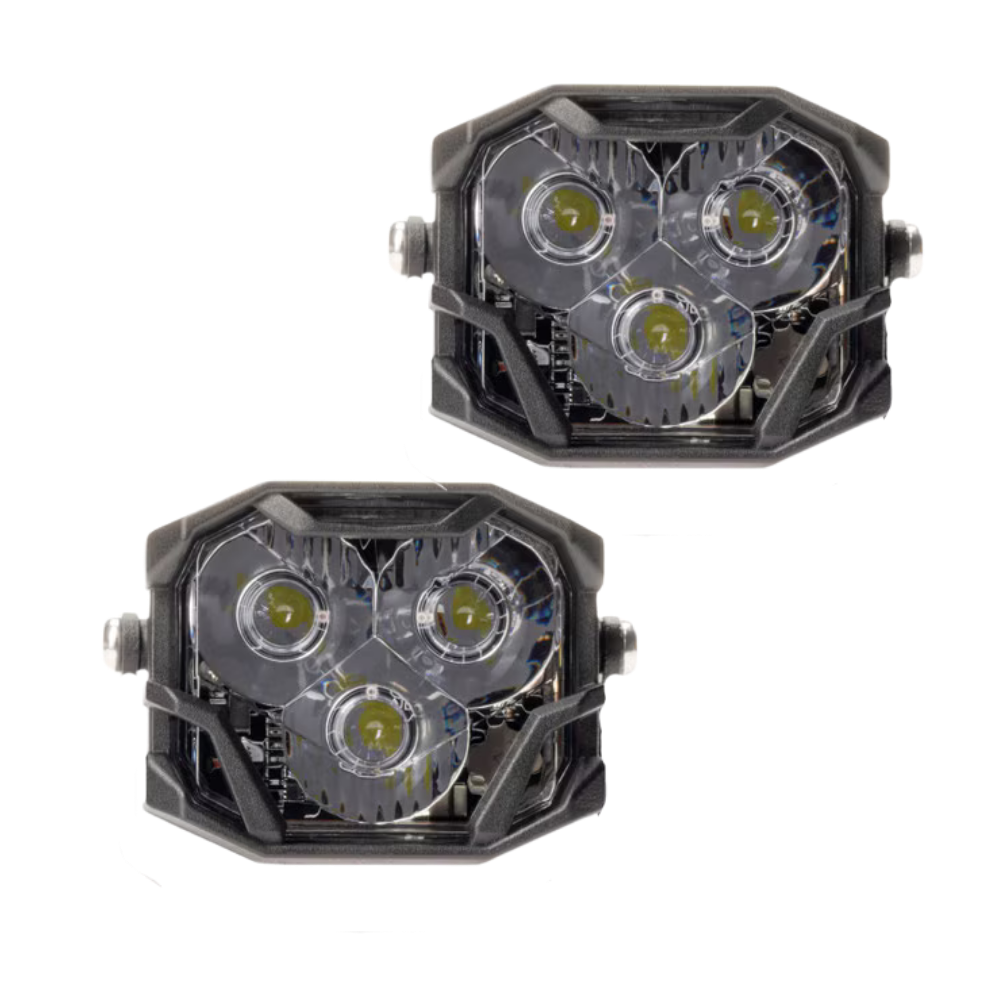

Morimoto 4Banger 2.0 NCS LED Pod:s (Spot / White / Set)
Morimoto 4Banger 2.0 NCS LED Pod:s (Combo / White / Set)

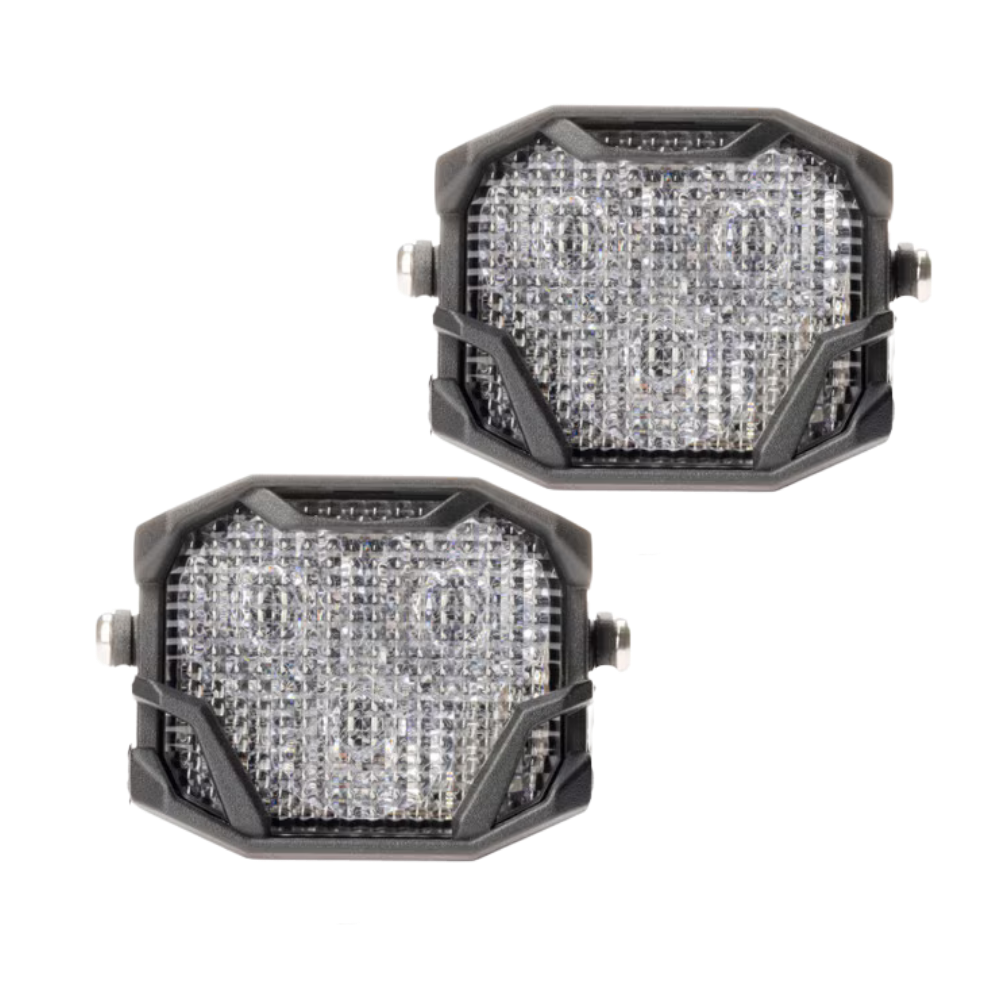

Morimoto 4Banger 2.0 NCS LED Pod:s (Flood / White / Set)
Morimoto 4Banger 2.0 NCS LED Pod:s (SAE Wide / Yellow / Set)
Morimoto 4Banger 2.0 NCS LED Pod:s (Spot / Yellow / Set)

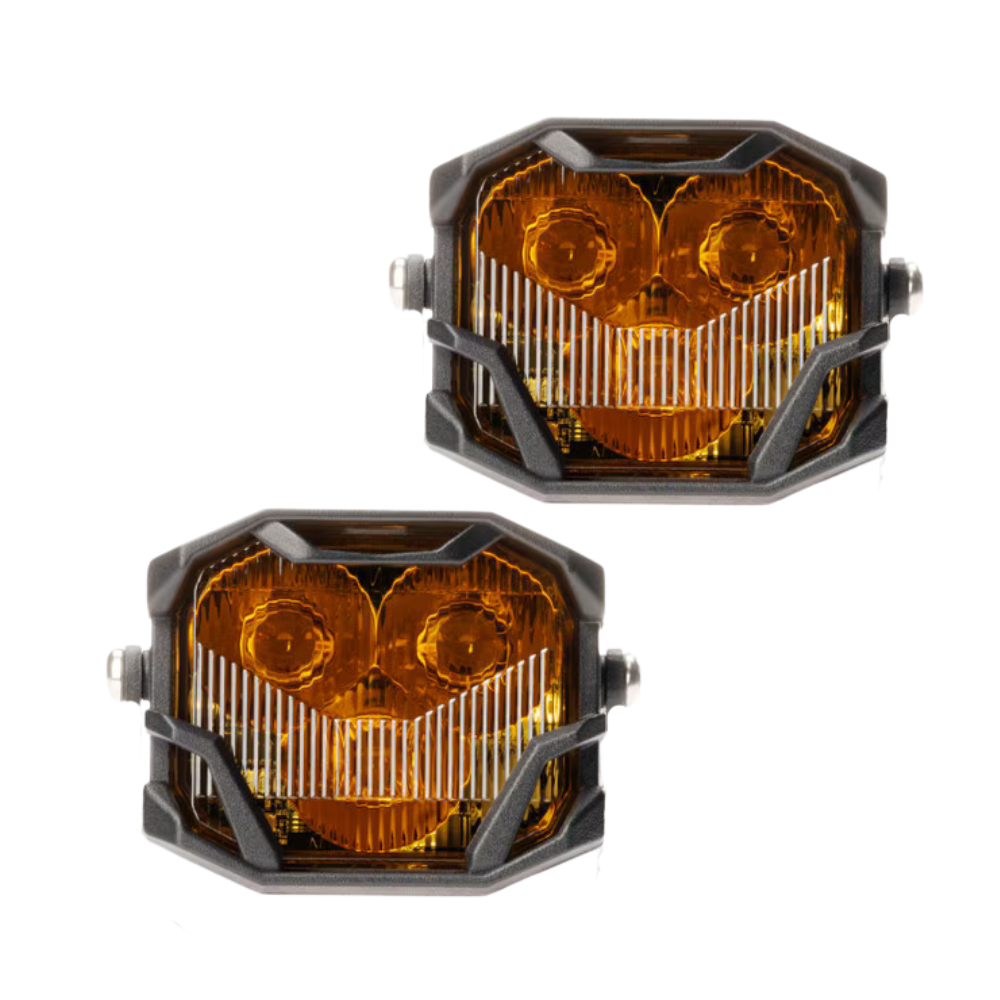

Morimoto 4Banger 2.0 NCS LED Pod:s (Combo / Yellow / Set)

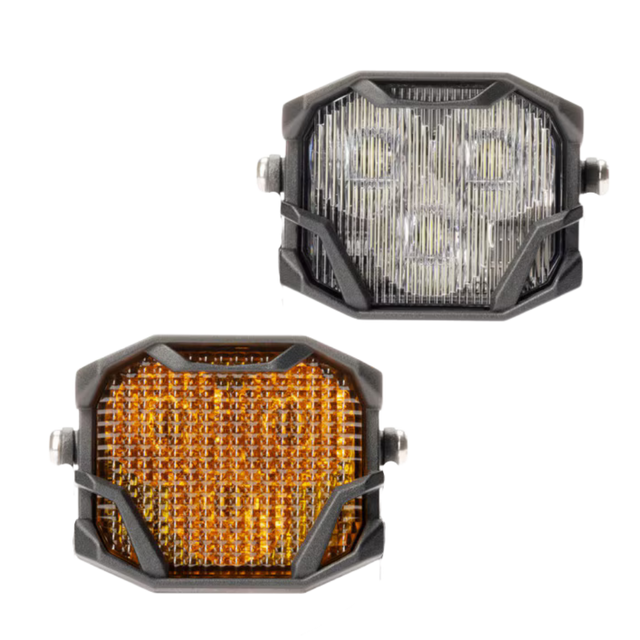

Morimoto 4Banger 2.0 NCS LED Pod:s (Flood / Yellow / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (SAE Wide / White / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (Spot / White / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (Combo / White / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (Flood / White / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (SAE Wide / Yellow / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (Spot / Yellow / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (Combo / Yellow / Set)
Morimoto 4Banger 2.0 HXB LED Pod:s (Flood / Yellow / Set)

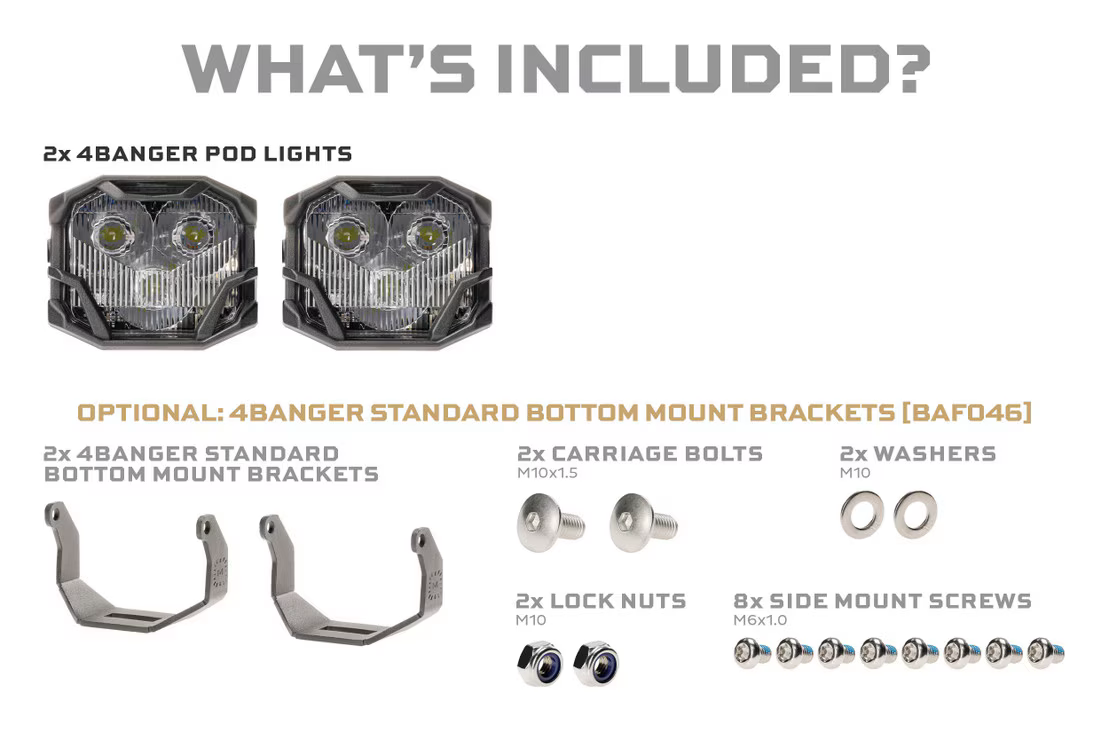

Brackets Included

Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
Not Included, Must Purchase Separately (BAF046 or BAF047)
LED Pods Included

2x (One Pair) Morimoto 4Banger NCS Wide (White)
2x (One Pair) Morimoto 4Banger NCS Spot (White)
2x (One Pair) Morimoto 4Banger NCS Combo (White)
2x (One Pair) Morimoto 4Banger NCS Flood (White)
2x (One Pair) Morimoto 4Banger NCS Wide (Yellow)
2x (One Pair) Morimoto 4Banger NCS Spot (Yellow)
2x (One Pair) Morimoto 4Banger NCS Combo (Yellow)
2x (One Pair) Morimoto 4Banger NCS Flood (Yellow)
2x (One Pair) Morimoto 4Banger HXB Wide (White)
2x (One Pair) Morimoto 4Banger HXB Spot (White)
2x (One Pair) Morimoto 4Banger HXB Combo (White)
2x (One Pair) Morimoto 4Banger HXB Flood (White)
2x (One Pair) Morimoto 4Banger HXB Wide (Yellow)
2x (One Pair) Morimoto 4Banger HXB Spot (Yellow)
2x (One Pair) Morimoto 4Banger HXB Combo (Yellow)
2x (One Pair) Morimoto 4Banger HXB Flood (Yellow)
Wiring Included

Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Wire harness sold seperately
Hardware Included

Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Not included. Comes with brackets (Sold separately)
Peak Intensity

(White): 12,400 Cd (Post Warm-Up) (124lux @ 10m)
(White): 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
(White): 55,500 Cd (Post Warm-Up) (555lux @ 10m)
Intensity: 860 Cd (Post Warm-Up) (8.6 lux @ 10m)
(Yellow): 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
(Yellow): 73,500 Cd (Post Warm-Up) (735lux @ 10m)
(Yellow): 38,850 Cd (Post Warm-Up) (384lux @ 10m)
(Yellow): 602 Cd (Post Warm-Up) (6.02lux @ 10m)
(White): 21,000 Cd (Post Warm-Up) (210lux @ 10m)
(White): 170,000 Cd (Post Warm-Up) (1,700lux @ 10m)
(White): 78,000 Cd (Post Warm-Up) (780lux @ 10m)
Intensity: 1,750 Cd (Post Warm-Up) (17.5 lux @ 10m)
(Yellow): 14,700 Cd (Post Warm-Up) (147lux @ 10m)
(Yellow): 119,000 Cd (Post Warm-Up) (1190lux @ 10m)
(Yellow): 54,600 Cd (Post Warm-Up) (546lux @ 10m)
(Yellow): 1,225 Cd (Post Warm-Up) (12.25lux @ 10m)

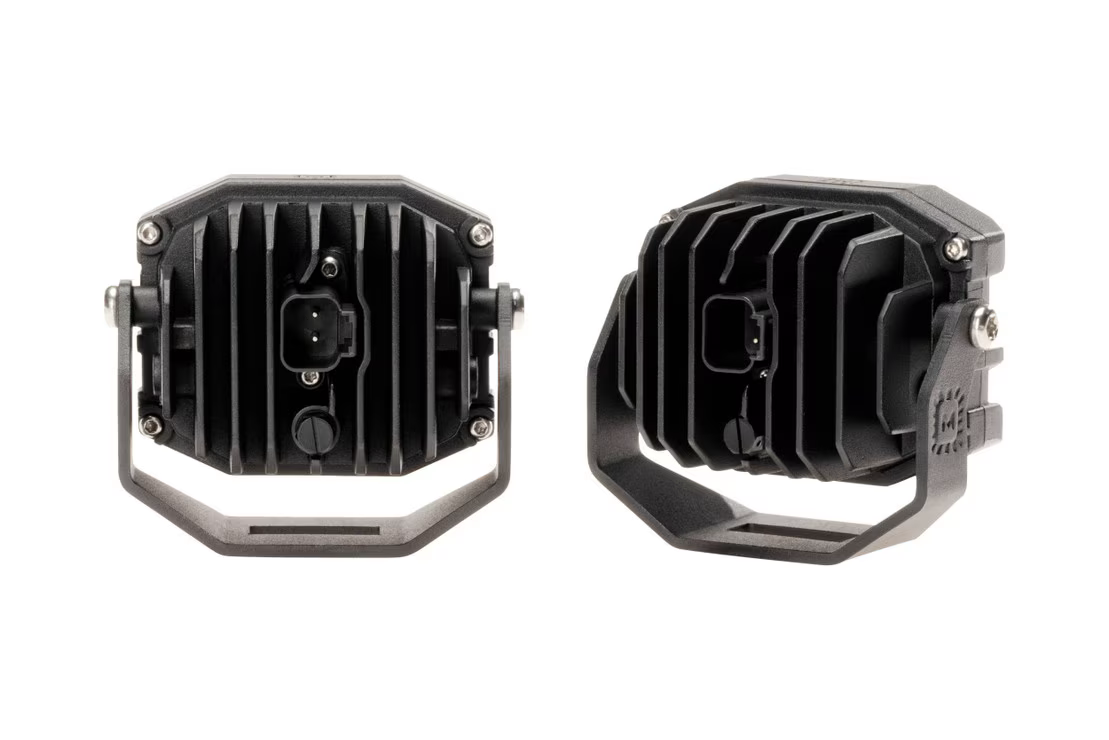

Input

Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Integrated Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Integrated Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Proprietary Overmolded Deutsch DT 2-Pin
Input Voltage

9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
9-18V DC
Power

15.6w
15.6w
15.6w
15.6w
15.6w
15.6w
15.6w
15.6w
42w
42w
42w
42.0w
42w
42w
42w
42w
Current

1.5A @ 13.5V DC
1.5A @ 13.5V DC
1.5A @ 13.5V DC
1.50A @ 13.5V DC
1.5A @ 13.5V DC
1.5A @ 13.5V DC
1.5A @ 13.5V DC
1.5A @ 13.5V DC
3.2A @ 13.5V DC
3.2A @ 13.5V DC
3.2A @ 13.5V DC
3.20A @ 13.5V DC
3.2A @ 13.5V DC
3.2A @ 13.5V DC
3.2A @ 13.5V DC
3.2A @ 13.5V DC
Peak Luminosity

Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 1,350lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Per 1 pod: 3,000lm
Light Source

3x Nichia NCSW131F
3x Nichia NCSW131F
3x Nichia NCSW131F
3x Nichia NCSW131F
3x Nichia NCSW131F
3x Nichia NCSW131F
3x Nichia NCSW131F
3x Nichia NCSW131F
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
3x Osram HX Boost (5700K)
Material

Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
IP Rating

IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)
IP69K (Dust / High Pressure Water Resistant)

Morimoto 4Banger LED Pods

These lights are absolutely stellar. High quality and efficient. I installed white wide, yellow wide and yellow flood onto my 2012 Ford F150 Raptor. Couldn't be happier.

4bangers

Still waiting for the truck the lights will go on so haven’t driven with them but in the garage the pattern is crisp and very bright. Construction is solid. Customer service with Ess K has been top notch.
