Jeep JL/JT Rubicon Steel Bumper LED Light Kit XL Pro Baja Designs

This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! With a 4,900 lumen count and power draw of 40 watts, the XL Pro is the only single housing LED auxiliary light on the market that has the distance of an 8 HID with the smooth spread of an LED.

The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature. Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar.

An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee


• Limited Lifetime Warranty Complete Purchase Protection


• uService Replaceable Lenses And Optics


• ClearView All The Light, Right Where You Need It.


• MoistureBlock Waterproof, Rain Proof, Submersible


• CopperDrive Only LED Driven At 100 percent


• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 4,900 Utilizing 4 Cree XP-L LEDs


• Wattage/Amps: 40W / 2.90A


• Dimensions: 4.43 x 3.65 x 4.43 inch


• Weight: 2.45 lbs


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hardcoated Polycarbonate


• Housing: Hard Anodized and Powder Coated Cast Aluminum


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof up to 9ft and Pressure Washable)


• IK10 Compliant (Mechanical Impact Testing)

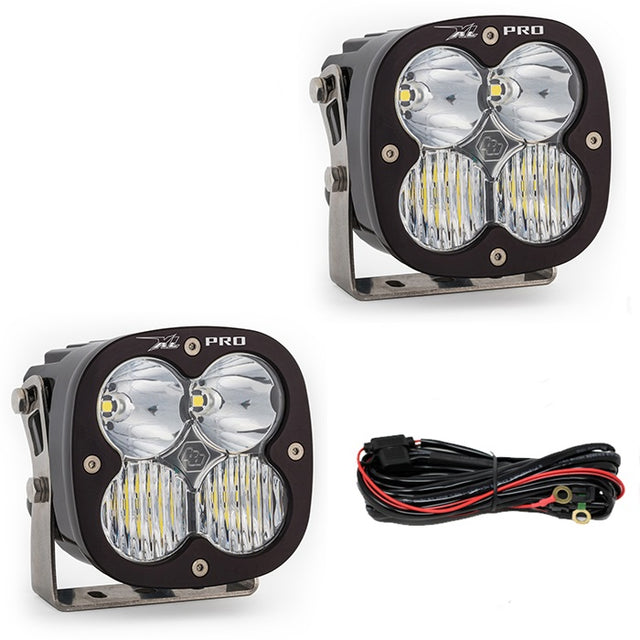

Includes:

• XL Pro LED Light


• Mounting Bracket


• Zip Ties

Application:

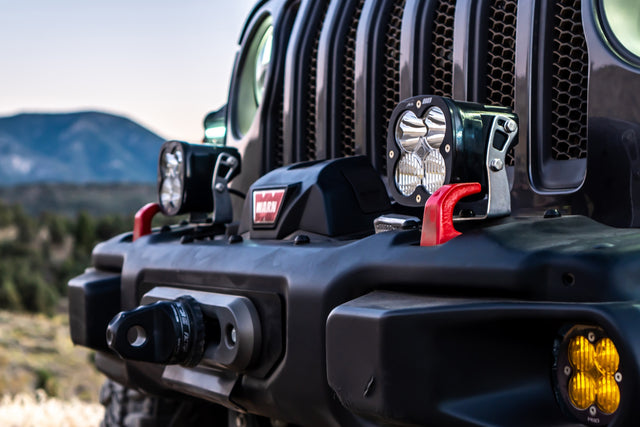

• Jeep JL Rubicon W/ Steel Bumper


• Jeep JT Rubicon W/ Steel Bumper

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
