Heavy Duty Dual Output 4-Pin Wiring Harness

$61.00 USD
Diode Dynamics  |  SKU / Part Number: DD4093

Free Canada Wide Shipping
Free shipping on all orders over $500

Tech specs

Features
-Powers Diode Dynamics LED pods with backlight functionality.
-Connects directly to the battery to power your LED pods.
-High capacity 14AWG wiring.

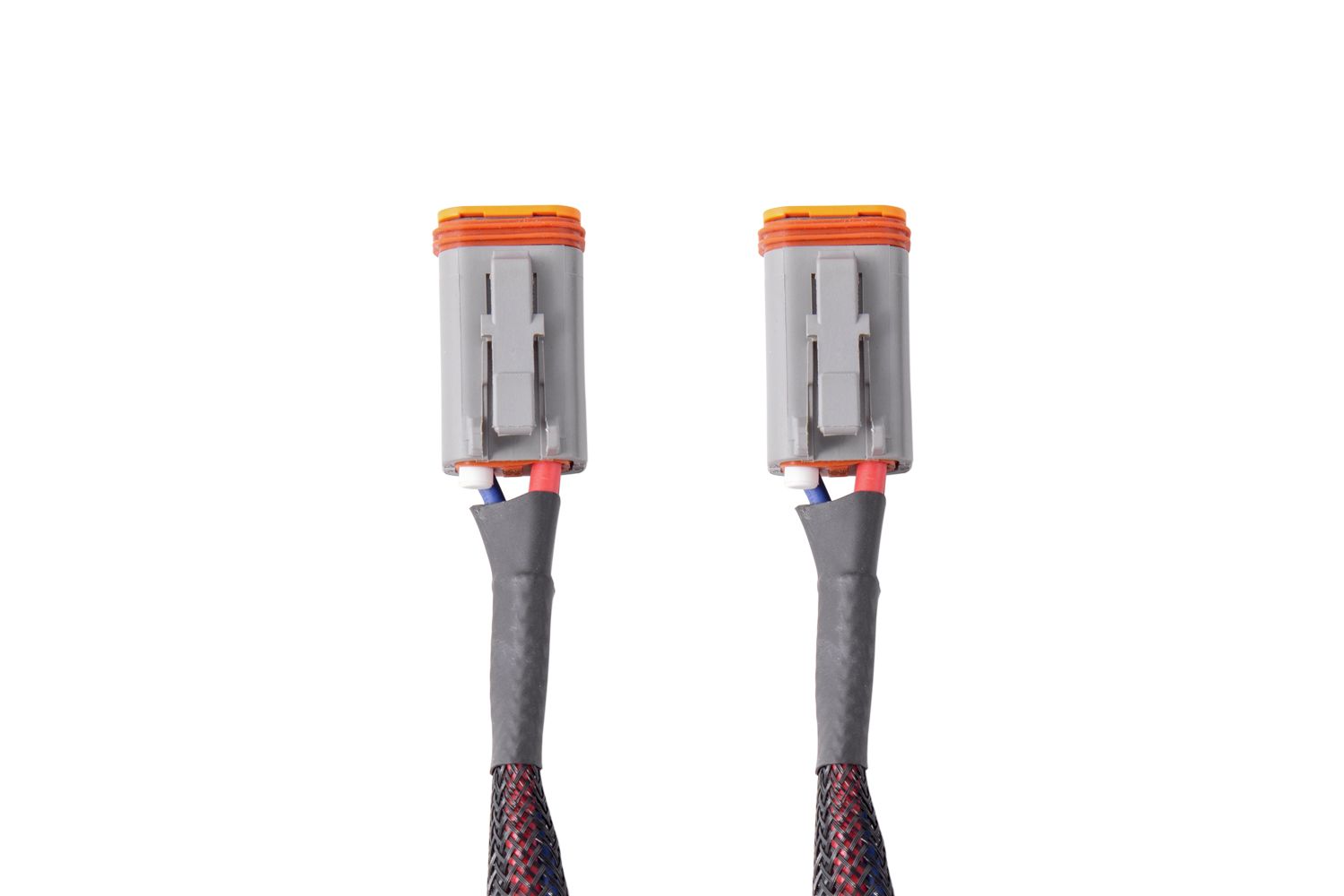

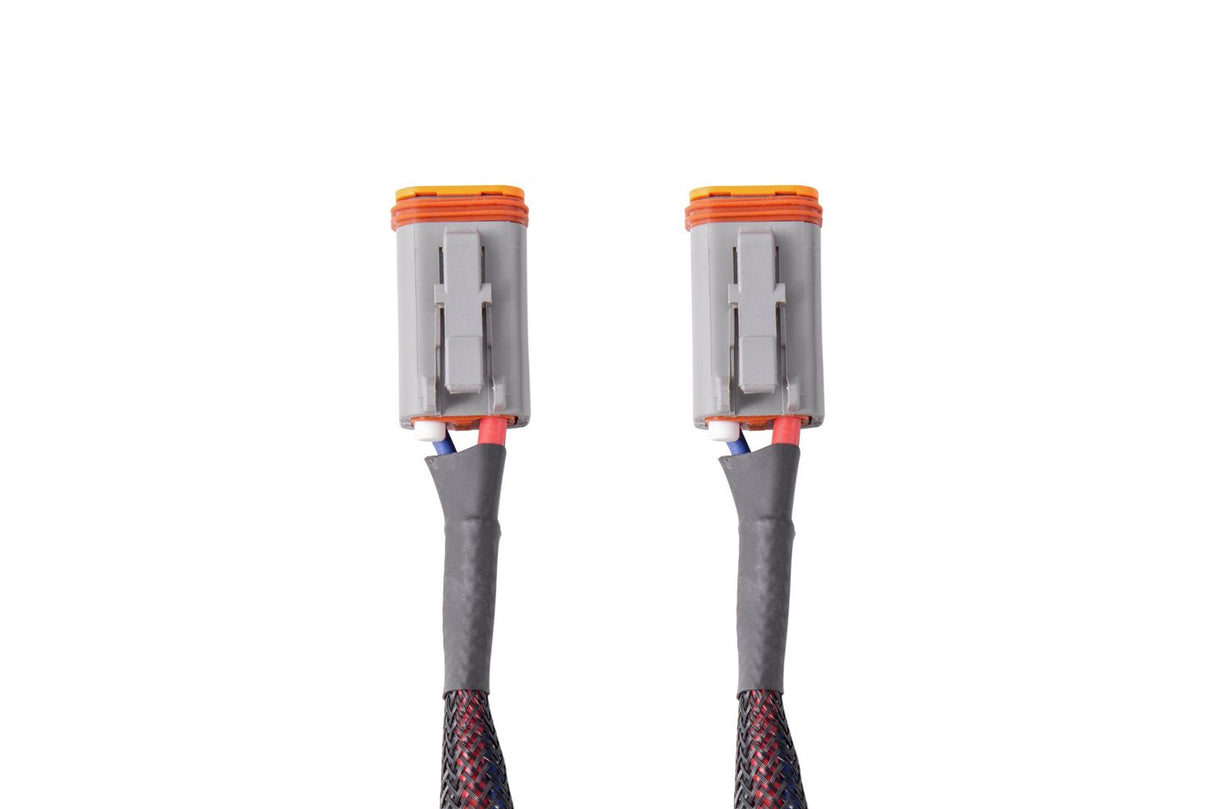

-Dual Deutsch DT output connectors.

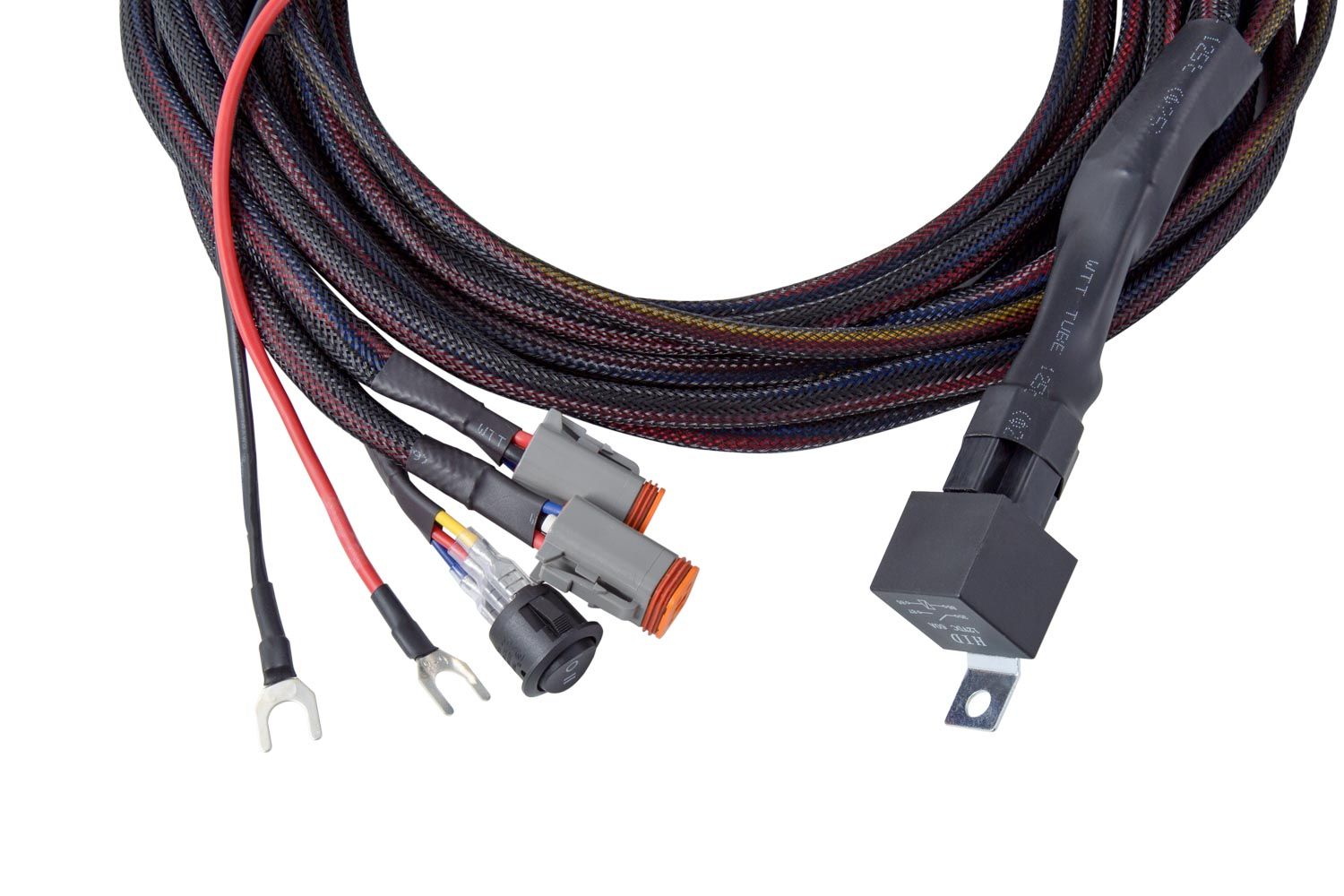

-30A waterproof fuse, and 60A 12V relay to safeguard the electrical systems in your pods.

Operating Voltage: 9-16V
Wire Size: 14AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input
Shipped Weight (lb): 2.92

What's Included

In the Box:

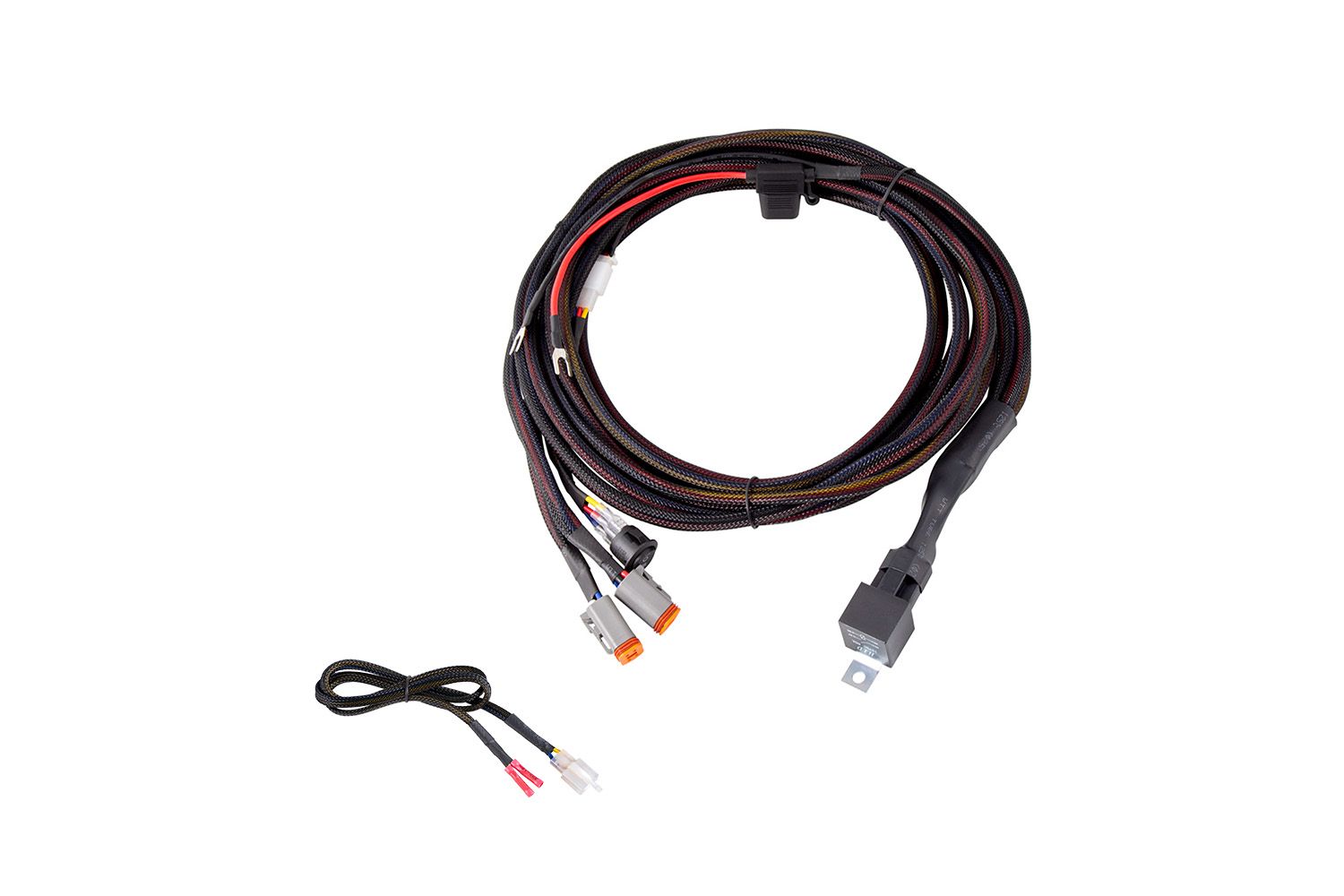

One (1) wiring harness
One (1) toggle switch
Quantity: One (1) Warranty: 3 year warranty

Installing Yourself?

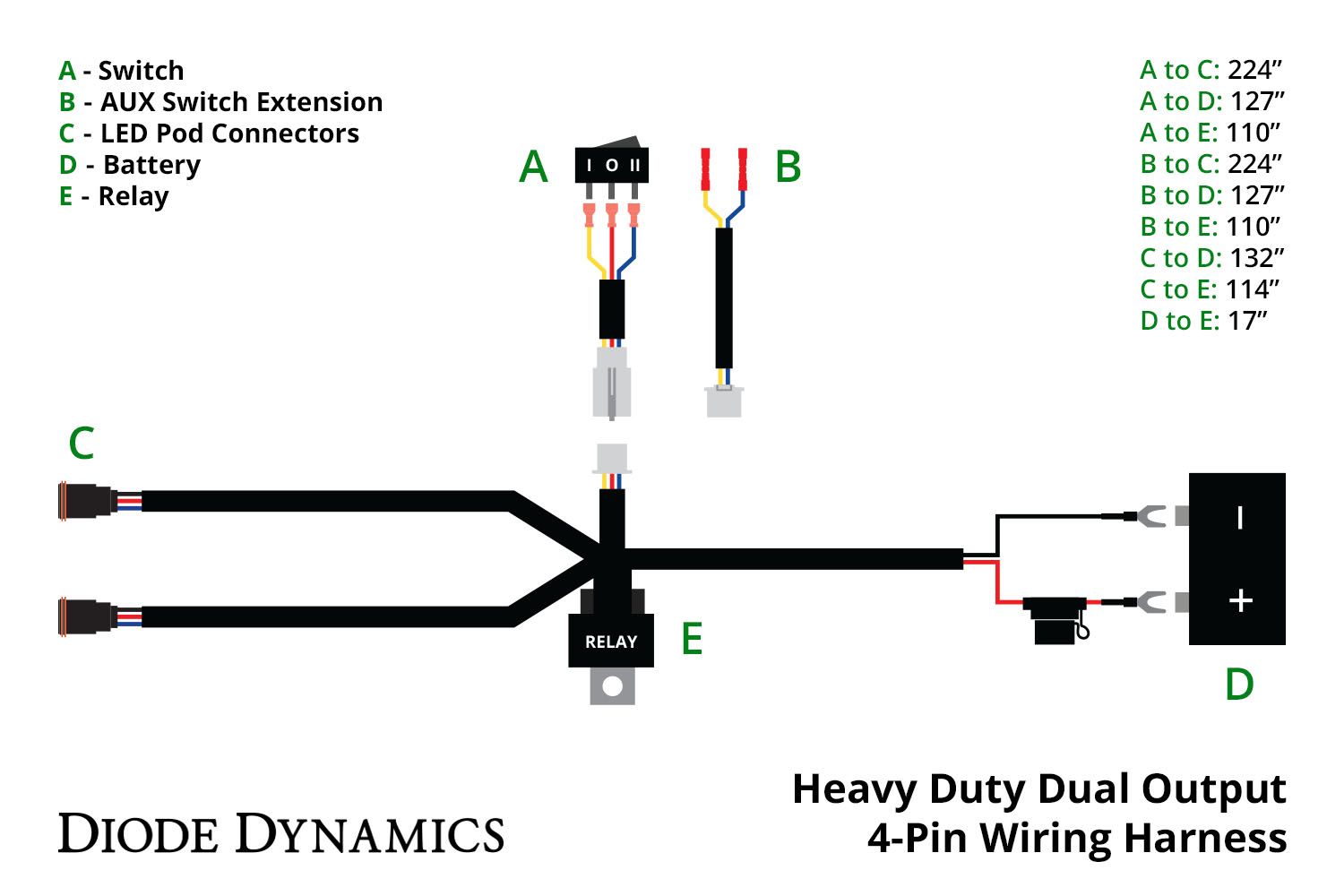

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.

  • C1 Sport: 1.2A
  • C1 Pro: 1.7A
  • SSC2 Sport: 0.6A
  • SSC2 Pro: 1.75A
  • SS3 Sport: 2.9A
  • SS3 Pro: 1.2A
  • SS3 Max: 3.3A
  • SS5 Sport: 2.8A
  • SS5 Pro: 6.7A
