F1505 XL Linkable Bumper kit 21-On Ford F-150 W/ Upfitter Baja Designs

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 5 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit is a turn key LED system for the Ford Bronco owner that is looking to drastically improve the looks and performance of their truck.

Please Note: This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.

Baja Designs Features:

• Satisfactions Guaranteeand30 Day Money Back Guarantee


• Limited Lifetime Warranty Complete Purchase Protection


• uService Replaceable Lenses And Optics


• ClearView All The Light, Right Where You Need It.


• MoistureBlock Waterproof, Rain Proof, Submersible


• CopperDrive Only LED Driven At 100 percent


• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 18,900 Utilizing 24 LEDs


• Wattage/Amps: 156W / 12A


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hard Coated Polycarbonate


• Housing: Powder Coated Cast Aluminum


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof, Submersible to 9ft)


• IK10 Compliant (Mechanical Impact Testing)

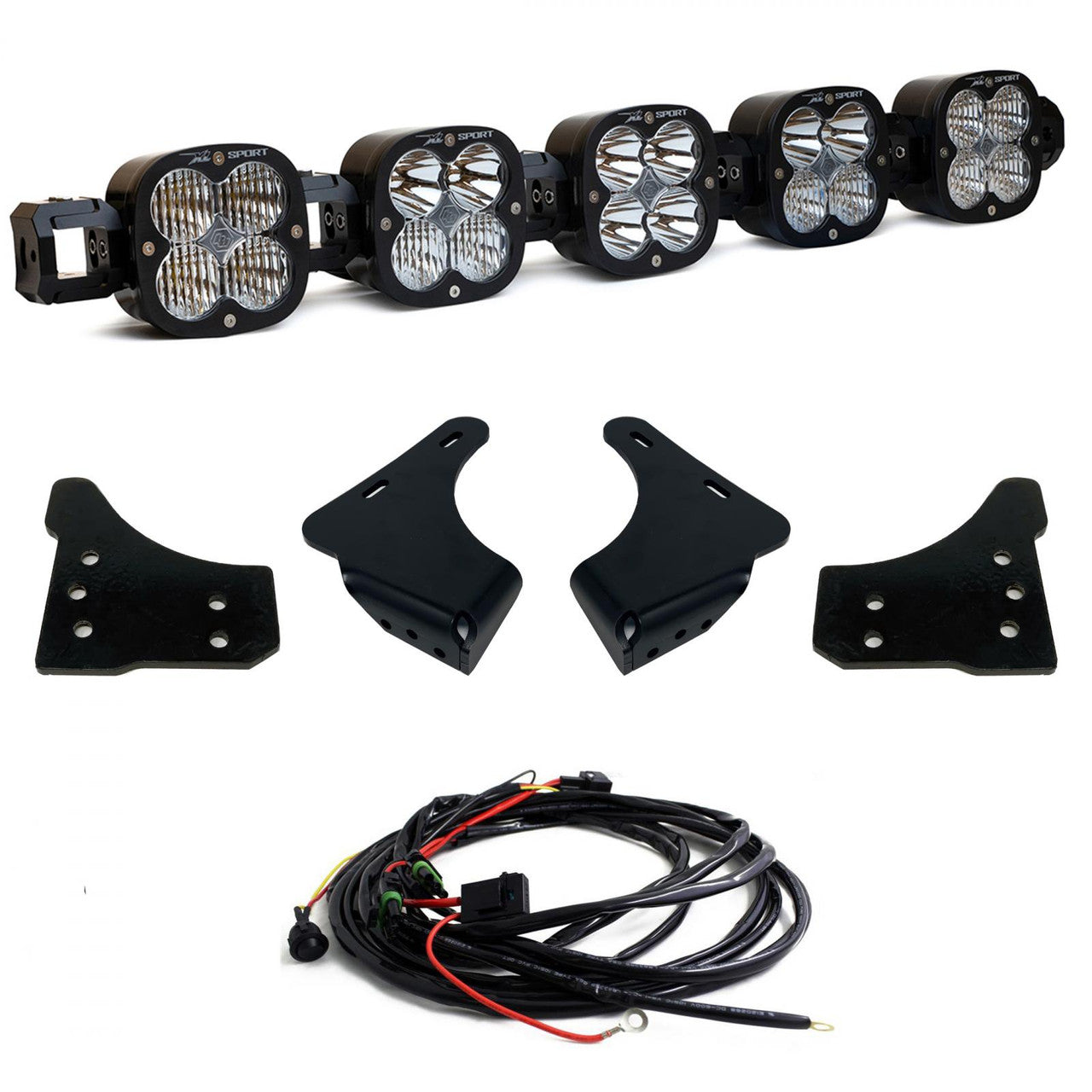

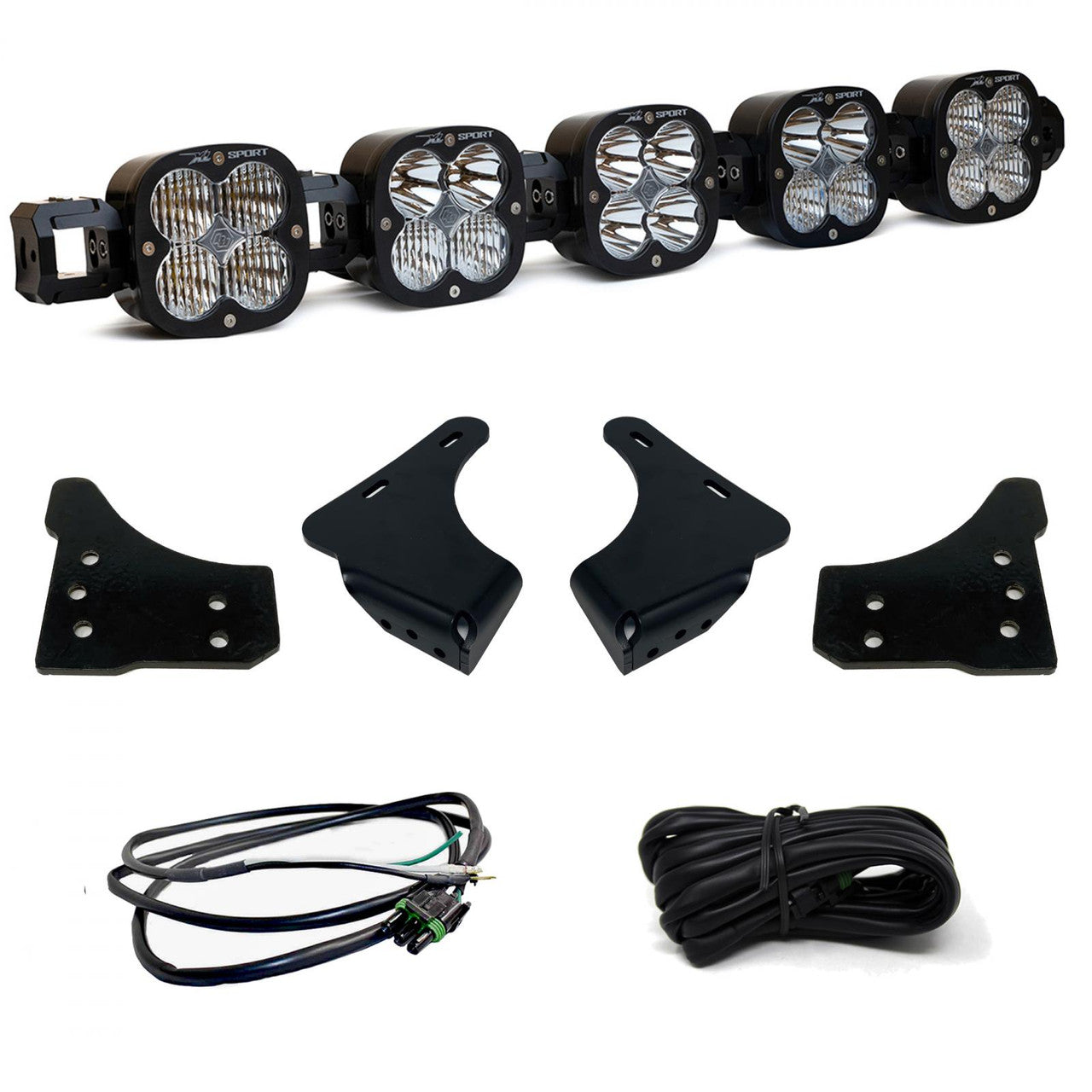

Includes:

x1 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light
x5 XL Sport Rock Guards
Upfitter Style Wiring Harness
Vehicle Specific Mounts

Application:

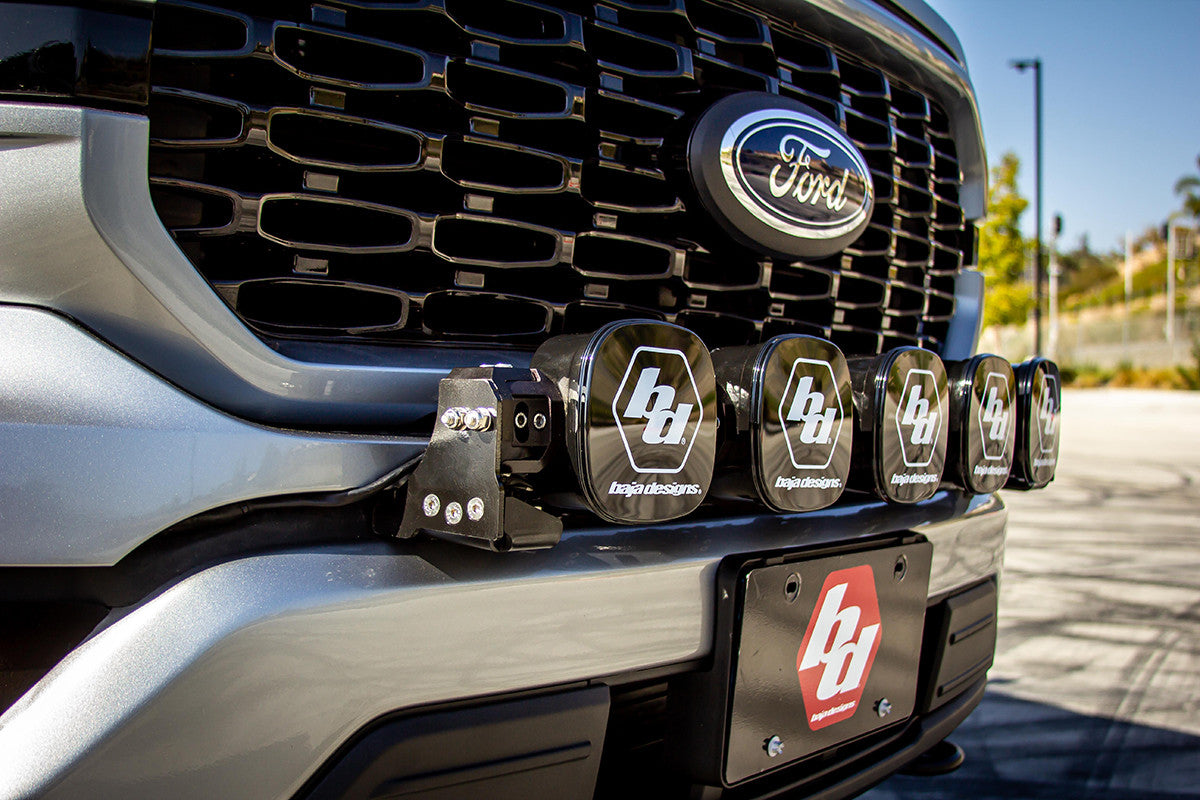

2021 - On Ford F-150

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
