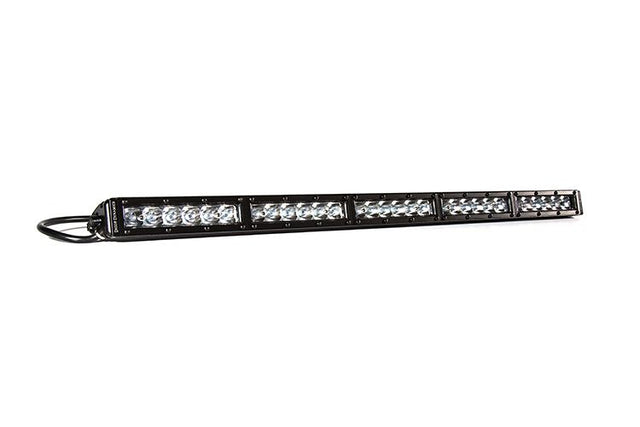

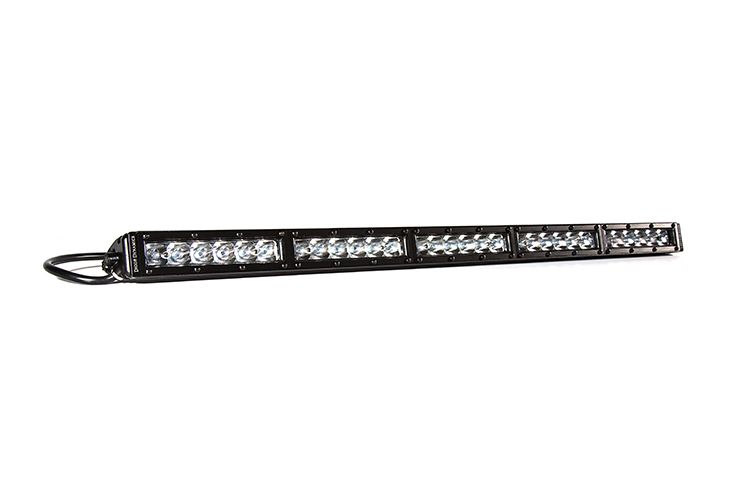

Diode Dynamics: Ss30 Stage Series 30" White Light Bar

$430.00 USD
Diode Dynamics  |  SKU / Part Number: DD5018

Primary Optic

Free Canada Wide Shipping
Free shipping on all orders over $500

Installing Yourself?

Features

  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs with pure white color
  • Available in Driving, Flood, or Combo beam patterns
  • Slim 42mm housing for low-profile fitment
  • Durable matte powdercoated extrusion

Stage Series

Introducing STAGE SERIES LED lighting! Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

Compact. The lightbar is based on a narrow-profile extruded housing, to allow fitment in small and tight areas. At less than 42mm tall, they'll fit in many places a traditional dual-row light bar won't, while cutting total weight as well. The heatsink design also drastically reduces wind noise, and does not whistle in the wind like many generic housings.

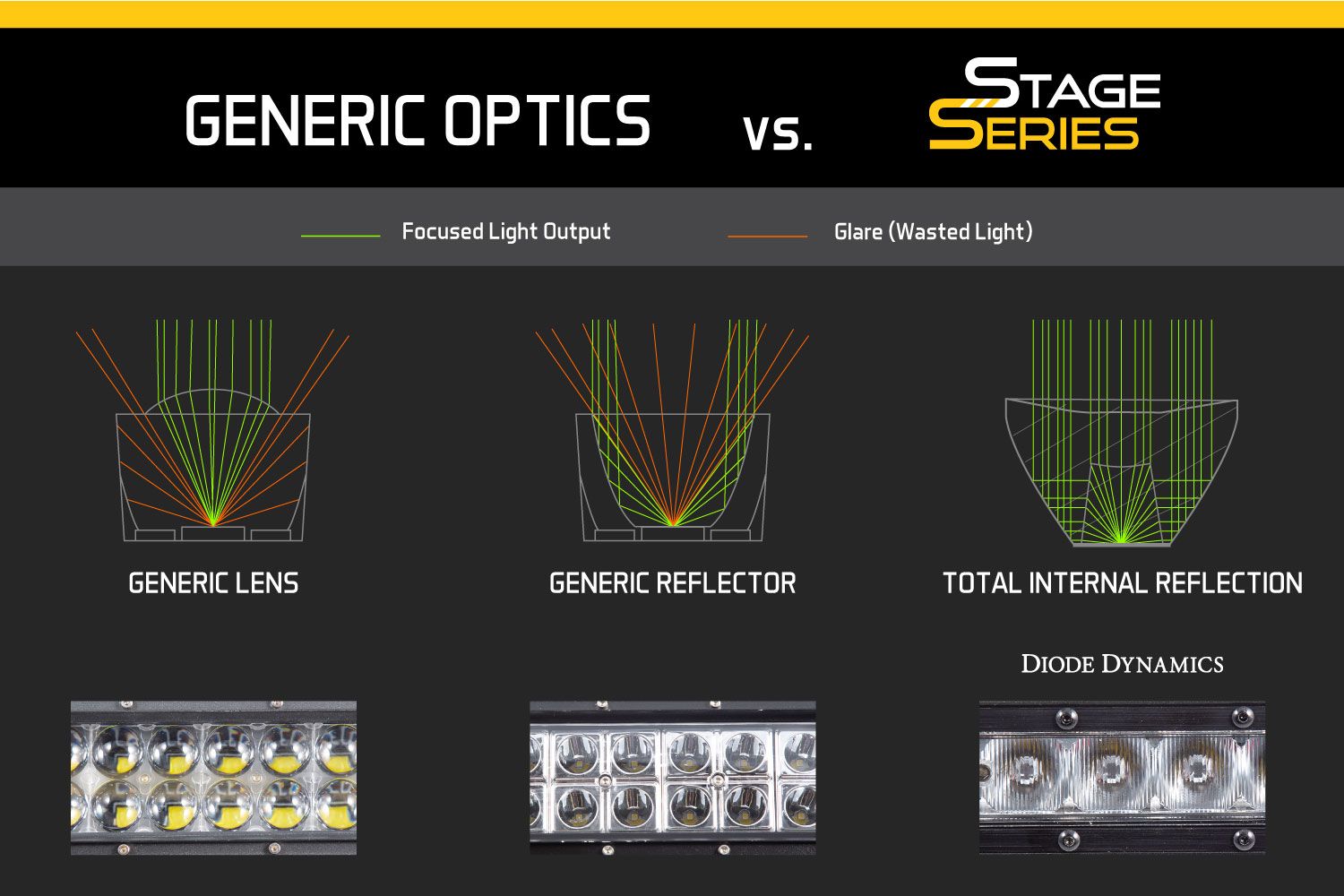

Focused. The compact size doesn't mean they're short on power! Thanks to the high-intensity Lumileds LED chips, coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic, the total intensity of the Stage Series is far higher than a standard, generic light bar using basic optics or reflectors. Standard optics lose light internally, and to glare, spreading a little bit of light in every direction. Instead, the TIR optic in the Stage Series collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

Not just off road. In six-inch size, when installed as a pair and aimed in accordance with your state's regulations, the Driving pattern meets SAE J581 as a Driving/Auxiliary High Beam Light, and the Wide pattern meets SAE J583 as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

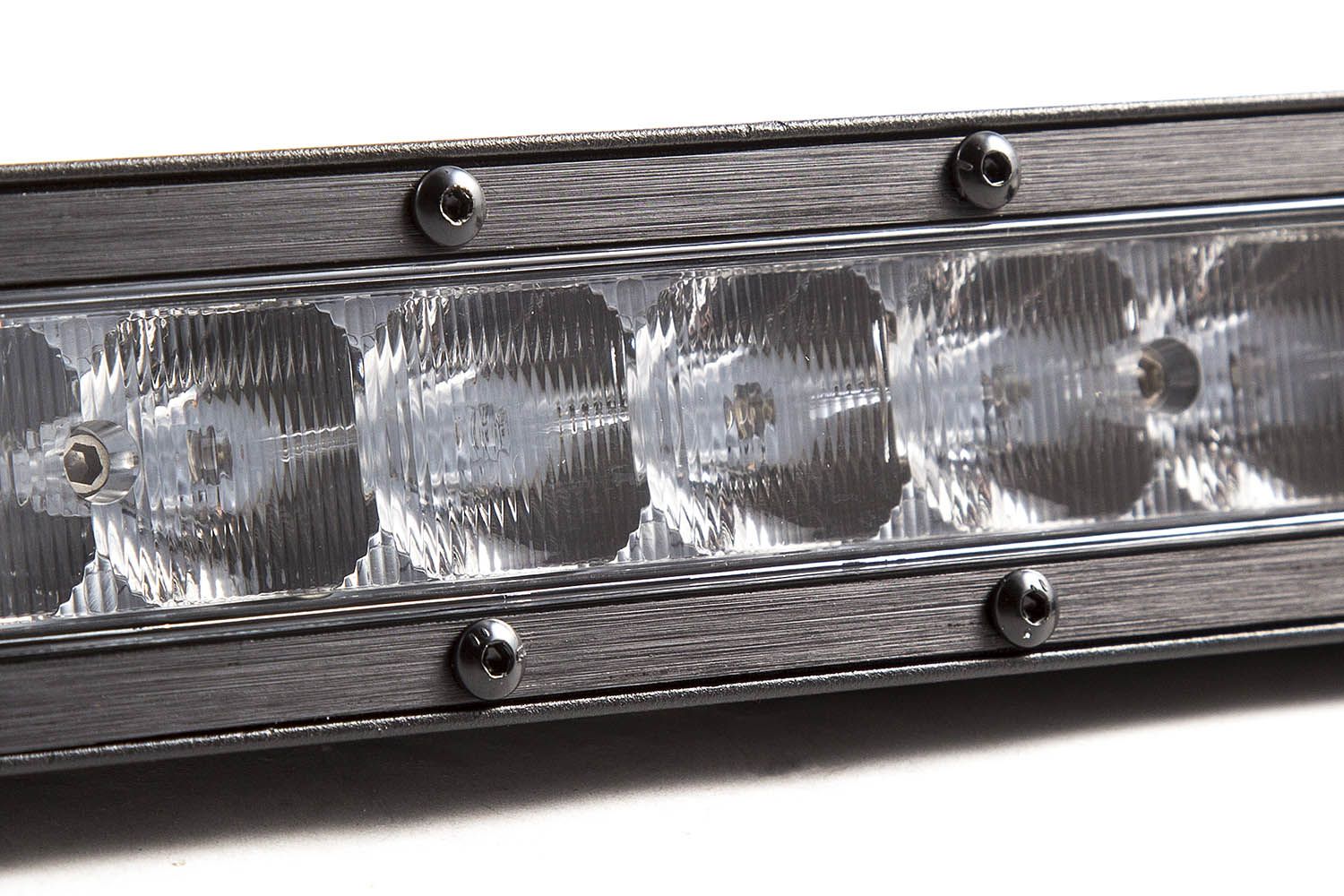

Change it up. Each lightbar is based on 6-inch segments. Each segment is sealed with an individual lens and a double-wall seal. This makes them more weather tight than a large, single seal, and it also allows you to change up the outer lens to suit your needs. With just a few screws, you can replace the outer lens with a new one to change the beam pattern or color.

Simple connections. All Stage Series LED lighting products use a standard DT type Deutsch-style connector, and come with a 6-inch pigtail, with bare leads. You can wire yourself, use an off-the-shelf Deutsch wire harness, or select an optional Diode Dynamics wire harness.

Proven Reliability. Stage Series lighting has been tested for long-term operation from -40 to 185 degrees F, vibration, moisture intrusion, and corrosion. All of these tests are completed to SAE/DOT standards, just like factory components. They've also been put to the test on-road, and are in-use by dozens of rally and endurance racing teams for nighttime stages and laps.


What's Included

In the Box:
  • One (1) LED light bar
  • One (1) wire pigtail
  • Universal bracket set
Quantity: One (1)
Hardware:
  • Two (2) M6 Hex Screws, for main mounting point
  • Two (2) M5 Hex Screws, for rear mounting point
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee
Color Temp (CCT): 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
Power (watts): 137.2
Operating Voltage: 9-16V
Current (amps @ 14V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof

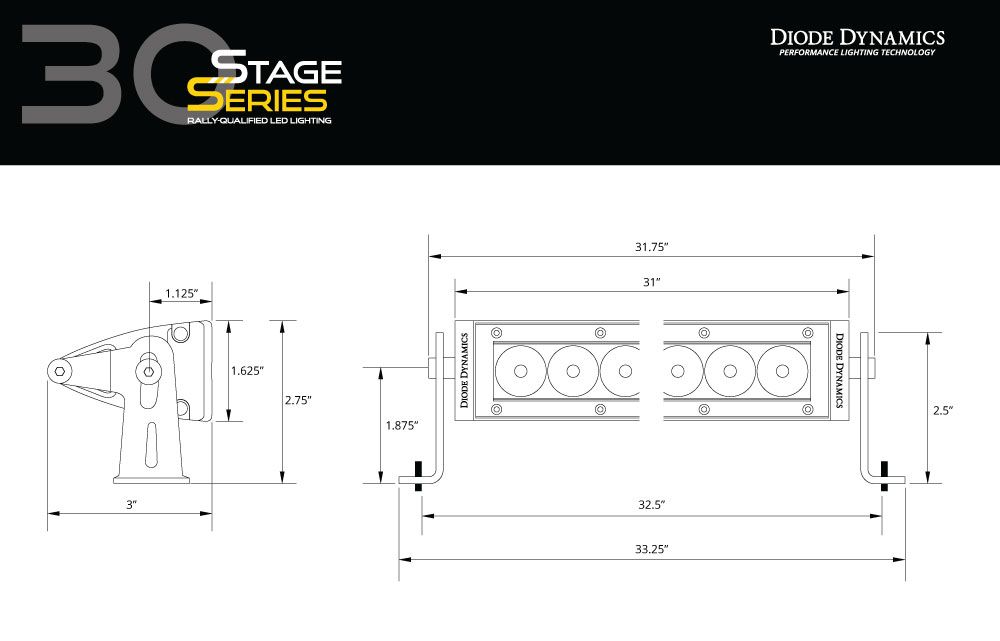

Product Dimensions (in): 31x3x1.63 If you would like CAD for your project, please contact us.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Adam H.
Bright Bar

Installed the light bar on the front of my 2017 GMC Sierra. When I turn it on you can't tell the head lights are on. I can turn the head lights off and see no change. When you turn the light bar off the brights look like they are on an 80's pick up. Very bright light bar. Will see how well it lasts, but quality seems great.

K
Kevin S.
Best Light Bar

2013 F350 6" lift. Purchased the combo 30" bar. 5 lights. 3 driving and 2 flood lights. Mounted between grill and bumper. Super bright white light from edge to edge and down the road. Perfect with the Morimo LED Headlights. Super happy. Another high quality product.
