Bronco Roof Light Bar Kit 21-Up Ford Bronco 8 XL Linkable w/Upfitter Baja Designs

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

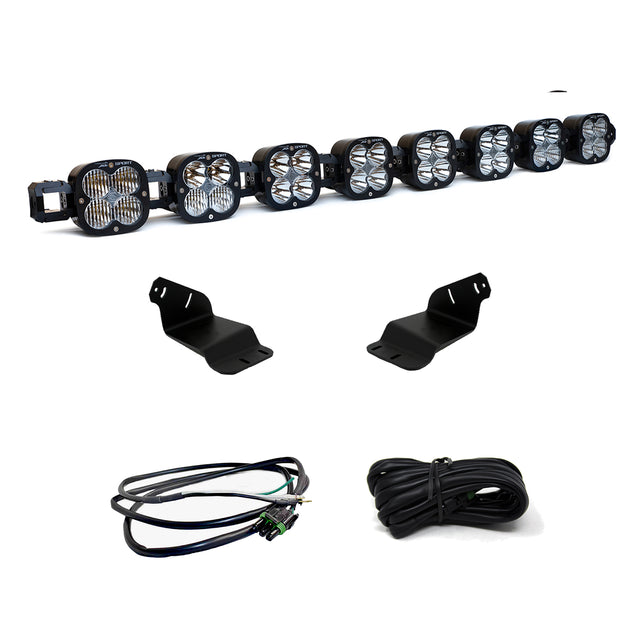

This kit includes 8 XL Sports, Links, vehicle specific mounting brackets, toggle switch style wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit is a turn key system for the Bronco owner that is looking to take down the night, and give a standoff appearance to their vehicle!

Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee


• Limited Lifetime Warranty Complete Purchase Protection


• uService Replaceable Lenses And Optics


• ClearView All The Light, Right Where You Need It.


• MoistureBlock Waterproof, Rain Proof, Submersible


• CopperDrive Only LED Driven At 100 percent


• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens:25,200 Utilizing 32 LEDs


• Wattage/Amps:208W / 16A


• LED Life Expectancy:49,930 Hours


• Front Lens:Hard Coated Polycarbonate


• Housing:Powder Coated Cast Aluminum


• Bezel:Billet Machined Aluminum


• Hardware and Bracket Material:Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof, Submersible to 9ft)


• IK10 Compliant (Mechanical Impact Testing)

Application:

2021 - On Ford Bronco
Includes:

• x4 XL Sport Spot LED Light


• x2 XL Sport Driving/Combo LED Light


• x2 XL Sport Wide Cornering LED Light


• x8 XL Sport Rock Guards


• BroncoMounting Brackets


• Pre-load Kit


• Upfitter Style Wiring Harness

Adjustability:

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 degree) and spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

High Speed Spot:A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
