7 XL Linkable LED Light Kit For 17-19 Ford Super Duty w/Upfitter Baja Designs

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs.

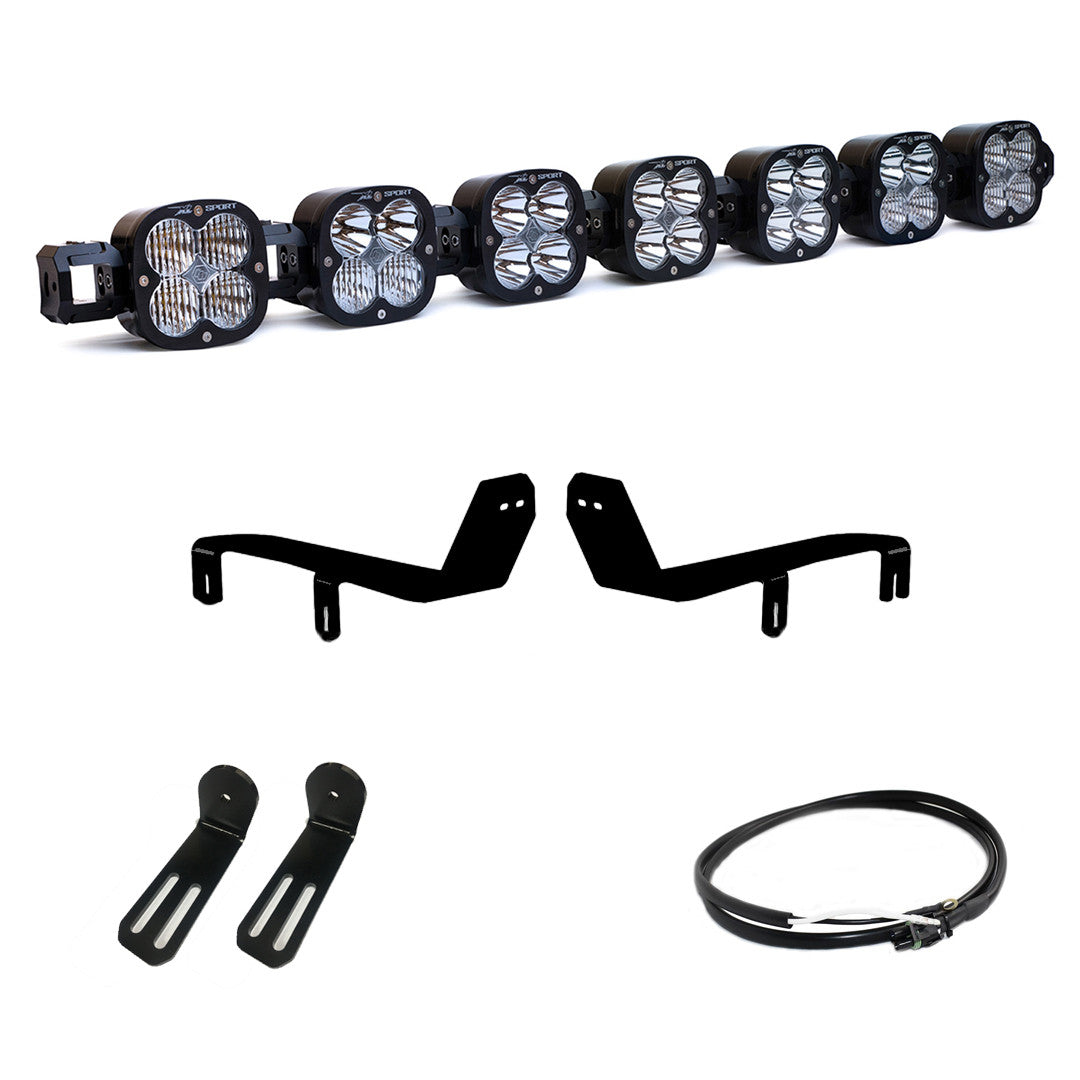

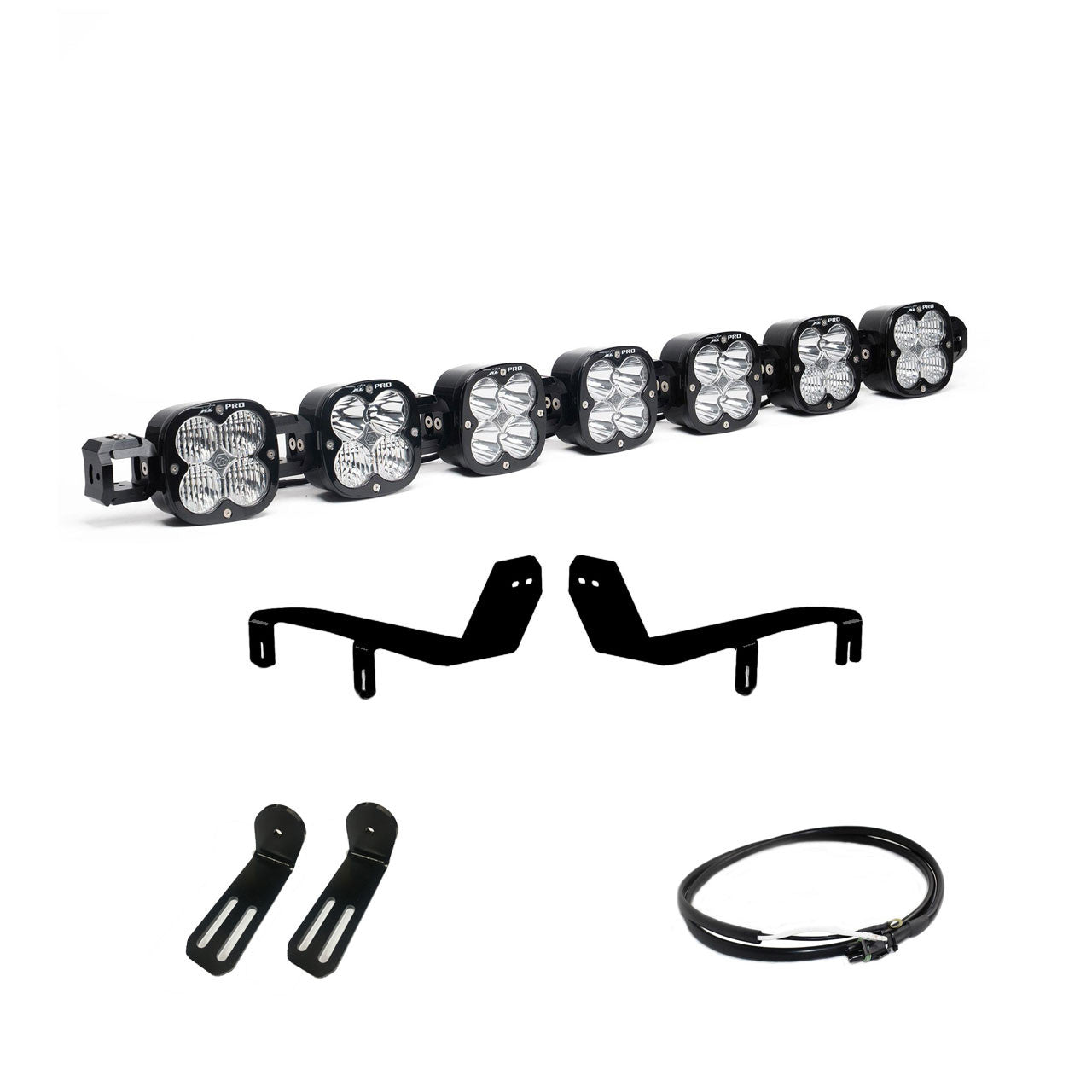

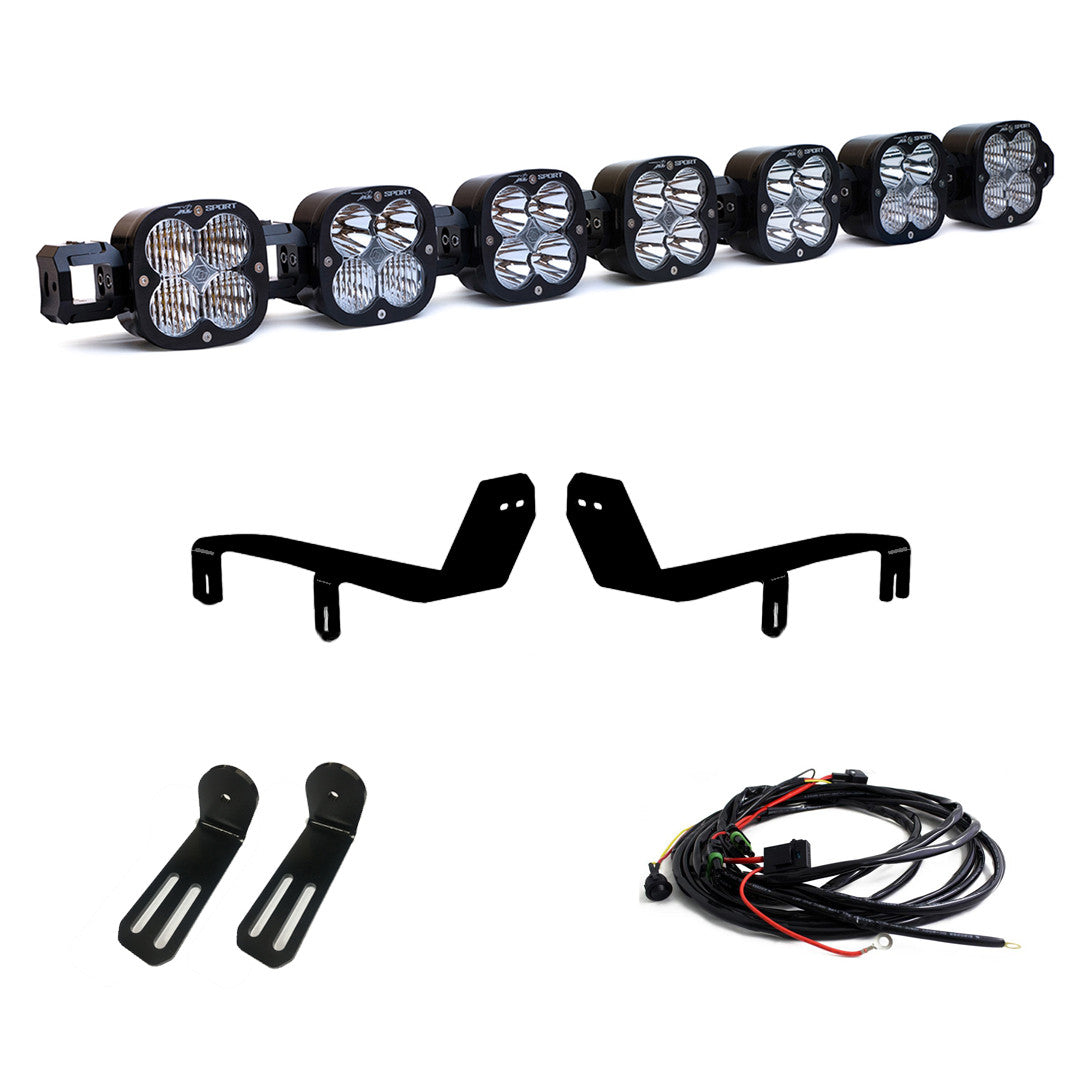

This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

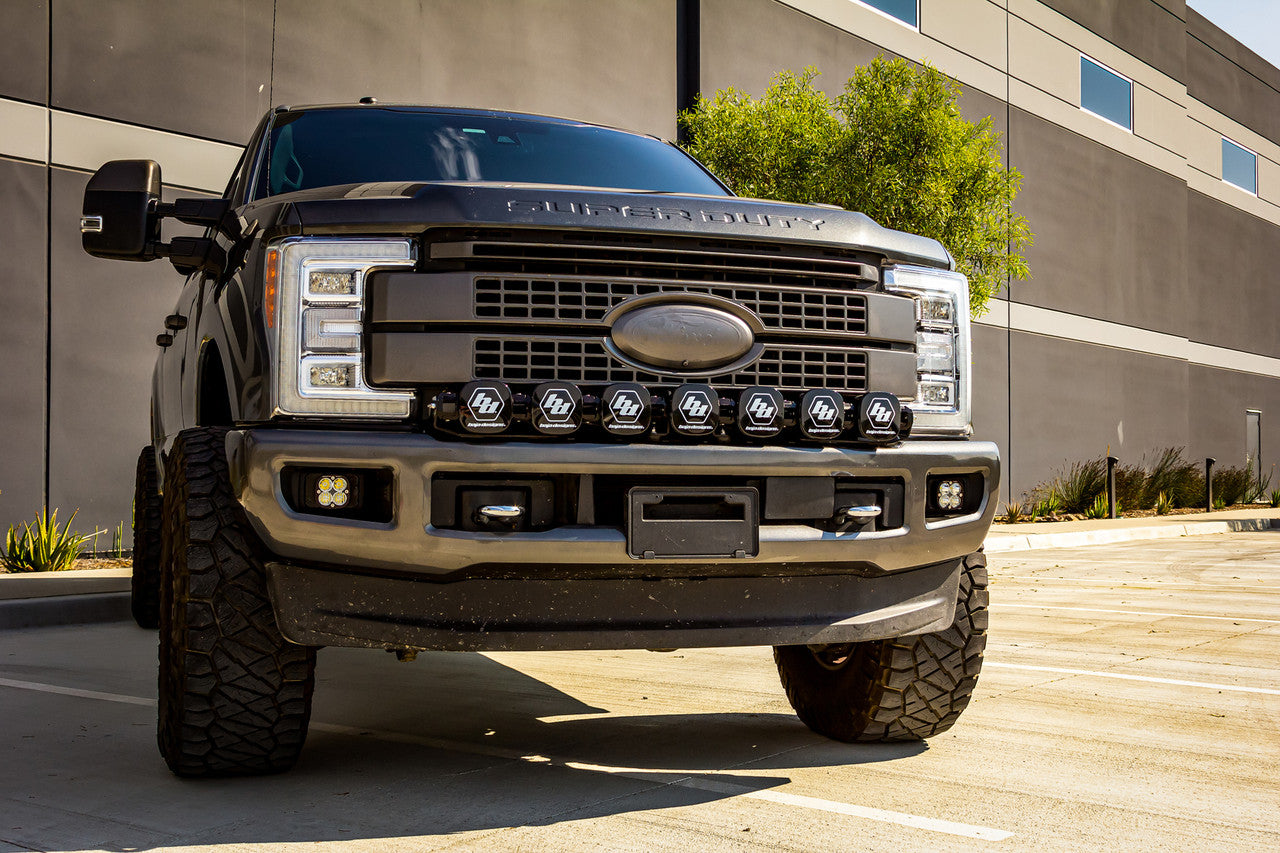

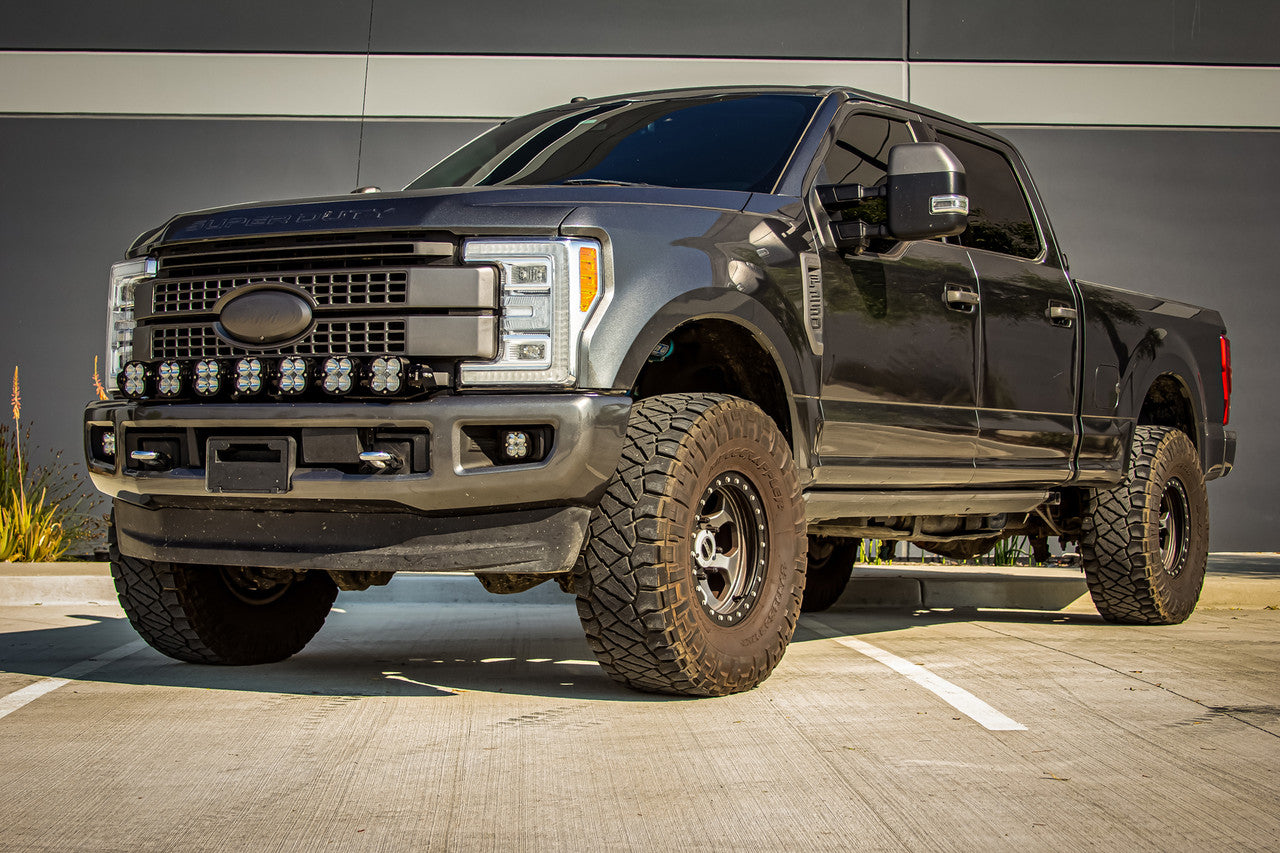

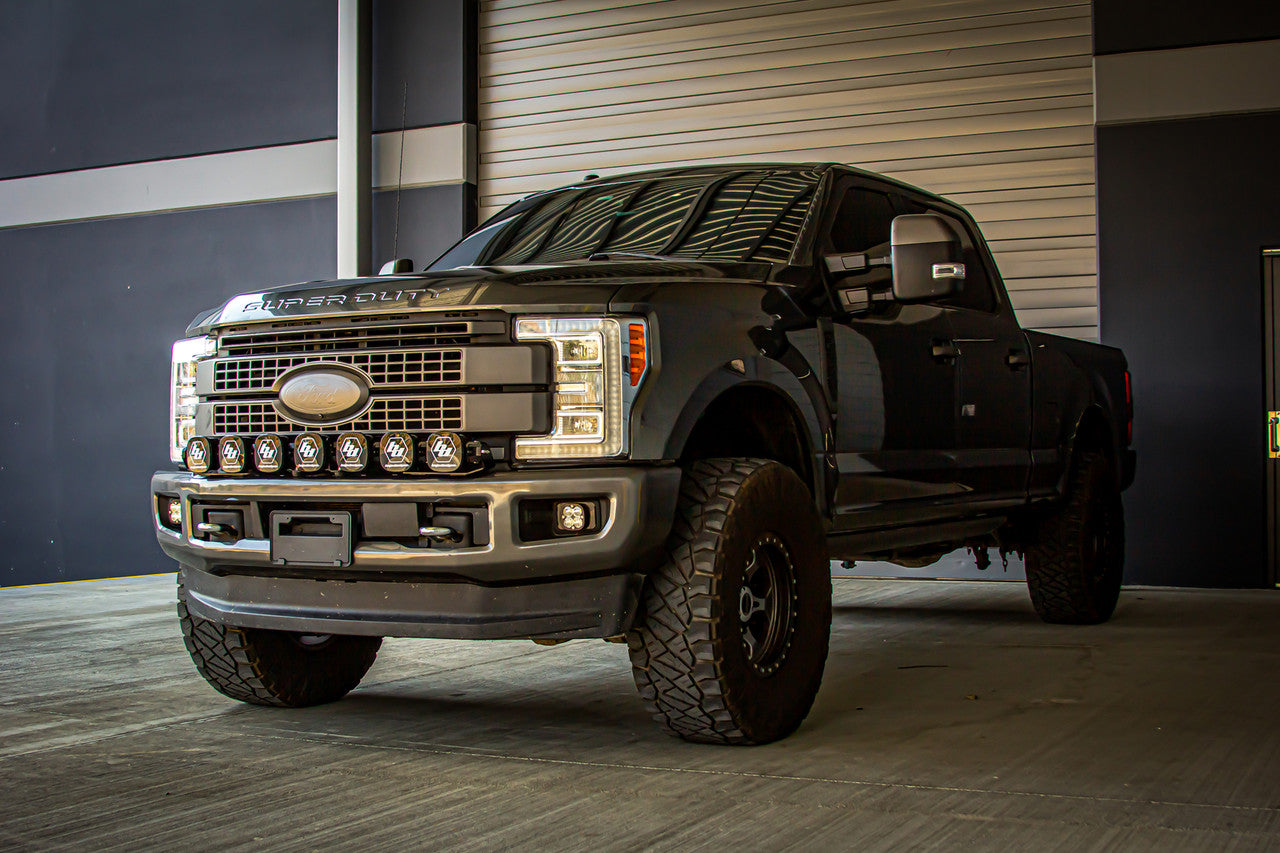

This kit includes all the necessary components to outfit your (17-19) Ford Superduty with 7 XL Linkables. The harness in this kit is a toggle switch style designed for the enthusiast who Does not have the factory upfitters in their Superduty.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee


• Limited Lifetime Warranty - Complete Purchase Protection


• uService - Replaceable Lenses And Optics


• ClearView - All The Light, Right Where You Need It.


• MoistureBlock - Waterproof, Rain Proof, Submersible


• CopperDrive - Only LED Driven At 100 percent


• 5000K Daylight - Less Driver Fatigue, Natural Color Specifications:


• Lumens: 22,050 Utilizing 28 LEDs


• Wattage/Amps: 182W / 14A


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hard Coated Polycarbonate


• Housing: Powder Coated Cast Aluminum


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof, Submersible to 9ft)


• IK10 Compliant (Mechanical Impact Testing)

Includes:

• x3 XL Sport Spot LED Light


• x2 XL Sport Driving/Combo LED Light


• x2 XL Sport Wide Cornering LED Light


• x7 XL Sport Rock Guards


• Support Kit


• Upfitter Harness


• Super Duty Brackets

Application:

• (2017- 2019) Ford Superduty

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)

High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
