2015-2021 Subaru WRX/STi C-Light LED Switchback Halos

$173.00 USD
Diode Dynamics  |  SKU / Part Number: DD2016  |  Barcode: 27387683
Add C-Light DRL Harness

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

WHAT'S INCLUDED

In the Box:
Two (2) custom-shaped LED halos, left and right
Two (2) waterproof driver units
Two (2) input wire pigtails
Eight (8) T-tap input connectors
Installation Guide

3 Year Warranty

COMPATIBILITY

Make: Subaru
Model: WRX and STi
Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021
Electrical Compatibility: No electrical issues (tested and confirmed)
DRL Function: Operates at full brightness for DRL
100% Satisfaction Guarantee

NOTE: Compatible with 2018+ WRX Base and Premium, but not compatible with 2018+ WRX Limited or STi. See below for a detailed outline of fitment.

2015-2017 WRX and STi (All Trims) -Compatible with our halos

2018+ WRX (Base, Premium, Limited)
Base and Premium trim levels still use Projector Halogen Headlights -Compatible with our halos
Limited Trim uses the new LED Projector Headlights -NOT COMPATIBLE WITH OUR HALOS
2018+ STi (Base, Premium, Limited, Type RA, S208)
All use the new LED Projector Headlights -NOT COMPATIBLE WITH OUR HALOS

TECH SPECS

Total LEDs: 524 (262 per side)
Inputs: Plug-and-play connector for ground and parking light. T-taps for DRL and turn signal.
Integrated Protection: Full waterproofing and shockproofing, transient suppression, overvoltage protection, thermal shutdown, reverse input protection.
Measured Lumen Output Switchback: DRL: 610, Amber Turn Signal: 500, Parking: 330
Measured Lumen Output Amber: DRL: 570, Amber Turn Signal: 1070, Parking: 310
Power Consumption Switchback (watts): DRL: 7.0, Amber Turn Signal: 7.2, Parking: 4.0
Power Consumption Amber (watts): DRL: 7.0, Amber Turn Signal: 13.3, Parking: 3.8
Current Draw Switchback (amps @ 12.8V): DRL: 0.6, Amber Turn Signal: 0.6, Parking: 0.3
Current Draw Amber (amps @ 12.8V): DRL: 0.5, Amber Turn Signal: 1.0, Parking: 0.3
Color Temp (CCT): 2000K, 6000K
Beam Angle: Omnidirectional (270 degrees)
Operating Voltage: 5-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Custom-Manufactured
Connector(s): JST Inline Connectors, T-Tap Inputs
Driver Features: External, Waterproof, Constant Current
Materials: FR4 PCB
Cooling: Passive, no heatsink

KIT COMPONENTS AND PART NUMBERS

  • DD2016 C-Light Switchback LED Boards for 2015-2021 Subaru WRX/STi 1.92 lbs AC0019 Switchback Driver Type C High AB0057 WRX 2015 C-Light v2.2 Left Board, AB0058 WRX 2015 C-Light v2.2 Right Board, WH0022P-A Harness JST SB LED Board Pair

Installing Yourself?

Click here for the PDF install guide

Time for an upgrade!These C-Light LED modules are circuit boards that fit right behind the factory diffusing reflector. We are excited to announce that they are now available in two color options - Switchback and Amber. The Switchback option illuminates in an extremely bright white, as well as a brilliant amber, while the Amber version illuminates amber for low and high power. Don't be fooled by other options on the market: these LEDs have been designed from the ground-up for this application, and assembled in St. Louis, Missouri, to be absolutely the brightest lights physically possible.

High output, clean appearance. The custom-designed LED modules replace the factory bulb or single LED, illuminating with a much higher intensity. With our proprietary high-density "HDLED" technology, these modules are populated with over 500 LED chips, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When it's off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

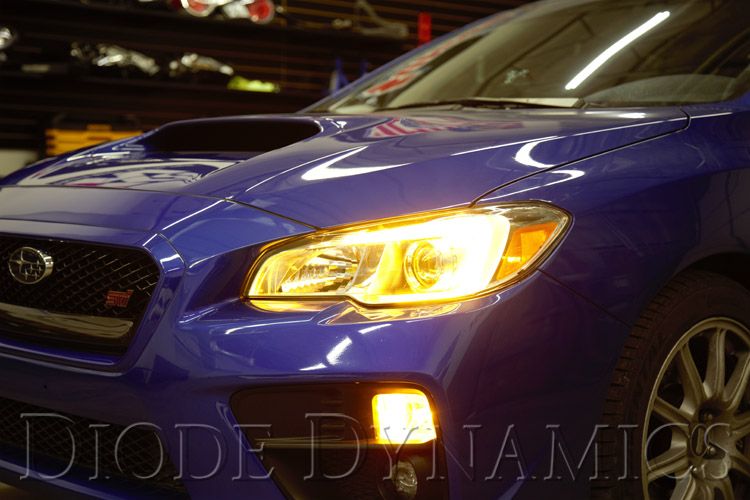

Choose your look. These C-Lights are available in two color options: switchback illuminates with a dual color function, providing a pure 6000K white color for the running light, along with a bright amber for the turn signal. The all-amber version illuminates with a high-power amber output for the turn signal and a low-power amber for the DRL, for a distinctive look.

Constant-current power. To power the modules efficiently, your order includes two custom-designed drivers, which feature transient voltage suppression, reverse protection, and a switching driver for extremely high reliability over time. And here's what really makes this product shine over the competition: with an embedded microcontroller, the drivers utilize multi-stage PWM dimming, to allow for a half-brightness DRL, for use at night (parking lights), as well as a full-power DRL during the day. Finally, the amber turn signal is run at even higher power, making it easily visible in broad daylight!

Wire it up. Wiring instructions are included with your order. You will need to use the included T-tap connectors to connect the drivers to ground, parking signal, and turn signal on each side. Another wire is included for DRL connection. You can tap this into your DRLs to have the C-Light come on as a DRL alongside your factory DRL bulb. If you wish, you can add the DRL Harness to your order. Fully plug-and-play, this harness will disable your factory DRL, and power the C-Lights instead. Your high beam will still work as normal.
