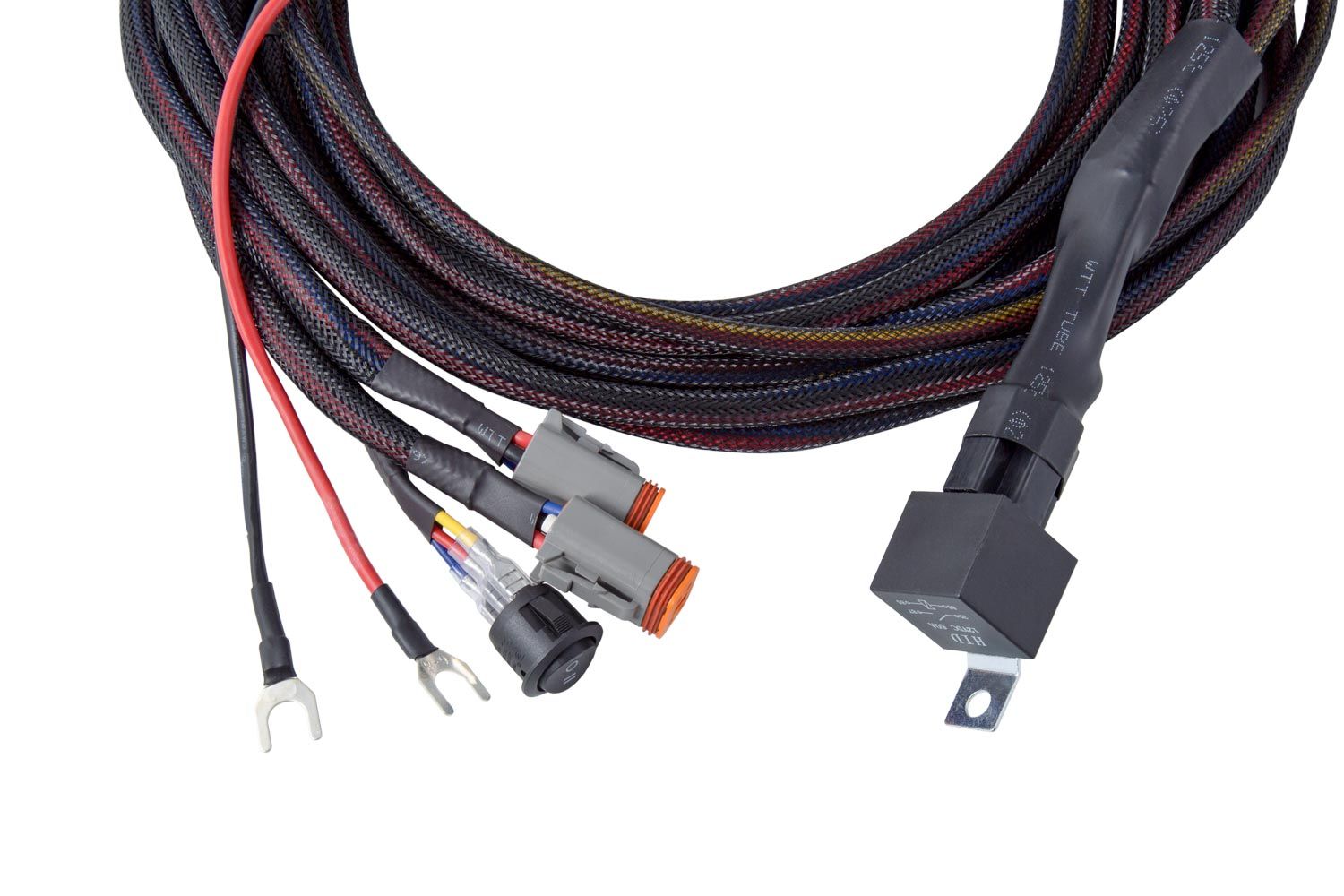

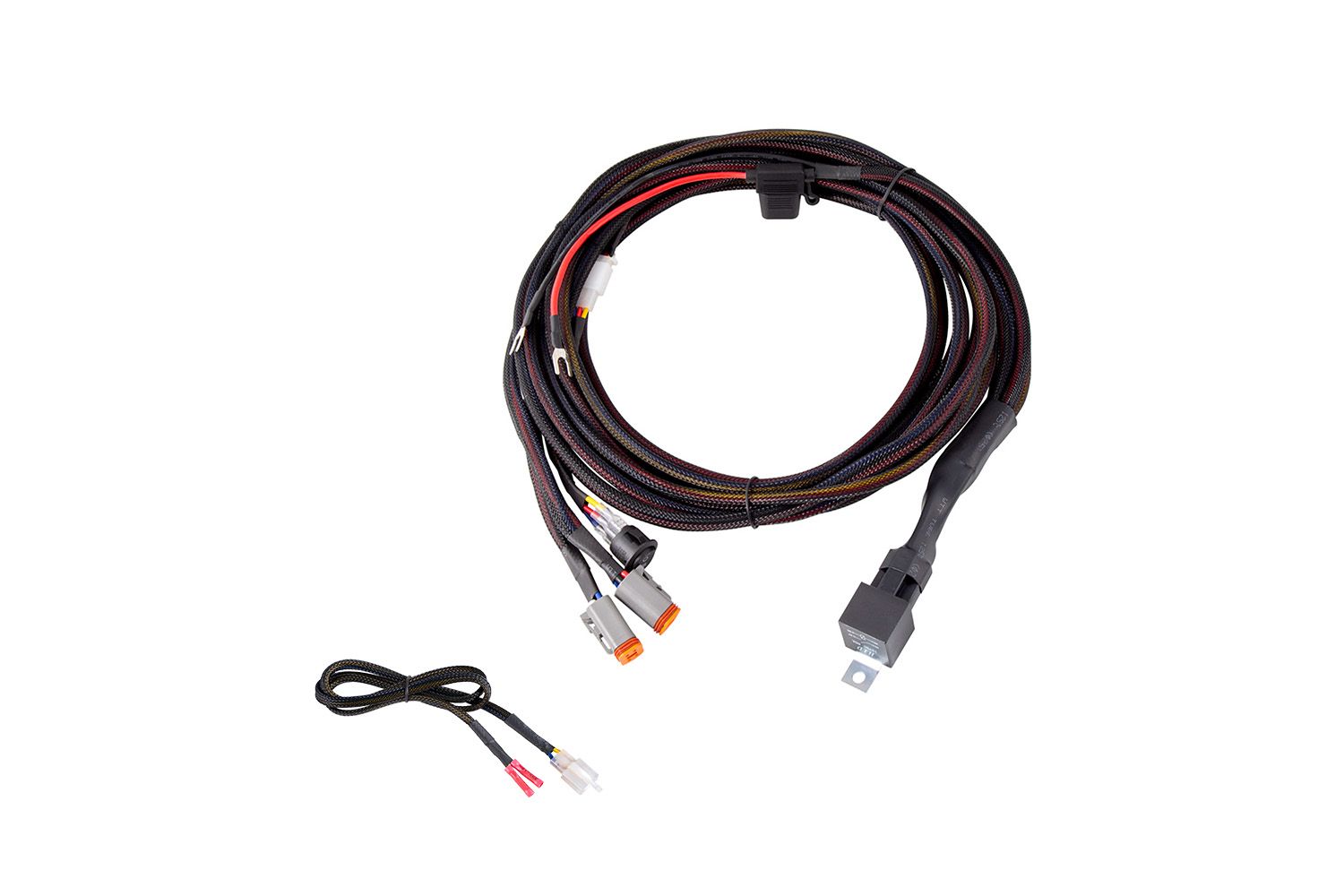

Heavy Duty Dual Output 4-Pin Wiring Harness
$47.00 USD
$58.00
Unit price
/
Unavailable
Diode Dynamics | SKU / Part Number:
DD4093
Heavy Duty Dual Output 4-Pin Wiring Harness is backordered and will ship as soon as it is back in stock.
Tech specs
Tech specs
What's Included
What's Included
Heavy Duty Dual Output 4-Pin Wiring Harness
$47.00 USD
$58.00
Unit price
/
Unavailable
Installing Yourself?

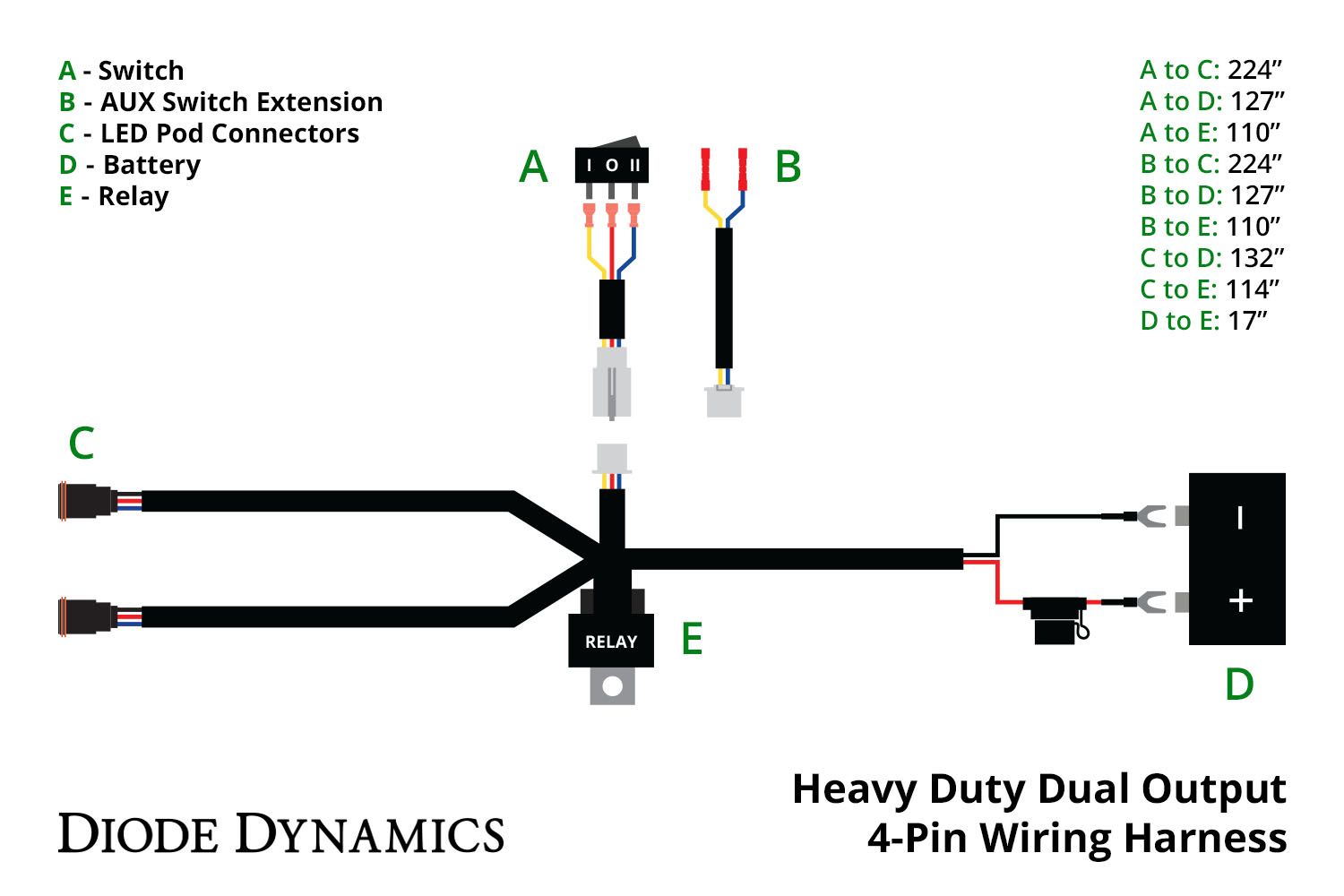

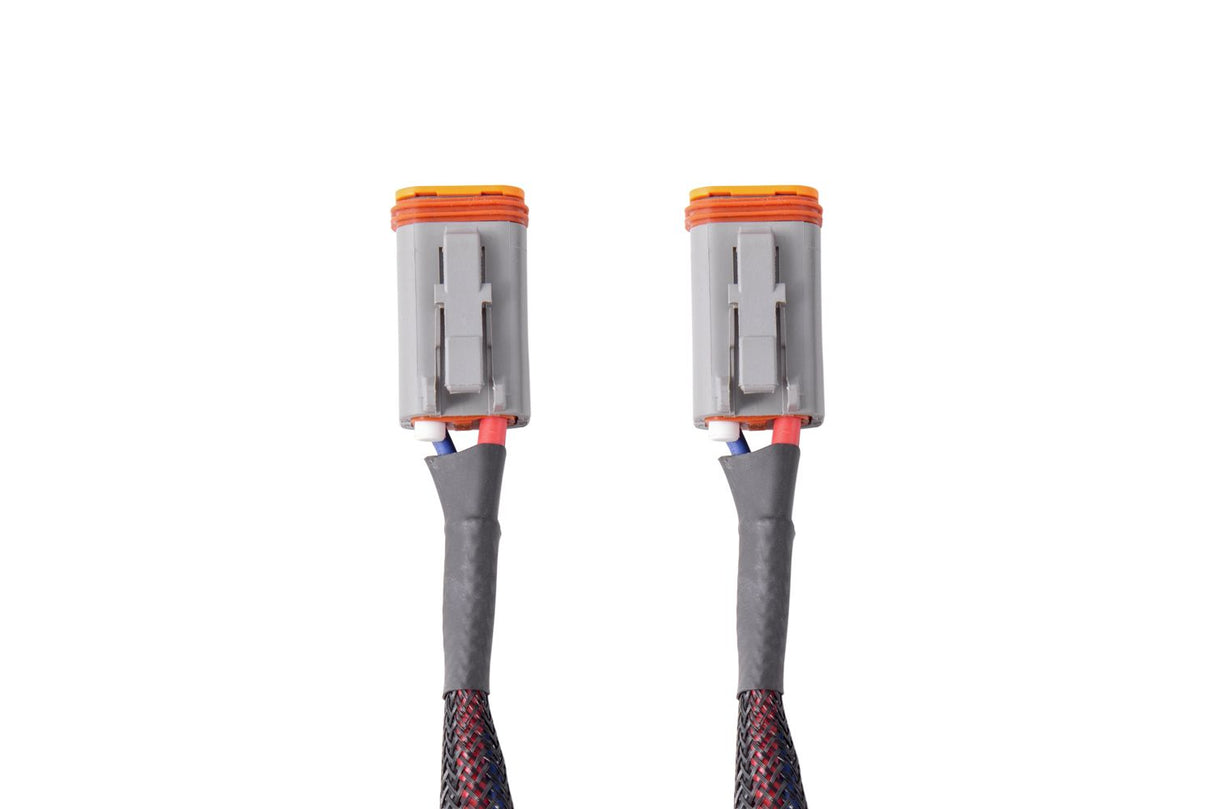

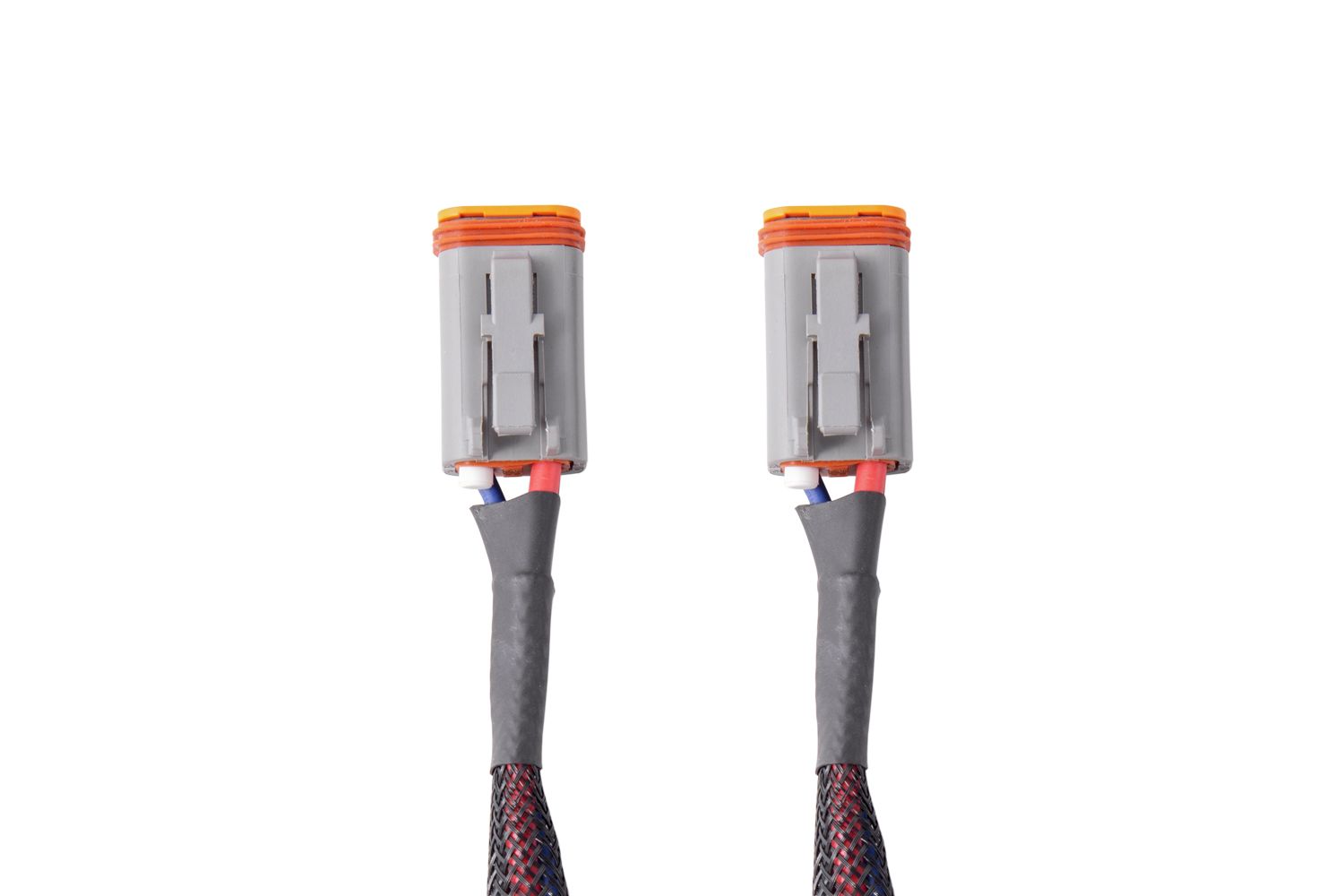

Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.
This harness safely powers up to 25A of auxiliary lamps. Please refer to the current draw data below.
- C1 Sport: 1.2A
- C1 Pro: 1.7A
- SSC2 Sport: 0.6A
- SSC2 Pro: 1.75A
- SS3 Sport: 2.9A
- SS3 Pro: 1.2A
- SS3 Max: 3.3A
- SS5 Sport: 2.8A
- SS5 Pro: 6.7A
