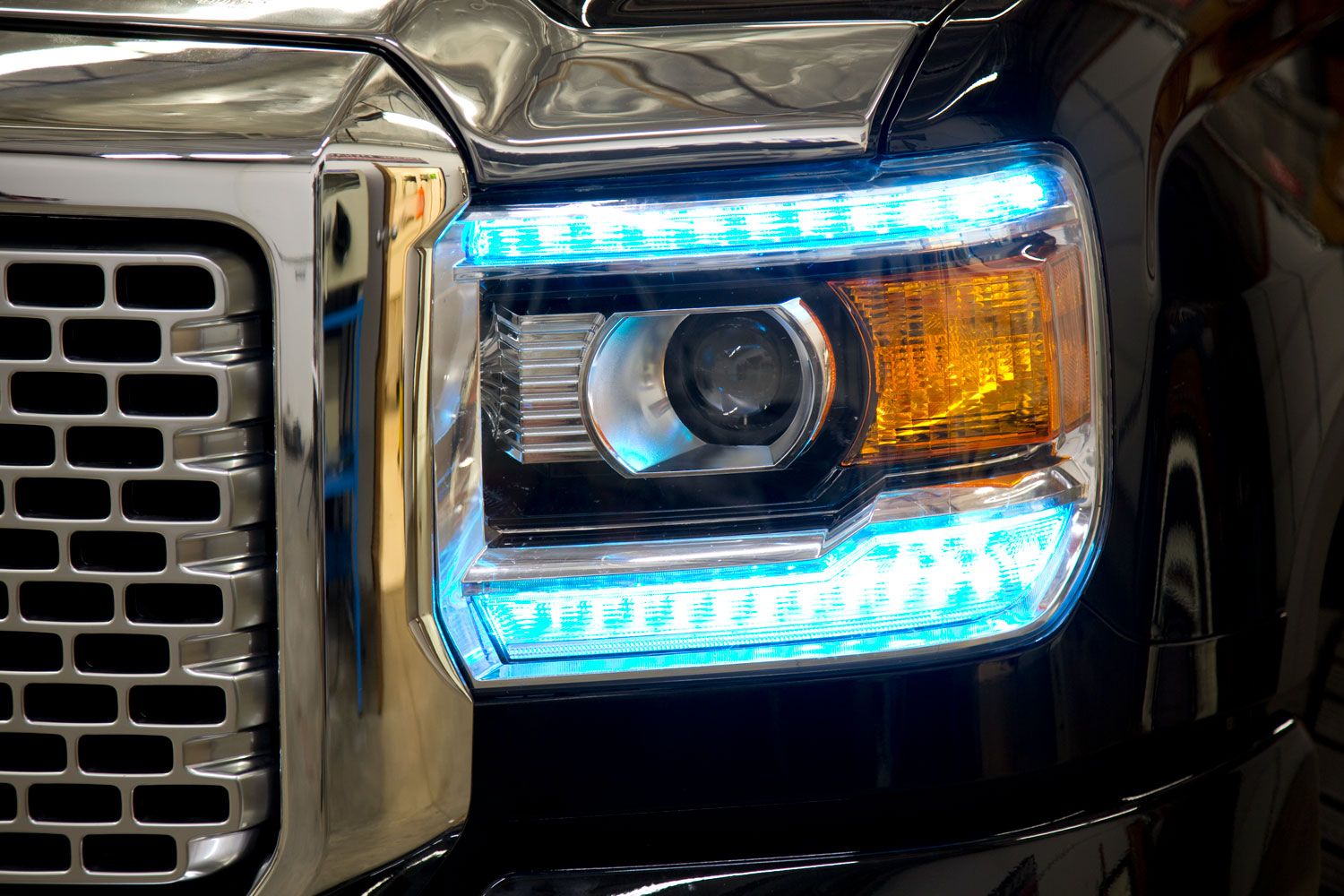

The RGBW DRL LED Boards for the 2014-2015 GMC Sierra convert the factory white LED DRL "bars" inside the headlight into full multicolor functionality. These boards are a direct replacement for the factory LED panels — pair with a Diode Dynamics RGBW controller (sold separately) for complete color control. Here's the full walkthrough.
Table of Contents
- Installation Video
- Tools Required
- Mounting Instructions
- Wiring Instructions
- Questions About the Install?
- Shop Sierra Lighting at Ess K Customs
Important: Headlights must be opened before proceeding with installation. Professional installation is strongly recommended.
Installation Video
Tools Required
- Torx T20 screwdriver
- Rotary (Dremel) tool
- 5-minute epoxy
Mounting Instructions
Step 1 — Remove the Reflector Housings
Remove the headlamp lens. Using a T20 Torx screwdriver, remove the screws holding both reflector housings in place. Pull the reflector housings away from the headlamp and unclip each connector.
Step 2 — Swap the LED Boards
Take both reflector housings to a clean area. Using a Dremel tool, shave down the black plastic rivets holding the factory LED panels to the housing and remove the factory boards. Repeat for all three factory boards. Remove any shavings, then place the new Diode Dynamics LED boards into position using the original plastic rivet points. Fix the new panels in place by applying 5-minute epoxy to completely cover the rivet tabs — the epoxy should bond all the way around each rivet, contacting the board fully.
Step 3 — Reassemble and Route Wiring
Remove the turn signal housing from the headlamp. After the epoxy is completely dry, reinstall the reflector housing units and turn signal housing with all original screws. Route the RGBW ribbon cable out of the headlamp, sealing any holes you create. Replace the headlamp lens and repeat for the other side.
Wiring Instructions
Step 4 — Connect the Driver and Controller
Connect the LED board to the driver. Using the JST-to-M8 adapter wire included with the Diode Dynamics RGBW controller (sold separately), connect the driver to the controller.
Important: Do NOT plug the LED panel directly into the controller without the driver. The LEDs must be connected to the driver first to control power.
Step 5 — Connect Power and Complete
Connect the RGBW controller to 12V power and ground — this dictates when the panels turn on. Tap wires coming directly out of the headlight, not the main headlamp connector. Mount drivers and controller outside the headlight for serviceability, away from the engine block. Test thoroughly, reseal the headlight, and reinstall onto the vehicle. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop Sierra Lighting at Ess K Customs
Looking for lighting upgrades for your 2014-2015 GMC Sierra? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Browse Sierra RGBW LED Boards at Ess K Customs →
This install guide applies to Diode Dynamics SKU: DD2010
