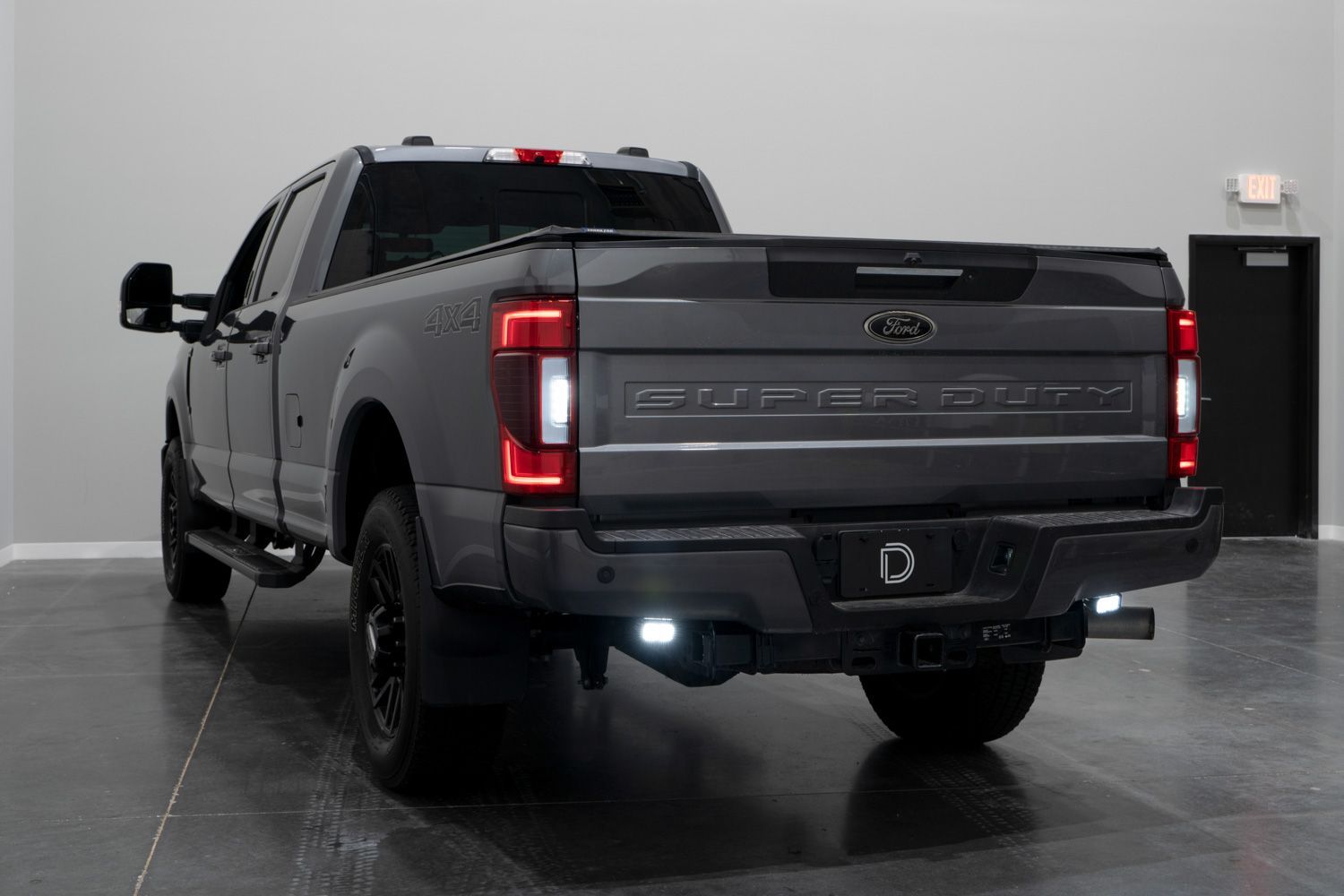

The Stage Series LED Reverse Light Kit for the 2017-2022 Ford Super Duty adds LED pod lights as high-power backup lights with eye-catching red accent lighting. Mounts behind the rear bumper using factory bolt locations with the included brackets. Here's the full installation walkthrough.
Table of Contents
- Installation Video
- Tools Required
- Mounting Instructions
- Wiring Instructions
- Questions About the Install?
- Shop Super Duty Lighting at Ess K Customs
Installation Video
Tools Required
- 5/32" or 4mm Allen key
- 3/8" wrench
- T40 Torx wrench
- Wire cutters
Mounting Instructions
Step 1 — Install Reverse Brackets
Using a T40 Torx wrench, remove the T40 bolt on the backside of the bumper. Install the reverse bracket by threading the factory bolt through the circular hole in the bracket and reinstalling into the bumper — make sure the "L" bracket faces the front of the vehicle. Place a level on the mounting platform and tighten the bolt to 18 ft-lbs when level. Repeat on the other side.
Step 2 — Mount LED Pods
Install your Stage Series pods onto the universal brackets using the provided hardware. Using a 5/32" Allen key and 3/8" wrench, tighten just enough that the pod retains its position but can pivot with force for aiming. Repeat on the other side.
Wiring Instructions
Step 3 — Connect Trailer Hitch Harness
Note: C1R pods use the C1R 7-pin dual output wiring harness. All other 4-pin Stage Series pods use the regular 7-pin dual-output harness. From underneath the vehicle, disconnect the factory trailer hitch connector. Connect the provided 7-pin harness inline between the factory harness and the connector on the back of the bumper. Plug the DT connectors into the back of the LED pods.
Step 4 — Aim, Test, and Secure
Aim the pods as desired — aiming can be done with pods installed on the vehicle (no removal needed). Tighten hardware using a 5/32" Allen key and 3/8" wrench. Test all functions and secure the wiring harness with the included zip ties.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop Super Duty Lighting at Ess K Customs
Looking for lighting upgrades for your 2017-2022 Ford Super Duty? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Browse Super Duty LED Reverse Light Kits at Ess K Customs →
This install guide applies to Diode Dynamics SKUs: DD7564-DD7569
