Stage Series LED Lightbar Kit for 2019-2021 Ford Ranger

$ 471.90 CAD $ 524.33 CAD

Diode Dynamics | SKU / Part Number: DD6592 | Barcode: 00691026127255

Choose Your Kit

Two 6" Light bars One 18" Light Bar

Choose Your Optic and Color

White Driving White Wide Amber Wide White Combo

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

Make: Ford Model: Ranger Years: 2019, 2020, 2021 Electrical Compatibility: No electrical issues (tested and confirmed)

Description

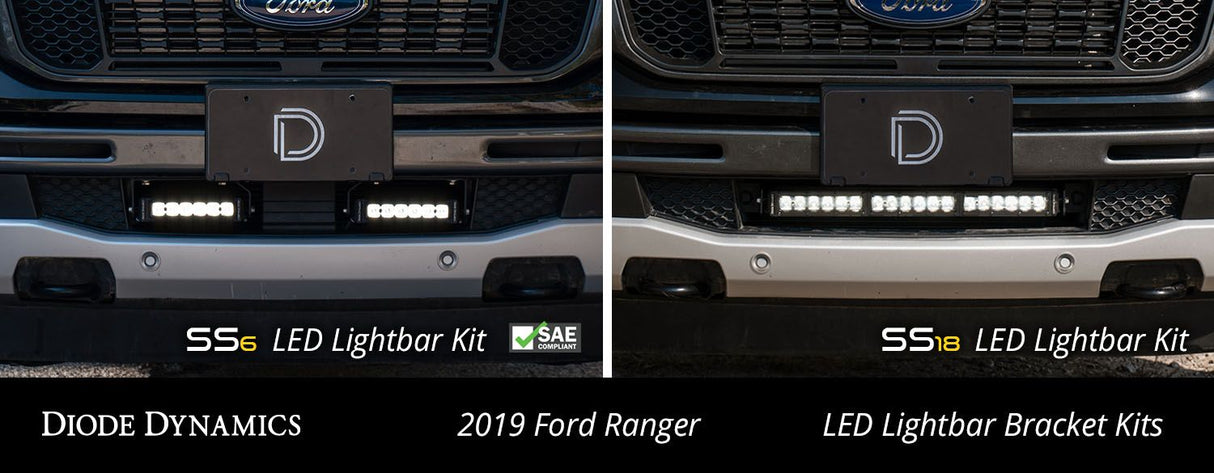

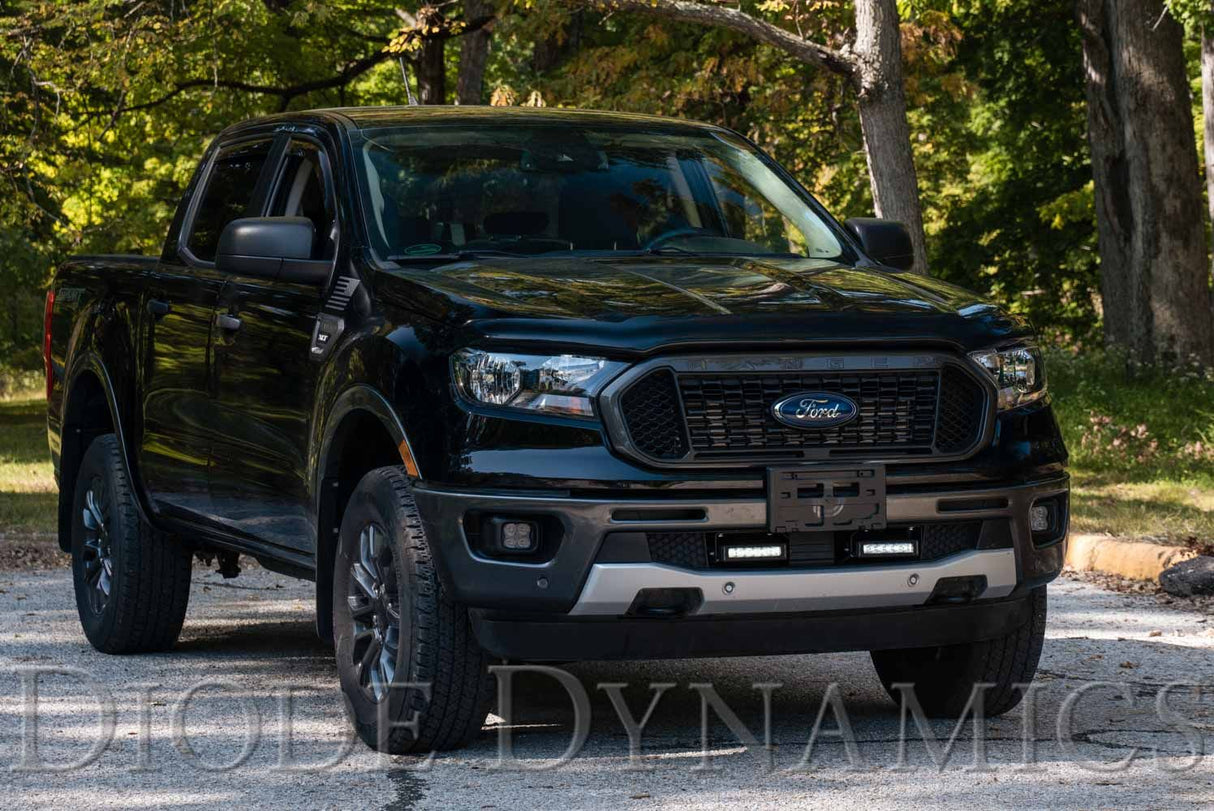

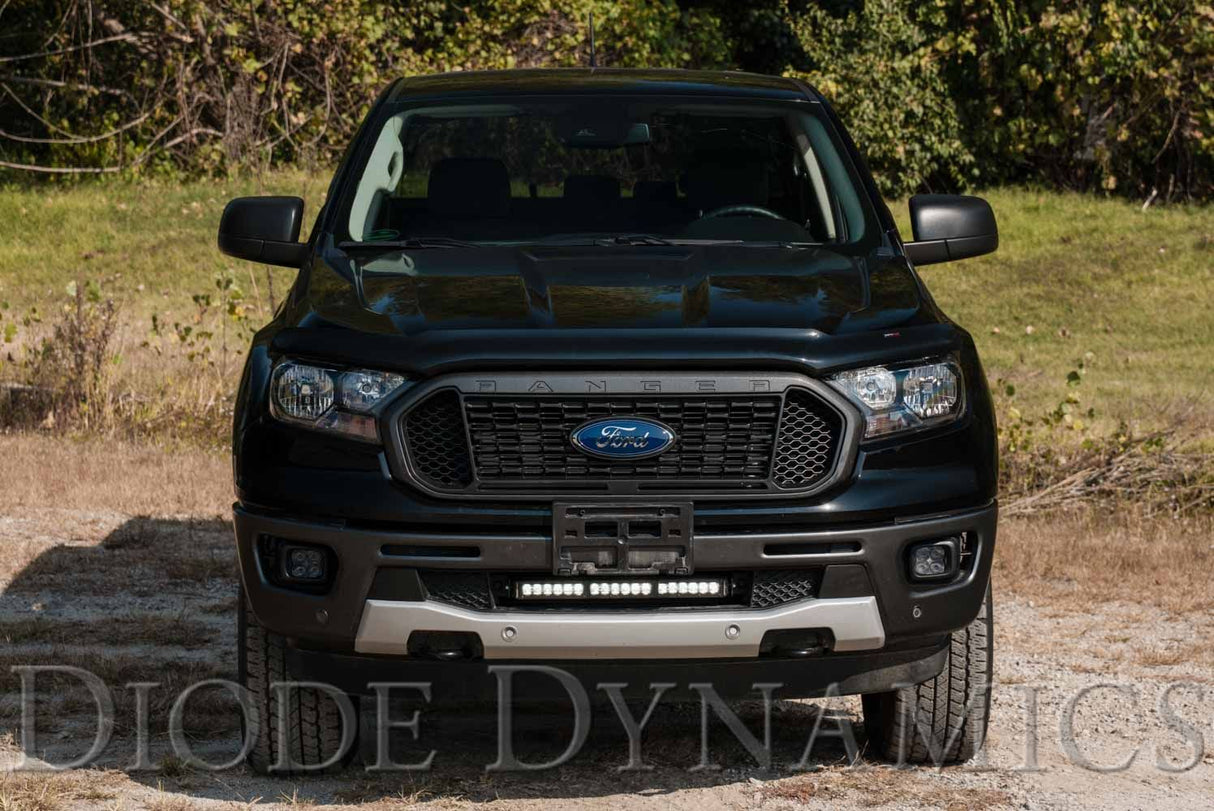

The Diode Dynamics SS6 LED Lightbar Kit for 2019-2021 Ford Ranger White Driving offers a performance-driven upgrade for your vehicle's lighting. The Stage Series LED Lightbar Kit compatible with Ford Ranger 2019-2021 from Diode Dynamics allows you to mount a pair of 6in light bars or one 18in light bar in the opening on the bumper. Designed with attention to detail, it provides: Allows you to mount two 6in light bars in the lower grille opening; CAD-designed for perfect fitment and OEM-like appearance; Utilizes existing mounting points for easy installation - no cutting or drilling required; Powdercoated steel construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SS6 LED Lightbar Kit for 2019-2021 Ford Ranger White Driving, DD6592
SS6 LED Lightbar Kit for 2019-2021 Ford Ranger White Wide, DD6593
SS6 LED Lightbar Kit for 2019-2021 Ford Ranger Amber Wide, DD6595
SS18 LED Lightbar Kit for 2019-2021 Ford Ranger White Combo, DD6597
Features and Benefits

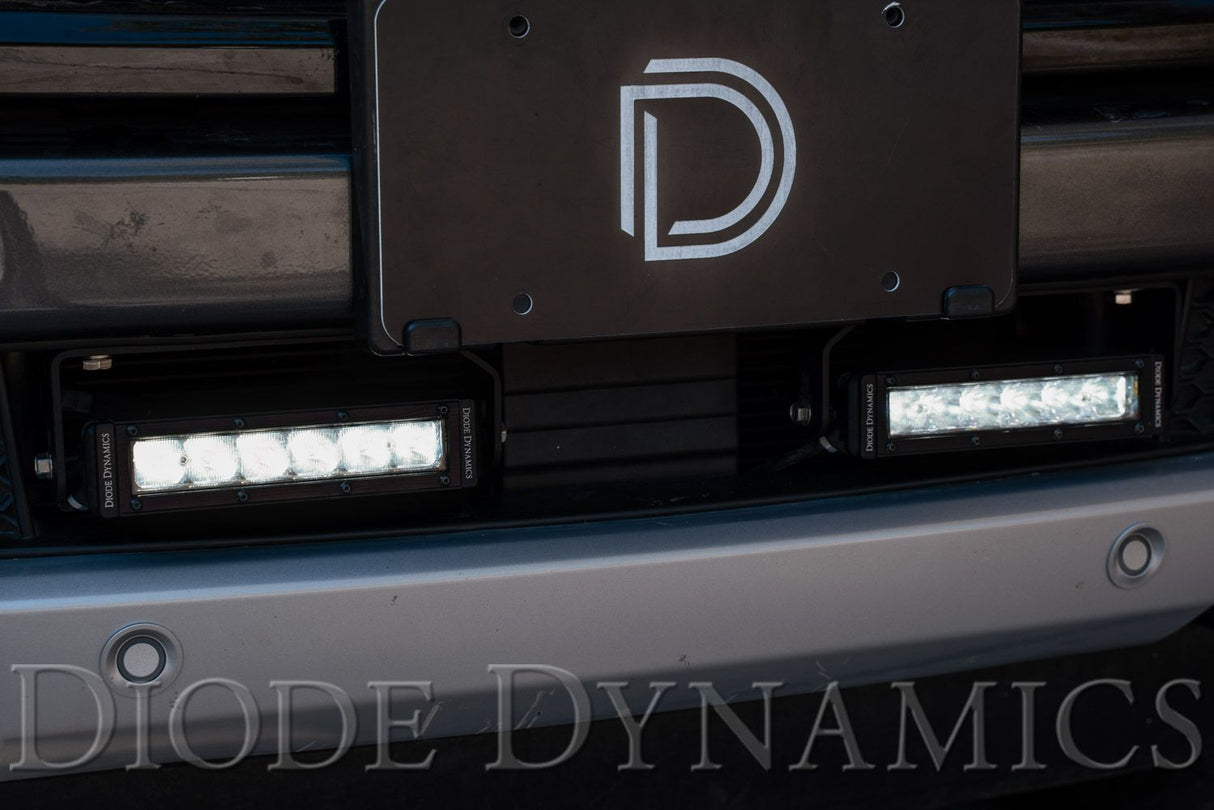

Allows you to mount two 6in light bars in the lower grille opening
CAD-designed for perfect fitment and OEM-like appearance
Utilizes existing mounting points for easy installation - no cutting or drilling required
Powdercoated steel construction
Allows you to mount two 6in light bars in the lower grille opening
CAD-designed for perfect fitment and OEM-like appearance
Utilizes existing mounting points for easy installation - no cutting or drilling required
Powdercoated steel construction
Allows you to mount two 6in light bars in the lower grille opening
CAD-designed for perfect fitment and OEM-like appearance
Utilizes existing mounting points for easy installation - no cutting or drilling required
Powdercoated steel construction
Allows you to mount one 18in light bar in the lower grille opening
CAD-designed for perfect fitment and OEM-like appearance
Utilizes existing mounting points for easy installation - no cutting or drilling required
Powdercoated steel construction
Whats Included

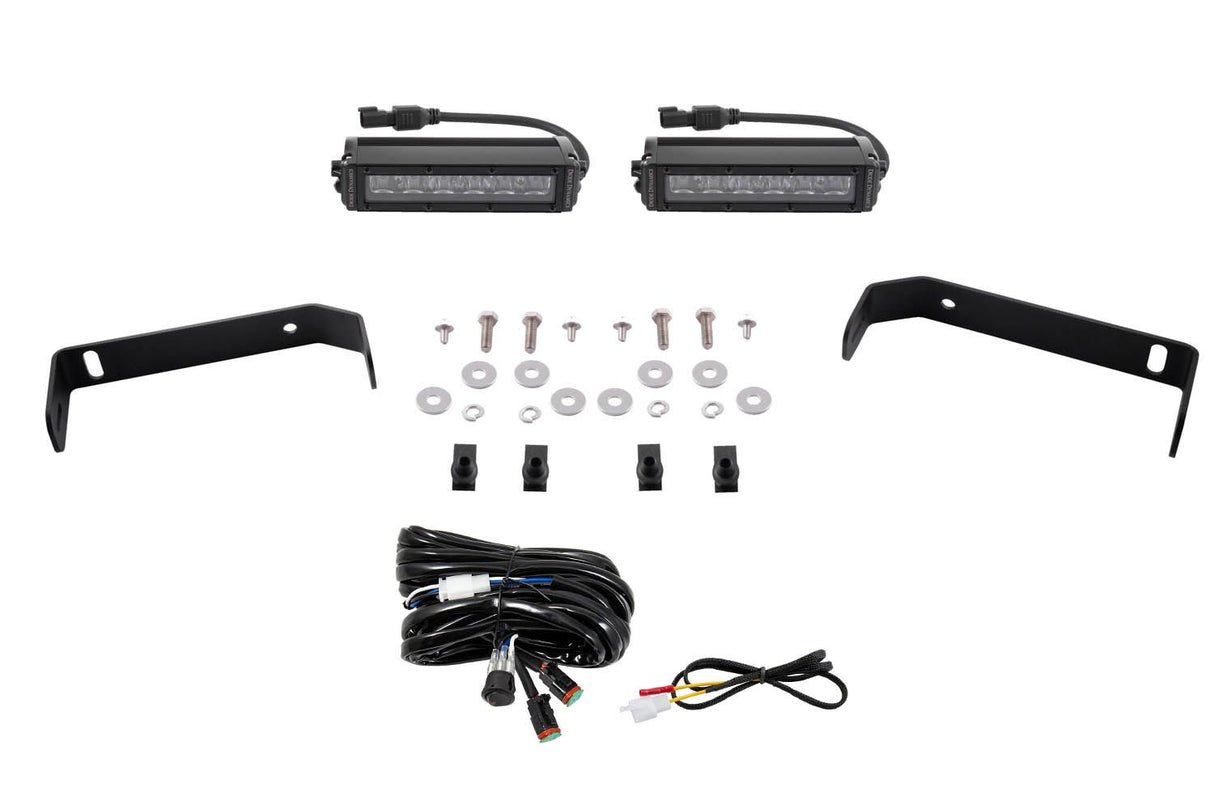

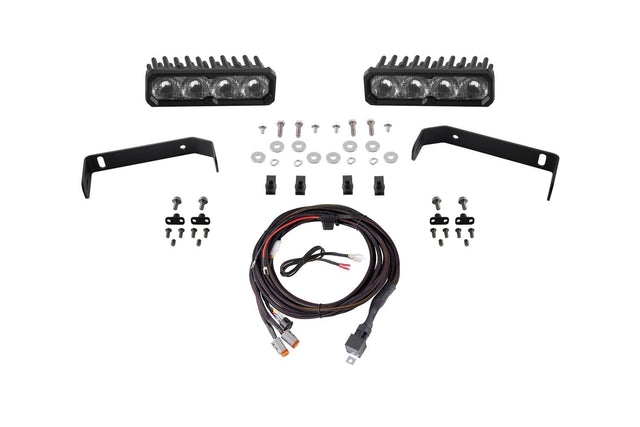

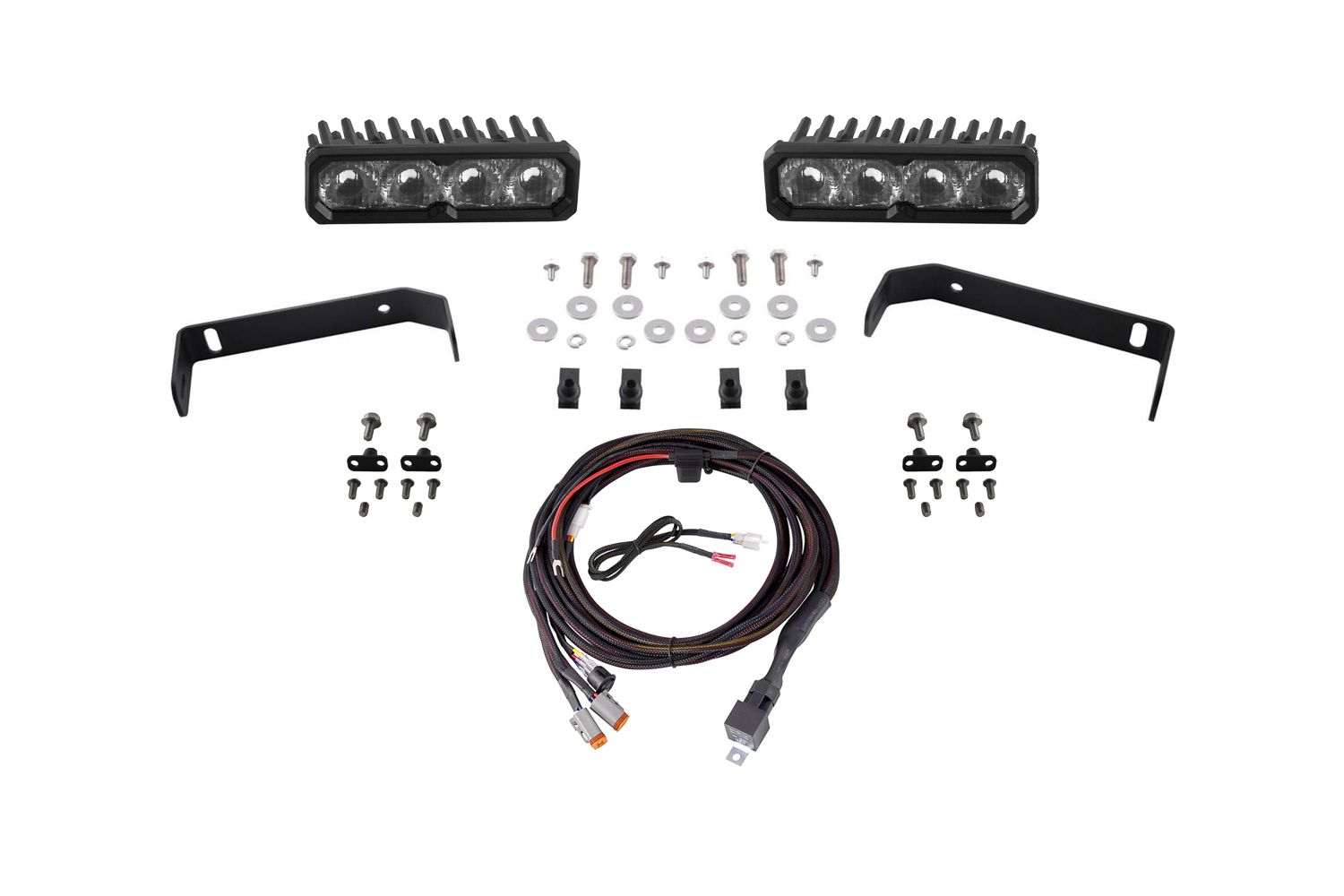

Included in the box:

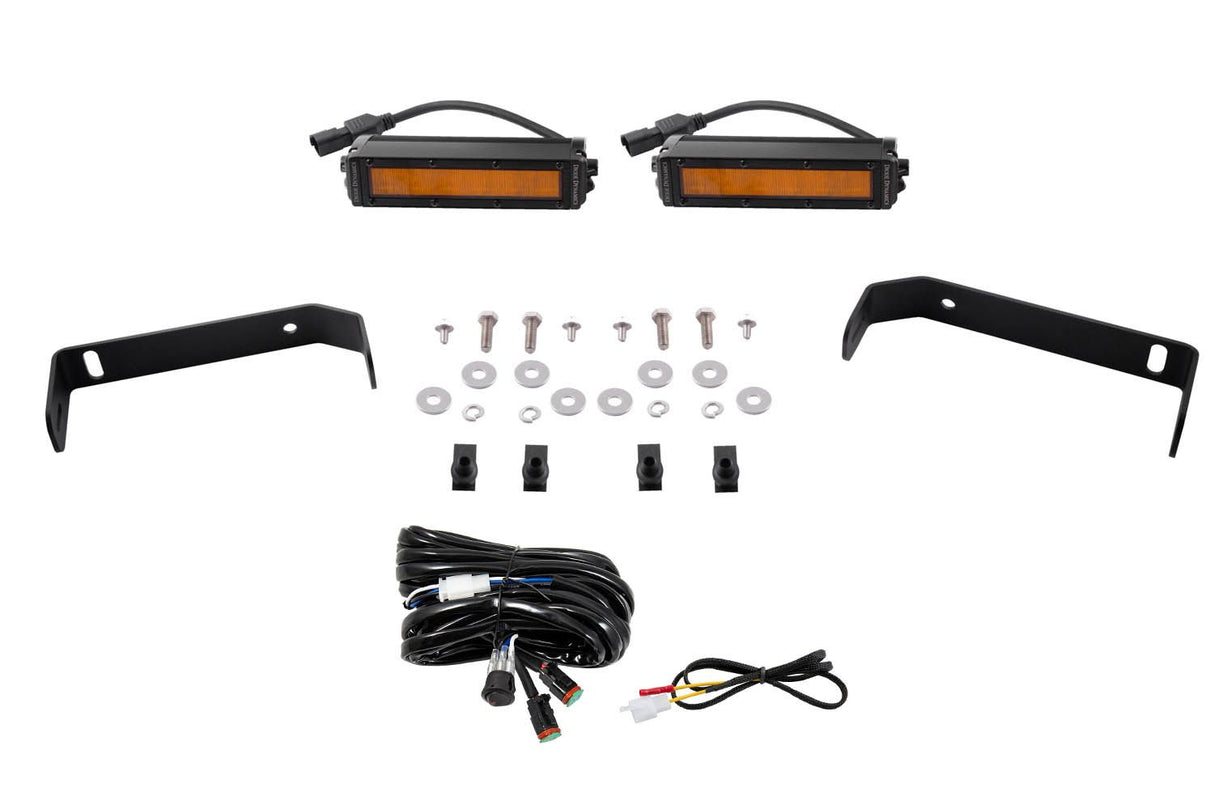

- One (1) application-specific SS6 bracket kit
- Two (2) SS6 6" Stage Series Light Bars
- One (1) Heavy-Duty Dual Output 2-Pin Wiring Wiring Harness
- One (1) Aux Switch Adapter Wire
- All Necessary Hardware
Included in the box:
- One (1) application-specific SS6 bracket kit
- Two (2) SS6 6" Stage Series Light Bars
- One (1) Heavy-Duty Dual Output 2-Pin Wiring Wiring Harness
- One (1) Aux Switch Adapter Wire
- All Necessary Hardware

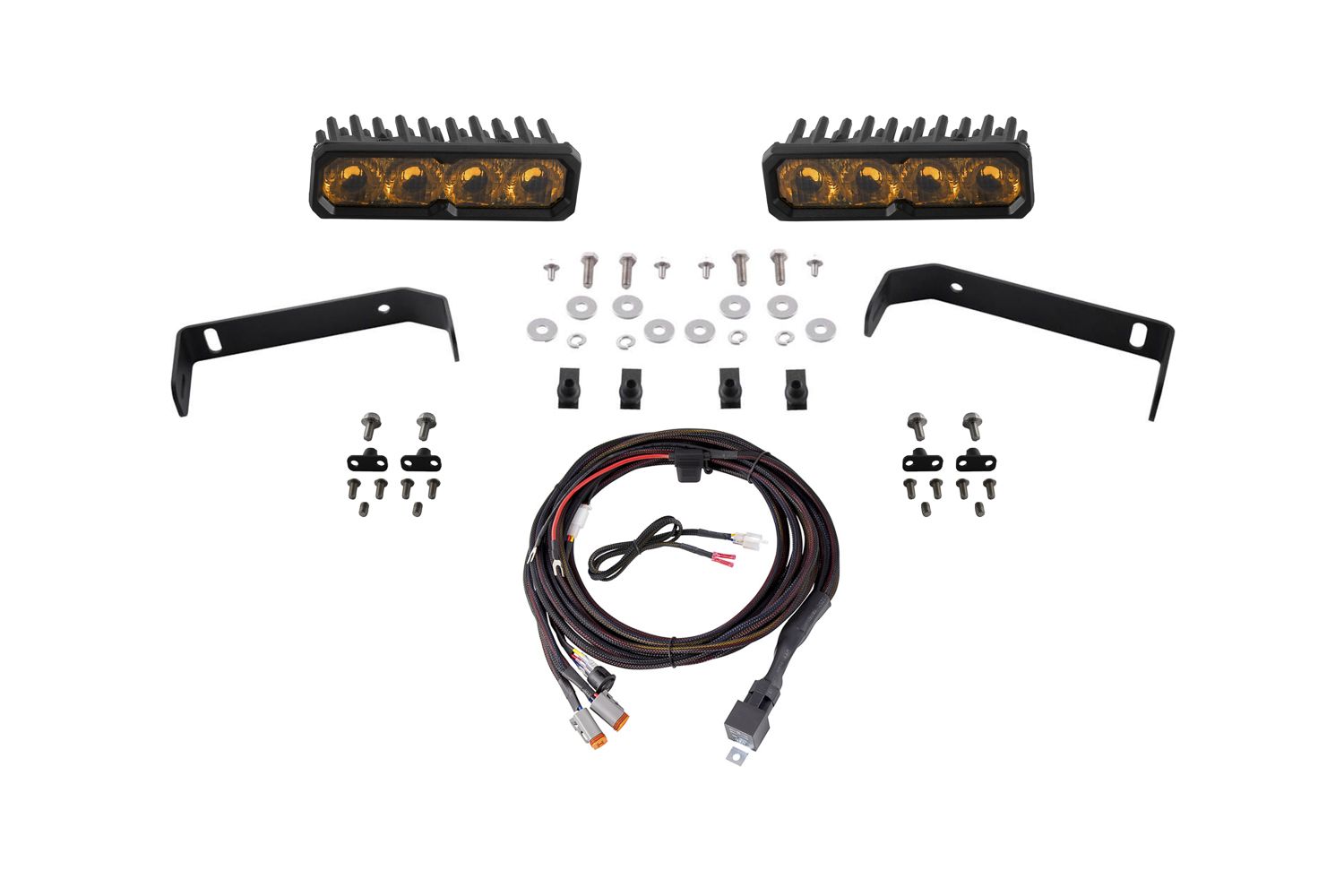

Included in the box:
- One (1) application-specific SS6 bracket kit
- Two (2) SS6 6" Stage Series Light Bars
- One (1) Heavy-Duty Dual Output 2-Pin Wiring Wiring Harness
- One (1) Aux Switch Adapter Wire
- All Necessary Hardware

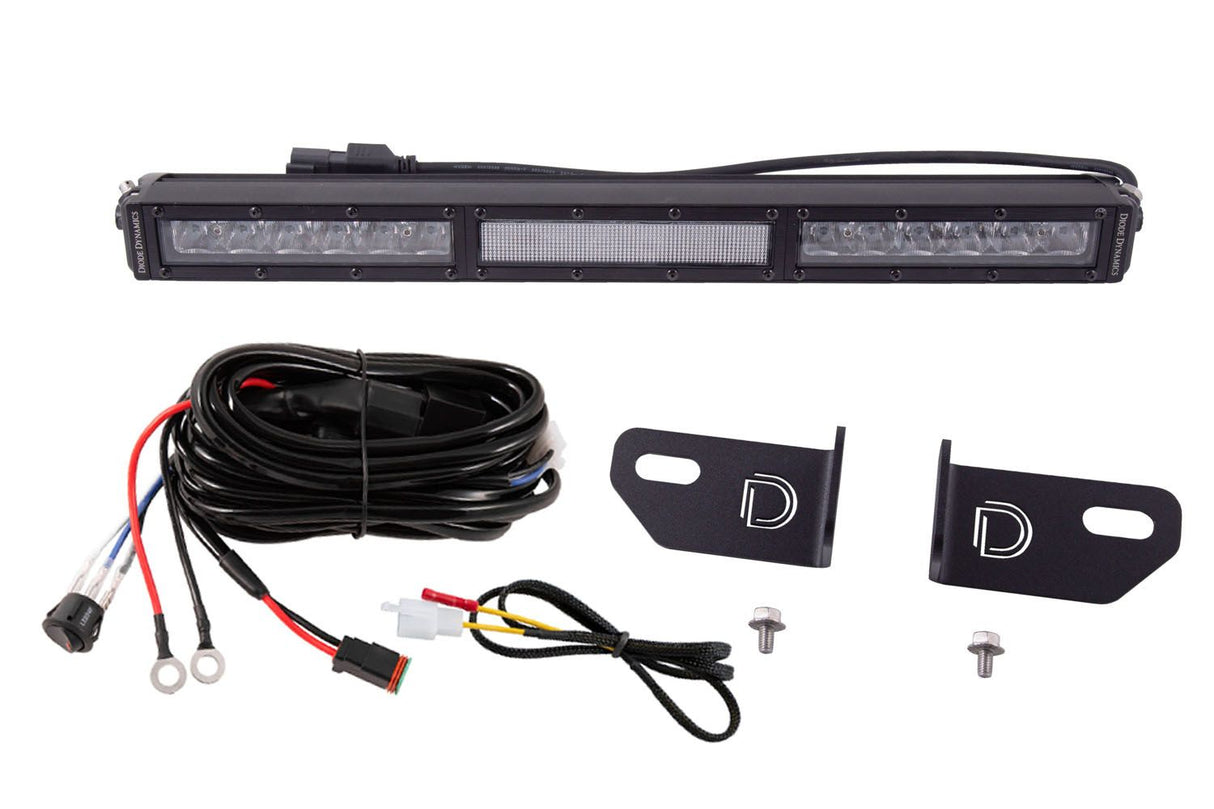

Included in the box:
- One (1) application-specific SS18 bracket kit
- One (1) SS18 18" Stage Series Light Bar
- One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
- One (1) Aux Switch Adapter Wire
- All Necessary Hardware
Tech Specs

Base Color: Black
Base Material: Steel
Beam Angle: Driving 20°x8°
Bolt Grade: High
Bolt Thread Type: Medium
Bracket Color: Black
Bracket Material: Steel
Color Temp: 6000K
DOT Approved: Yes
Drilling Required: No
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): 26.6
Intensity (lux): 55 000 cd
Intrusion Rating: IP68 Waterproof
Lens Material: Polycarbonate
Light Housing Color: Black
Light Shape: Four Sided
Measured Output (lumens): 1 400 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Sheen Level: Matte
Street Legal: Yes
Switch Included: No
Terminal Type: Pin
Universal Or Specific Fit: Specific
Voltage: 9-24V
Base Color: Black
Base Material: Steel
Beam Angle: Wide 100°x8°
Bolt Grade: High
Bolt Thread Type: Medium
Bracket Color: Black
Bracket Material: Steel
Color Temp: 6000K
DOT Approved: Yes
Drilling Required: No
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): 26.6
Intensity (lux): 13 000 cd
Intrusion Rating: IP68 Waterproof
Lens Material: Polycarbonate
Light Housing Color: Black
Light Shape: Four Sided
Measured Output (lumens): 1 400 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Sheen Level: Matte
Street Legal: Yes
Switch Included: No
Terminal Type: Pin
Universal Or Specific Fit: Specific
Voltage: 9-24V
Base Color: Black
Base Material: Steel
Beam Angle: Wide 100°x8°
Bolt Grade: High
Bolt Thread Type: Medium
Bracket Color: Black
Bracket Material: Steel
Color Temp: 2000K
DOT Approved: Yes
Drilling Required: No
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): 26.6
Intensity (lux): 7 400 cd
Intrusion Rating: IP68 Waterproof
Lens Material: Polycarbonate
Light Housing Color: Black
Light Shape: Four Sided
Measured Output (lumens): 800 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Sheen Level: Matte
Street Legal: Yes
Switch Included: No
Terminal Type: Pin
Universal Or Specific Fit: Specific
Voltage: 9-24V
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Input Power (watts): 79.8
Intensity (lux): 99 500 cd
Intrusion Rating: IP68 Waterproof
Measured Output (lumens): 4 200 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Specific
