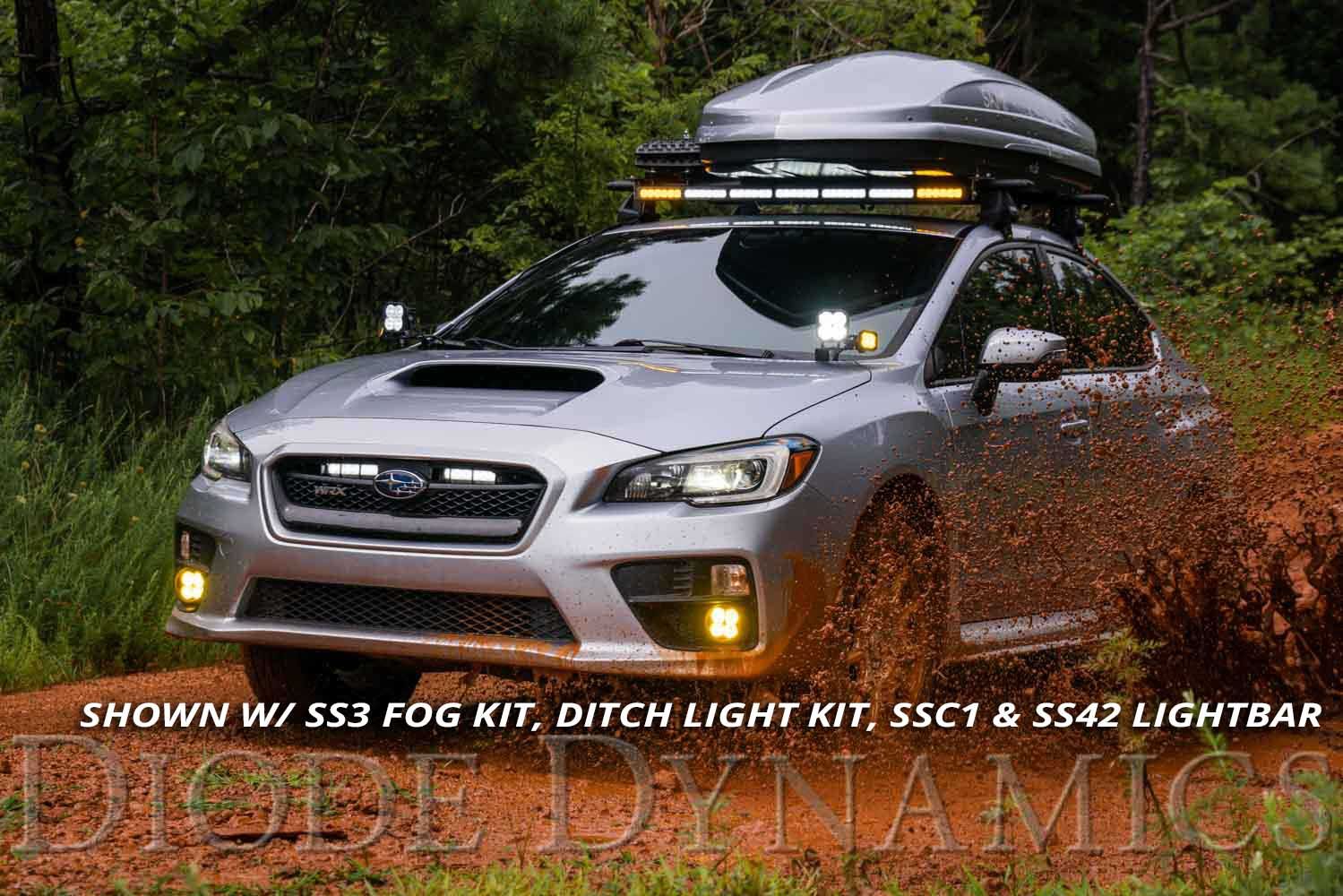

Subaru Wrx/Sti 2015-2017 Sae/Dot Led Lightbar Kit

$307.00 USD
Diode Dynamics  |  SKU / Part Number: DD6008

Output Colour
Optic Type

Free Canada Wide Shipping
Free shipping on all orders over $500

This Kit Fits

Make: Subaru
Model: WRX/STi
Years: 2015, 2016, 2017
NOTE: This kit is not compatible with Hella Horns, as they use the same mounting points.

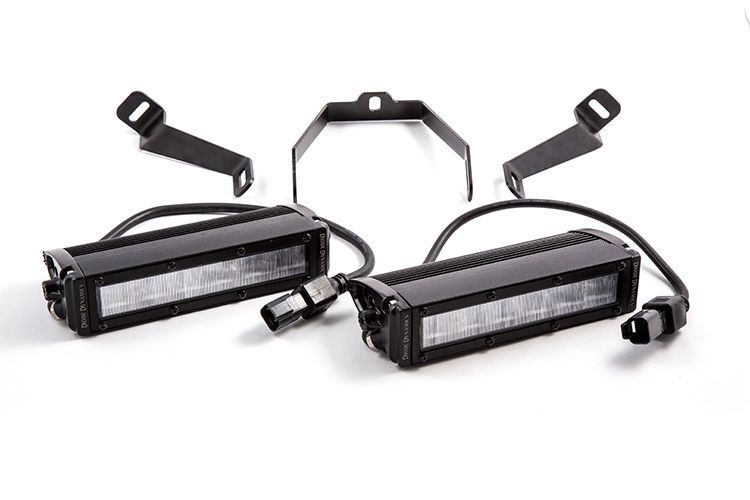

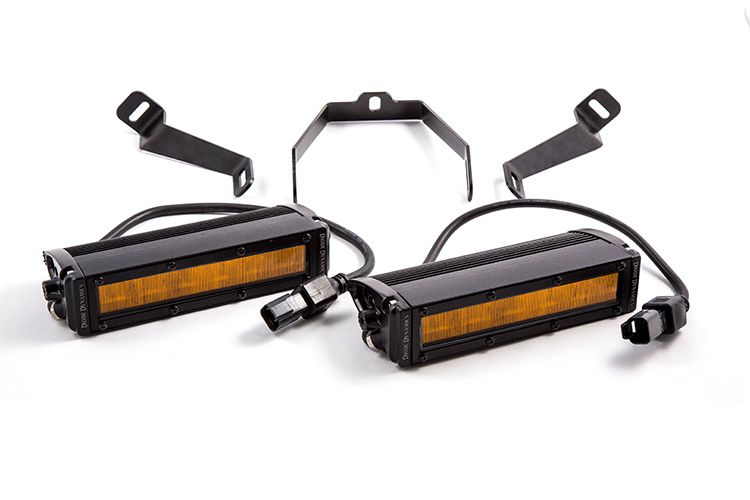

What's Included?

In the Box:
-Three (3) Application-specific heavy-duty steel brackets for installation on 2015-2017 Subaru WRX/STi

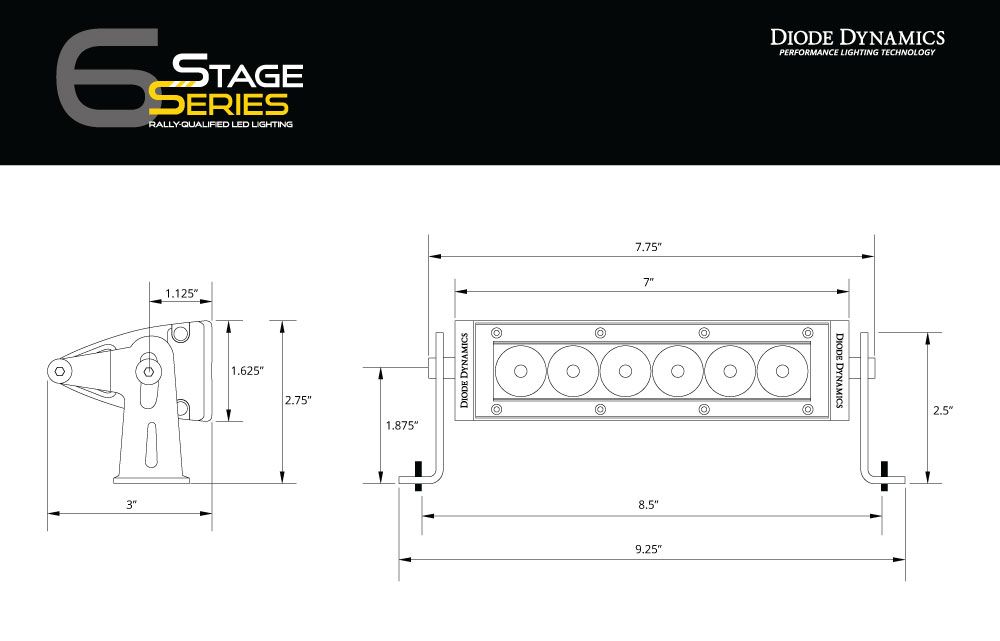

-Two (2) SS6 Stage Series 6" Light Bars
-One (1) Wiring Harness to connect to toggle switch
-All Necessary Hardware
-Installation Guide
-Warranty: 8 year warranty

Tech Specs:
Measured Lumens: 2280
Intensity (cd): 47,000
Color Temp (CCT): 2000K, 6000K
Beam Angle: Wide, 100°x8°, Driving, 20°x8° Power (watts): 26.6
Operating Voltage: 9-24V
Current (amps @ 14V): 1.9
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink

Installing Yourself?

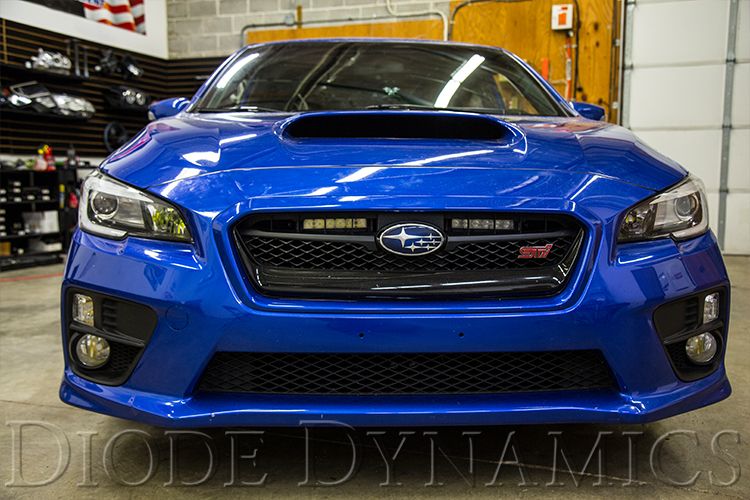

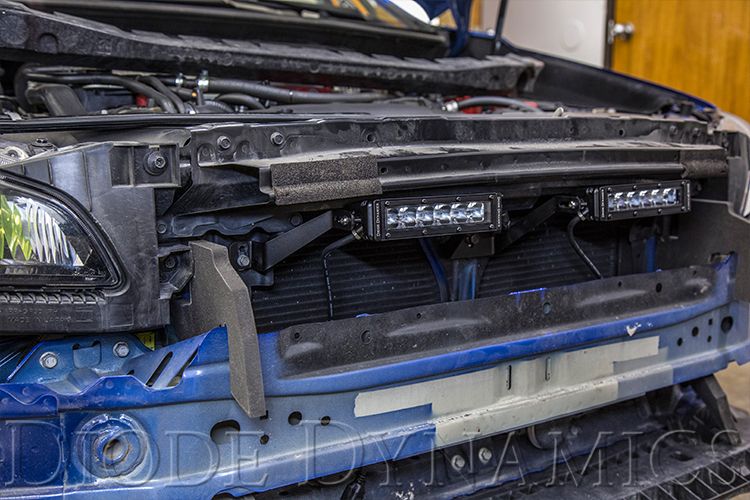

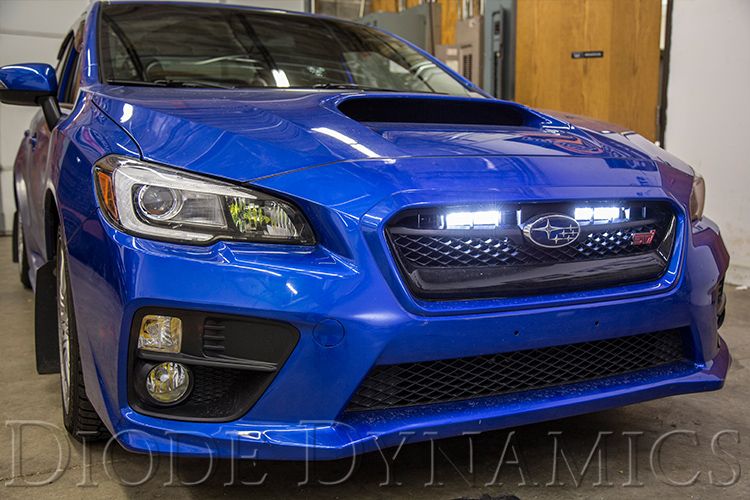

Perfect Fitment. The LED Driving Light Kit for the 2015-2017 Subaru WRX from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars behind the factory grille. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

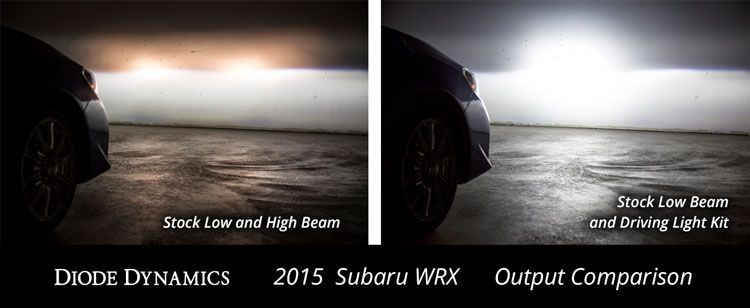

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play wiring harness, you can control the kit through your toggle switch.

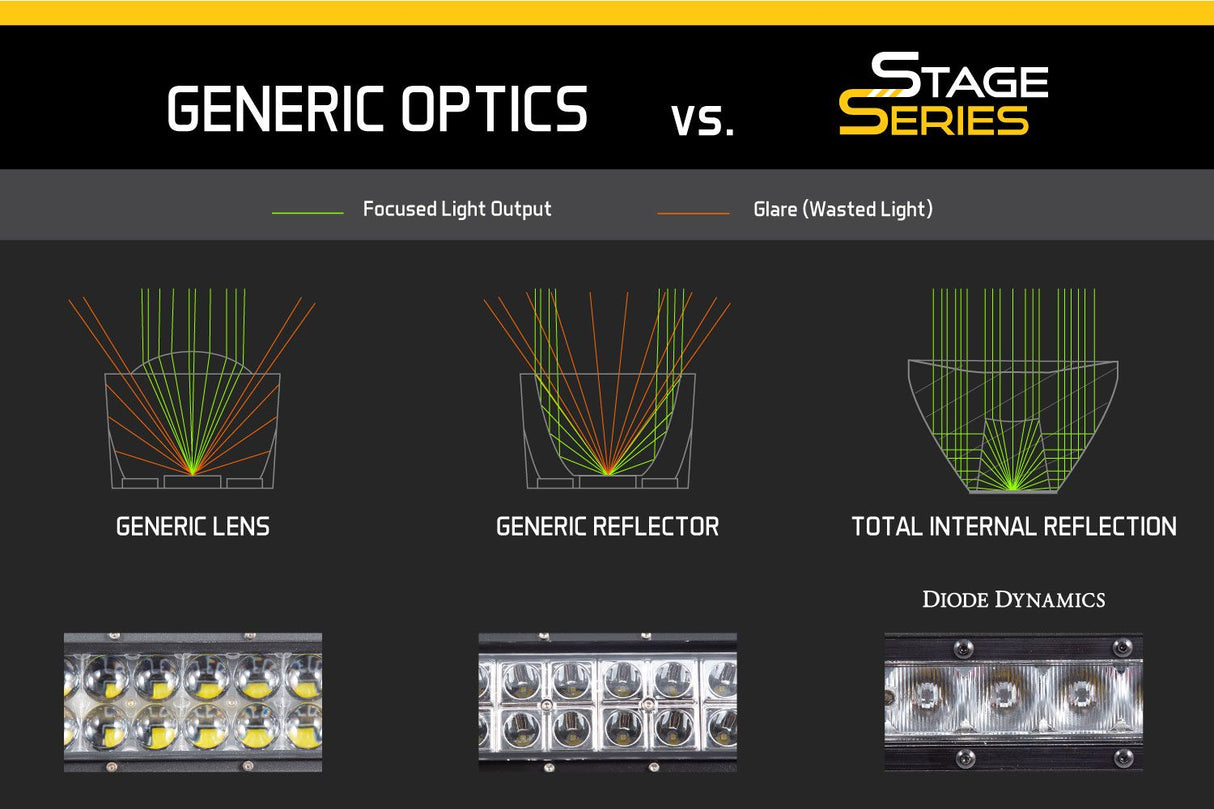

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

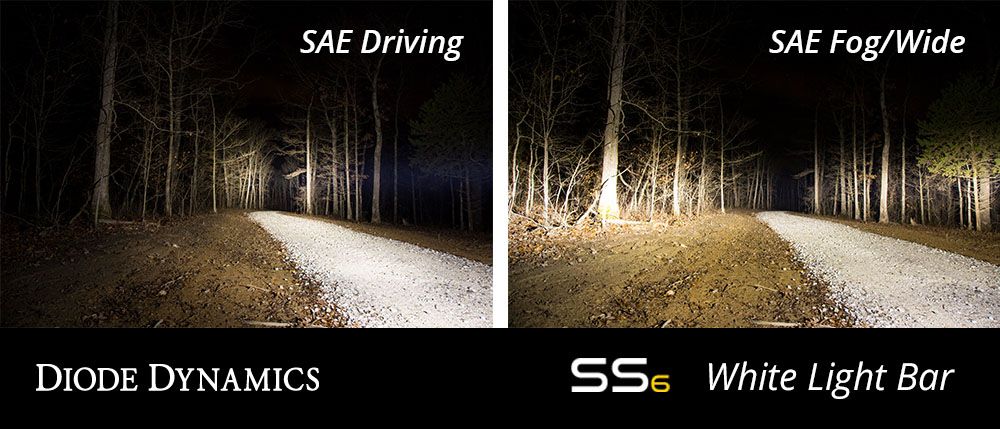

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.
