SS5 Grille CrossLink Lightbar Kit for 2019-2024 Ram 1500

$1,119.00 USD
Diode Dynamics  |  SKU / Part Number: DD7608  |  Barcode: 00195995132130
Choose Your Power Level
Choose Your Color

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

This kit cannot be installed alongside the Stealth Bumper Lightbar Kit for the 2019-2025 Ram 1500.
Make: Ram Model: 1500 Years: 2019, 2020, 2021, 2022, 2023, 2024

Description

The Diode Dynamics SS5 Grille CrossLink Lightbar Kit for 2019-2024 Ram Sport White Combo offers a performance-driven upgrade for your vehicle's lighting.

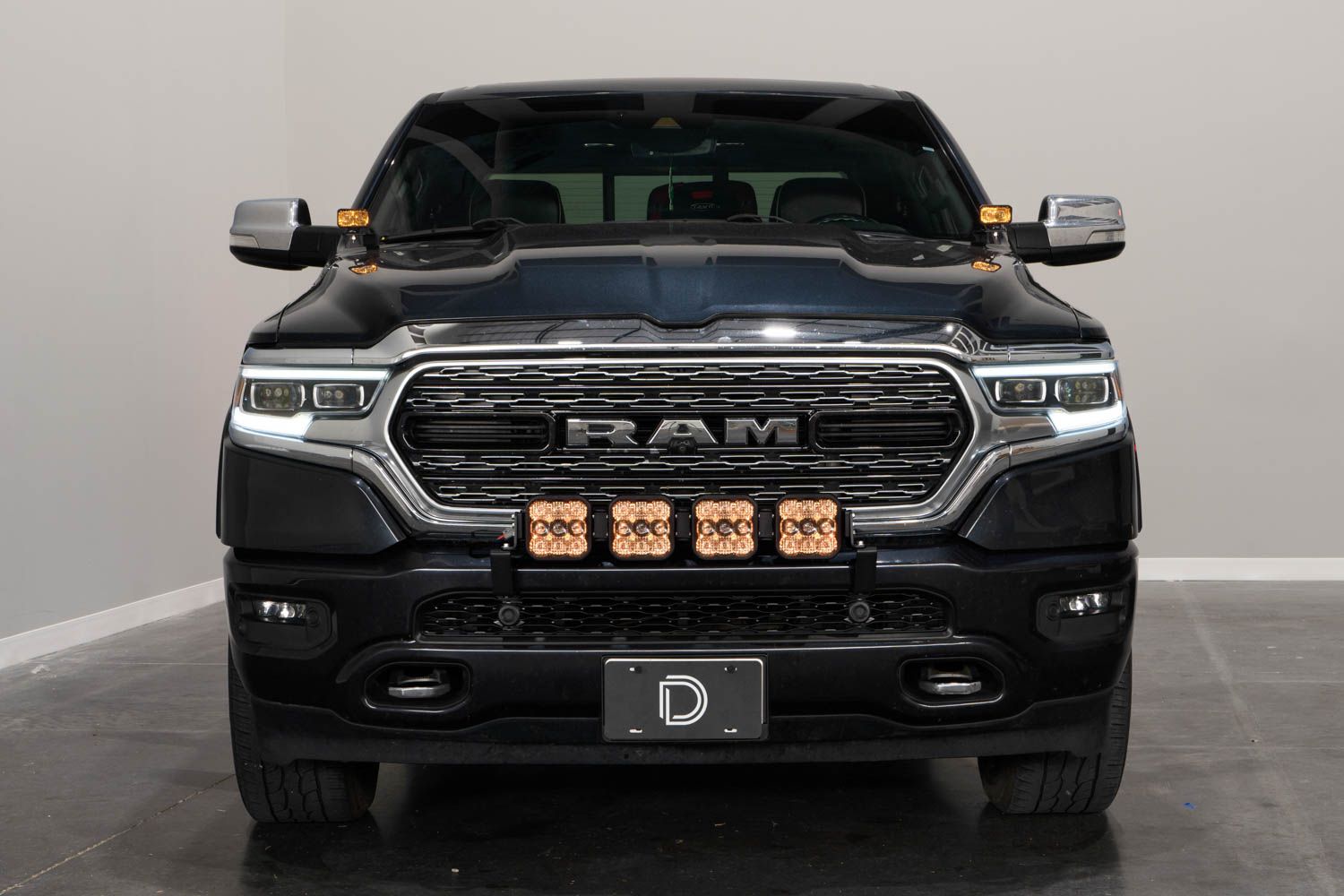

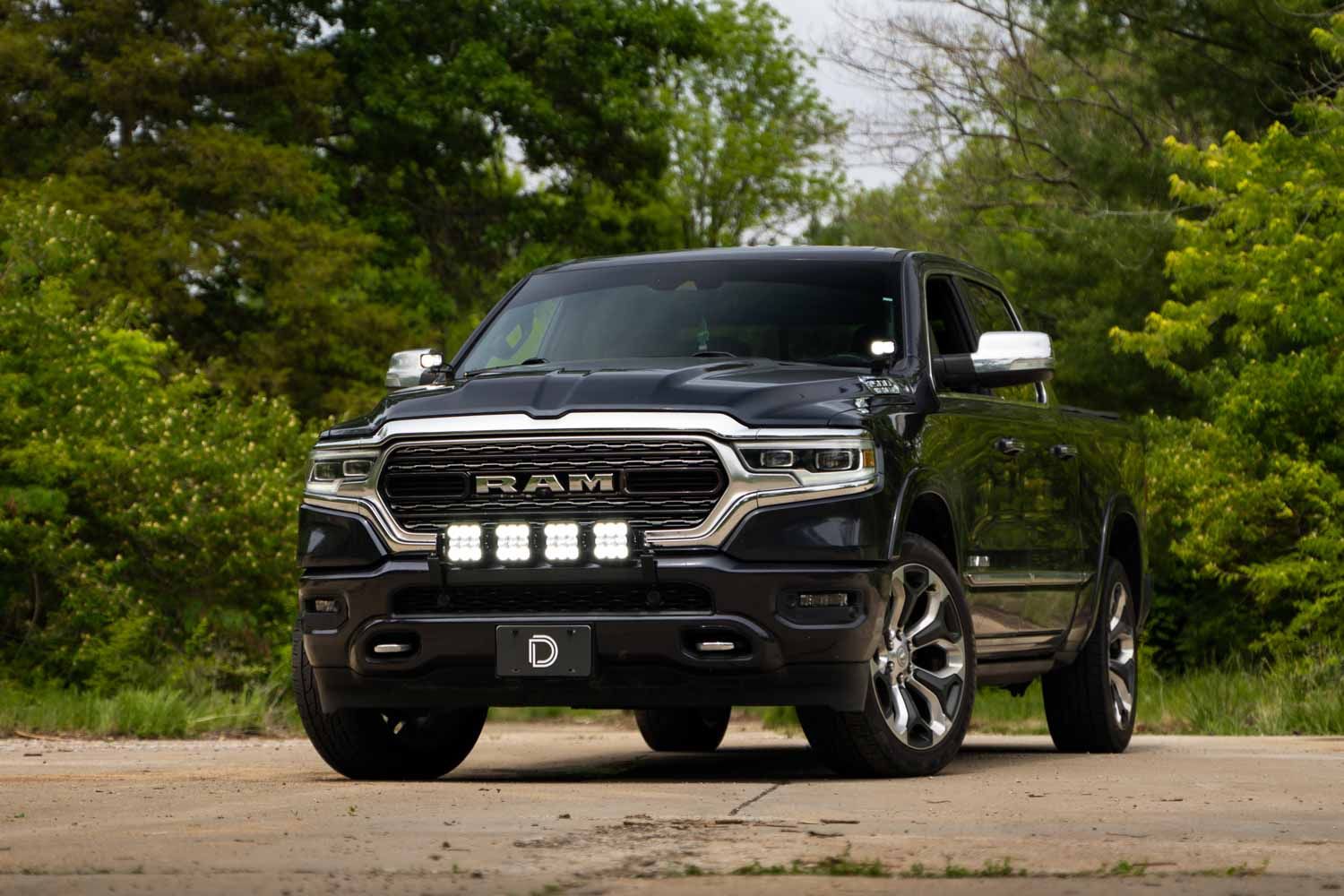

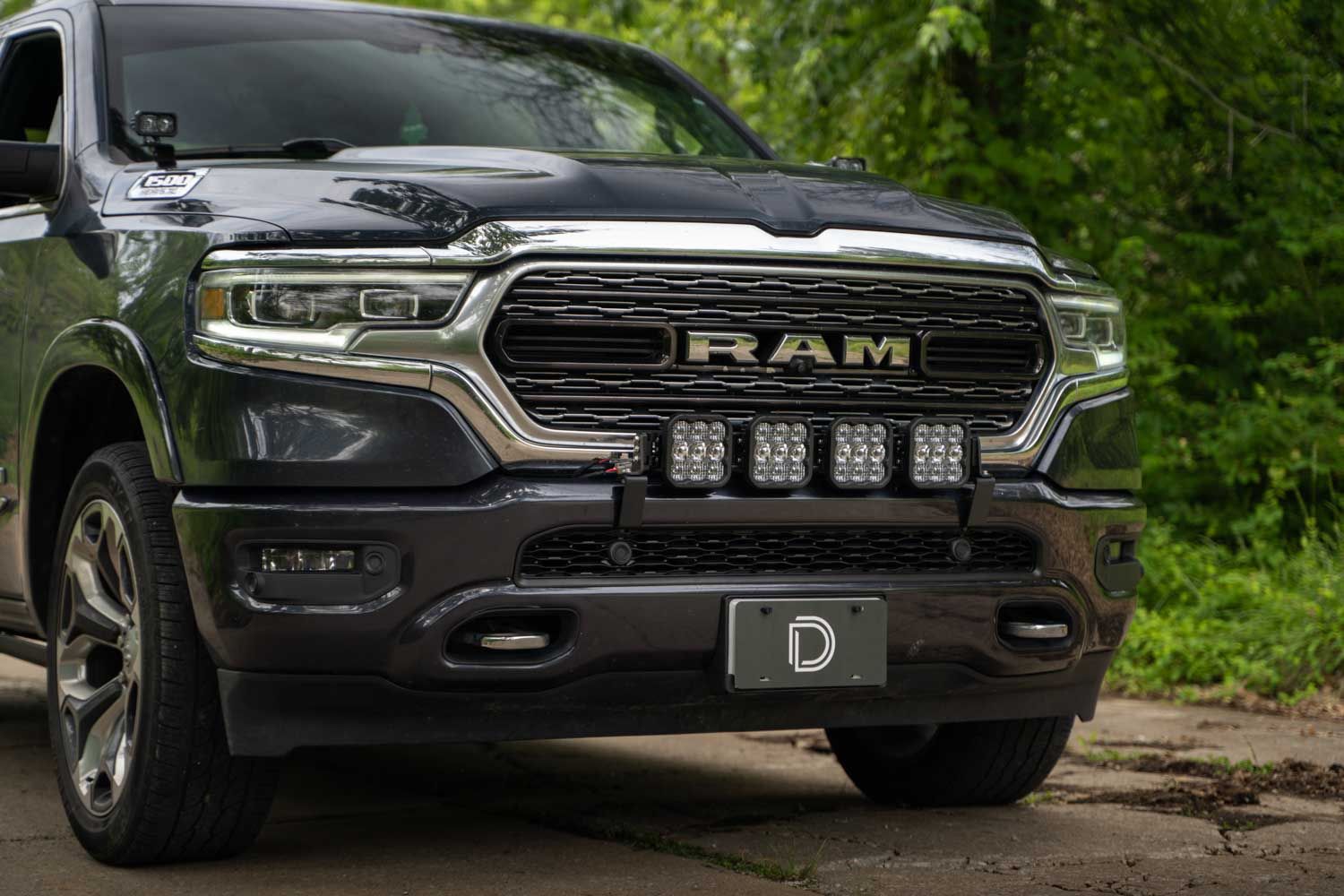

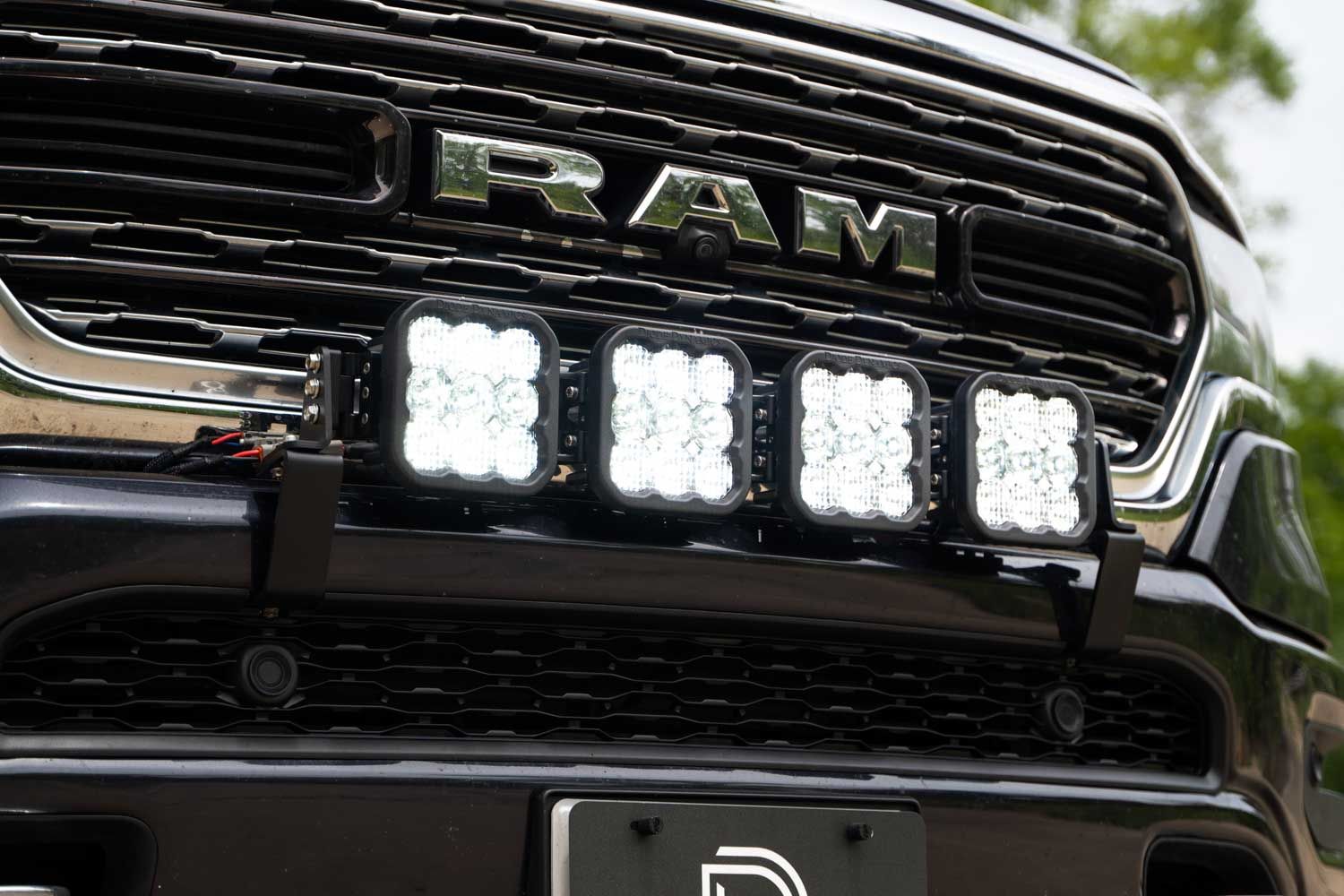

The Grille CrossLink Lightbar Kit compatible with Ram 1500 2019-2024 from Diode Dynamics allows you to mount four linked SS5 LED pods on the factory grille.

Designed with attention to detail, it provides: Allows you to mount a four-pod CrossLink lightbar across the grille; Ultra-high intensity with custom-engineered TIR optics; Selectable backlight color with eight color options; Torture-tested heavy-duty construction; Assembled in USA. Built for reliability and a modern look, it's a simple way to improve both style and safety.
Install Guide

Specifications
  • Product Currently Selected
    SS5 Grille CrossLink Lightbar Kit for 2019-2024 Ram Sport White Combo, DD7608
  • Features and Benefits
    Allows you to mount a four-pod CrossLink lightbar across the grille
    Ultra-high intensity with custom-engineered TIR optics
    Selectable backlight color with eight color options
    Torture-tested heavy-duty construction
    Assembled in USA
  • Whats Included

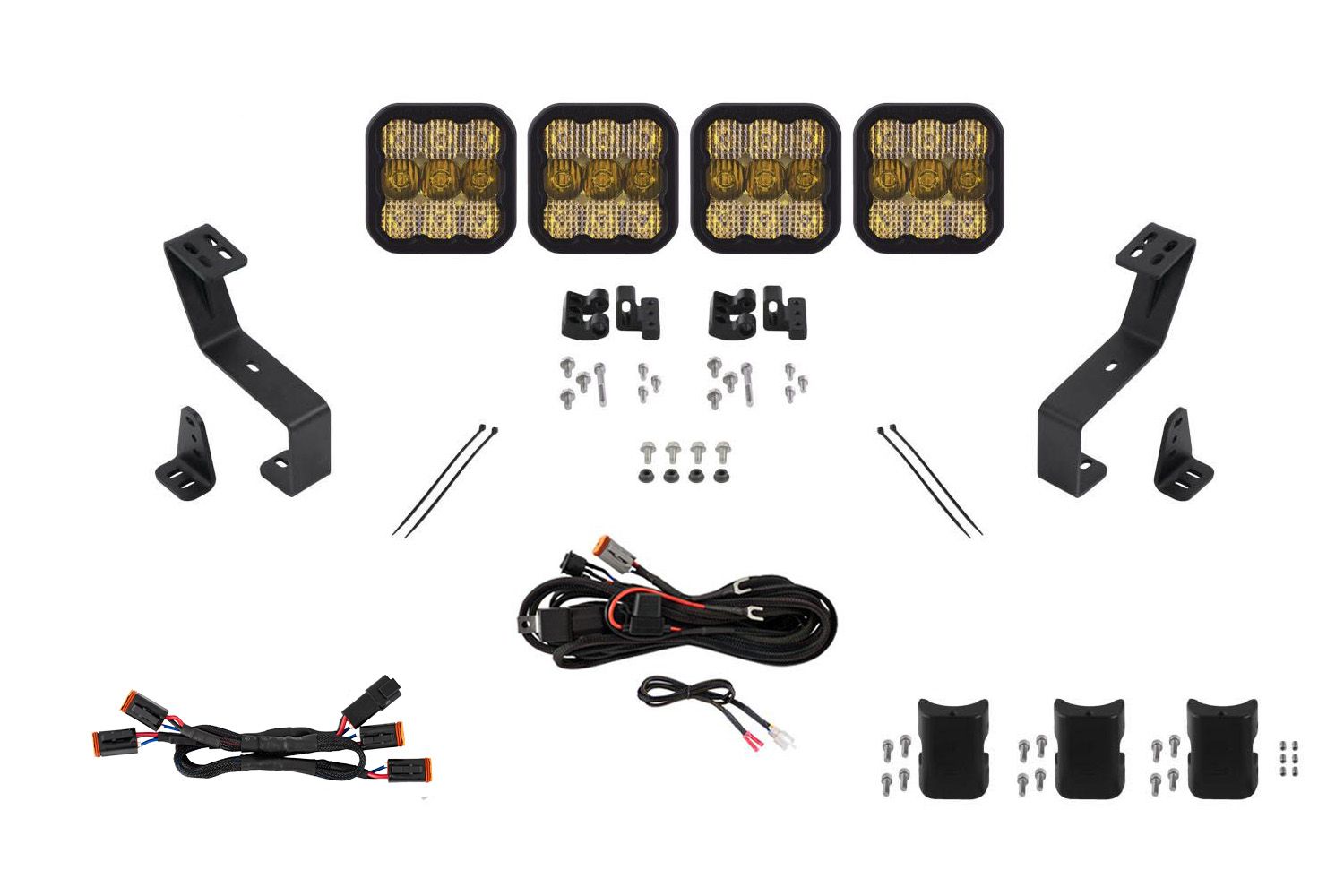

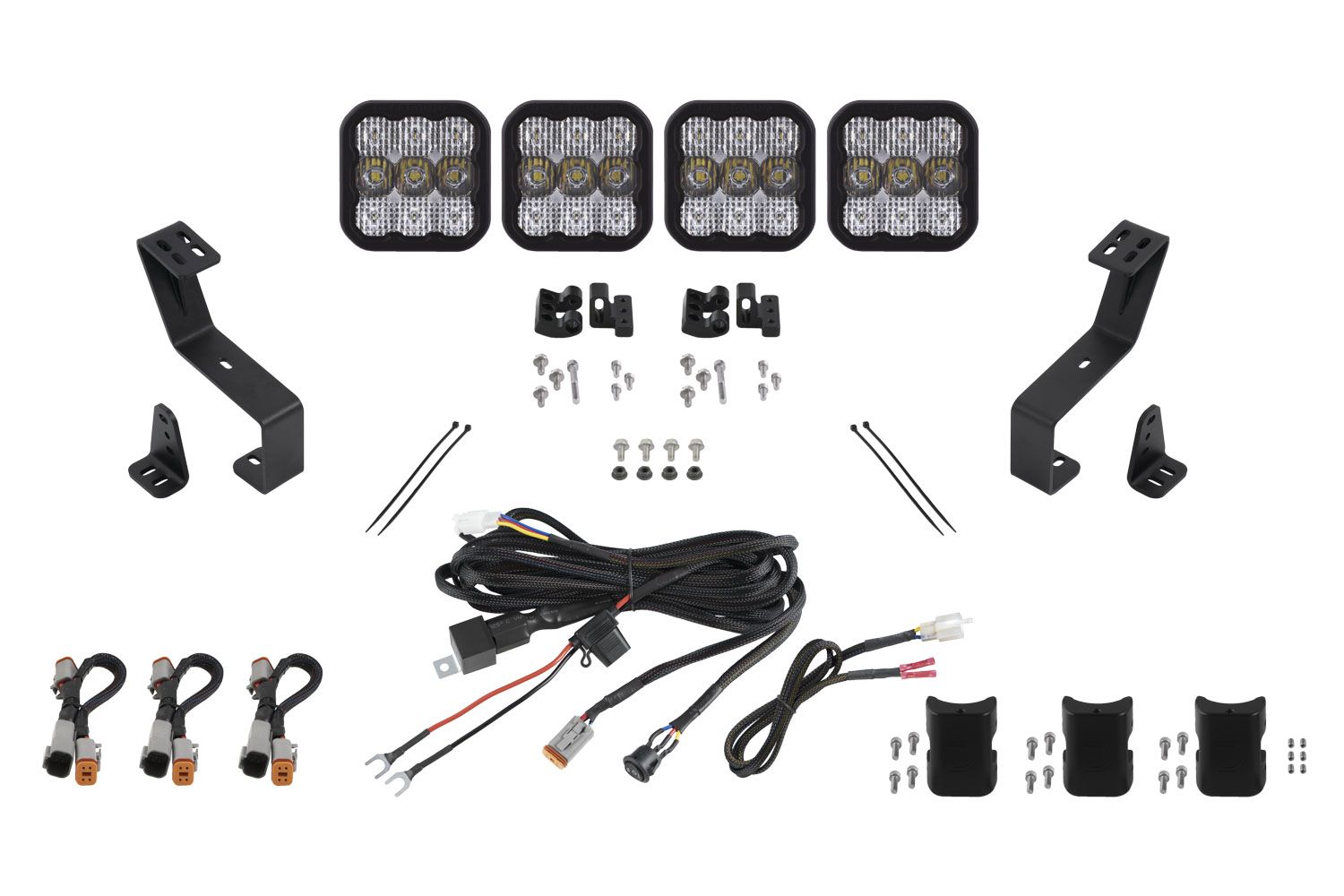

    Included in the box:
    - Four (4) Application-specific heavy-duty steel brackets for installation on 2019-2024 Ram
    - Four (4) Stage Series 5inch LED Pods
    - Three (3) CrossLinks with hardware
    - One (1) CrossLink endmount kit
    - One (1) DT 4-Pod connecting harness
    - Installation Guide
  • Tech Specs
    Base Color: Black
    Base Material: Steel
    Beam Angle: Combo (Driving and Flood)
    Bolt Thread Type: Medium
    Color Temp: 6000K
    Drilling Required: No
    Input Power (watts): Main Beam: 40 Backlight: 3.17
    Intensity (lux): 81 600 cd
    Intrusion Rating: IP69K Waterproof High Pressure
    Measured Output (lumens): 3 700 lm
    Mounting Hardware Included: Yes
    Operating temperature: -40C to 85C (-40F to 185F)
    Operating Voltag: 9-16V
    Universal Or Specific Fit: Specific
