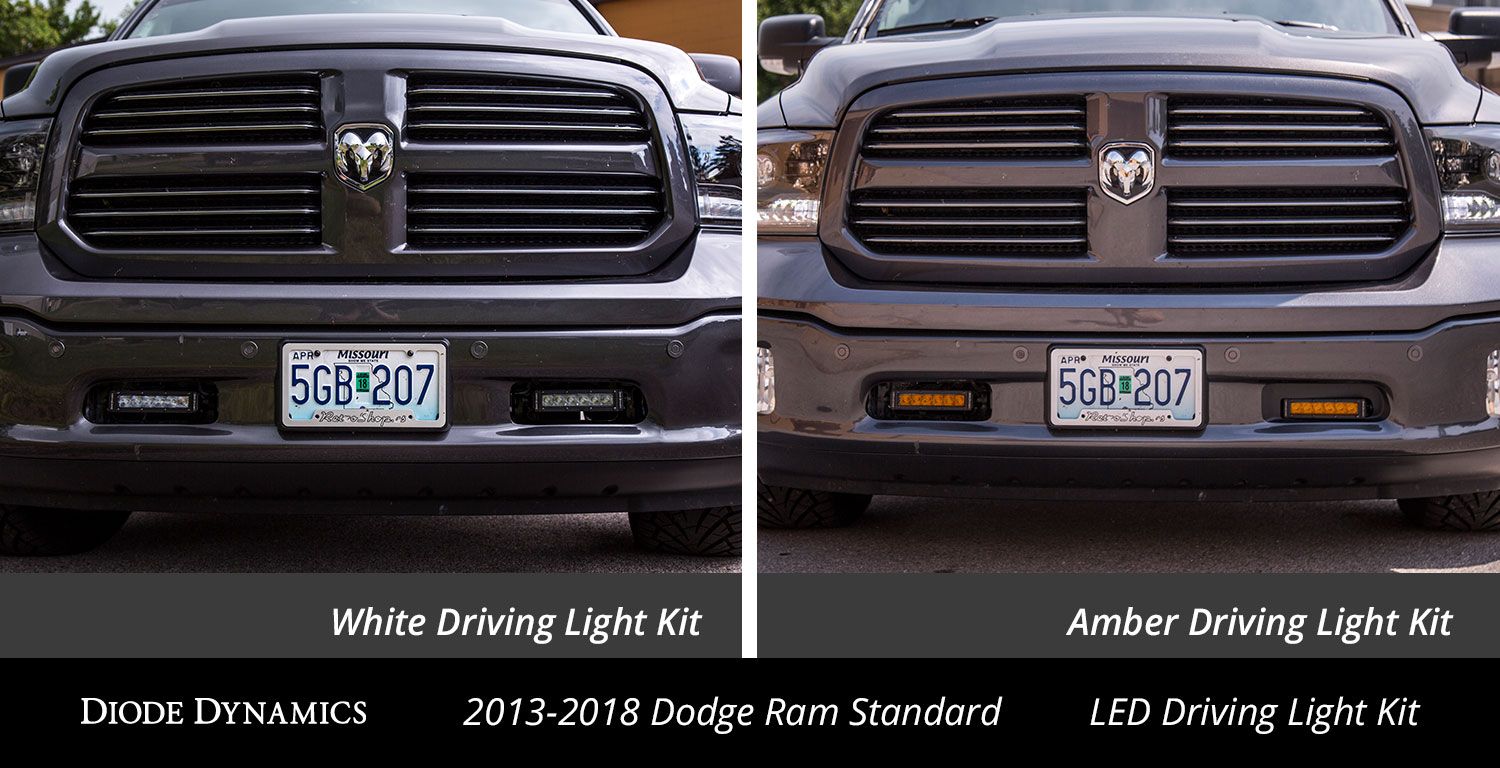

Dodge Ram 2013-2019 Standard Sae/Dot Led Light Bar Kit

$356.00 USD
Diode Dynamics  |  SKU / Part Number: DD6016

Output Colour
Optic type

Free Canada Wide Shipping
Free shipping on all orders over $500

This Kit Fits

Make: Ram
Model: 1500/2500/3500
Years: 2013, 2014, 2015, 2016, 2017, 2018, 2019 (classic), 2020 (classic), 2021 (classic).
NOTE: This kit was designed for the 2013-2018 Ram with the Standard bumper. If you have the Sport/Express bumper, search part # DD6016

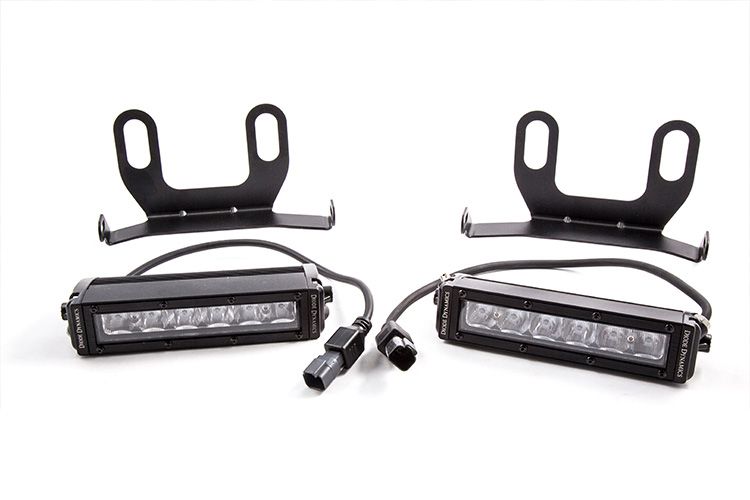

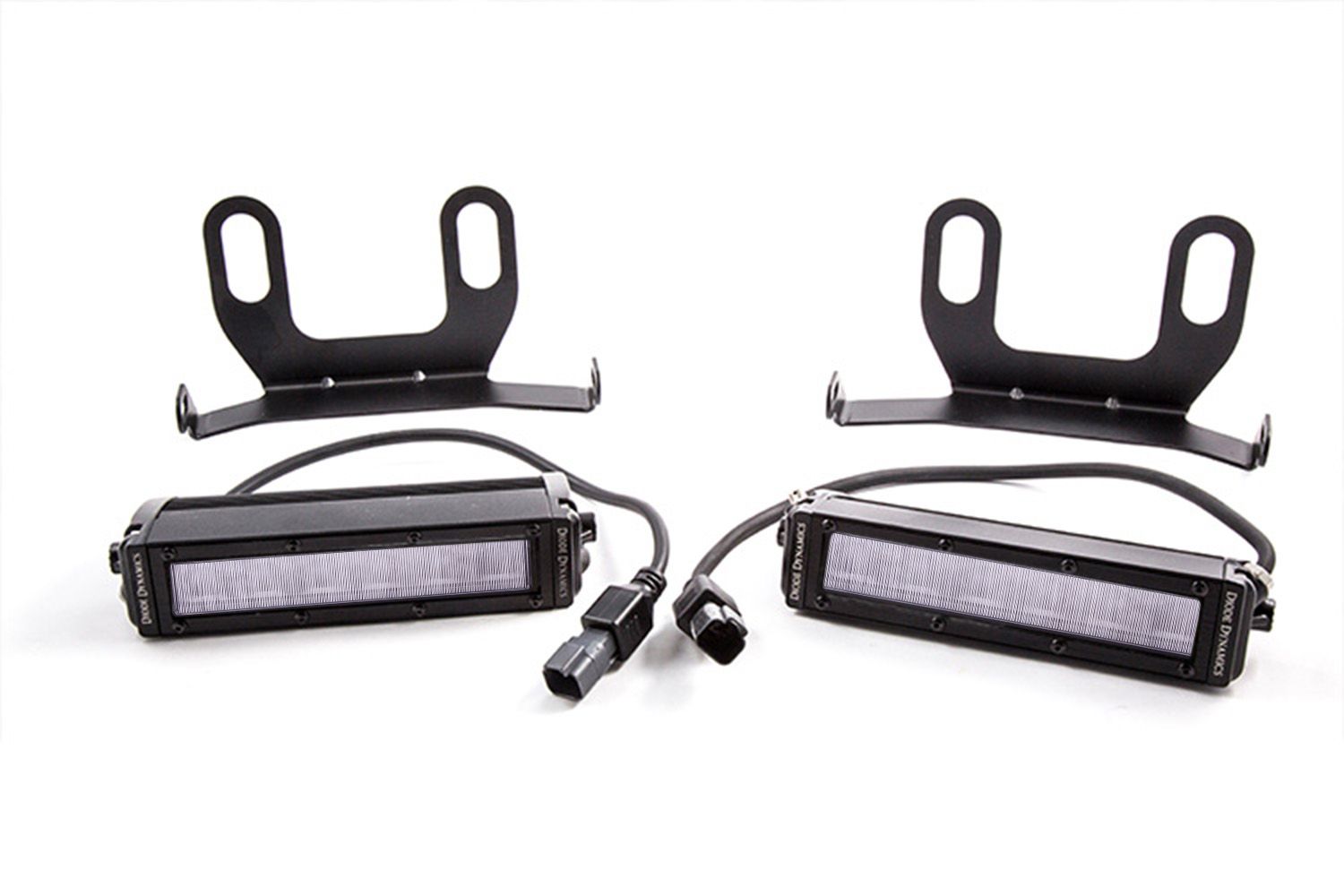

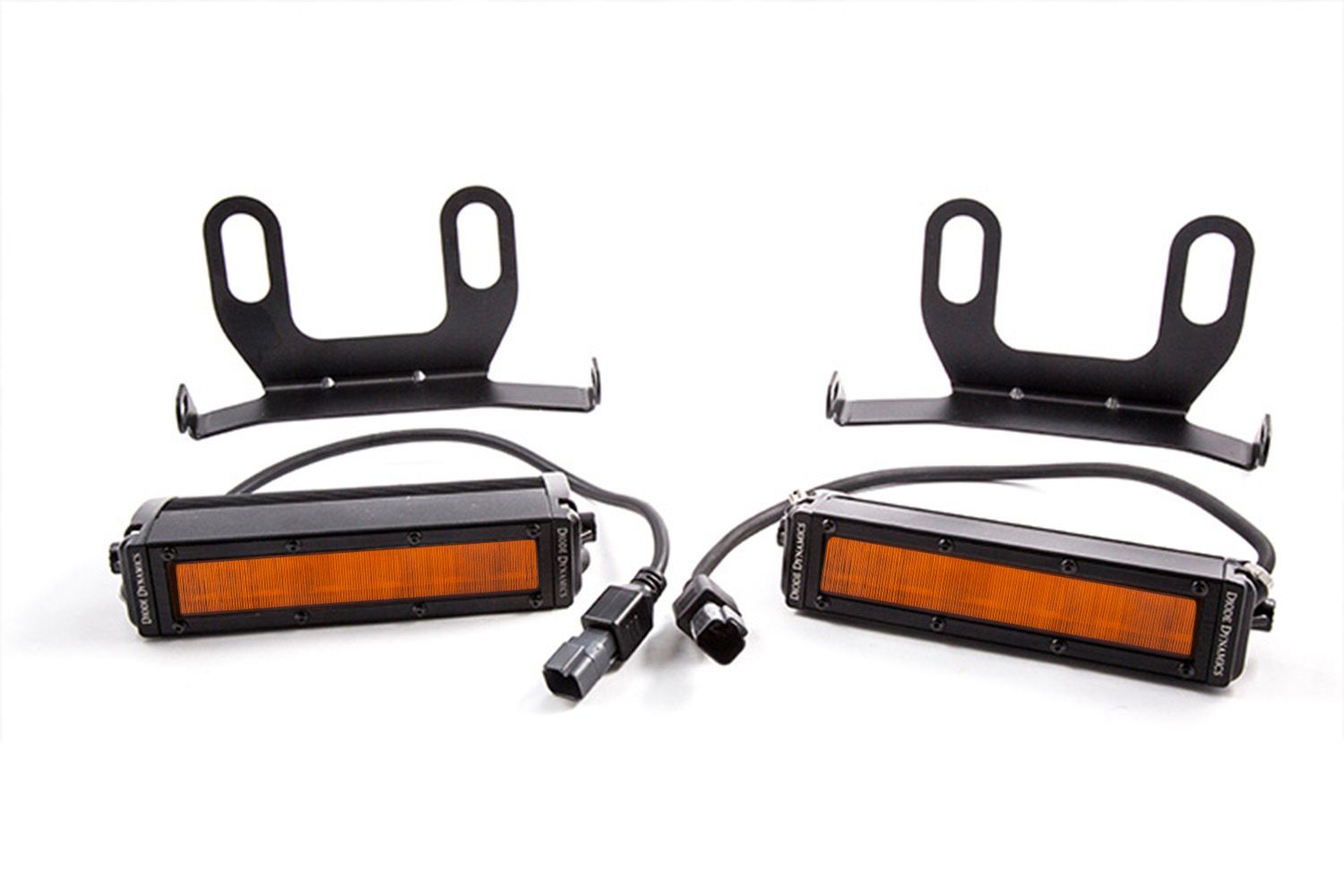

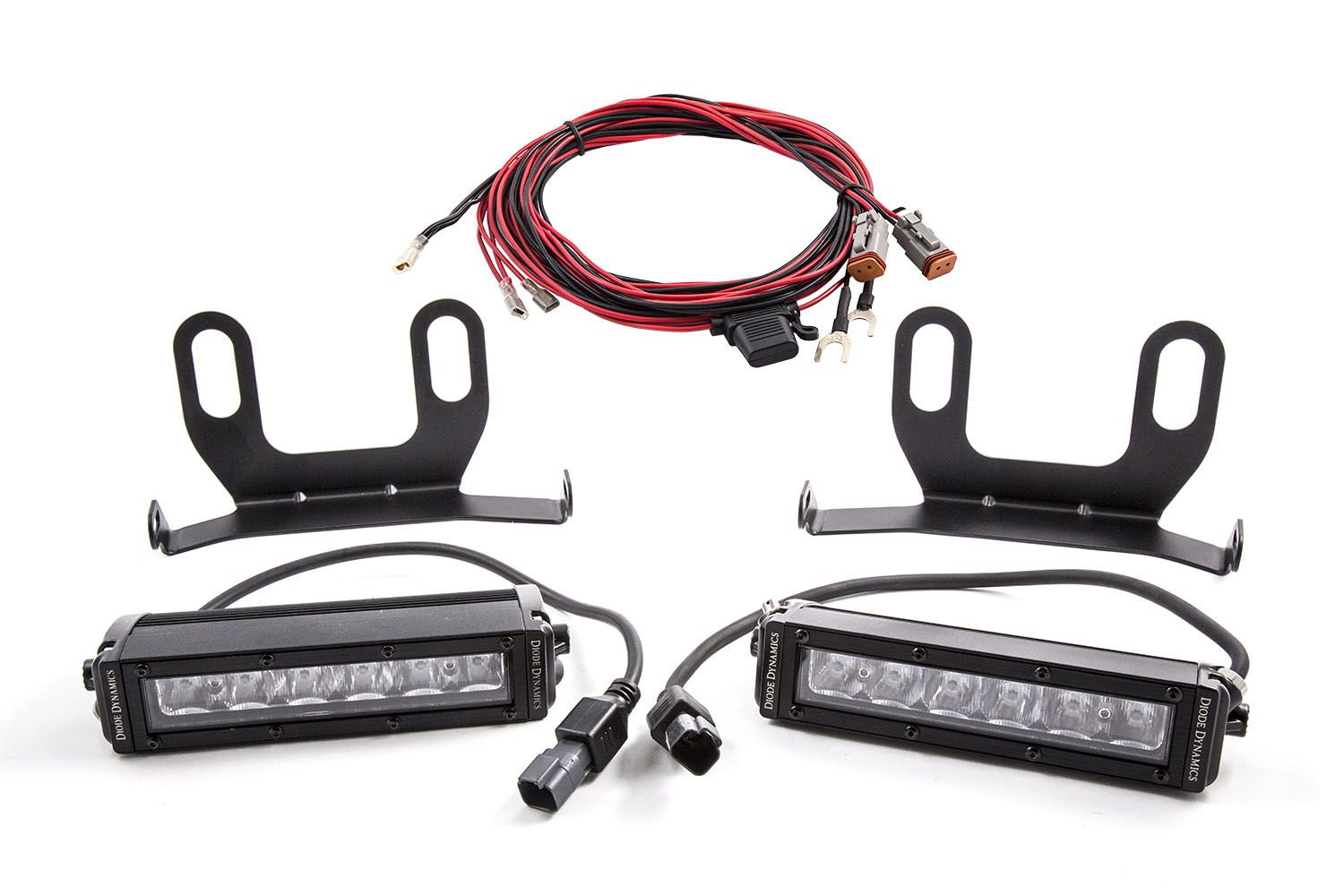

What's Included?

In the Box:
-Two (2) Application-specific heavy-duty steel brackets for installation on 2013-2018 Ram Standard

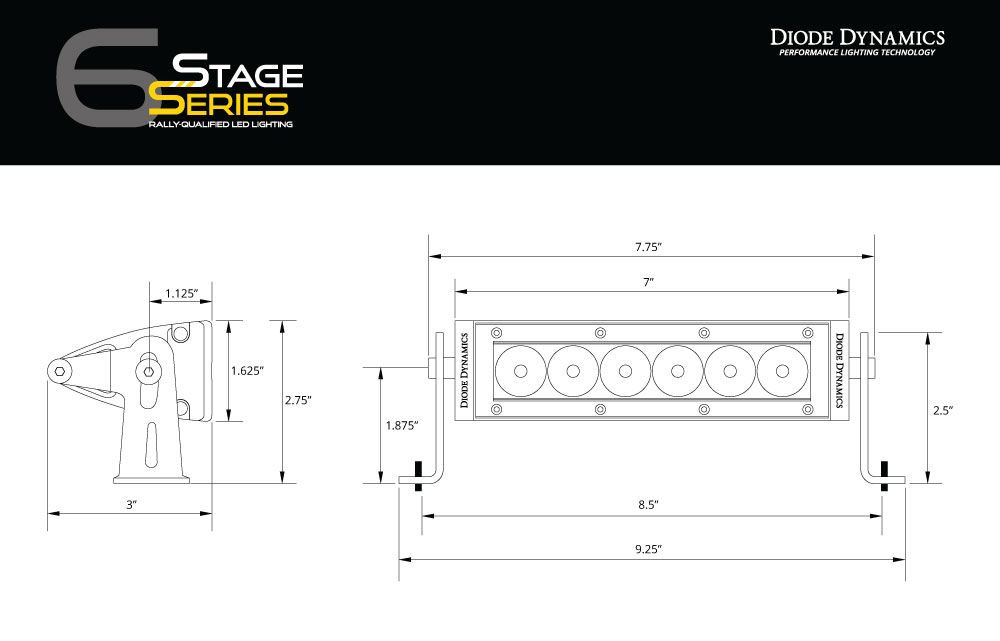

-Two (2) SS6 Stage Series 6" Light Bars
-One (1) Dual Output Harness with toggle switch
-All Necessary Hardware
-Installation Guide
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty

Tech Specs:
Measured Lumens: 2280
Intensity (cd): 47,000
Color Temp (CCT): 2000K, 6000K
Beam Angle: Wide, 100°x8°, Driving, 20°x8° Power (watts): 26.6
Operating Voltage: 9-24V
Current (amps @ 14V): 1.9
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
Cooling: Passive, heatsink Intrusion
Ratings: IP68 Waterproof

Installing Yourself?

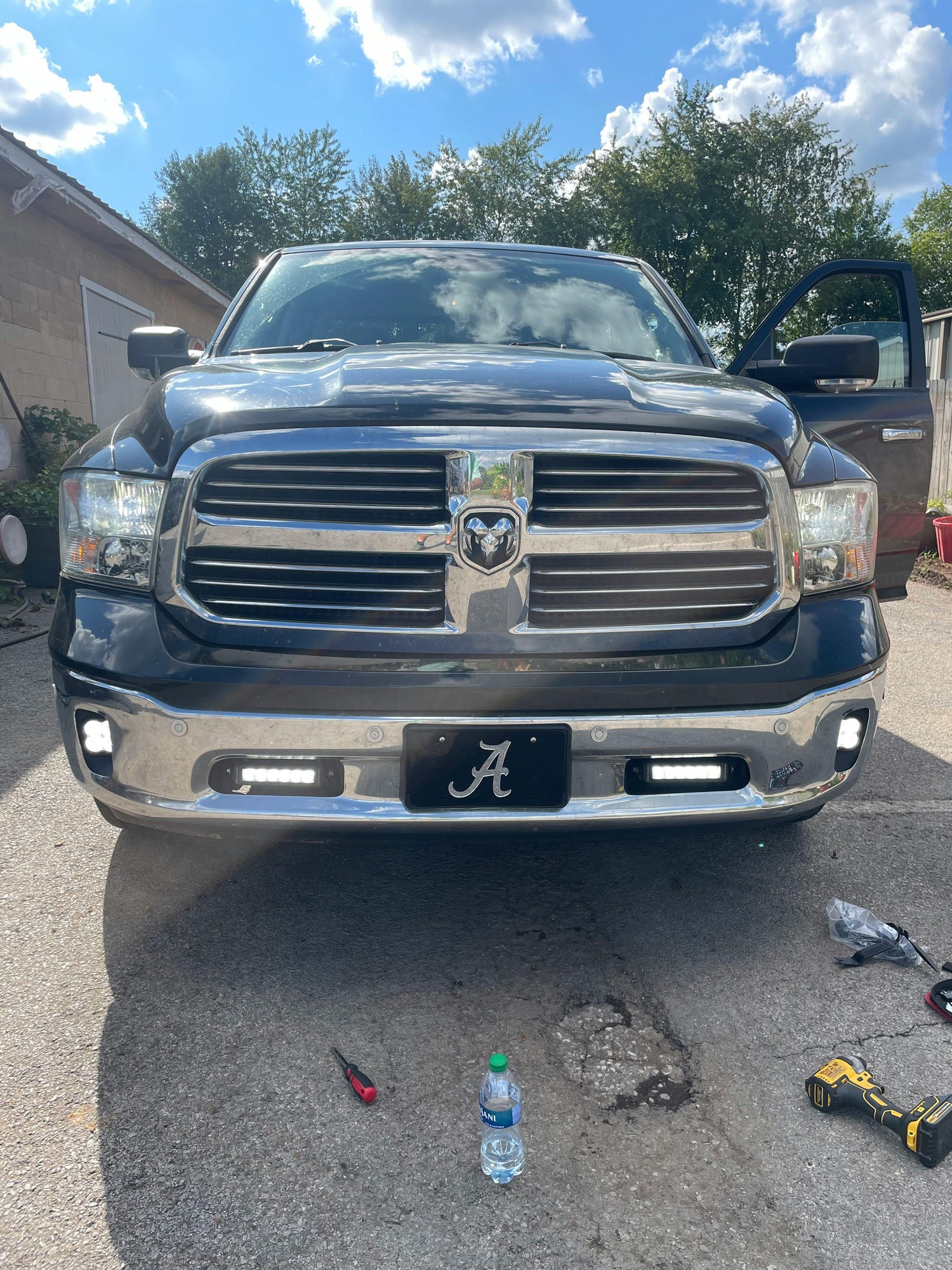

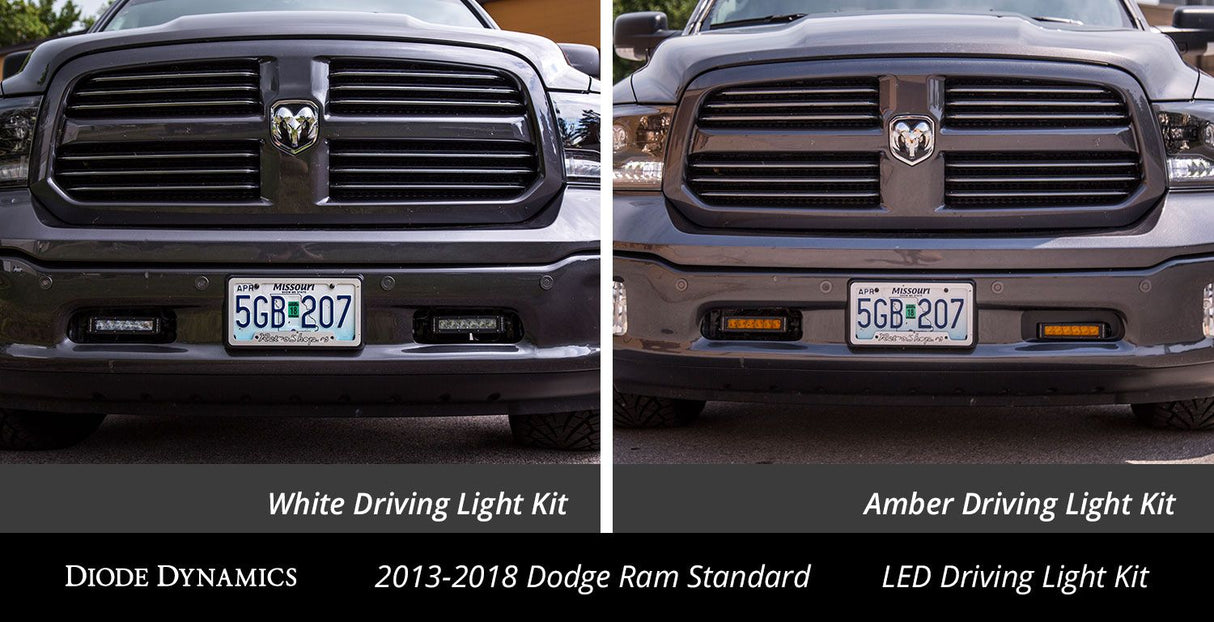

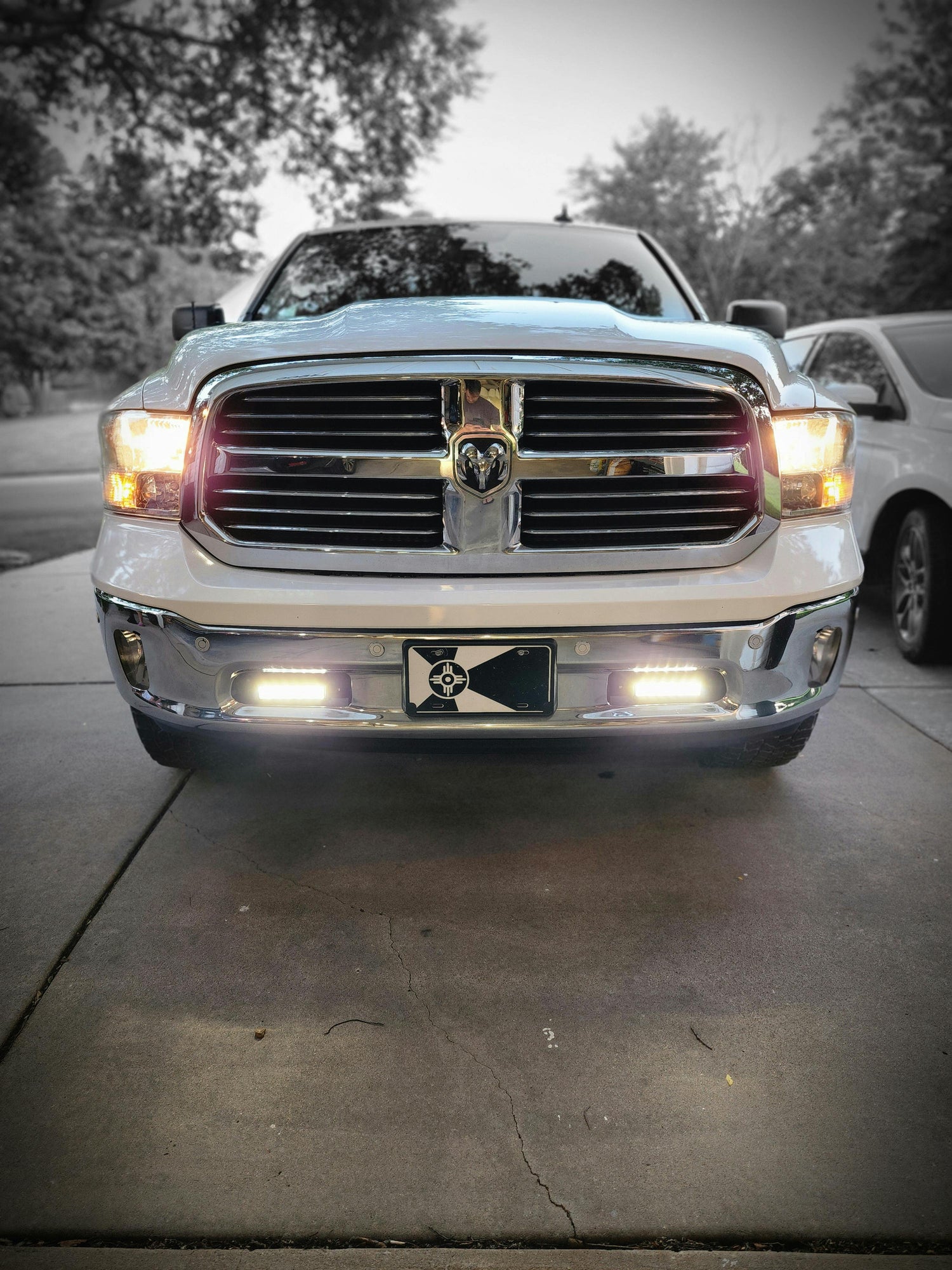

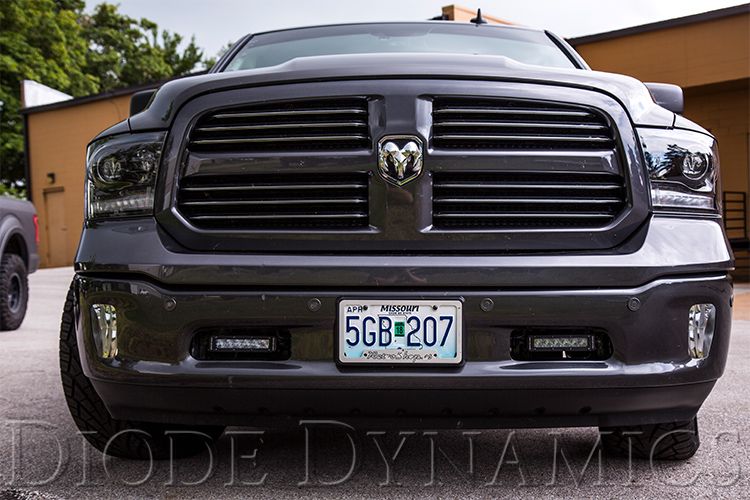

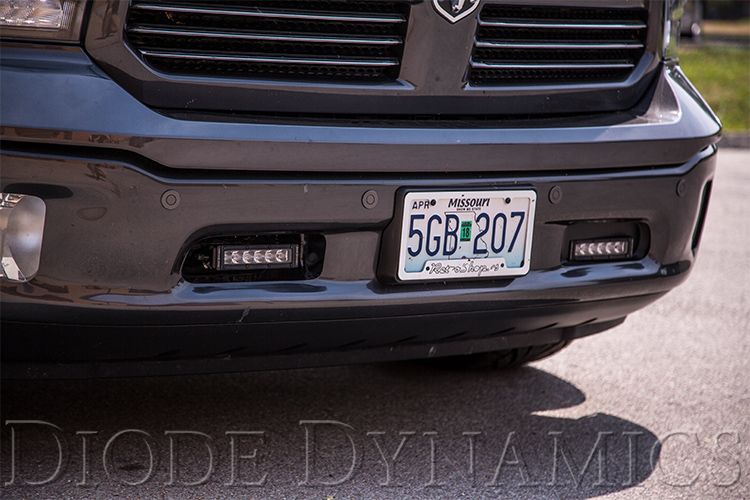

Perfect Fitment. The LED Driving Light Kit for the 2013-2018 Dodge Ram with Standard bumper from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in the bumper openings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving or fog lights (Please check your local laws and regulations for aiming, installation, and applicability).

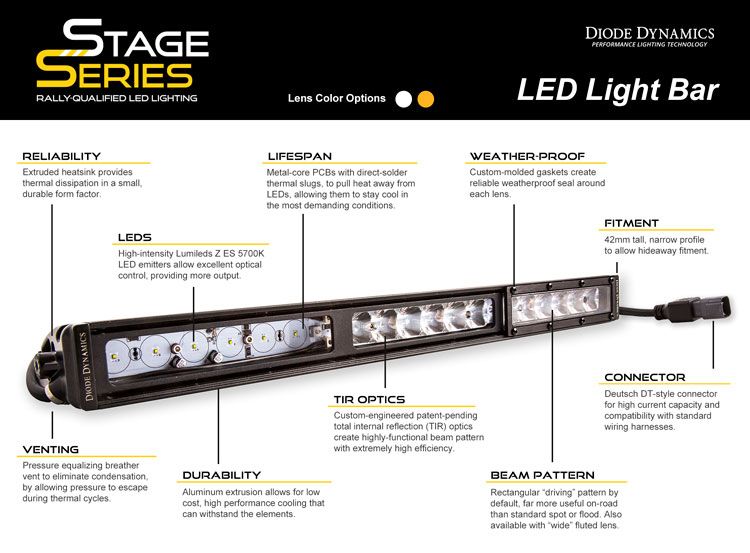

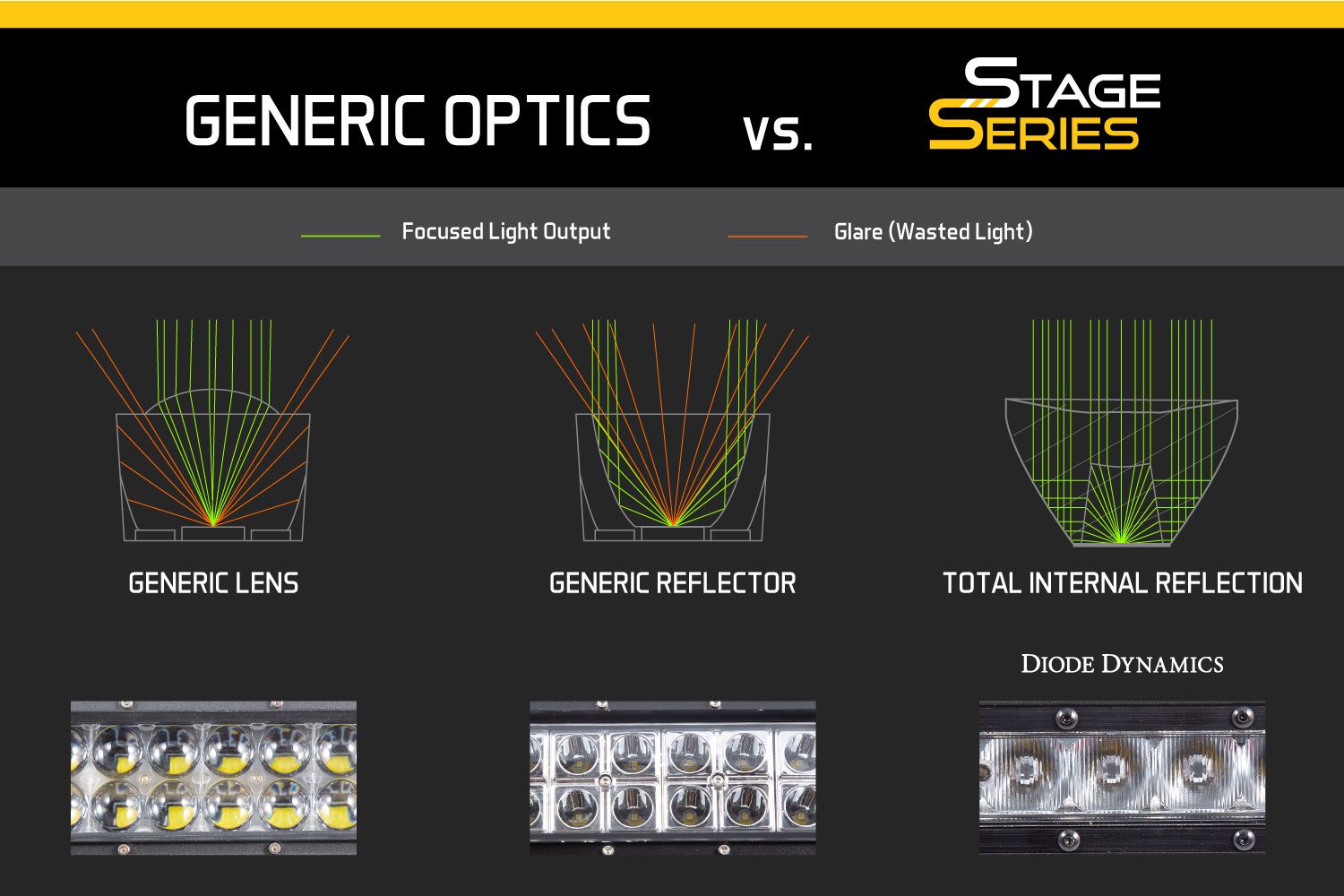

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

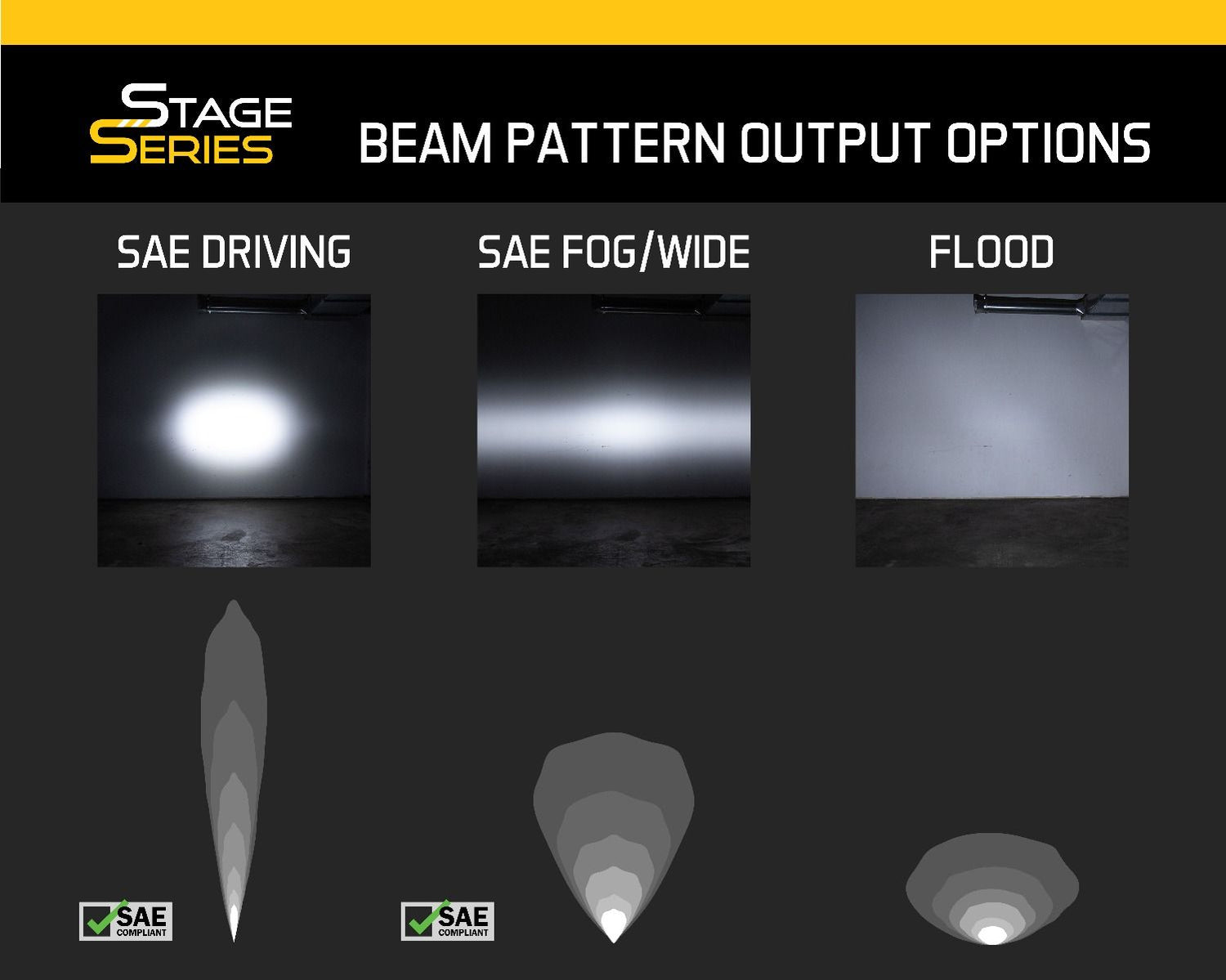

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.
