XL 80 KTM LED Headlight Kit w/Shell 20-On D/C Baja Designs

$ 673.13 CAD
Baja Designs  |  SKU / Part Number: 677199  |  Barcode: 810031741731

**All Baja Designs products typically ship within 2-6 business days**

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage.


This specific model utilizes our XL80 which produces 9500 lumens and features a 20 percent dimming feature. Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

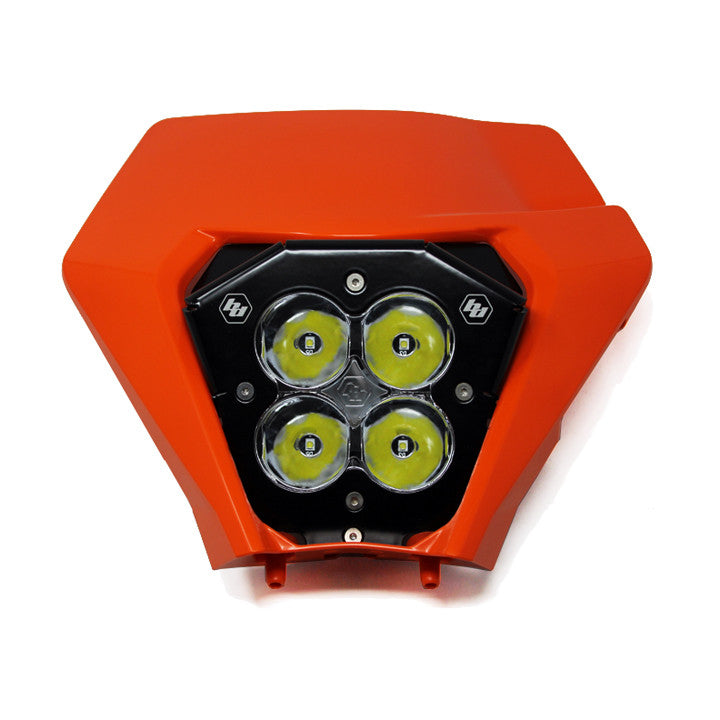

This kit comes preinstalled into a factory KTM Headlight mask (20-On). We offer this kit for the bikes that didn't come equipped with a headlight shell or for the customer who doesn't want to disassemble their factory unit.
Please note:
12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness
Baja Designs Features:



  • Satisfactions Guarantee - 30 Day Money Back Guarantee

  • Limited Lifetime Warranty - Complete Purchase Protection

  • uService - Replaceable Lenses And Optics

  • ClearView - All The Light, Right Where You Need It.

  • MoistureBlock - Waterproof, Rain Proof, Submersible

  • CopperDrive - Only LED Driven At 100 percent


5000K Daylight - Less Driver Fatigue, Natural Color Specifications:



  • Lumens: 9,500 Utilizing 4 Cree LEDs

  • Wattage/Amps: 80W / 5.50A

  • Dimensions: 4.43 inch x 3.65 inch x 4.43 inch

  • Weight: 2.45 lbs

  • LED Life Expectancy: 49,930 Hours

  • Front Lens: Hardcoated Polycarbonate

  • Housing: Hard Anodized and Powder Coated Cast Aluminum

  • Bezel: Billet Machined Aluminum

  • Hardware and Bracket Material: Stainless Steel

  • Exceeds MIL-STD810G (Mil-Spec Testing)

  • Built-In Overvoltage Protection

  • IP69K (Waterproof up to 9ft and Pressure Washable)

  • IK10 Compliant (Mechanical Impact Testing)


Includes:
XL80, LED KTM Kit With 2020-On Headlight Shell
Patterns:
High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
