Ultra Heavy Duty Dual Output 4-Pin Wiring Harness
Ultra Heavy Duty Dual Output 4-Pin Wiring Harness is backordered and will ship as soon as it is back in stock.
Tech specs
Tech specs
What's Included
What's Included

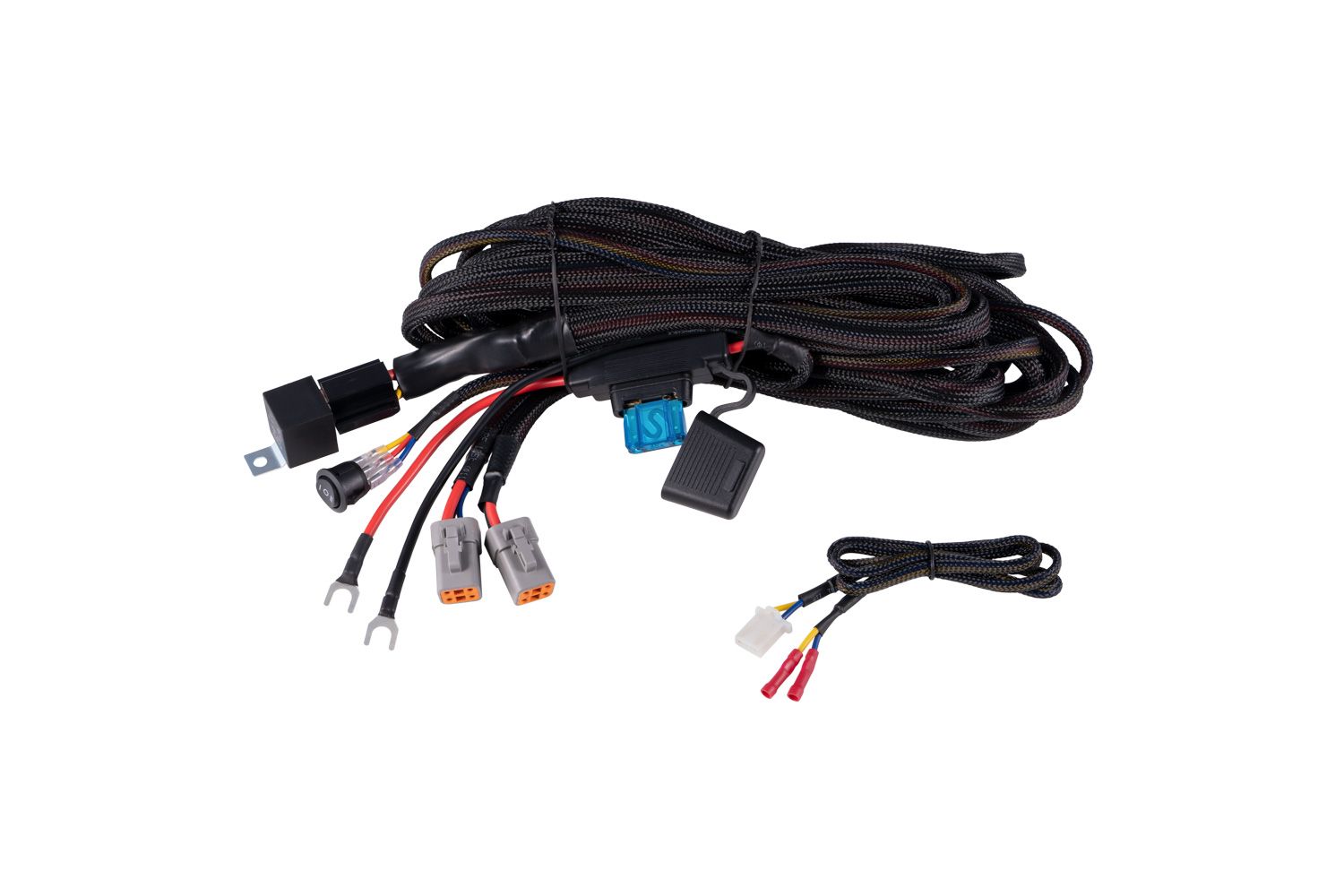

Ultra Heavy Duty Dual Output 4-Pin Wiring Harness

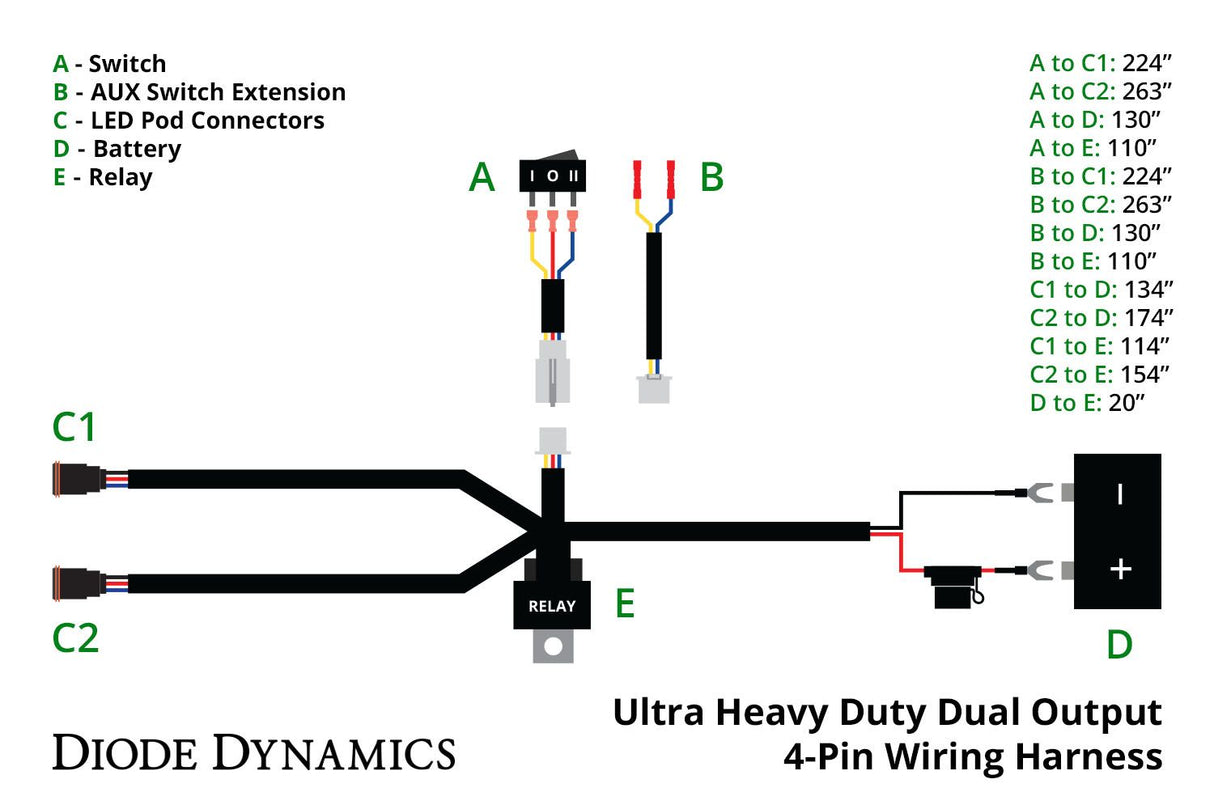

Installing Yourself?

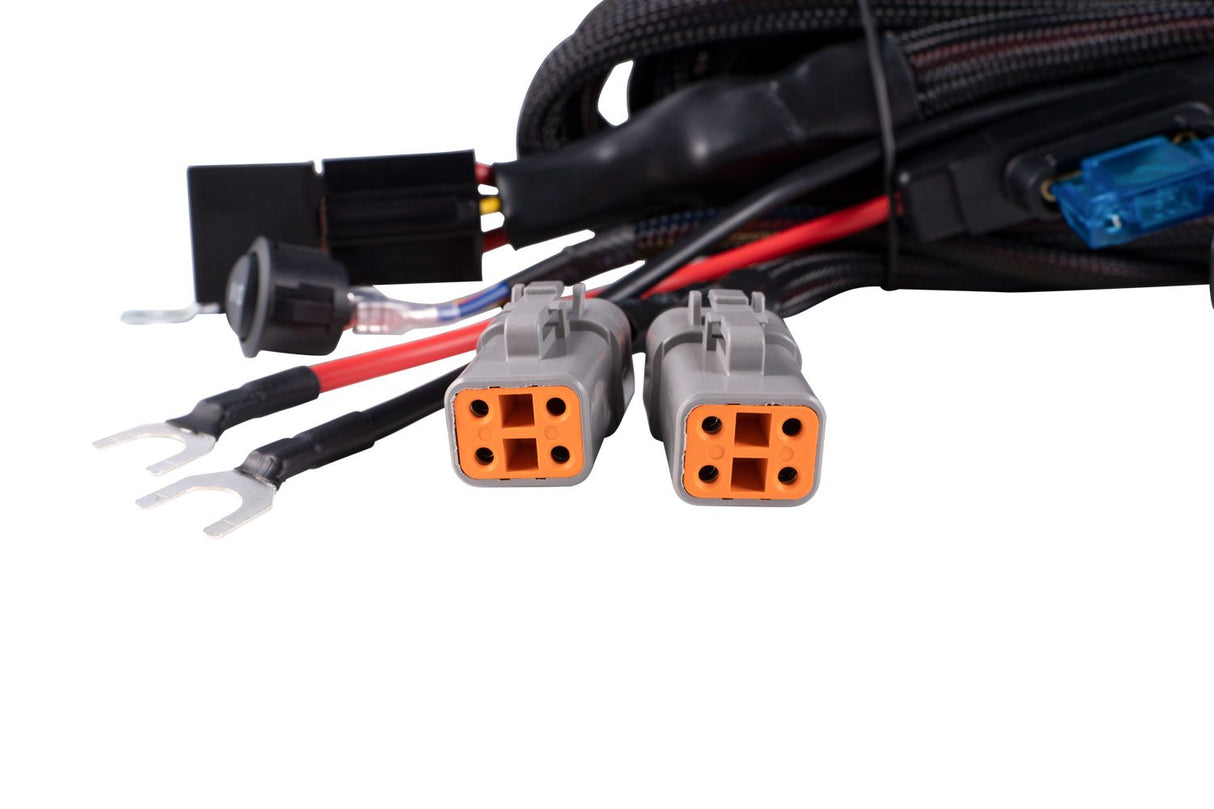

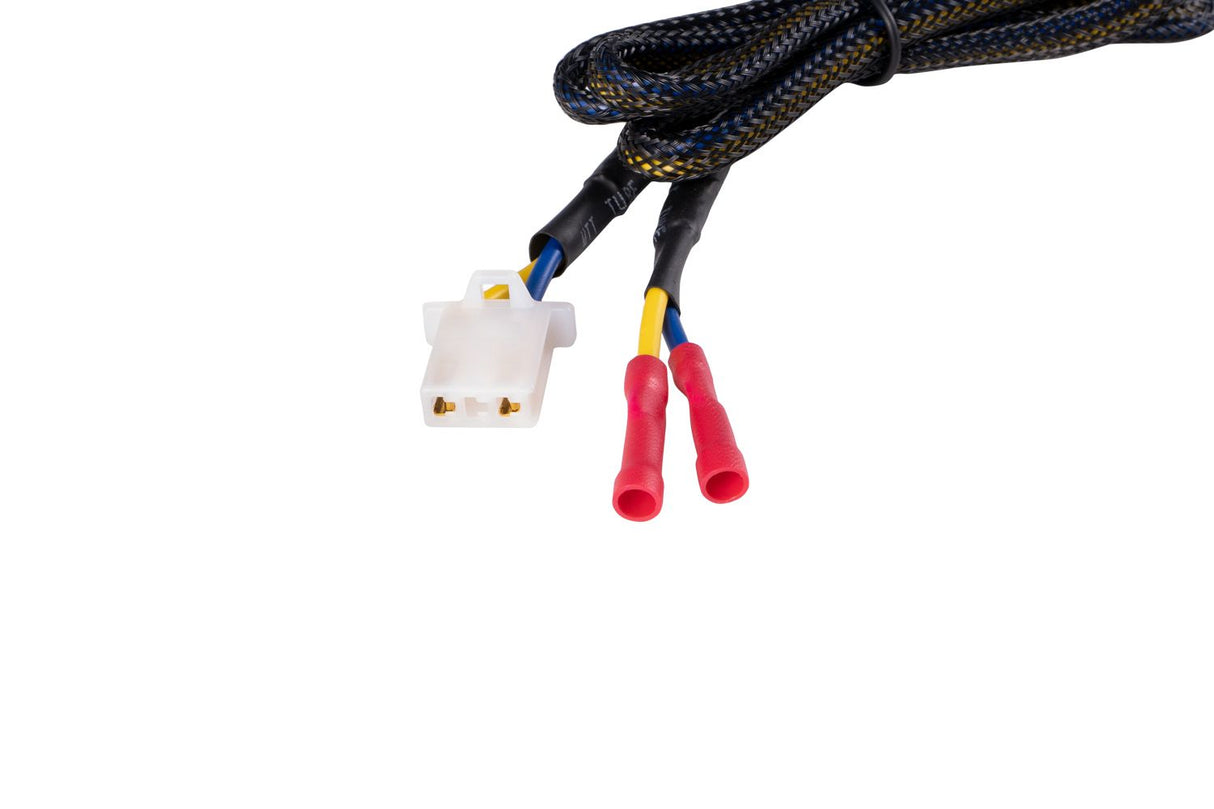

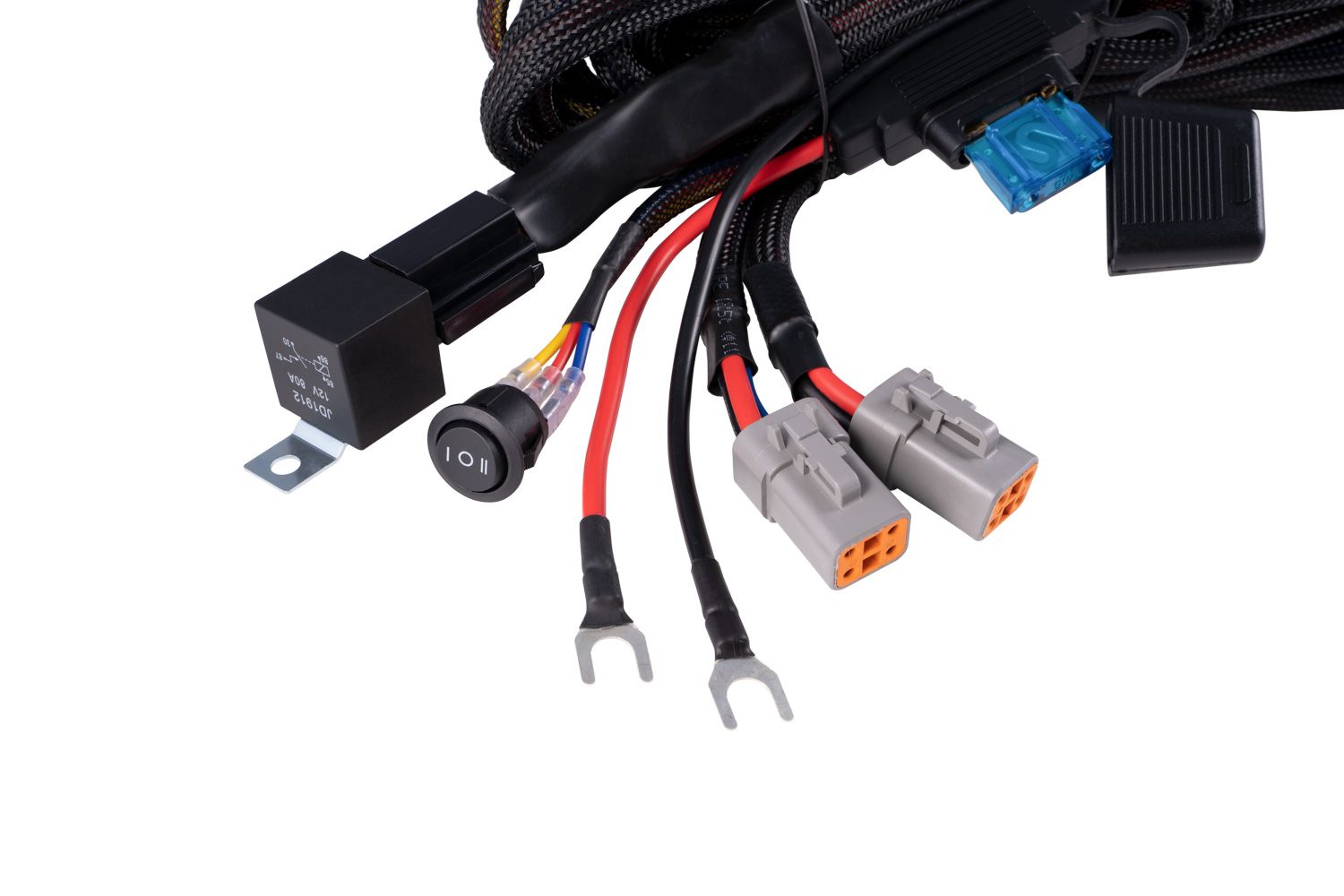

Stage Series. This harness has been designed specifically to safely power CrossLink Pro Lightbars with five (5) or more SS5 Pro LED Pods. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. You have the option to control your pods using the included three-way switch to toggle between the backlight, off, and the main beam, or control them through your Auxiliary Switch Bank with the included adapter. This harness uses high capacity 10AWG wiring and a Deutsch DT-P connector for simple plug-and-play installation.
This harness safely powers up to 60A of auxiliary lamps. The SS5 Pro draws 6.7A per pod.
Compatibility Please note that this harness has two DT-P size output connectors. These are intended to connect to a corresponding Ultra-Heavy-Duty (UHD) SS5 Splitter harness, to build a multi-pod lightbar. These connectors will not plug directly into any LED product offered by Diode Dynamics.
