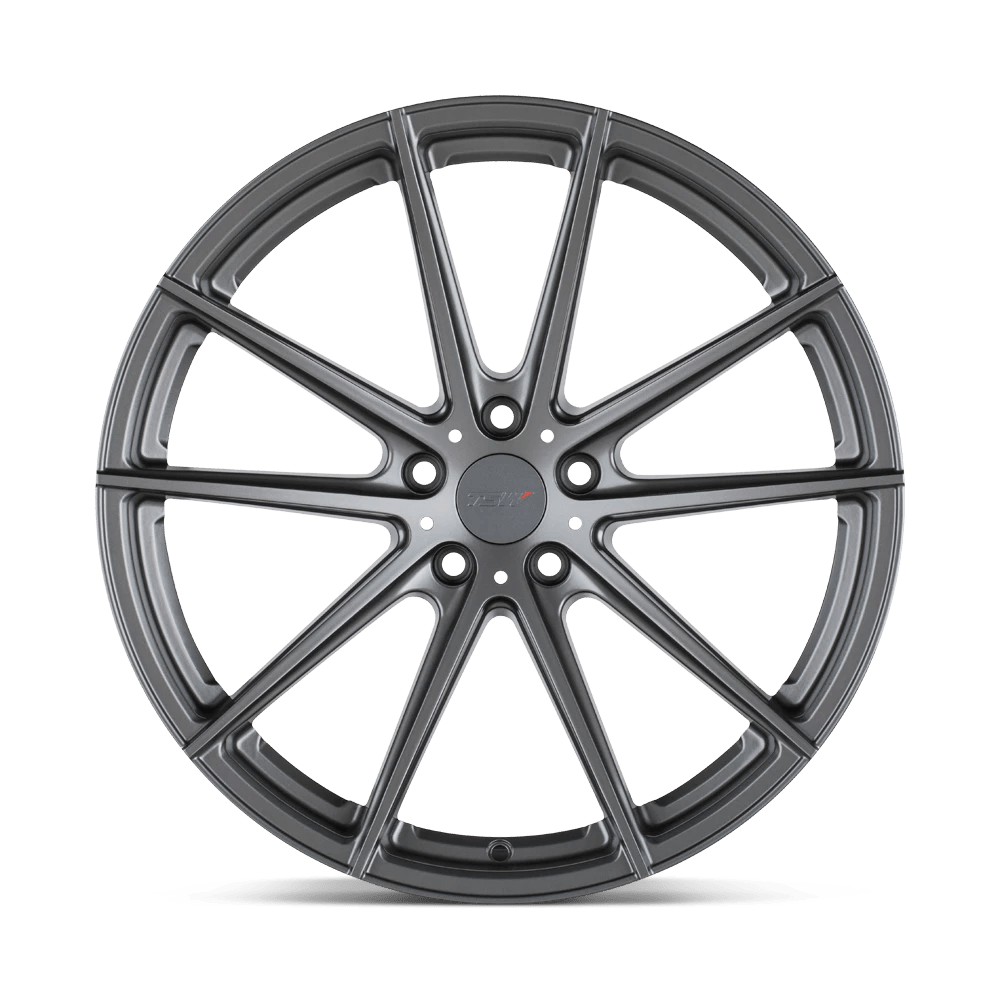

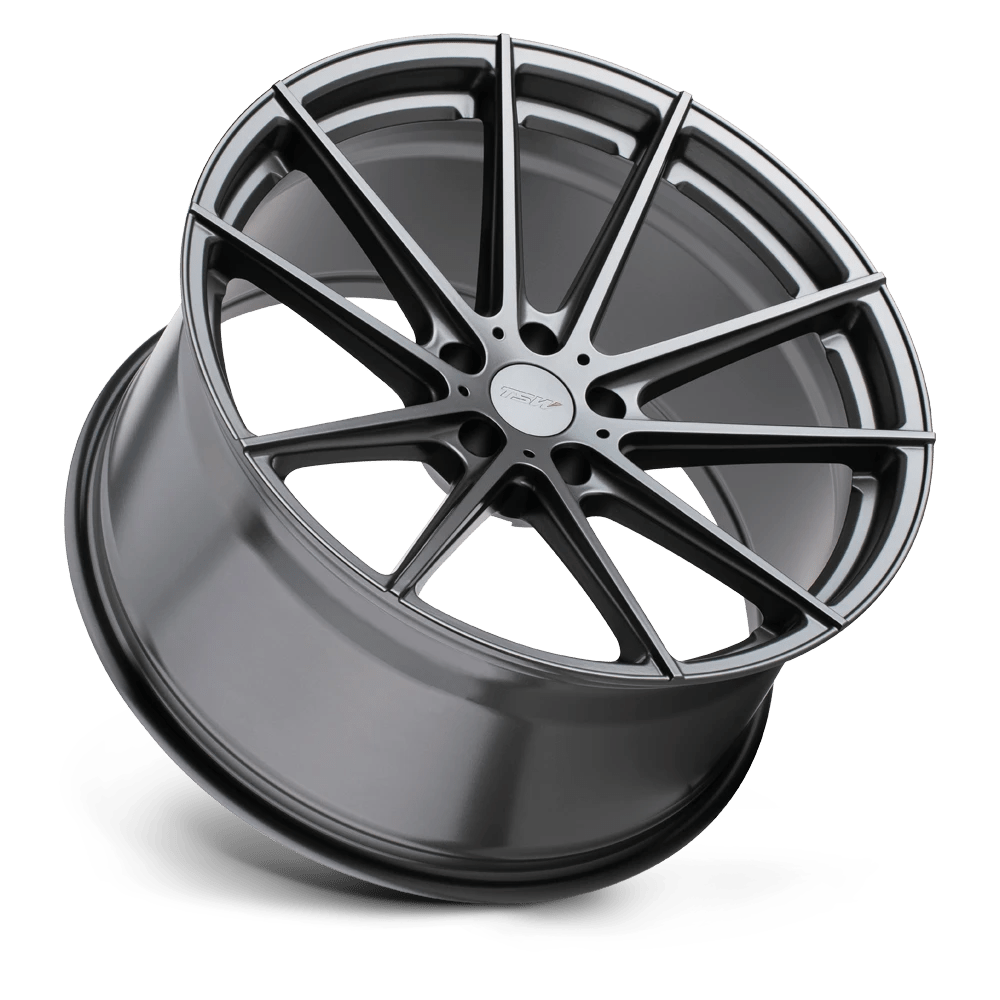

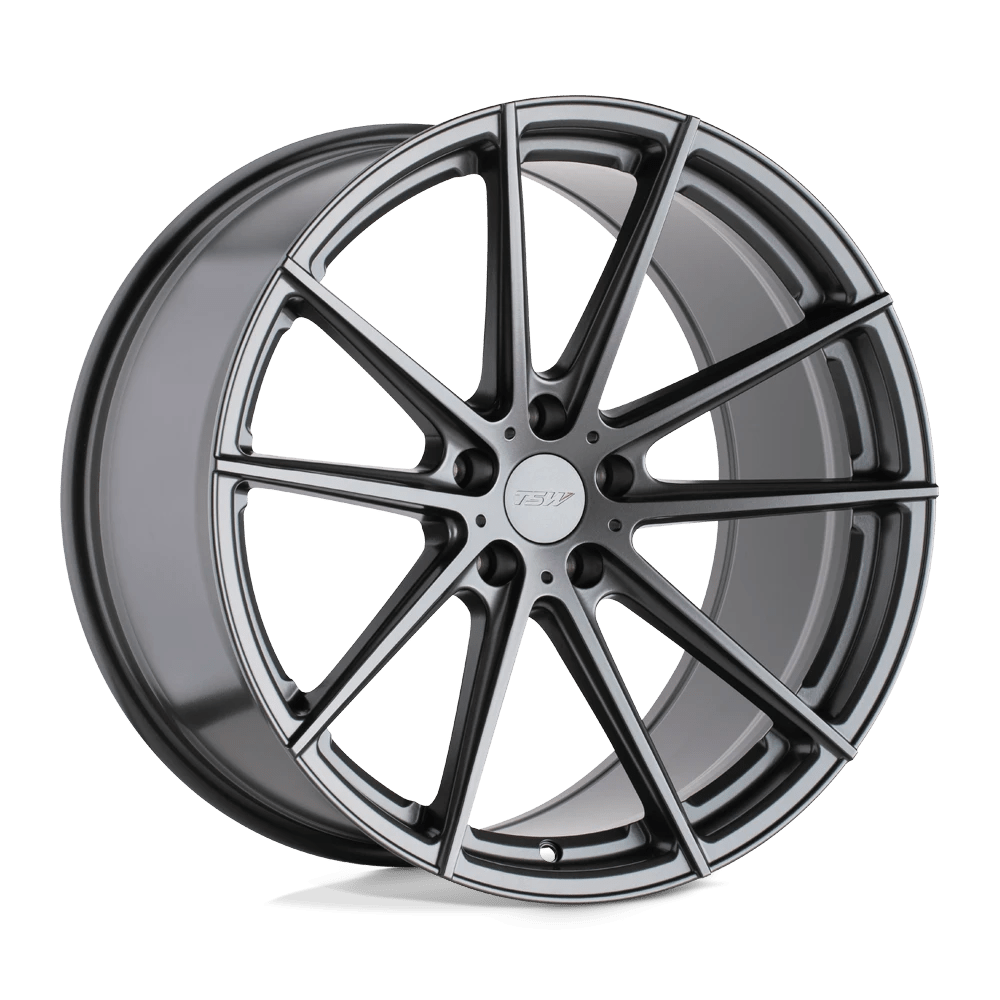

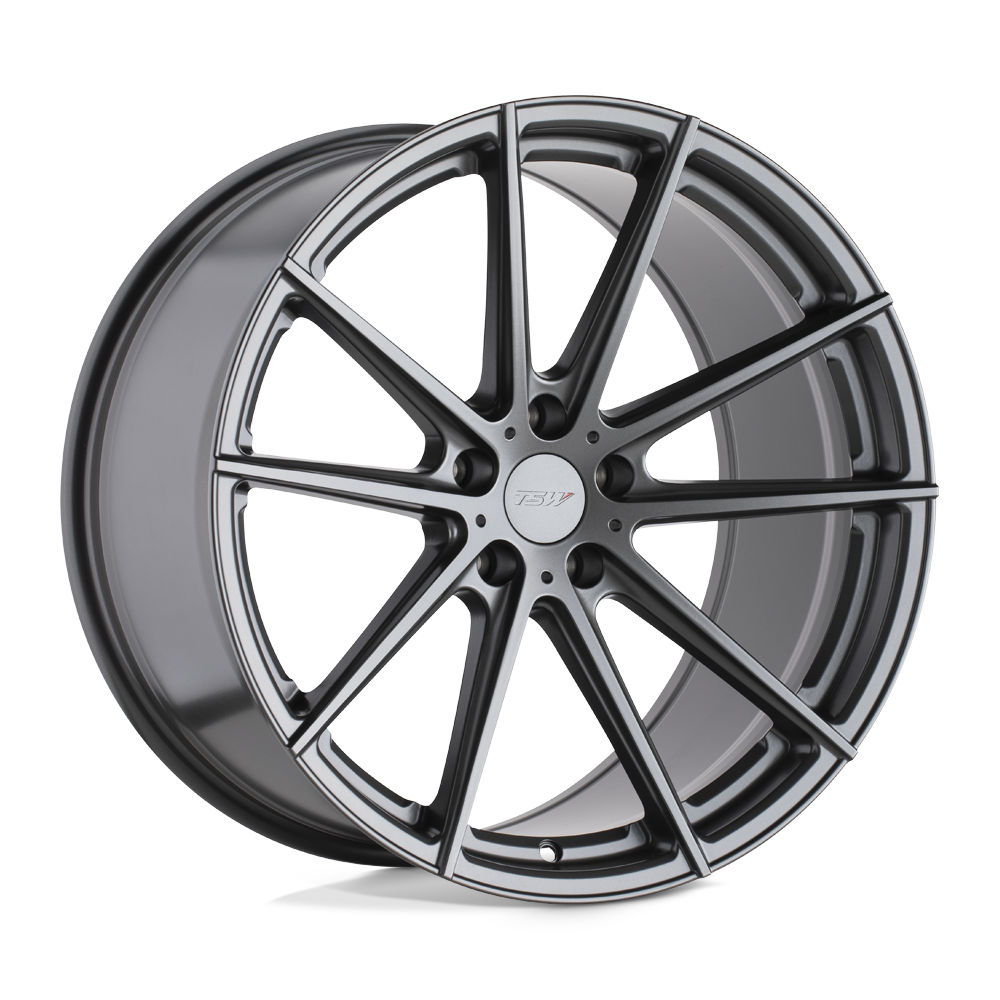

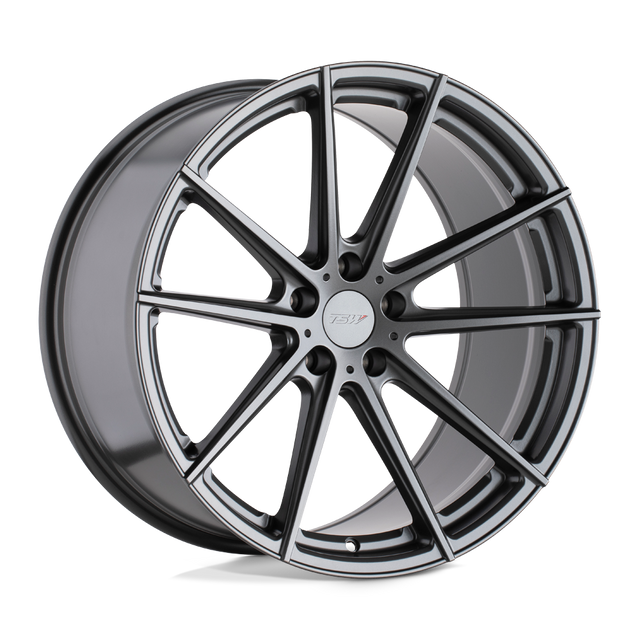

TSW Bathurst 20x8.5 5x114.3 - Gloss Gunmetal

The TSW Bathurst (BAT) in Gloss Gunmetal is a 20x8.5 flow formed aluminum wheel with a 5x114.3 bolt pattern.

Construction & Engineering

Manufactured using an advanced flow forming process where the barrel is stretched and compressed under high pressure while spinning. This produces a wheel with forged-like strength and weight savings at a cast price point. SAE J2530 JWL VIA certified for safety and quality.

Key Specifications

• Size: 20x8.5
• Bolt Pattern: 5x114.3
• Offset: 40mm
• Center Bore: 76.10mm
• Backspacing: 6.32"
• Weight: 23 lbs
• Load Rating: 1650 lbs
• Construction: Flow Formed Aluminum
• Finish: Gloss Gunmetal

Features

• TPMS sensor compatible
• Includes center cap (replacement part #CCPCG18-TMG)

Warranty

Lifetime structural warranty and One Year finish warranty.
