Stage Series Reverse Light Kit for 2019-2024 Ram 1500

$ 303.53 CAD
Diode Dynamics  |  SKU / Part Number: DD7589  |  Barcode: 00195995131980
Choose Your Kit

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

Make: Ram Model: 1500 Years: 2019, 2020, 2021, 2022, 2023, 2024

Description

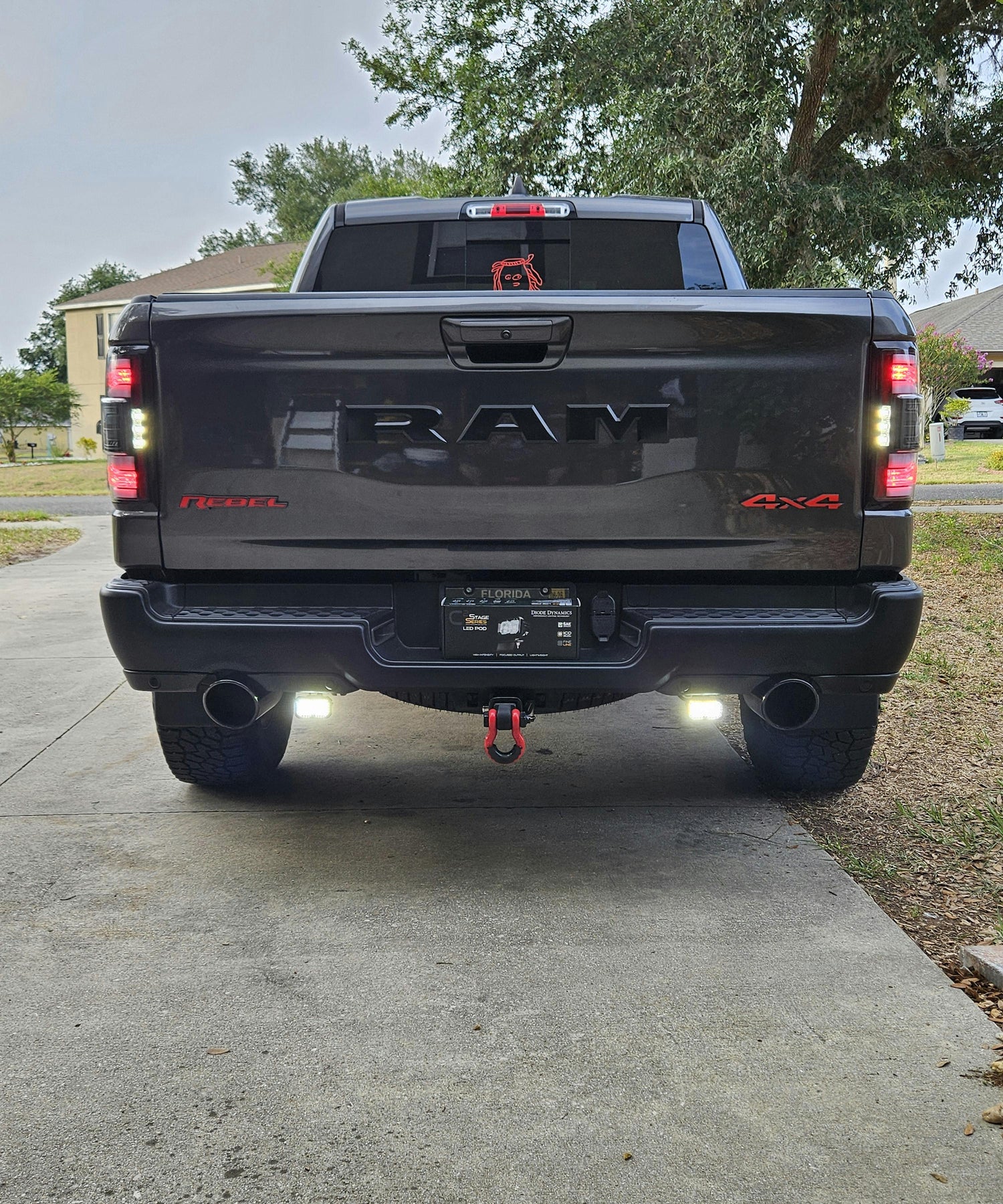

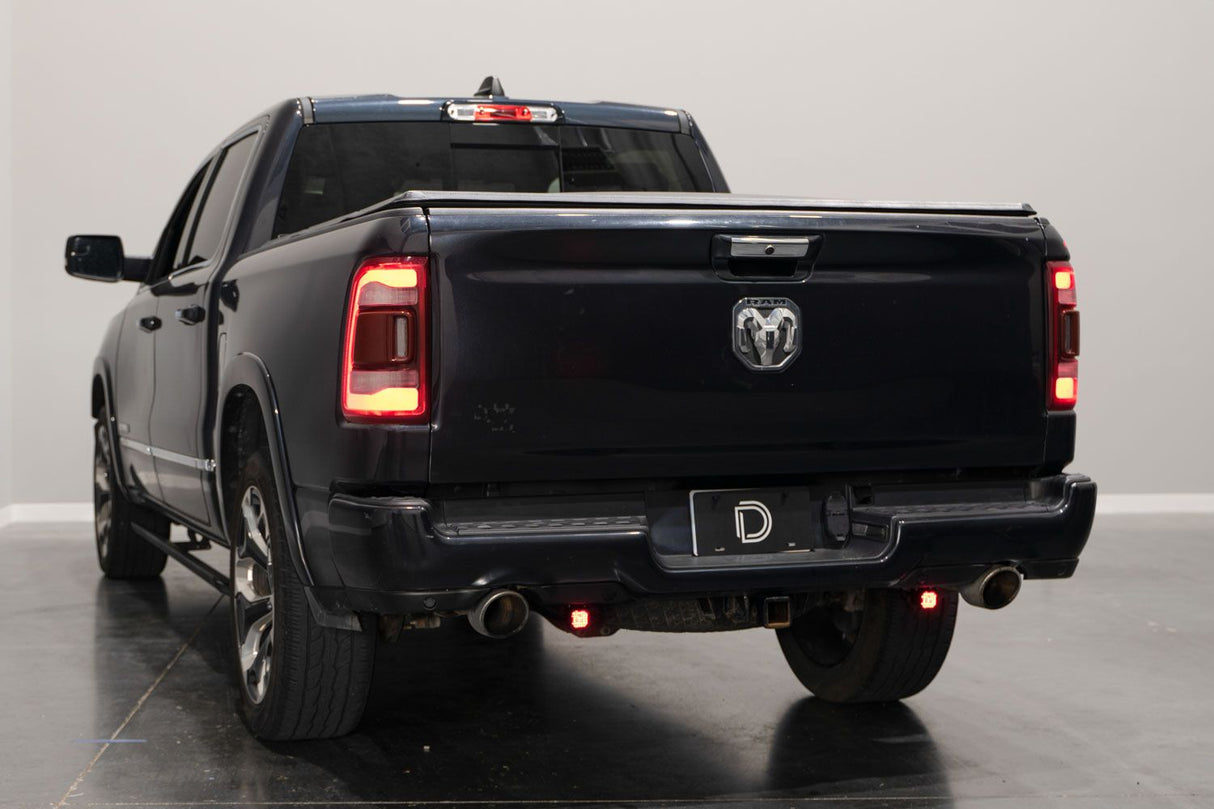

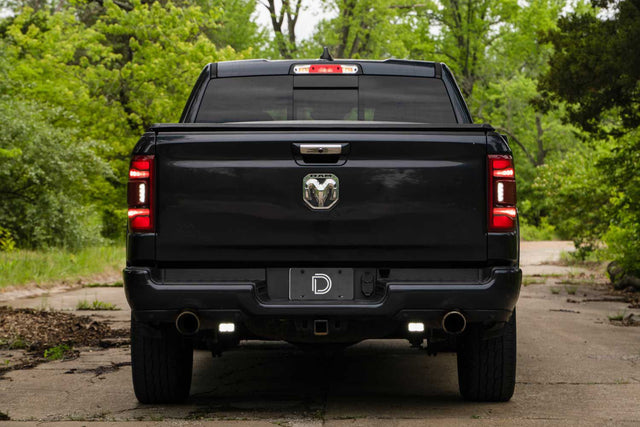

The Diode Dynamics Stage Series Reverse Light Kit for 2019-2024 Ram C1 Sport offers a performance-driven upgrade for your vehicle's lighting. There are plenty of ways to add light behind your Ram 1500 but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. Designed with attention to detail, it provides: Allows you to mount SSC1 or SSC2 LED pods underneath the rear bumper; Plug-and-play wiring harness; Provides high-power reverse light and red accent light; Designed and assembled in USA; Designed and assembled in USA.. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications
  • Product Currently Selected
    Stage Series Reverse Light Kit for 2019-2024 Ram C1 Sport, DD7589
  • Features and Benefits

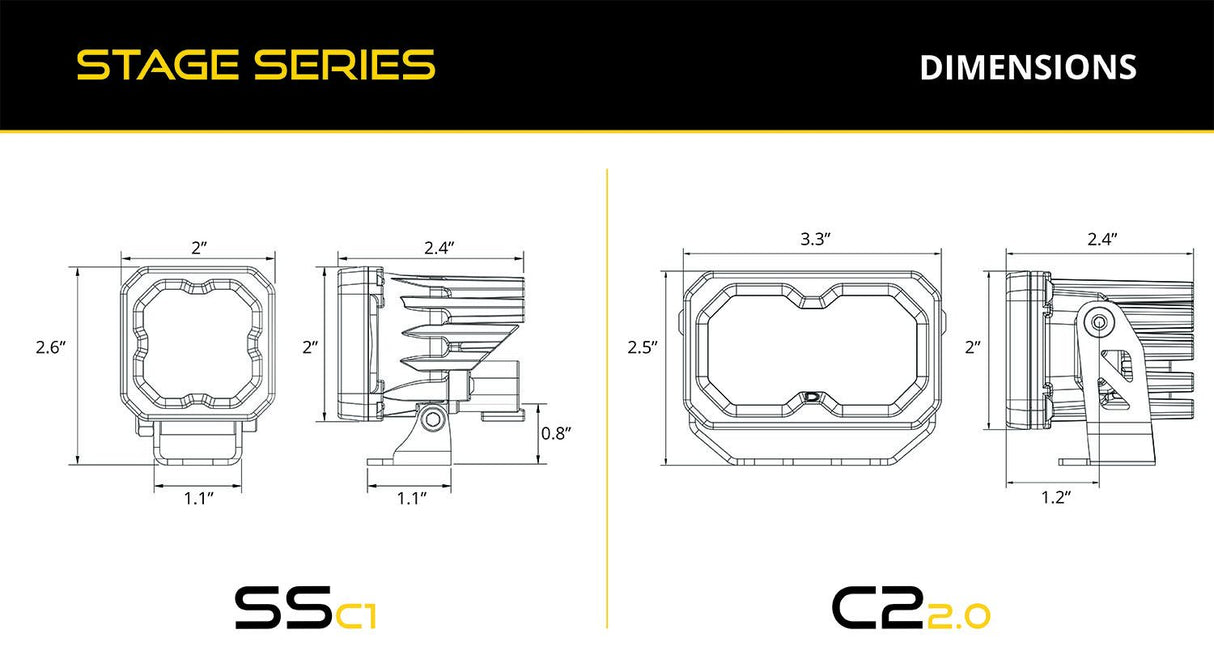

    Allows you to mount SSC1 or SSC2 LED pods underneath the rear bumper
    Plug-and-play wiring harness

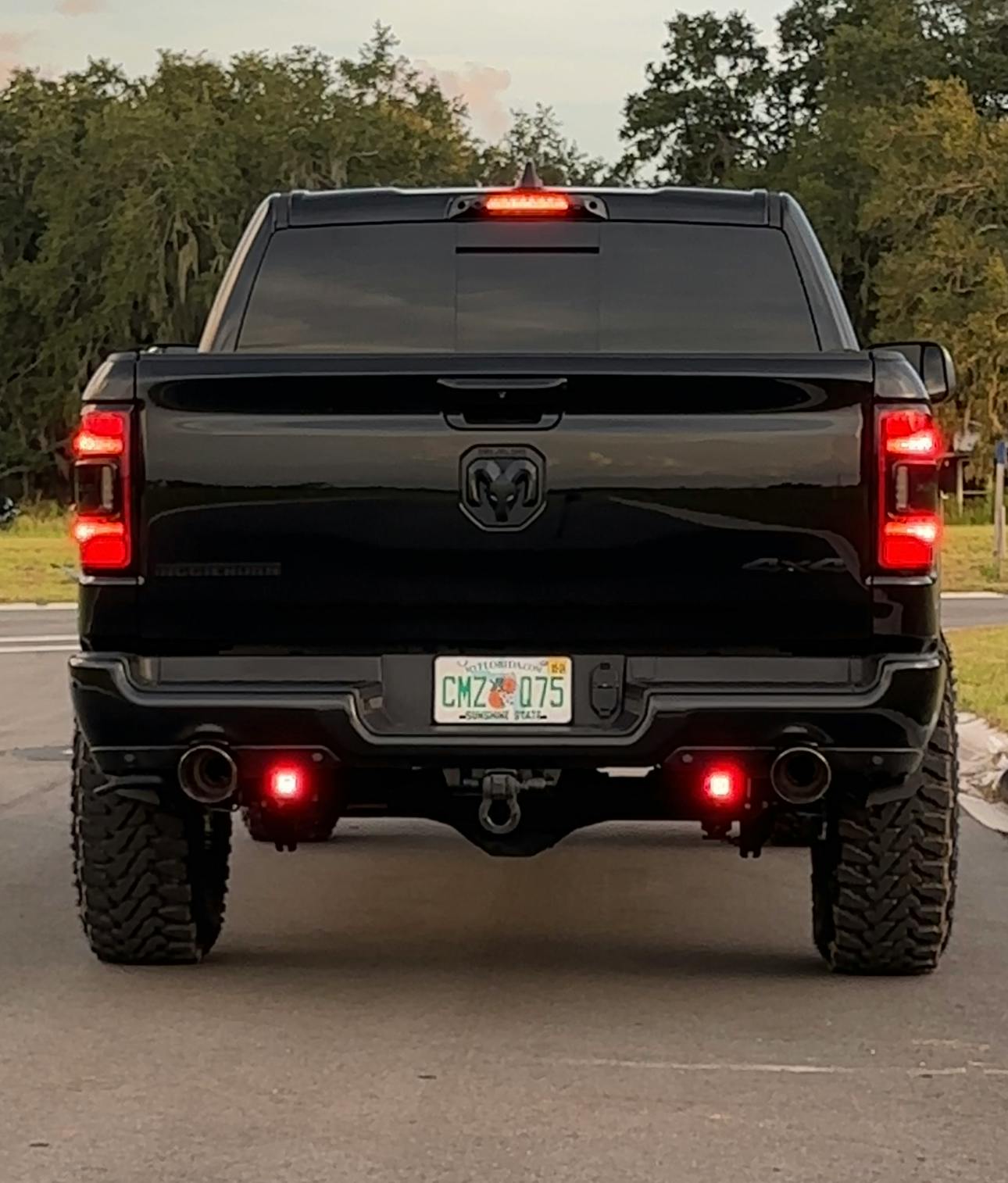

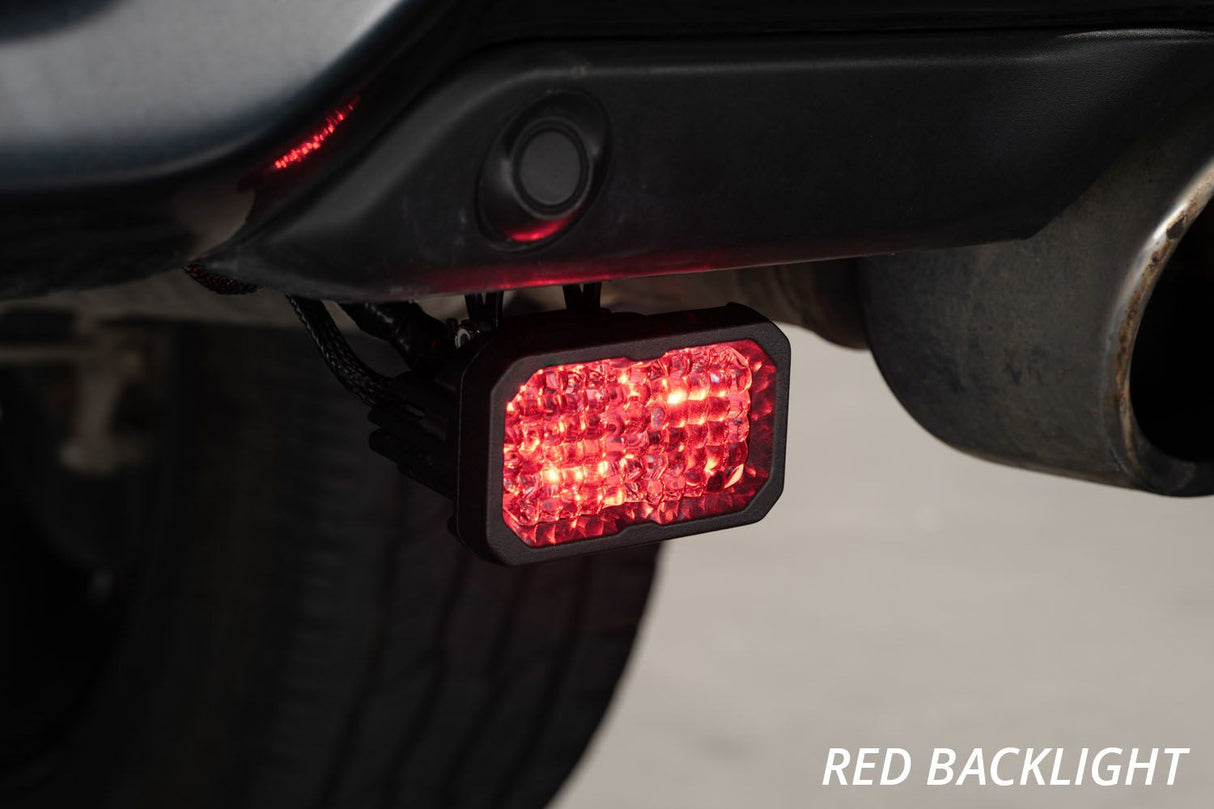

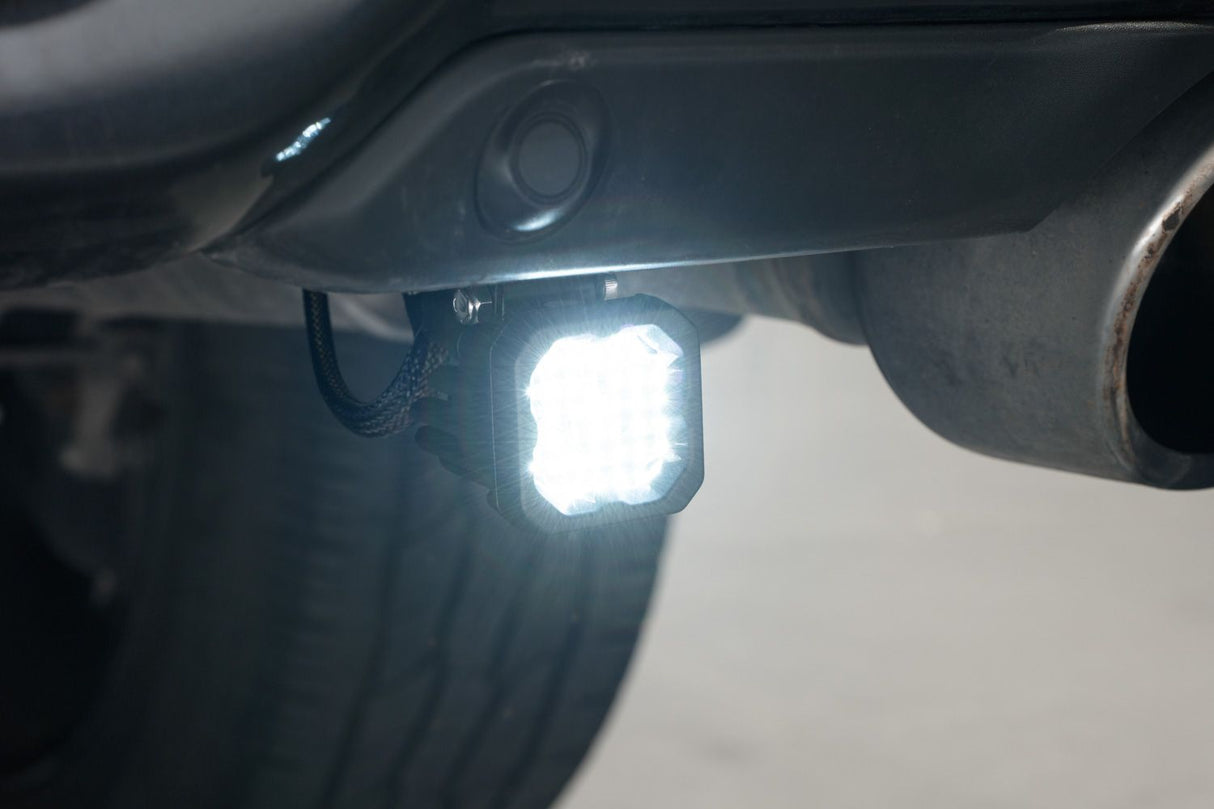

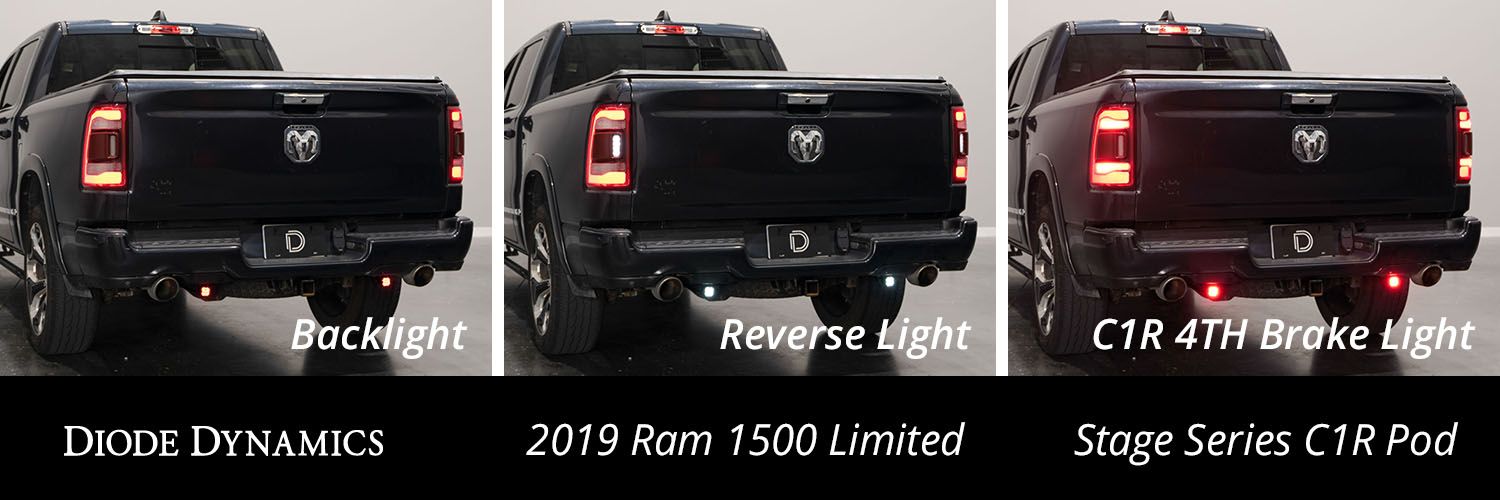

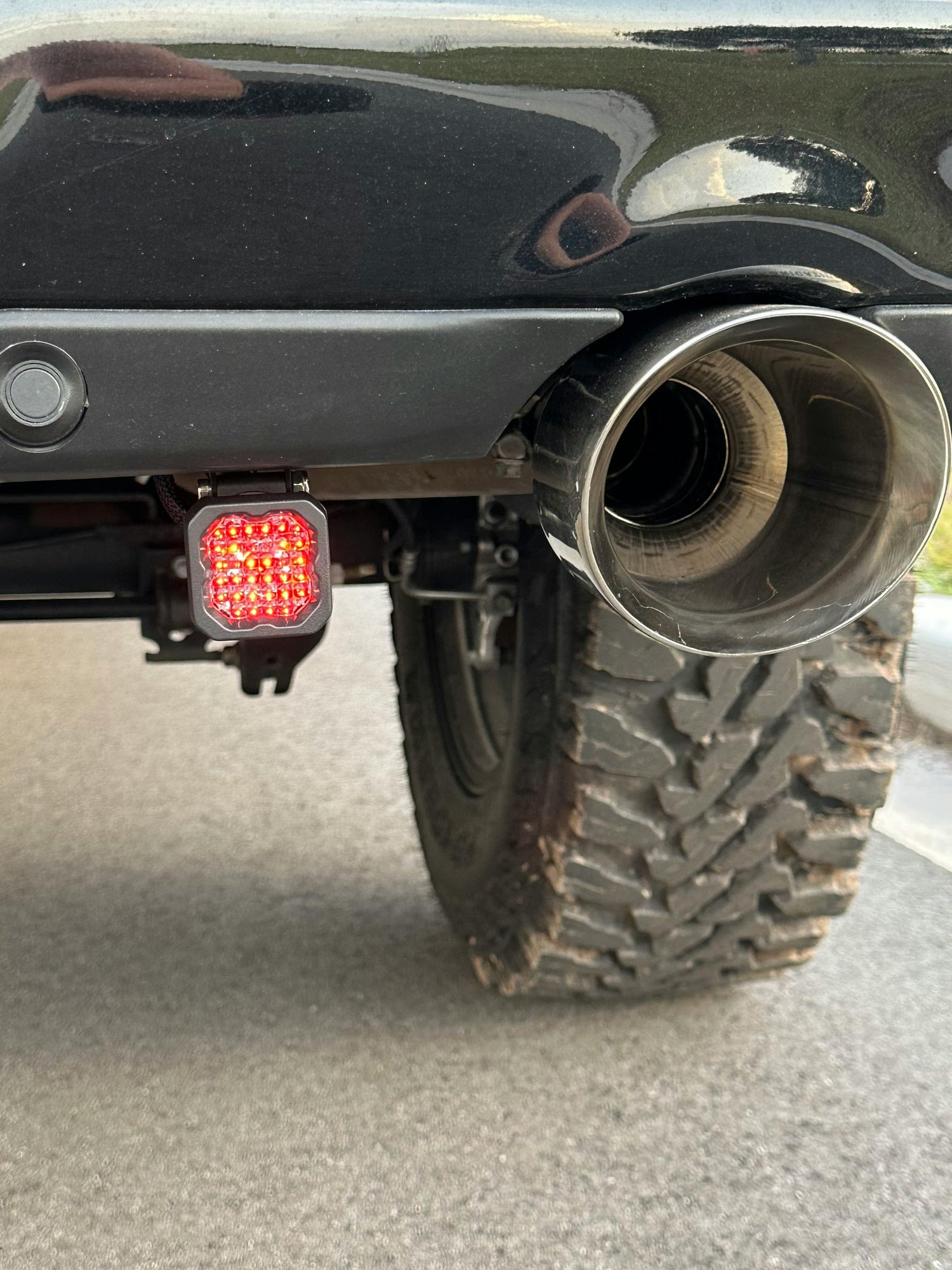

    Provides high-power reverse light and red accent light
    Designed and assembled in USA
    Designed and assembled in USA.
  • Whats Included

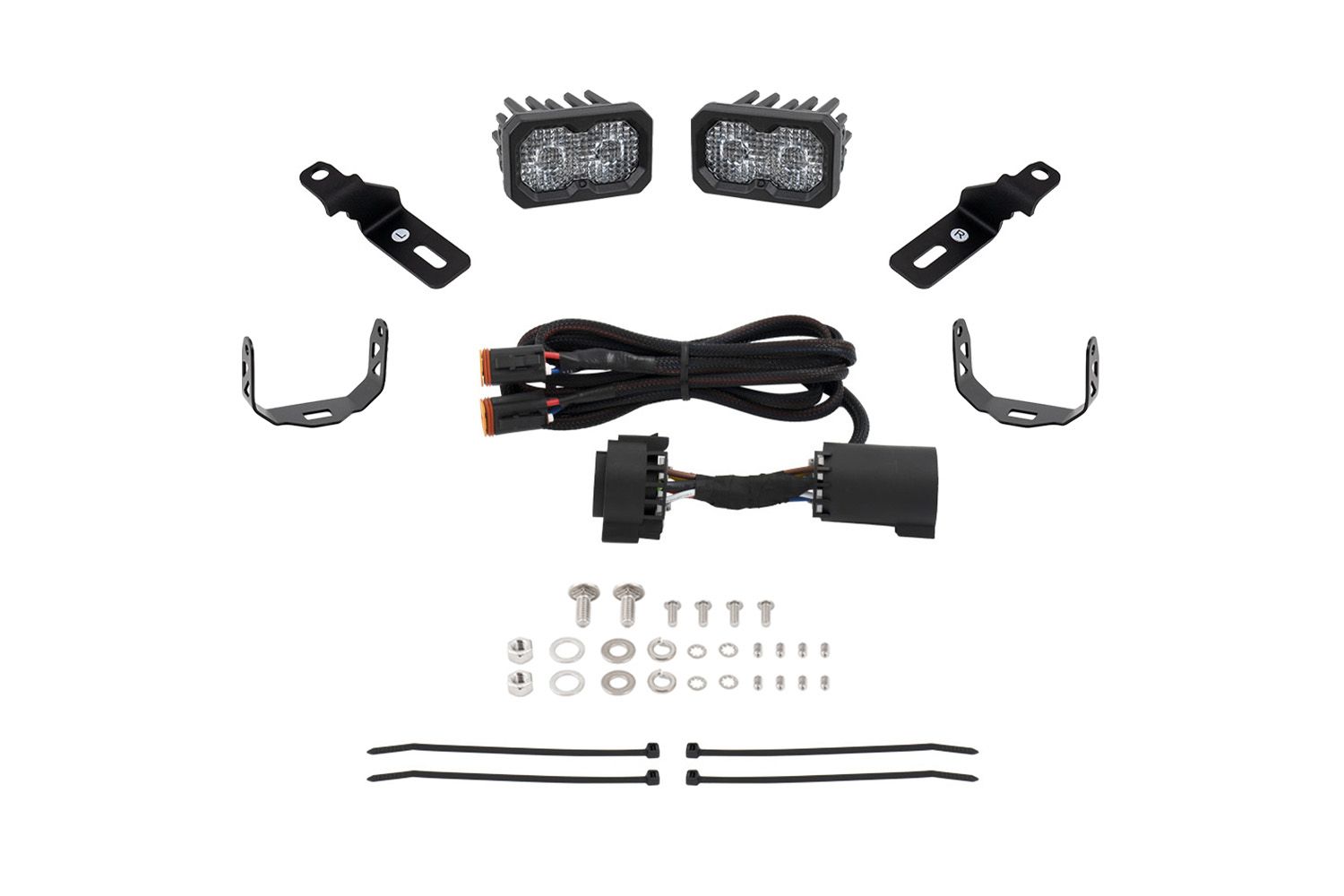

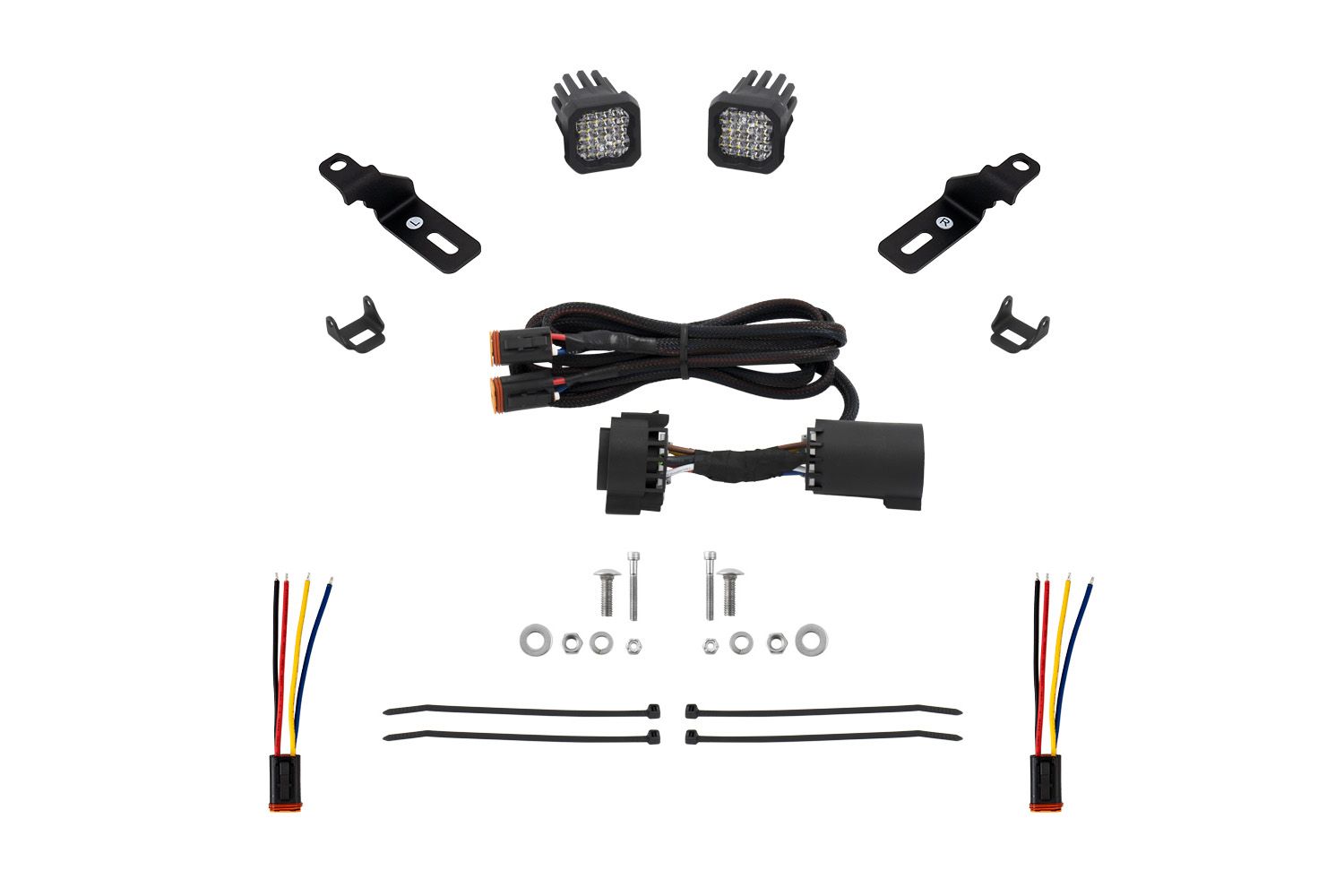

    Included in the box:
    - Two (2) SSC1 Standard LED Pods
    - One (1) Trailer Reverse Light Wiring Harness
    - Two (2) Mounting Brackets
    - Mounting hardware
    - Installation guide
  • Tech Specs
    Beam Angle: Flood 80°x50°
    Bulbs Included: No
    Color Temp: 6000K
    DOT Approved: No
    Housing Material: Steel
    Input Power (watts): Main Beam: 12.8 Backlight: 0.3
    Intensity (lux): 400 cd
    Intrusion Rating: IP67 Weatherproof
    Lens Color: Clear
    Lens Material: Polycarbonate
    Material: Steel
    Measured Output (lumens): 1 030 lm
    Mounting Hardware Included: Yes
    Operating temperature: -40C to 85C (-40F to 185F)
    Operating Voltag: 9-16V
    Street Legal: Yes
    Universal Or Specific Fit: Specific
    Voltage: 9-16V
    Wattage: 12.8
    Wiring Harness Included: Yes
