Stage Series 5"Ss5 Crosslink Add-On Led Pod (One)

$ 270.00 CAD
Diode Dynamics  |  SKU / Part Number: DD6780SNB

Color
Output Type
Primary Optic

Free Canada Wide Shipping
Free shipping on all orders over $500

Tech Specs

Color Temp (CCT): 3000K, 6000K
Power (watts): Sport: 40; Pro: 90
Operating Voltage: 9-16V
Current (amps @ 12.8V): Sport White: 2.75, Sport Yellow: 2.8, Pro: 6
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test Intrusion Ratings: IP67 Weatherproof
Product Dimensions (in): 5.1 x 5.1 x 2.7
Unit Weight (lb): 1.9
Product Weight (lb): 2.35
Shipped Weight (lb): 2.4

What's Included

In the Box:

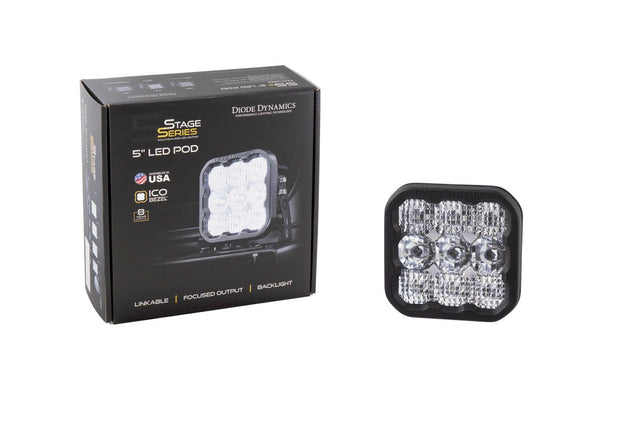

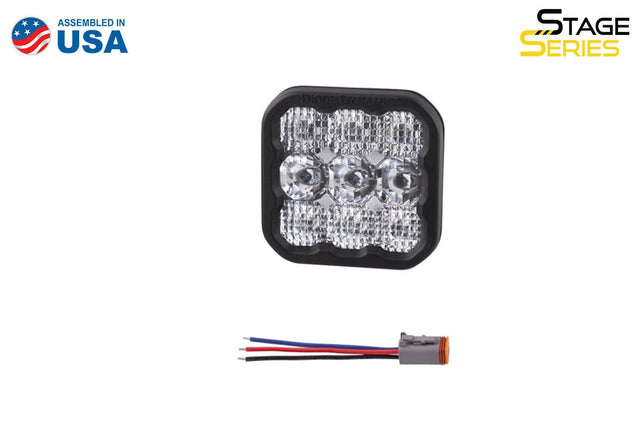

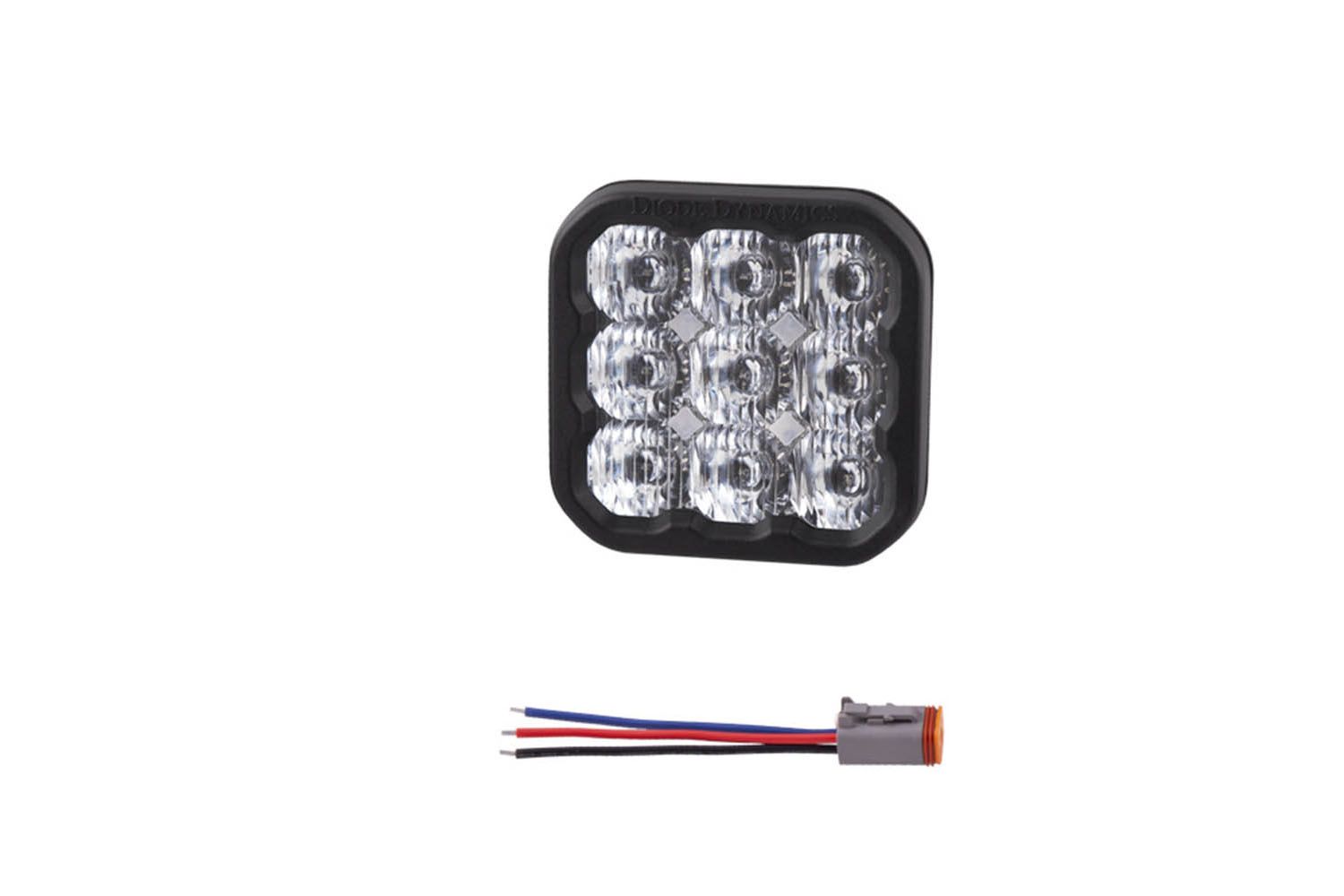

One (1) Stage Series 5” LED Pod
One (1) Deutsch-style wire pigtail
Quantity: One (1) Warranty: 8 year warranty

Installing Yourself?

The Stage Series Add-On LED Pod is specifically designed to customize or create your own Stage Series Crosslink Light Bar. With our SS5 CrossLink brackets and hardware, you can add additional SS5 pods to your existing CrossLink light bar, or build your own! Our Stage Series 5" LED pods feature the highest output intensity of any 5-inch LED pod on the market. These auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

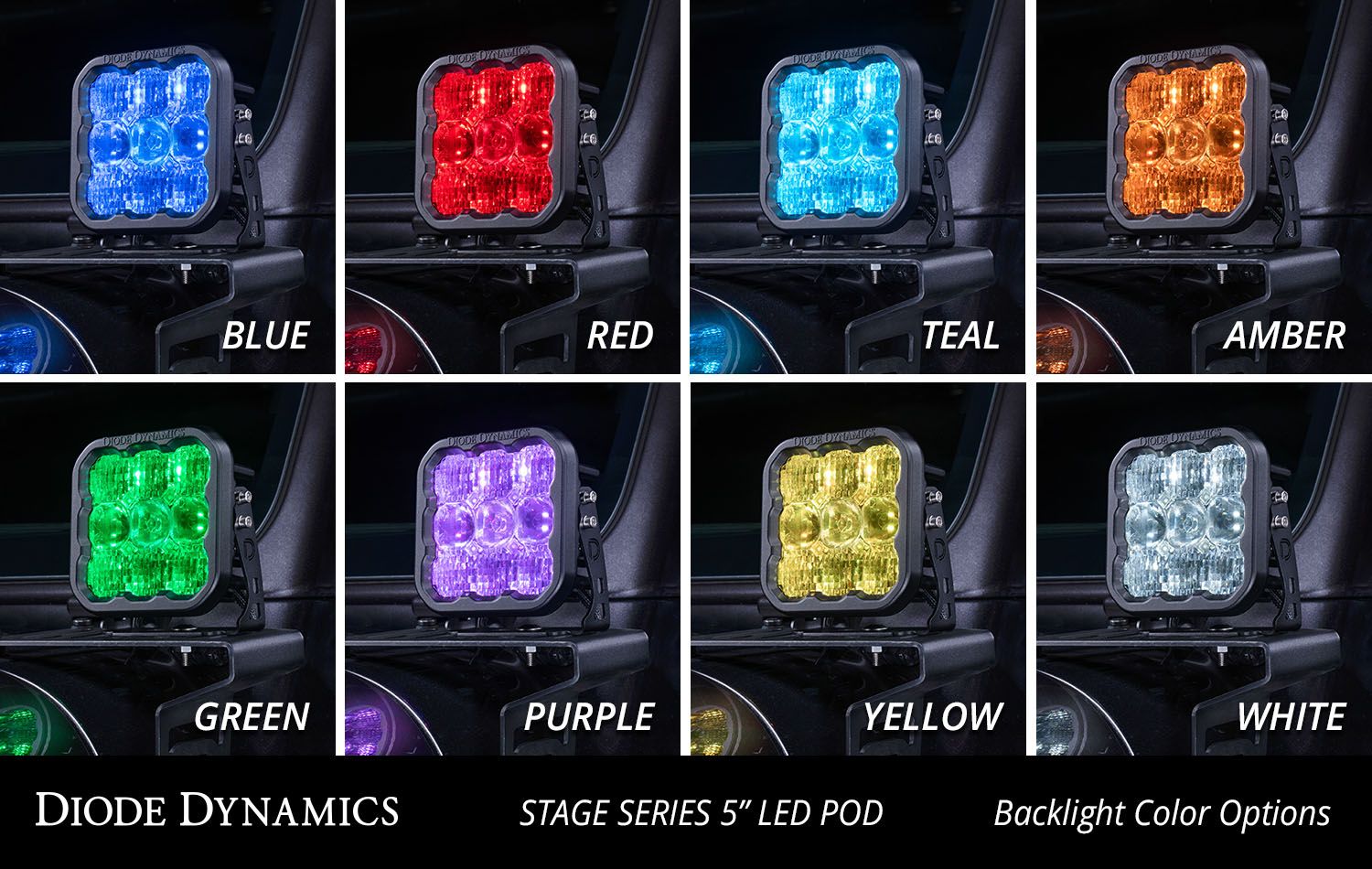

Selectable Backlight. The Stage Series 5" LED Pods included in the White kits feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kits are only available with an Amber backlight color.

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. Unlike other options on the market that use multiple pieces to link pods together, we have designed a single-piece CNC aluminum link. This provides extreme rigidity, but is fully adjustable, for both straight and curved configurations. And thanks to inset threaded mounts built-in to every SS5, there is no need to buy a special linking version of the SS5 for your setup.

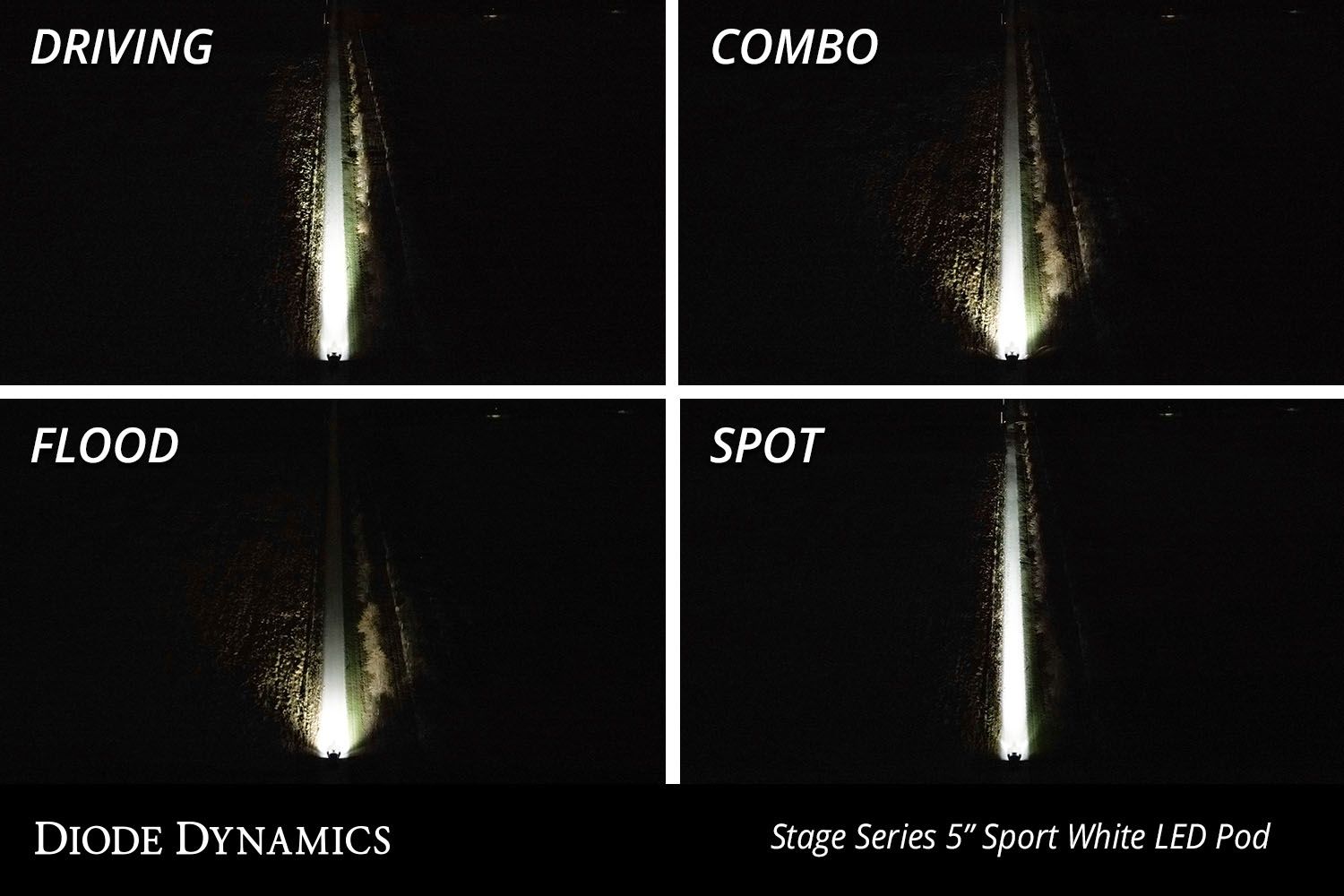

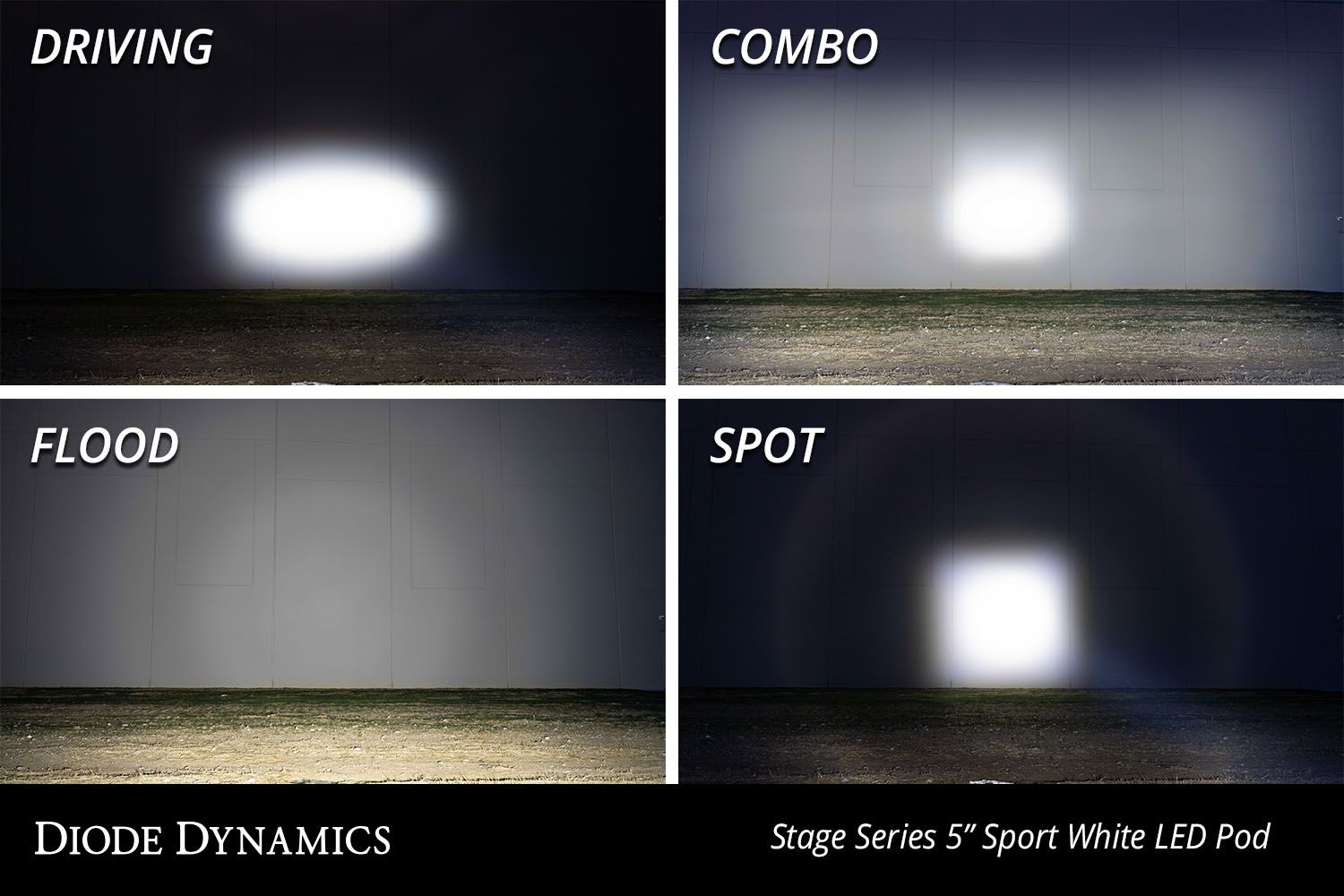

Functional Patterns. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

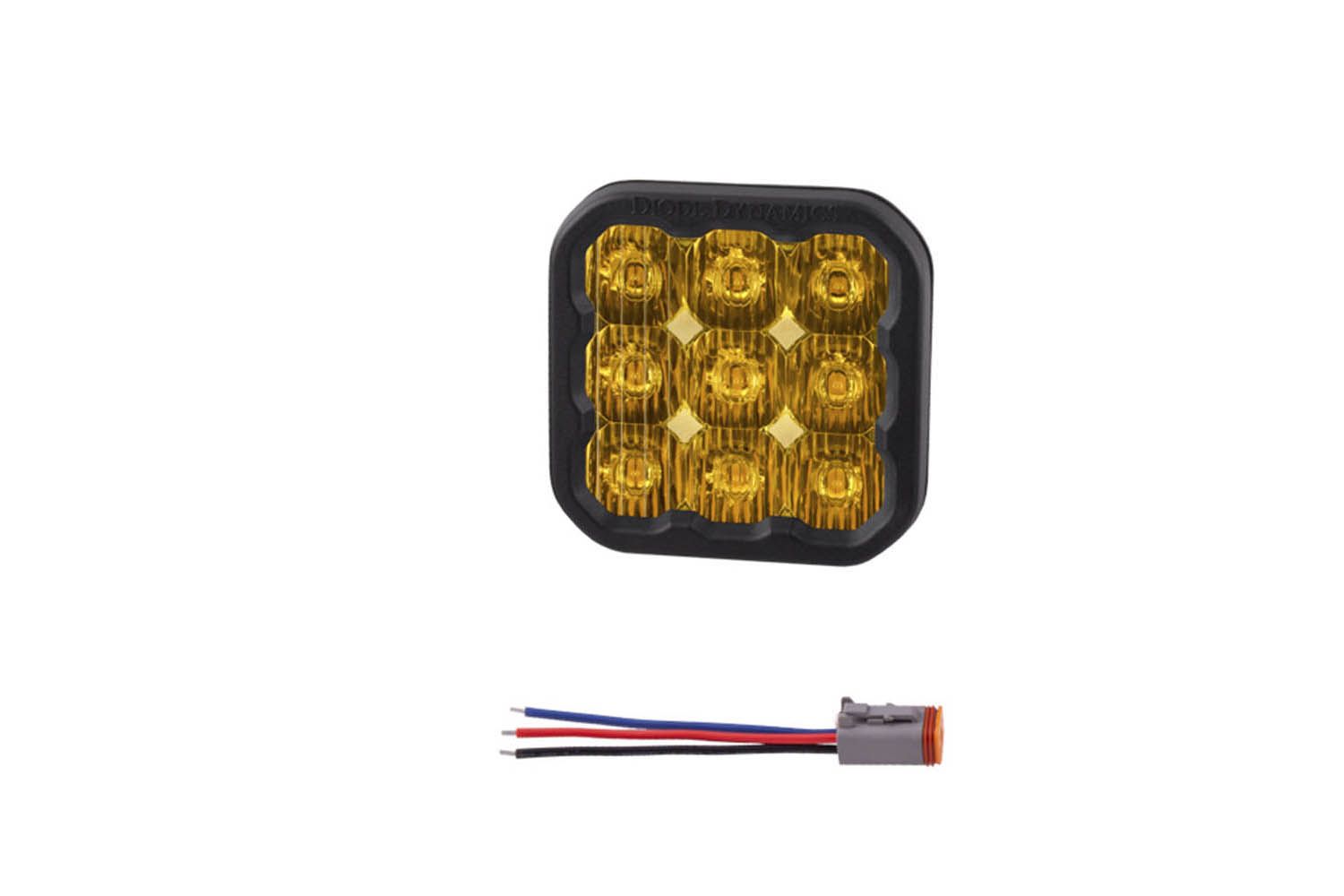

Driving is great for general illumination at speed. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in a 30x20 degree spread, providing just enough width to fully illuminate the road ahead at high speeds, but still staying focused to avoid too much foreground light. Although the SS5 Driving is too bright to be considered an SAE Auxiliary High Beam, it is perfect for an extra boost of light at speed.

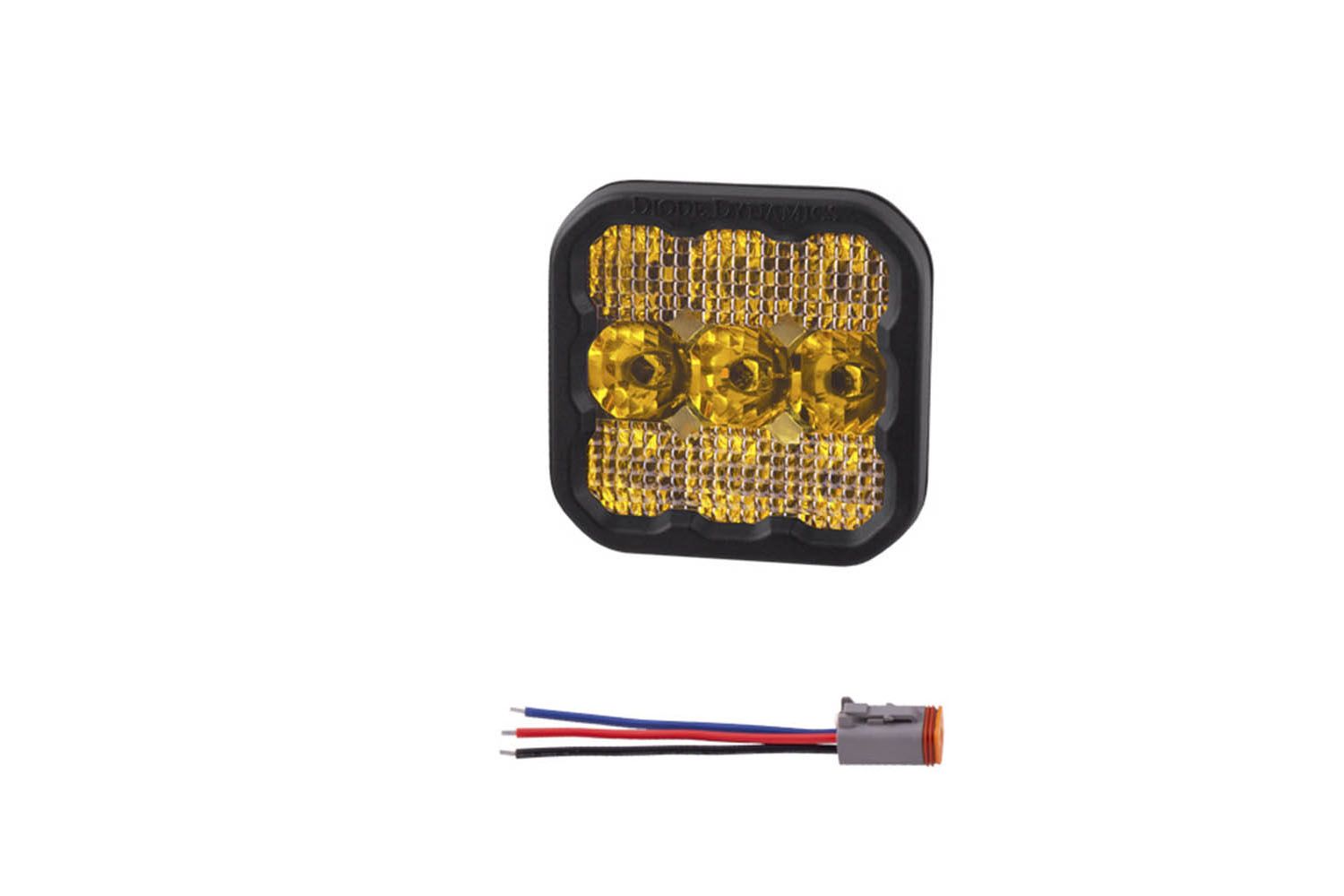

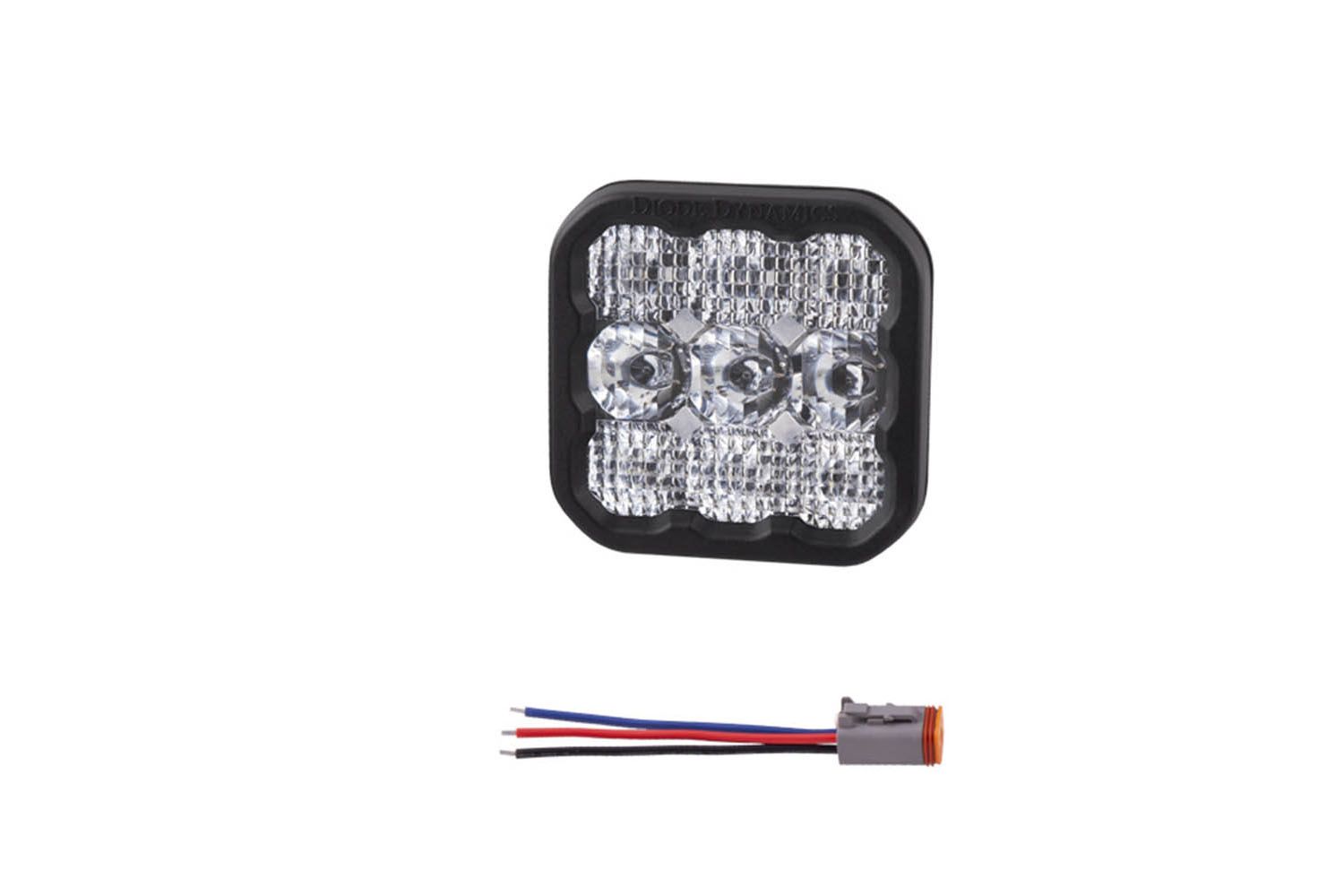

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

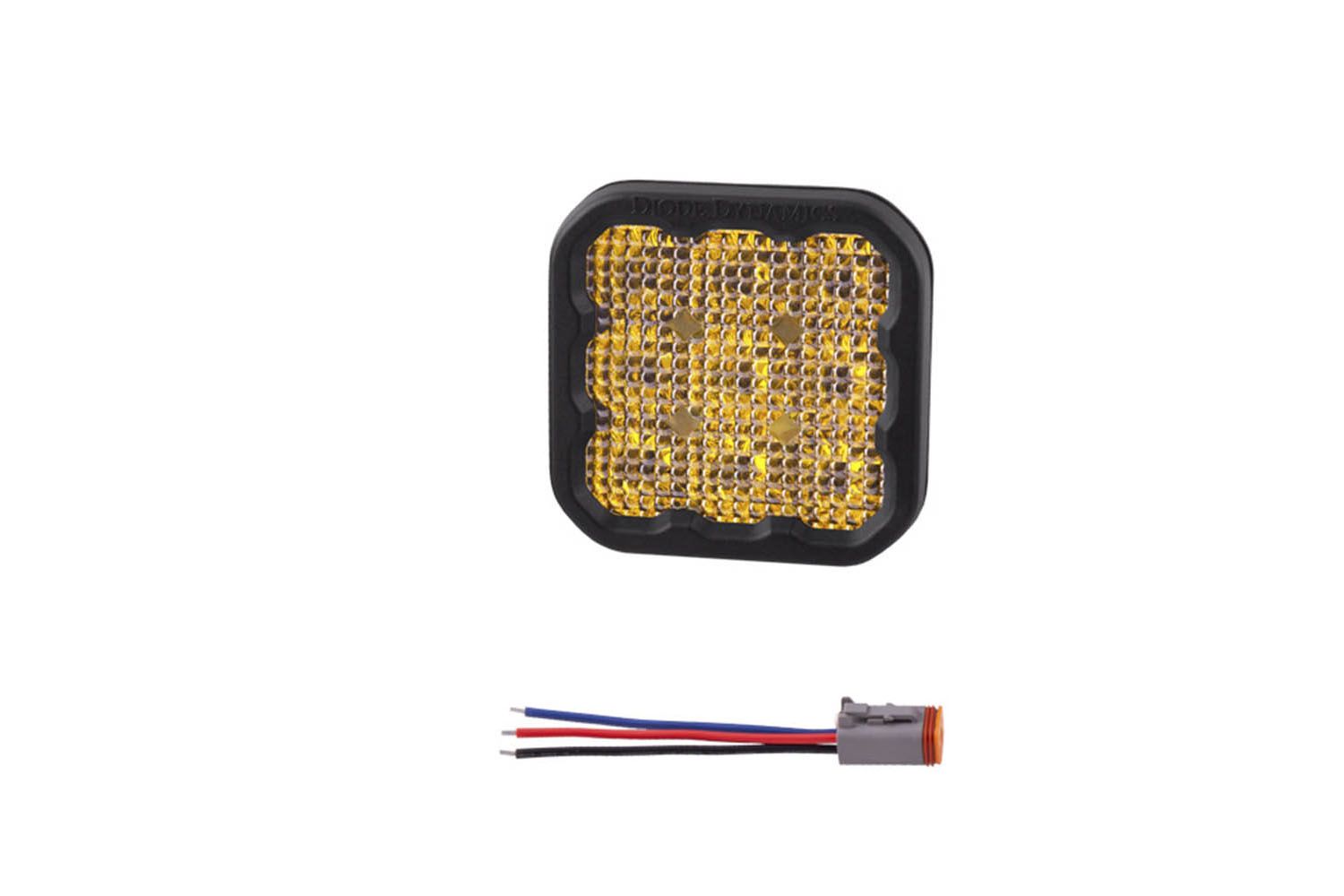

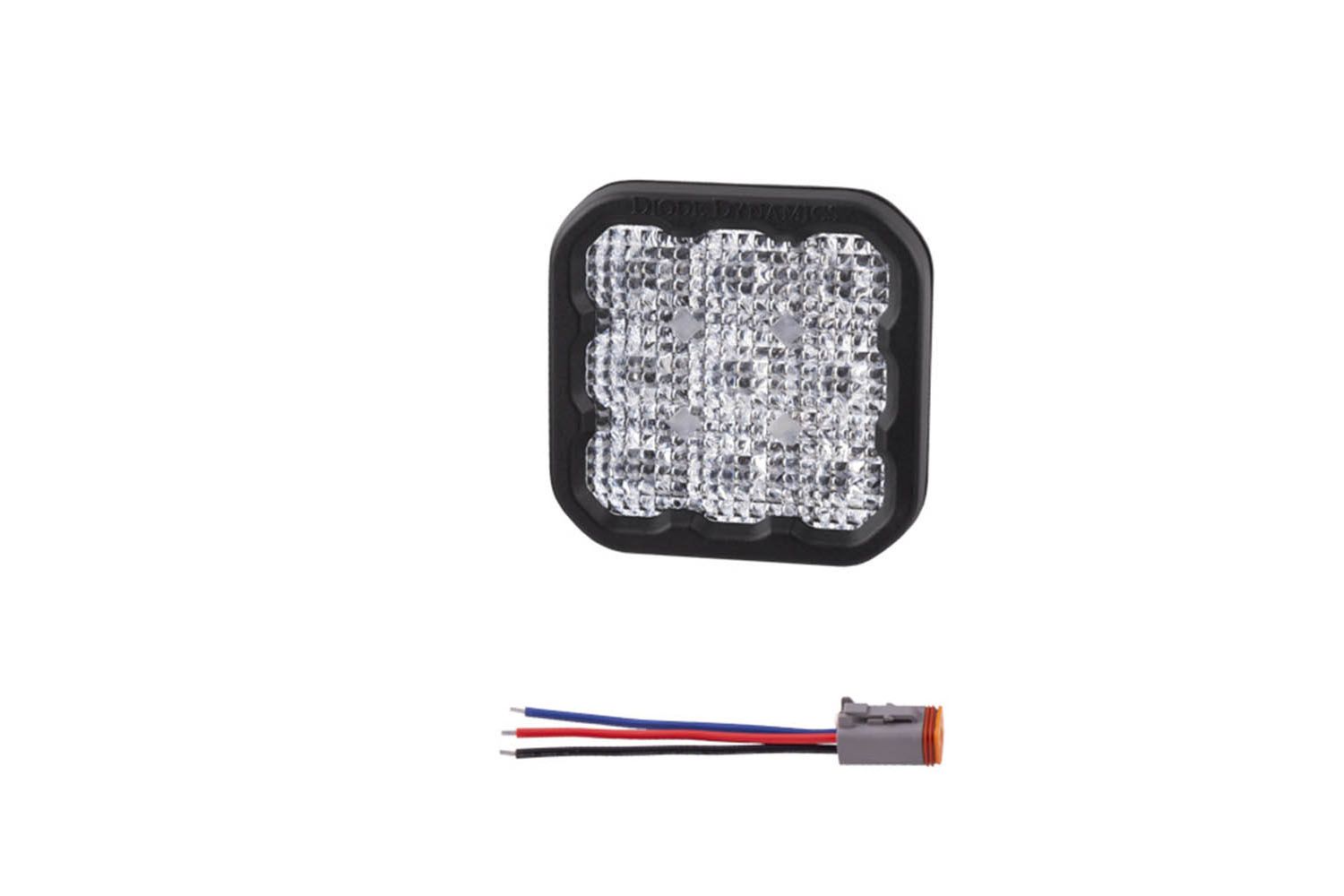

Flood pattern was designed to provide uniform, even illumination with a full 70x55 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect for lighting up anything at low speeds, or for trailers and worksites.

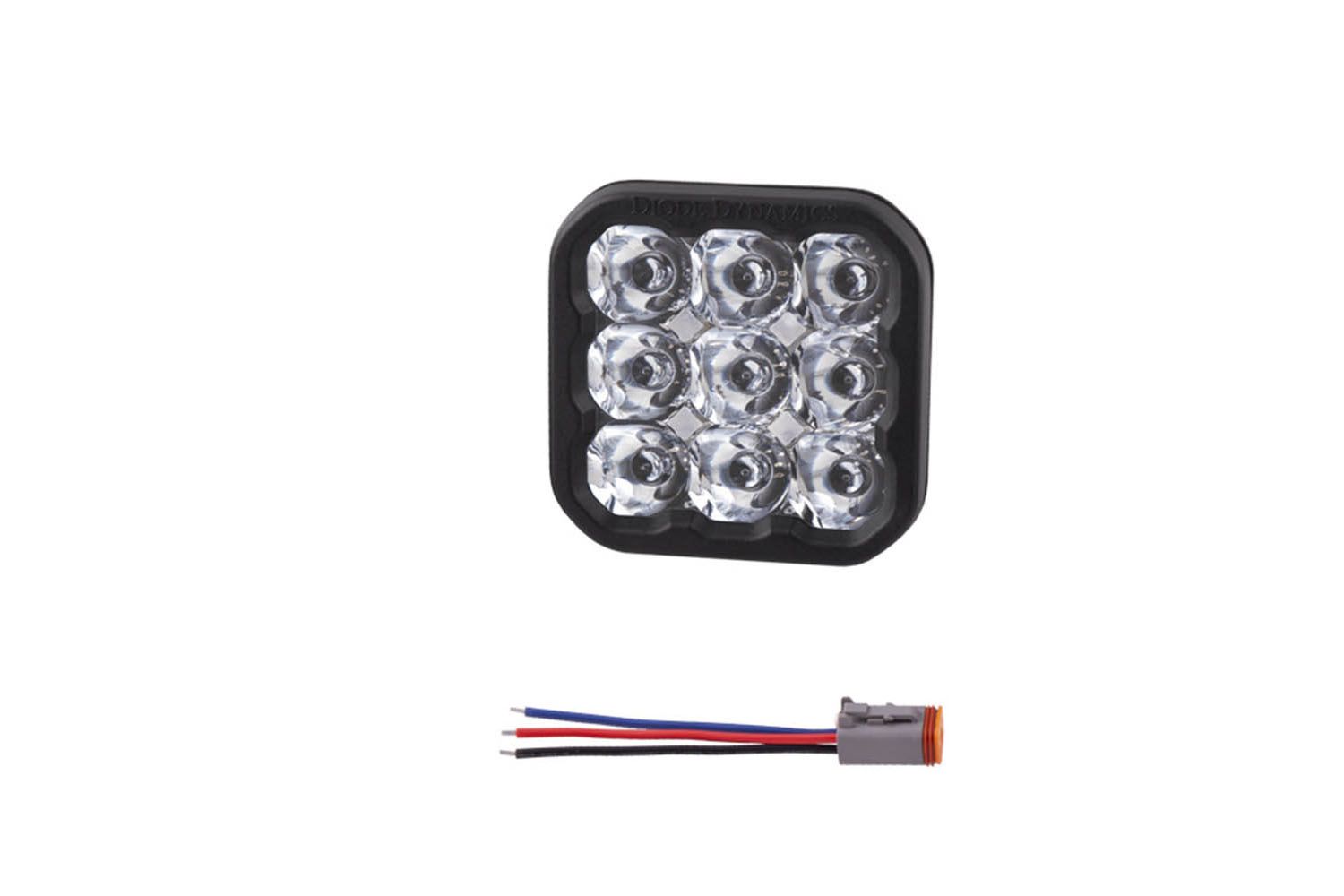

Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 15-degree beam of light, perfect for directing light far into the distance. With an incredible output of 406,000 candela, the SS5 Sport shines a mile away (¼ lux). NOTE: The Pro Spot uses a larger LED emitter, which spreads the light output into a 20-degree pattern. Although the Pro has much more raw output, the larger beam pattern results in slightly lower total intensity.



Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series SS5 Pods.

Sport or Pro. Stage Series SS5 LED pods are available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40 watts of total power. The Pro model steps things up in a big way, with over double the total power at 90 watts. Click the Specifications tab to see more information.

Simple connections. All SS5 LED pods feature an integrated and waterproof DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, or select an optional Diode Dynamics wire harness.

Snap-on covers. For states that require them, or for extra styling or protection, we also offer snap-on covers for your SS5 Pod. These covers are available in a variety of colors and keep your SS5 Pod clean and protected from dirt, dust, or whatever else the road throws your way!
