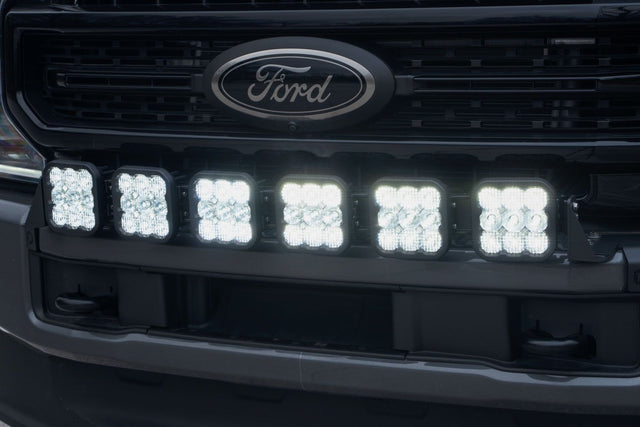

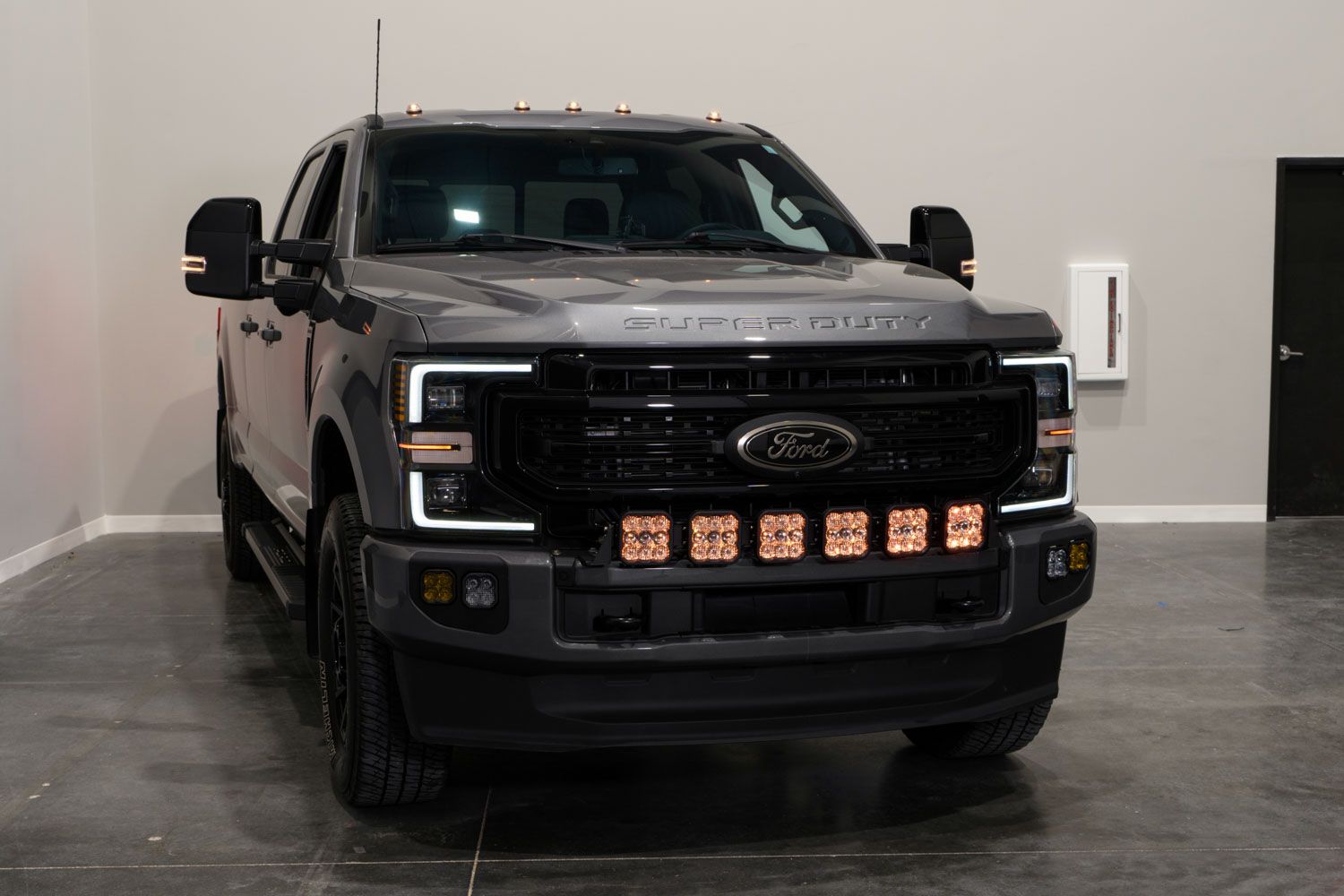

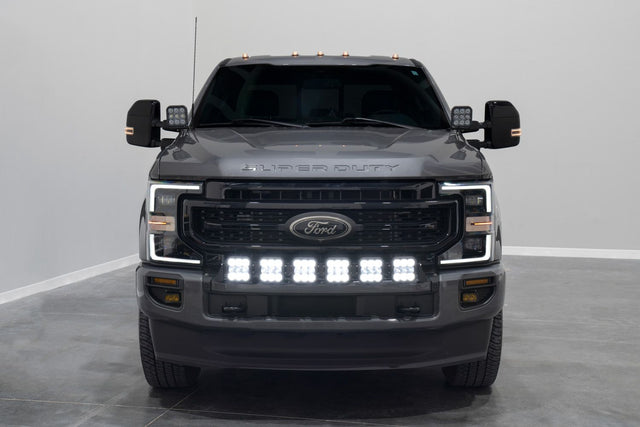

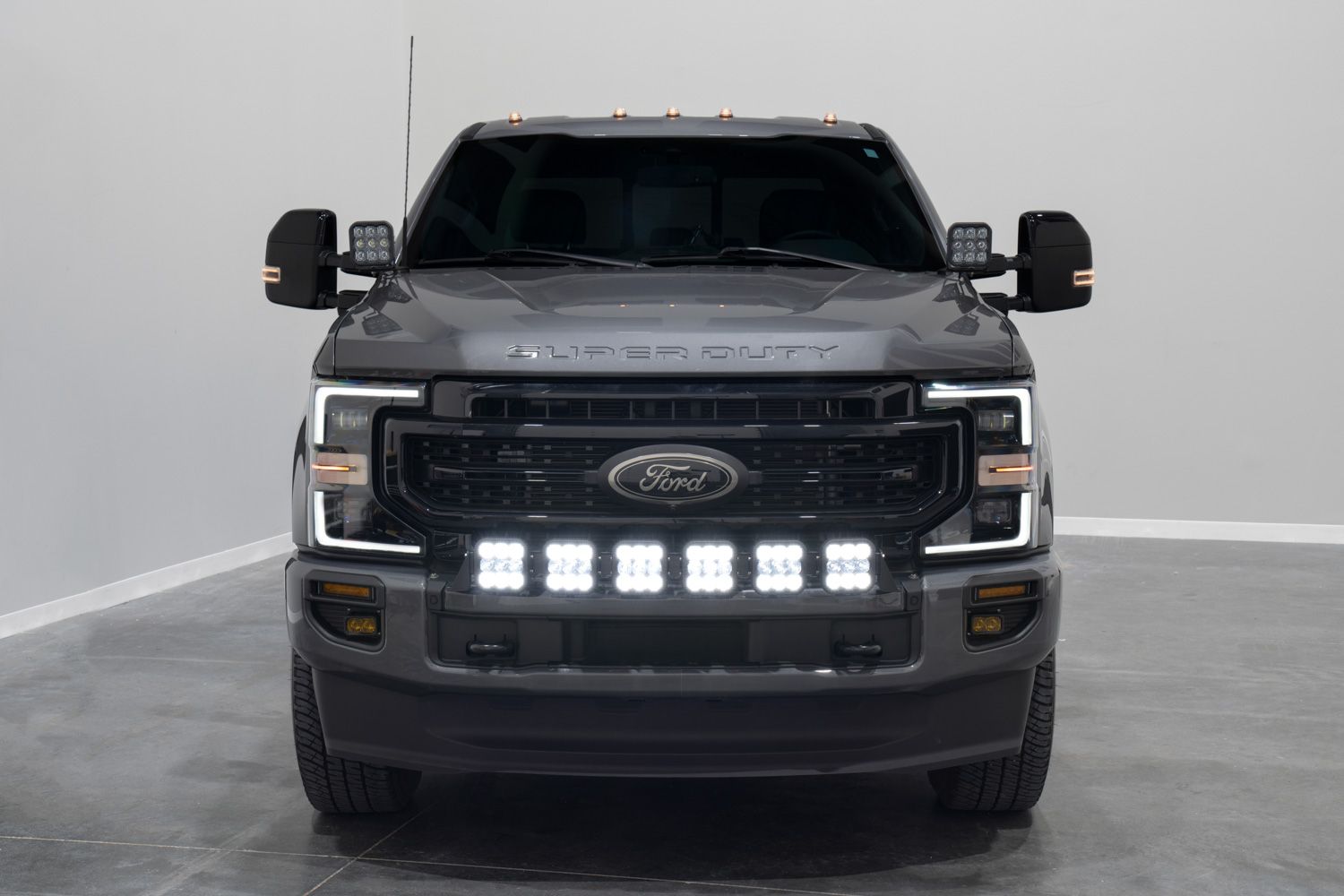

SS5 Grille CrossLink Lightbar Kit for 2020-2022 Ford Super Duty

$ 2,086.50 CAD $ 2,318.33 CAD

Diode Dynamics | SKU / Part Number: DD7571 | Barcode: 00195995131577

Choose Your Power Level

Sport Pro

Choose Your Color

Cool White (6000K) Yellow (3000K)

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

Make: Ford Model: Super Duty F250/F350/F450/F550 Years: 2020, 2021, 2022

Description

The Diode Dynamics SS5 6-Pod CrossLink Grille Lightbar Kit for 2020-2022 Super Duty Sport White Combo offers a performance-driven upgrade for your vehicle's lighting. The Grille CrossLink Lightbar Kit compatible with Ford Super Duty 2020-2022 from Diode Dynamics allows you to mount six linked SS5 LED pods on the factory grille. Designed with attention to detail, it provides: Advanced TIR optics provide high efficiency and focus; High-intensity automotive-type LEDs; Pin-fin heatsink design; Integrated Deutsch-style connector; Durable powdercoated aluminum construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SS5 6-Pod CrossLink Grille Lightbar Kit for 2020-2022 Super Duty Sport White Combo, DD7571
SS5 6-Pod CrossLink Grille Lightbar Kit for 2020-2022 Super Duty Sport Yellow Combo, DD7572
SS5 6-Pod CrossLink Grille Lightbar Kit for 2020-2022 Super Duty Pro White Combo, DD7573
SS5 6-Pod CrossLink Grille Lightbar Kit for 2020-2022 Super Duty Pro Yellow Combo, DD7574
Features and Benefits

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Whats Included

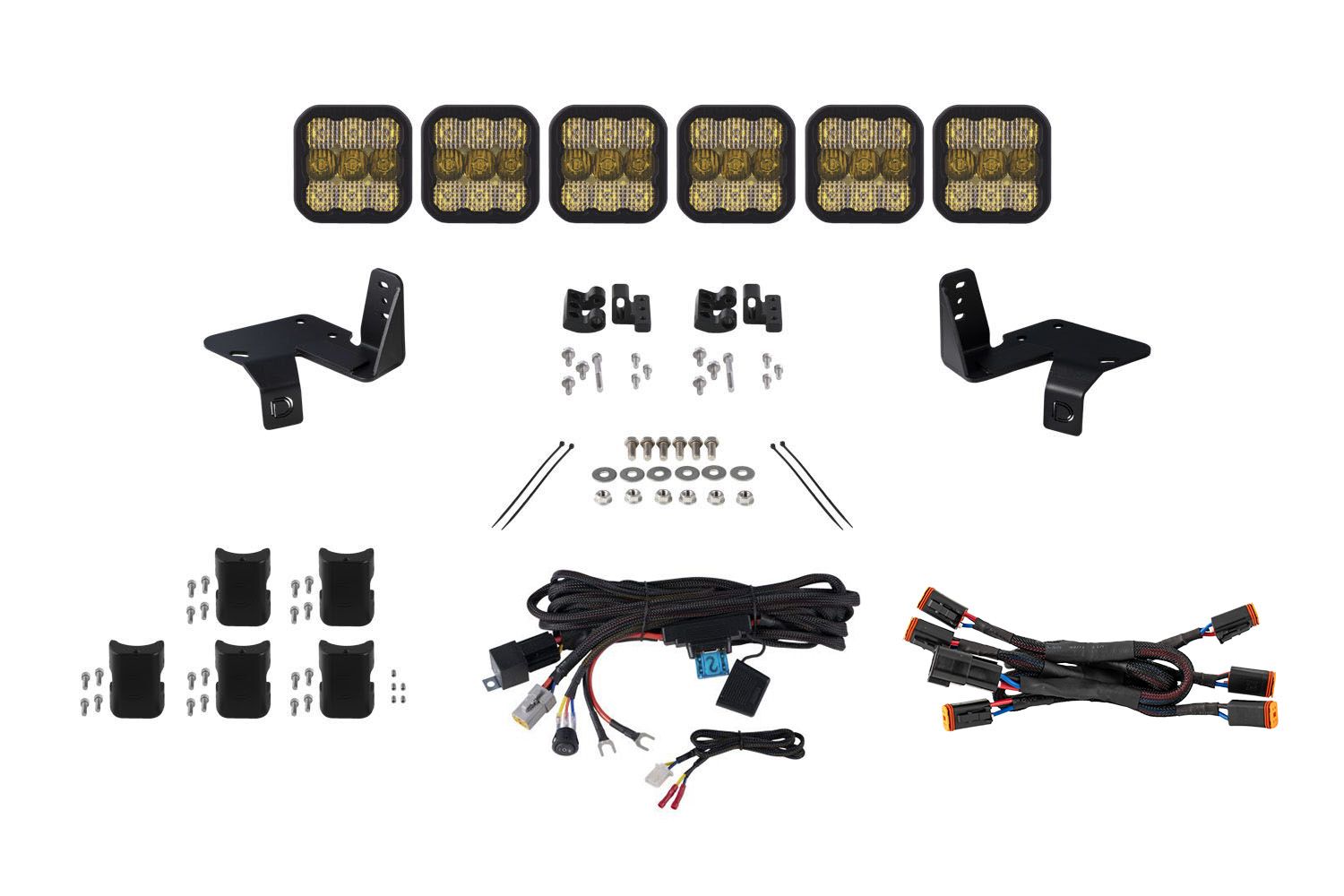

Included in the box:
- One (1) Ford Super Duty Grille Mount Bracket Kit
- Six (6) Stage Series 5inch LED Pods
- Five (5) CrossLinks with Hardware
- One (1) CrossLink Endmount Kit
- One (1) DT 6-Pod connecting harness
- One (1) Heavy-Duty Single-Output Harness
- Installation Guide
Included in the box:
- One (1) Ford Super Duty Grille Mount Bracket Kit
- Six (6) Stage Series 5inch LED Pods
- Five (5) CrossLinks with Hardware
- One (1) CrossLink Endmount Kit
- One (1) DT 6-Pod connecting harness
- One (1) Heavy-Duty Single-Output Harness
- Installation Guide
Included in the box:
- One (1) Ford Super Duty Grille Mount Bracket Kit
- Six (6) Stage Series 5inch LED Pods
- Five (5) CrossLinks with Hardware
- One (1) CrossLink Endmount kit
- One (1) DT 6-Pod connecting harness
- One (1) Ultra Heavy-Duty Single Output harness
- Installation Guide
Included in the box:
- One (1) Ford Super Duty Grille Mount Bracket Kit
- Six (6) Stage Series 5inch LED Pods
- Five (5) CrossLinks with Hardware
- One (1) CrossLink Endmount kit
- One (1) DT 6-Pod connecting harness
- One (1) Ultra Heavy-Duty Single Output harness
- Installation Guide
Tech Specs

Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Input Power (watts): Main Beam: 40 Backlight: 3.17
Intensity (lux): 81 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 3 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Specific
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 3000K
Drilling Required: No
Input Power (watts): Main Beam: 40 Backlight: 3.07
Intensity (lux): 71 200 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 3 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Specific
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Input Power (watts): Main Beam: 90 Backlight: 3.17
Intensity (lux): 75 700 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 9 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Specific
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Thread Type: Medium
Color Temp: 3000K
Drilling Required: No
Input Power (watts): Main Beam: 90 Backlight: 3.07
Intensity (lux): 58 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Measured Output (lumens): 7 900 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Universal Or Specific Fit: Specific
