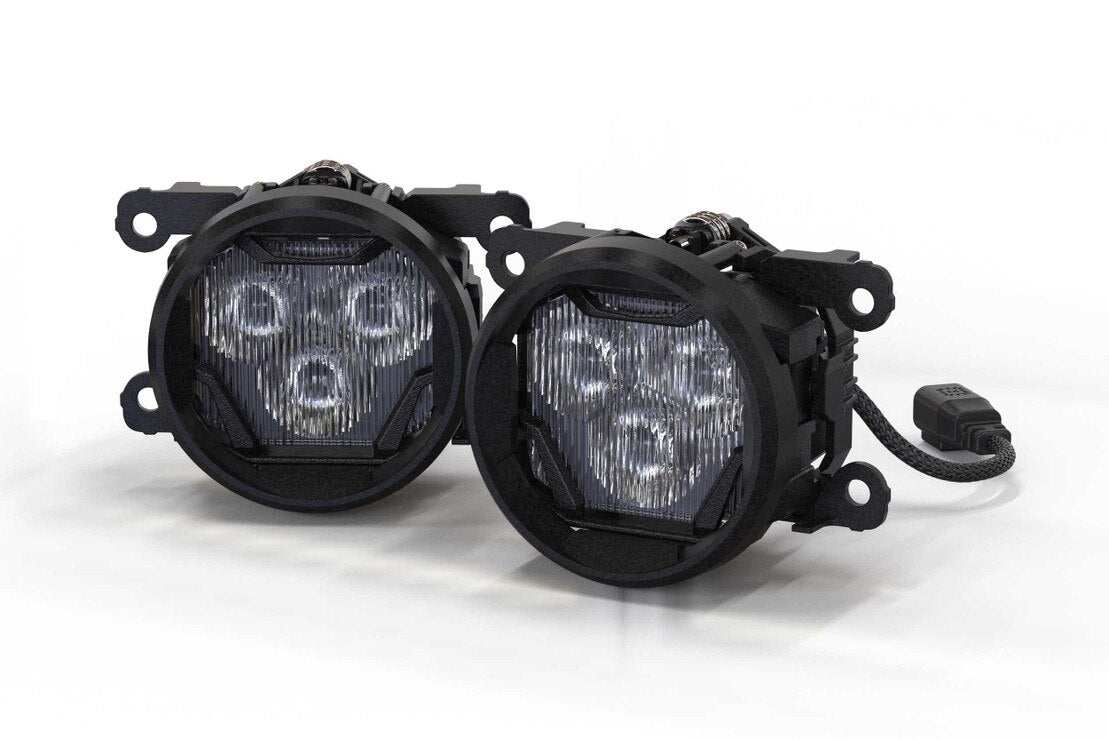

Scion Fr-S: Morimoto 4Banger Led Fog Lights

$ 521.00 CAD
Morimoto  |  SKU / Part Number: BAF005.2, BAF016  |  Barcode: 97484538
Color
Output Type
Primary Optic

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

WHAT'S INCLUDED

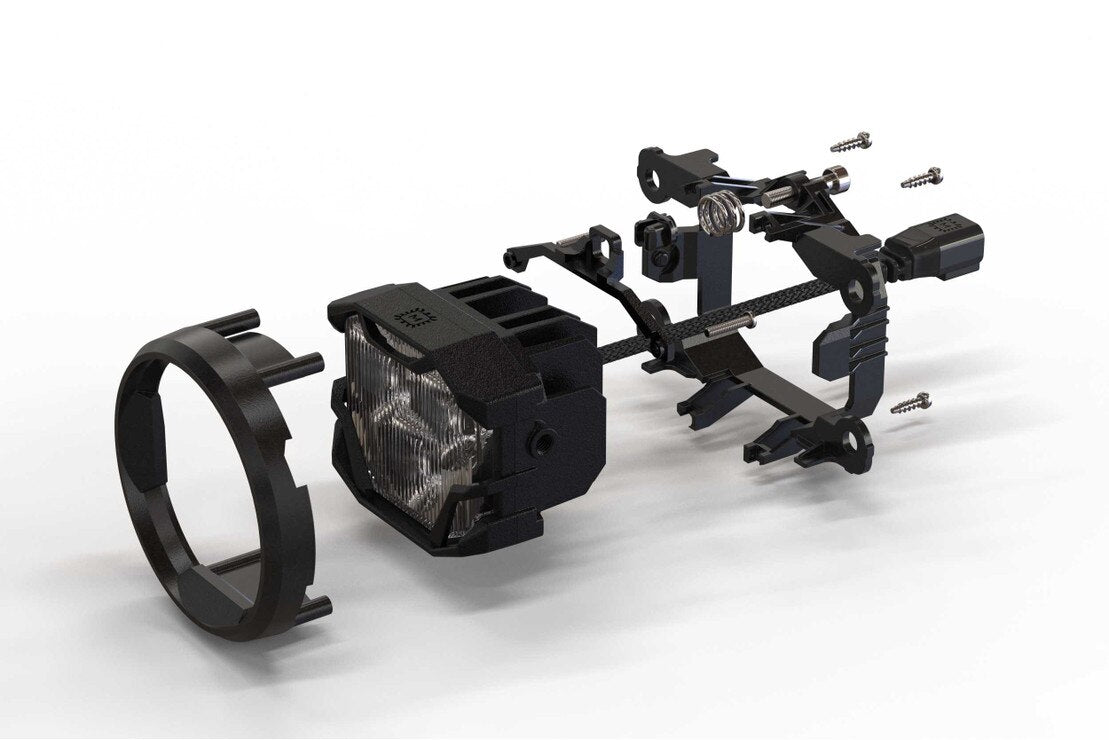

Fog Light Brackets: 2x (One Pair) Brackets (BAF016 / Type S Style)

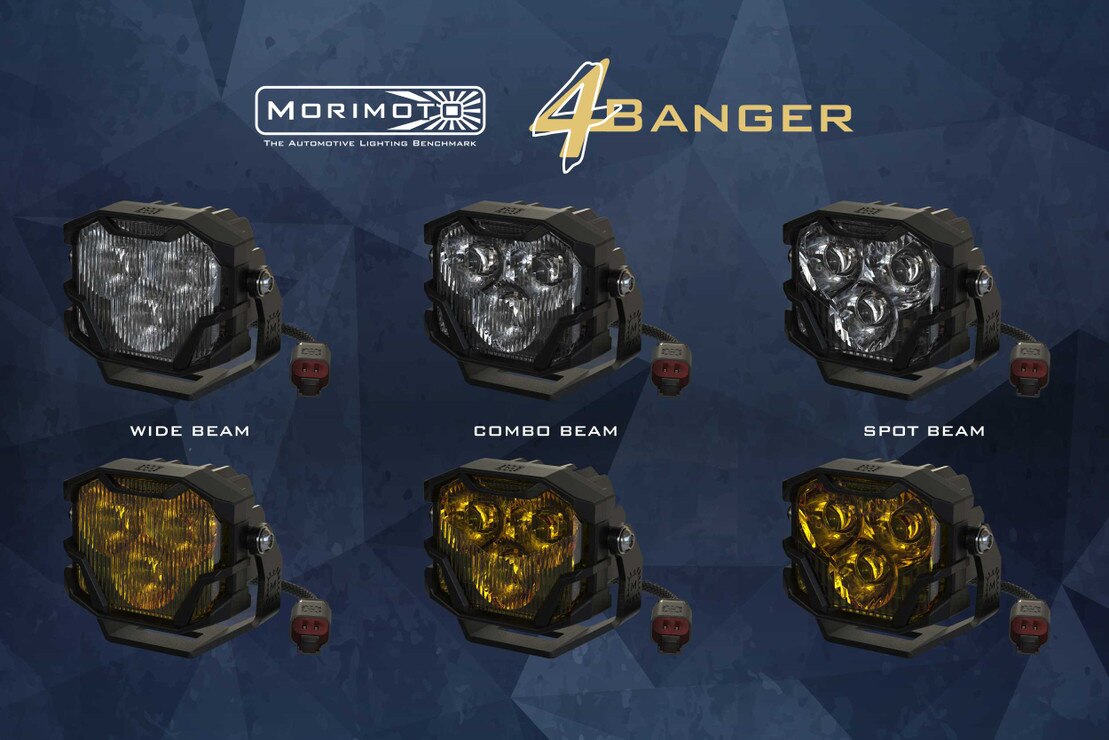

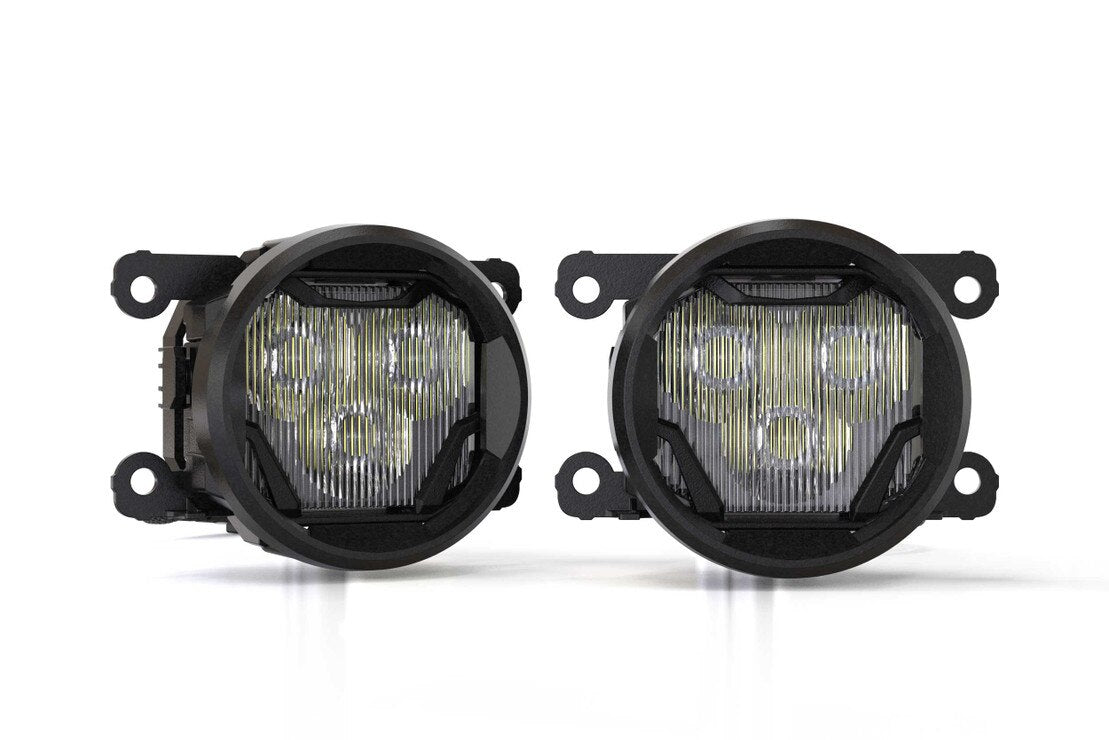

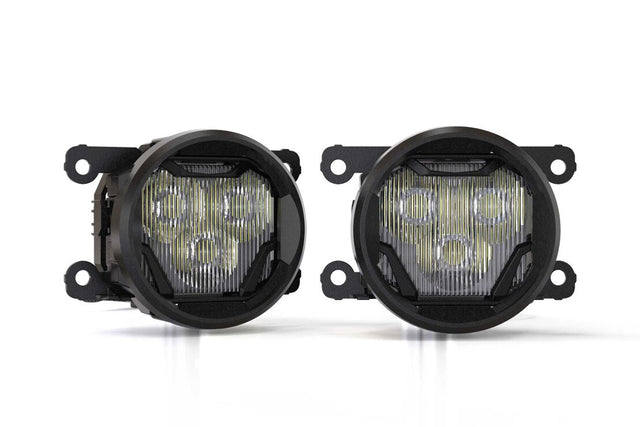

LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
Hardware: Complete Pack (Stainless Steel)
Wiring: Plug N Play Connection Kit

5 Year Warranty

COMPATIBILITY

SCION FR-S: 2013-2016
REPLACES SCION PART #: 18839

TECH SPECS

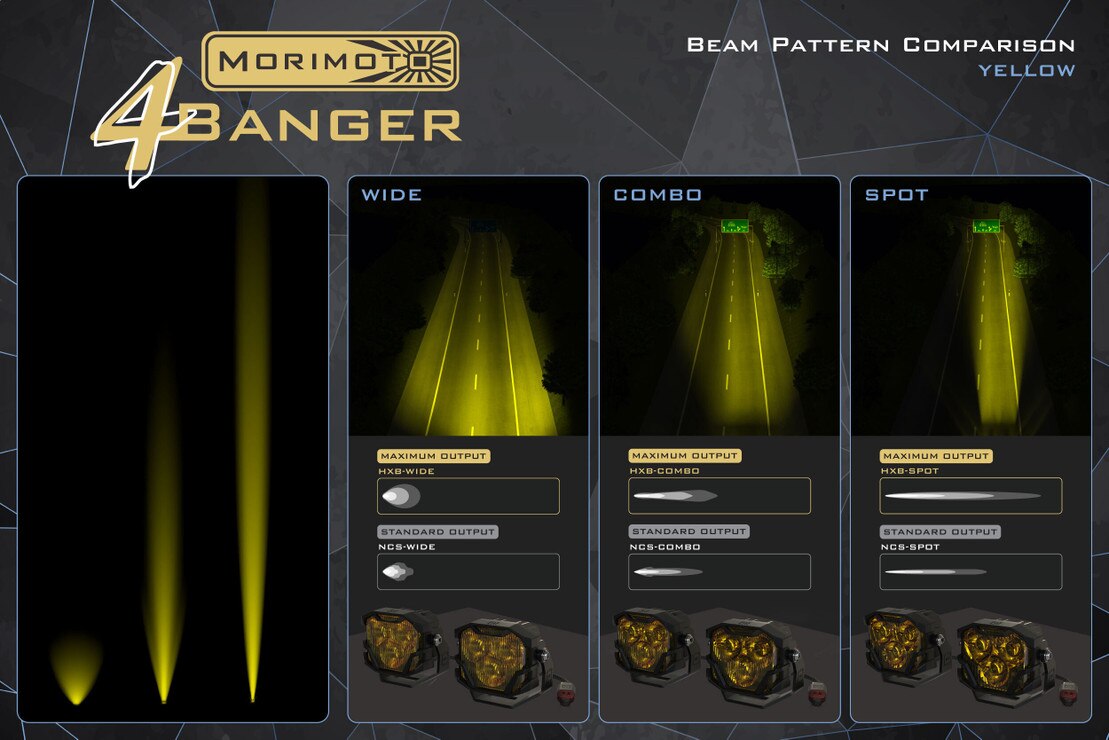

NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

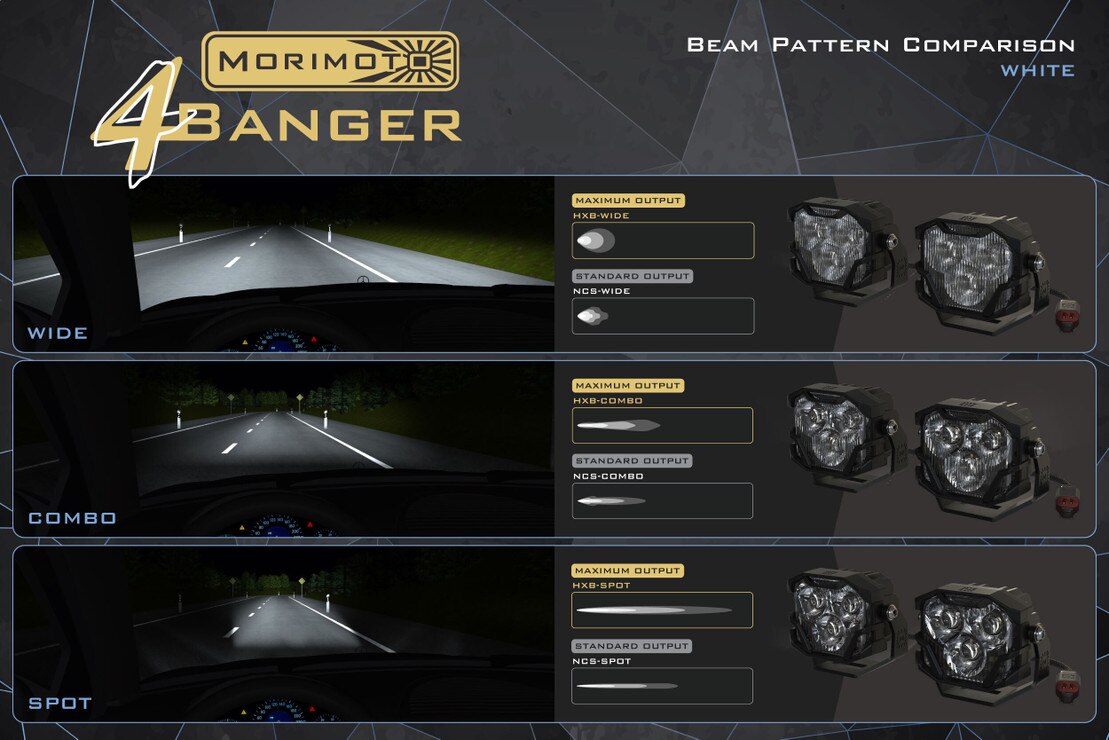

NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
Input Voltage: 9-18V DC
Power (stabilized): 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
Dimensions: 82mm W, 67mm H, 60mm D

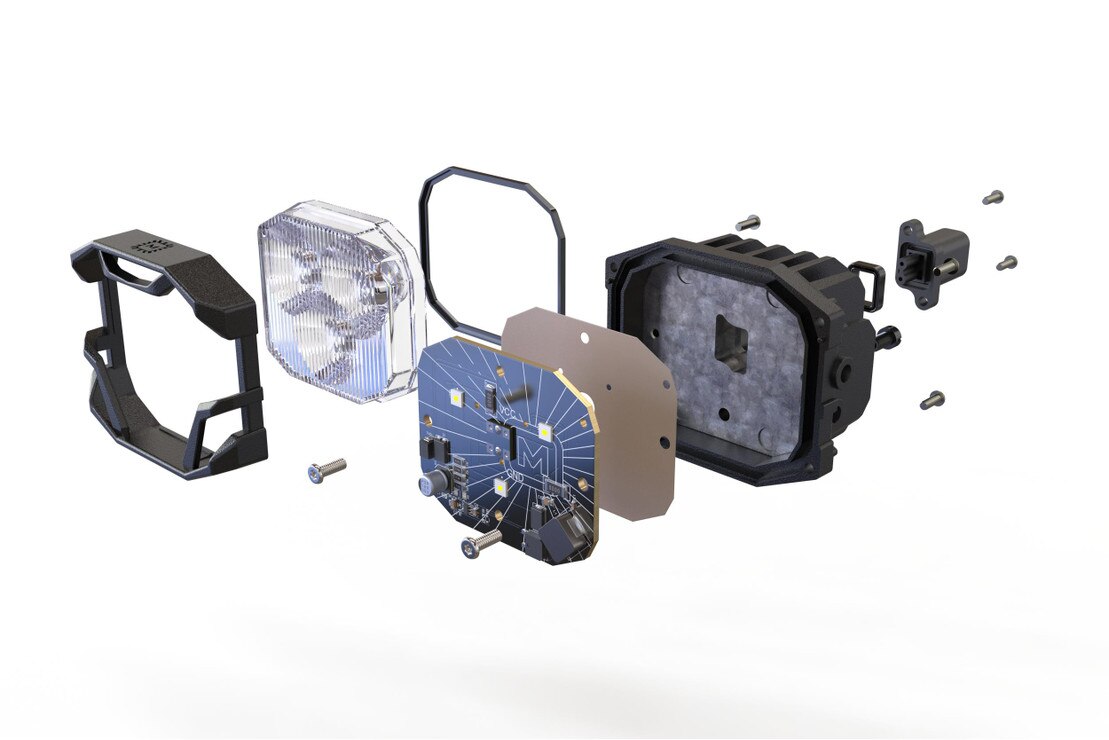

Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

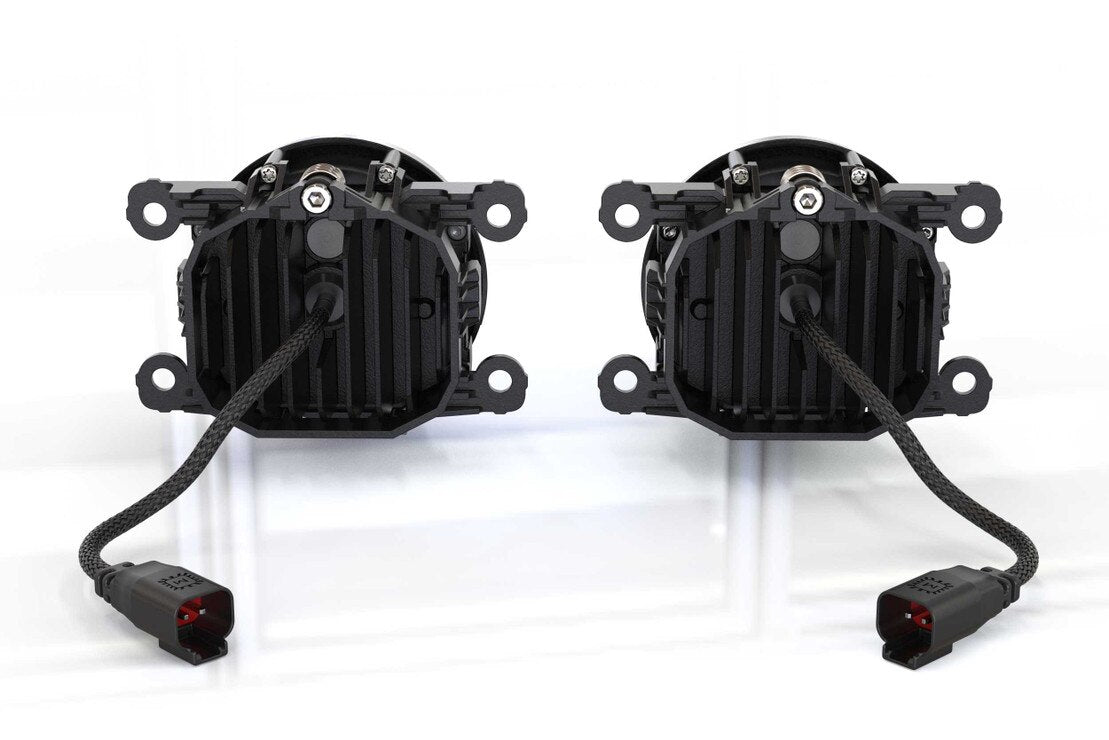

Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Installing Yourself?

Click here for the PDF install guide

Description

Introducing the Scion Fr-S: Morimoto 4Banger Led Fog Lights that provide superior visibility and street legality. With HXB Intensity, you get a benchmark-setting brightness and easy bolt-on installation with no modifications needed. Fully adjustable, these fog lights have +/- 6 degrees vertical control to avoid blinding other drivers. Plus, these fog lights feature an integrated cooling system for optimal performance and durability.

Morimoto

Scion Fr-S: Morimoto 4Banger Led Fog Lights

From $ 521.00 CAD

Introducing the Scion Fr-S: Morimoto 4Banger Led Fog Lights that provide superior visibility and street legality. With HXB Intensity, you get a benchmark-setting brightness and easy bolt-on installation with no modifications needed. Fully adjustable, these fog lights have +/- 6 degrees vertical control to avoid blinding other drivers. Plus, these fog lights feature an integrated cooling system for optimal performance and durability.

Color

  • White
  • Yellow

Output Type

  • Standard Series: NCS
  • Max Series: HXB

Primary Optic

  • Wide Beam
