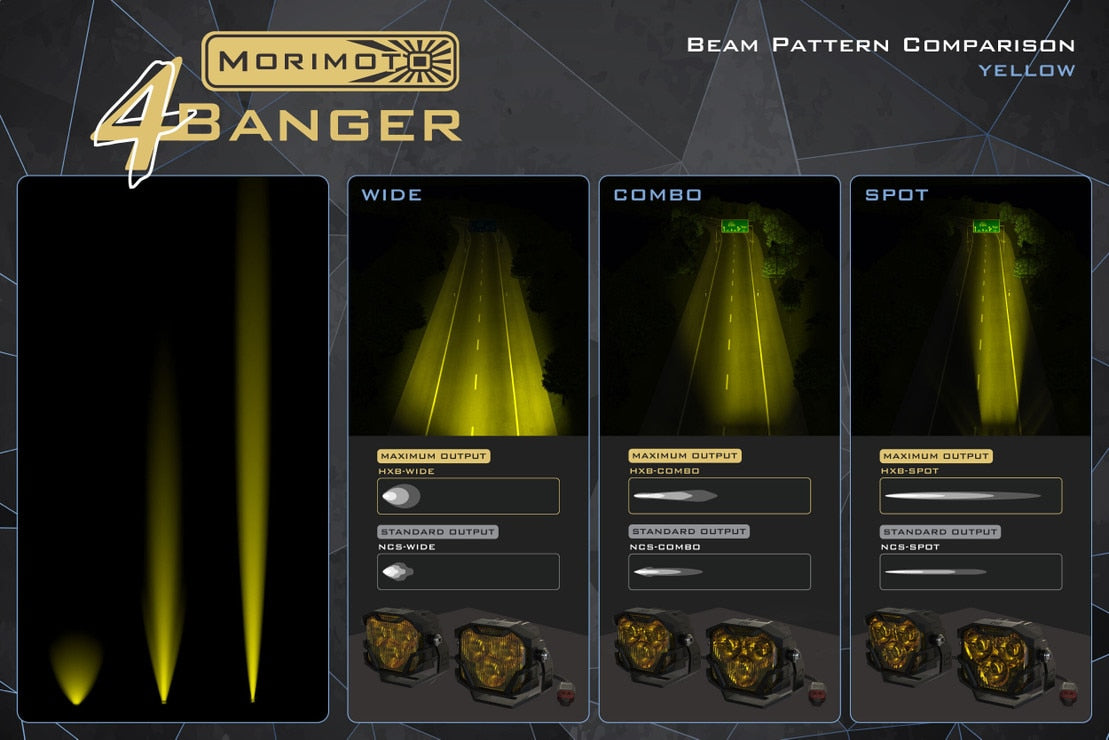

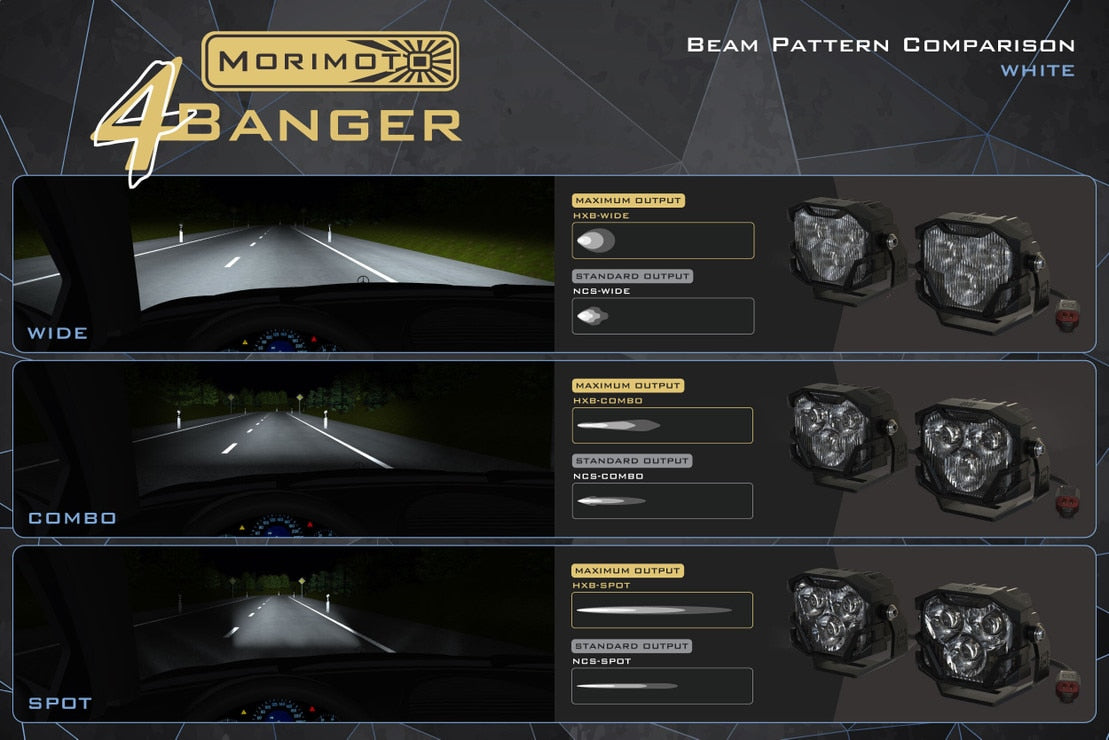

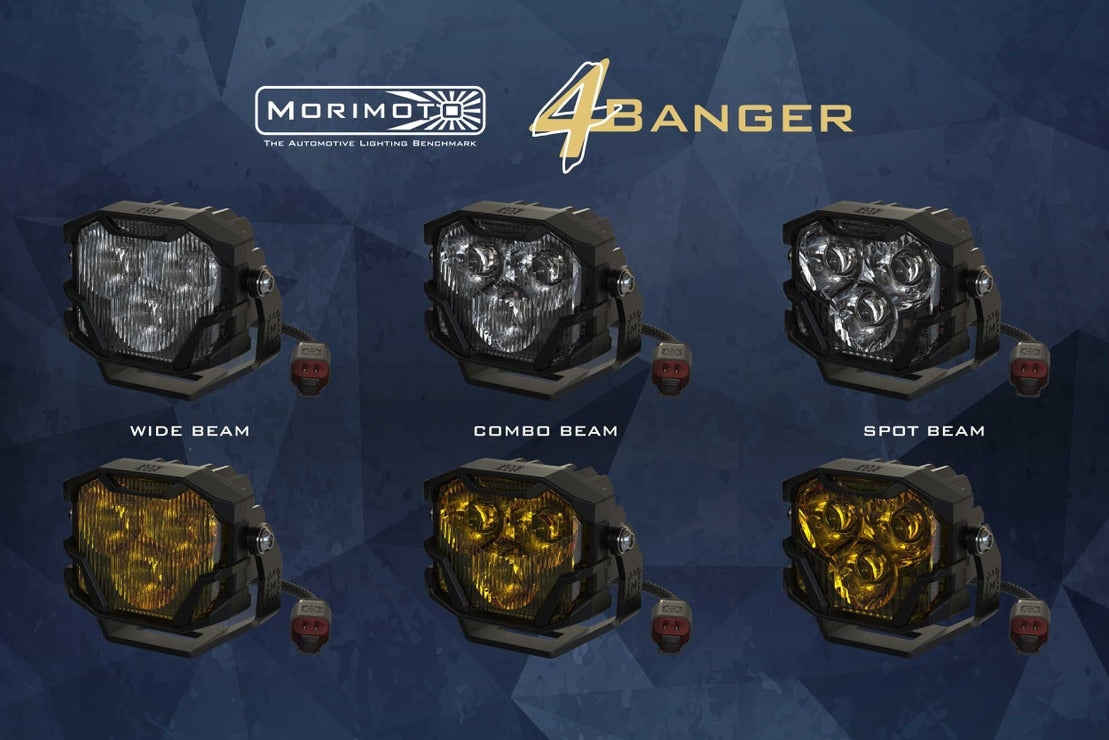

HXB COMBO: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable.
HXB SPOT: Illuminates far into the distance unlike anything else on the market. The HXB Spot comes standard with the most powerful Osram LEDs, which in combination with the HXB LED optics produces a beam pattern capable of penetrating up to 800 meters into your future.
HXB WIDE: Illuminates the ground directly in front of the vehicle. The HXB Optics feature dual axis control. 1) for width, and 2) active hot spot control to project peak intensity right along the top of the beam pattern. The proper vertical gradient resembles an SAE-Compliant fog light pattern, but with added intensity throughout thanks to the Osram HX Boost LEDs. The 4Banger HXB Wide beam delivers the best combination of width, intensity, and control -- making it the most effective off-road LED fog light in the world.
NCS COMBO: Illuminates a clear path with medium range. The HXB Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable.
NCS SPOT: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.
NCS WIDE: Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately, will meet SAE standards for on-road use as a fog light.

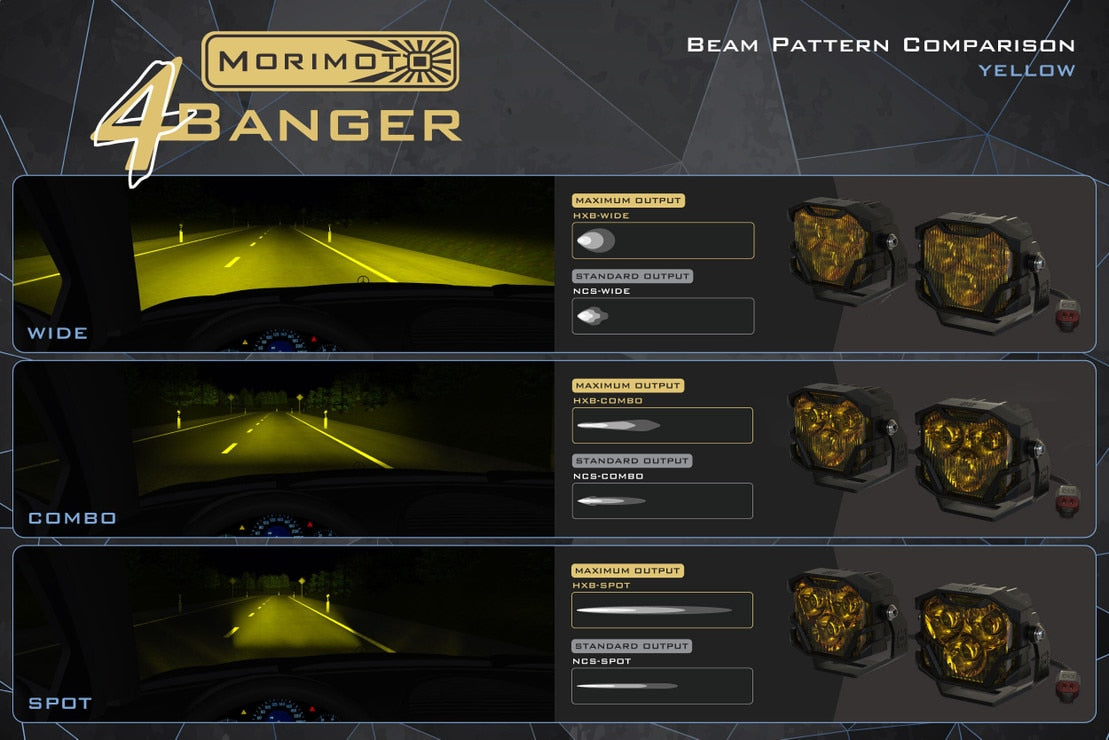

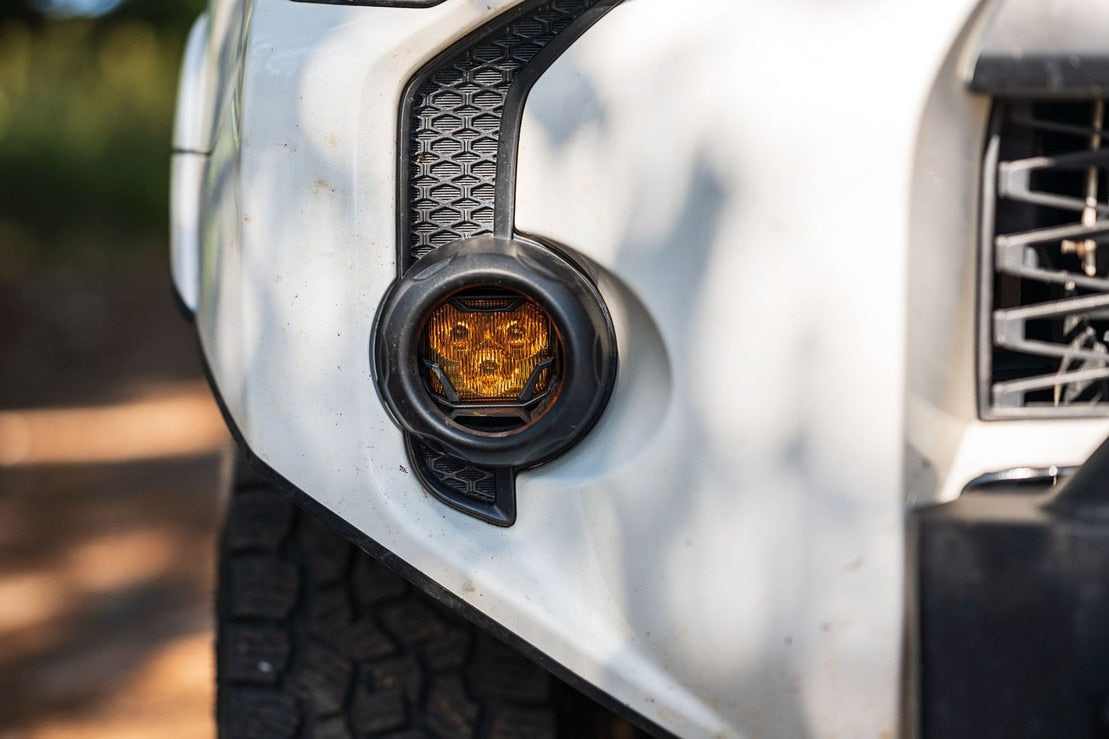

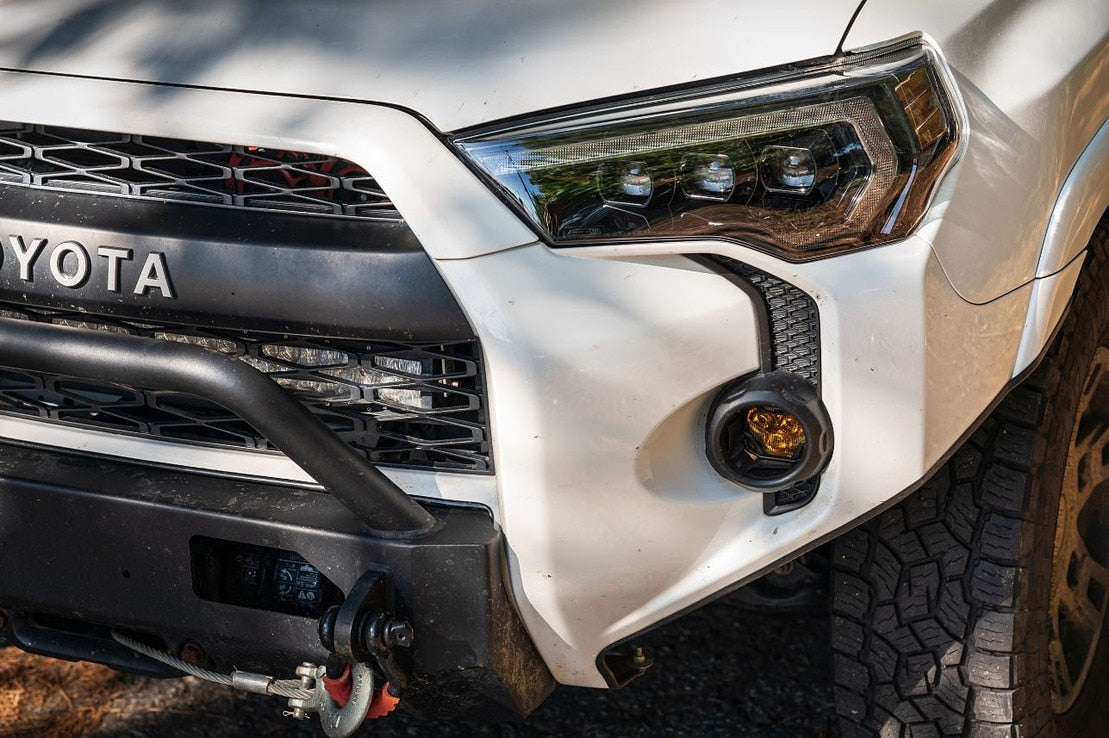

ALL WEATHER: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).
STREET LEGALITY: With a standard -3 degree aim, the beam pattern produced by the NCS Wide Beam model is designed to be compliant with the latest SAE F3 regulation for use as a street-legal fog light. The HXB Wide Beam has a very similar beam pattern, but too much intensity to be considered a street-legal fog light.

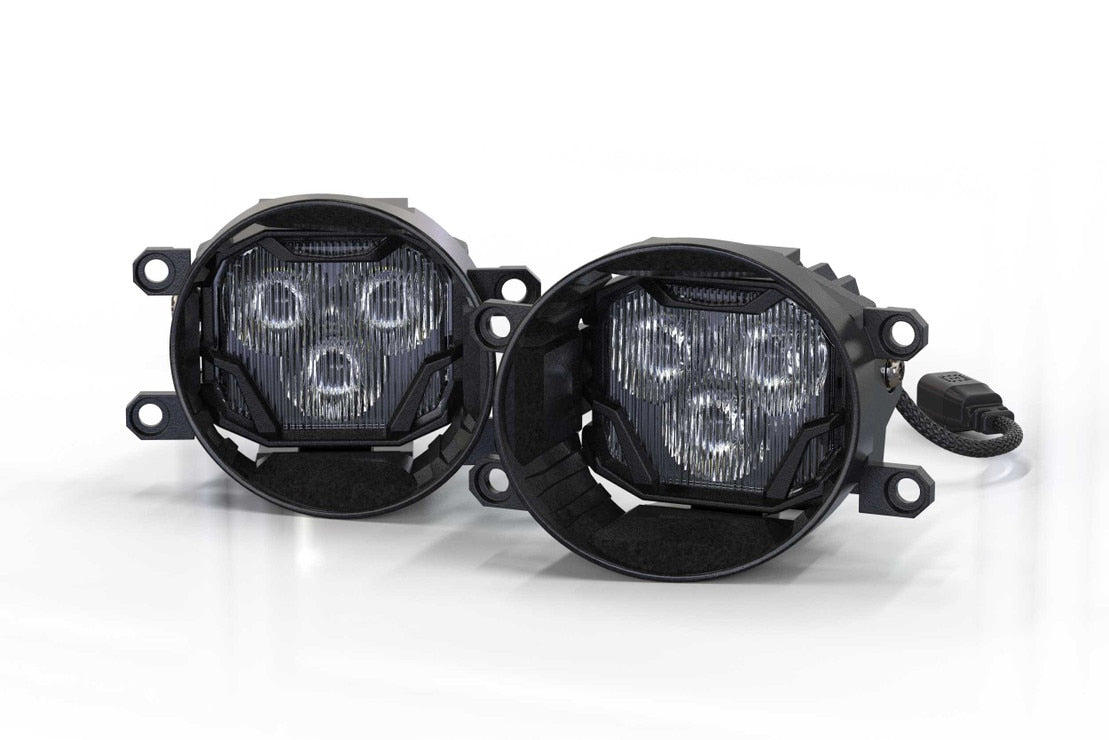

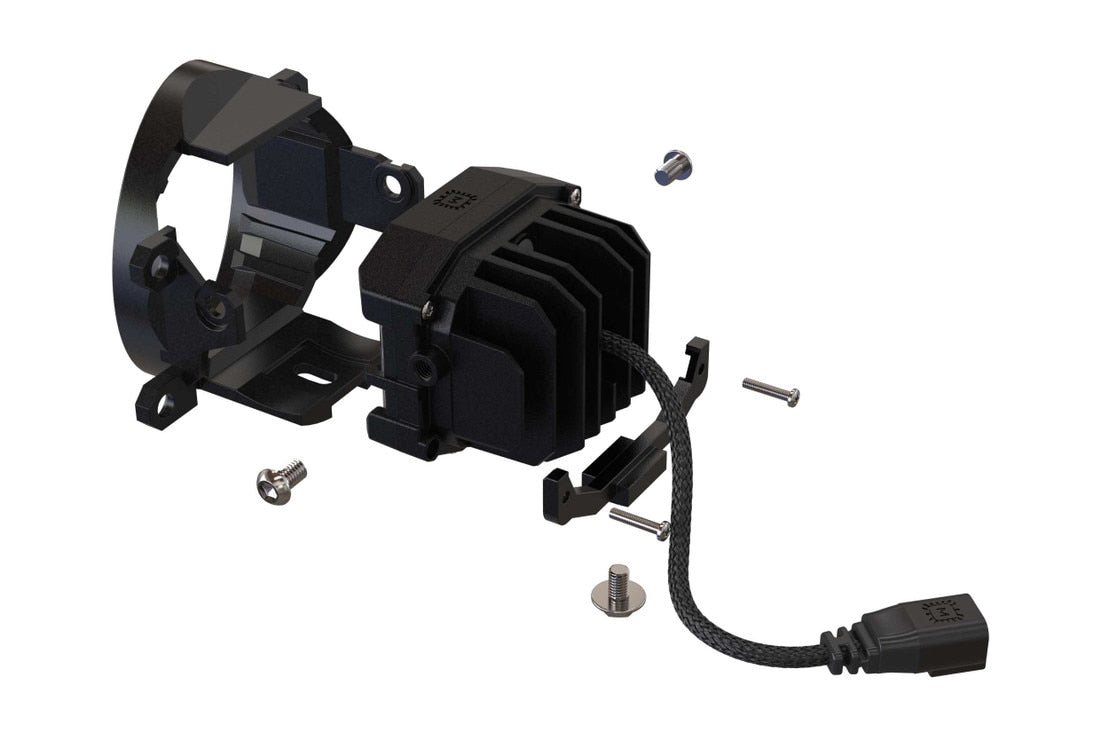

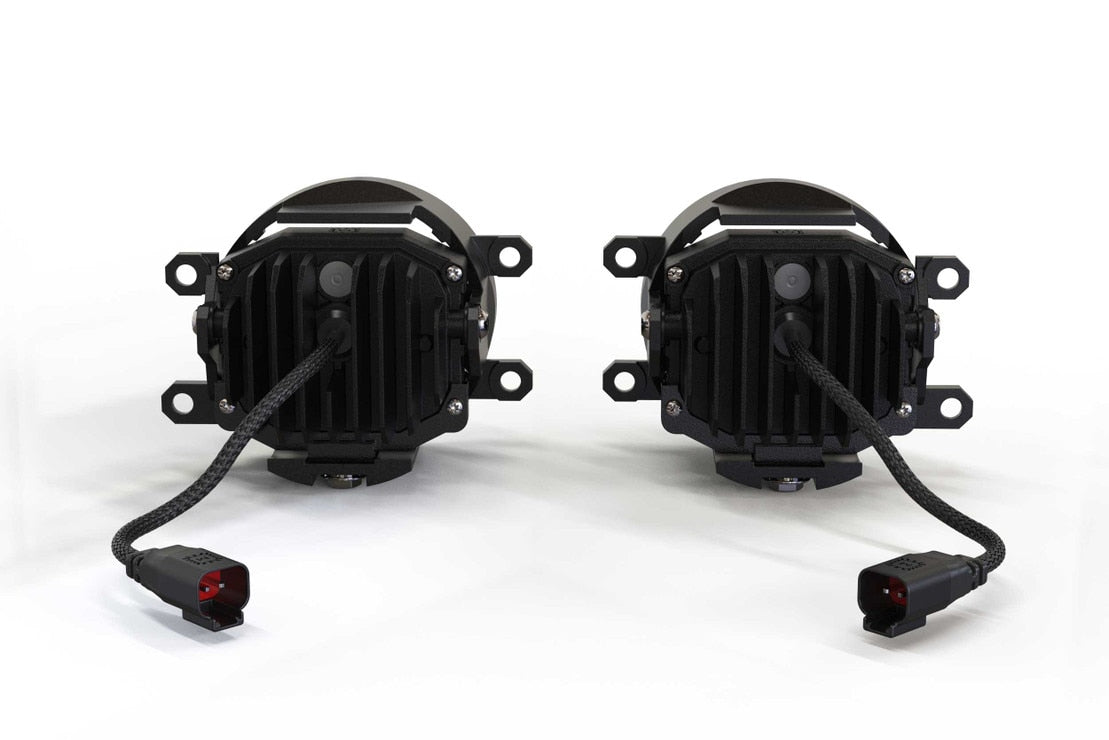

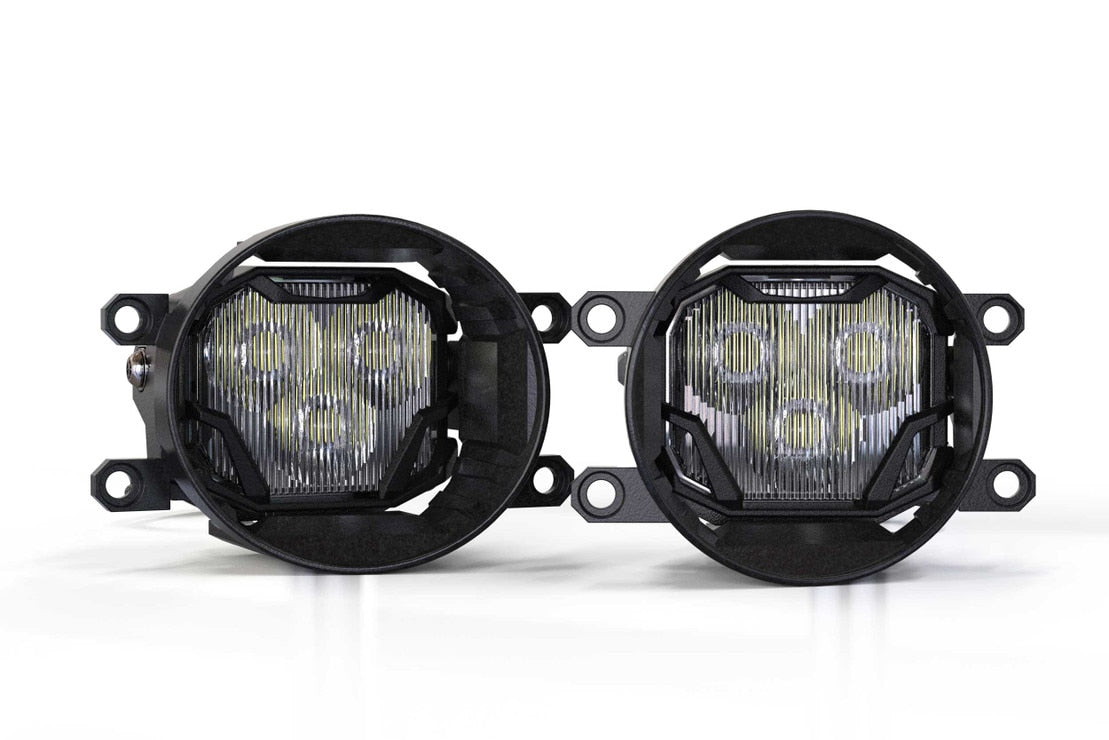

WHAT'S INCLUDED FOG LIGHT BRACKETS: 2x (One Pair) Morimoto 4Banger (BAF014 / Type T Style) LED PODS: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam) HARDWARE: Complete Pack (Stainless Steel) WIRING: Plug N Play Connection Kit WARRANTY: Limited Lifetime (Click for Details) COMPATIBILITY LEXUS CT: 2011-2017 LEXUS ES: 2013-2015 LEXUS GS: 2013-2015 LEXUS HS: 2010-2012 LEXUS IS: 2011-2014 LEXUS ISF: 2008-2013 LEXUS LX: 2008-2015 LEXUS GX: 2010-2014 LEXUS RX: 2010-2015 REPLACES TOYOTA PART #: 81220-06071, 81210-08020 COMPLIANCE: DOT, ECE, SAE Standards TECH SPECS INTENSITY: NCS WIDE YELLOW: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m) NCS WIDE WHITE: 12,400 Cd (Post Warm-Up) (124lux @ 10m) NCS COMBO YELLOW: 38,850 Cd (Post Warm-Up) (384lux @ 10m) NCS COMBO WHITE: 55,500 Cd (Post Warm-Up) (555lux @ 10m) NCS SPOT YELLOW: 73,500 Cd (Post Warm-Up) (735lux @ 10m) NCS SPOT WHITE: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m) HXB WIDE YELLOW: 14,700 Cd (Post Warm-Up) (147lux @ 10m) HXB WIDE WHITE: 21,000 Cd (Post Warm-Up) (210lux @ 10m) HXB COMBO YELLOW: 54,600 Cd (Post Warm-Up) (546lux @ 10m) HXB COMBO WHITE: 78,000 Cd (Post Warm-Up) (780lux @ 10m) HXB SPOT YELLOW: 119,000 Cd (Post Warm-Up) (1190lux @ 10m) HXB SPOT WHITE: 170,000 Cd (Post Warm-Up) (1,700lux @ 10m) INPUT VOLTAGE: 9-18V DC POWER: 20w (NCS) 42w (HXB) CURRENT: 1.5A (NCS) or 3.3A (HXB) DIMENSIONS: 82mm W, 67mm H, 60mm D LIGHT SOURCE: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost INPUT: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing) COMPLIANCE: SAE, DOT
