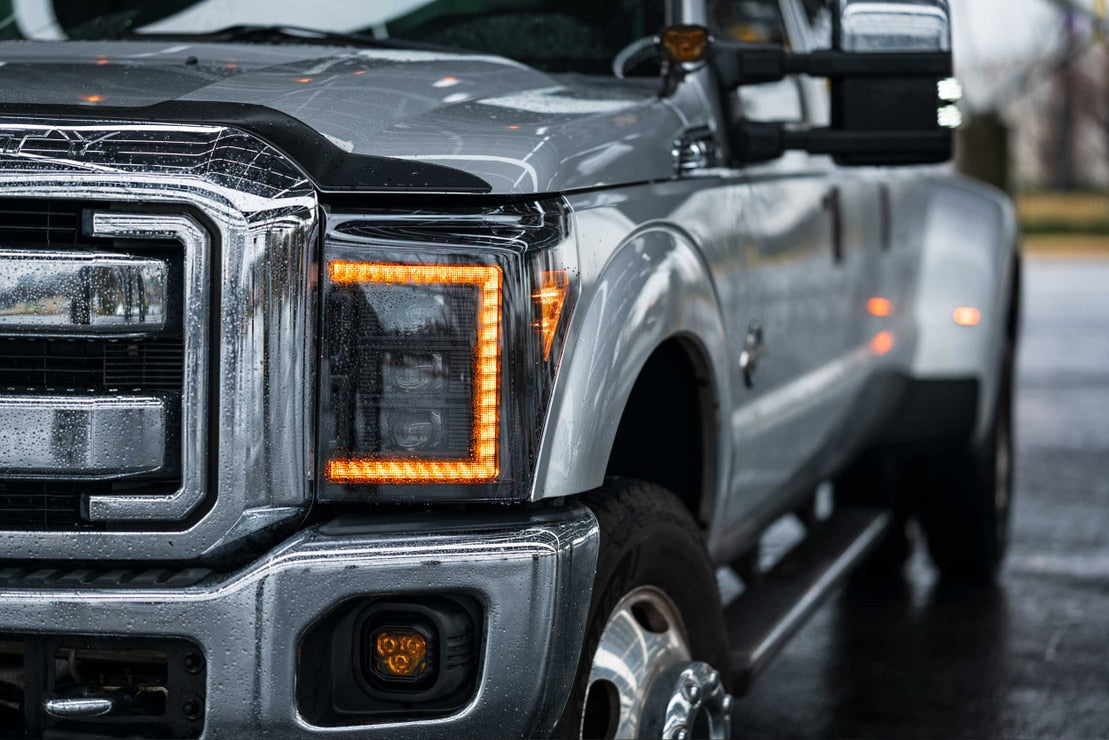

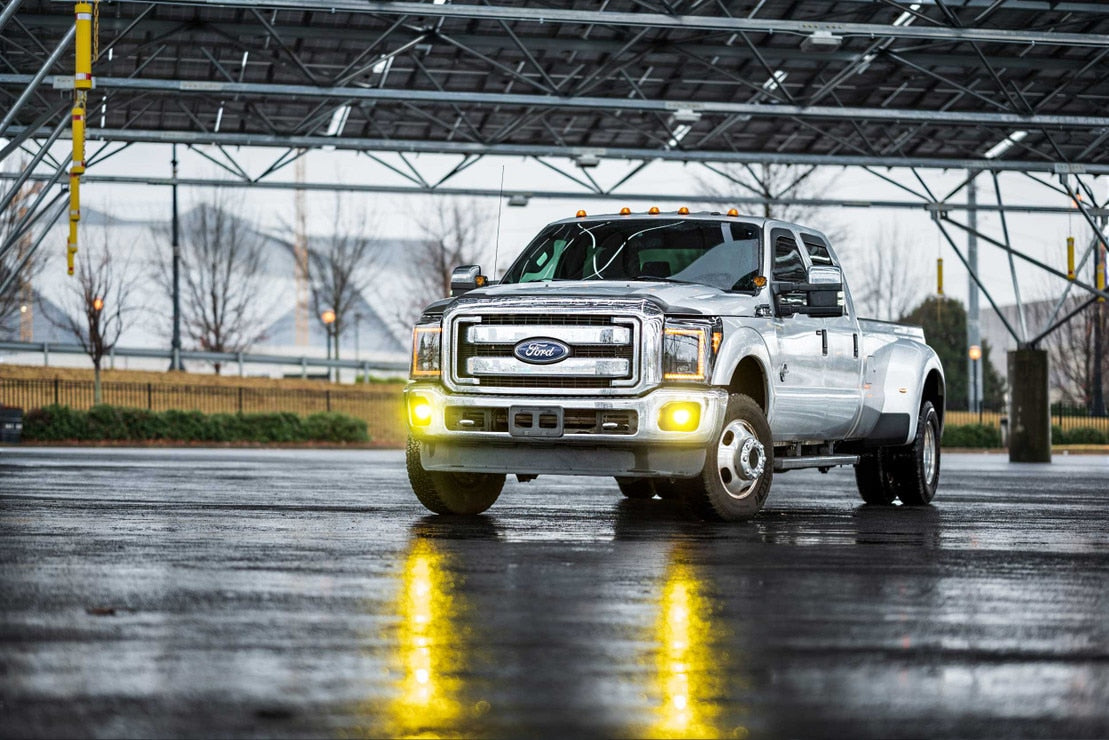

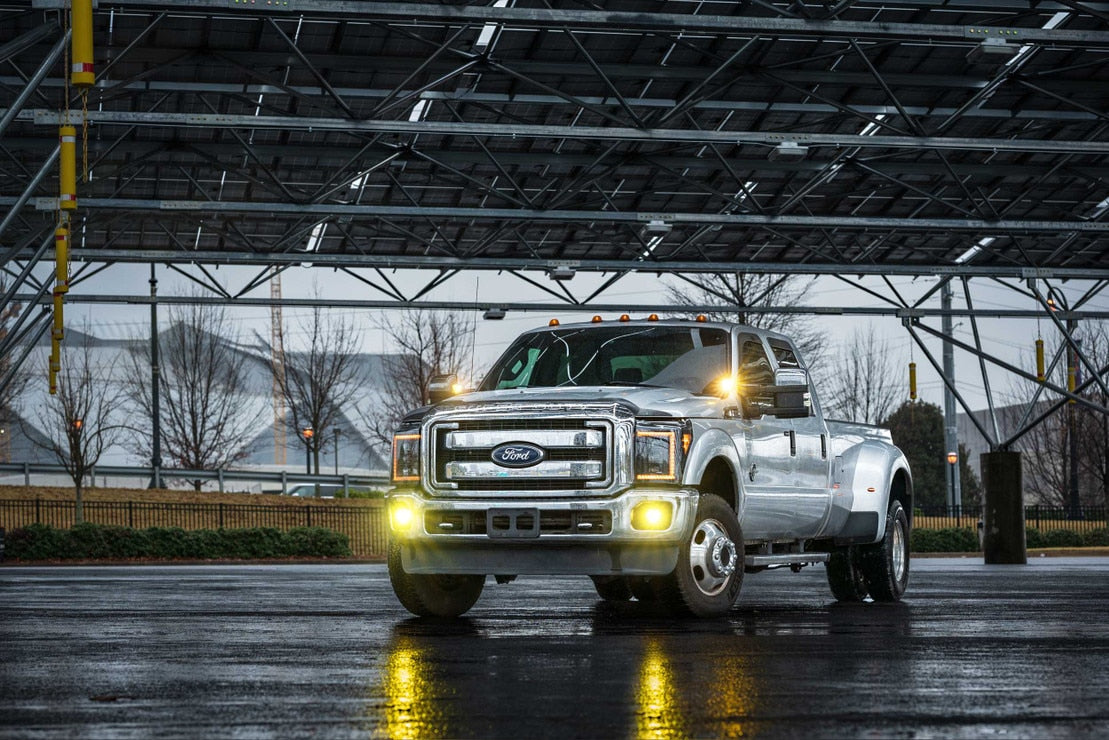

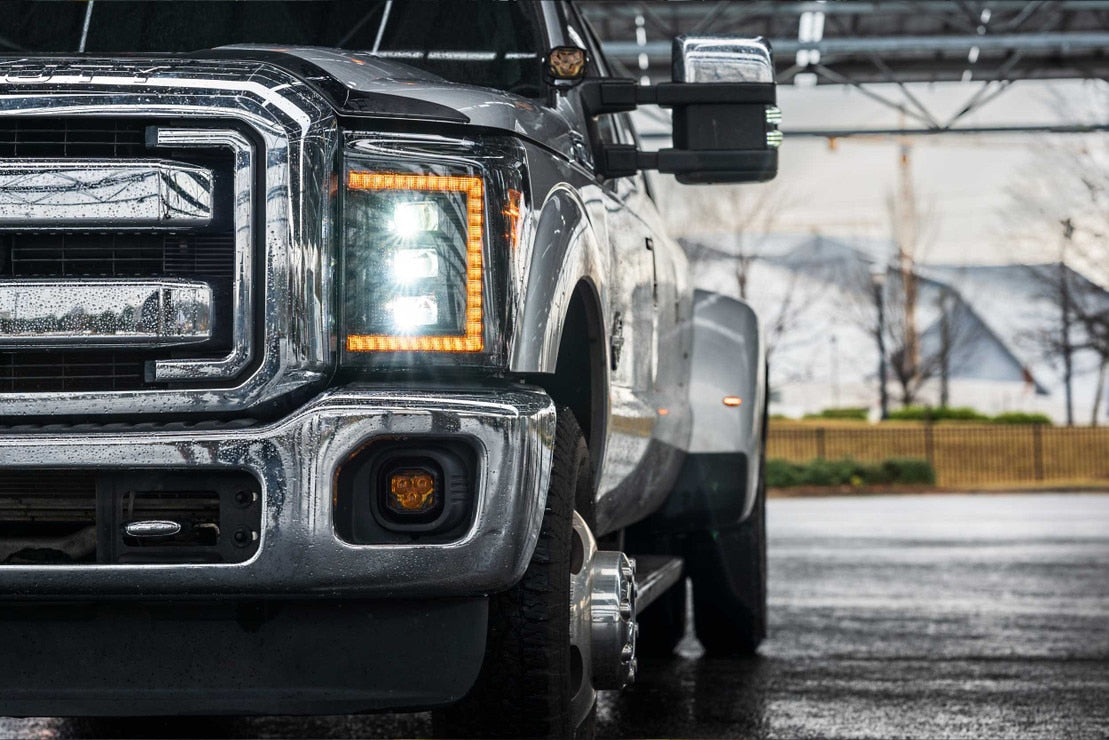

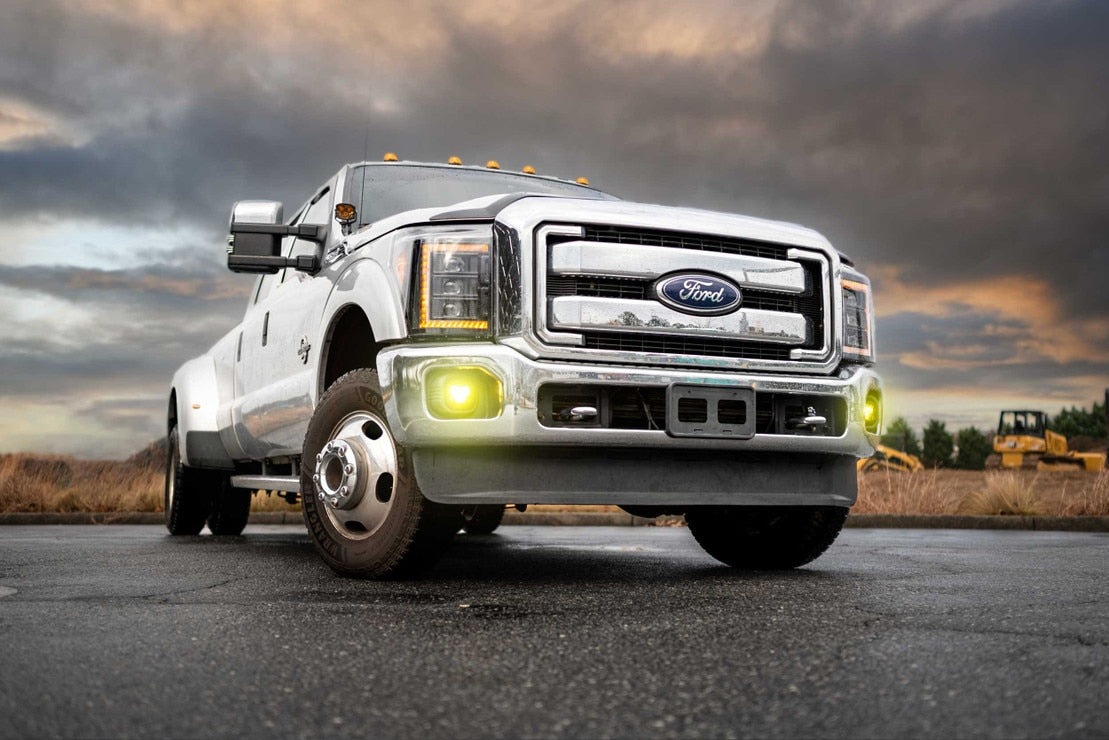

Ford Super Duty (99-16): Morimoto 4Banger Led Fog Lights

$ 521.00 CAD
Morimoto  |  SKU / Part Number: BAF005.2, BAF021  |  Barcode: 64511994
Color
Output Type
Primary Optic

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

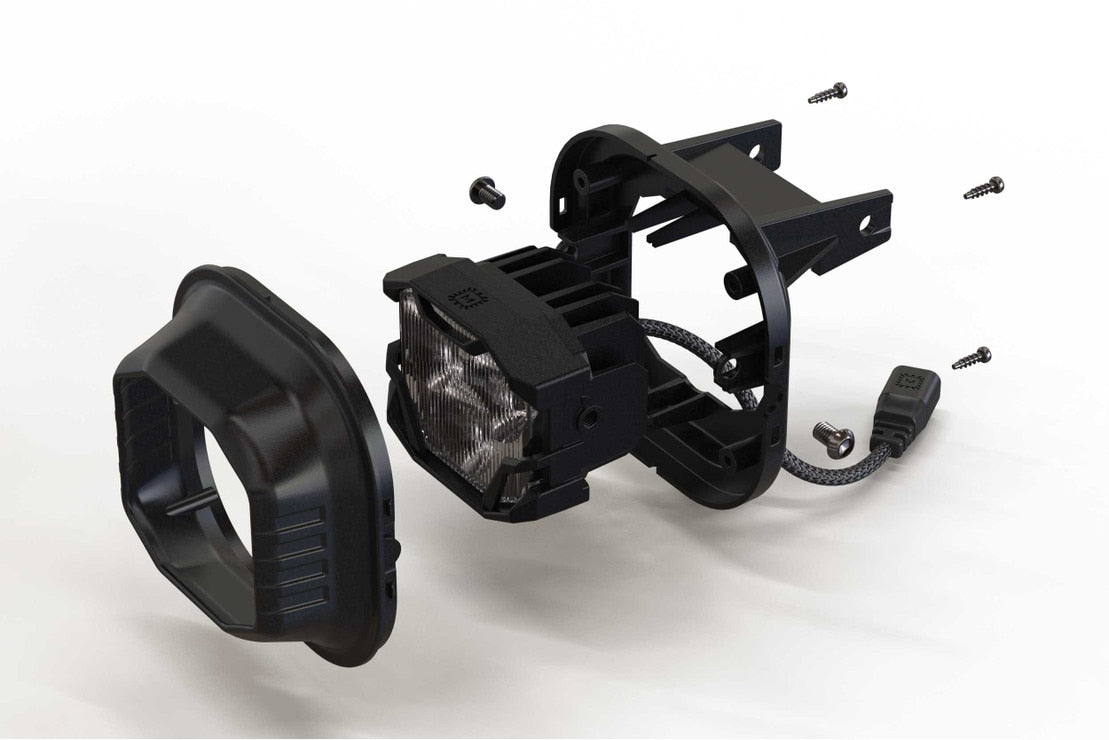

WHAT'S INCLUDED

Fog Light Brackets: 2x (One Pair) Brackets (BAF021 / Type SD)

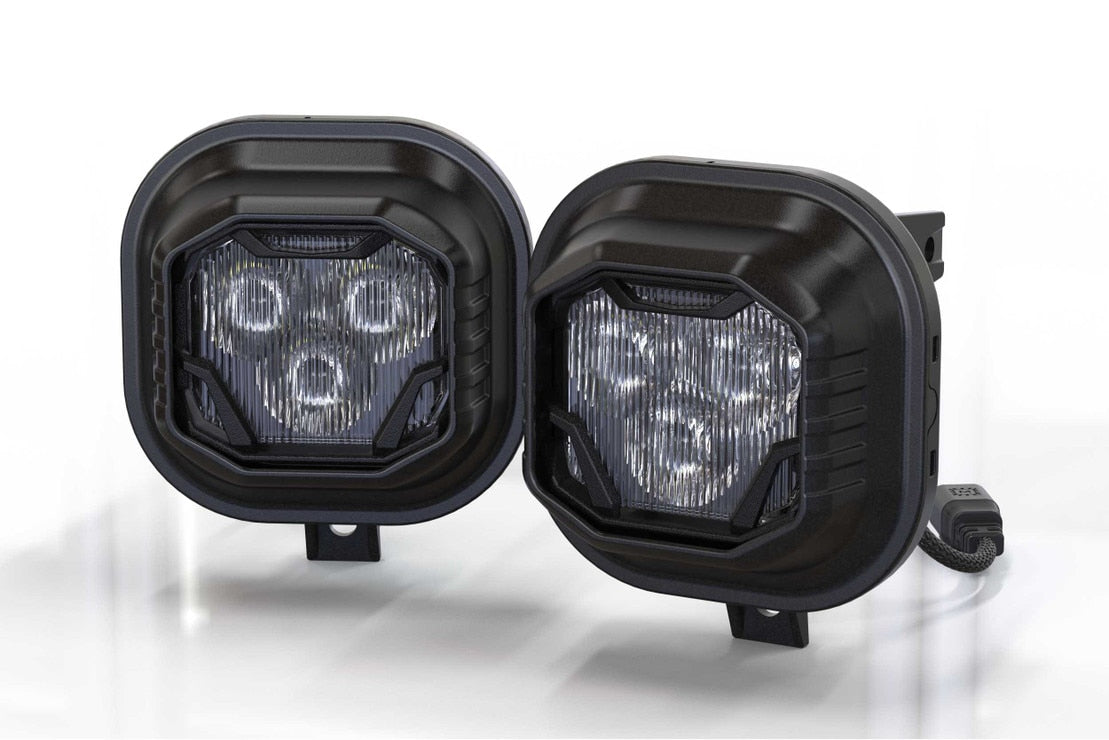

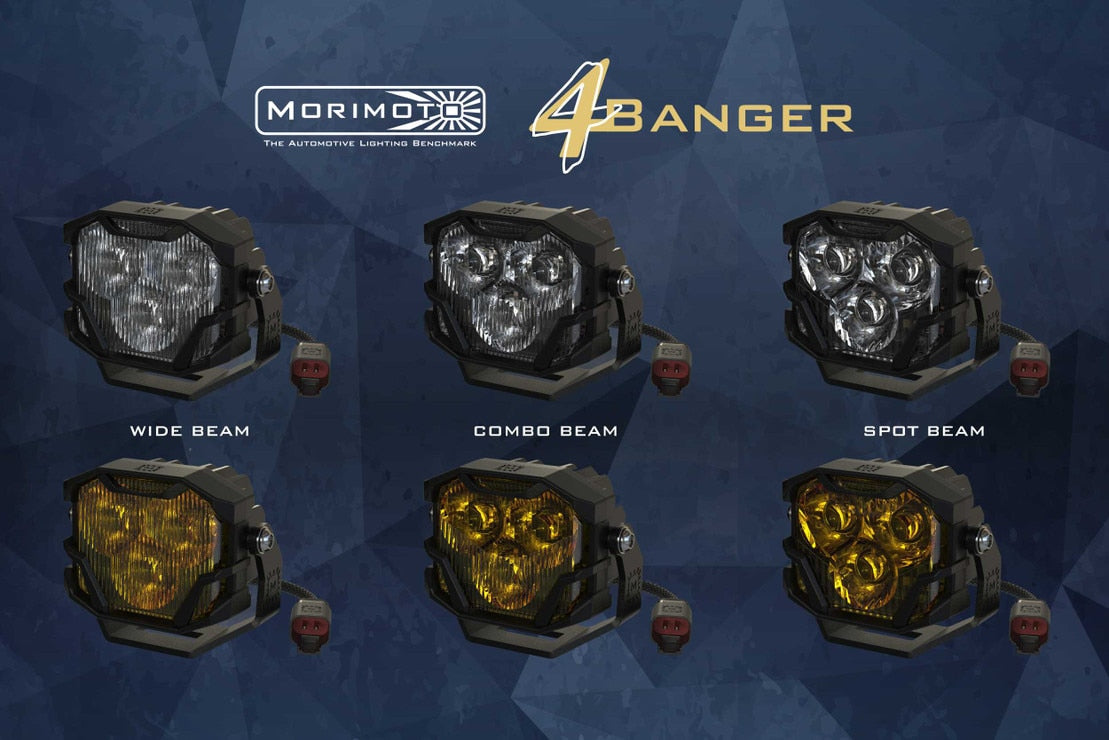

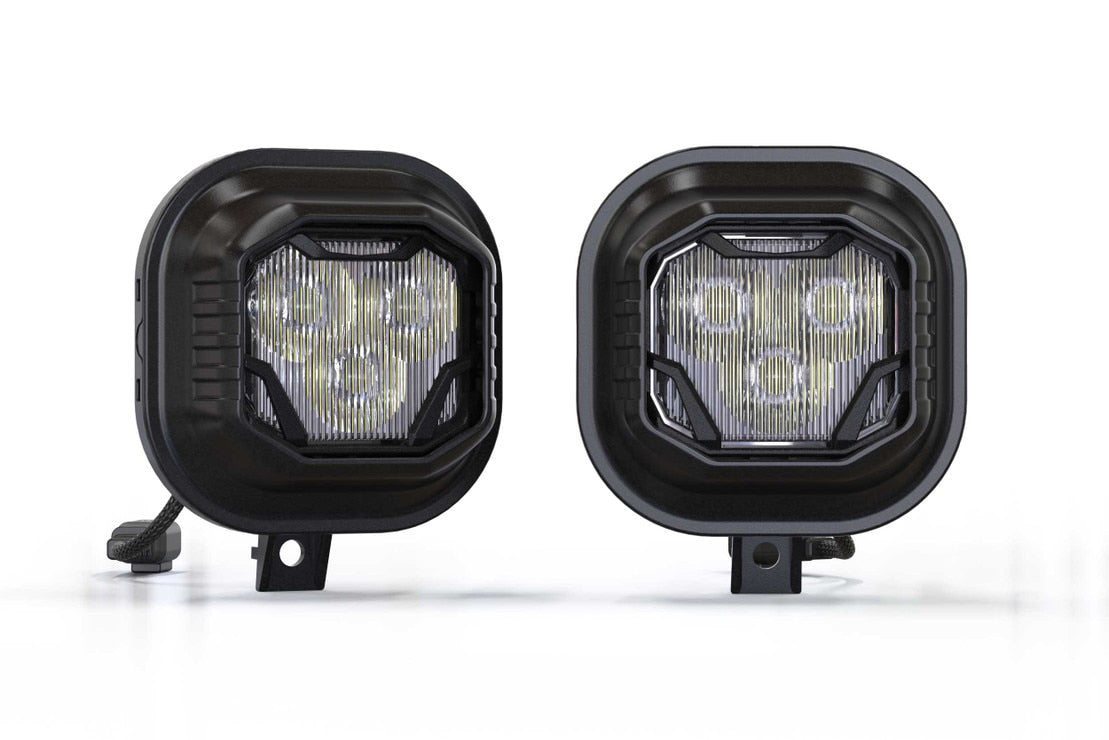

LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
Hardware: Complete Pack (Stainless Steel)
Wiring: Plug N Play Connection Kit

5 Year Warranty

COMPATIBILITY

FORD EXCURSION: 1999-2016*
FORD SUPER DUTY: 1999-2016*
*NOTE: 1999-2010 Req. Minor Modification
REPLACES FORD PART #: 6C3Z-15200-AA, 6C3Z-15200-BA, 7C3Z15200AA, 7C3Z15201AA, BC3Z15200A, BC3Z15201A, XL3Z13466A

TECH SPECS

NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
Input Voltage: 9-18V DC
Power (stabilized): 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

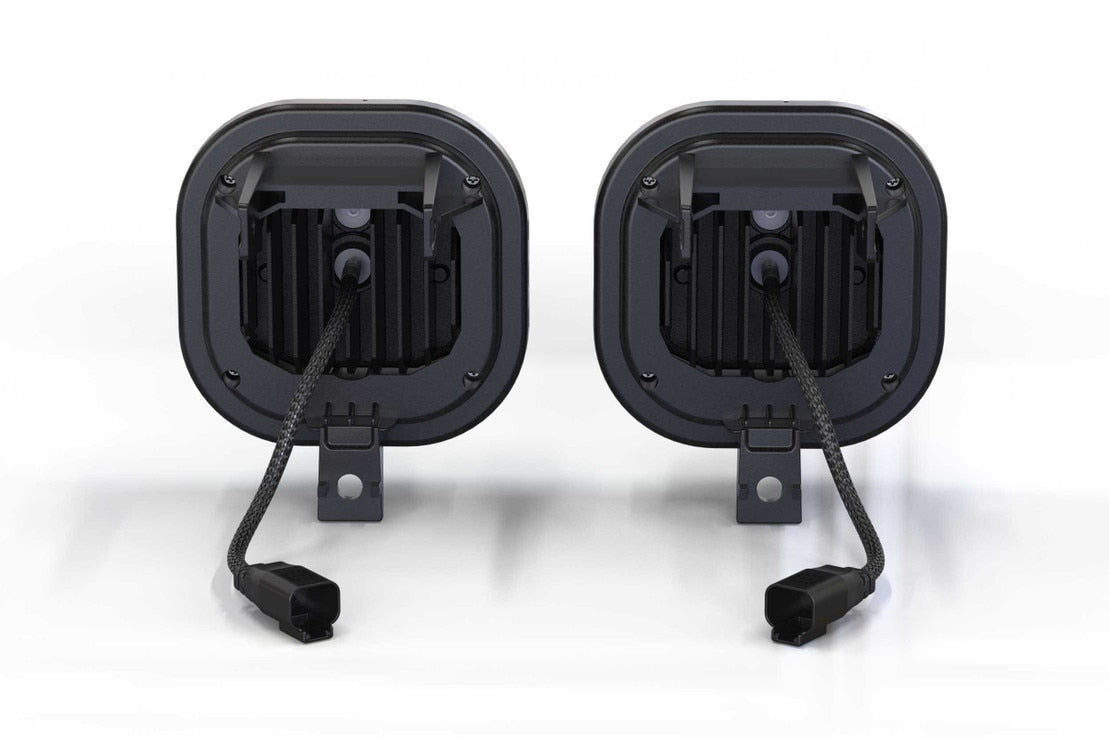

Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail

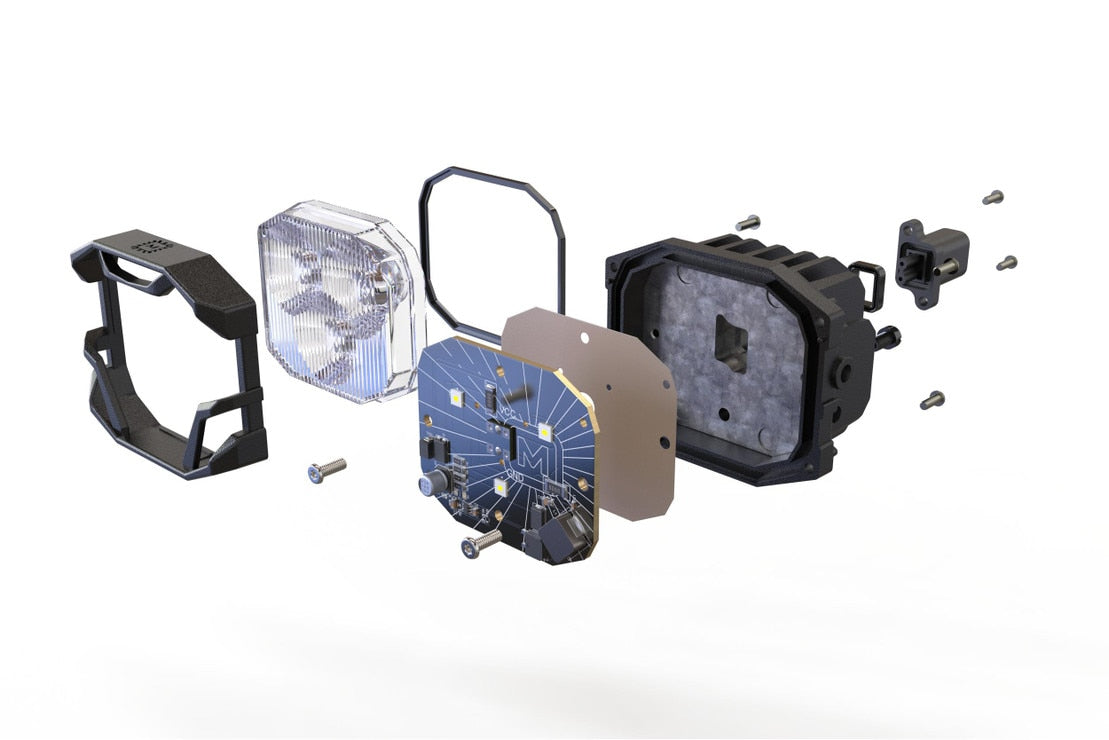

Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

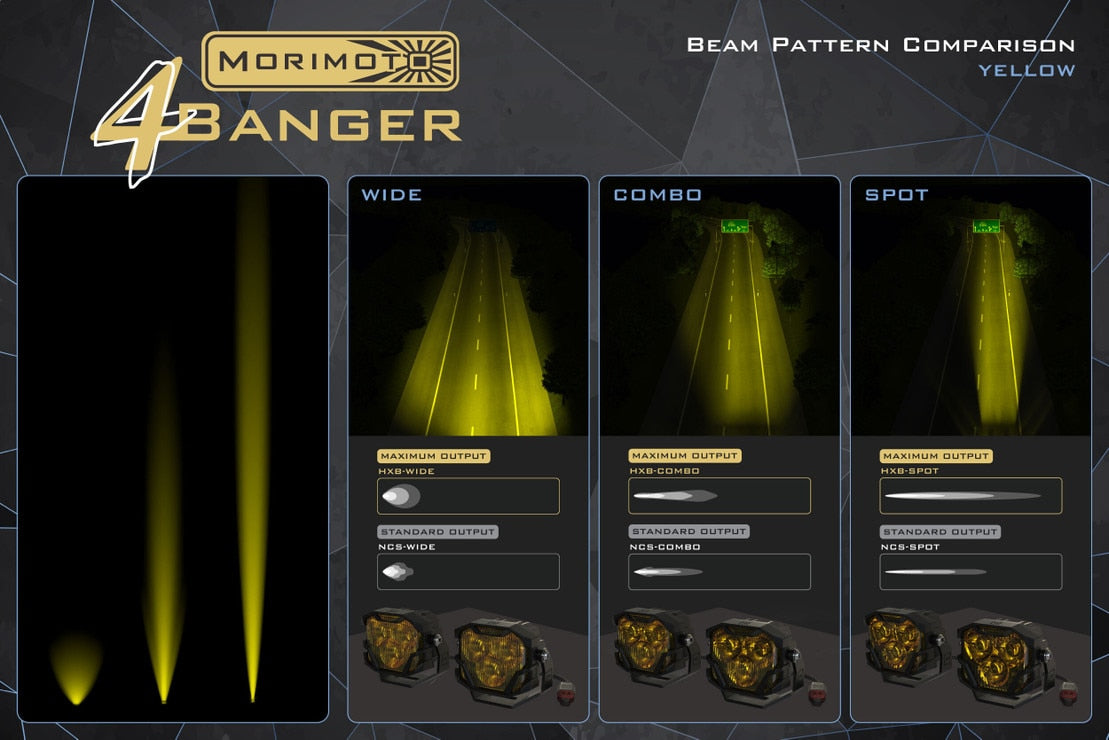

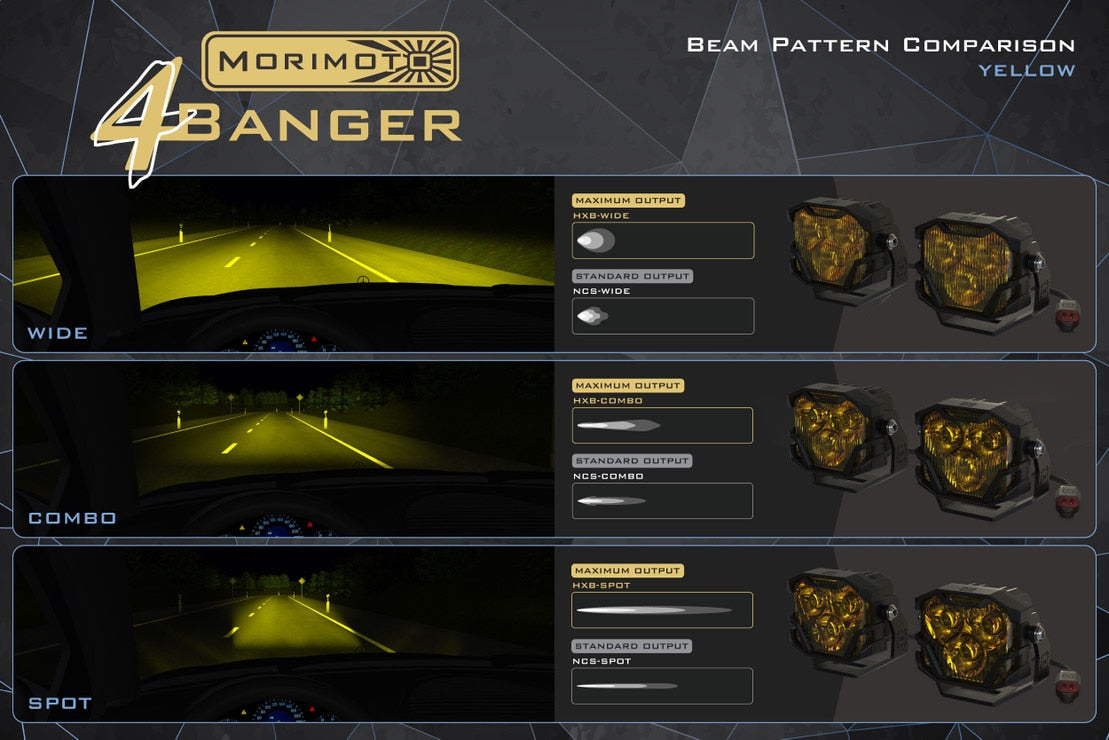

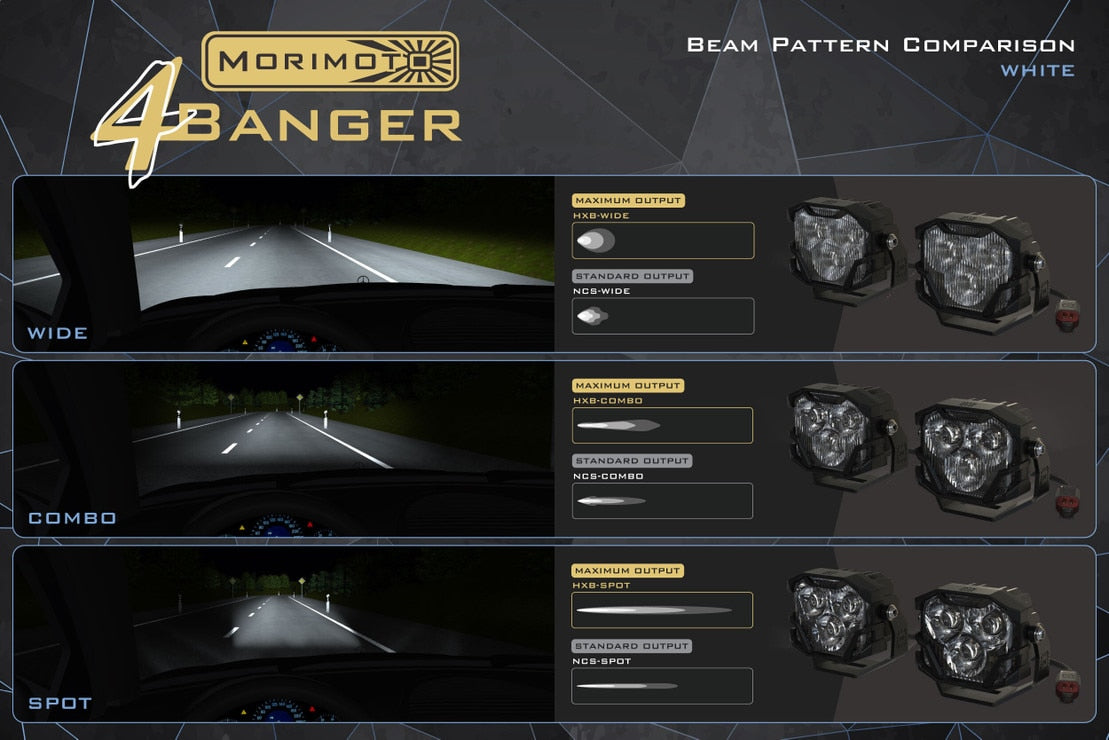

Experience superior visibility and street legality with these Ford Super Duty (99-16): Morimoto 4Banger LED Fog Lights! Featuring an SAE-compliant wide beam pattern and HXB intensity to reach a new brightness benchmark, they offer easy installation via a bolt-on, plug-n-play design. You can also adjust them vertically +/- 6 degrees to prevent glare for other drivers. Plus, they feature integrated ductwork for active cooling and long-term durability!

Installing Yourself?

Click here for the PDF install guide
