Ford Ranger (2019-2023): Morimoto 4Banger Led Fog Lights

$ 521.00 CAD
Morimoto  |  SKU / Part Number: BAF005.2, BAF016  |  Barcode: 19045882
Color
Output Type
Primary Optic

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

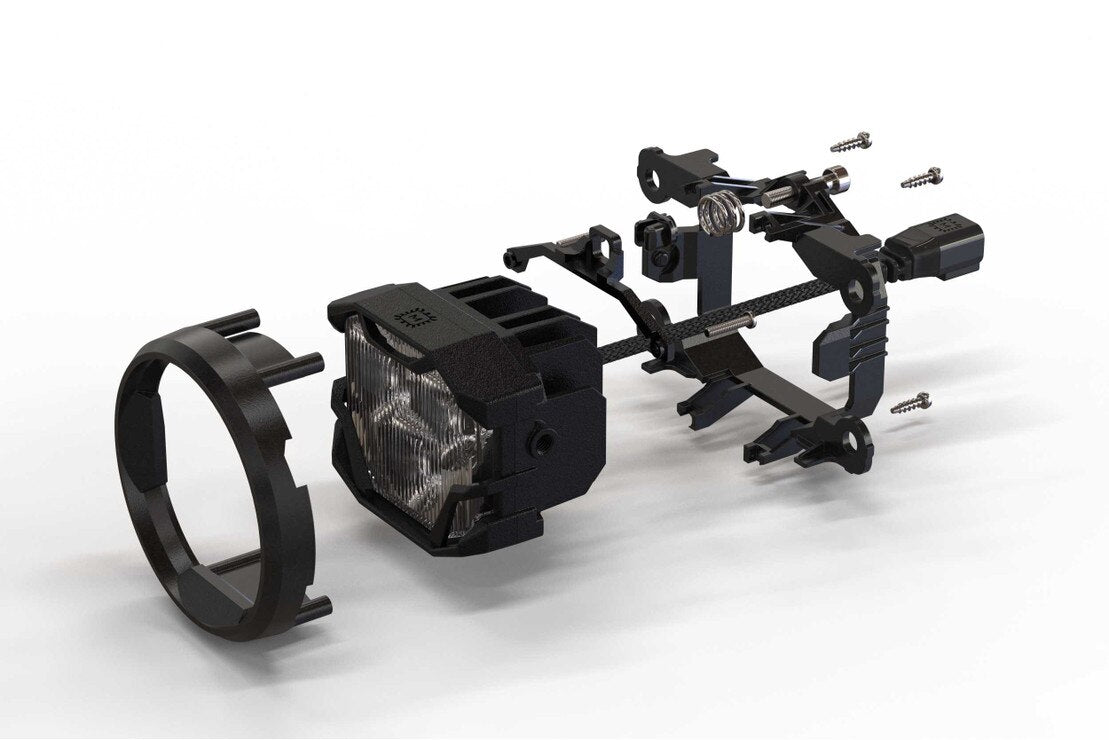

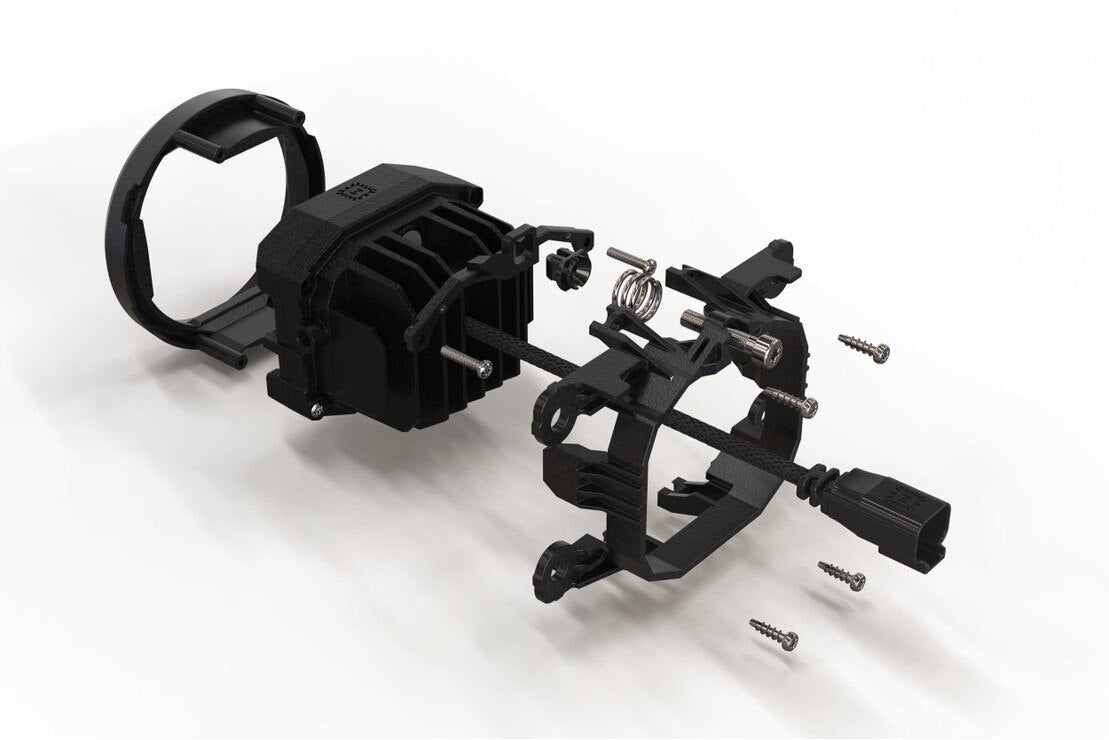

WHAT'S INCLUDED

Fog Light Brackets: 2x (One Pair) Brackets (BAF016 / Type S Style)

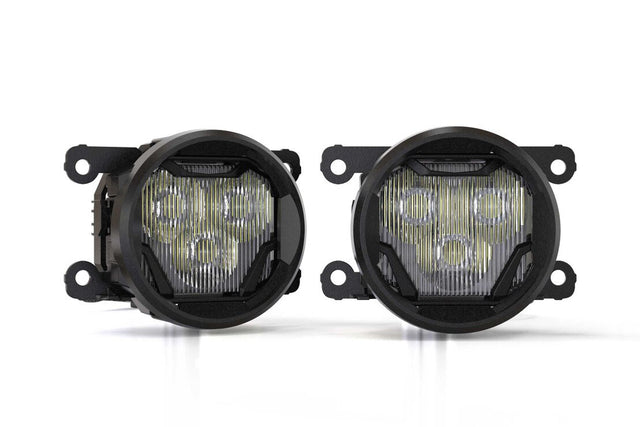

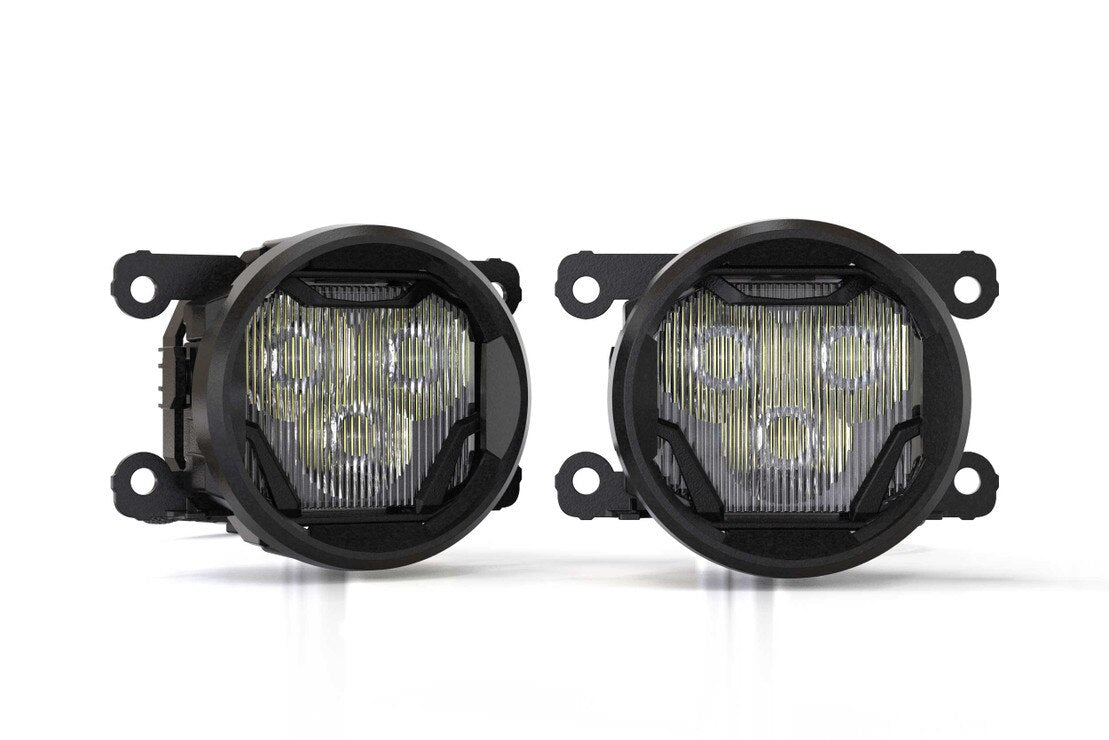

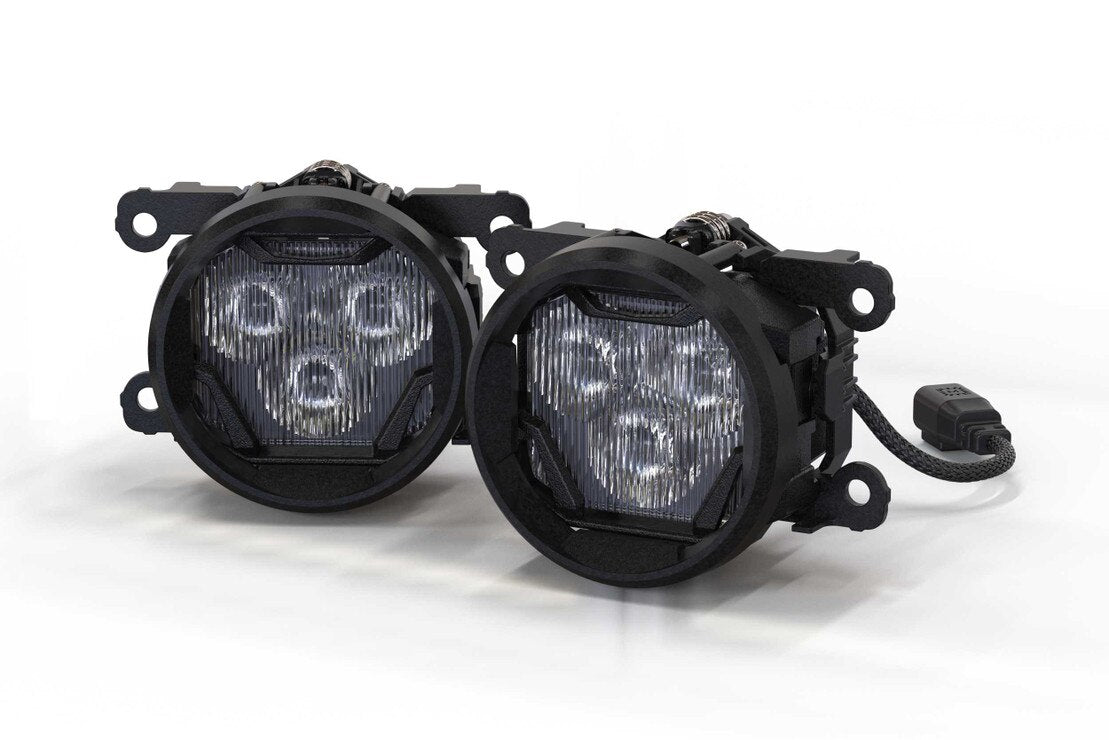

LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)
Hardware: Complete Pack (Stainless Steel)
Wiring: Plug N Play Connection Kit

5 Year Warranty

COMPATIBILITY

FORD EXPLORER: 2012-2015
FORD FOCUS: 2013-2014
FORD FIESTA ST: 2014-2017
FORD MUSTANG: 2015-2017
FORD FREESTYLE: 2005-2007
FORD FUSION: 2013-2016
FORD RANGER: 2005-2007, 2019+
FORD TAURUS X: 2008-2009
FORD C-MAX: 2013-2016
REPLACES FORD PART #: 4F9Z15200AA

TECH SPECS

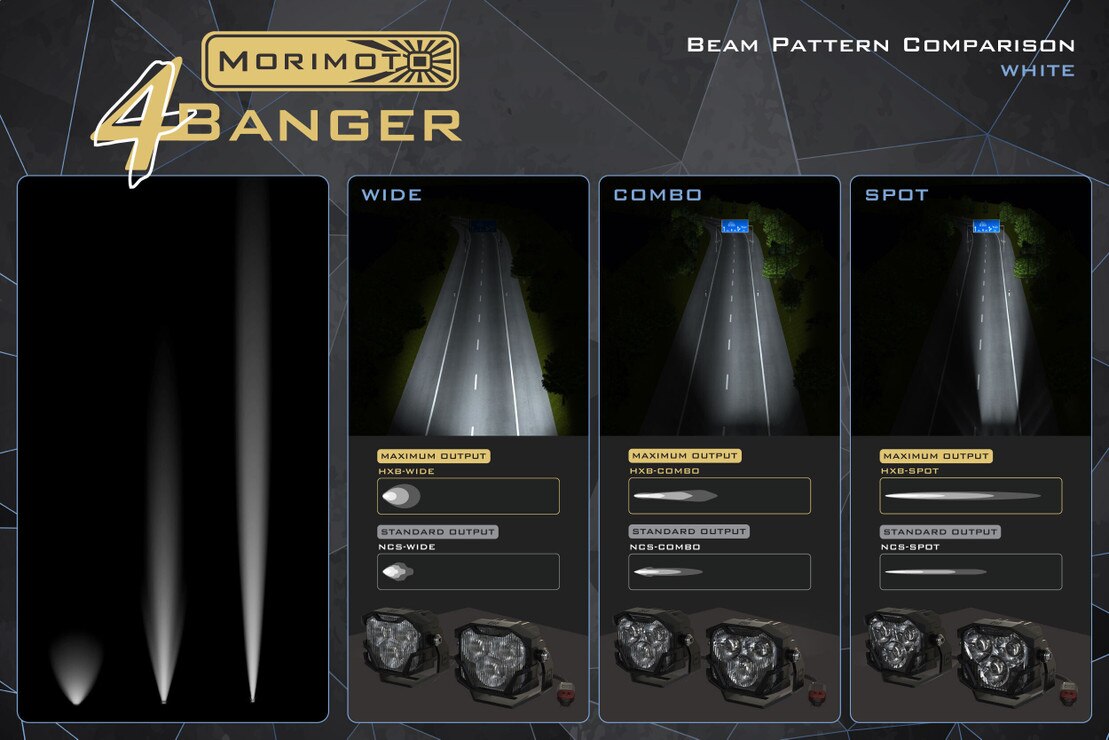

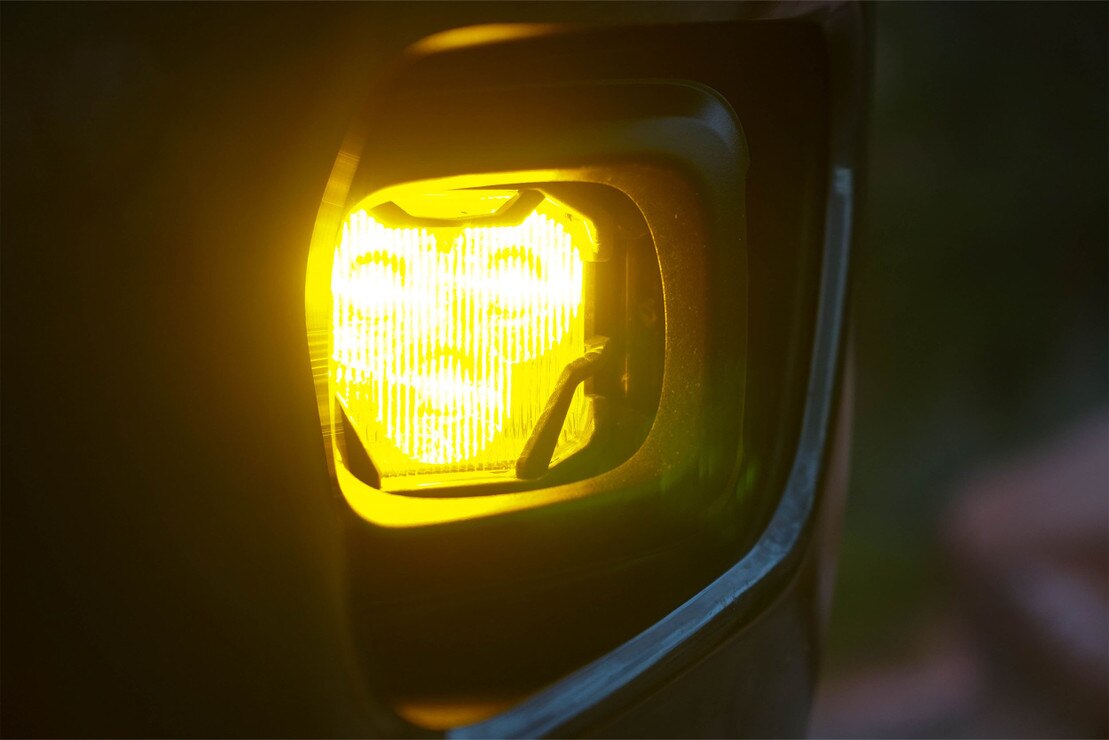

NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
Input Voltage: 9-18V DC
Power (stabilized): 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

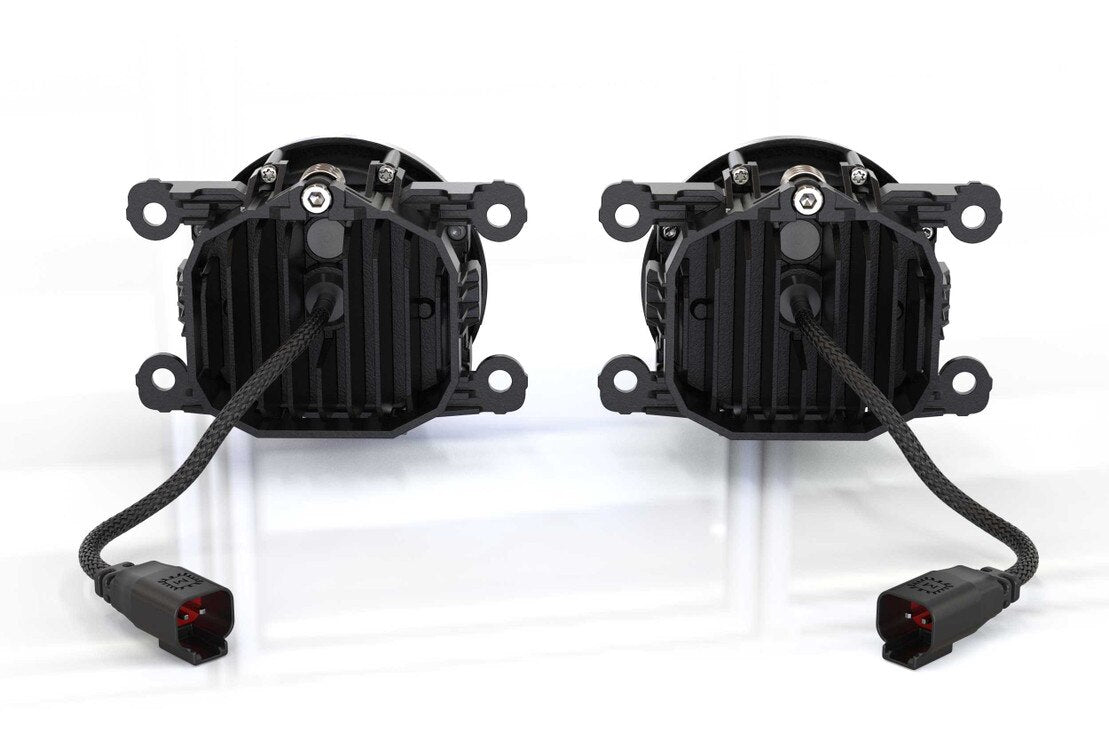

Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

Installing Yourself?

Click here for the PDF install guide

Install Guide

Description

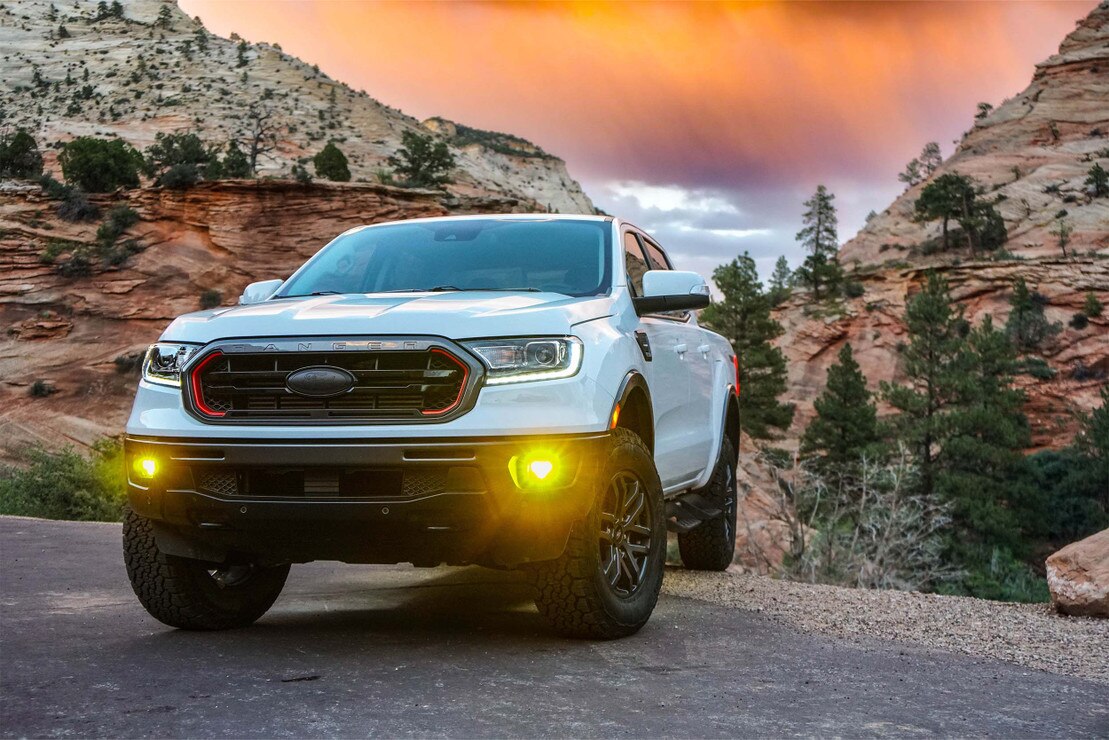

The Ford Ranger (2019-2023) Morimoto 4Banger LED Fog Lights will make your night drives brighter and safer. With a wide beam pattern for street legality and superior visibility, plus patented HXB Intensity technology for a new brightness benchmark, you won't miss a thing. Bolt-on, plug-n-play installation with no vehicle modifications needed, plus adjustable vertically up to 6 degrees to prevent glare, and an integrated cooling system for durability—you can trust your safety to the Ranger.
