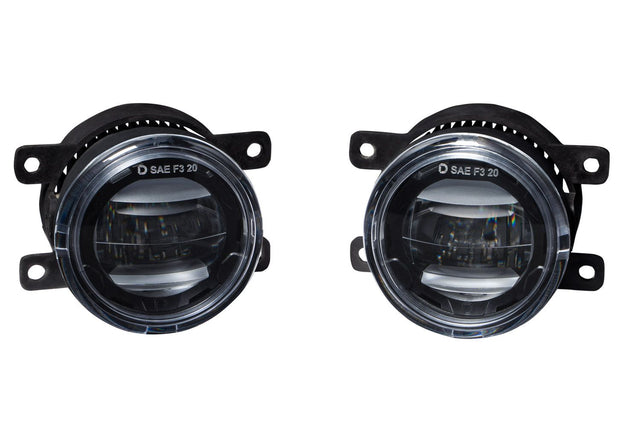

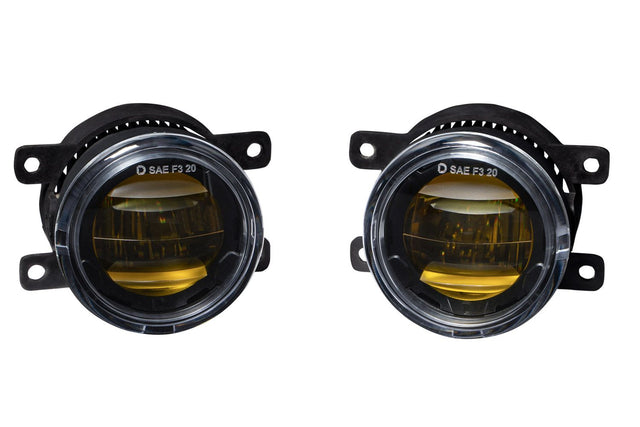

Elite Series Type A Fog Lamps (pair)

Diode Dynamics  |  SKU: DD5128P  |  Barcode: 00195995127211
Regular price $ 361.00 CAD
Choose Your Color
Fitment & Install Notes
Fits
Fits: 2019-2024 Ram 1500, 2013-2017 Subaru BRZ, 2013-2015 Subaru XV Crosstrek, 2015-2021 Subaru WRX, 2015-2017 Subaru WRX STI, 2016-2023 Subaru Crosstrek, 2019-2022 Subaru Ascent, 2014-2024 Subaru Forester, 2012-2023 Subaru Impreza, 2010-2014 Subaru Legacy, 2022-2026 Subaru Outback, 2013-2016 Ford C-Max, 2005-2007 Ford Freestyle, 2013-2016 Ford Fusion, 2021-2023 Ford Bronco, 2008-2009 Ford Taurus X, 2012-2015 Ford Explorer, 2014-2019 Ford Fiesta, 2009-2014 Ford Focus, 2006-2009 Ford Mustang, 2015-2017 Ford Mustang, 2005-2007 Ford Ranger, 2019-2023 Ford Ranger, 2010-2018 Ford Transit, 2013-2018 Acura ILX, 2011-2013 Acura TSX, 2010-2018 Acura RDX, 2012-2014 Acura TL, 2013-2016 Honda CR-Z, 2013-2015 Honda Crosstour, 2015-2017 Honda Fit, 2013-2015 Honda Accord, 2013-2021 Honda Civic, 2012-2014 Honda CR-V, 2019-2020 Honda Odyssey, 2012-2019 Honda Pilot, 2010-2014 Honda Insight, 2017-2019 Nissan TITAN, 2009-2021 Nissan Frontier, 2007-2012 Nissan Sentra, 2005-2015 Nissan Xterra, 2012-2016 Fiat 500, 2013-2016 Scion FR-S
Free shipping Orders $500+
Canadian orders No duties / brokerage
Authorized Diode Dynamics Dealer
Returns 30-day easy

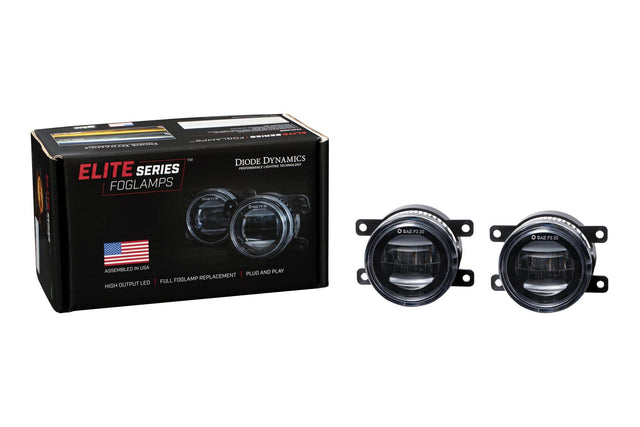

What's in the box 4 ITEMS
Two (2) Elite Series Type A fog lamps
Two (2) H11 4-pin DT backlight tap wires
Two (2) T-taps
Mounting guide
Optical
Lumens 680
Color temperature 1800K 6000K
Beam spread Fog 80°x8°
Power 18W
Operating voltage 9-16V
Intensity 13 000 cd
LED emitter Multi-Die Automotive Emitters
Driver features Constant Current

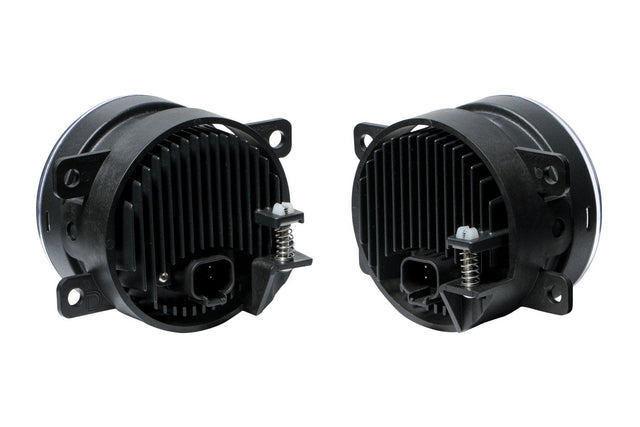

Construction
Connector Deutsch DT Input
Cooling Passive, Pin-Fin heatsink
Polarity Polarity Specific
Terminal type Pin
Housing shape Round
Base color Black
Install
Harness included Yes
Mounting hardware Included
Compliance
IP rating IP68 Waterproof
Operating temp -40C to 85C (-40F to 185F)
SAE/DOT SAE J583 Foglamp Beam Pattern
Country of origin USA
Street legal Yes
SAE/DOT Compliant pattern available
Features & benefits
High-performance OEM-grade replacement

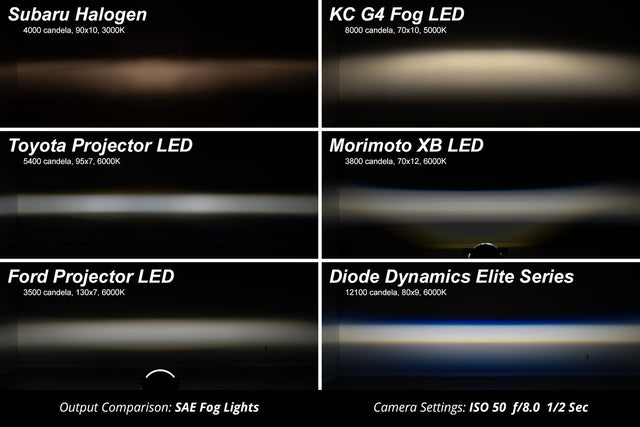

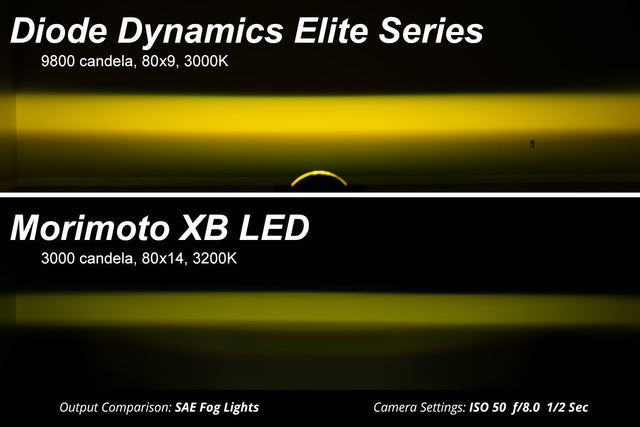

Custom-engineered optic provides extremely wide, intense light output

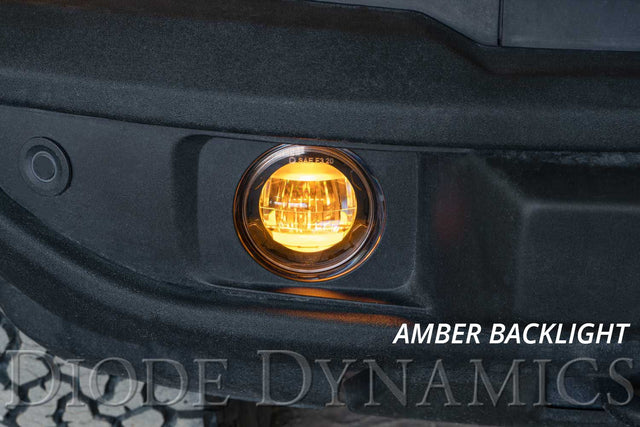

Distinctive integrated amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam, no modification needed
Engineered and assembled in USA
Description

The Diode Dynamics Elite Series Type A Fog Lamps are a direct-fit LED fog light replacement designed to deliver serious low-beam spread and close-range visibility where your factory halogens fall short. Built around a custom-engineered optic and multi-die automotive emitters, these assemblies produce an exceptionally wide, intense output pattern that pushes light broadly across the road surface — exactly what a fog lamp should do in rain, dust, or low-visibility conditions.

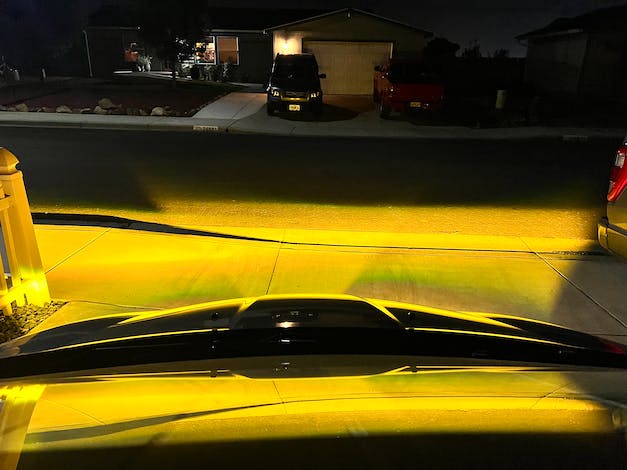

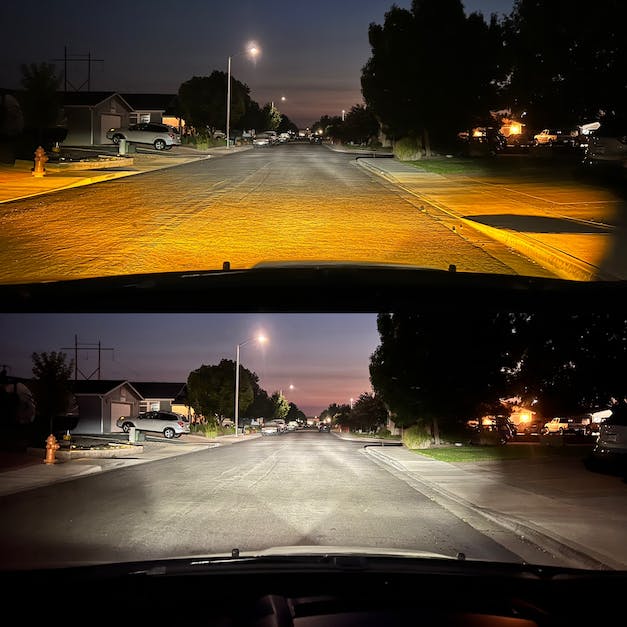

Choose between Cool White or Yellow color options to suit your preference and conditions. Cool White delivers a crisp, modern appearance that pairs cleanly with most LED headlight setups, while Yellow cuts through fog, rain, and snow with reduced glare and scatter. Both options are SAE F3 compliant road-legal fog lights, so you're covered for street use without compromise.

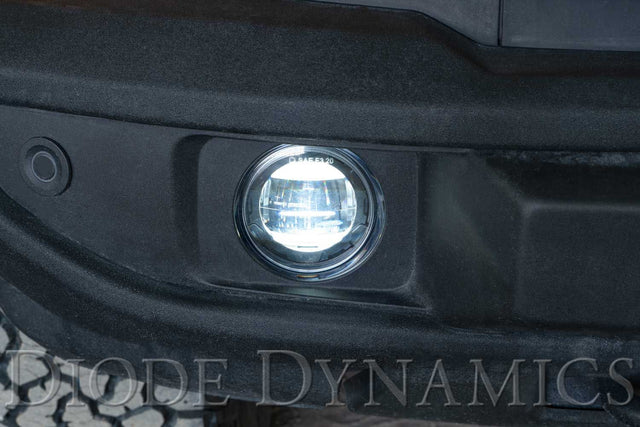

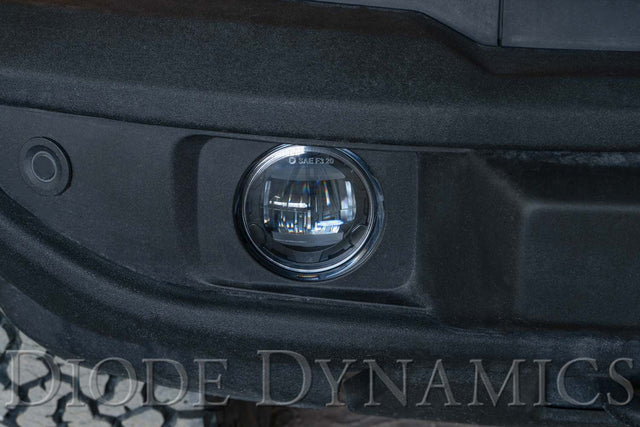

Installation is straightforward — these assemblies are engineered as a plug-and-play replacement for a wide range of Ram, Ford, Subaru, Honda, Nissan, and other popular fitments, using a vehicle-specific bracket for a clean, OEM-quality finish. No modifications, no guesswork.
