Dodge Ram 19-On 2500/3500 7 XL Linkable Kit Baja Designs

$ 2,476.58 CAD $ 2,606.93 CAD
Baja Designs  |  SKU / Part Number: 447749  |  Barcode: 810031743193

**All Baja Designs products typically ship within 2-6 business days**

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

COMPATIBILITY

2019,2022,Ram,3500,Big Horn|2019,2022,Ram,2500,Big Horn|2019,2022,Ram,2500,Laramie|2019,2022,Ram,3500,Laramie|2019,2021,Ram,2500,Laramie Longhorn|2019,2020,Ram,3500,Laramie Longhorn|2019,2022,Ram,3500,Limited|2019,2022,Ram,2500,Limited|2019,2021,Ram,3500,Lone Star|2019,2021,Ram,2500,Lone Star|2019,2022,Ram,2500,Power Wagon|2019,2021,Ram,3500,SLT|2019,2022,Ram,2500,Tradesman|2019,2022,Ram,3500,Tradesman|2021,2022,Ram,3500,Limited Longhorn|2021,2022,Ram,2500,Limited Longhorn

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle-specific mounting brackets, wiring harness, and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.


This kit includes all the necessary components to outfit your 2019+ Ram 2500/3500 with 7 XL Linkable light bar.


Baja Designs Features:



  • Satisfaction Guarantee - 30 Day Money Back Guarantee

  • Limited Lifetime Warranty - Complete Purchase Protection

  • uService - Replaceable Lenses And Optics

  • ClearView - All The Light, Right Where You Need It.

  • MoistureBlock - Waterproof, Rain Proof, Submersible

  • CopperDrive - Only LED Driven At 100 percent

  • 5000K Daylight - Less Driver Fatigue, Natural Color


Specifications:



  • Lumens: 22,050 Utilizing 28 LEDs

  • Wattage/Amps: 182W / 14A

  • LED Life Expectancy: 49,930 Hours

  • Front Lens: Hard Coated Polycarbonate

  • Housing: Powder Coated Cast Aluminum

  • Bezel: Billet Machined Aluminum

  • Hardware and Bracket Material: Stainless Steel

  • Exceeds MIL-STD810G (Mil-Spec Testing)

  • Built-In Overvoltage Protection

  • IP69K (Waterproof, Submersible to 9ft)

  • IK10 Compliant (Mechanical Impact Testing)

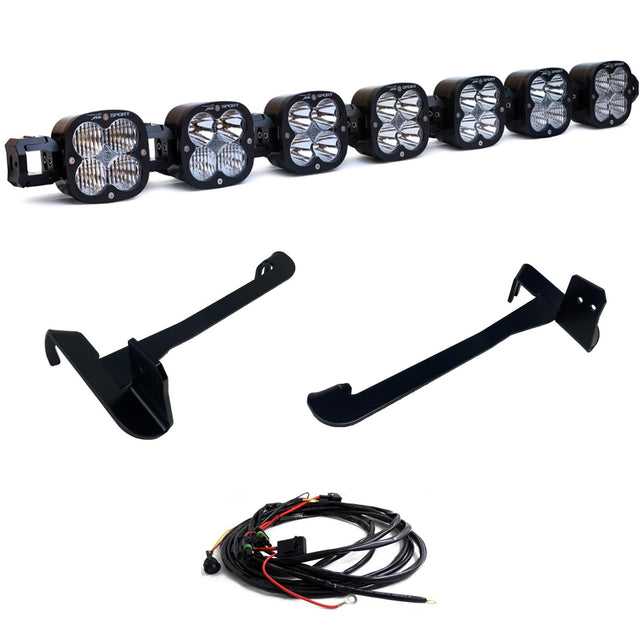

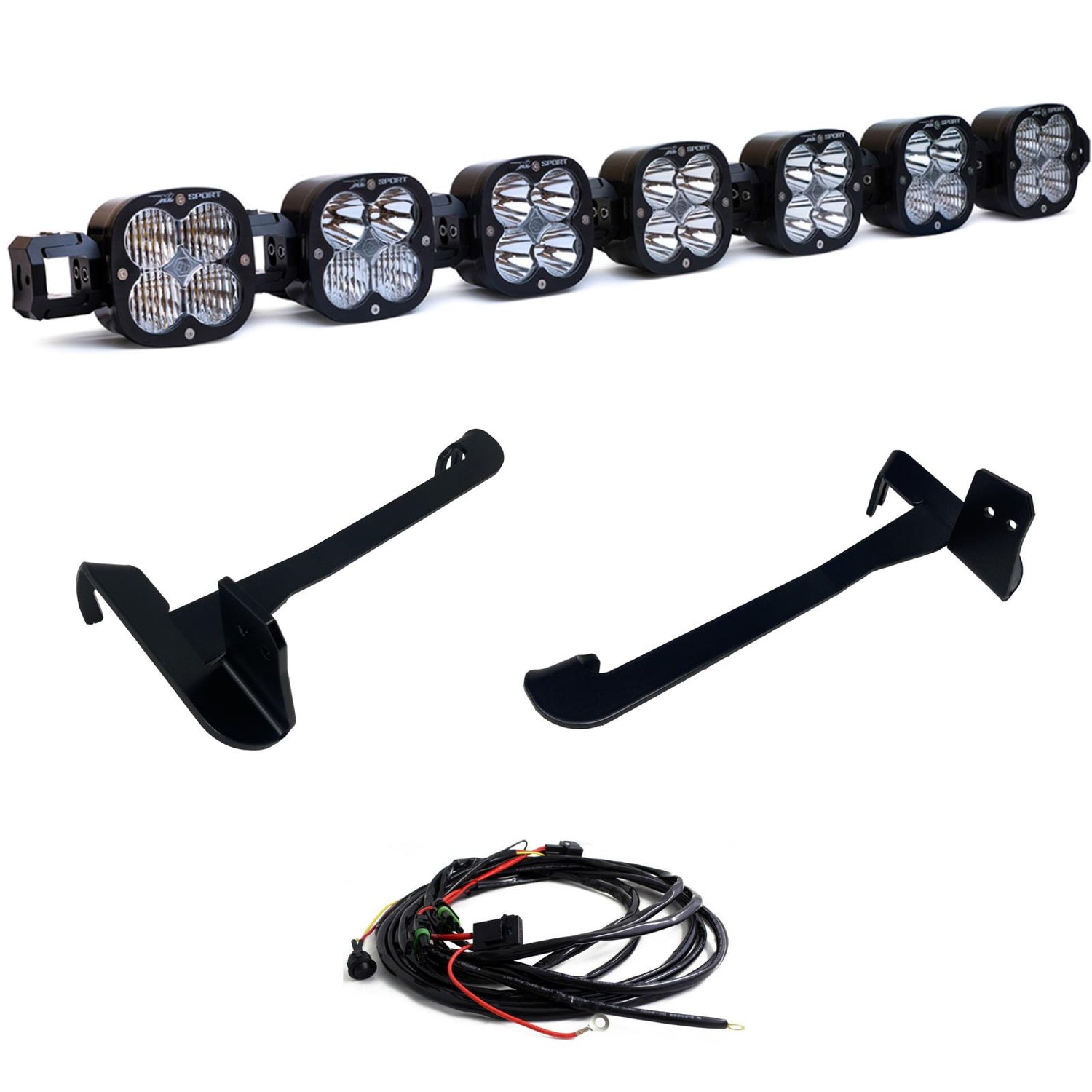

Includes:



  • x3 XL Sport Spot LED Light

  • x2 XL Sport Driving/Combo LED Light

  • x2 XL Sport Wide Cornering LED Light

  • x7 XL Sport Rock Guards

  • Support Kit

  • Standard Harness

  • Dodge Ram Brackets


Application:


(2019-On) Dodge Ram 2500/3500


Patterns:


Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44 Degree) and spot (6 Degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)


Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44 Degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)


High Speed Spot: A longer and narrower 6 Degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
