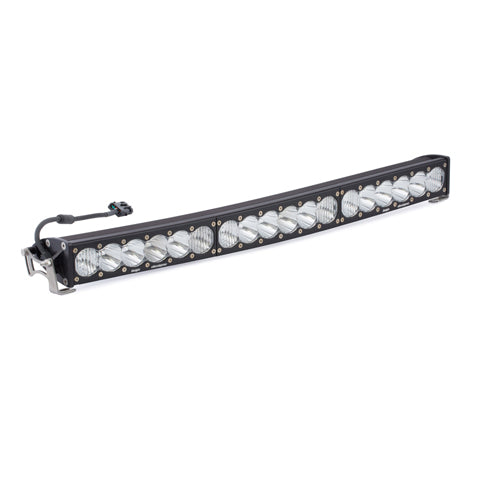

30 Inch LED Light Bar Driving Combo Pattern OnX6 Arc Series Baja Designs

The NEW OnX6 Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Light Pattern: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Baja Designs Features:

• Satisfactions Guarantee 30 Day Money Back Guarantee


• Limited Lifetime Warranty Complete Purchase Protection


• uService Replaceable Lenses And Optics


• ClearView All The Light, Right Where You Need It.


• MoistureBlock Waterproof, Rain Proof, Submersible


• CopperDrive Only LED Driven At 100 percent


• 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

• Lumens: 22,050 Utilizing 18 Cree LEDs


• Wattage/Amps: 175.5W / 15A


• Dimensions: 30 x 4.29 x 2.69 inch


• Weight: 11.45 lbs


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hard Coated Polycarbonate


• Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof up to 9ft and Pressure Washable)


• IK10 Compliant (Mechanical Impact Testing)

Includes:
OnX6 30 inch LED Light Bar Arc Series
Mounting Brackets
