2019-On Mercedes Sprinter Van S1 Roof Rack Rail Kit Baja Designs

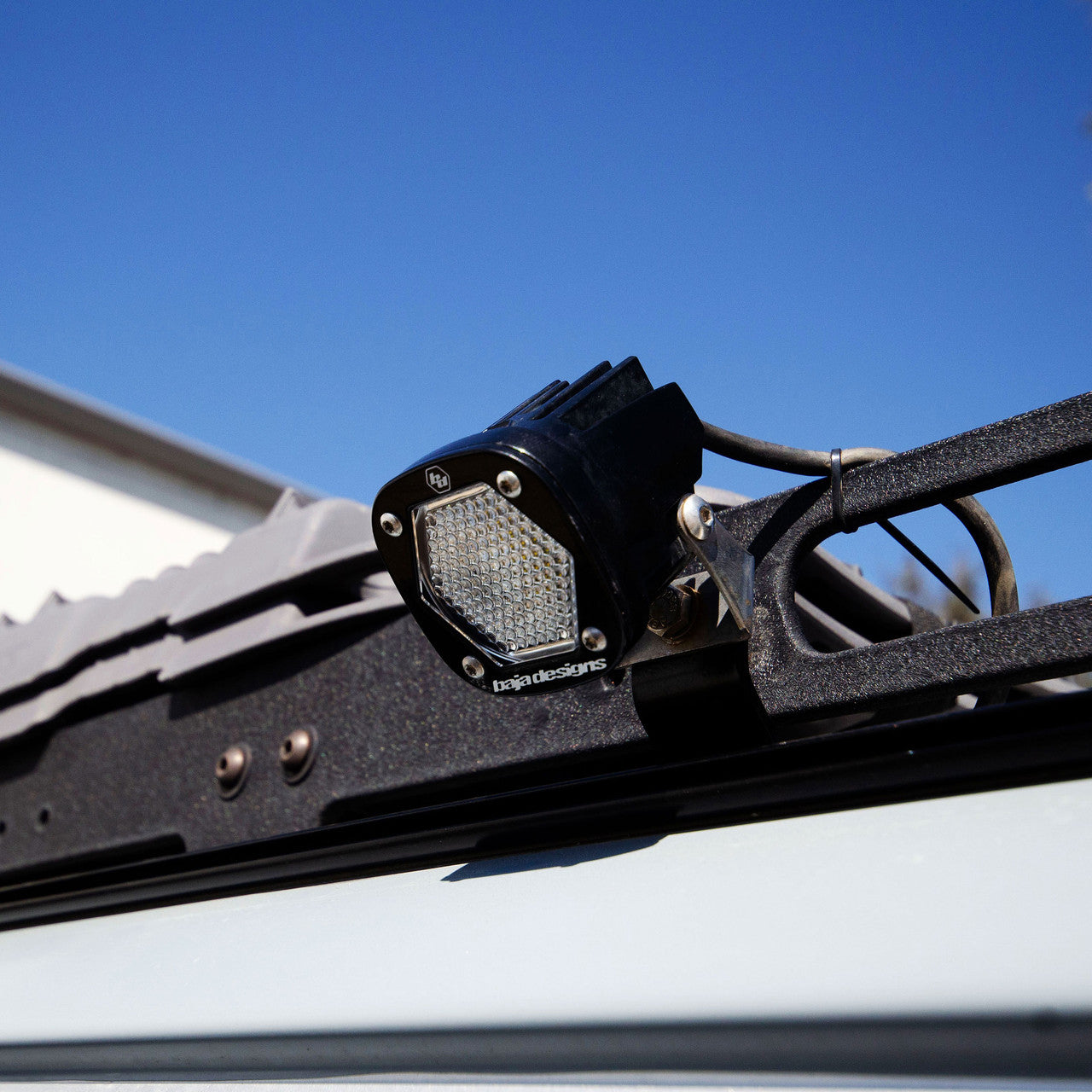

Give your van the best camp lighting solution with our 2019-On Mercedes Sprinter Van S1 Roof Rack Rail Kit. This kit comes with 4 S1s in a work scene lens pattern, mounting brackets, wiring and all the necessary hardware for an easy install.

Note: This kit was only tested on the OEM roof rack rails.

Baja Designs Features:

• Satisfactions Guarantee - 30 Day Money Back Guarantee


• Limited Lifetime Warranty - Complete Purchase Protection


• uService - Replaceable Lenses And Optics


• ClearView - All The Light, Right Where You Need It.


• MoistureBlock - Waterproof, Rain Proof, Submersible


• CopperDrive - Only LED Driven At 100 percent


• 5000K Daylight - Less Driver Fatigue, Natural Color

Specifications (Per Light):

• Lumens: 2,375 Utilizing 1 LED


• Wattage/Amps: 20W / 1.45A


• Dimensions: 2.1 inch x 2.1 inch x 2.1 inch


• Safe Voltage Range: 9-28V


• Weight: 0.4 lbs


• LED Life Expectancy: 49,930 Hours


• Front Lens: Hard Coated Polycarbonate


• Housing: Hard Anodized and Powder Coated Cast Aluminum


• Bezel: Billet Machined Aluminum


• Hardware and Bracket Material: Stainless Steel


• Exceeds MIL-STD810G (Mil-Spec Testing)


• Built-In Overvoltage Protection


• IP69K (Waterproof up to 9ft and Pressure Washable)


• IK10 Compliant (Mechanical Impact Testing)

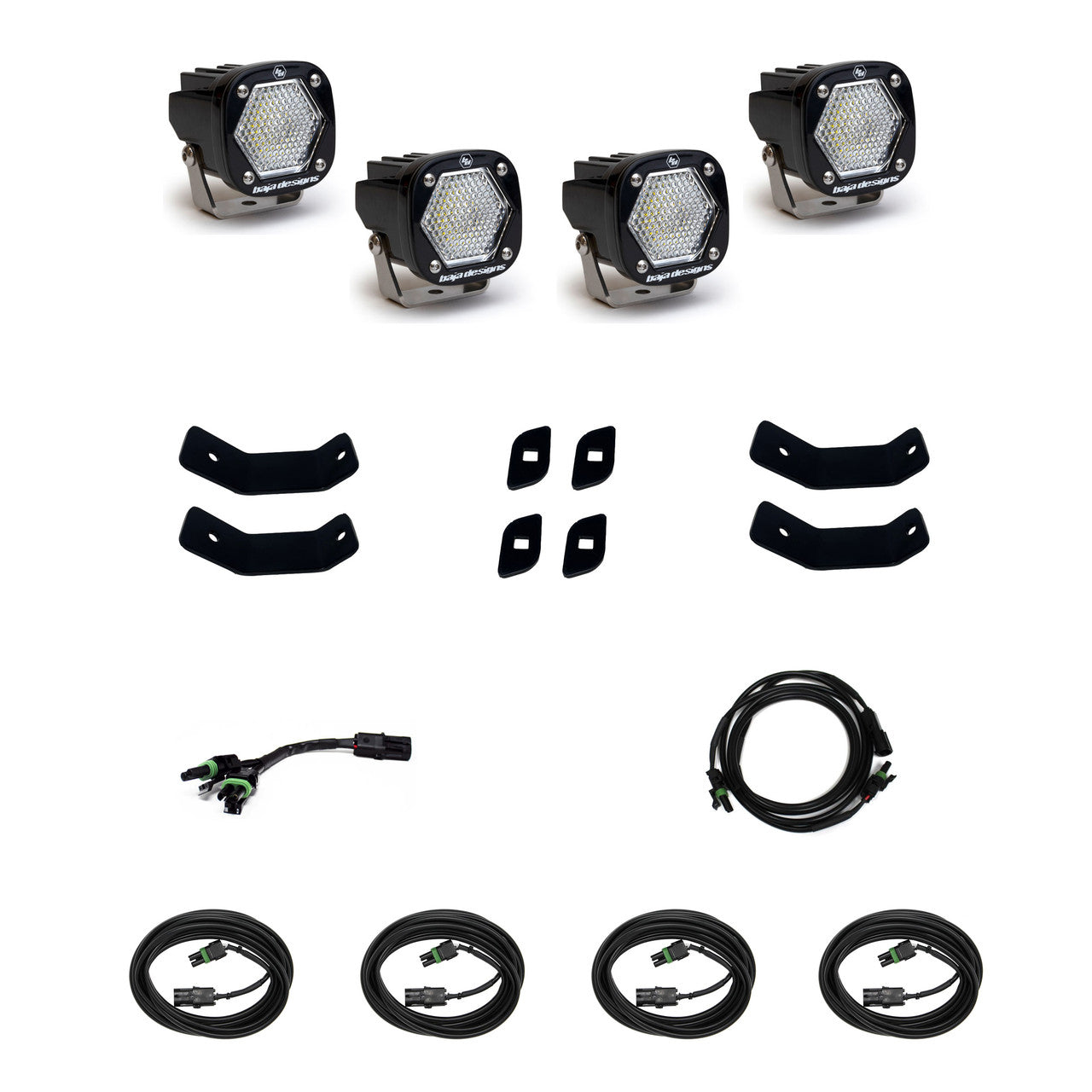

Includes:

• x4 S1 LED Lights in Work Scene


• x8 Mounting Brackets


• x1 Toggle Switch Style Wiring Harnesses


• x4 10 foot Extensions


• x2 55 inch Splitters


• x1 Wiring Splitter


• All necessary hardware

Application:

Mercedes Sprinter Van 2019-On

Patterns:

Work/Scene: Excellent work light or scene light with an extremely smooth circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
