2013-2019 Dodge Ram Projector Style Switchback Led Halos

$ 320.00 CAD
Diode Dynamics  |  SKU / Part Number: DD2021  |  Barcode: 6005987

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

WHAT'S INCLUDED

In the Box:

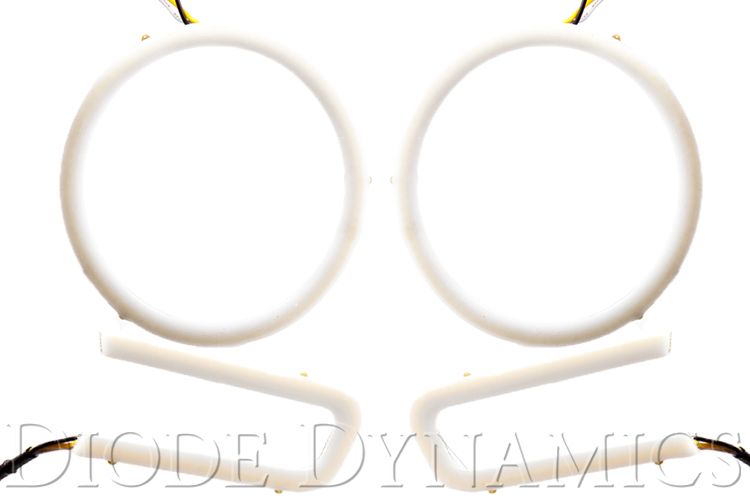

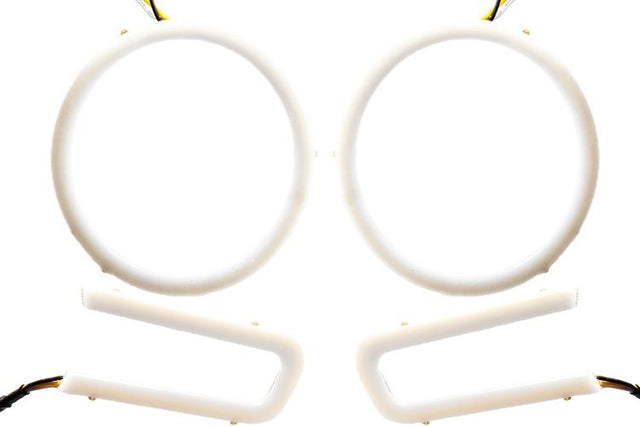

Four (4) custom-shaped LED halos for both sides of the vehicle
Two (2) battery feed waterproof driver units
Two (2) input wire pigtails with T-taps
Installation Guide

3 Year Warranty

COMPATIBILITY

Make: Ram
Model: truck
Years: 2013, 2014, 2015, 2016, 2017, 2018
Electrical Compatibility: No electrical issues (tested and confirmed)
DRL Function: Operates at full brightness for DRL
NOTE: These halos are also compatible with 2019-2024 Ram Classic models.

TECH SPECS

Measured Lumens: 725 (Amber Turn Signal)
Power (watts): 11.7
Operating Voltage: 9-16V
Current (amps @ 13.2V): .905
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): JST Inline Connectors, T-Tap Inputs
Driver Features: External, Waterproof, Constant Current
Materials: FR4 PCB
Cooling: Passive, no heatsink
Make: Ram
Model: truck
Years: 2013, 2014, 2015, 2016, 2017, 2018
Electrical Compatibility: No electrical issues (tested and confirmed)
DRL Function: Operates at full brightness for DRL

KIT COMPONENTS AND PART NUMBERS

  • DD2021 Switchback Halo Kit for 2013-2018 Ram 1.92 lbs AC0023 Switchback Driver Type PH Low Dual AB0067 Ram 2013 C Light SB v1.0 L, AB0068 Ram 2013 Halo SB v1.0 L, AB0069 Ram 2013 C Light SB v1.0 R, AB0070 Ram 2013 Halo SB v1.0 R, WH0022P-A Harness JST SB LED Board Pair, DD3067 Switchback Solid-State Relay Harness (pair)

Installing Yourself?

Click here for the PDF install guide

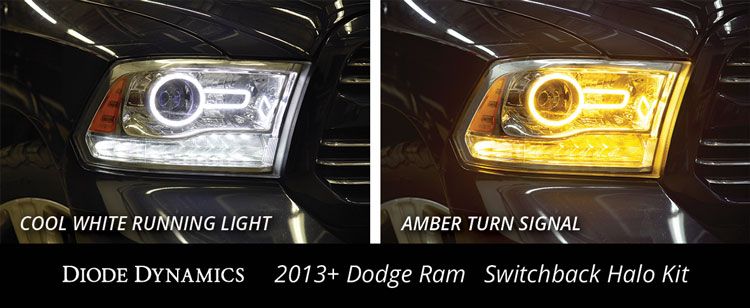

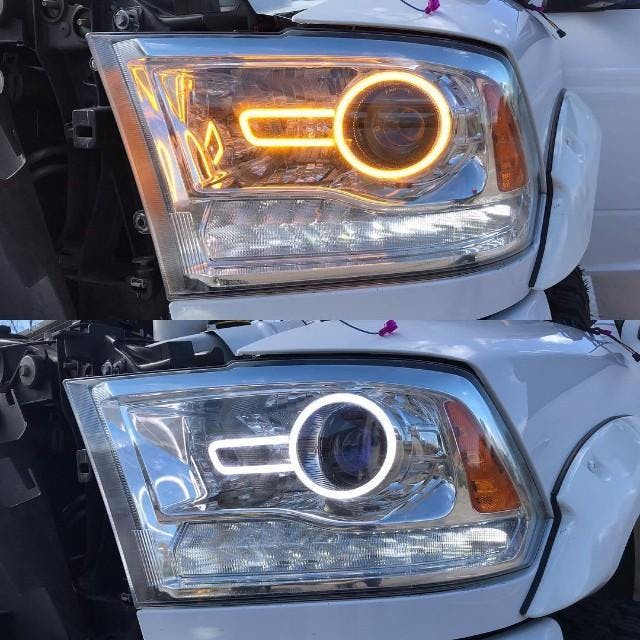

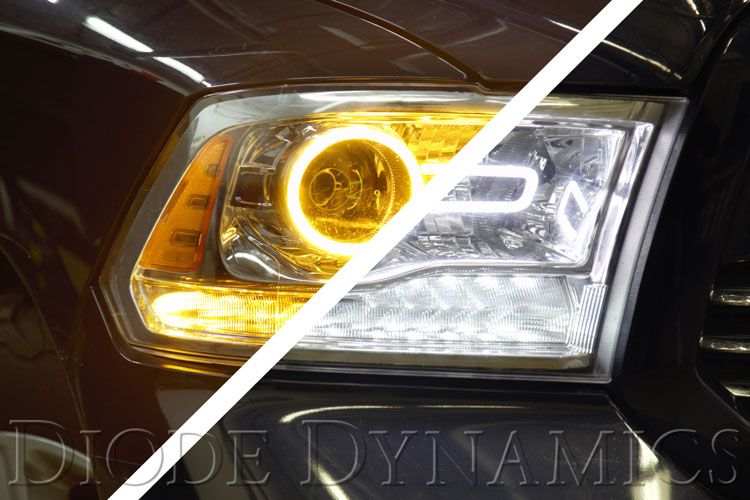

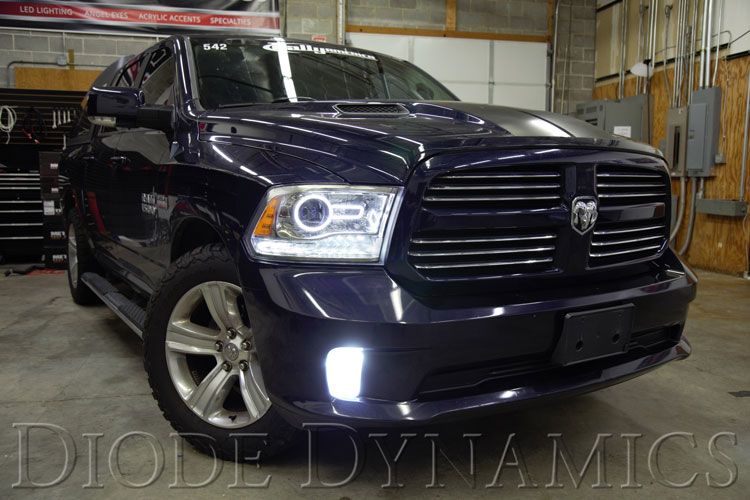

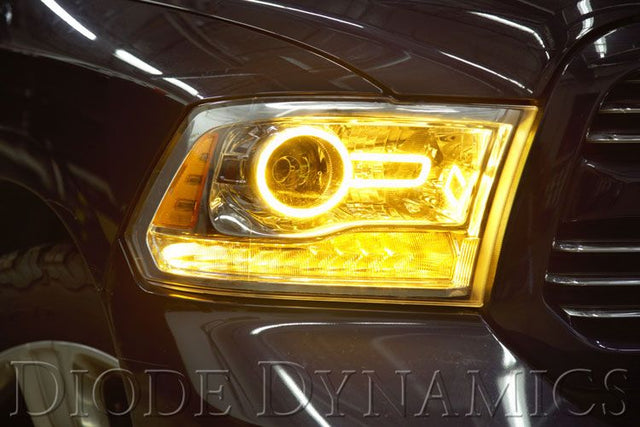

Time for an upgrade!  This halo kit, designed specifically for projector-style headlights on the 2013-2018 Dodge Ram, includes custom-sized oval rings as well as "C" light accents with multiple functions: extremely bright white for the DRLs, lower-power white for night time use, and a brilliant amber for the turn signals. It will add a distinct, unique look to your vehicle both day and night!

High output, clean appearance. The custom-designed LED modules replace the factory bulb or single LED, illuminating with a much higher intensity. With our proprietary high-density "HDLED" technology, these modules are populated with over 500 LED chips, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When it's off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

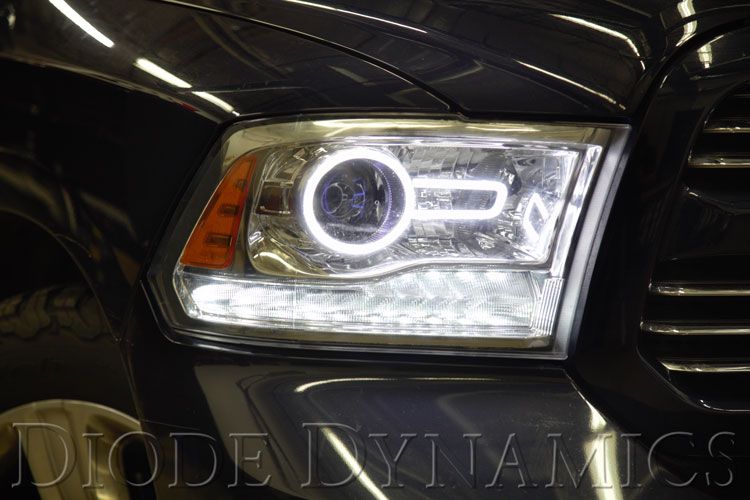

Pure white color. Assembled in USA, the modules light in a pure 6000K white color, not a cool blue like cheaper products on the market. And because they use modern high-power amber chips, rather than traditional LEDs, the amber is even brighter than the white!

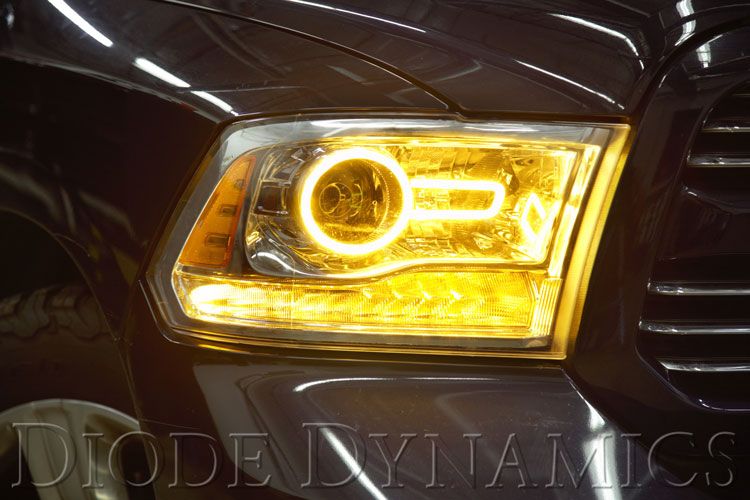

Constant-current power. To power the modules efficiently, your order includes two custom-designed drivers, which feature transient voltage suppression, reverse protection, and a switching driver for extremely high reliability over time. And here's what really makes this product shine over the competition: with an embedded microcontroller, the drivers utilize multi-stage PWM dimming, to allow for a half-brightness white, for use at night (parking lights), as well as a full-power white, for use as DRL during the day. Finally, the amber is run at even higher power, making the turn signal easily visible in broad daylight!

Professional installation is strongly recommended, as the factory headlights must be opened for installation. The halos must be custom-mounted in position using adhesive or beading wire.
