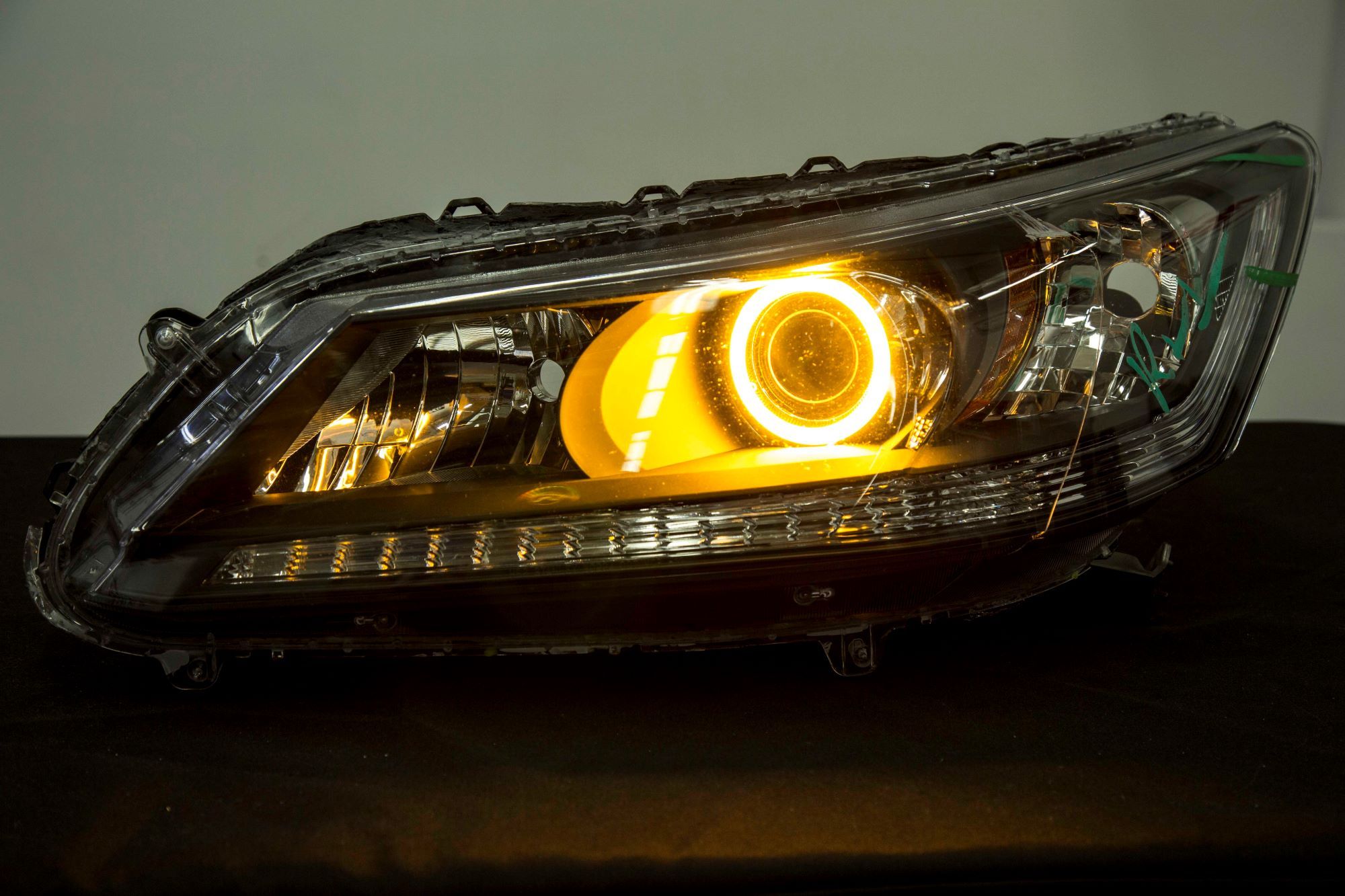

Diode Dynamics HD LED Halos and LED Strips feature a durable phosphor coating for a uniform, high-density LED appearance. Available in various lengths, diameters, and colors, they let you customize your vehicle to match your style. No external controllers or dimmers required — they're easy to install and ready to go. Here's the full install walkthrough.
Table of Contents
- Installation Instructions
- Questions About the Install?
- Shop HD LED Halos and Strips at Ess K Customs
Important: Headlights must be opened before proceeding. This involves heating and carefully separating the lens from the housing. Professional installation is strongly recommended.
Installation Instructions
Step 1 — Once the headlight is open, mount the LED halo or strip using beading wire or JB Weld. Mount it in a location away from any light source to avoid heat damage.
Step 2 — Route the wires through any shroud or bezel to the back of the headlight, sealing any holes you create during this process.
Step 3 — Connect the LED halo/strip connector to the driver, then connect the driver to the pigtail. Tap the bare wires on the pigtail to 12V power and ground — this determines when the halos/strips turn on.
IMPORTANT: Do not plug the LED panel directly into the pigtail without the driver. The LEDs must be connected to the driver first to regulate power.
Step 4 — Mount the driver outside of the headlight housing for serviceability, in a location away from the engine block to avoid excessive heat buildup. Tuck and secure all wiring.
Step 5 — Test the system thoroughly, reseal the headlight, and reinstall it on the vehicle. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop HD LED Halos and Strips at Ess K Customs
Ready to add HD LED Halos or Strips to your build? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Shop HD LED Switchback Halos at Ess K Customs →
Browse All HD LED Halos and Strips →
This install guide applies broadly to Diode Dynamics HD LED Halo and Strip products.
