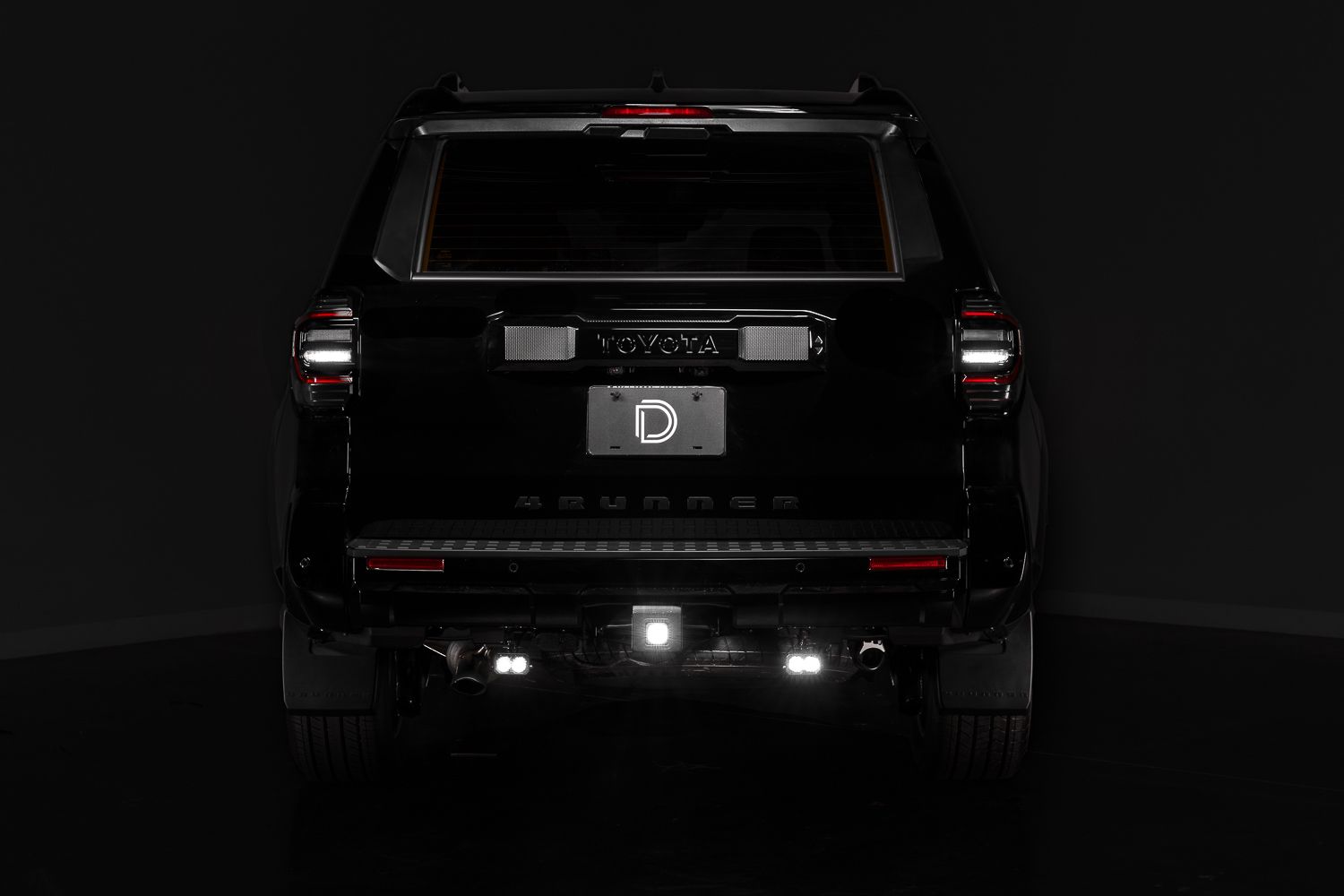

The Stage Series Reverse Light Kit for the 2025+ Toyota 4Runner adds LED pods as high-power reverse lights for maximum visibility when backing up. This is a quick bolt-on install that takes about 15 minutes with no permanent vehicle modifications. Here's the full walkthrough.
Table of Contents
- Tools Required
- Installation Instructions
- Questions About the Install?
- Shop 4Runner Lighting at Ess K Customs
Tools Required
- 10mm socket
- 13mm wrench
- 4mm Allen key
- Zip ties
Installation Instructions
Step 1 — Under the rear bumper, remove the two factory fasteners with a 10mm socket. Set them aside for reuse.
Step 2 — Position the mounting bracket inboard behind the bumper and reinstall the fastener from the previous step. Snug it down. Make sure the bracket points toward the center of the vehicle.
Step 3 — Use a 13mm wrench to secure the U-bracket for the C1/C2 pod to the mounting bracket. Leave it just loose enough to fine-tune aiming later.
Step 4 — Use a 4mm Allen key and a 3/8" wrench to tighten the LED pod to the U-bracket. The lowest hole on the C2 pod positions it higher relative to the ground — adjust to suit your setup.
Step 5 — Unplug the factory 7-pin trailer connector. Insert the inline harness from the Stage Series kit between the OE connectors. This gives you a clean tie-in to reverse power without cutting any factory wiring.
Step 6 — Plug the weatherproof connectors from the harness into each pod. Route the wiring away from the exhaust and moving parts. Use zip ties to secure everything.
Step 7 — Shift into reverse to power the pods and verify function. Aim the pods so the beam lands where you need it when backing up. Tighten all hardware. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop 4Runner Lighting at Ess K Customs
Looking for lighting upgrades for your 2025+ 4Runner? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
