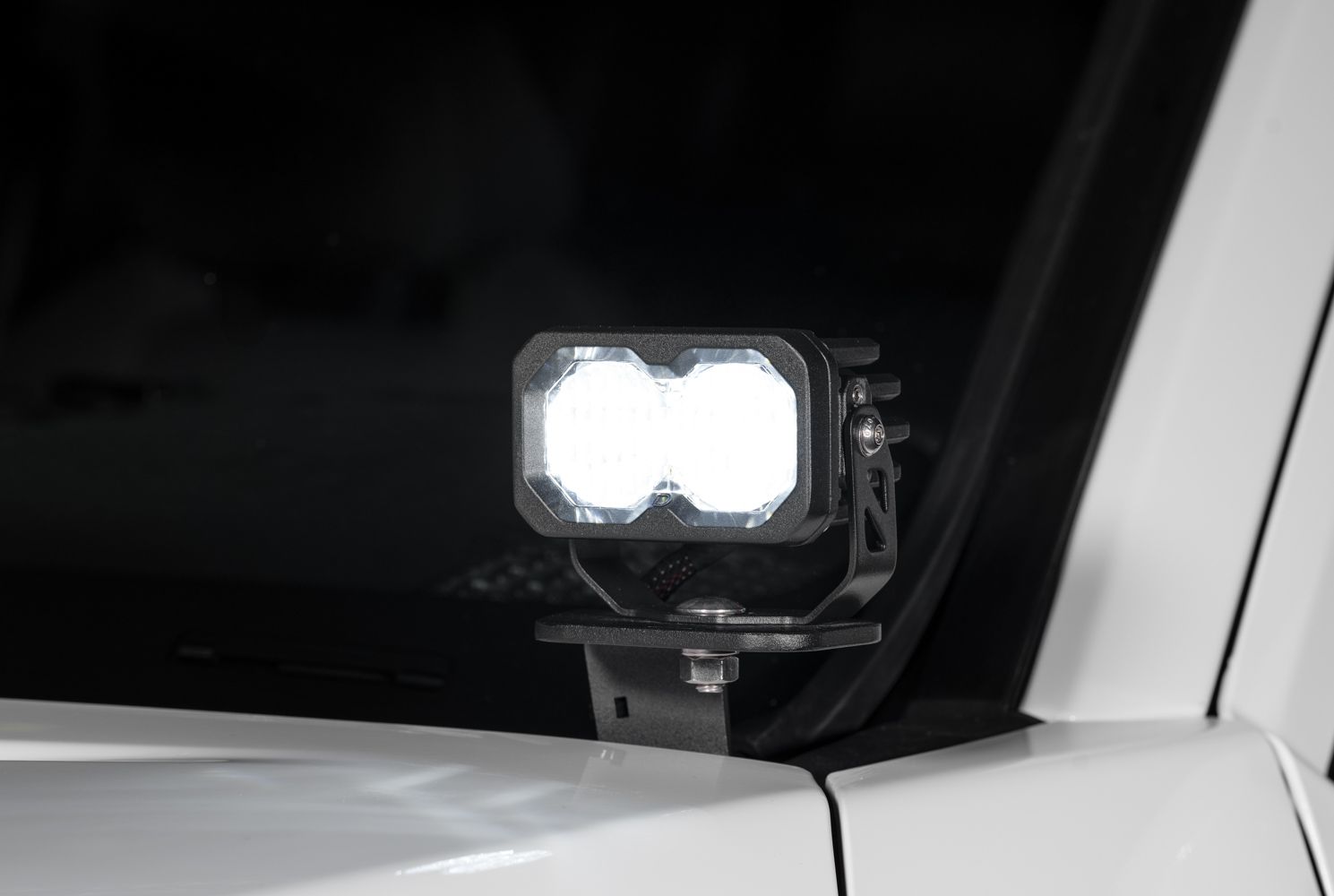

Stage Series 2-inch LED Pod Lights — SSC2, the all-new C2 2.0, and C2R — deliver serious output and durability in a compact package. Featuring high-intensity LED chips, custom-engineered TIR optics, and powder-coated aluminum construction, they're built to handle the elements. Available in cool white or selective yellow with a distinctive backlight, they're perfect for fog lights, ditch lights, camp lighting, and more. The C2R adds high-power reverse, 4th brake light, and secondary running light functions. Here's the general install guide.
Table of Contents
- Wiring Instructions
- Mounting Instructions
- Questions About the Install?
- Shop C2 LED Pods at Ess K Customs
Wiring Instructions
Stage Series SSC2, C2 2.0, and C2R LED Pods have an integrated Deutsch-style connector on the back of the pod, just below the pin-fin heatsink.
- Red wire: Positive supply
- Black wire: Negative / common ground
- Blue wire: Backlight — tap to your desired vehicle function
NOTE: These pods draw high current and require adequately-sized wiring. If not using a Diode Dynamics harness, use 16 AWG or larger for main power and ground, and 18 AWG or larger for the backlight. Be mindful of current ratings when splitting power to multiple pods or using switches.
Mounting Instructions
Use the included hardware and fasteners to mount your pod. We recommend drilling a 3/8" hole for flush fitment of the bracket. The most common mounting style uses the standard bracket position, but Stage Series pods are also compatible with most standard mounting brackets on the market.
The C2 2.0 and C2R feature updated mounting points with three bracket positions for dialing in height and angle. Refer to the included bracket diagram for your specific pod model.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop C2 LED Pods at Ess K Customs
Ready to add Stage Series LED pods to your build? As an authorized Diode Dynamics dealer, Ess K Customs carries the full lineup with genuine products and full manufacturer warranty.
Browse Stage Series C2 LED Pods at Ess K Customs →
This install guide applies to Diode Dynamics SKUs: DD6381–DD6422, DD8450P, DD8450S
