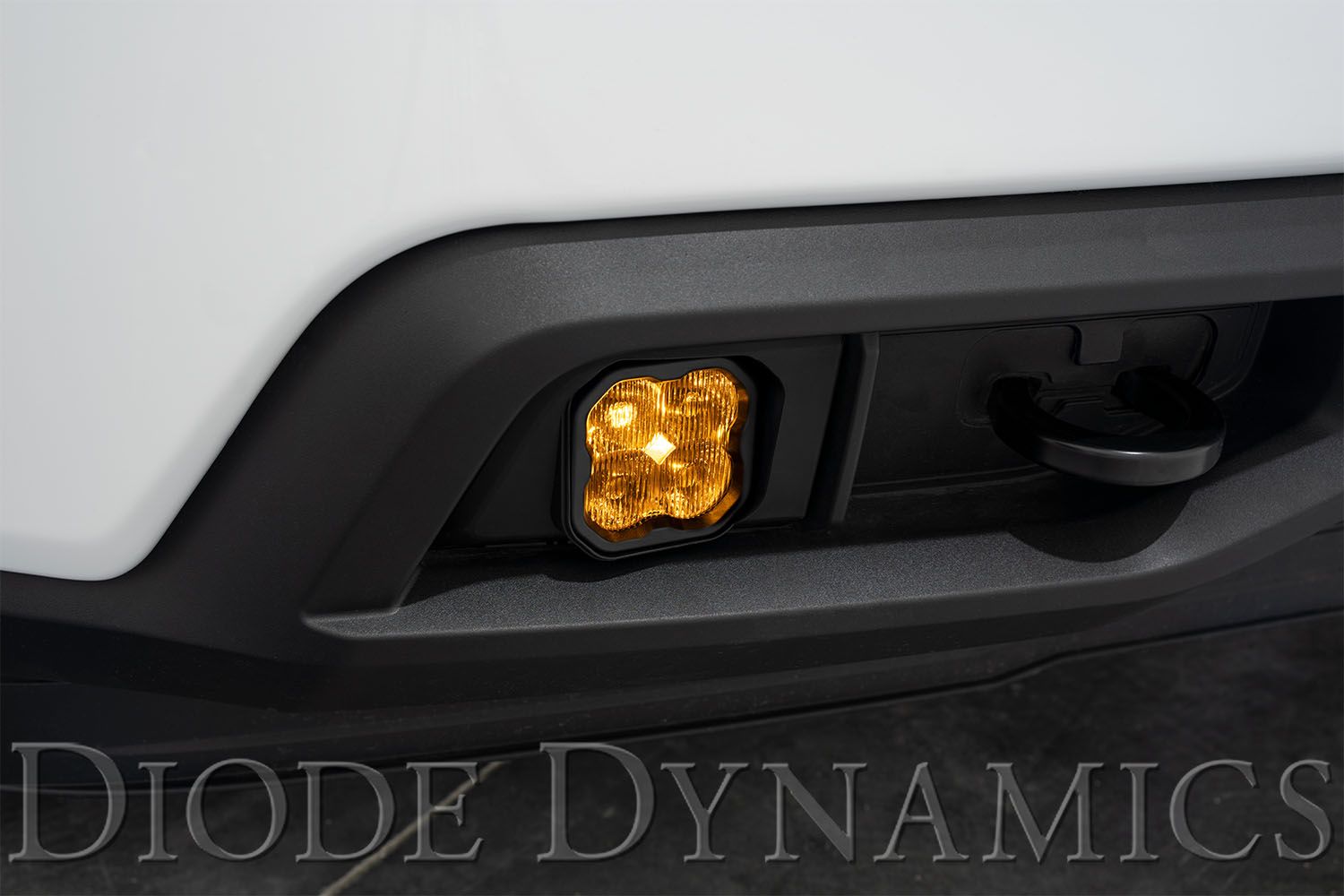

The SS3 Type SV2 LED Fog Light Kit replaces your factory fog lights with SS3 LED pods for dramatically higher output and a clean, factory-style look. Fits the 2019-2021 Chevy Silverado 1500 and 2020-2021 Silverado HD 2500/3500 among other vehicles. Available in cool white or selective yellow with optional amber backlight. Here's the full walkthrough.
Table of Contents
- Installation Video
- Installation Instructions
- Aiming Instructions
- Questions About the Install?
- Shop LED Fog Lights at Ess K Customs
Installation Video
Installation Instructions
Step 1 — Attach the Pods to Brackets
Install the supplied nuts into the pod housing with the nylon facing inward. Attach the bracket to the pod using the supplied screws and washers in the correct orientation. Tighten so the pod holds its position but can pivot for aiming.
Step 2 — Remove the Factory Fogs
Access your factory fog lights. Unplug the fog lamp connector and free the harness from the retaining clip with a flathead screwdriver. Using a 7mm socket and ratchet, remove the three bolts holding the factory fog light housing. Remove the housing — the factory bolts will be reused.
Step 3 — Install the LED Pods
Install the assembled bracket and pod onto the vehicle using the three original bolts with a 7mm socket and ratchet. Plug the SS3 into the factory fog light harness using the included DT wire adapter. Test for functionality (if the light doesn't turn on, flip the connector 180 degrees). For backlit pods, connect the backlight wire to a fused 12V source using the included T-taps. Reinstall the factory harness retaining clip into the back of the new bracket. Repeat on the other side.
Aiming Instructions
Step 1 — Park 25 feet from a wall on a level surface.
Step 2 — Loosen the 5/32" Allen bolts on each SS3 pod just enough to allow adjustment.
Step 3 — Measure the distance from the ground to the center of the SS3 pod (mounting height).
Step 4 — Mark the mounting height on the wall with tape.
Step 5 — Add a second tape mark four inches below (fog light cutoff line).
Step 6 — Aim each SS3 pod so the top of the beam pattern aligns with the cutoff line.
Step 7 — Tighten the Allen bolts. Do not overtighten or use power tools. The install is complete.
