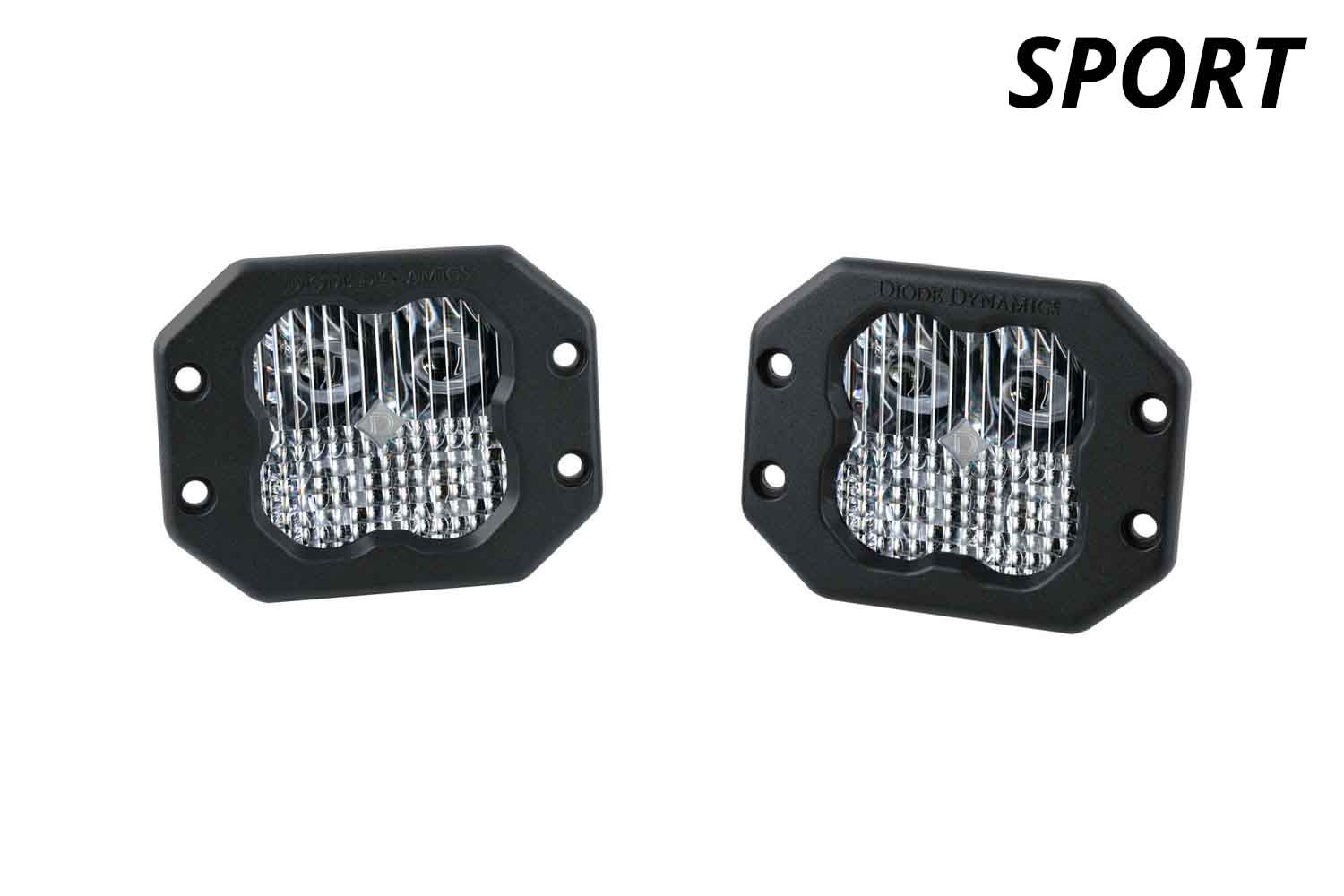

SS3 SAE/DOT White Sport Flush Mount LED Pod (pair)

$ 347.70 CAD $ 386.33 CAD

Diode Dynamics | SKU / Part Number: DD6920P | Barcode: 00691025932942

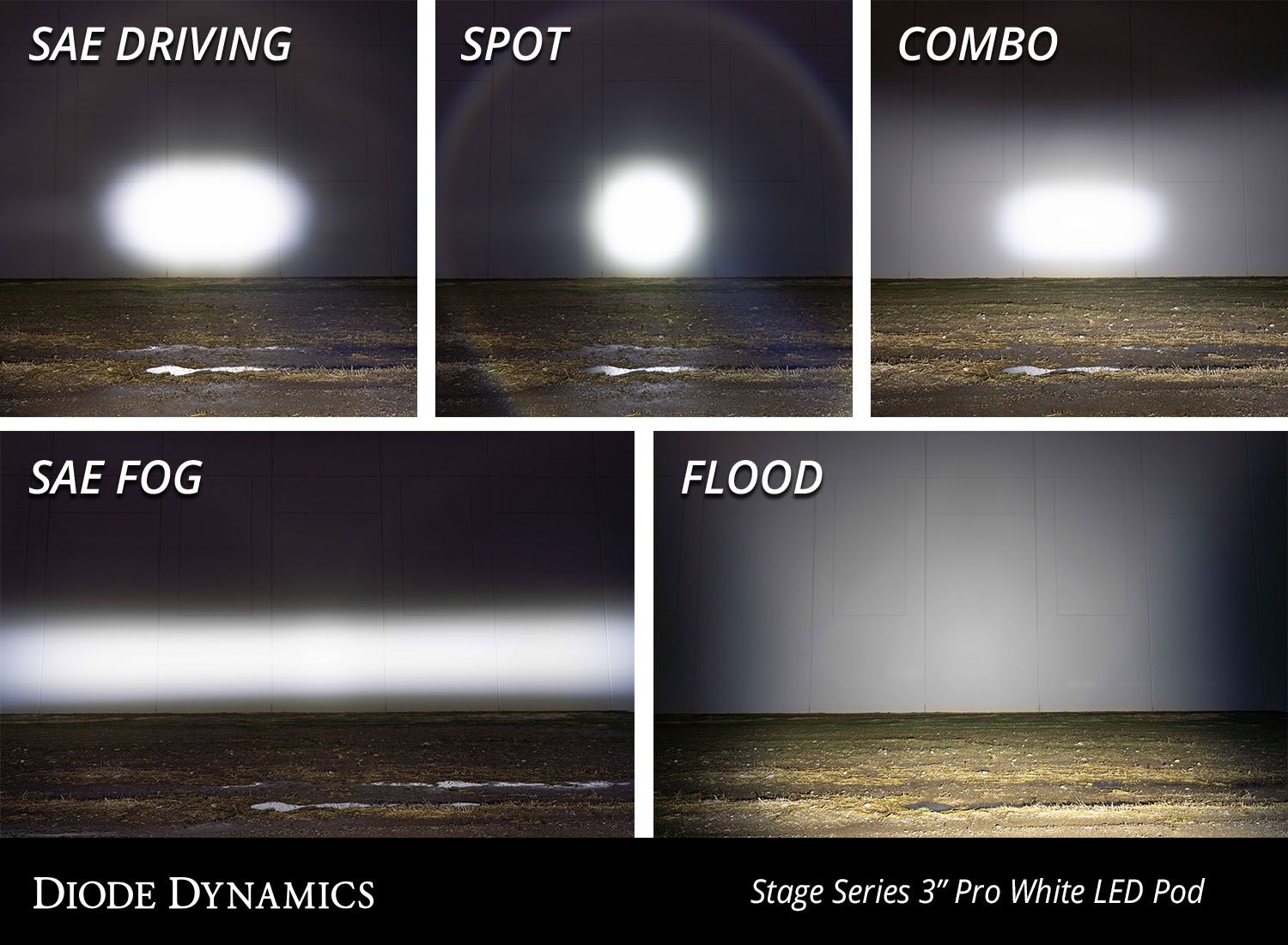

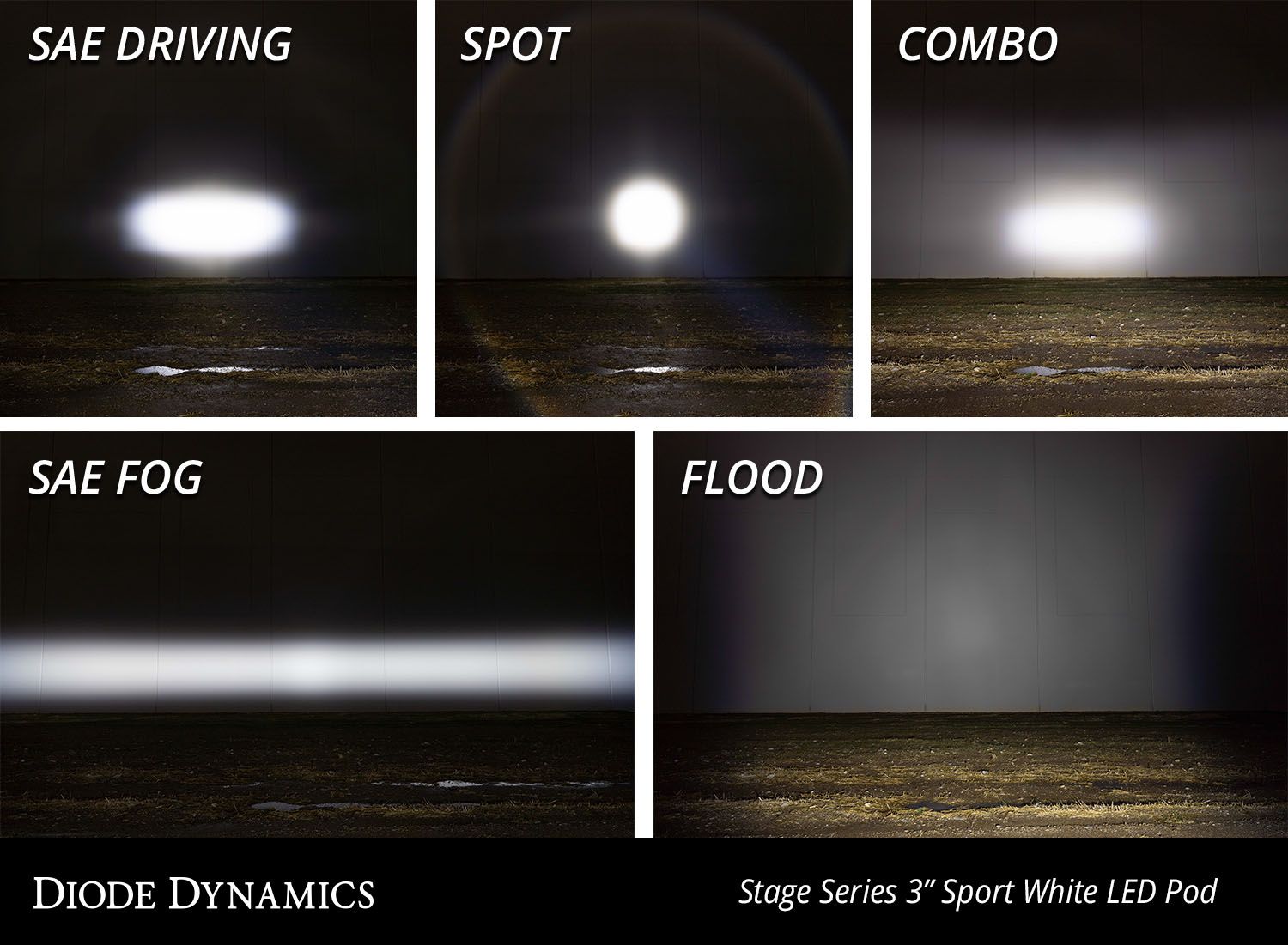

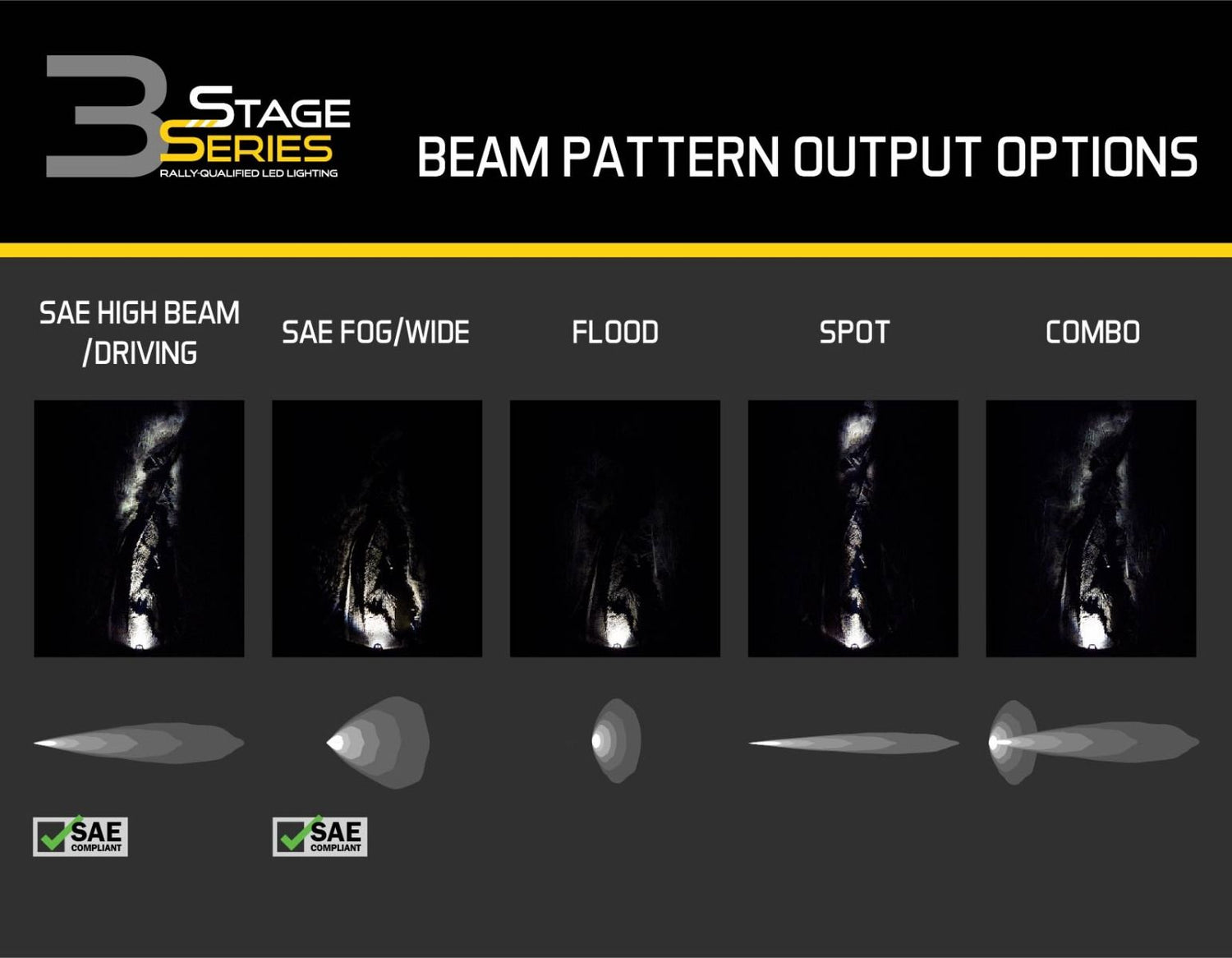

Choose Your Beam Pattern

Combo Flood SAE Driving SAE Fog

Choose Your Backlight Color

Amber Red

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

The Diode Dynamics SS3 Sport ABL White Combo Flush (pair) offers a performance-driven upgrade for your vehicle's lighting. Featuring higher output intensity than any other 3 inch light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. Designed with attention to detail, it provides: Advanced TIR optics provide high efficiency and focus; High-intensity automotive-type LEDs; Pin-fin heatsink design; Integrated Deutsch-style connector; Durable powdercoated aluminum construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SS3 Sport ABL White Combo Flush (pair), DD6920P
SS3 Sport RBL White Combo Flush (pair), DD6921P
SS3 Sport ABL White Flood Flush (pair), DD6916P
SS3 Sport RBL White Flood Flush (pair), DD6917P
SS3 Sport ABL White SAE Driving Flush (pair), DD6912P
SS3 Sport ABL White SAE Fog Flush (pair), DD6914P
Features and Benefits

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction

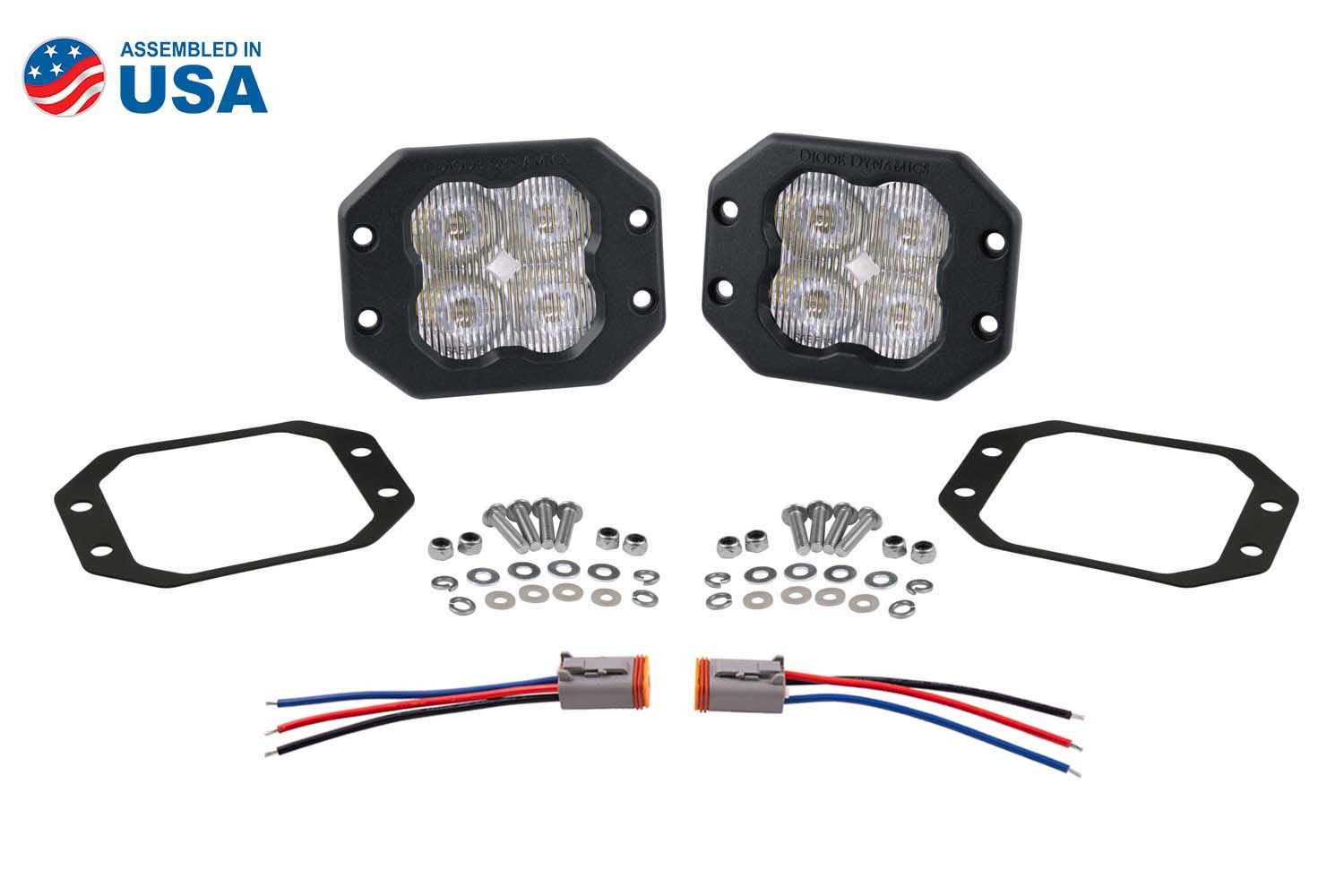

Whats Included

Included in the box:
- Two (2) SS3 3” Flush LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Flush Frame Gaskets
- Mounting hardware and drilling template
- Specification guide
Included in the box:
- Two (2) SS3 3” Flush LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Flush Frame Gaskets
- Mounting hardware and drilling template
- Specification guide
Included in the box:
- Two (2) SS3 3” Flush LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Flush Frame Gaskets
- Mounting hardware and drilling template
- Specification guide
Included in the box:
- Two (2) SS3 3” Flush LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Flush Frame Gaskets
- Mounting hardware and drilling template
- Specification guide
Included in the box:
- Two (2) SS3 3” Flush LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Flush Frame Gaskets
- Mounting hardware and drilling template
- Specification guide
Included in the box:
- Two (2) SS3 3” Flush LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Flush Frame Gaskets
- Mounting hardware and drilling template
- Specification guide
Tech Specs

Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 31 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Driving
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 14.5
Base Color: Black
Base Material: Steel
Beam Angle: Combo (Driving and Flood)
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 31 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Driving
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 14.5
Base Color: Black
Base Material: Steel
Beam Angle: Flood 80°x50°
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 1 750 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Flood
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 14.5
Base Color: Black
Base Material: Steel
Beam Angle: Flood 80°x50°
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 1 750 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Flood
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 14.5
Base Color: Black
Base Material: Steel
Beam Angle: Driving 20°x8°
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J581 Driving/Auxiliary High Beam Pattern
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 54 700 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Driving
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 14.5
Base Color: Black
Base Material: Steel

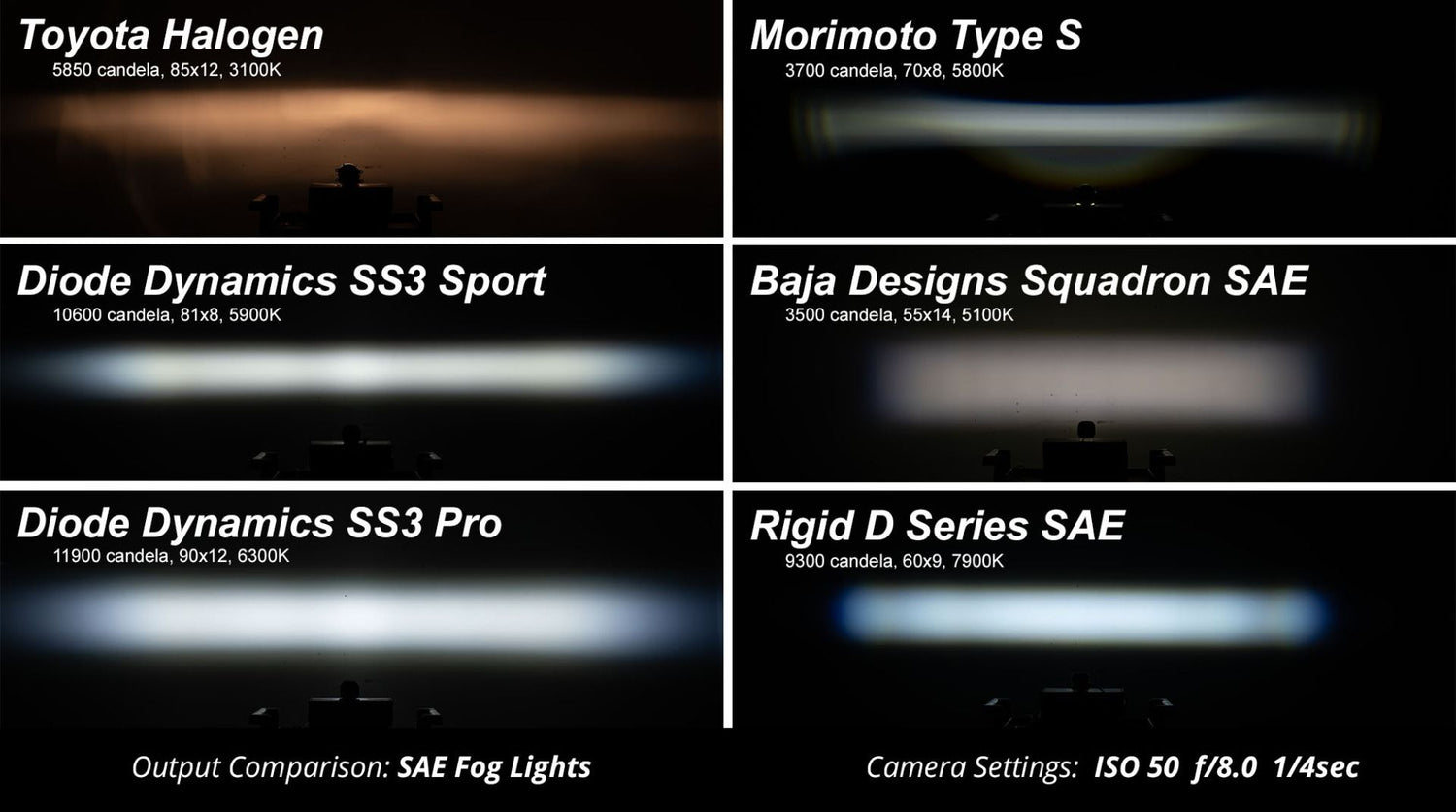

Beam Angle: Fog 80°x8°
Bolt Grade: High
Bolt Thread Type: Medium
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
Drilling Required: No
Grade Type: Performance
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 10 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Light Beam Pattern: Fog
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Sheen Level: Matte
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 14.5
