Stage Series Flush Mount Reverse Light Kit

$ 298.02 CAD $ 331.13 CAD

Diode Dynamics | SKU / Part Number: DD7146 | Barcode: 00691025930917

Choose Your Kit

1" Sport 1" Pro 2" C2 1.0 Sport 2" C2 1.0 pro

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

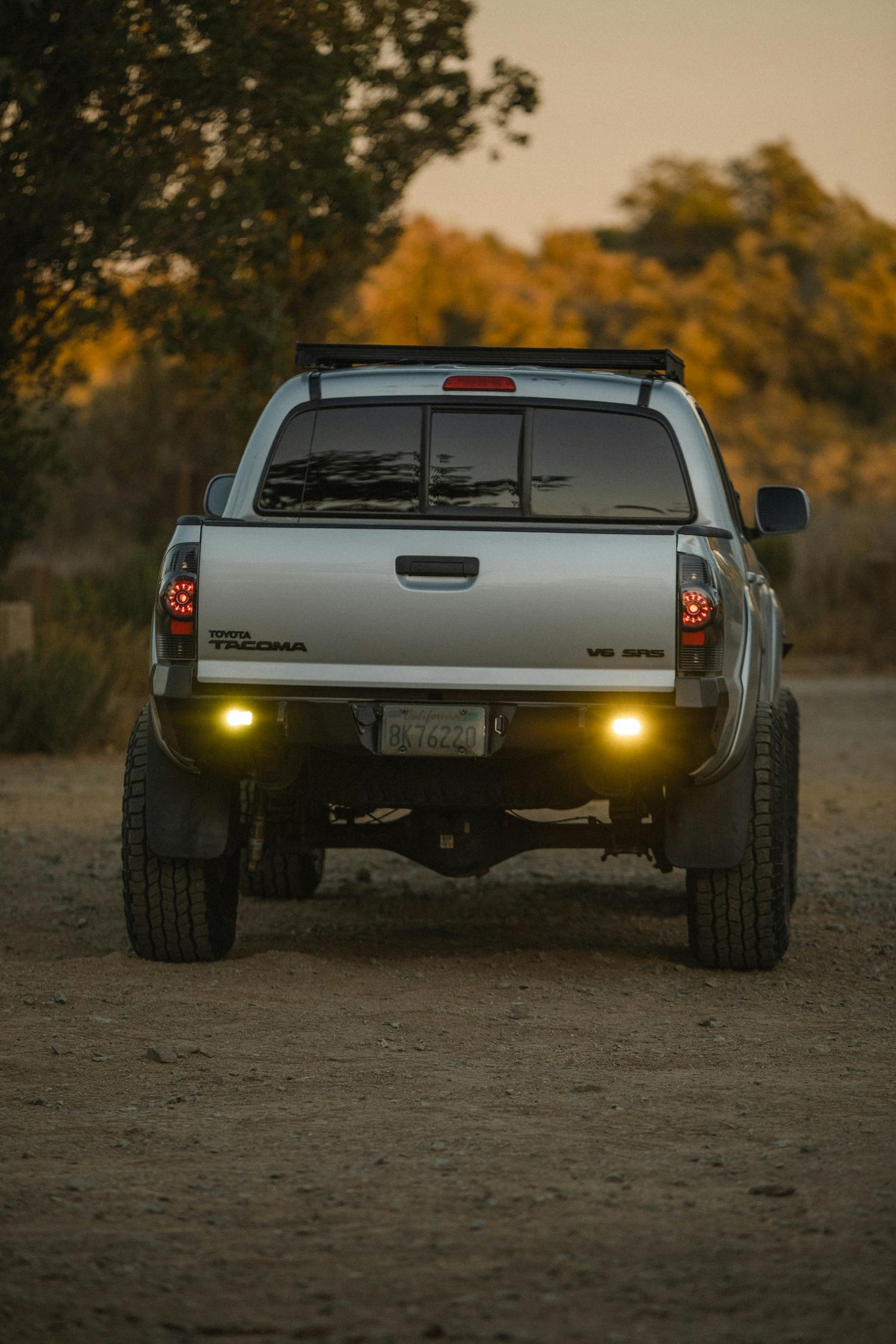

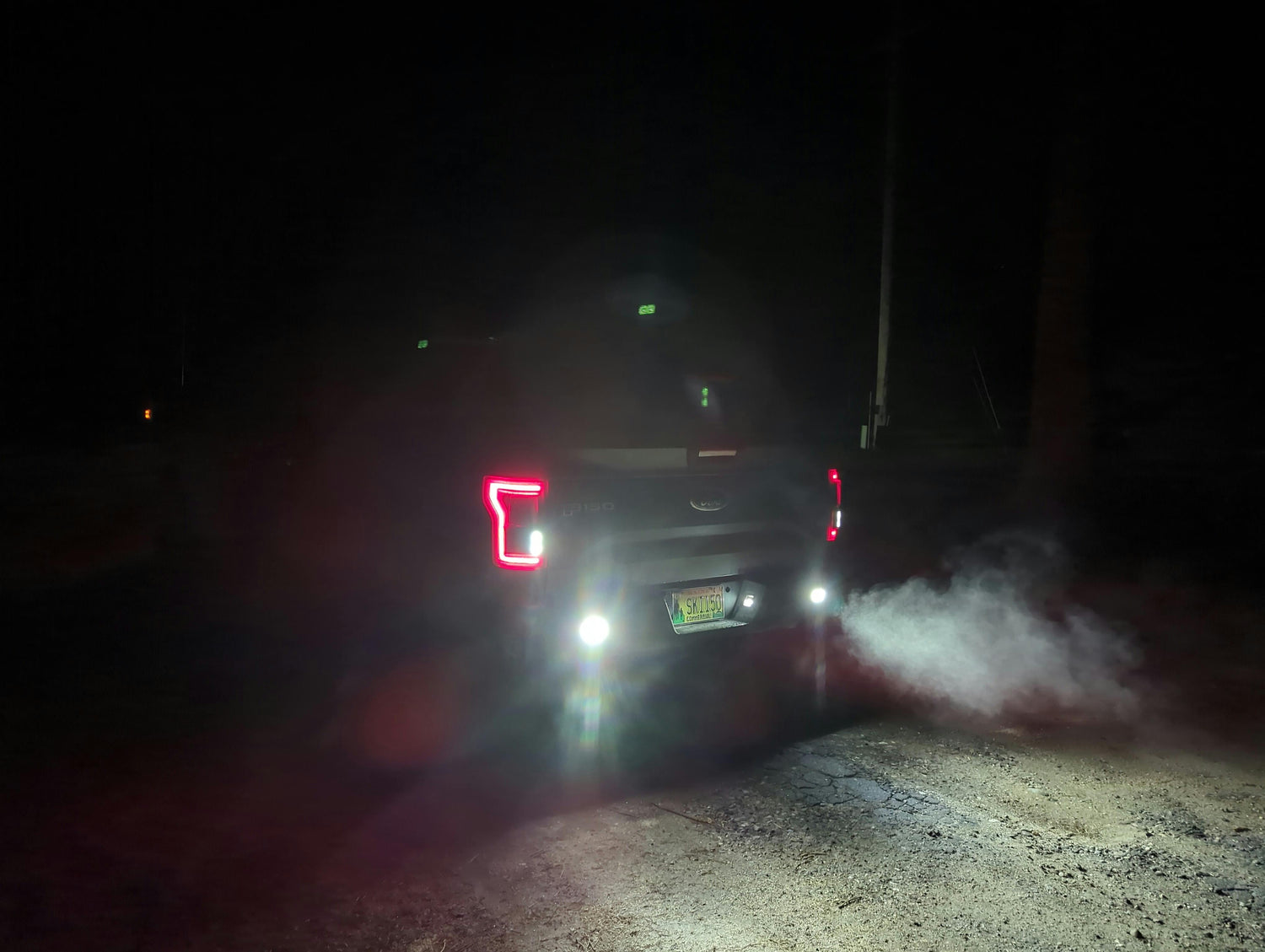

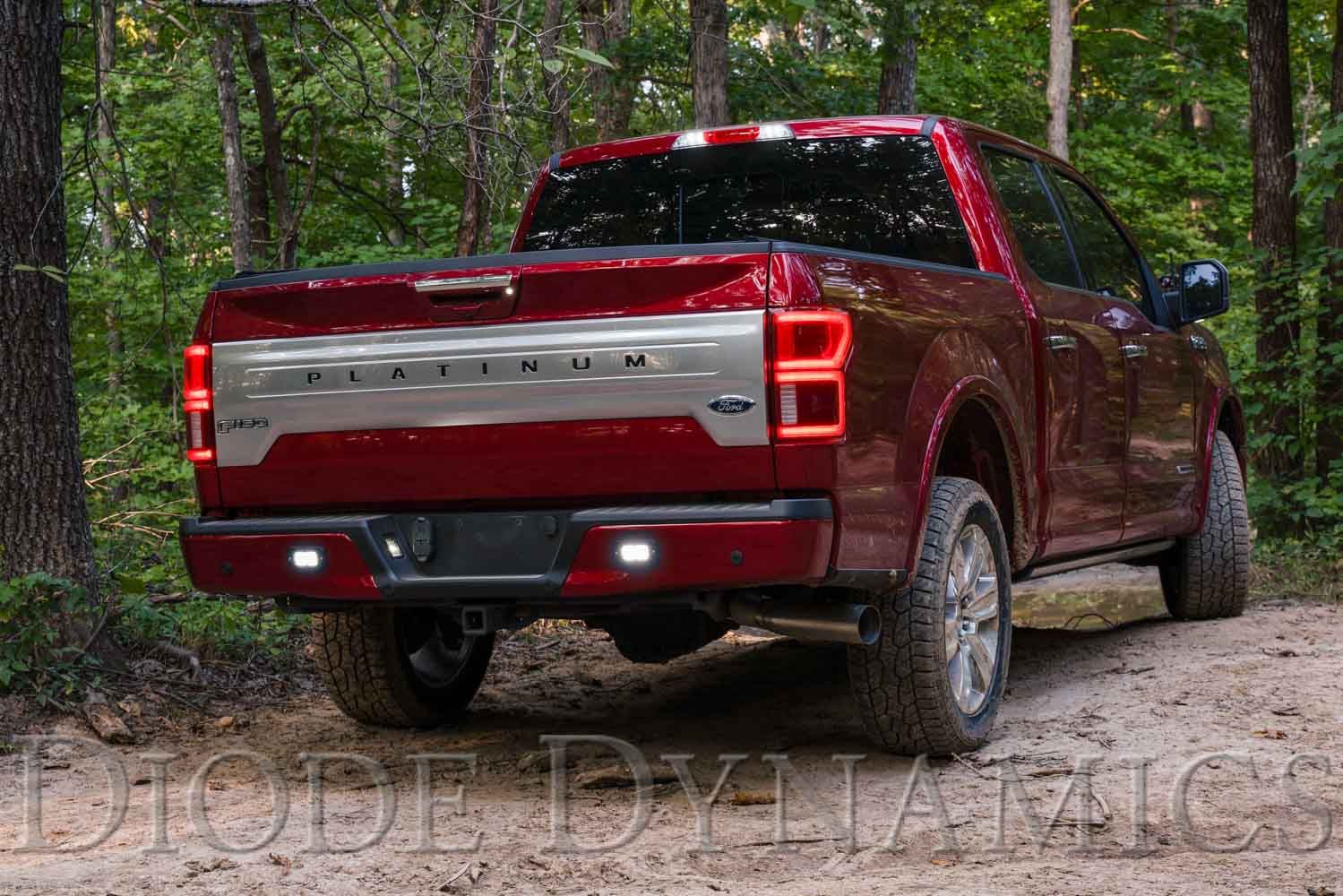

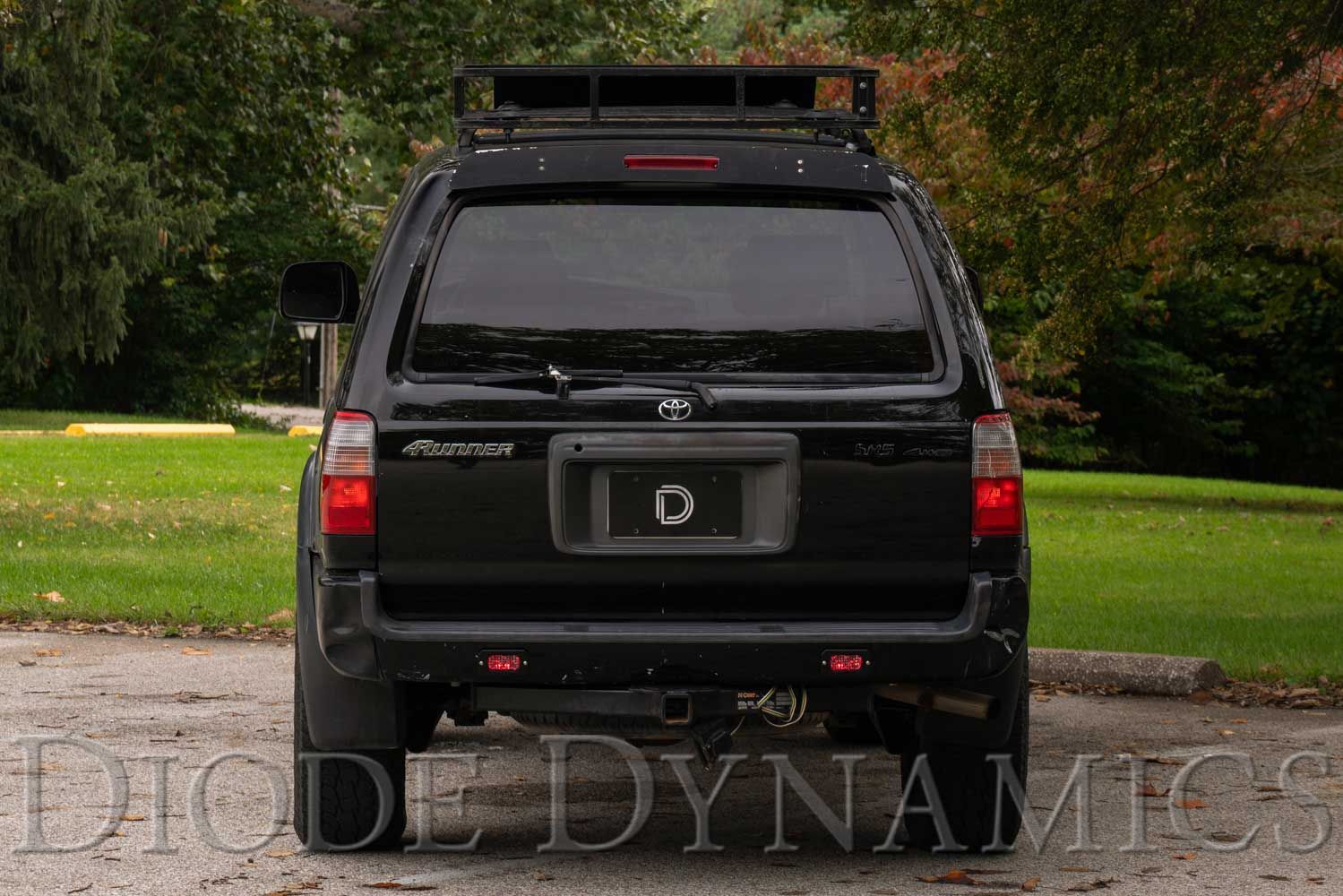

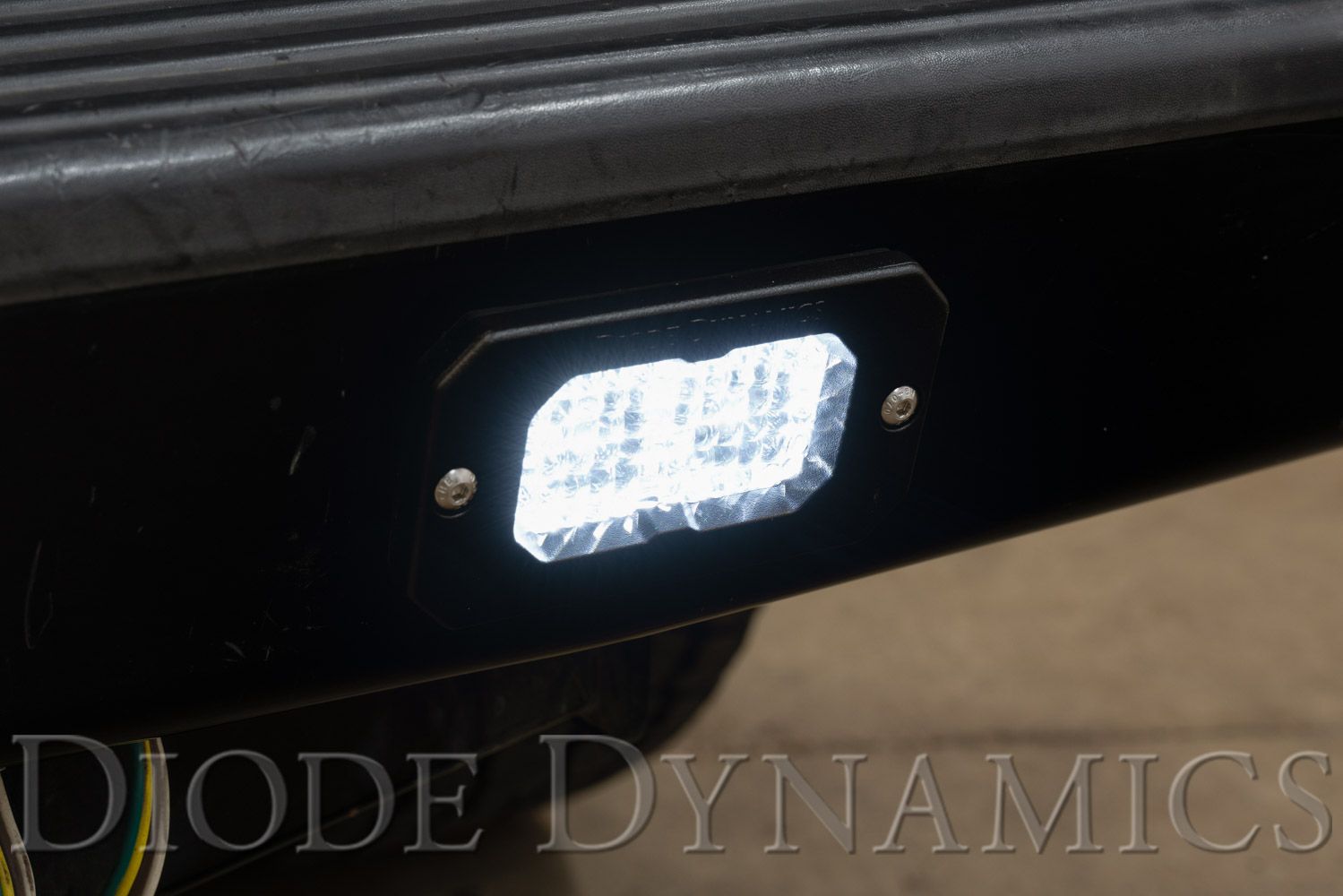

The Diode Dynamics Stage Series Flush Mount Reverse Light Kit C1 Sport offers a performance-driven upgrade for your vehicle's lighting. Add significantly more light output when backing up at night with our Stage Series Flush Mount Reverse Light Kit! This kit allows you to mount two flush mount SSC1 or SSC2 LED pods in your rear bumper. Designed with attention to detail, it provides: Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper; Connects to vehicle wiring for simple everyday operation; Provides high-power reverse light and red accent light; Durable powdercoated aluminum construction; Designed and assembled in USA

. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

Stage Series Flush Mount Reverse Light Kit C1 Sport, DD7146
Stage Series Flush Mount Reverse Light Kit C1 Pro, DD7147
Stage Series Flush Mount Reverse Light Kit C2 Sport, DD7148
Stage Series Flush Mount Reverse Light Kit C2 Pro, DD7149
Features and Benefits

Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper
Connects to vehicle wiring for simple everyday operation

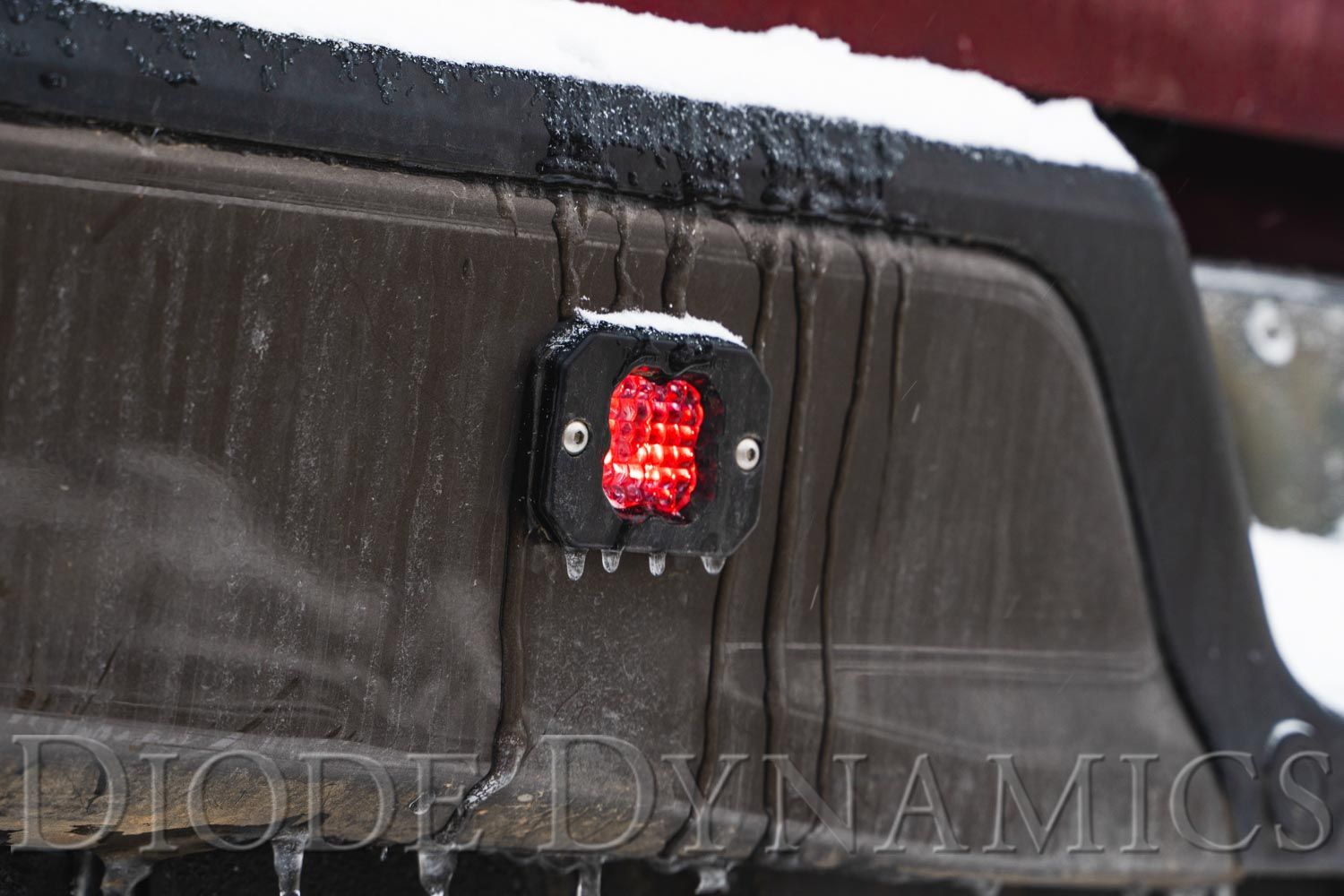

Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed and assembled in USA</p>
Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper
Connects to vehicle wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed and assembled in USA
Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper
Connects to vehicle wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed and assembled in USA
Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper
Connects to vehicle wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed and assembled in USA

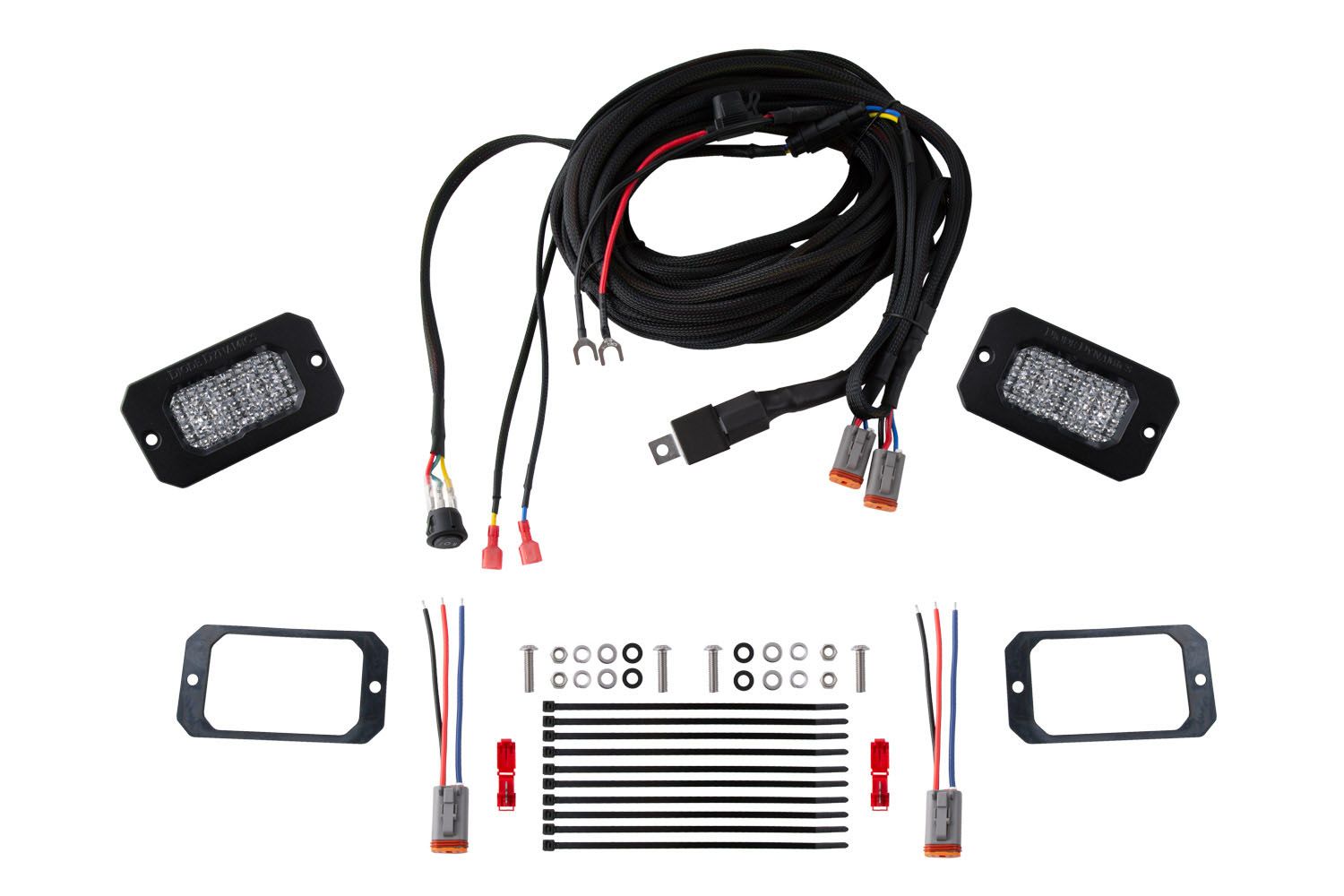

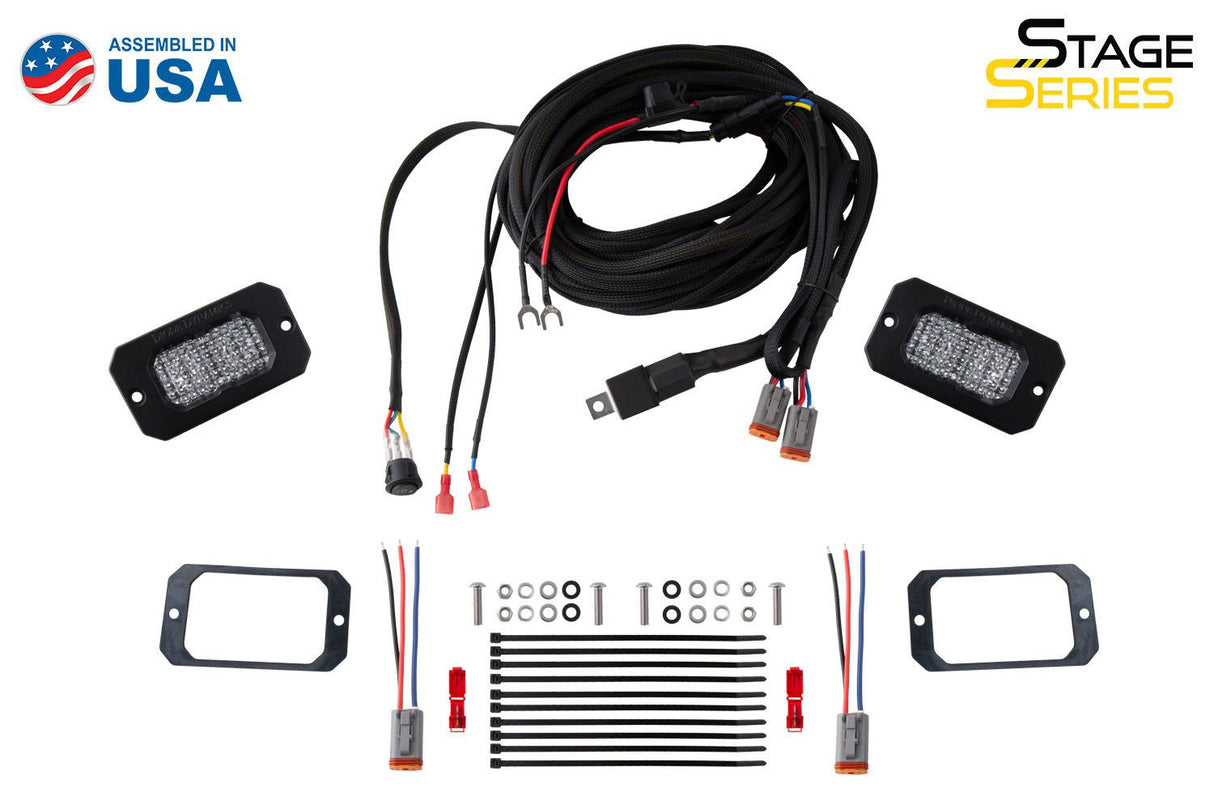

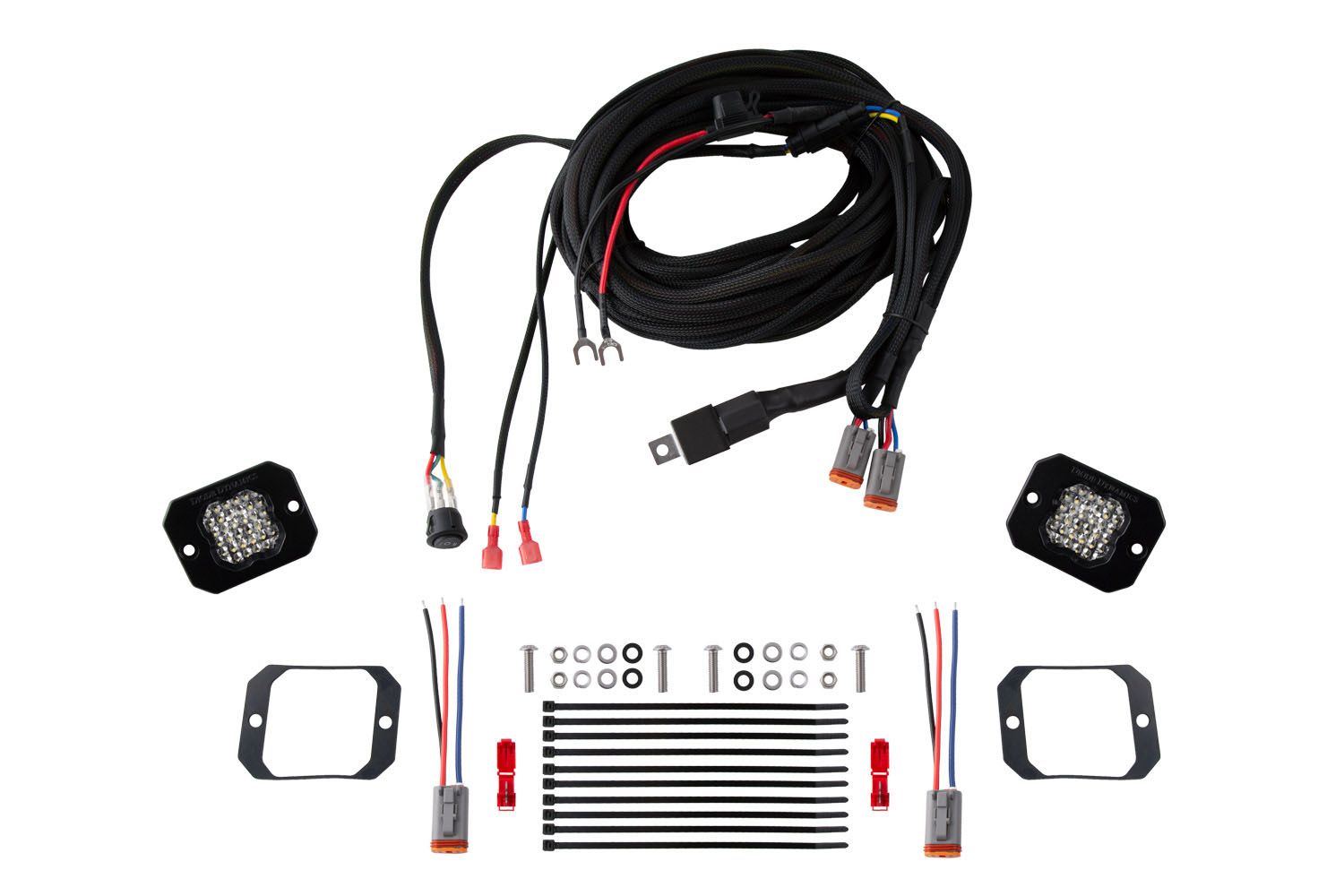

Whats Included

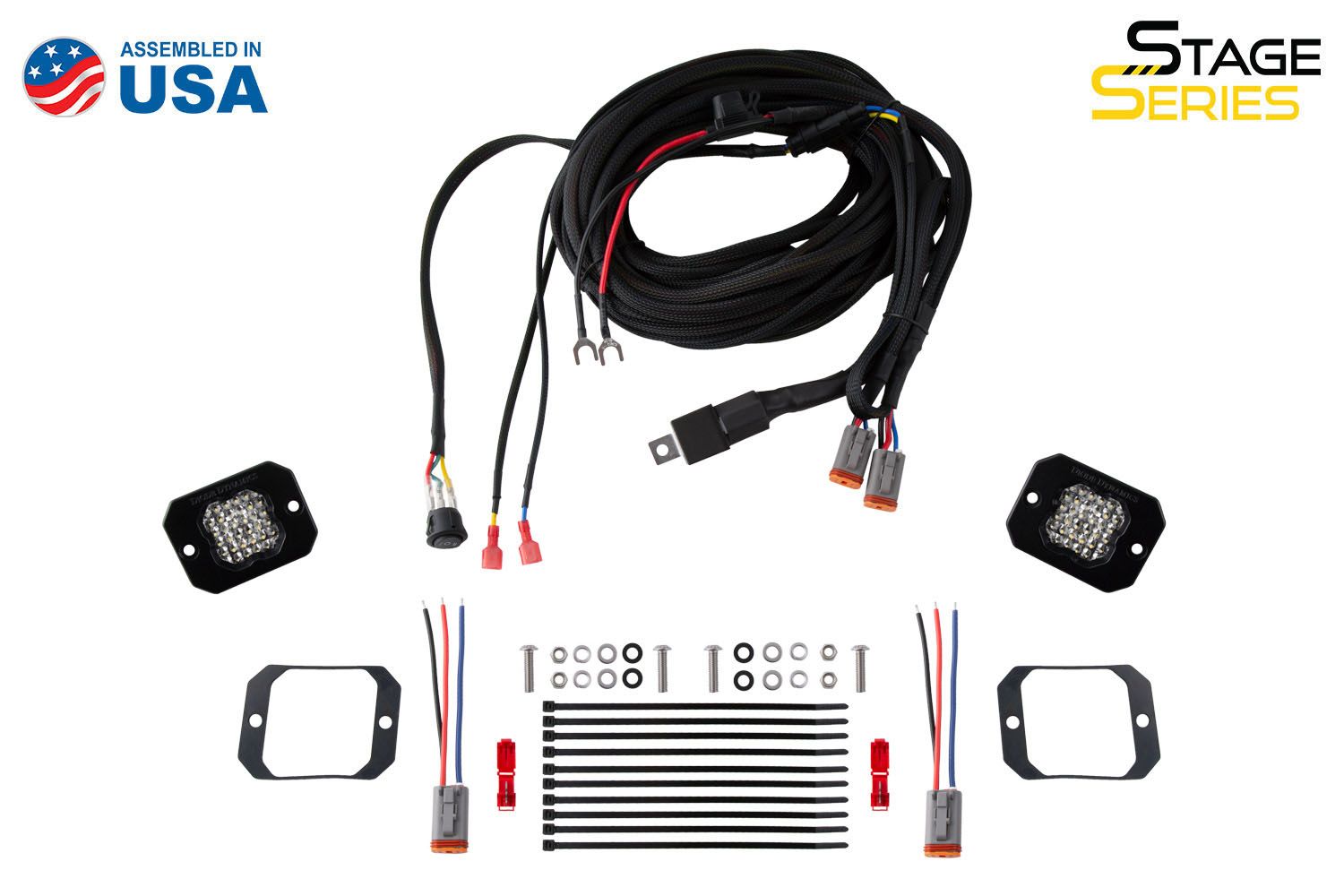

Included in the box:
- Two (2) SSC1 Flush Mount LED Pods
- One (1) Universal Backup Wiring Harness
- Two (2) Mounting brackets hardware
Included in the box:
- Two (2) SSC1 Flush Mount LED Pods
- One (1) Universal Backup Wiring Harness
- Two (2) Mounting brackets hardware

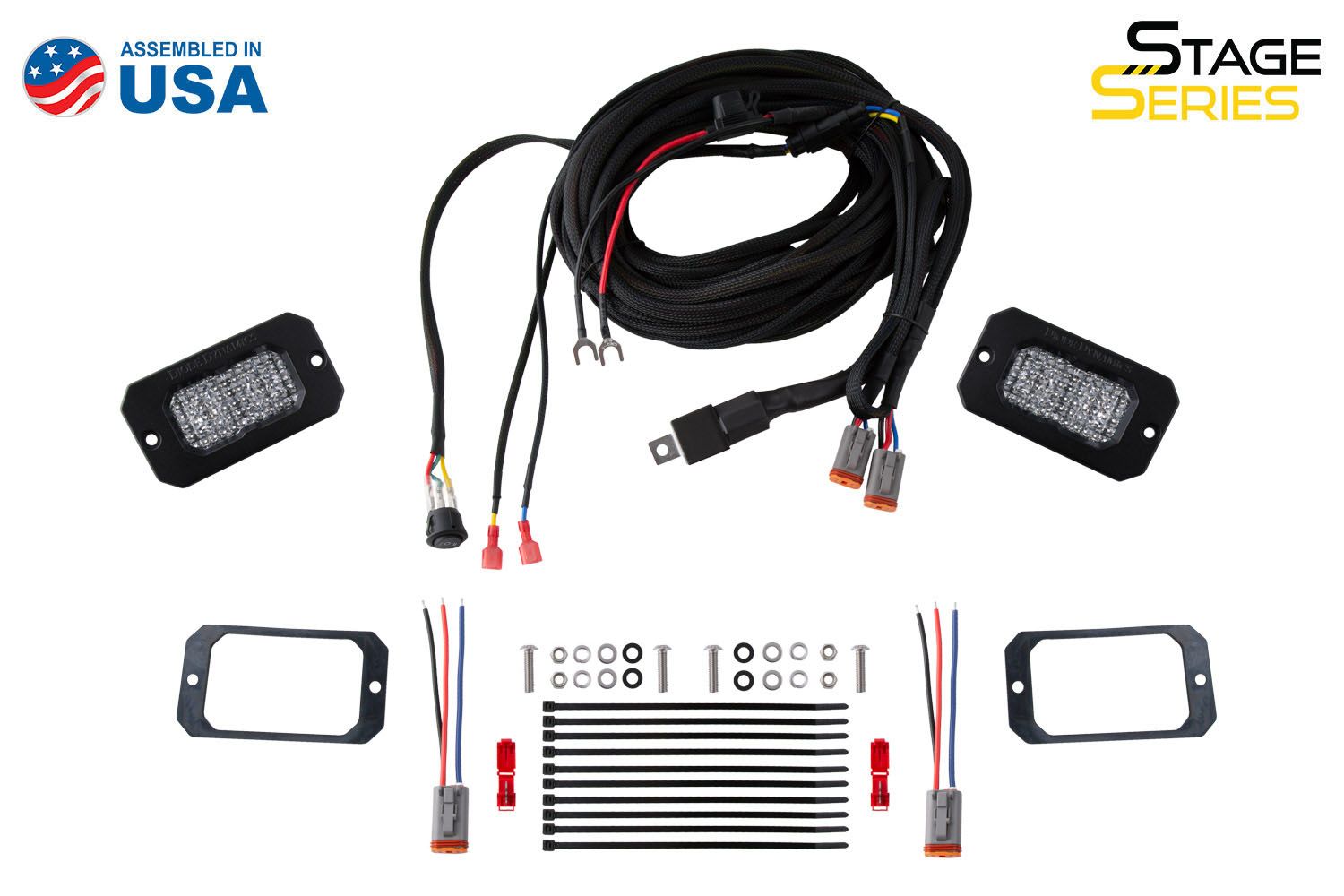

Included in the box:
- Two (2) SSC2 Flush Mount LED Pods
- One (1) Universal Backup Wiring Harness
- Two (2) Mounting brackets hardware
Included in the box:
- Two (2) SSC2 Flush Mount LED Pods
- One (1) Universal Backup Wiring Harness
- Two (2) Mounting brackets hardware
Tech Specs

Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 12.8 Backlight: 0.3
Intensity (lux): 400 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 030 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 12.8
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 19 Backlight: 0.3
Intensity (lux): 925 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 2 300 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 19
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 988 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 25.6
Wiring Harness Included: Yes
