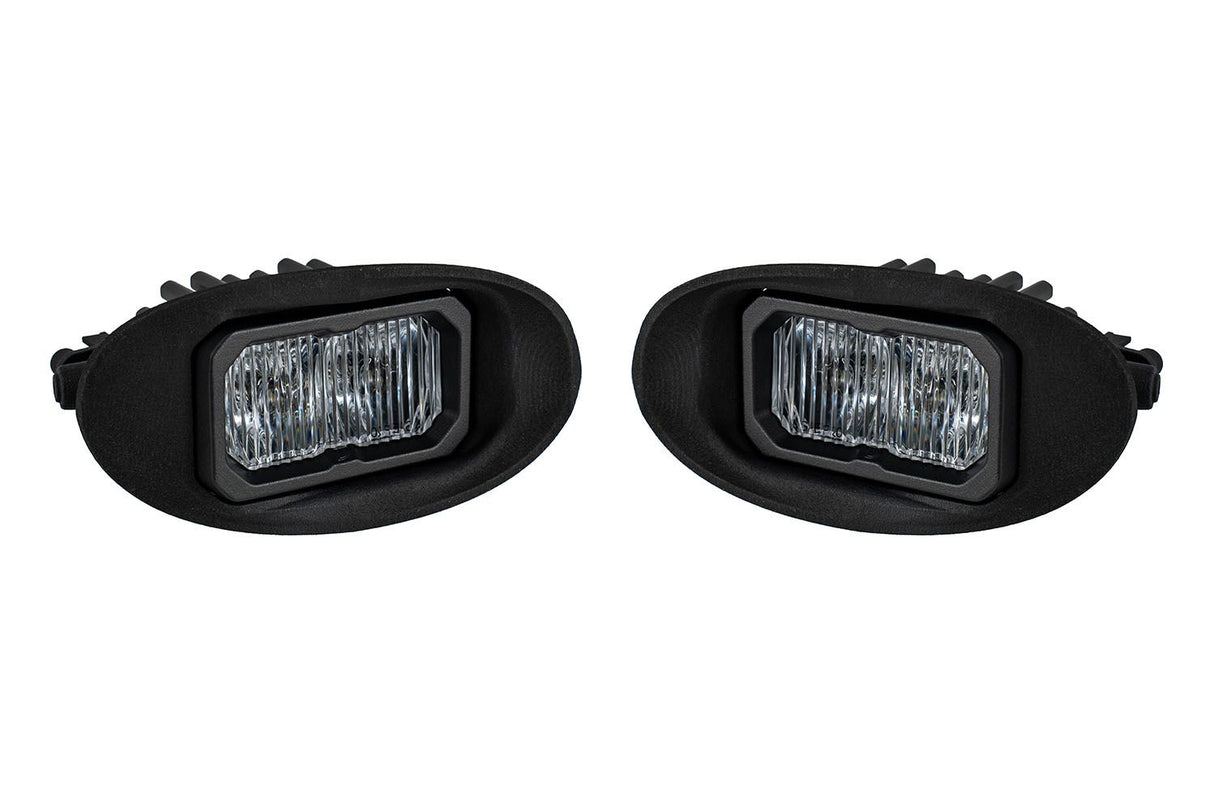

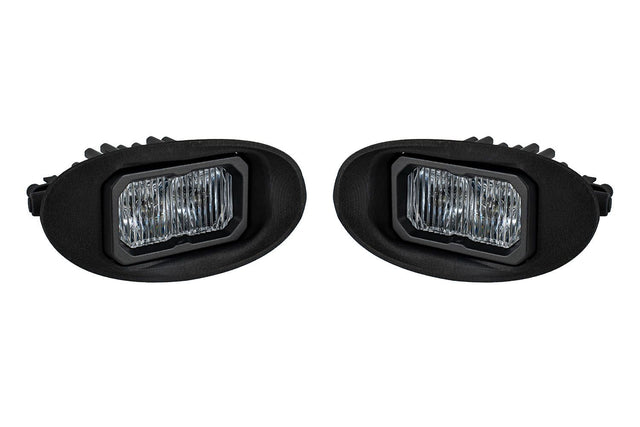

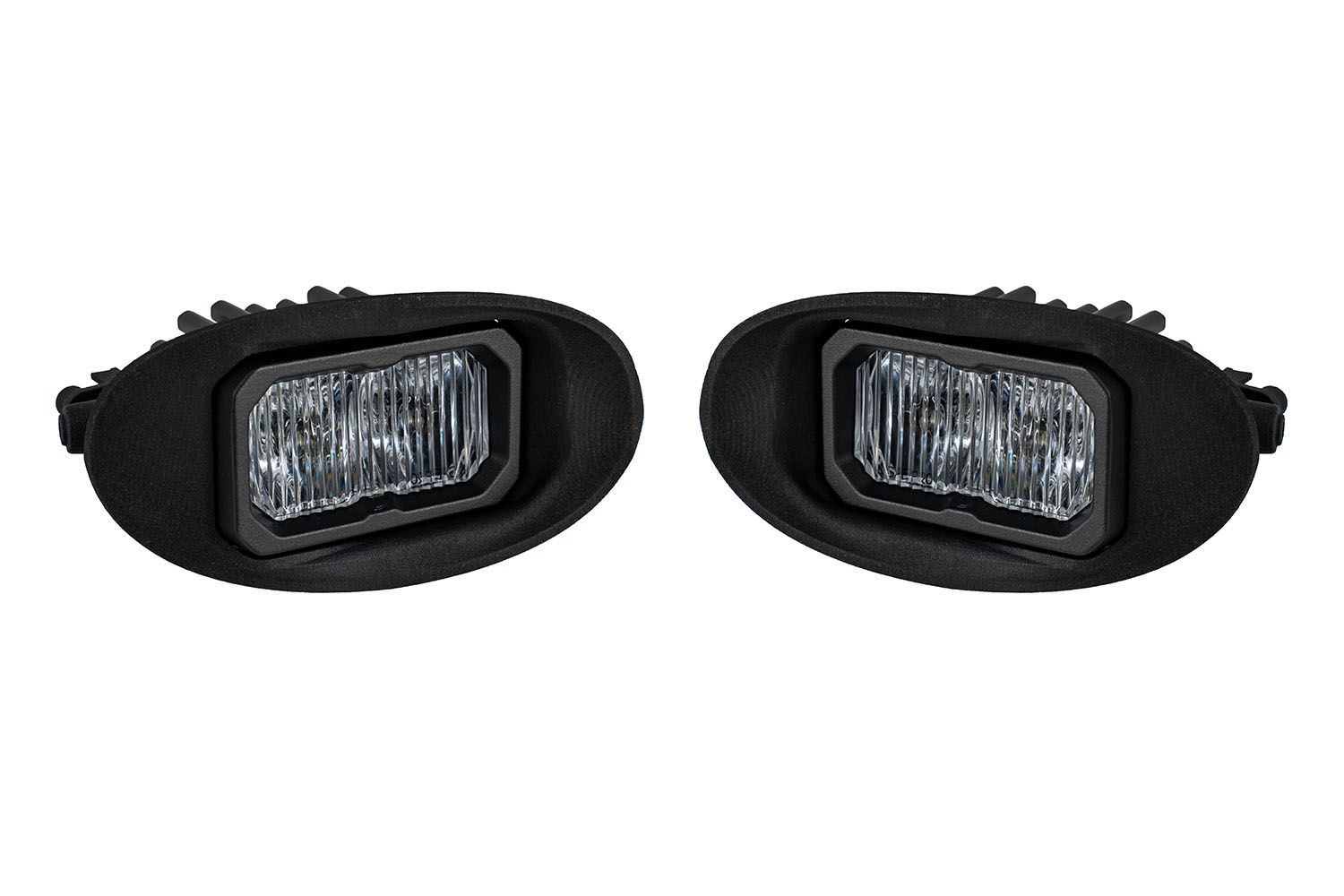

SSC2 SAE Type HN Fog Light Kit

$ 372.54 CAD $ 413.93 CAD

Diode Dynamics | SKU / Part Number: DD7995 | Barcode: 00195995138507

Choose Your Power Level

C2 1.0 Sport C2 1.0 Pro

Choose Your Optic and Color

White SAE Fog Yellow SAE Fog

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

These foglamps are a direct swap for many vehicles - see full list of expected fitments below.
Acura TSX 2006-2008
Honda Accord 2006-2010
Honda Crosstour 2010-2012
Honda Civic 2009-2015 (Non SI, Coupe 2012-2015 only)
Honda CR-Z 2011-2012
Honda Fit Sport 2012-2014
Honda Insight 2010-2012
Honda Odyssey 2008-2010
Honda Odyssey 2014-2017
Application: Fog Light

Description

The Diode Dynamics SSC2 Sport Type HN Kit ABL White SAE Fog offers a performance-driven upgrade for your vehicle's lighting. Upgrade your fog lights with our SSC2 Type HN Fog Light Bracket Kit! This Fog Kit has a clean factory-style appearance only much brighter! This kit includes custom 3D-printed brackets designed and produced by Foxbeam Lighting. Designed with attention to detail, it provides: Advanced TIR optics provide high efficiency and focus; High-intensity automotive-type LEDs; Pin-fin heatsink design; Integrated Deutsch-style connector; Durable powdercoated aluminum construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SSC2 Sport Type HN Kit ABL White SAE Fog, DD7995
SSC2 Sport Type HN Kit ABL Yellow SAE Fog, DD7996
SSC2 Pro Type HN Kit ABL White SAE Fog, DD7997
SSC2 Pro Type HN Kit ABL Yellow SAE Fog, DD7998
Features and Benefits

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction

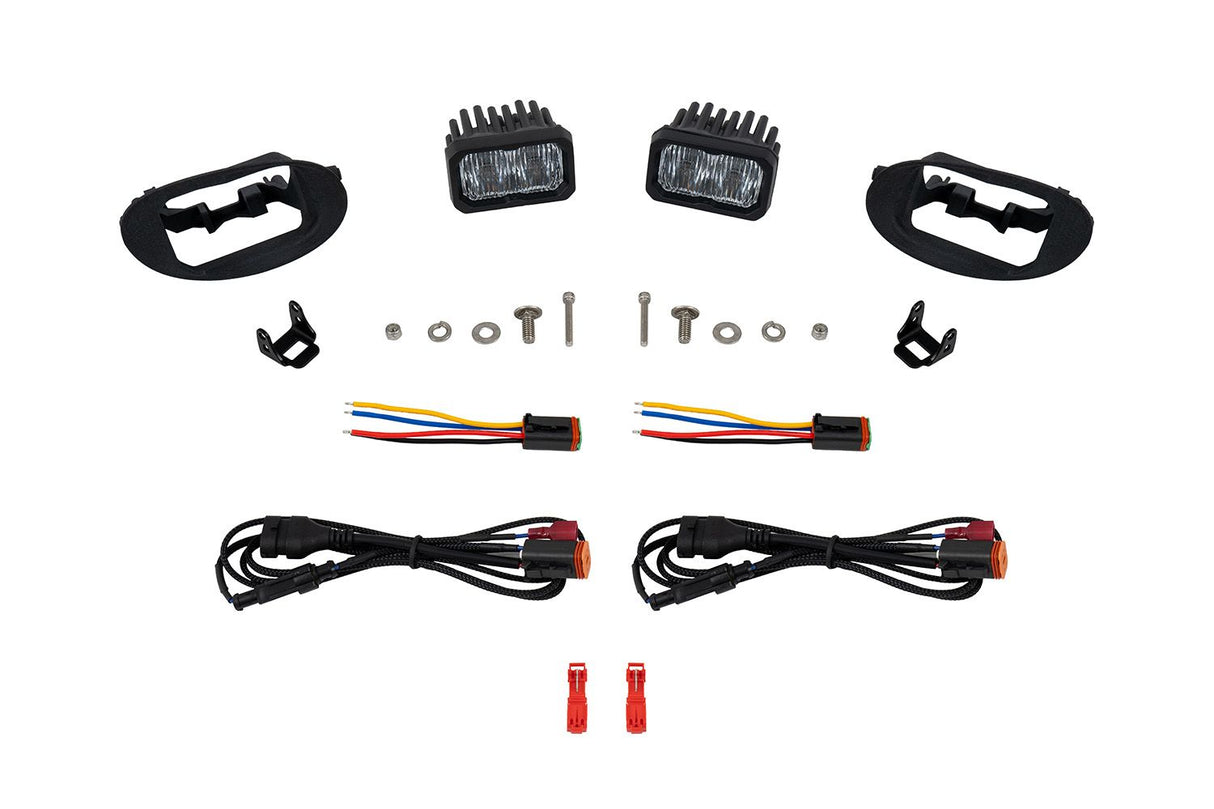

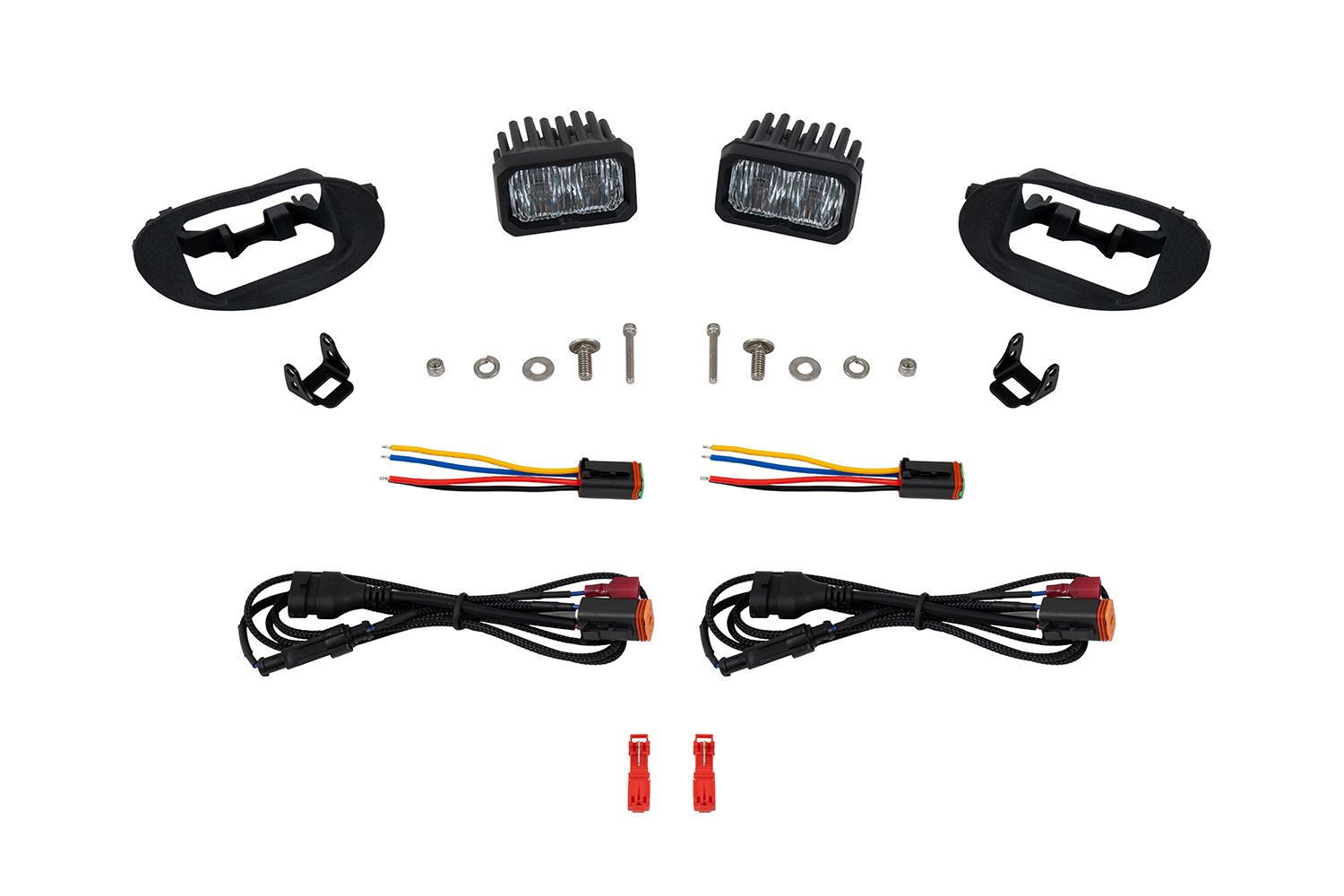

Whats Included

Included in the box:
- Two (2) SSC2 3” LED Pods
- Two (2) Foxbeam Type HN fog brackets
- One (1) H11 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SSC2 3” LED Pods
- Two (2) Foxbeam Type HN fog brackets
- One (1) H11 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SSC2 3” LED Pods
- Two (2) Foxbeam Type HN fog brackets
- One (1) H11 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SSC2 3” LED Pods
- Two (2) Foxbeam Type HN fog brackets
- One (1) H11 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Tech Specs

Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 5 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 7.7
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 4 400 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 777 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 7.7
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 8 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 998 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 25.6
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 7 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 858 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 25.6
