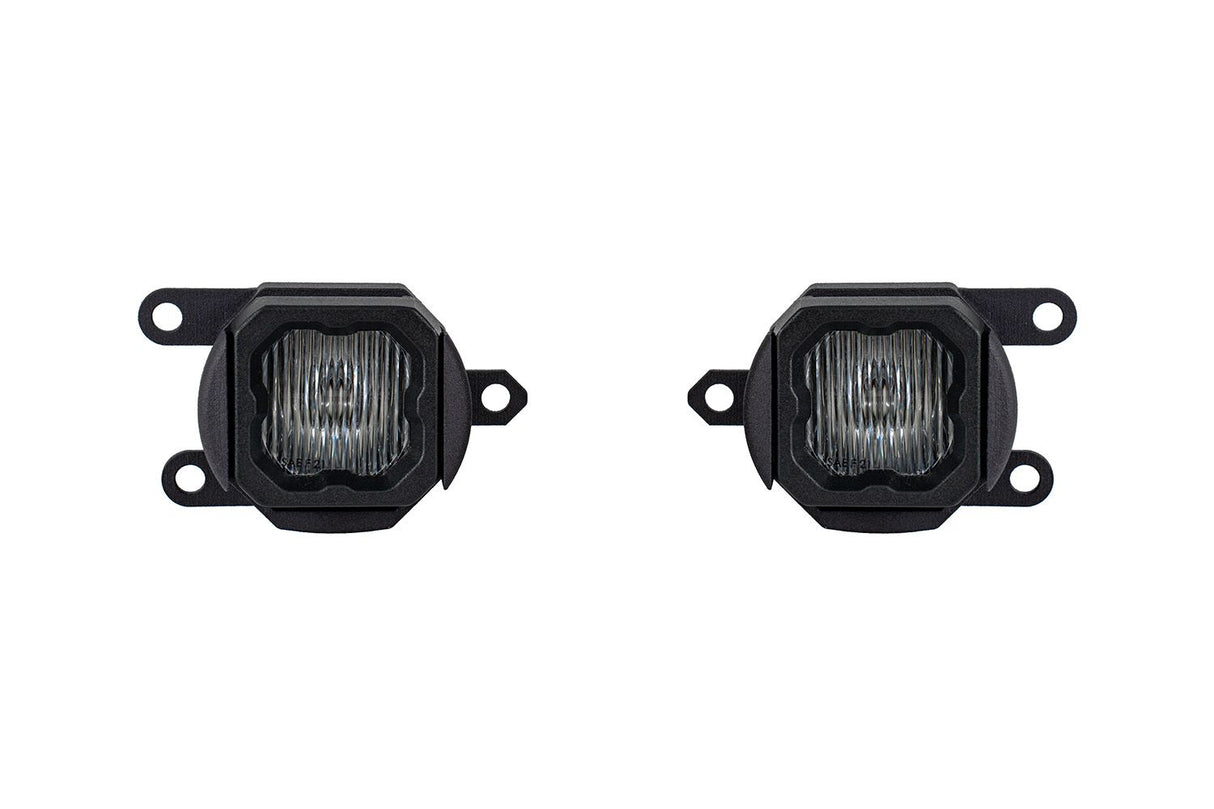

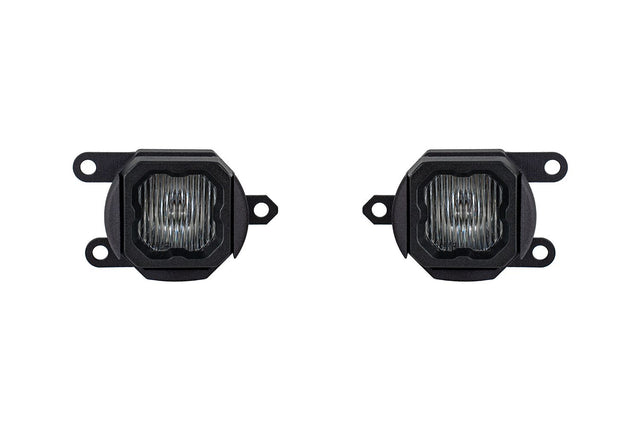

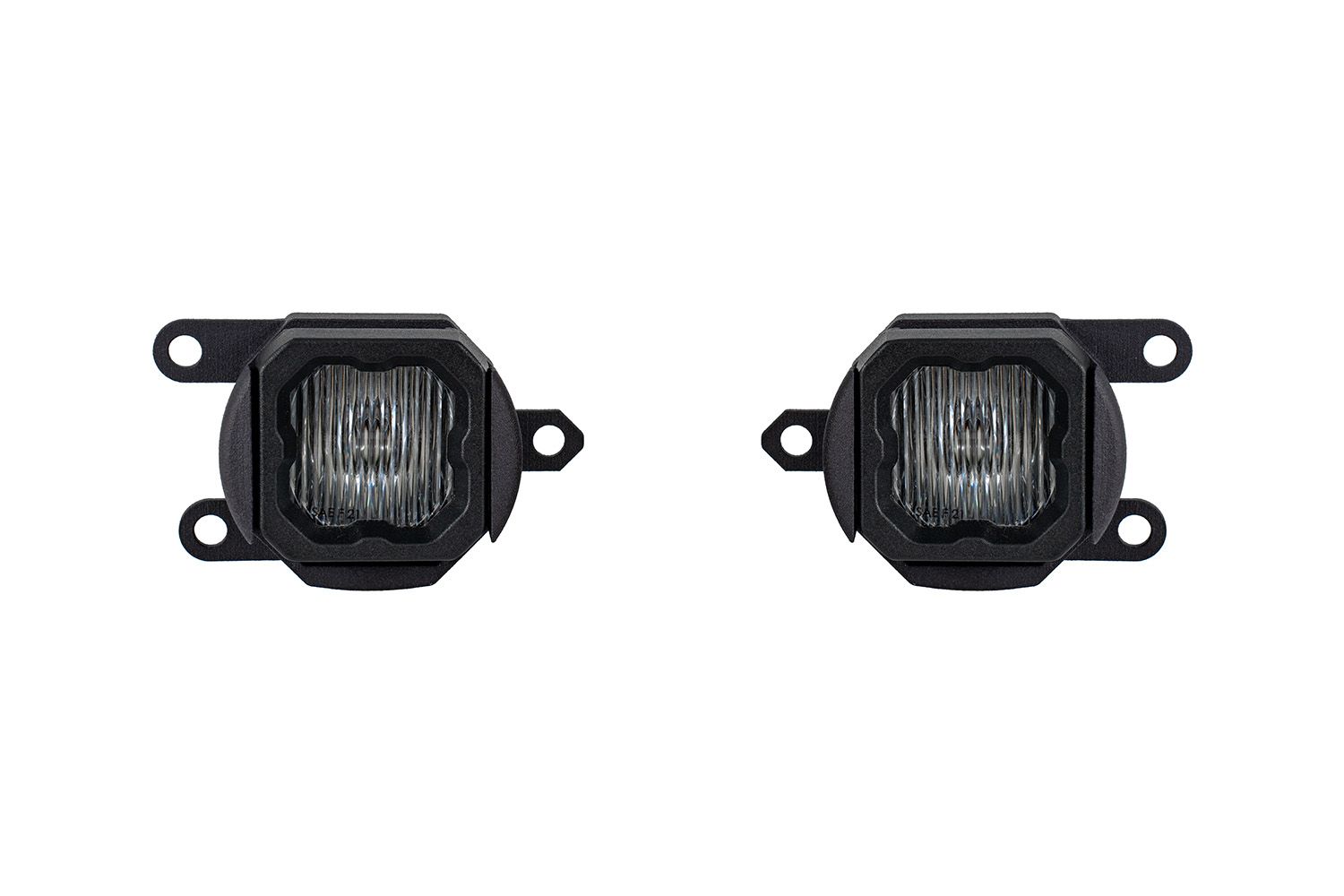

SSC1 SAE Type G4M Fog Light Kit

$ 397.38 CAD $ 441.53 CAD

Diode Dynamics | SKU / Part Number: DD8055 | Barcode: 00195995138422

Choose Your Optic and Color

White SAE Fog Yellow SAE Fog

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

These foglamps are a direct swap for many vehicles - see full list of expected fitments below.
Ford Escape 2023-2024
Ford Expedition 2022-2024
Ford Ranger Raptor 2024+
GMC Acadia 2020-2023
GMC Terrain 2022-2024
Mercedes GLB250 2020-2023
Mistubishi Outlander 2022-2024
Volvo Polestar 2 2021-2025
Volvo EX40 2025+
Volvo S60 2019-2025
Volvo v60 2019-2025
Volvo Cross Country 2019-2025
Volvo XC40 2018-2024
Application: Fog Light

Description

The Diode Dynamics SSC1 Type G4M LED Fog Light Kit White SAE Fog offers a performance-driven upgrade for your vehicle's lighting. Upgrade your fog lights with our SSC1 Type G4M Fog Light Bracket Kit! This Fog Kit has a clean factory-style appearance only much brighter! This kit includes custom 3D-printed brackets designed and produced by Foxbeam Lighting. Designed with attention to detail, it provides: SAE-compliant road-legal output; Molded bracket for perfect bolt-on fitment; Plug and play no modification needed; Advanced TIR optics provide high efficiency and focus; Engineered and Assembled in USA. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SSC1 Type G4M LED Fog Light Kit White SAE Fog, DD8055
SSC1 Type G4M LED Fog Light Kit Yellow SAE Fog, DD8056
Features and Benefits

SAE-compliant road-legal output
Molded bracket for perfect bolt-on fitment
Plug and play no modification needed
Advanced TIR optics provide high efficiency and focus
Engineered and Assembled in USA
SAE-compliant road-legal output
Molded bracket for perfect bolt-on fitment
Plug and play no modification needed
Advanced TIR optics provide high efficiency and focus
Engineered and Assembled in USA
Whats Included

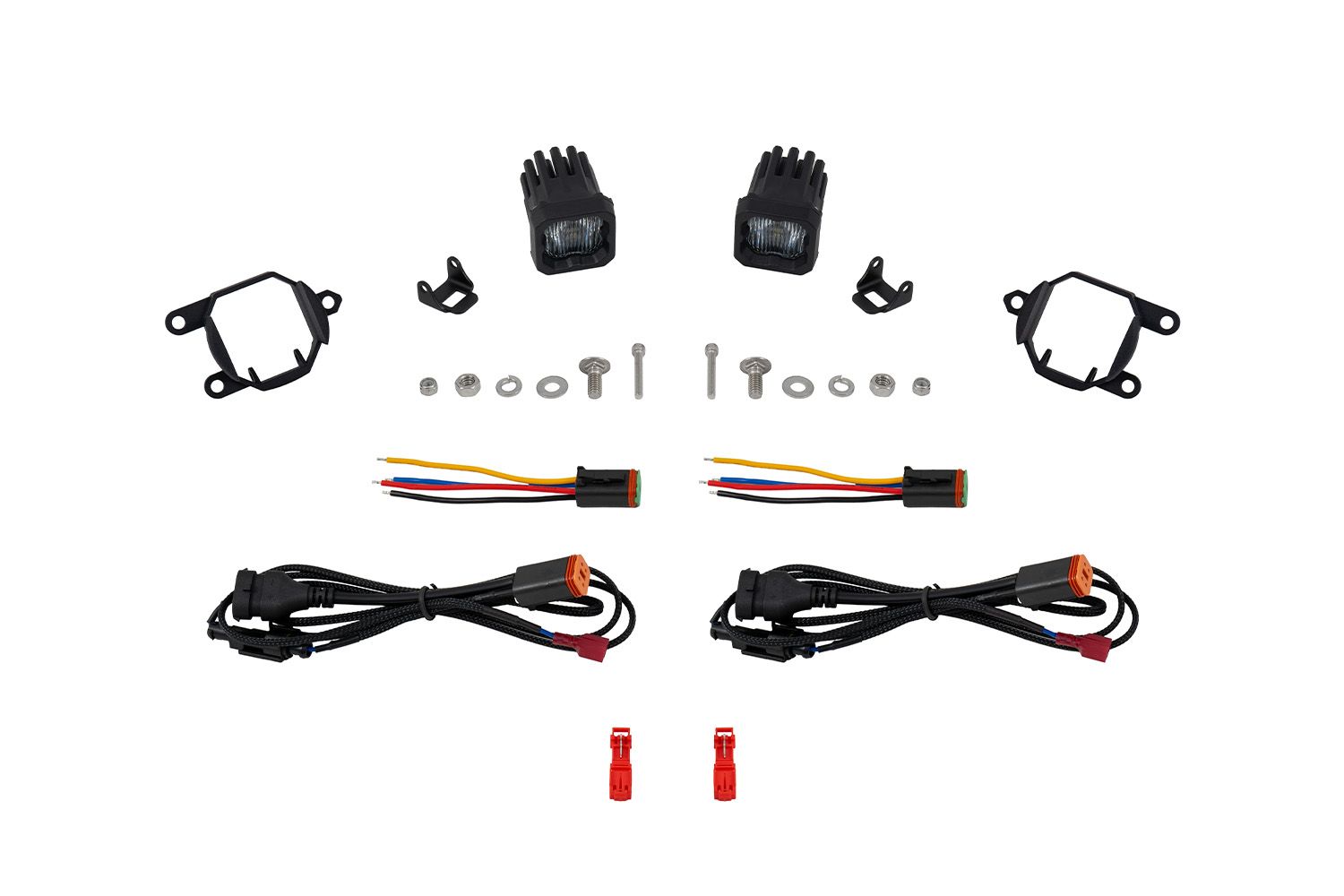

Included in the box:
- Two (2) SSC1 LED pods
- One (1) H11 Backlight Tap Wire Kit
- Two (2) Foxbeam Type G4M brackets
- Mounting hardware
Included in the box:
- Two (2) SSC1 LED pods
- One (1) H11 Backlight Tap Wire Kit
- Two (2) Foxbeam Type G4M brackets
- Mounting hardware
Tech Specs

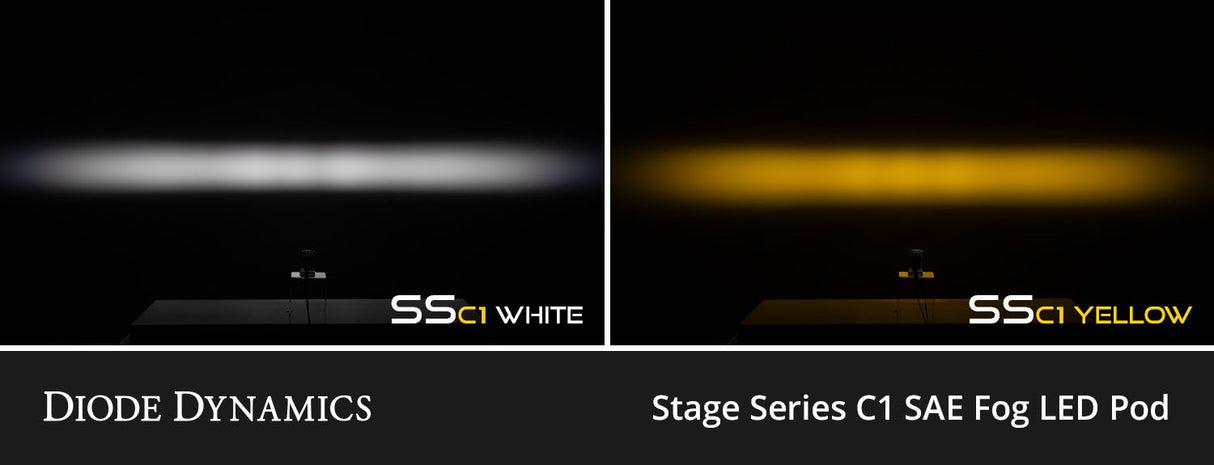

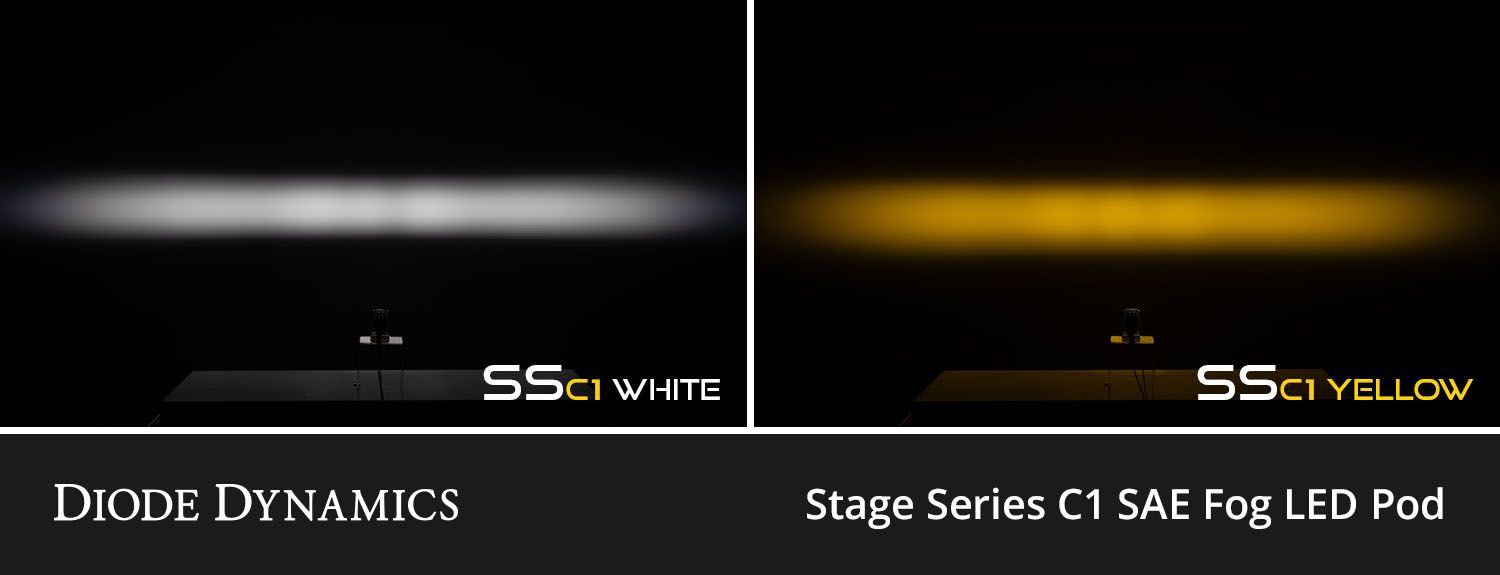

Beam Angle: Fog 98°x9°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 19.2 Backlight: .3
Intensity (lux): 6 000 cd
Intrusion Rating: IP67 Weatherproof
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 430 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 19
Beam Angle: Fog 98°x9°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 19.2 Backlight: .3
Intensity (lux): 4 200 cd
Intrusion Rating: IP67 Weatherproof
Lens Material: Polycarbonate
Light Housing Color: Black
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Raw Output (lumens): 1 980
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wattage: 19
