SS3 SAE GMC Sierra 2003 Fog Light Kit

$ 471.90 CAD $ 524.33 CAD

Diode Dynamics | SKU / Part Number: DD8463 | Barcode: 00195995142481

Choose Your Power Level

Sport (14.5 watts) Pro (36 watts) Max (38.5 watts)

Choose Your Optic and Color

White SAE Fog Yellow SAE Fog

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

These foglamps are a direct swap for many vehicles - see full list of expected fitments below.
GMC Sierra 1500/2500/3500 w/ OEM fogs 2003-2006 (excluding Denali)
Application: Fog Light

Description

The Diode Dynamics SS3 Sport Type Sierra 2003 Kit ABL White SAE Fog offers a performance-driven upgrade for your vehicle's lighting.

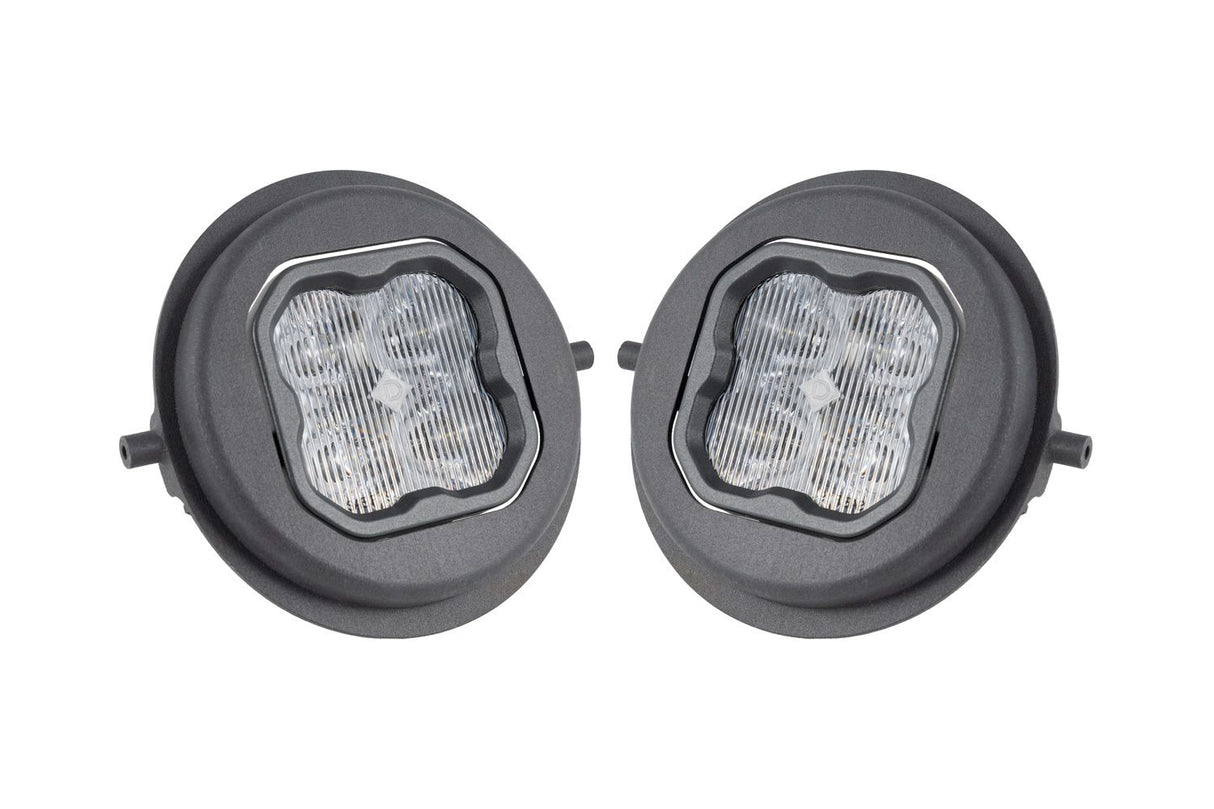

Upgrade your fog lights with our SS3 Type Sierra Fog Light Bracket Kit! This Fog Kit has a clean factory-style appearance only much brighter! This kit includes custom 3D-printed brackets designed and produced by Foxbeam Lighting.

Designed with attention to detail, it provides: Advanced TIR optics provide high efficiency and focus; High-intensity automotive-type LEDs; Pin-fin heatsink design; Integrated Deutsch-style connector; Durable powdercoated aluminum construction. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

SS3 Sport Type Sierra 2003 Kit ABL White SAE Fog, DD8463
SS3 Sport Type Sierra 2003 Kit ABL Yellow SAE Fog, DD8464
SS3 Pro Type Sierra 2003 Kit ABL White SAE Fog, DD8465
SS3 Pro Type Sierra 2003 Kit ABL Yellow SAE Fog, DD8466
SS3 Max Type Sierra 2003 Kit ABL White SAE Fog, DD8467
SS3 Max Type Sierra 2003 Kit ABL Yellow SAE Fog, DD8468
Features and Benefits

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction

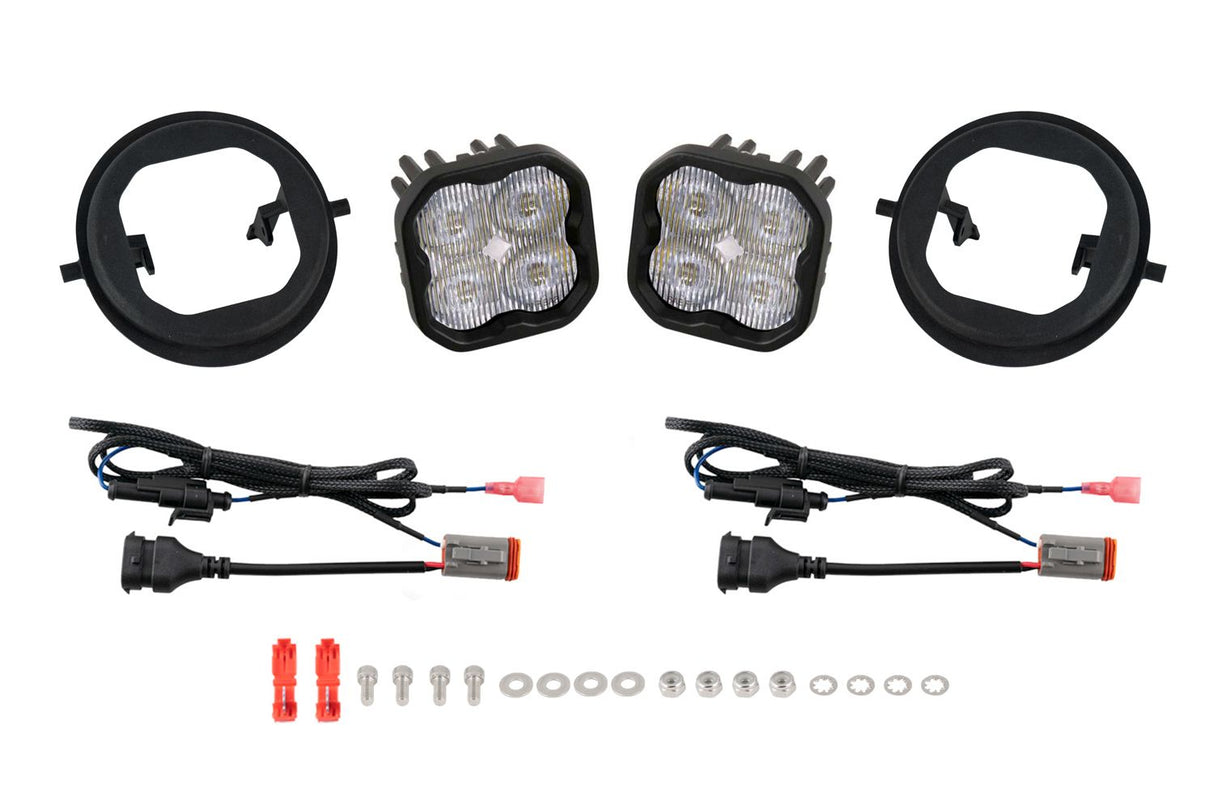

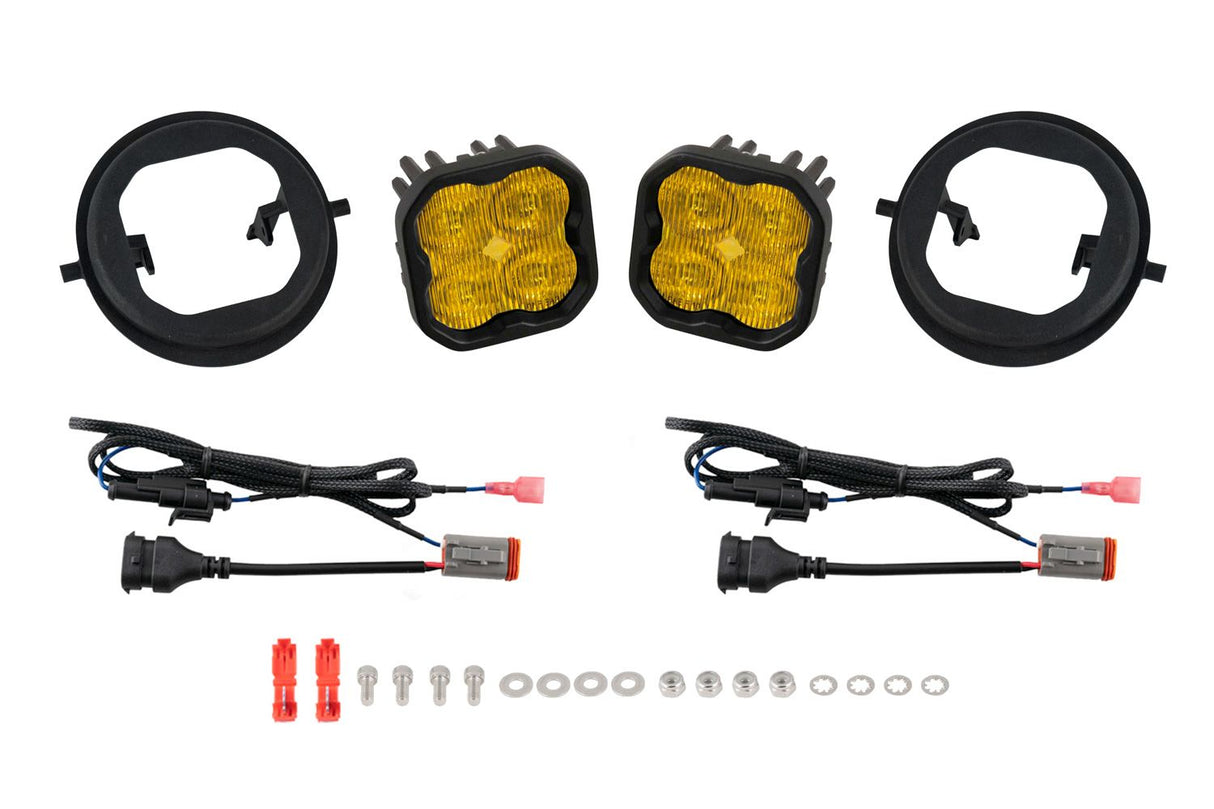

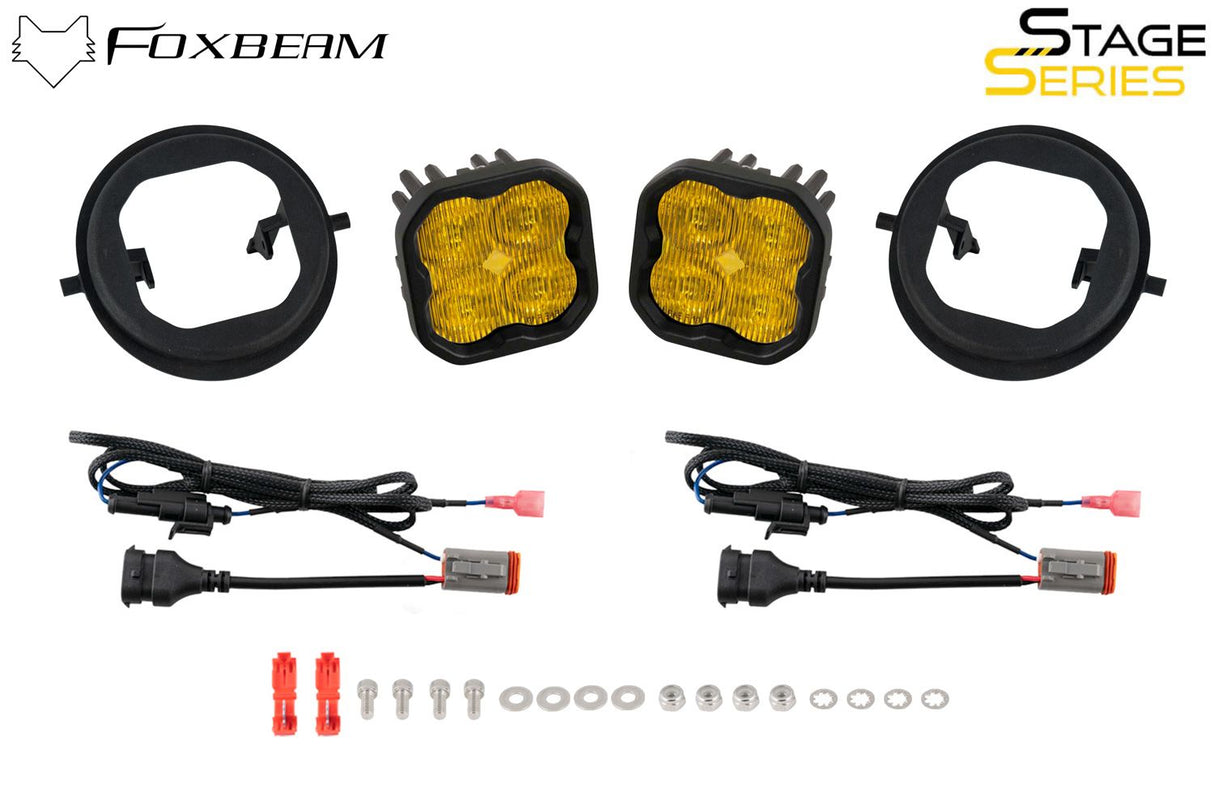

Whats Included

Included in the box:
- Two (2) SS3 3” LED Pods
- Two (2) Foxbeam Type Sierra fog brackets
- One (1) 9006 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” LED Pods
- Two (2) Foxbeam Type Sierra fog brackets
- One (1) 9006 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” LED Pods
- Two (2) Foxbeam Type Sierra fog brackets
- One (1) 9006 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” LED Pods
- Two (2) Foxbeam Type Sierra fog brackets
- One (1) 9006 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” LED Pods
- Two (2) Foxbeam Type Sierra fog brackets
- One (1) 9006 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Included in the box:
- Two (2) SS3 3” LED Pods
- Two (2) Foxbeam Type Sierra fog brackets
- One (1) 9006 Backlight Tap Wire Kit
- Mounting hardware
- Mounting guide
Tech Specs

Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 10 600 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 520 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Wattage: 14.5
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 14.5 Backlight: 0.4
Intensity (lux): 9 050 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 1 300 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Wattage: 14.5
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 36 Backlight: 0.4
Intensity (lux): 11 900 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 000 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 36 Backlight: 0.4
Intensity (lux): 10 900 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 2 700 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 38.5 Backlight: 0.4
Intensity (lux): 18 000 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 500 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
Beam Angle: Fog 80°x8°
Bracket Color: Black
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Grade Type: Performance
Housing Material: Aluminum
Input Power (watts): Main Beam: 38.5 Backlight: 0.4
Intensity (lux): 12 500 cd
Intrusion Rating: IP69K Waterproof High Pressure
Lens Material: Polycarbonate
Light Housing Color: Black
Measured Output (lumens): 3 500 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-30V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-30V
