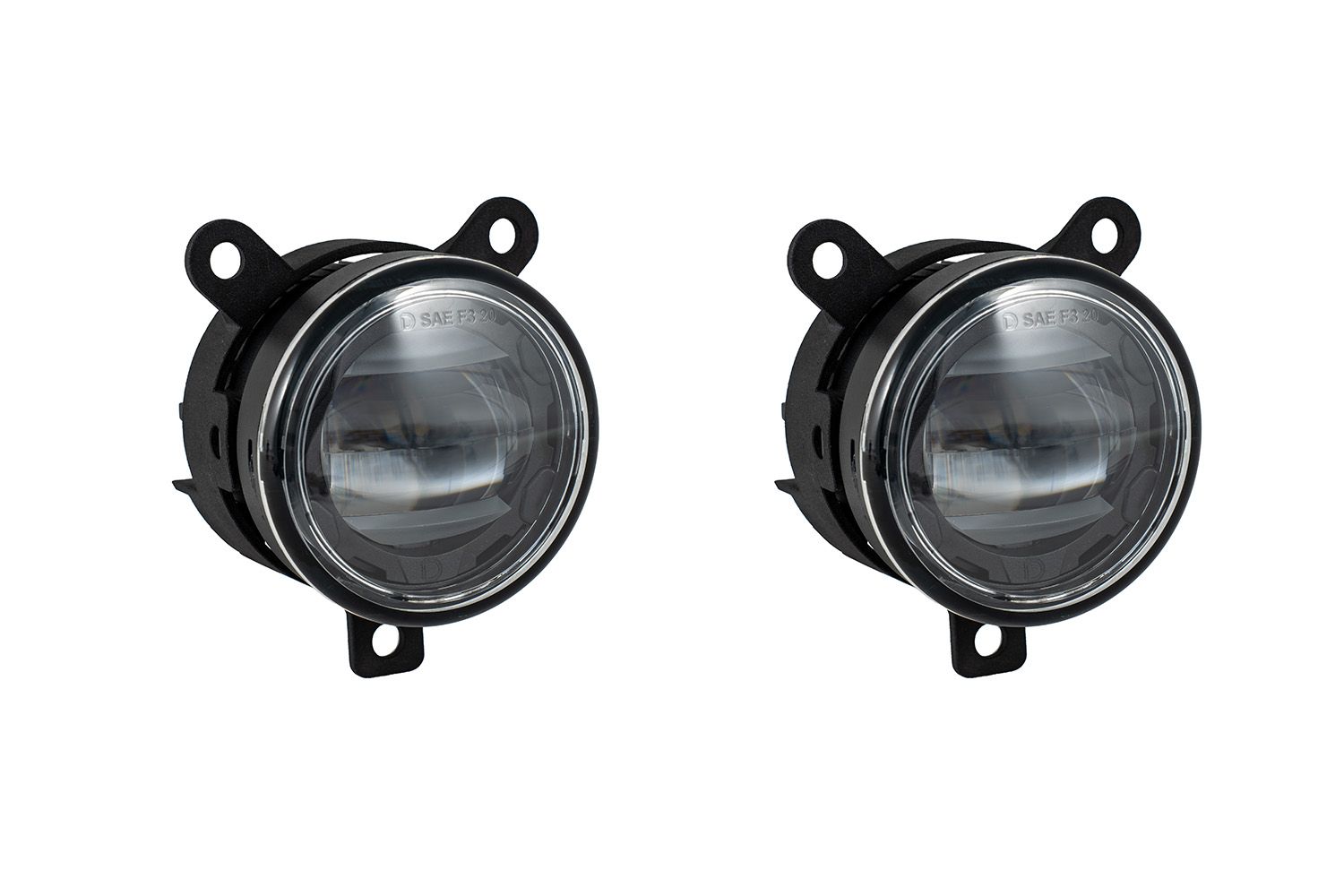

Elite Series Type Y Fog Lamps (pair)

$ 372.54 CAD $ 413.93 CAD

Diode Dynamics | SKU / Part Number: DD7985 | Barcode: 00195995138477

Choose Your Color

Cool White (6000K) Yellow (3000K)

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

These foglamps are a direct swap for many vehicles - see full list of expected fitments below.
Subaru Ascent 2023-2024
Subaru BRZ 2017-2020
Subaru Crosstrek Wilderness 2024+
Subaru Forester Wilderness2022-2024
Subaru WRX 2022-2024
Application: Fog Light

Description

The Diode Dynamics Elite Foglamp Type Y White (pair) offers a performance-driven upgrade for your vehicle's lighting. Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. Featuring a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards. Designed with attention to detail, it provides: High-performance OEM-grade replacement; Custom-engineered optic provides extremely wide intense light output; Distinctive amber backlight; Road-legal fog light (SAE F3 compliant); Plug and play main beam no modification needed. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

Elite Foglamp Type Y White (pair), DD7985
Elite Foglamp Type Y Yellow (pair), DD7986
Features and Benefits

High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide intense light output

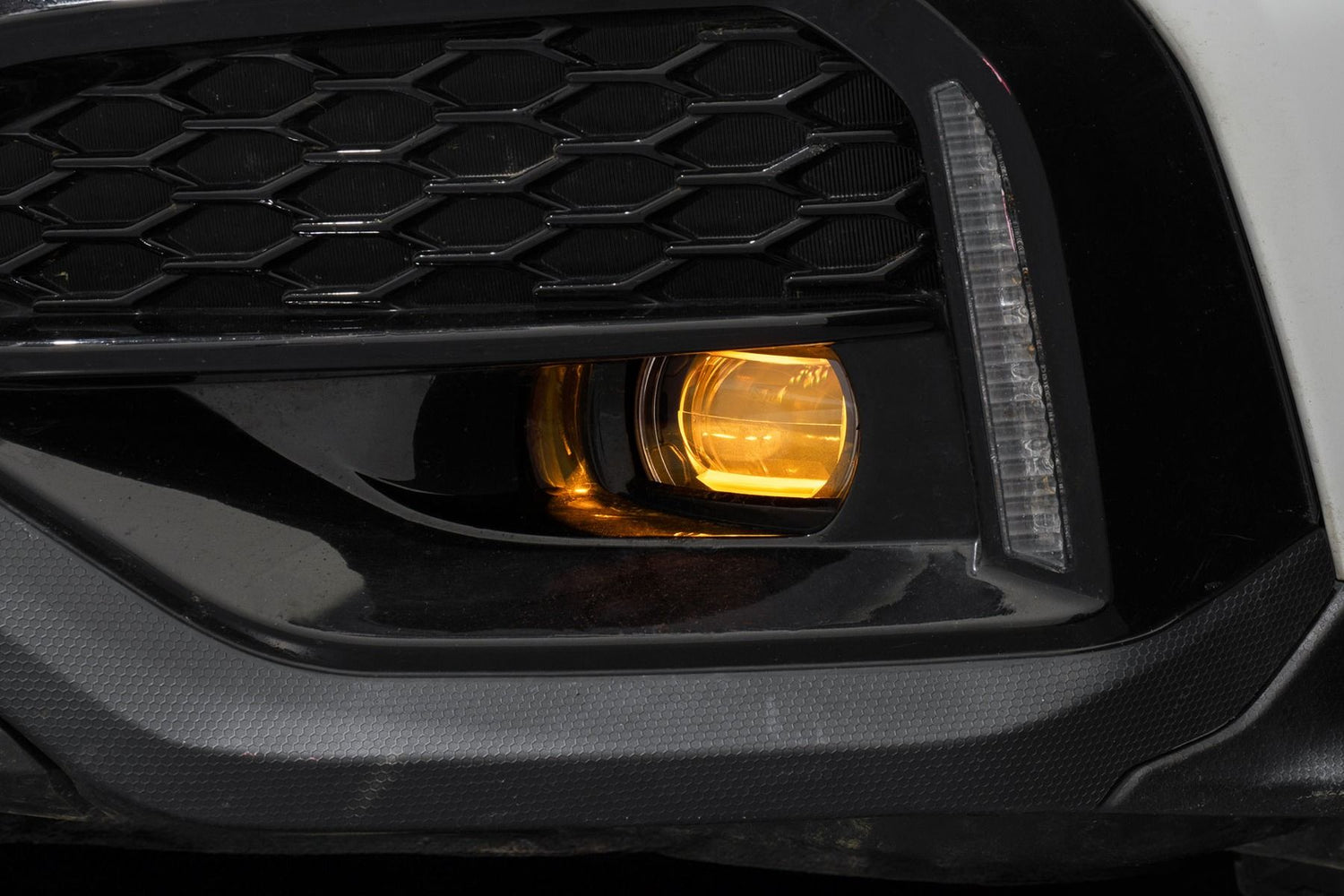

Distinctive amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam no modification needed
High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide intense light output
Distinctive amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam no modification needed

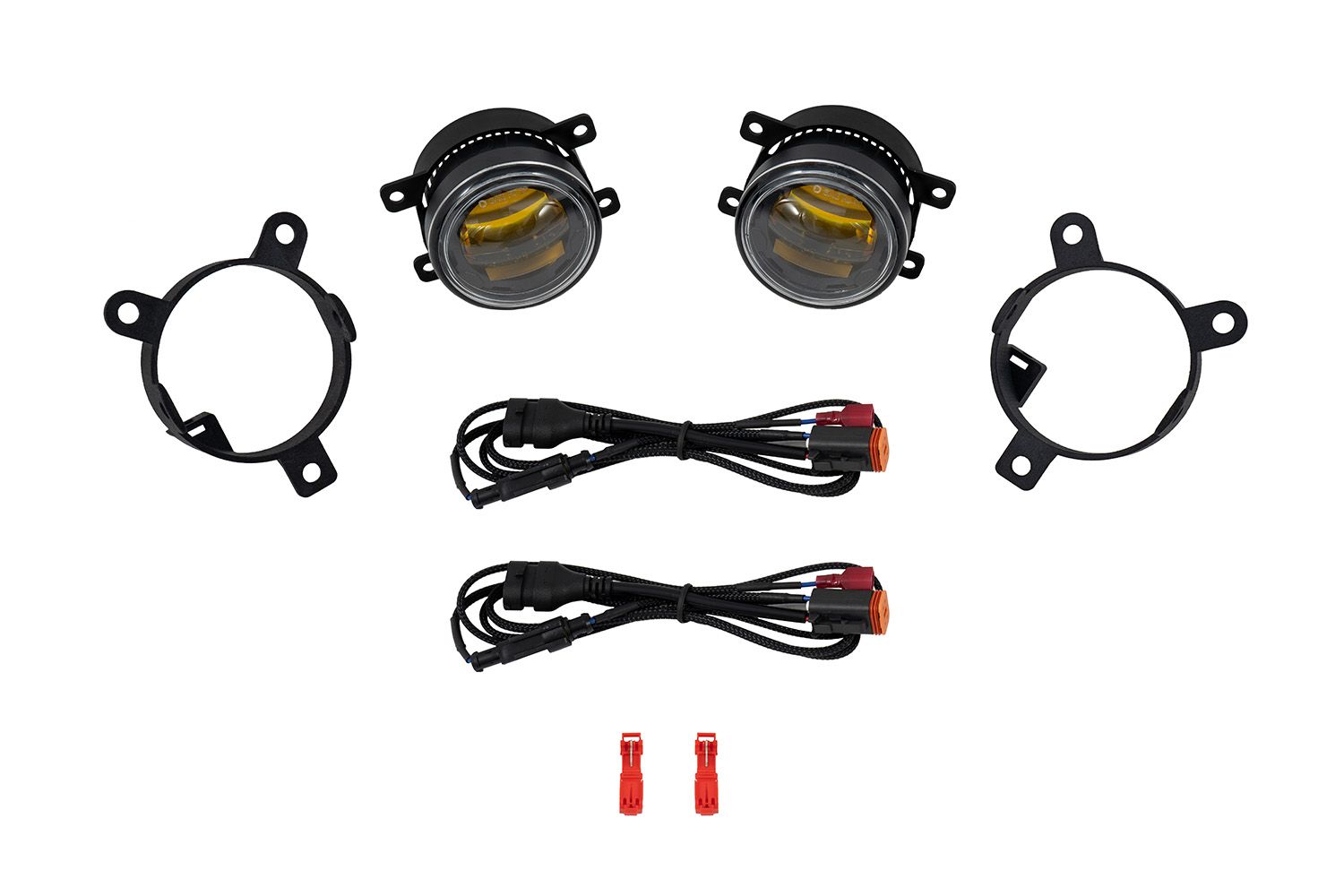

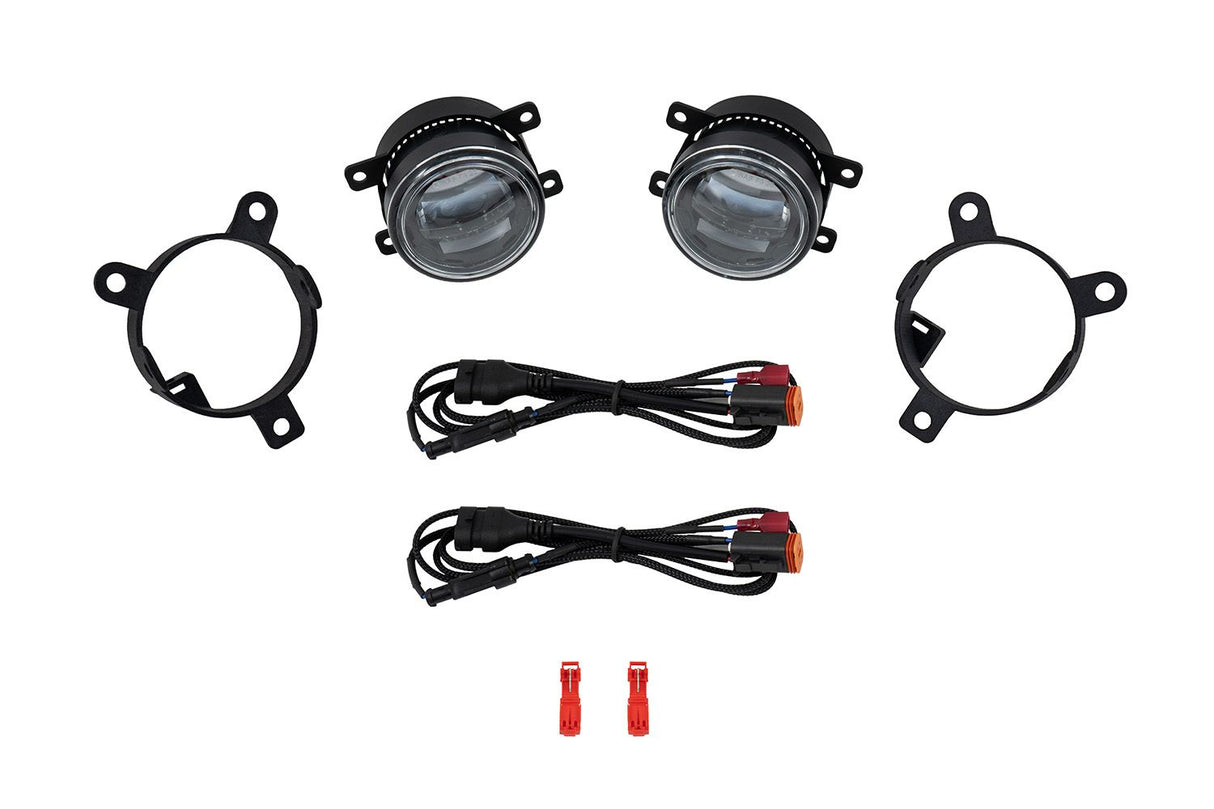

Whats Included

Included in the box:
- Two (2) Elite Series Type Y fog lamps
- Two (2) H11 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Included in the box:
- Two (2) Elite Series Type Y fog lamps
- Two (2) H11 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Tech Specs

Beam Angle: Fog 80°x8°
Bulbs Included: No
Color Temp: 1800K 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Housing Color: Black
Housing Shape: Round
Input Power (watts): Main Beam: 18 Backlight: 0.3
Intensity (lux): 13 000 cd
Intrusion Rating: IP68 Waterproof
Measured Output (lumens): Main Beam: 680 lm Backlight: 3 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Raw Output (lumens): Main Beam: 1 850 lm Backlight: 14 lm
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 18
Wire Gauge Measurement: 22
Wiring Harness Included: Yes
Beam Angle: Fog 75° x8°
Bulbs Included: No
Color Temp: 1800K 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Housing Color: Black
Housing Shape: Round
Input Power (watts): Main Beam: 18 Backlight: 0.3
Intensity (lux): 11 400 cd
Intrusion Rating: IP68 Waterproof
Measured Output (lumens): Main Beam: 560 lm Backlight: 3 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Raw Output (lumens): Main Beam: 1 650 lm Backlight: 14 lm
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 18
Wire Gauge Measurement: 22
Wiring Harness Included: Yes
