Elite Series Type MR Fog Lamps (pair)

$ 427.73 CAD

Diode Dynamics | SKU / Part Number: DD5163P | Barcode: 00195995127112

Choose Your Color

Cool White (6000K) Yellow (3000K)

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

These foglamps are a direct swap for many vehicles - see full list of known fitments below.
Jeep JK Wrangler (10th Anniversary and Hard Rock edition) 2007-2018

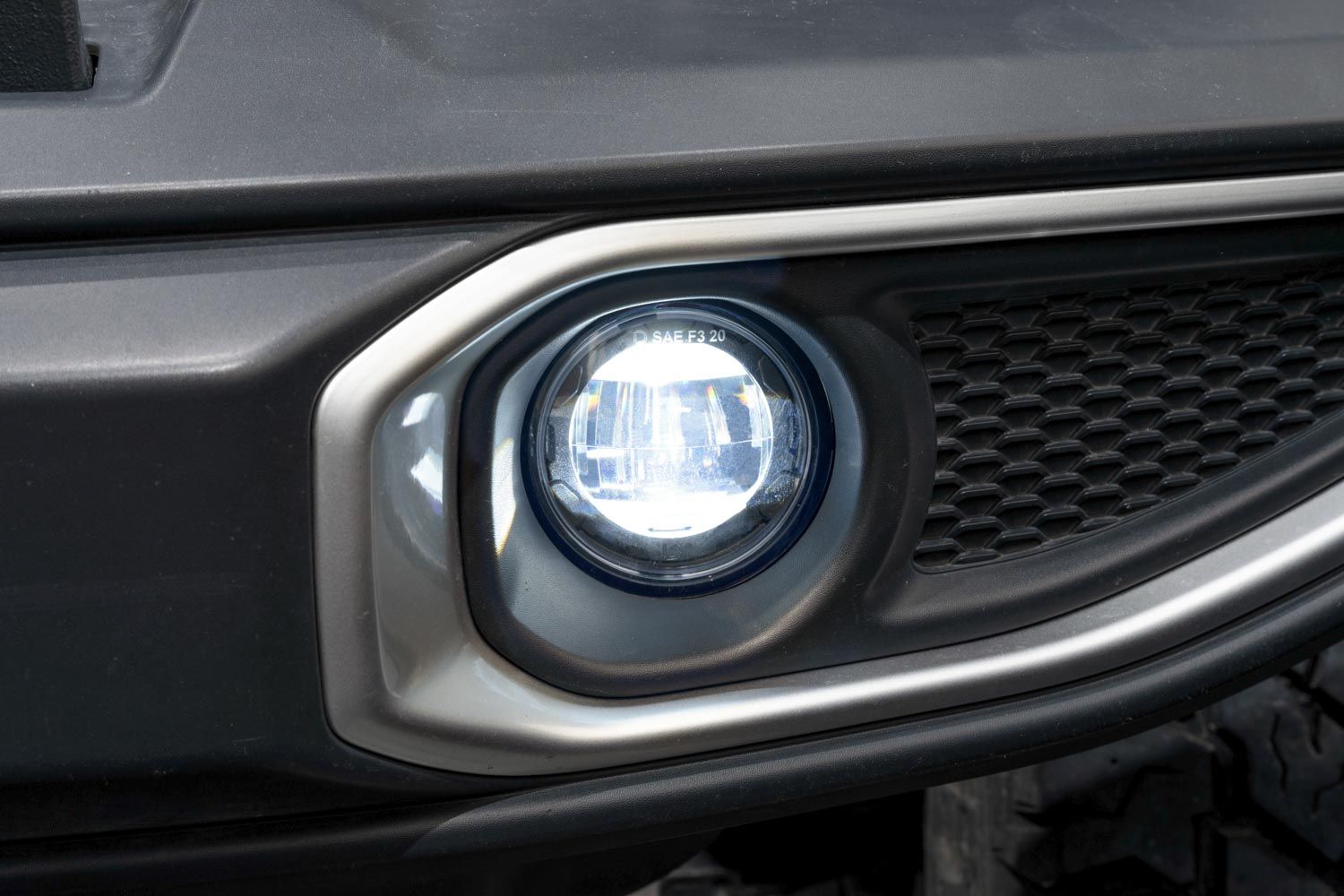

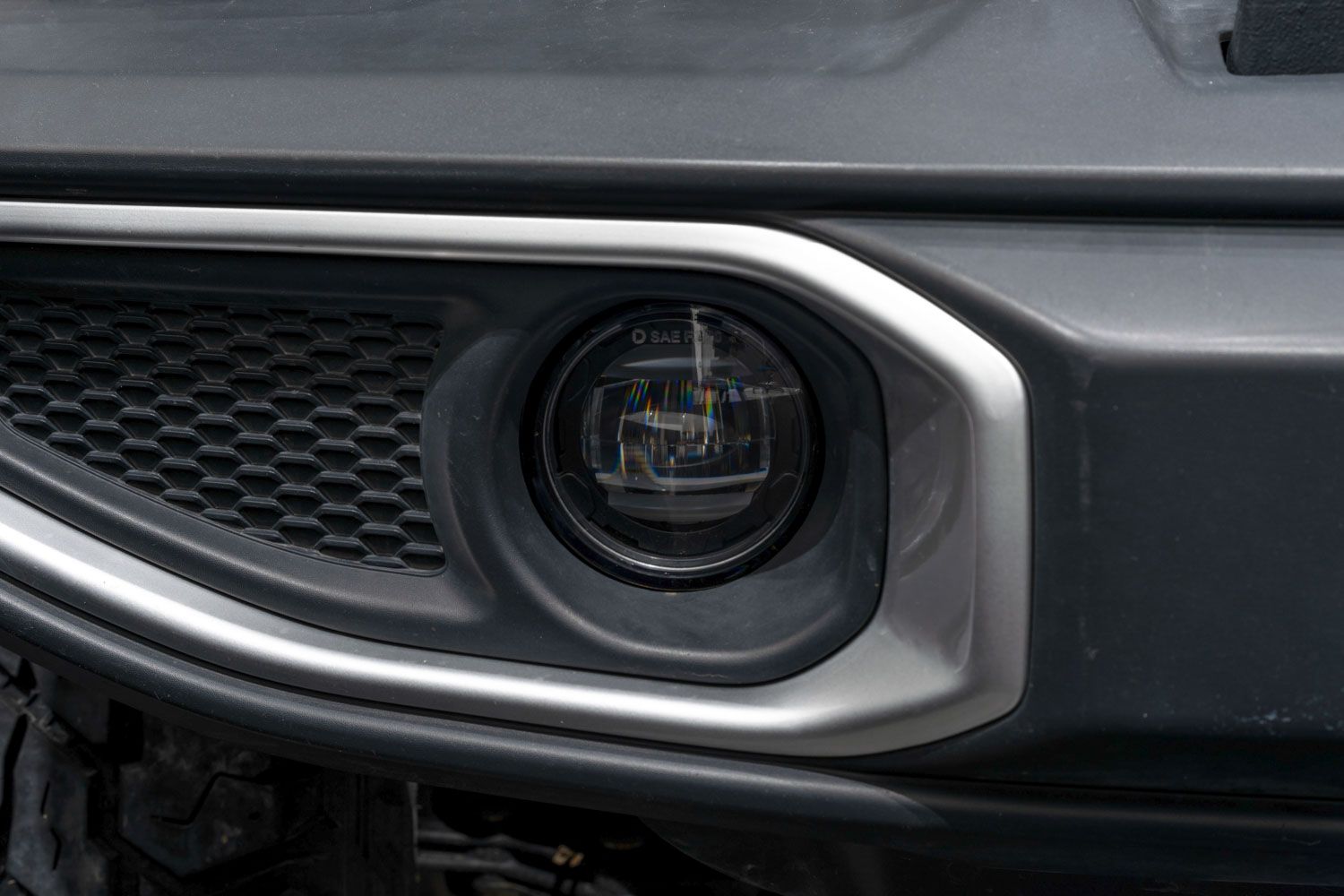

Jeep JL Wrangler Rubicon (w/ Steel Bumper) 2018-2023
Jeep JT Gladiator Rubicon (w/ Steel Bumper) 2020-2023
Application: Fog Light

Description

The Diode Dynamics Elite Foglamp Type MR White (pair) offers a performance-driven upgrade for your vehicle's lighting. Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. Featuring a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards. Designed with attention to detail, it provides: High-performance OEM-grade replacement; Custom-engineered optic provides extremely wide intense light output; Distinctive amber backlight; Road-legal fog light (SAE F3 compliant); Plug and play main beam no modification needed. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

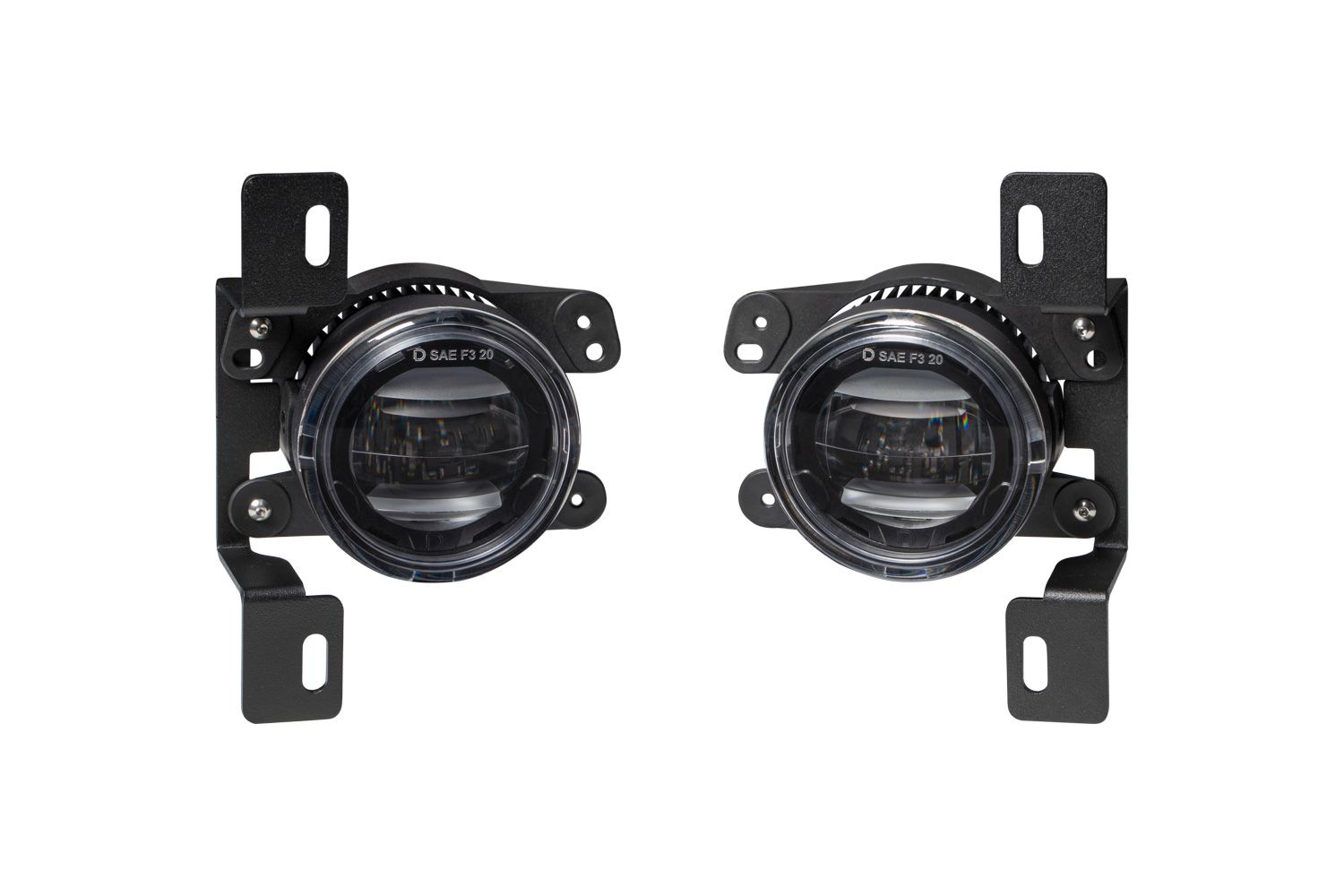

Elite Foglamp Type MR White (pair), DD5163P

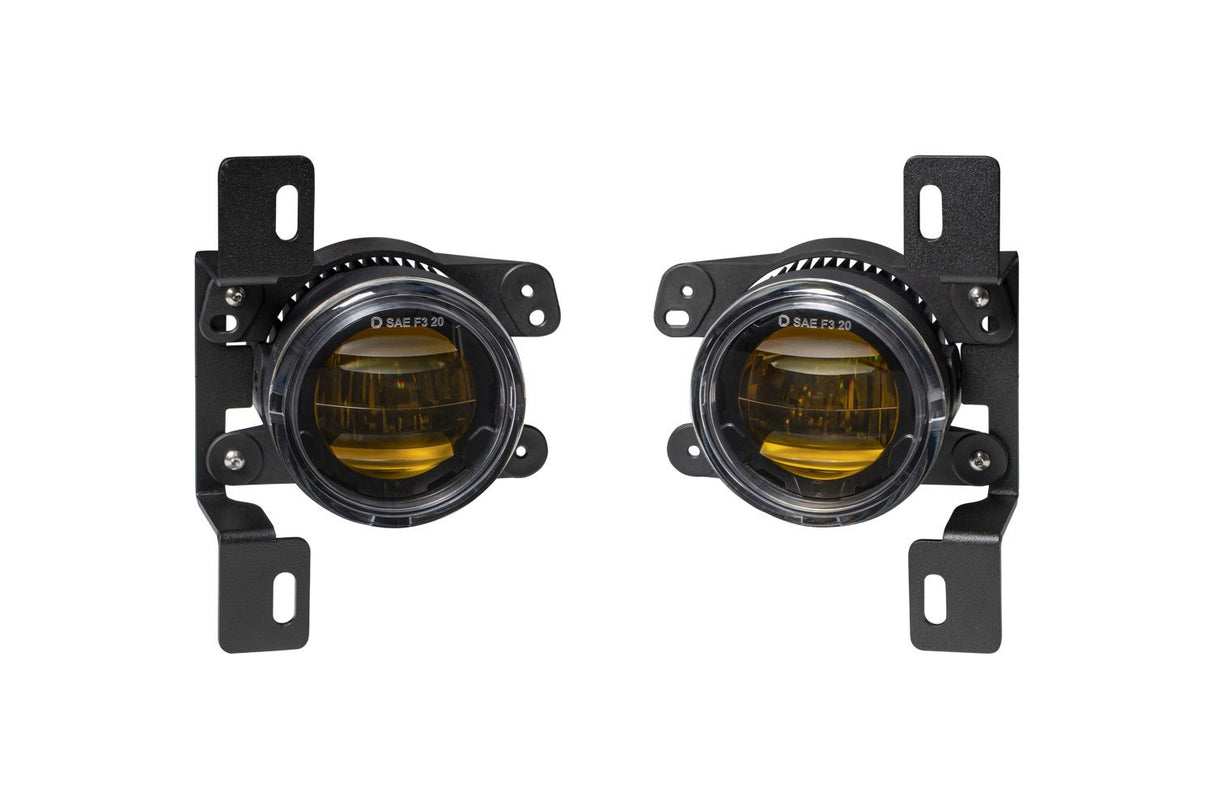

Elite Foglamp Type MR Yellow (pair), DD5164P
Features and Benefits

High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide intense light output

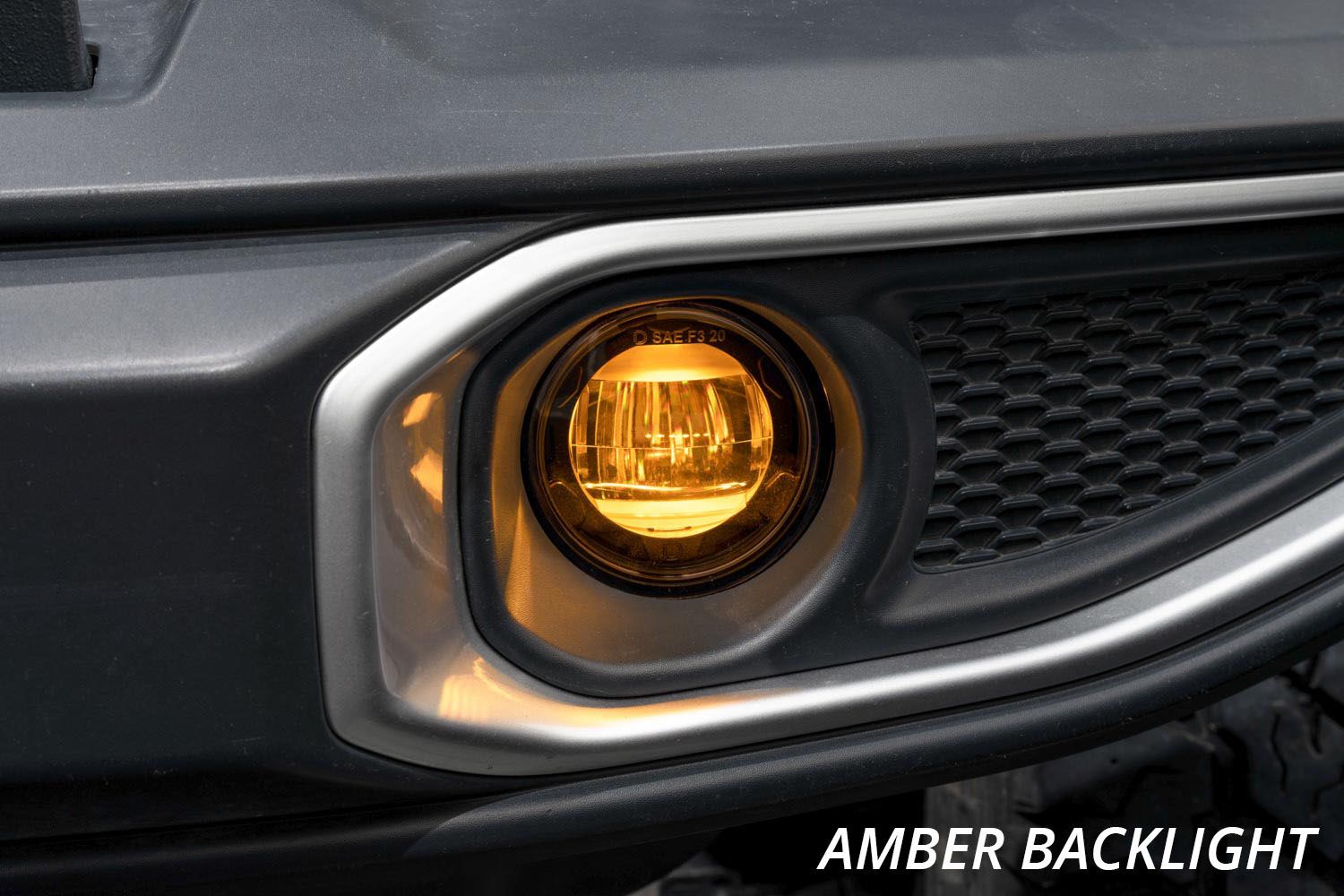

Distinctive amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam no modification needed
High-performance OEM-grade replacement
Custom-engineered optic provides extremely wide intense light output
Distinctive amber backlight
Road-legal fog light (SAE F3 compliant)
Plug and play main beam no modification needed

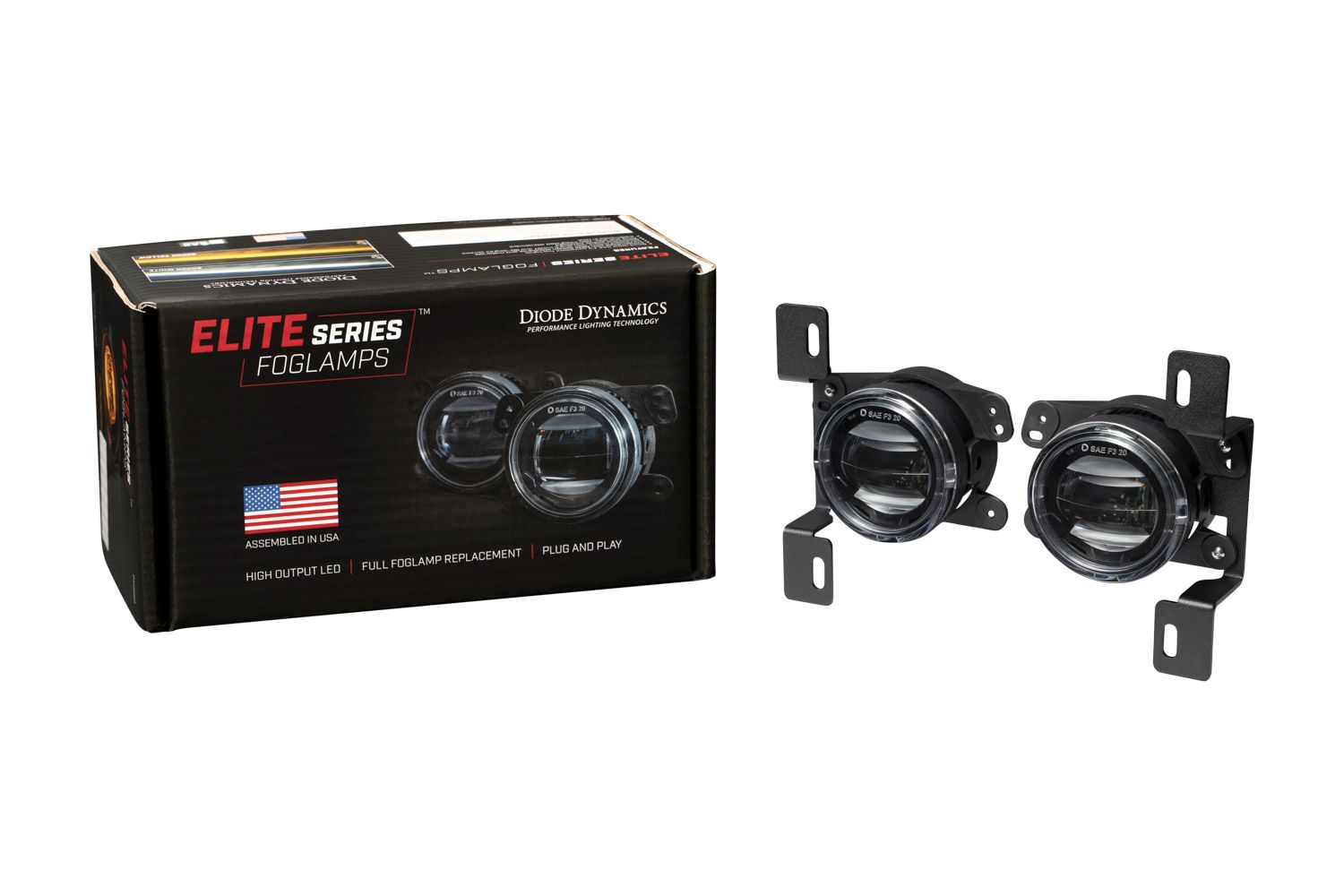

Whats Included

Included in the box:
- Two (2) Elite Series Type M fog lamps

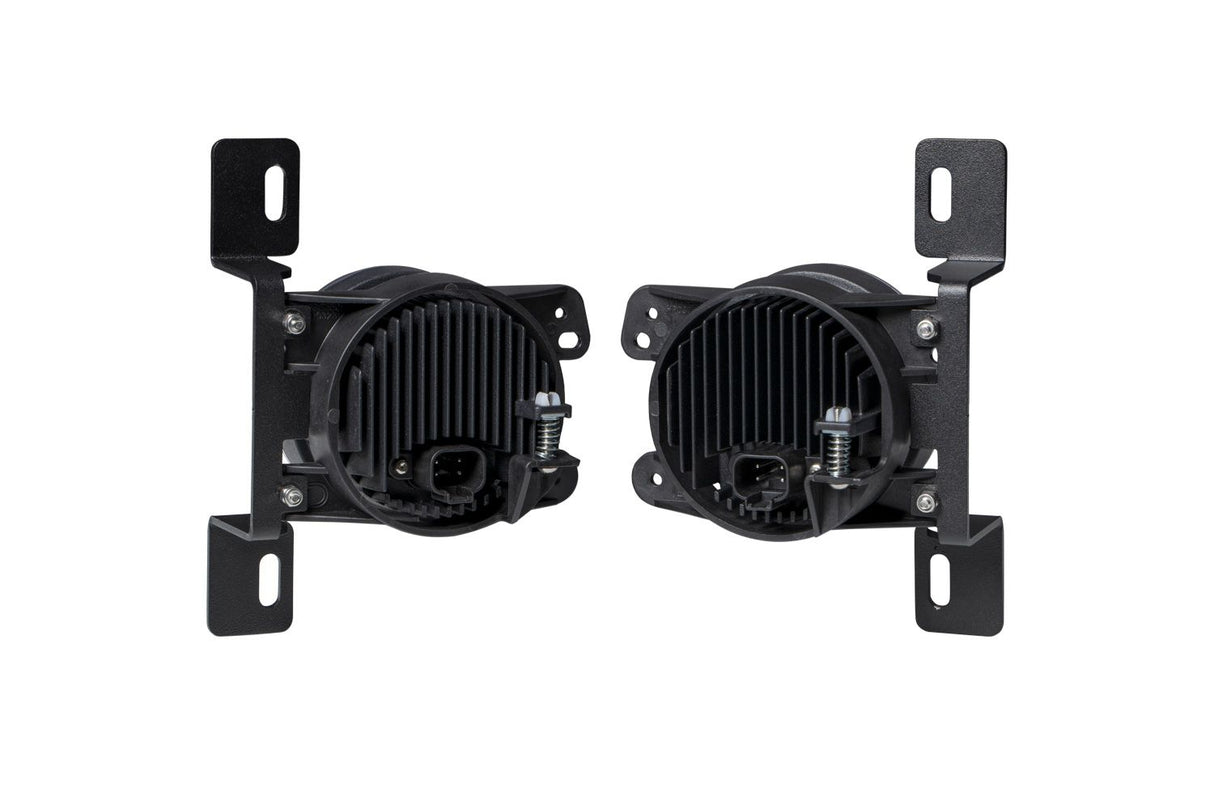

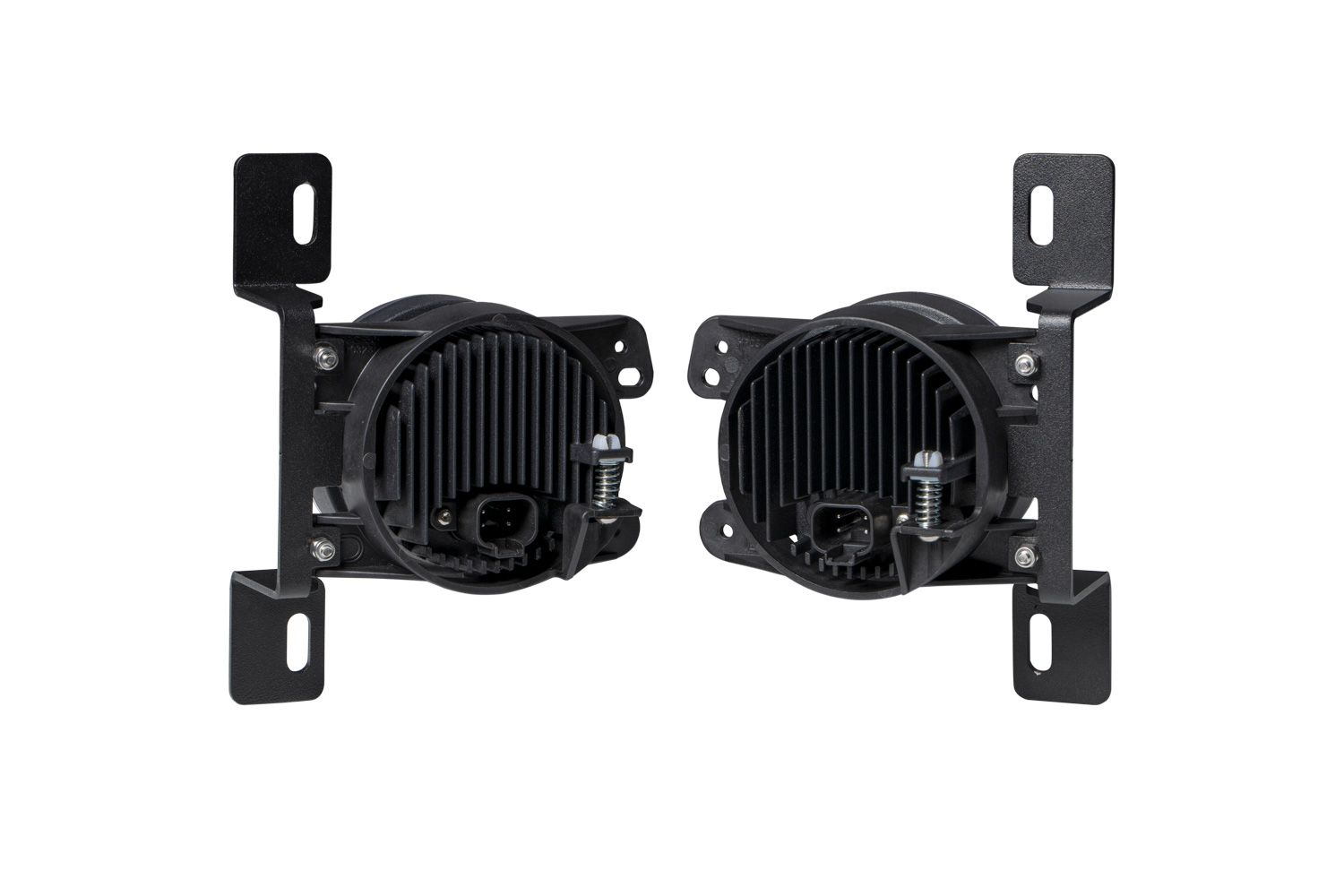

- Two (2) Elite Series Type MR brackets
- Two (2) 9006 4-pin DT backlight tap wires
- Two (2) 5202 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Included in the box:
- Two (2) Elite Series Type M fog lamps
- Two (2) Elite Series Type MR brackets
- Two (2) 9006 4-pin DT backlight tap wires
- Two (2) 5202 4-pin DT backlight tap wires
- Two (2) T-taps
- Mounting guide
Tech Specs

Beam Angle: Fog 80°x6°
Bulbs Included: No
Color Temp: 6000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Housing Color: Black
Housing Shape: Round
Input Power (watts): Main Beam: 17 Backlight: 0.3
Intensity (lux): 10 200 cd
Intrusion Rating: IP68 Waterproof
Light Beam Pattern: Fog
Measured Output (lumens): 1 850 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wiring Harness Included: Yes
Beam Angle: Fog 80°x6°
Bulbs Included: No
Color Temp: 3000K
Compliance Rating: SAE J583 Foglamp Beam Pattern
DOT Approved: Yes
Housing Color: Black
Housing Shape: Round
Input Power (watts): Main Beam: 15 Backlight: 0.3
Intensity (lux): 8 700 cd
Intrusion Rating: IP68 Waterproof
Light Beam Pattern: Fog
Measured Output (lumens): 1 650 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Terminal Type: Pin
Voltage: 9-16V
Wiring Harness Included: Yes
