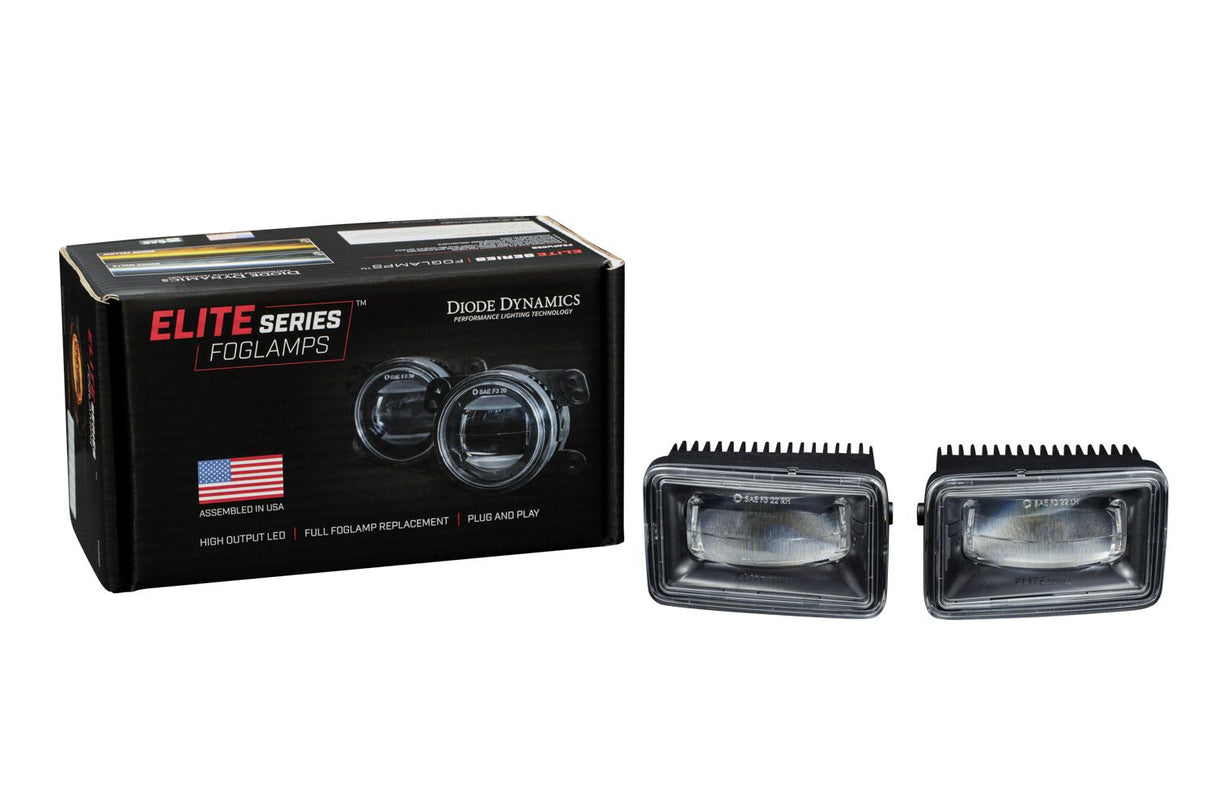

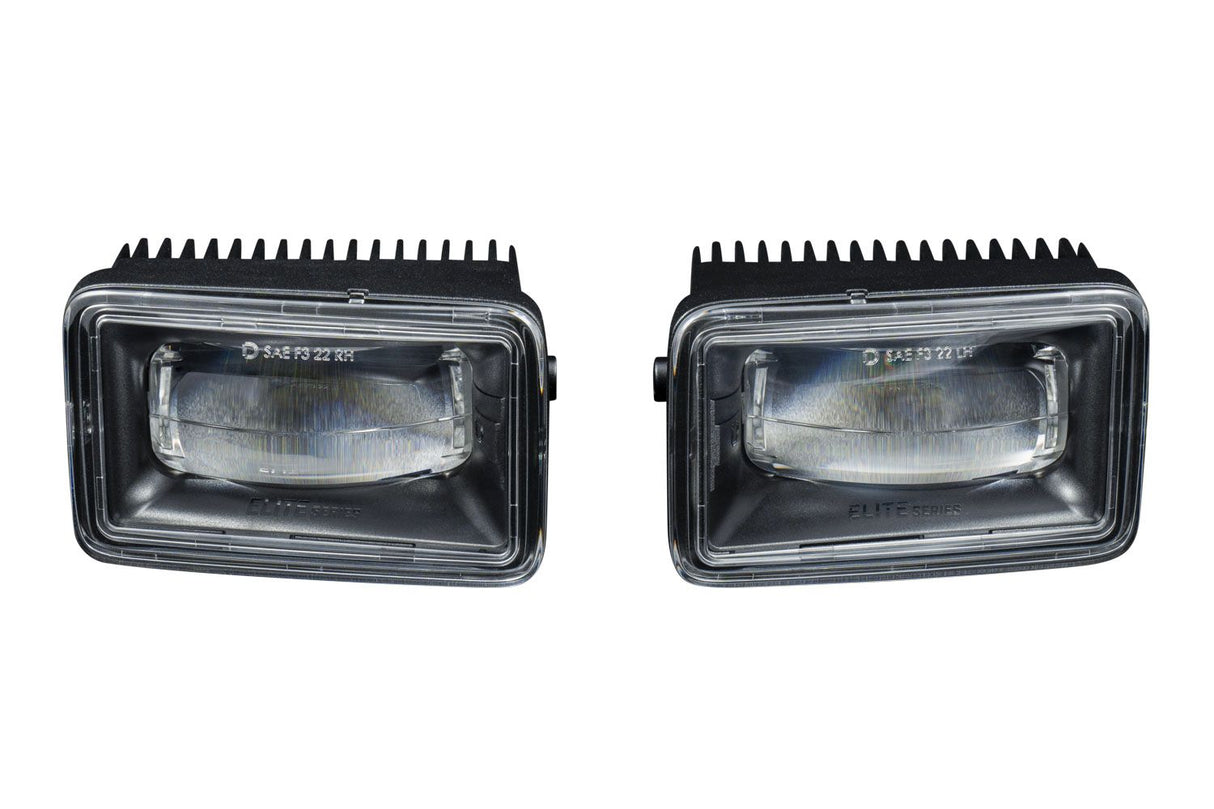

Elite Series Type F2 Fog Lamps (pair)

Regular price $ 358.73 CAD
Diode Dynamics  |  SKU / Part Number: DD5171P  |  Barcode: 00195995131706

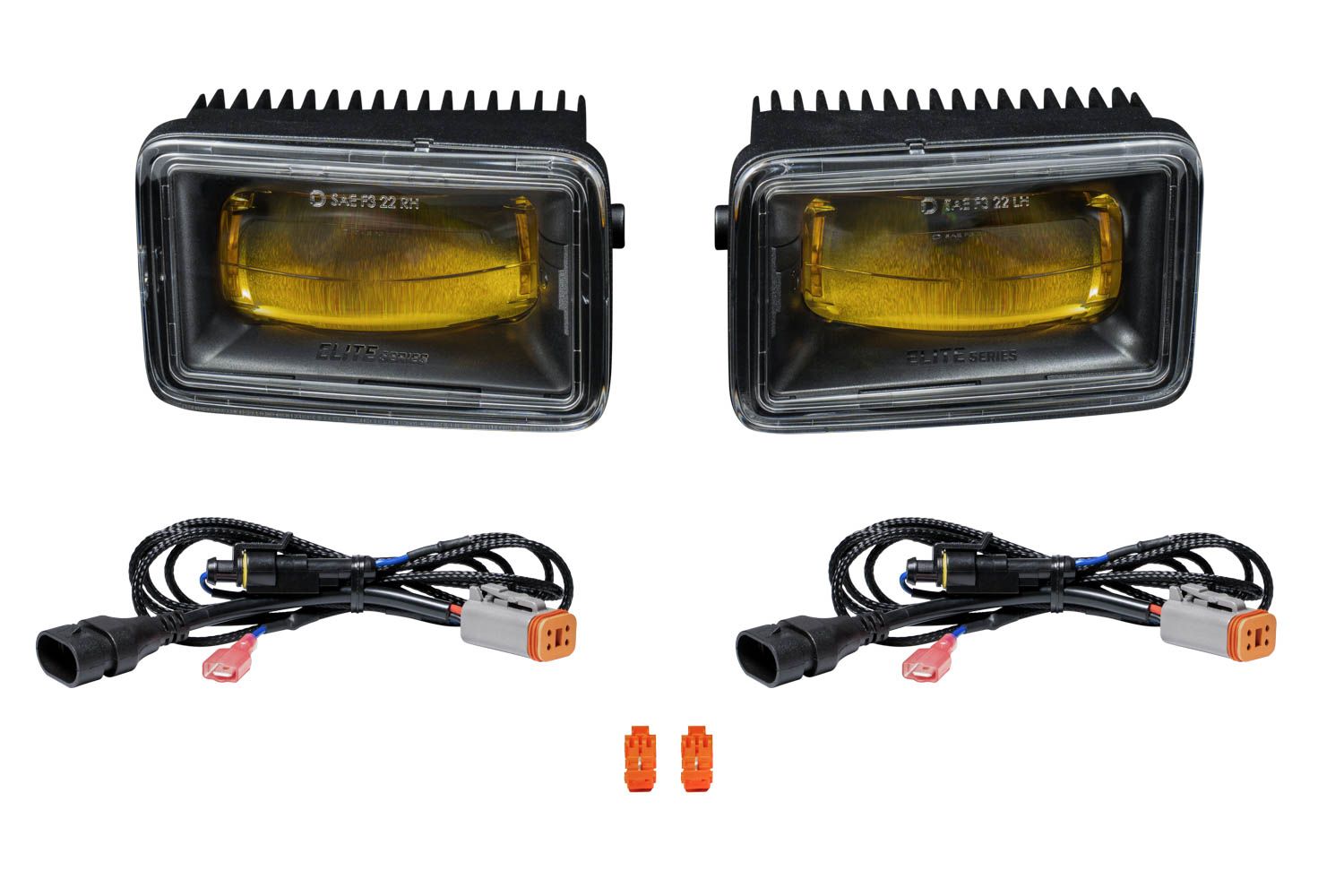

Choose Your Color

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

The Diode Dynamics Elite Foglamp Type F2 White (pair) offers a performance-driven upgrade for your vehicle's lighting. Introducing the Elite Series Fog Lamps: the first OE-style fog lights that were designed for true performance. Featuring a custom-engineered patent-pending optic multi-die automotive emitters and high-power full-copper circuit boards. Designed with attention to detail, it provides: Provides double the output compared to factory halogen fog light; Sharp asymmetric beam pattern achieves 100-degree total spread; Distinctive integrated amber backlight; Road-legal fog light (SAE F3 compliant); Plug and play main beam no modification needed. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Specifications

  • Product Currently Selected
    Elite Foglamp Type F2 White (pair), DD5171P
  • Features and Benefits

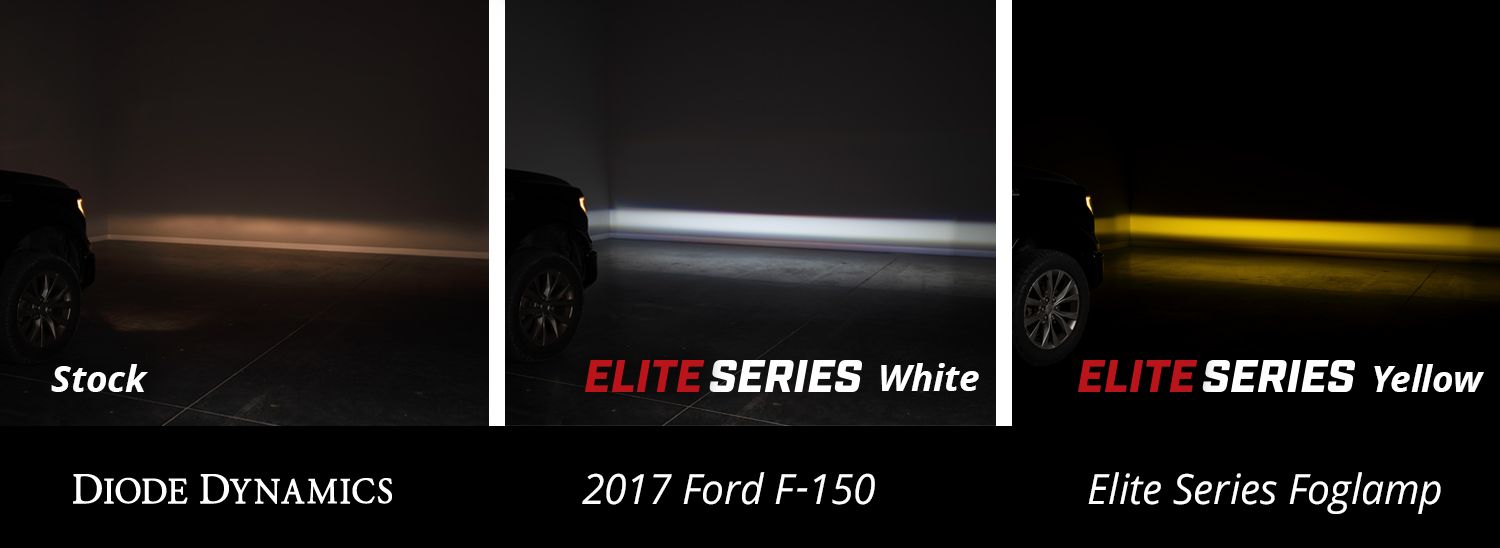

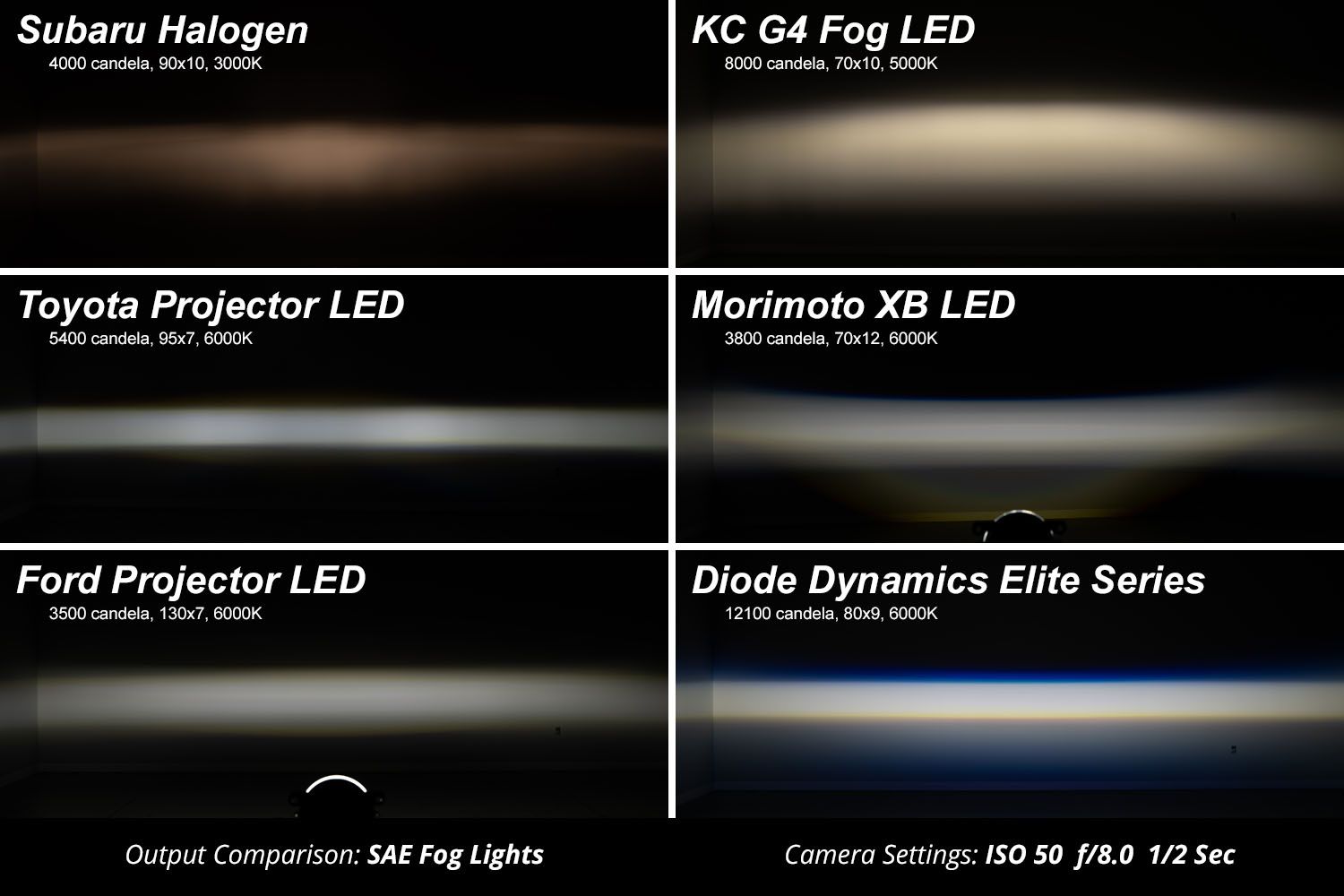

    Provides double the output compared to factory halogen fog light

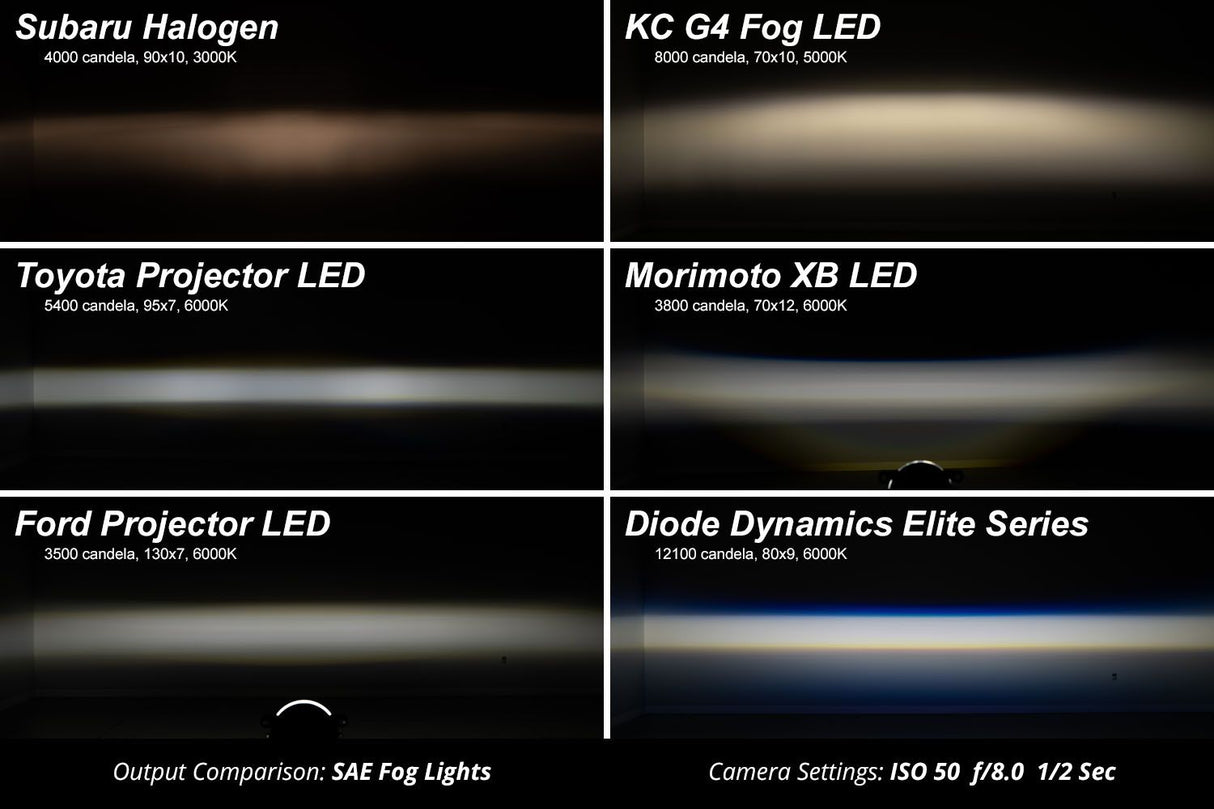

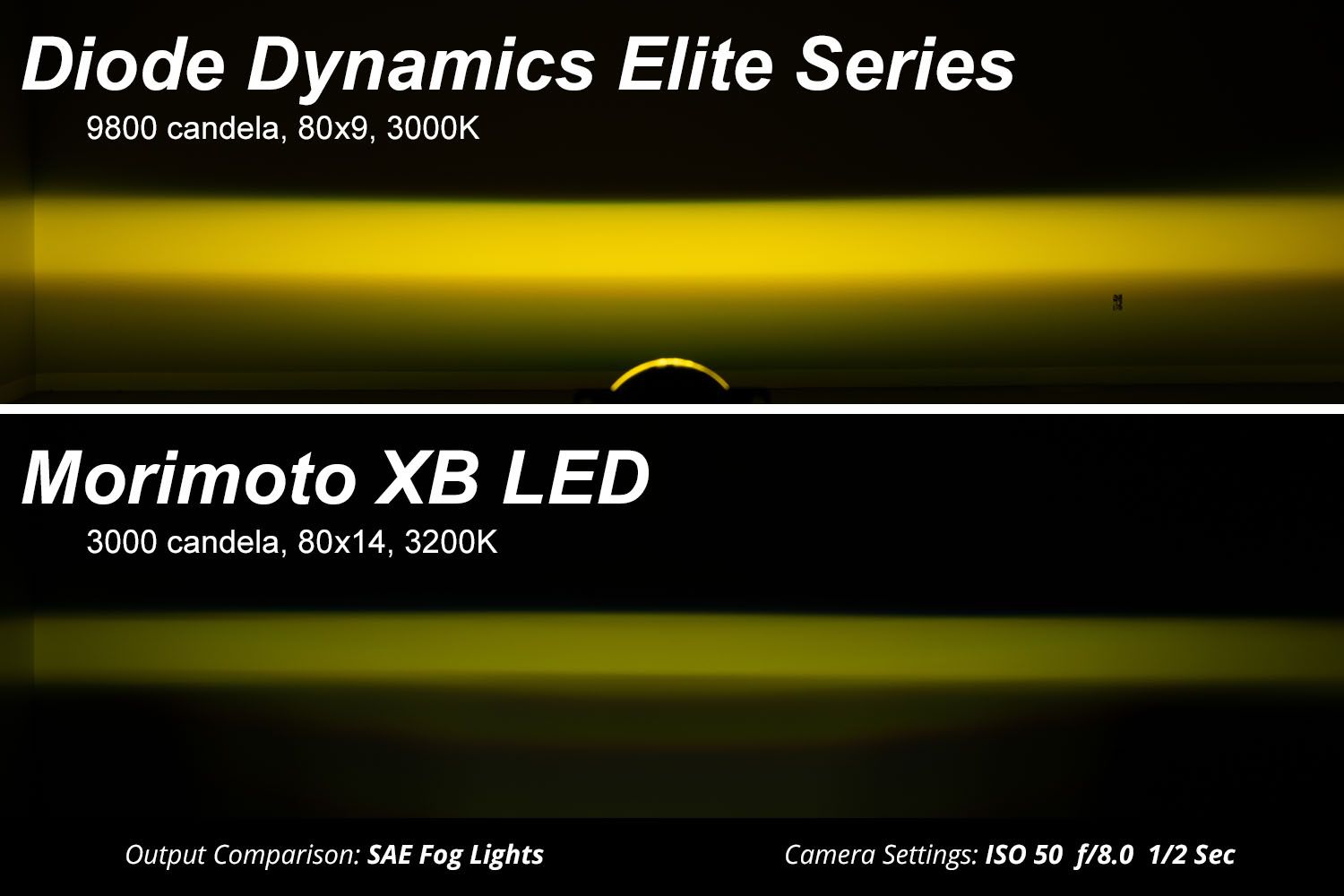

    Sharp asymmetric beam pattern achieves 100-degree total spread

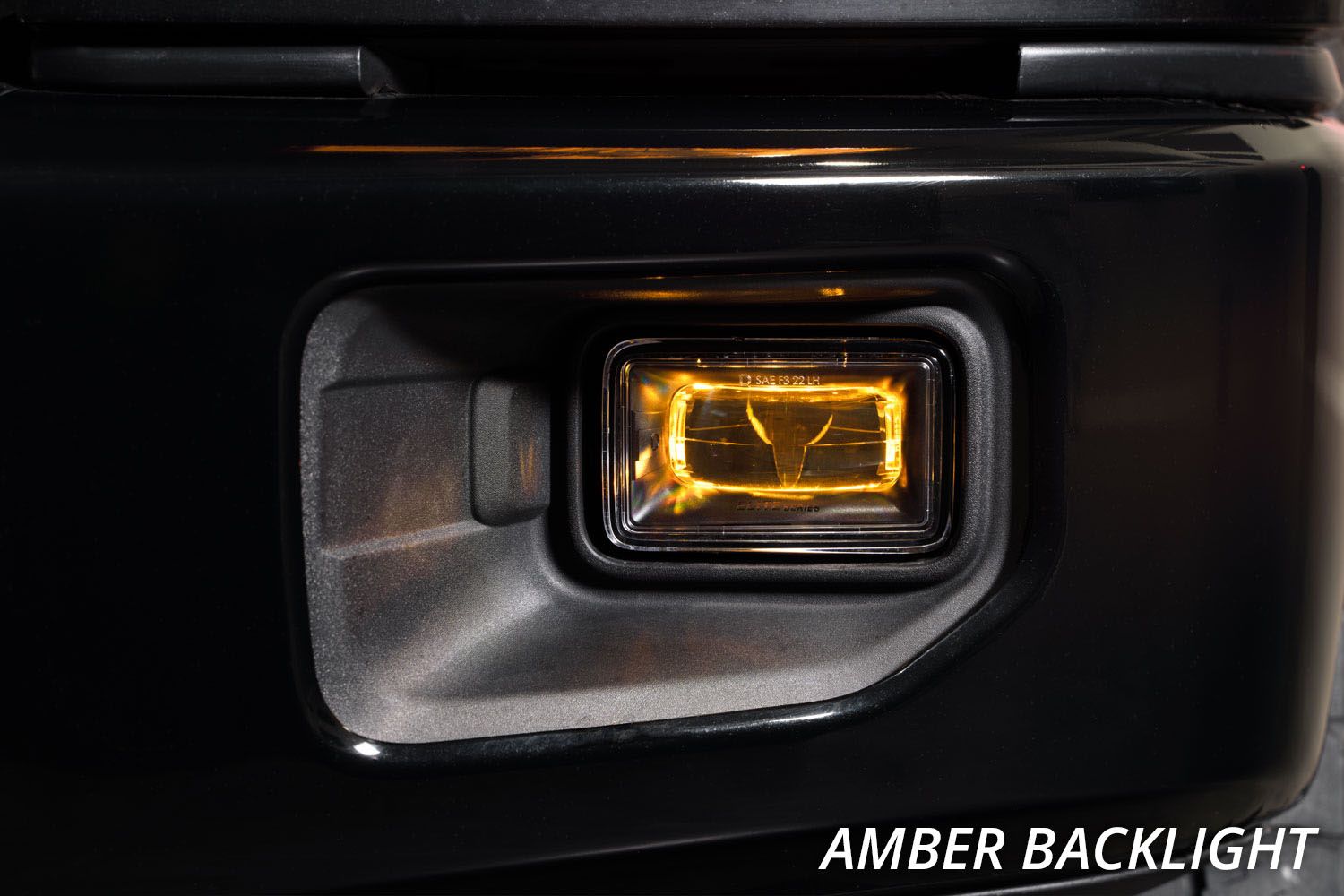

    Distinctive integrated amber backlight
    Road-legal fog light (SAE F3 compliant)
    Plug and play main beam no modification needed

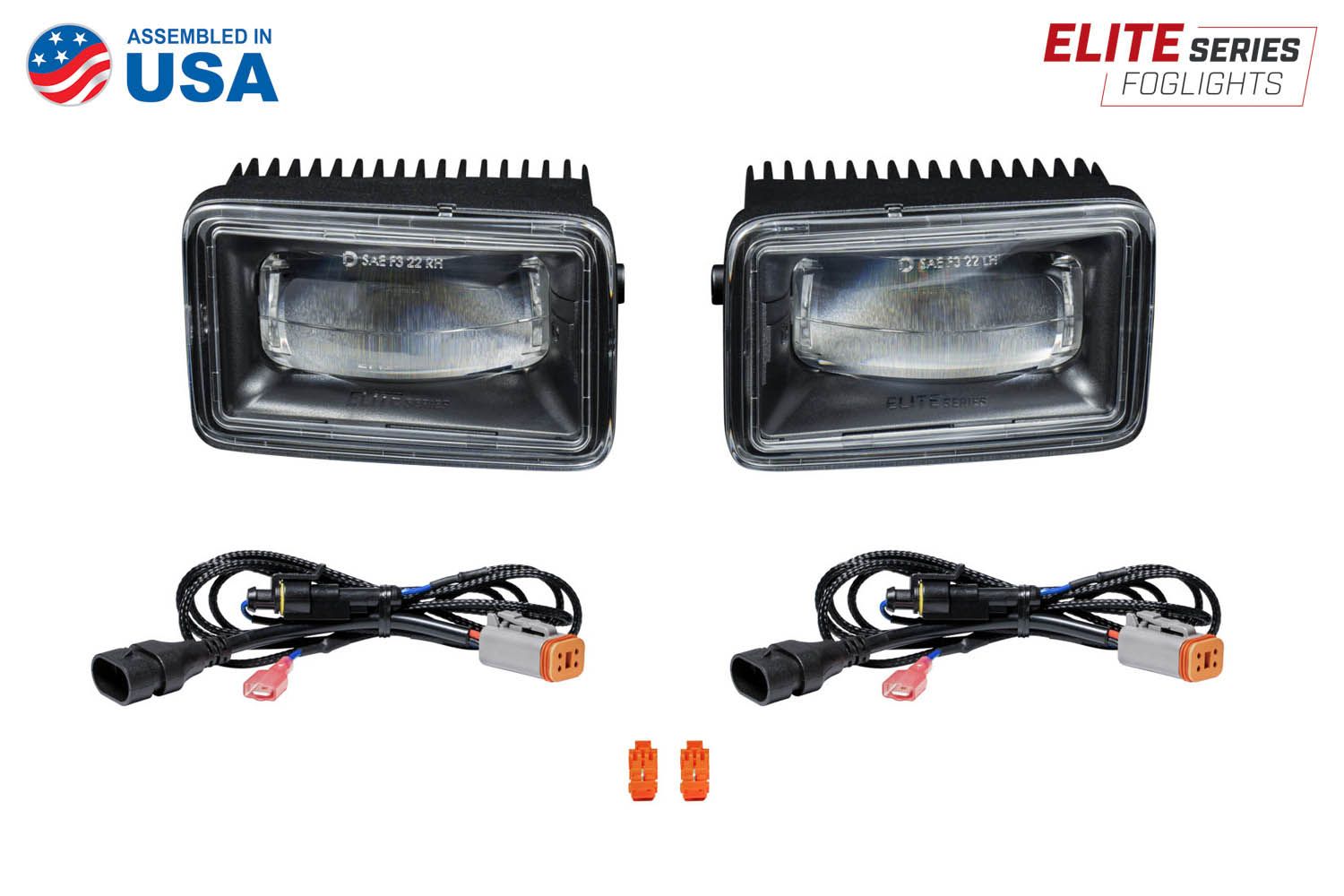

  • Whats Included

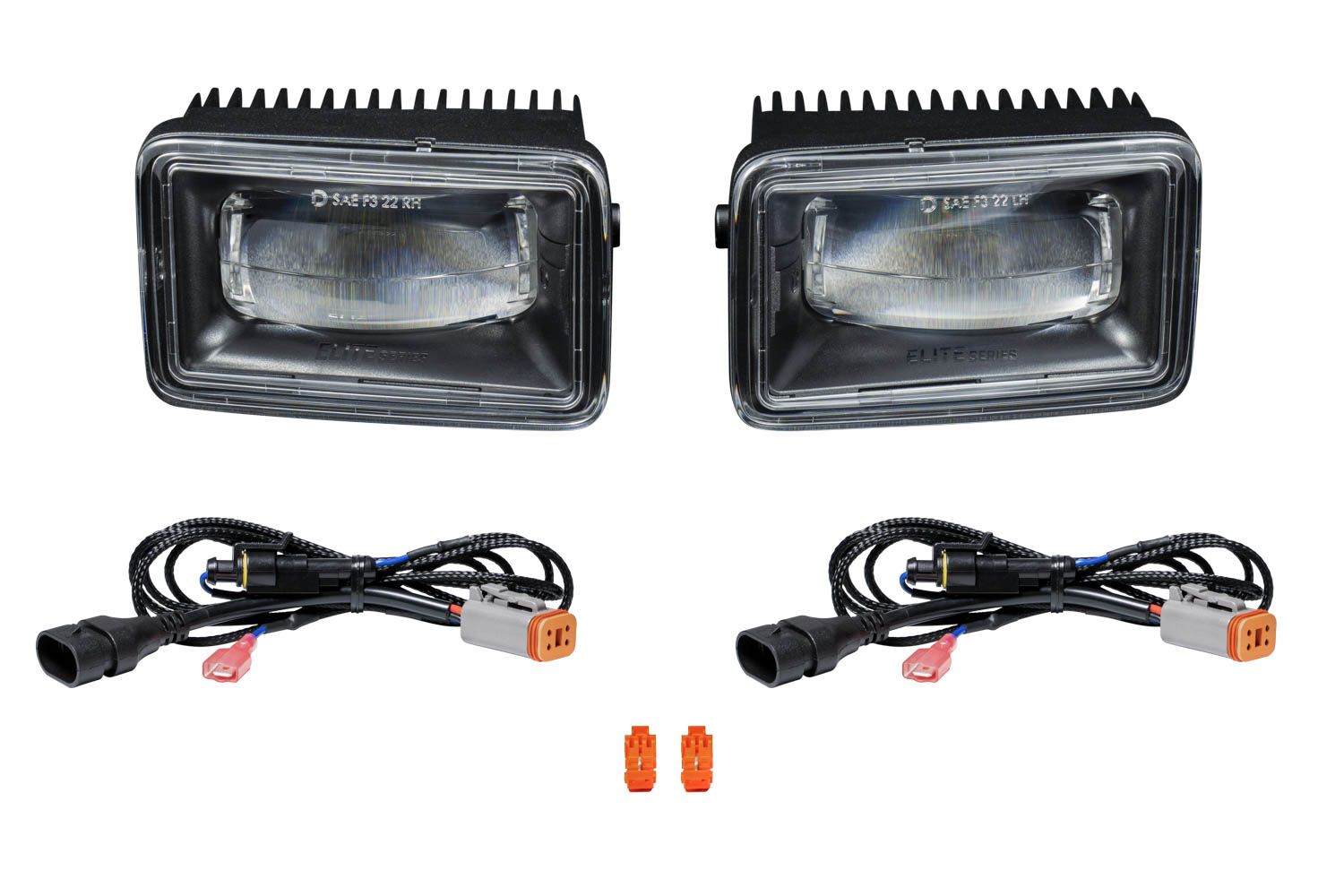

    Included in the box:
    - Two (2) Elite Series Type F2 fog lamps
    - Two (2) 9006 4-pin DT backlight tap wires
    - Two (2) T-taps
    - Mounting guide
  • Tech Specs
    Beam Angle: Fog 80°x6°
    Bulbs Included: No
    Color Temp: 6000K
    Compliance Rating: SAE J583 Foglamp Beam Pattern
    DOT Approved: Yes
    Housing Color: Black
    Housing Shape: Rectangle
    Input Power (watts): Main Beam: 16 Backlight: 2.0
    Intensity (lux): 11 300 cd
    Intrusion Rating: IP69K Waterproof High Pressure
    Light Beam Pattern: Fog
    Measured Output (lumens): 1650 lm
    Mounting Hardware Included: Yes
    Operating temperature: -40C to 85C (-40F to 185F)
    Operating Voltag: 9-16V
    Street Legal: Yes
    Terminal Type: Pin
    Voltage: 9-16V
    Wiring Harness Included: Yes
