HitchMount LED Pod Reverse Kit

$ 173.82 CAD $ 193.13 CAD

Diode Dynamics | SKU / Part Number: DD7420 | Barcode: 00195995129444

Choose Your Kit

C1 C1R + Brake

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Compatibility

The following vehicles require a vehicle-specific harness. Click the links below for each vehicle-specific kit:
2015-2020 Ford F-150
2021+ Ford F-150
2005-2015 Toyota Tacoma
2019+ GMC Sierra 1500
2019+ Chevrolet Silverado 1500
2022-2024 Ford Maverick
2023+ Chevrolet Colorado
Jeep: No trailer is detected, no warning messages.
Ram: The C1R + Brake option is not compatible with Ram Trucks.

Description

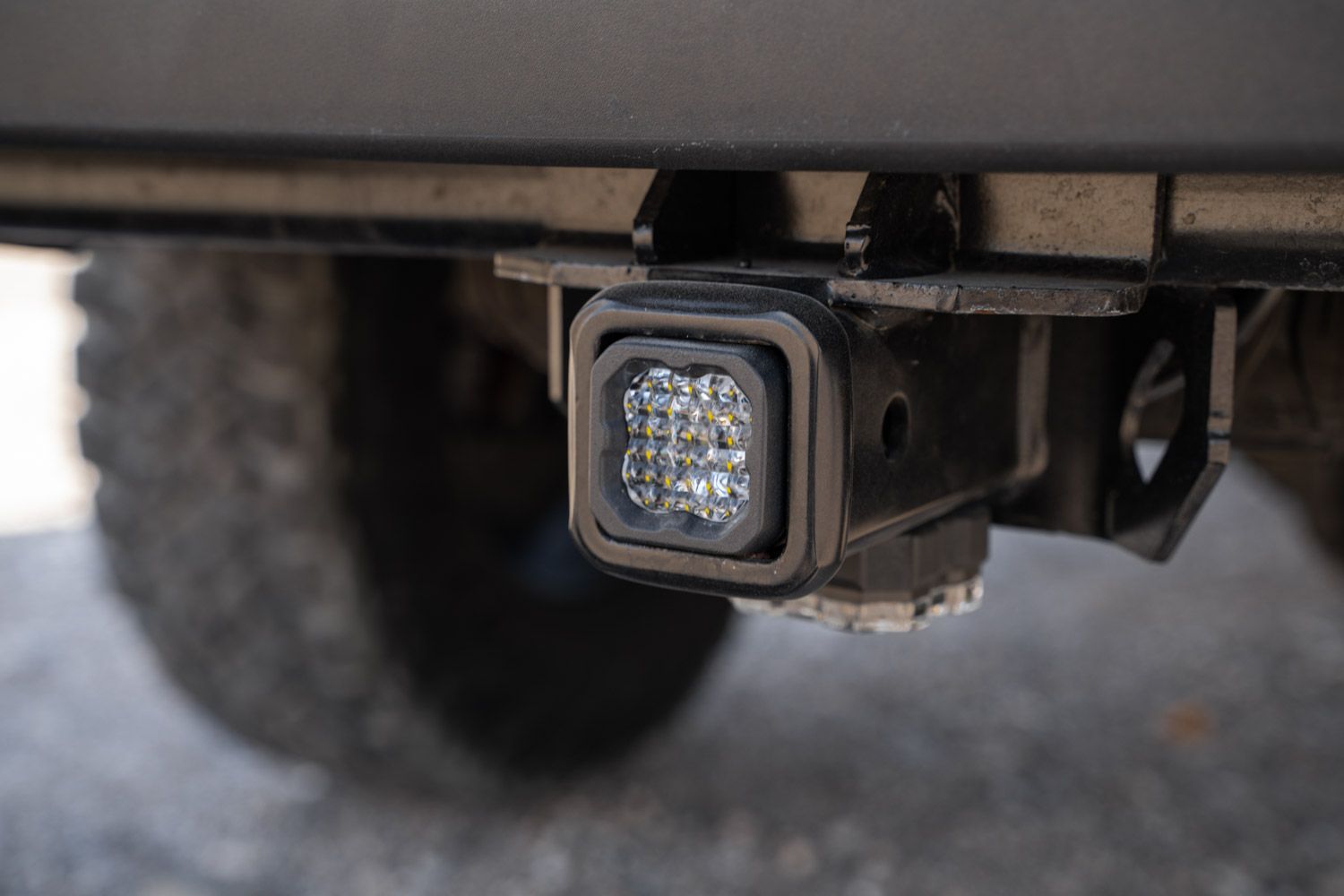

The Diode Dynamics HitchMount LED Pod Reverse Kit C1 Sport offers a performance-driven upgrade for your vehicle's lighting.

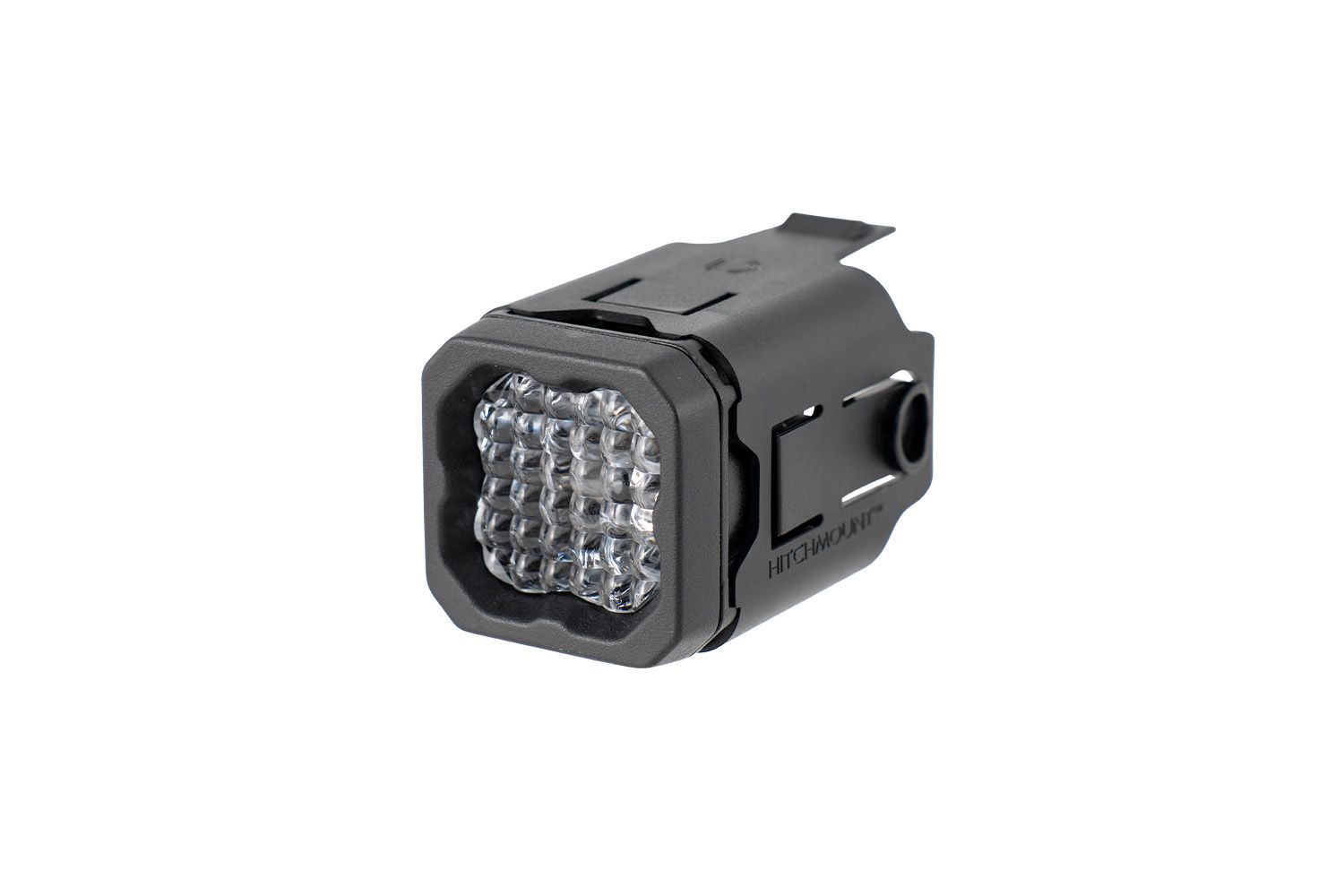

Allows you to mount an SSC1 or C1R LED pod in any 2-inch or 2.5" trailer hitch receiver. Adds reverse light 4th brake light and additional running light. Simple 5-minute installation. Optional SafetyStrobe.

Designed with attention to detail, it provides: Allows you to mount an SSC1 LED pod in any 2-inch or 2.5-inch trailer hitch receiver; Adds reverse light 4th brake light and additional running light; Simple 5-minute installation; Optional SafetyStrobe; Designed and assembled in USA. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

HitchMount LED Pod Reverse Kit C1 Sport, DD7420
HitchMount LED Pod Reverse Kit C1R, DD7422

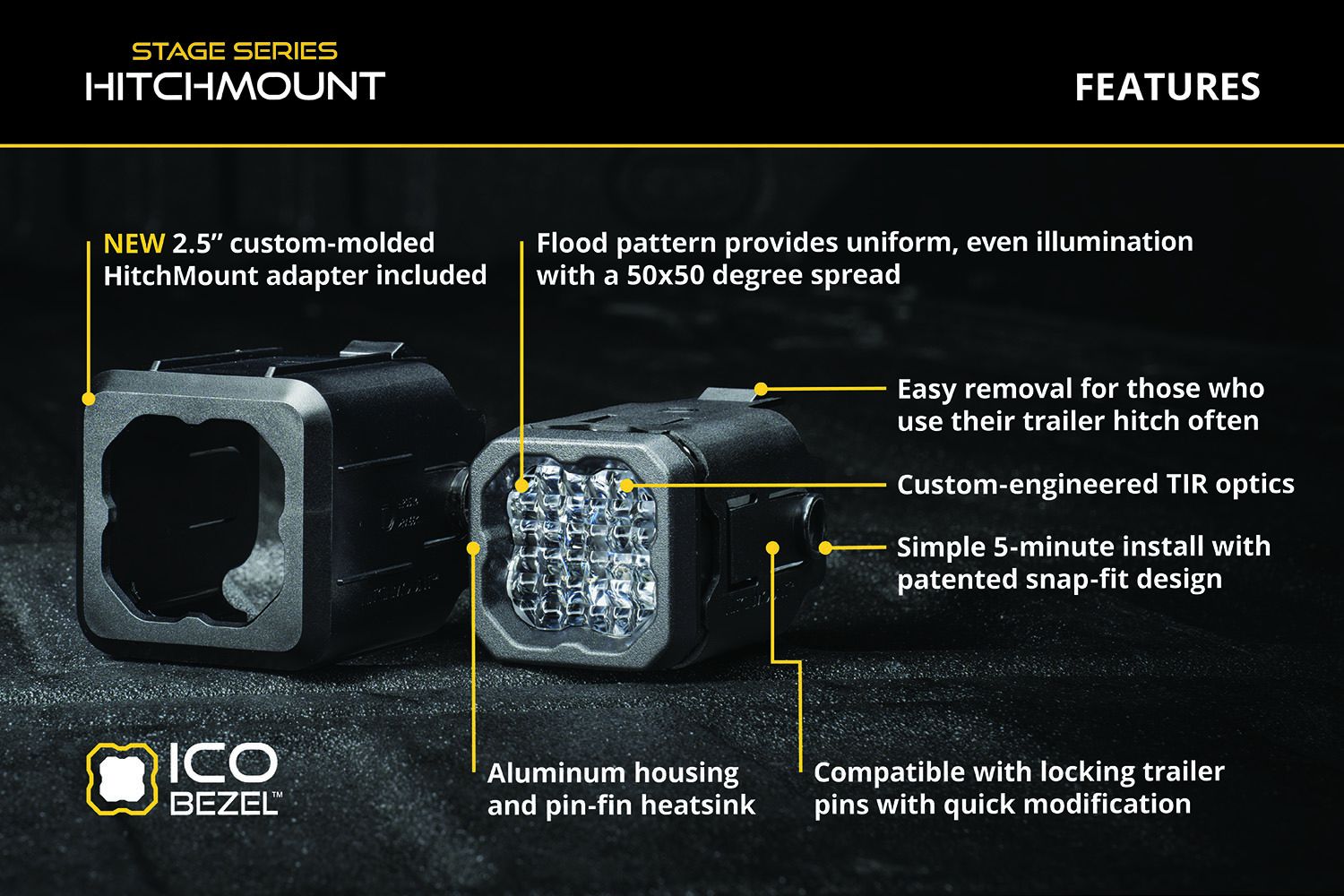

Features and Benefits

Allows you to mount an SSC1 LED pod in any 2-inch or 2.5-inch trailer hitch receiver

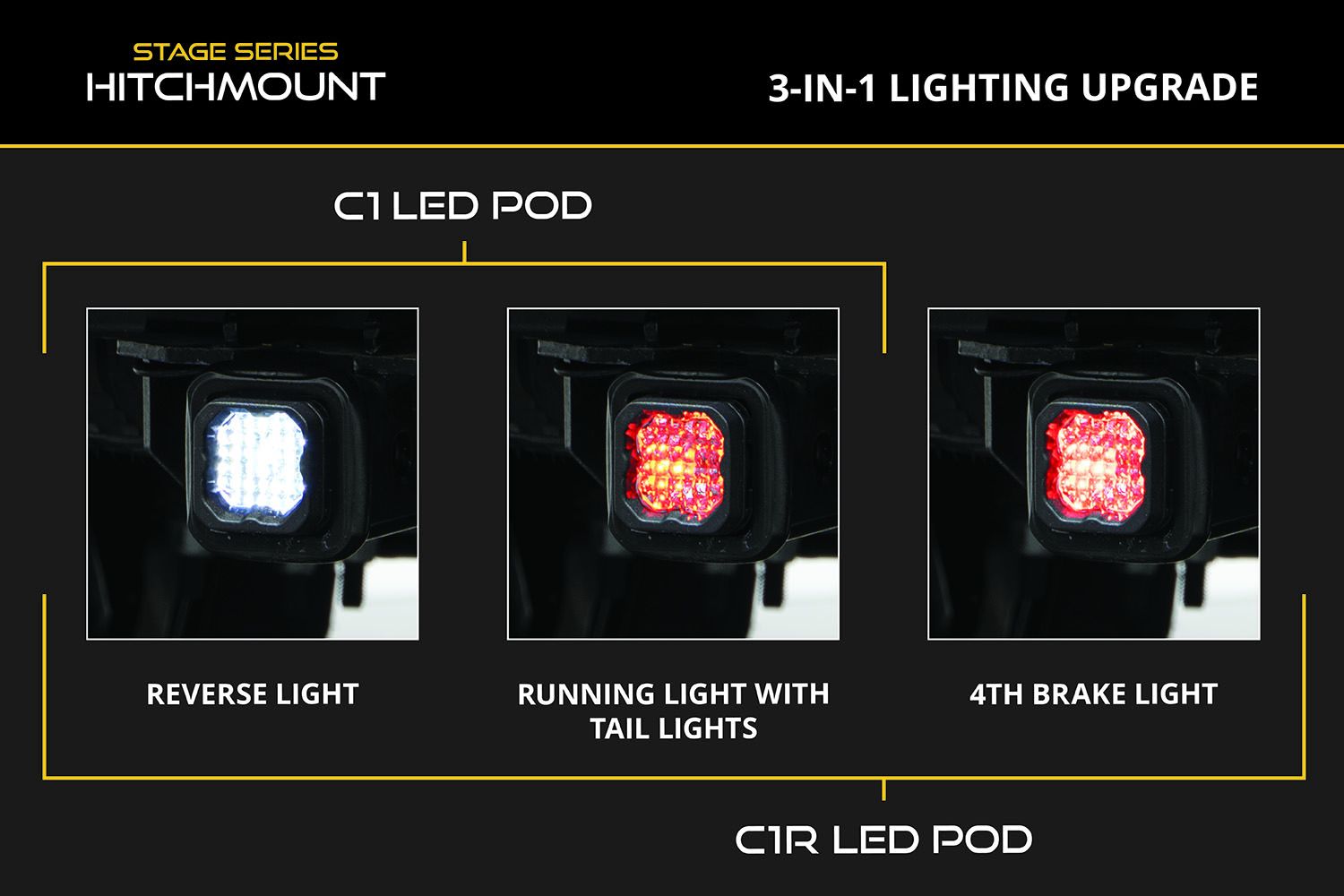

Adds reverse light 4th brake light and additional running light
Simple 5-minute installation
Optional SafetyStrobe
Designed and assembled in USA
Allows you to mount an C1R LED pod in any 2-inch or 2.5-inch trailer hitch receiver
Adds reverse light 4th brake light and additional running light
Simple 5-minute installation
Optional SafetyStrobe
Designed and assembled in USA
Whats Included

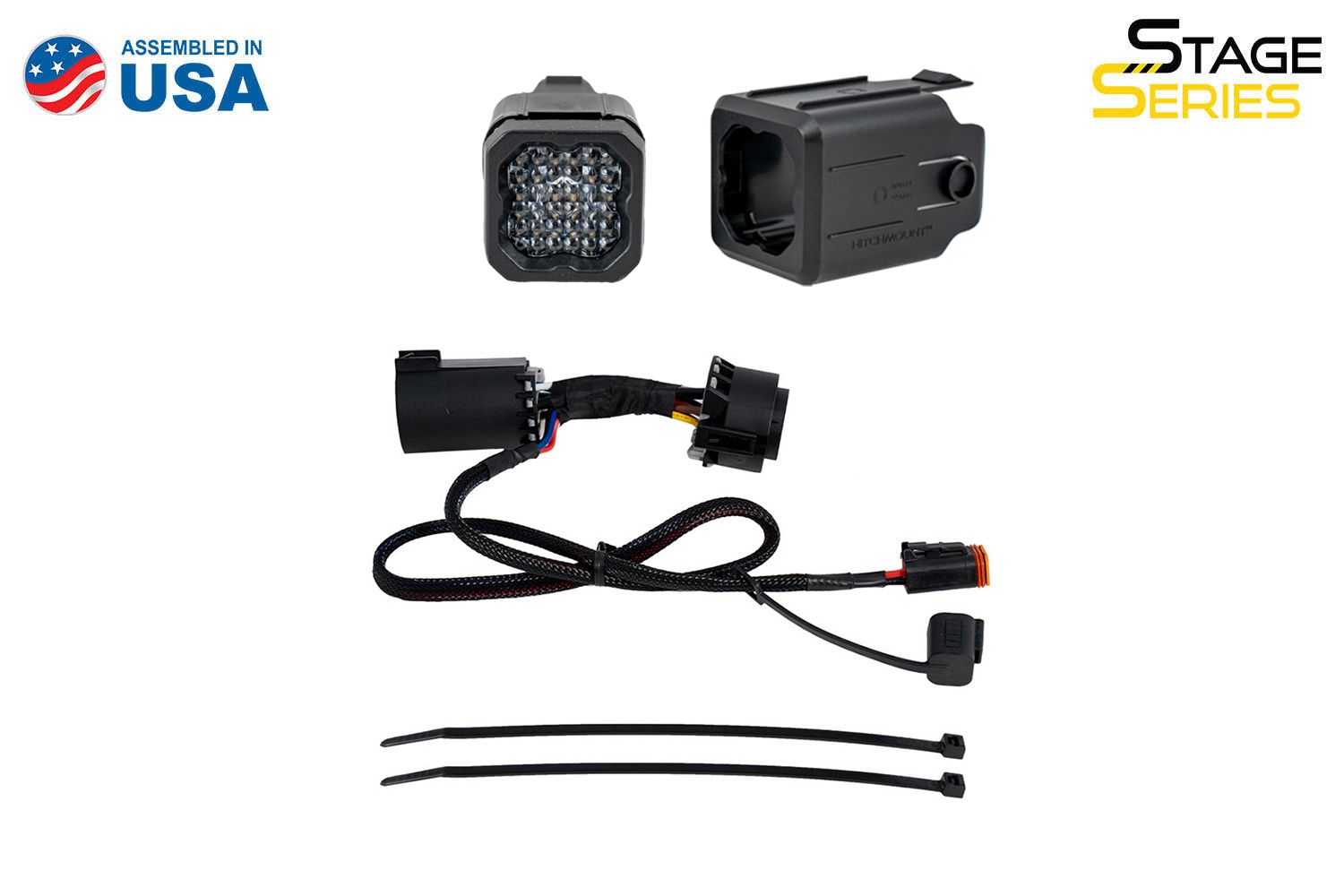

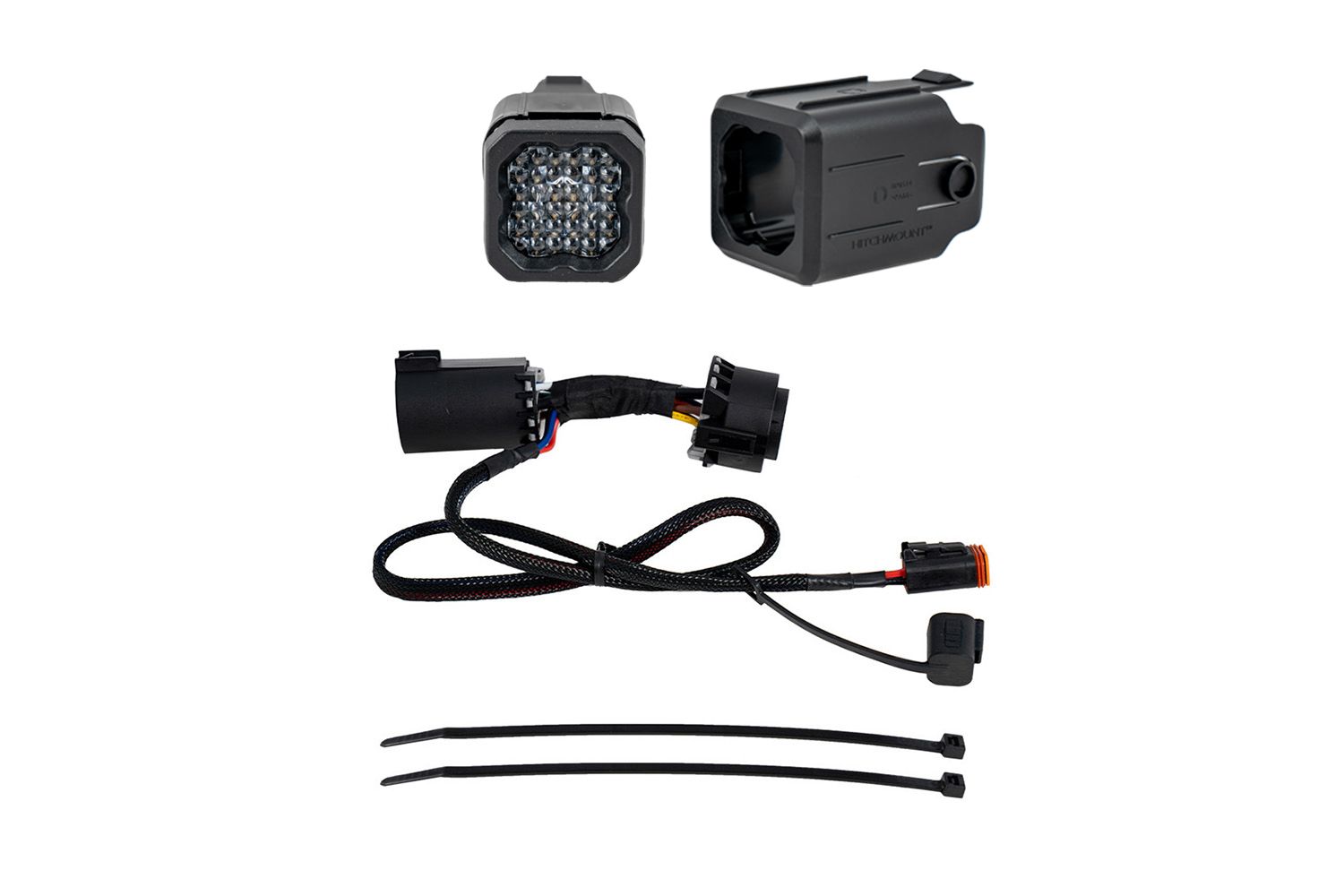

Included in the box:
- One (1) SSC1 Sport HitchMount LED Pod

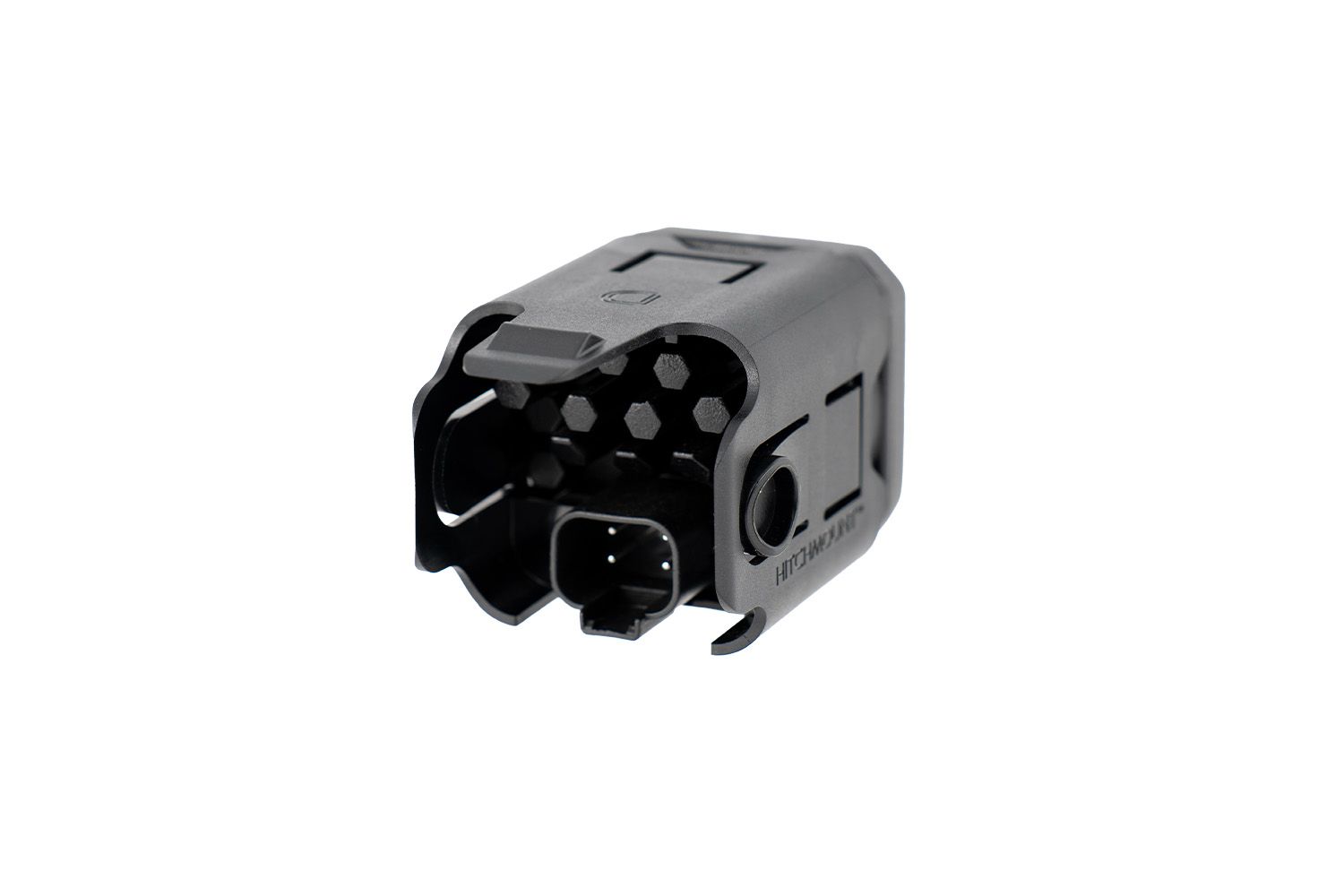

- One (1) Snap-In 2.5in Receiver Adapter
- One (1) 7-Pin trailer single output harness
- Two (2) Zip ties
- Installation guide

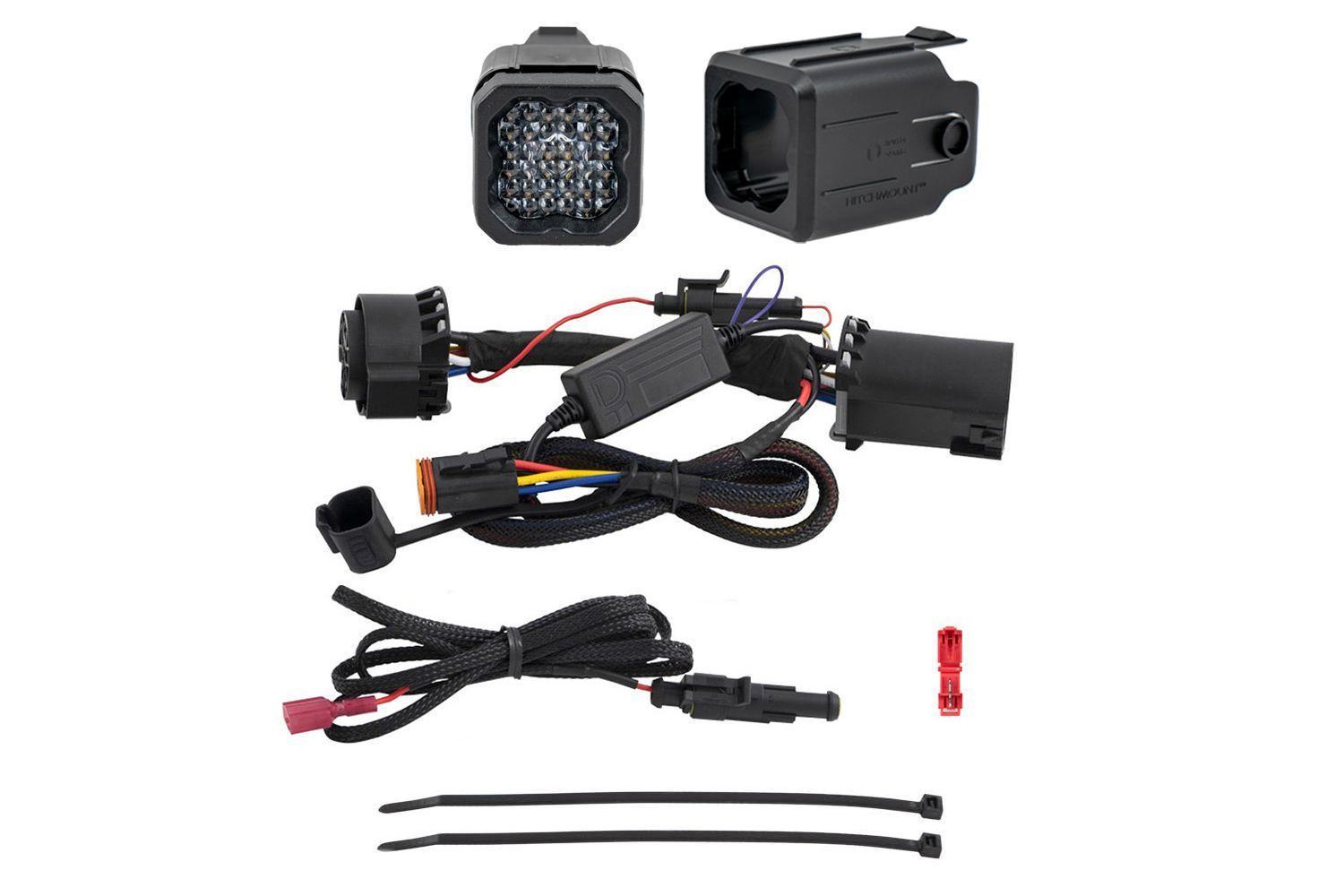

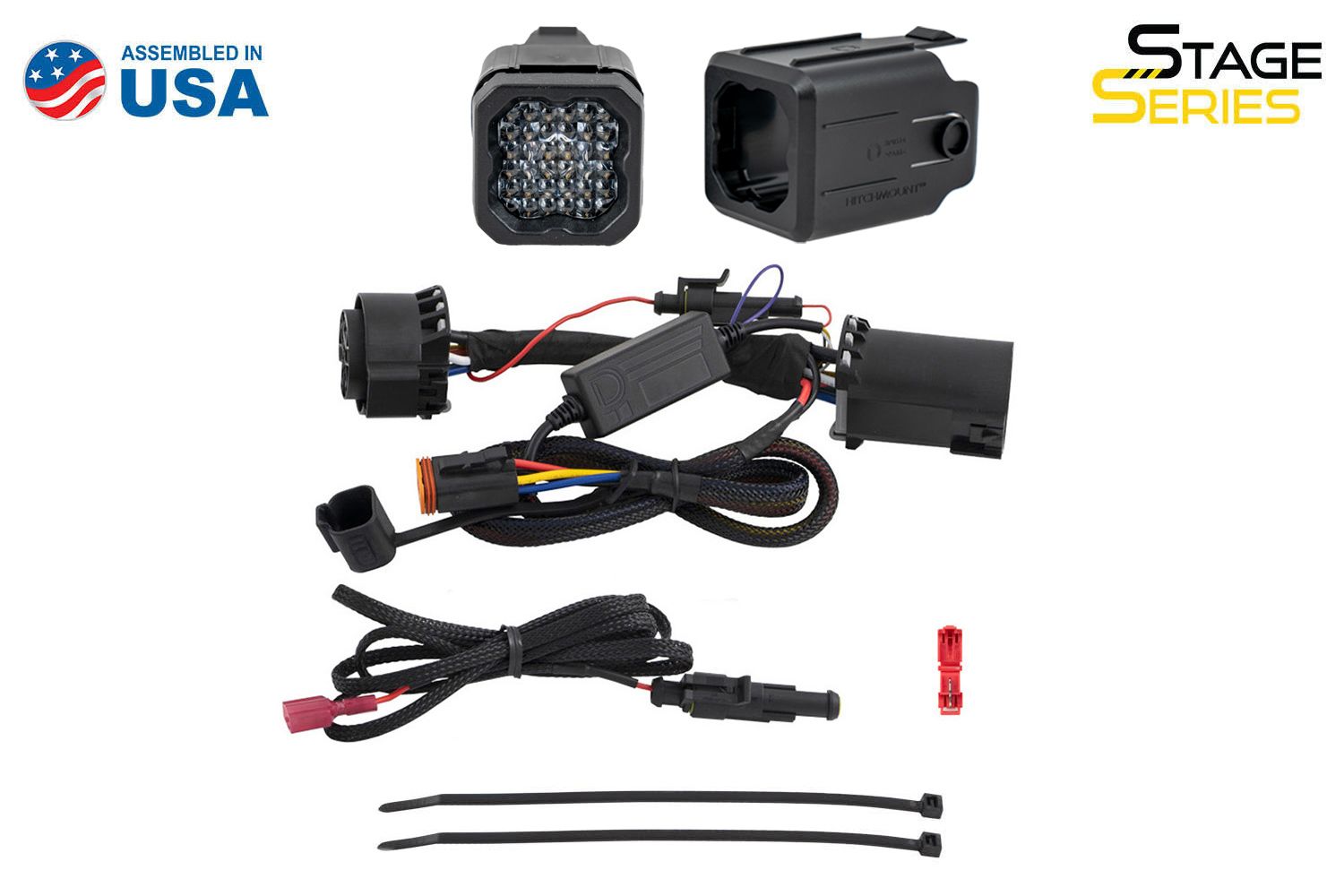

Included in the box:
- One (1) C1R HitchMount LED Pod
- One (1) Snap-In 2.5in Receiver Adapter
- One (1) 7-Pin trailer single output harness
- Two (2) Zip ties
- One (1) T-Tap
- Installation guide
Tech Specs

Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): 12.8
Intensity (lux): 400 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 030 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 12.8
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): 14.1
Intensity (lux): 480 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1080 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wiring Harness Included: Yes

Havent received yet

DD Hitchmount LED Pods

This is my 3rd order for the DD Hitchmount LED Pods, got this for my LC and they look great!

HitchMount LED Pod Reverse Kit

Htitchmount LED

Diode is a great brand and their hitchmount LED reverse kit was exactly what I wanted and needed. Quick and easy install. Ess K Customs sent it to me in a timely manner. Good prices as well. Thanks

Hitch LED reverse light with brake light feature.

Just want to start off by saying that this item (I think) is a bit pricey but the $9 delivery fee kind of made my wallet feel a little better...delivery was on time as scheduled...product came in a nice package with everything included...installation was as advertised (simple plug and play into existing hitch wiring harness)...light seems to be made well, easily removable for using the hitch and the backup light is very bright, as is the brake light...overall, a great mod to my Tacoma and the added safety features a bonus...very pleased with this purchase.
