SSC2 Universal Roll Bar Reverse Light Kit

$ 347.70 CAD $ 386.33 CAD

Diode Dynamics | SKU / Part Number: DD7722 | Barcode: 00195995133434

Choose Your Bracket Diameter

1 Inch 1.25 Inches 1.5 Inches 1.75 Inches 1.875 Inches 2 Inches

Choose Your Power Level

C2 1.0 Sport C2 1.0 Pro

Product variants

Free Canada Wide Shipping
Free shipping on all orders over $500

Found A Lower Price?
We price match or beat most competitors!

Description

The Diode Dynamics Stage Series 1 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair) offers a performance-driven upgrade for your vehicle's lighting. The Reverse Light Kit from Diode Dynamics allows you to mount two SSC2 LED pods on the factory roll bar above the rear cargo bed without any cutting or drilling. Designed with attention to detail, it provides: Allows for installation of SSC2 LED pods on UTV/ATV vehicles; Connects to ATV wiring for simple everyday operation; Provides high-power reverse light and red accent light; Durable powdercoated aluminum construction; Designed in USA. Built for reliability and a modern look, it's a simple way to improve both style and safety.

Install Guide

Specifications

Product Currently Selected

Stage Series 1 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair), DD7722
Stage Series 1 Inch Roll Bar Reverse Light Kit SSC2 Pro (pair), DD7723
Stage Series 1.25 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair), DD7726
Stage Series 1.25 Inch Roll Bar Reverse Light Kit SSC2 Pro (pair), DD7727
Stage Series 1.5 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair), DD7730
Stage Series 1.5 Inch Roll Bar Reverse Light Kit SSC2 Pro (pair), DD7731
Stage Series 1.75 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair), DD7734
Stage Series 1.75 Inch Roll Bar Reverse Light Kit SSC2 Pro (pair), DD7735
Stage Series 1.875 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair), DD7873
Stage Series 1.875 Inch Roll Bar Reverse Light Kit SSC2 Pro (pair), DD7874
Stage Series 2 Inch Roll Bar Reverse Light Kit SSC2 Sport (pair), DD7667
Stage Series 2 Inch Roll Bar Reverse Light Kit SSC2 Pro (pair), DD7668
Features and Benefits

Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation

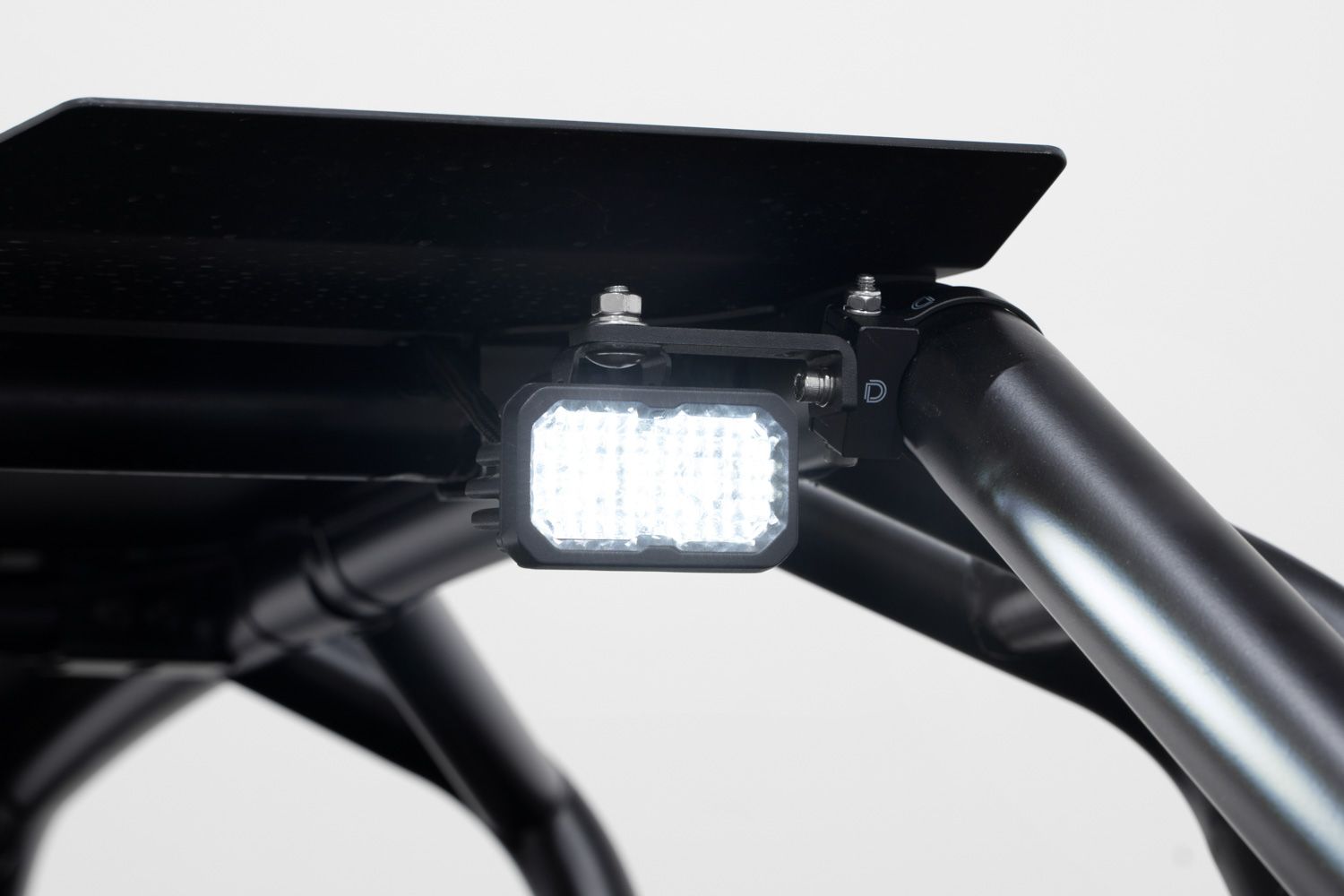

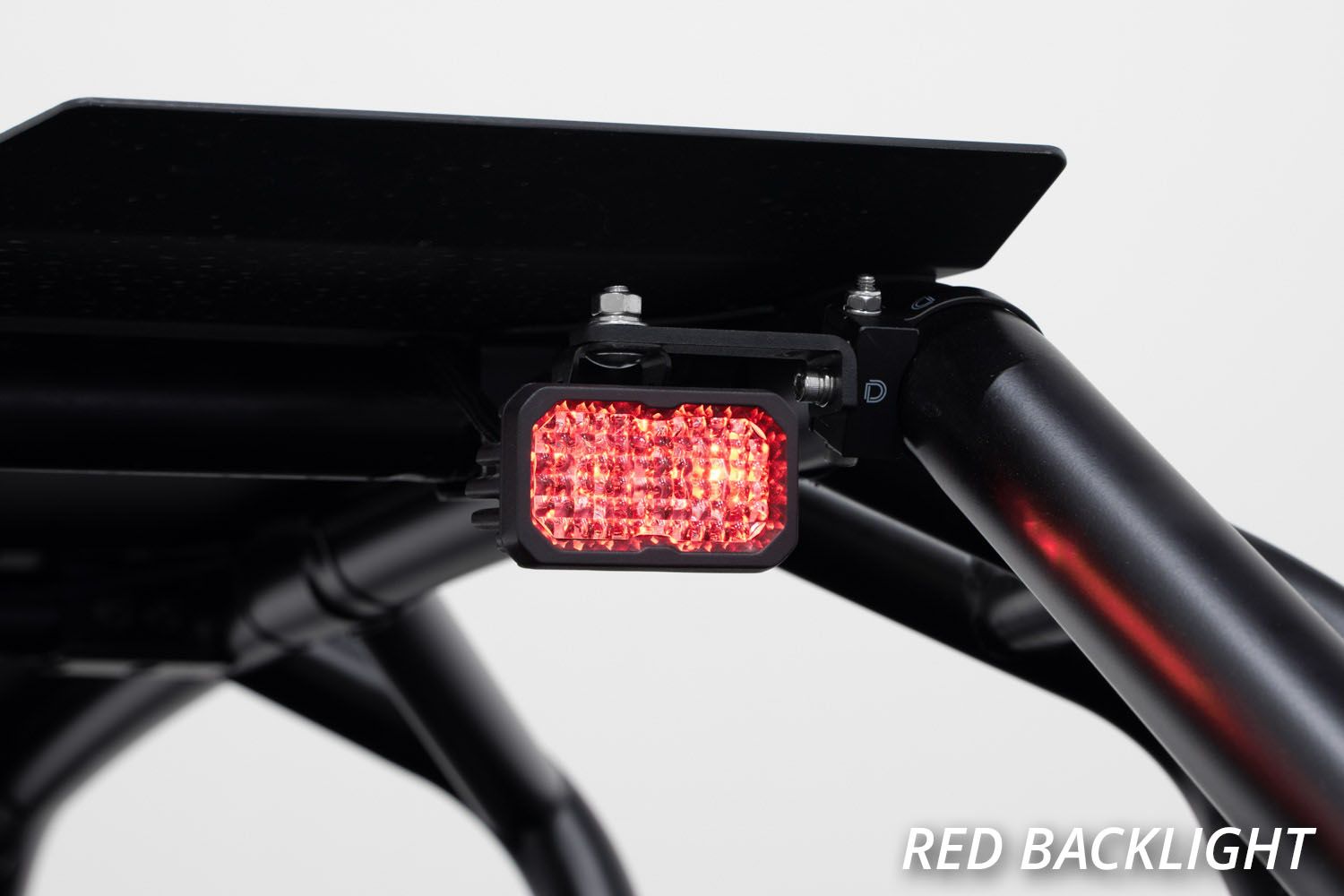

Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Allows for installation of SSC2 LED pods on UTV/ATV vehicles
Connects to ATV wiring for simple everyday operation
Provides high-power reverse light and red accent light
Durable powdercoated aluminum construction
Designed in USA
Modern TIR optics for the highest intensity on the market
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Modern TIR optics for the highest intensity on the market
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction

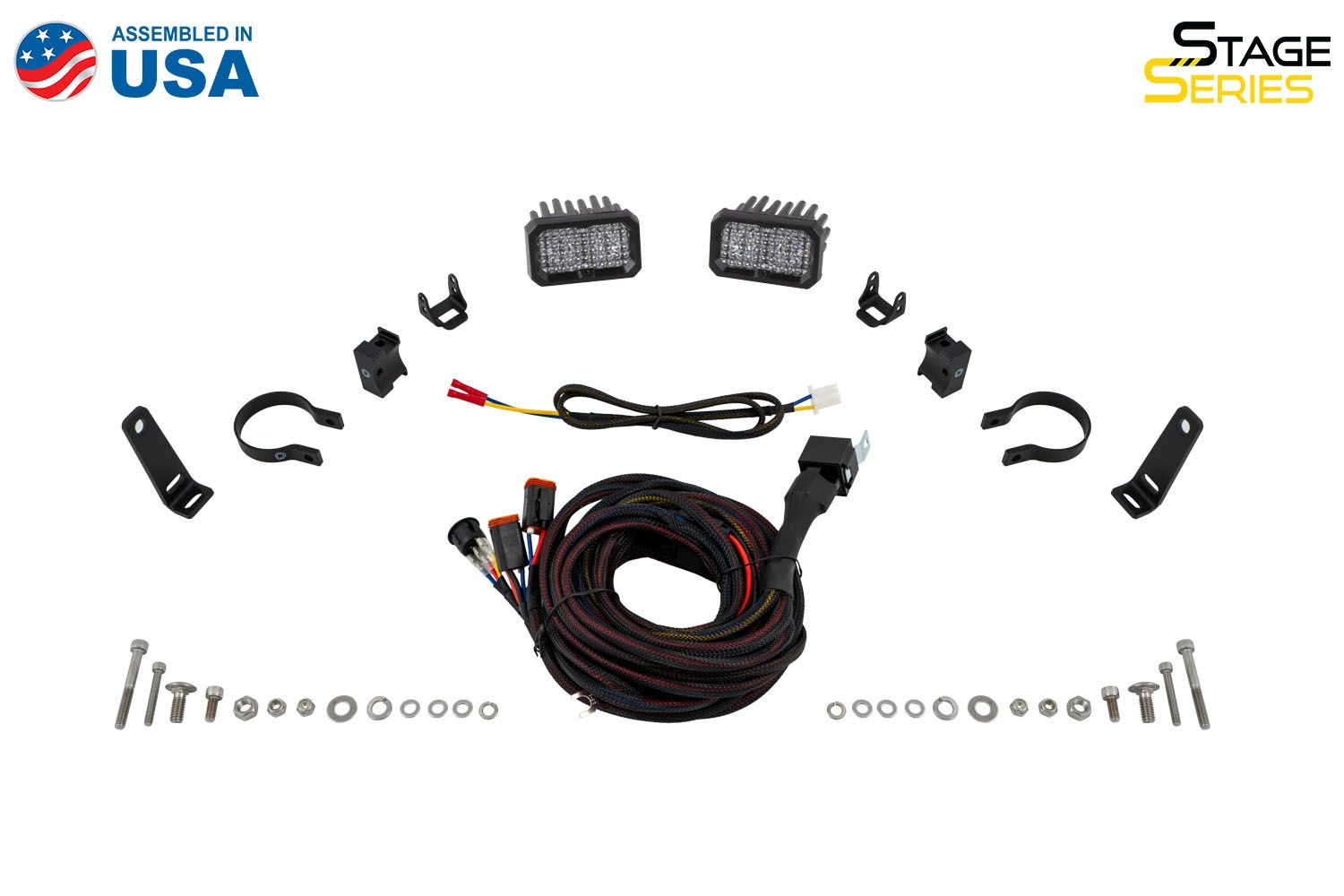

Whats Included

Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.25" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.25" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.5" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.5" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.75" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.75" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.875" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 1.875" Roll Bar Mount Kits
- One (1) Heavy Duty Dual Output 3Way 4P Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 2" Roll Bar Mount Kits
- One (1) Heavy Duty Double Output 4-pin Wiring Harness
Included in the box:
- Two (2) Stage Series 2" LED Pods
- Two (2) 2" Roll Bar Mount Kits
- One (1) Heavy Duty Double Output 4-pin Wiring Harness
Tech Specs

Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 988 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 25.6
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 988 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 25.6
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 988 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 25.6
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 988 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 25.6
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Color Temp: 6000K
Housing Color: Black
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Measured Output (lumens): 871 lm
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Weather Resistant: Yes
Wire Quantity: 2
Beam Angle: Flood 80°x50°
Color Temp: 6000K
Housing Color: Black
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Measured Output (lumens): 1 988 lm
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Weather Resistant: Yes
Wire Quantity: 2
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 7.7 Backlight: 0.7
Intensity (lux): 375 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 871 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 7.7
Wiring Harness Included: Yes
Beam Angle: Flood 80°x50°
Bulbs Included: No
Color Temp: 6000K
DOT Approved: No
Housing Material: Steel
Input Power (watts): Main Beam: 25.6 Backlight: 0.7
Intensity (lux): 700 cd
Intrusion Rating: IP67 Weatherproof
Lens Color: Clear
Lens Material: Polycarbonate
Material: Steel
Measured Output (lumens): 1 988 lm
Mounting Hardware Included: Yes
Operating temperature: -40C to 85C (-40F to 185F)
Operating Voltag: 9-16V
Street Legal: Yes
Universal Or Specific Fit: Specific
Voltage: 9-16V
Wattage: 25.6
Wiring Harness Included: Yes

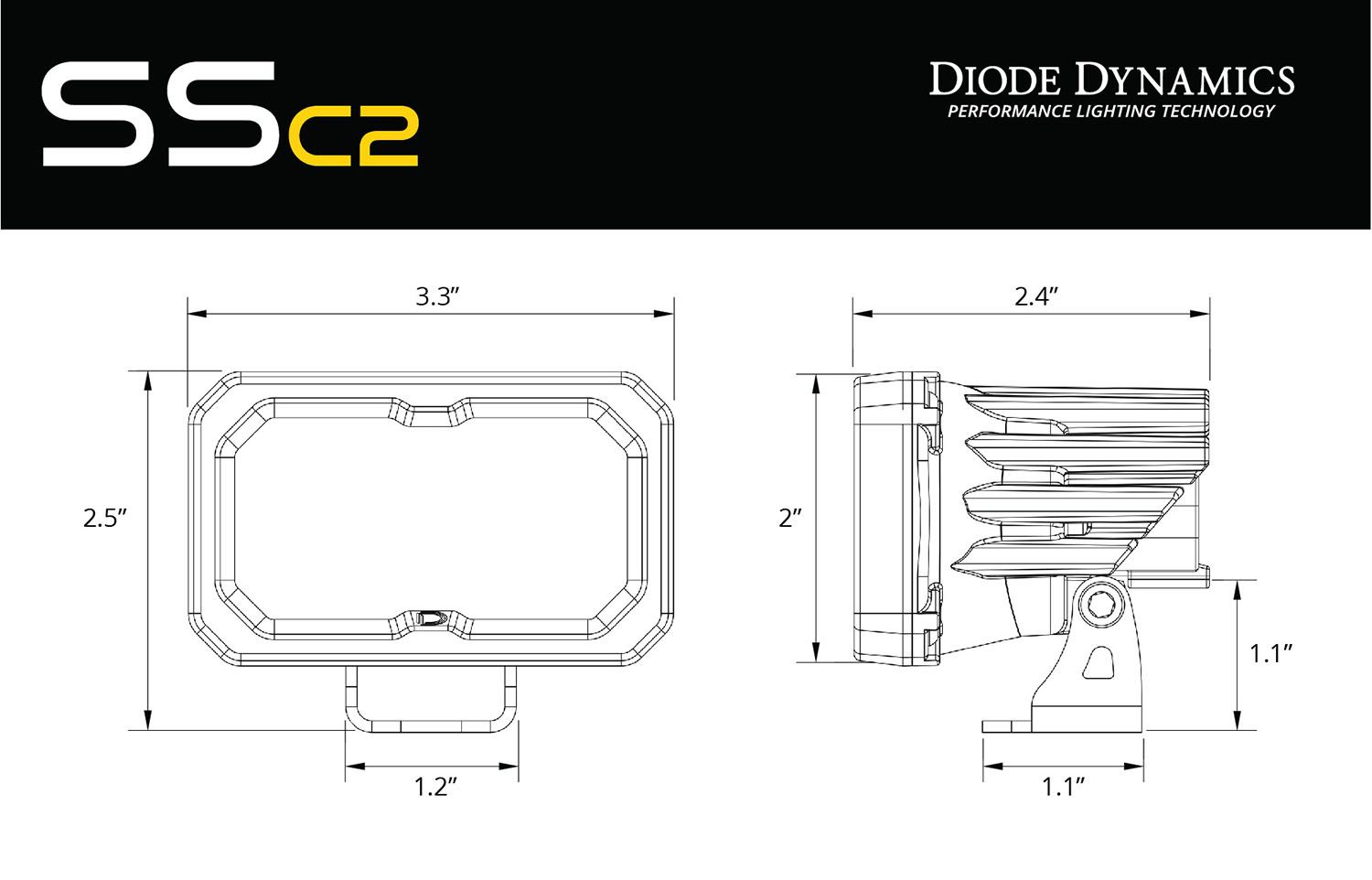

SSC2 Universal Roll Bar Reverse Light Kit

Description

Specifications

Customer Reviews

Your cart

SSC2 Universal Roll Bar Reverse Light Kit

Customer Service

Current Promotions

Choose options
