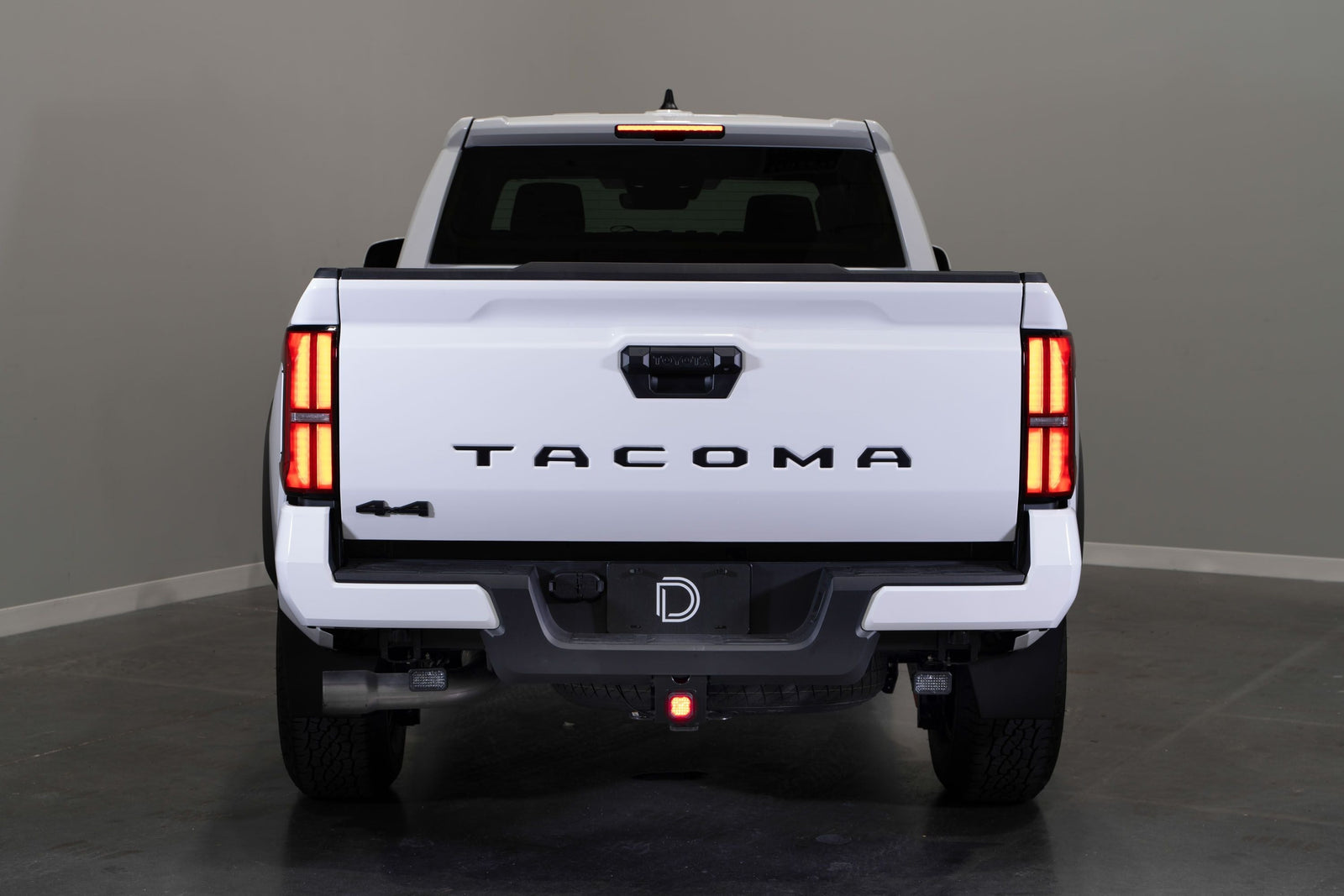

The HitchMount LED Pod Reverse Kit for the 2024+ Toyota Tacoma installs an SSC1 or C1R LED pod in your 2-inch trailer hitch receiver, adding a high-power reverse light, running light, and optional 4th brake light (C1R option). This plug-and-play kit takes just minutes to install. Here's the full walkthrough.
Note: All HitchMount LED Pod kits now include a custom-molded adapter sleeve for use with 2.5-inch receivers. This adapter is not needed for standard 2-inch hitch receivers and can be set aside.
Table of Contents
- Installation Video
- Installation Instructions
- Questions About the Install?
- Shop Tacoma Lighting at Ess K Customs
Installation Video
Installation Instructions
Step 1 — Locate and Disconnect the Factory 7-Pin Connector
Locate the 7-pin trailer connector on the rear bumper. On the backside of the bumper, depress the locking tab to disconnect the OE plug from the back of the 7-pin connector.
Step 2 — Plug the Harness In-Line
Connect the provided wire harness in-line with the OE harness. One side goes into the original plug, the other side into the back of the 7-pin connector.
Step 3 — Route and Connect the DT Connector
Route the DT connector through the back of the hitch receiver. Plug the DT connector into your HitchMount LED pod.
Step 4 — Insert the HitchMount and Test
Slide the HitchMount into your receiver and ensure the tabs on the snap-fit housing lock into place. Test to verify everything functions properly and secure any loose wiring. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop Tacoma Lighting at Ess K Customs
Looking for lighting upgrades for your 2024+ Toyota Tacoma? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Browse HitchMount Kits at Ess K Customs →
This install guide applies to Diode Dynamics SKUs: DD7420, DD7422
