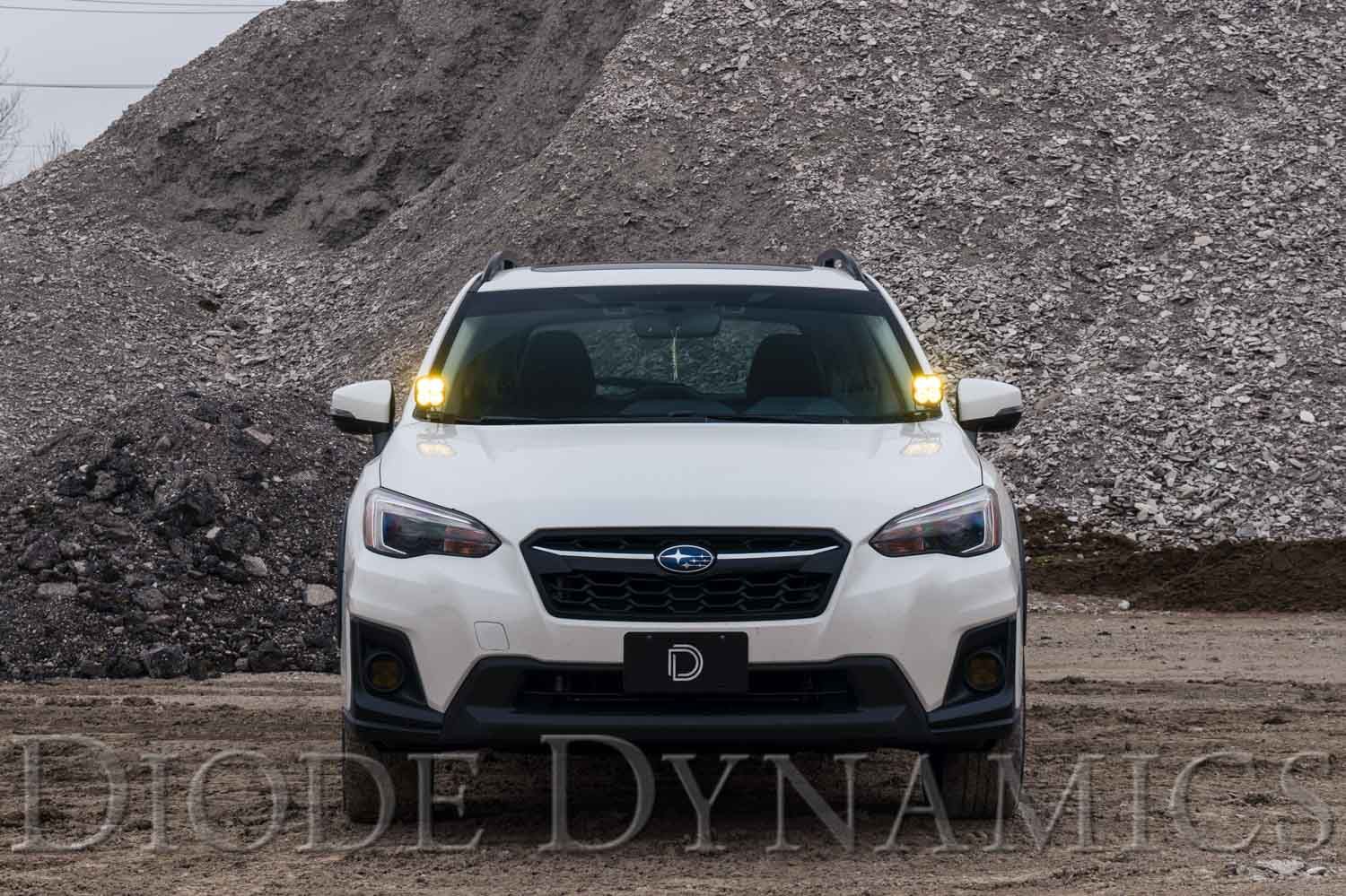

The Stage Series Backlit Ditch Light Kit for the 2018-2023 Subaru Crosstrek mounts two SSC2 or SS3 backlit pods above the hood using CAD-designed brackets that bolt to factory mounting points. No cutting or drilling required — the low-profile design minimizes glare and doesn't interfere with hood operation. Here's the full walkthrough.
Table of Contents
- Installation Video
- Tools Required
- Mounting Instructions
- Questions About the Install?
- Shop Crosstrek Lighting at Ess K Customs
Installation Video
Tools Required
- Masking tape
- Ratchet
- 12mm socket
- 13mm socket
- 4mm Allen wrench
Mounting Instructions
Step 1 — Mark and Tape the Hood Hinge
Open the hood and mark the location of the hood hinges with tape. Tape the edges of the hood to prevent scratching during installation.
Step 2 — Remove the Factory Hood Bolts
Remove the two 12mm bolts securing the hood hinge while holding the back of the hood.
Step 3 — Install the Ditch Light Bracket
Place the ditch light bracket under the hinge and align the holes. Adjust the bracket to leave a slight gap at the back of the hood before tightening. Secure the bracket and hood hinge with the factory bolts, making sure the hinge lines up with your tape marks. Remove the tape and repeat on the other side.
Step 4 — Mount the LED Pods
Assemble your SSC2 or SS3 LED pods per the included assembly guide. Place the assembled pod on top of the ditch light bracket, feed the carriage bolt through the universal bracket and ditch light bracket, add the washer and nut underneath, and tighten hand-tight for aiming. Make final aiming adjustments, then tighten securely. Repeat on the other side. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
