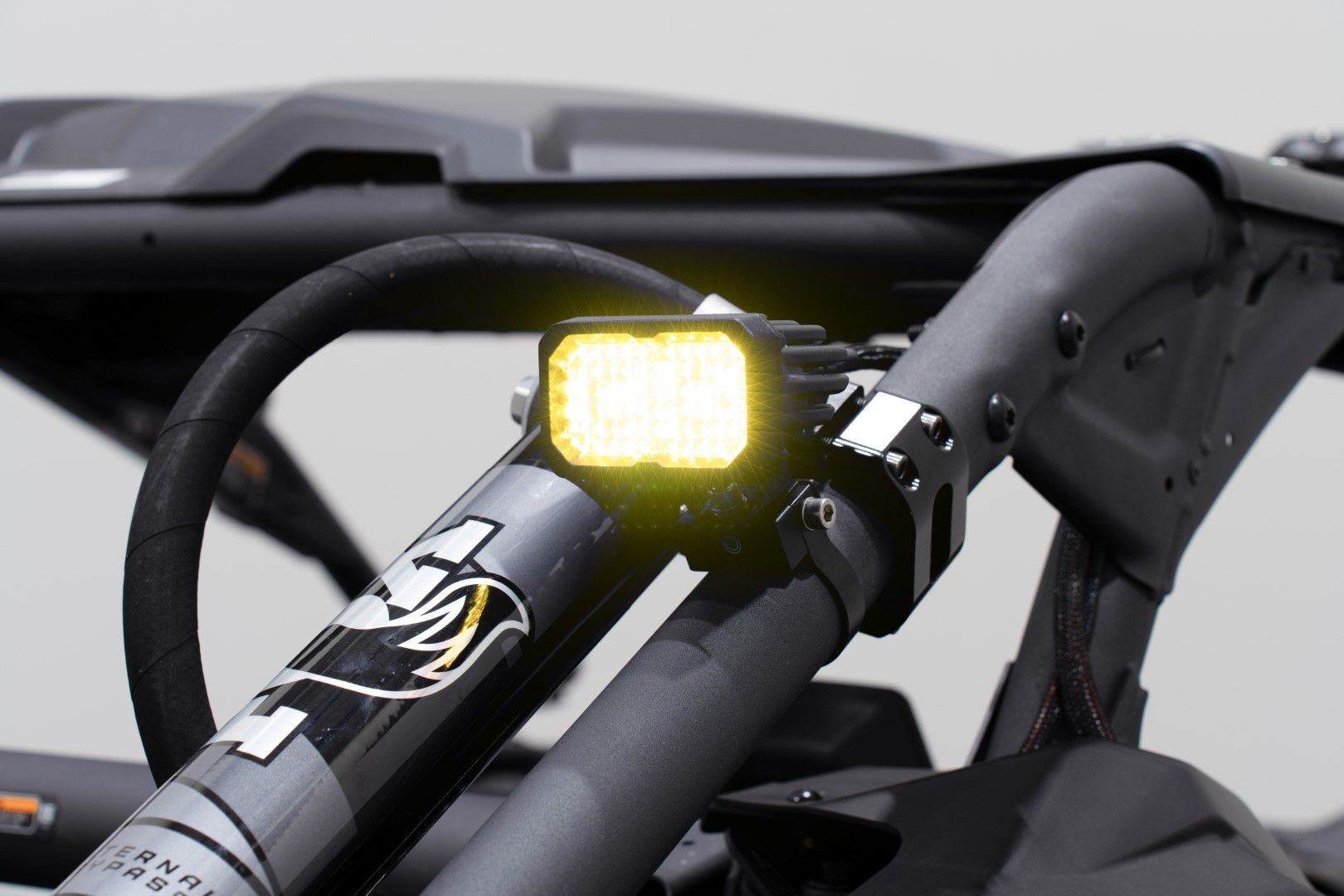

The LED Chase/Reverse Light Kit for the 2017-2025 Can-Am Maverick X3 replaces your rear lighting with a Diode Dynamics Stage Series pod for improved visibility during night rides and dusty trail conditions. This is a direct-fit kit with no permanent modifications required. Here's the full walkthrough.
Table of Contents
- Installation Video
- Tools Required
- Installation Instructions
- Questions About the Install?
- Shop Can-Am Maverick X3 Lighting at Ess K Customs
Installation Video
Tools Required
- 5mm Allen key
- 10mm wrench
- 10mm socket
- 13mm wrench
- 18mm ratchet
- 5/32" Allen wrench
- 3/8" wrench
- T30 Torx bit
- Trim removal tool
Installation Instructions
Step 1 — Assemble the Roller Mount
Attach the Stage Series pod to the included roller mount bracket using the supplied hardware. Secure the pod with the carriage bolt, washers, lock washers, and nuts using a 13mm wrench.
Step 2 — Install the Universal Bracket
Attach the universal bracket to the rear of the vehicle using the supplied hardware. This bracket provides the mounting point for the chase/reverse light assembly.
Step 3 — Prepare the Vehicle Interior
Remove the driver's seat and access the battery compartment. Disconnect the negative battery terminal before proceeding with wiring to prevent shorts.
Step 4 — Connect the Wiring Harness
Route the wiring harness from the rear mounting location to the battery. Connect the positive and negative leads at the battery terminals. Ensure all connections are secure and properly insulated.
Step 5 — Route the DT Harness
Plug the DT connector into the back of the Stage Series pod. Route the harness along existing wiring paths, avoiding hot or moving parts. Secure any loose wiring with zip ties.
Step 6 — Test and Finalize
Reconnect the battery, turn on the lights, and test all functions including chase and reverse modes. Reinstall the seat and any interior panels removed during installation. The install is complete.
Questions About the Install?
If you run into any issues during the installation, contact Ess K Customs — as an authorized Diode Dynamics dealer, we're here to help.
Shop Can-Am Maverick X3 Lighting at Ess K Customs
Looking for lighting upgrades for your Can-Am Maverick X3? As an authorized Diode Dynamics dealer, Ess K Customs carries genuine products with full manufacturer warranty.
Browse Can-Am Maverick X3 Lighting at Ess K Customs →
This install guide applies to Diode Dynamics SKUs: DD7872, DD7873, DD7874, DD7875, DD7876
